Anyone have a truck "cap" "topper" "shell" hoist?

Discussion in 'Tonneau Covers, Caps and Shells' started by Madtown Taco, Jun 22, 2010.

  1. Jun 22, 2010 at 1:27 AM
    #1
    Madtown Taco

    Madtown Taco [OP] Well-Known Member

    Joined:
    Aug 19, 2009
    Member:
    #21448
    Messages:
    71
    Gender:
    Male
    First Name:
    Mike
    Madison, Wisconsin
    Vehicle:
    05 TRD Sport SR5 DC LB 4x4
    Gun Metal FJ Cruiser TRD Wheels, Black Head Lights, I-pod Patch Cable for Stock Head Unit, In-Cab 115V outlets, Aries Bull Bar, 12V outlets in Bed, Snug Top Super Sport Topper, Hard-Wired Valentine 1 Radar Detector, Disabled Automatic Air Conditioning for Windshield Vent Setting, Additional D-Rings in Bed, 12-Volt Pop-N-Lock Solenoid in Tailgate Handle, TRD Front Seat Covers, WeatherTech Floor Mats
    I was thinking about buying, or preferrably building some sort of a hoist to be able to take off and re-install my topper on my truck. The topper would then be stored on some sort of strap system attached to my rafters in my garage. I was wondering if anyone has any experience with these and could steer me in the right direction as far as parts for building one? I appreciate all advice. Thanks! :thumbsup::thumbsup:

  2. Jun 22, 2010 at 3:27 AM
    #2
    cobrakenny

    cobrakenny Well-Known Member

    Joined:
    Jul 8, 2007
    Member:
    #2034
    Messages:
    126
    Gender:
    Male
    First Name:
    Ken
    Raleigh, NC
    Vehicle:
    09 TRD Crew Cab 4x4 LB
  3. Jun 22, 2010 at 7:18 AM
    #3
    bb609

    bb609 O.F.

    Joined:
    Jun 16, 2009
    Member:
    #18509
    Messages:
    791
    Gender:
    Male
    NH
    Vehicle:
    '09 TRD Sport Access Cab
    Bilstein 5100 CO's @ 1.75" - Icon UCA's - TSB Rear w/Bilstein 5100's - Air Lift System - Flowmaster 50 Duals(RIP...back to stock for now) - Avid Offroad Arctic Bar - Avid Offroad Nerf Bars - Leer 550 Bedcover - AVS Hood Protector(RIP) - Ventshades - Yota Bed Mat - Sheepskins!!! - Weathertechs
    I built one using ropes and pulleys and 2x3's under the shell. I had 4 separate ropes and pulleys which made it a bit cumbersome but doable by one person. Just clamp the shell to the 2by's with the bed clamps and it stays very stable to lift.

  4. Jun 22, 2010 at 9:34 AM
    #4
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,192
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    I built one too. Although my shell has some bars across the top which makes it easier to connect than most shells.

    [​IMG]

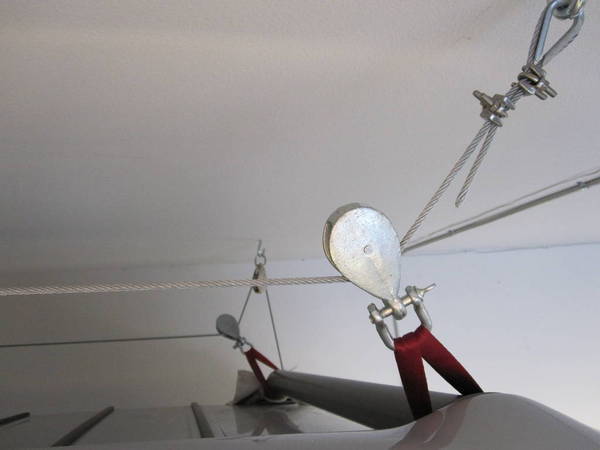

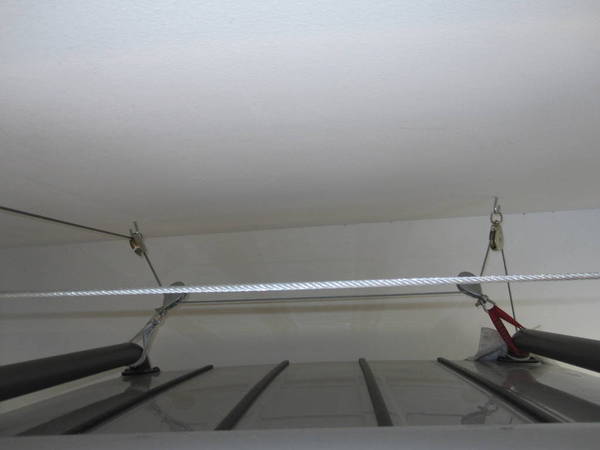

    I used a hand crank purchased from Harbor Freight. Its a very low gear ratio, so I can remove the handle and connect a drill to raise and lower.
    [​IMG]



    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    You get the idea.

  5. Jun 22, 2010 at 9:41 AM
    #5
    HAMSOLO

    HAMSOLO Member

    Joined:
    Dec 29, 2009
    Member:
    #28400
    Messages:
    24
    Gender:
    Male
    First Name:
    Theo.
    NE
    I went the cheapie way and just use ratchet straps and eye-hooks in the joists.........but that winch setup is pretty slick

  6. Jun 22, 2010 at 9:45 AM
    #6
    scocar

    scocar being weird again....still

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    23,172
    Gender:
    Male
    First Name:
    Glitterdick
    In close proximity to an undisclosed location
    Vehicle:
    15 DCLB x4 SR5, 01 Xcab TRD x4 V6 Man. SR5
    01: OME 881s, Dakars, greasable shackles, Nitrocharger sports, extended exhaust hanger, BAMF BPV relocate, Wheeler's extended brake line, rear diff breather mod, swaybar removed, Pilot backup lights, Redline hood struts, 4Runner 5-stars, Hidden Hitch Class III, 7-pin marine-grade wiring
    That is f'in sweet! What a luxury to have those bars on top for this task. I need to figure out somethign for mine, but I don't even have traditional joist (or studs) in my detached garage's ceiling. I will have to build some sort of gantry deal.

  7. Jun 22, 2010 at 9:51 AM
    #7
    scocar

    scocar being weird again....still

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    23,172
    Gender:
    Male
    First Name:
    Glitterdick
    In close proximity to an undisclosed location
    Vehicle:
    15 DCLB x4 SR5, 01 Xcab TRD x4 V6 Man. SR5
    01: OME 881s, Dakars, greasable shackles, Nitrocharger sports, extended exhaust hanger, BAMF BPV relocate, Wheeler's extended brake line, rear diff breather mod, swaybar removed, Pilot backup lights, Redline hood struts, 4Runner 5-stars, Hidden Hitch Class III, 7-pin marine-grade wiring
    I would love to see pix of this if you can take some...especially the 2x3s. I imagine they clamp along the length of the bedrail area, and then you just screwed eyebolts to the outside edge so attach the hoist ropes? Do you lift the shell intially with a floor jack in the bed just to get it high enough to put the 2x3s underneath each side?

  8. Jun 22, 2010 at 9:53 AM
    #8
    woodygg

    woodygg Well-Known Member

    Joined:
    Mar 18, 2010
    Member:
    #33462
    Messages:
    1,713
    Gender:
    Male
    So Cal
    Vehicle:
    04 DC Tacoma 4x4
    a common place to find info like this is search for them for jeeps...

  9. Jun 22, 2010 at 2:44 PM
    #9
    aficianado

    aficianado Well-Known Member

    Joined:
    Oct 27, 2009
    Member:
    #25015
    Messages:
    5,105
    Gender:
    Male
    bay area, california
    Vehicle:
    2006 access cab. 4x4, TRD-OR
    OME lift. 884 coils, 1.5" AAL's installed on nonTSB leafs. front diff drop kit.
    how heavy the average topper?

  10. Jun 22, 2010 at 3:03 PM
    #10
    05Moose

    05Moose Middle-Aged Member

    Joined:
    Jan 18, 2010
    Member:
    #29613
    Messages:
    2,451
    Gender:
    Male
    First Name:
    Jim
    In the snow (NorCal)
    Vehicle:
    '05 4x4 DC LB SR5 #8 (LSD, Tow Pkg)
    '05 4x4 DC LB SR5 (LSD & Tow Pkg), Timbrens, AAL, 5100s (.85), Owned: 12/3/04 Mods: Fog, Map/Dome Light, Illuminated 4wd Switch, Washable Cabin Air Filter
    I wonder if the one for his cap is similar to my setup for the tonneau? No pulleys on mine though. But for $15, can't go wrong.
    [​IMG]
    [​IMG]

  11. Jun 22, 2010 at 7:23 PM
    #11
    Madtown Taco

    Madtown Taco [OP] Well-Known Member

    Joined:
    Aug 19, 2009
    Member:
    #21448
    Messages:
    71
    Gender:
    Male
    First Name:
    Mike
    Madison, Wisconsin
    Vehicle:
    05 TRD Sport SR5 DC LB 4x4
    Gun Metal FJ Cruiser TRD Wheels, Black Head Lights, I-pod Patch Cable for Stock Head Unit, In-Cab 115V outlets, Aries Bull Bar, 12V outlets in Bed, Snug Top Super Sport Topper, Hard-Wired Valentine 1 Radar Detector, Disabled Automatic Air Conditioning for Windshield Vent Setting, Additional D-Rings in Bed, 12-Volt Pop-N-Lock Solenoid in Tailgate Handle, TRD Front Seat Covers, WeatherTech Floor Mats
    Thanks guys. That set-up is perfect and looks pretty affordable. Reason #1,000 that I love this site.

  12. Jun 23, 2010 at 12:13 AM
    #12
    DDD

    DDD Shine bright like a hymen

    Joined:
    Mar 6, 2009
    Member:
    #14416
    Messages:
    2,192
    Gender:
    Male
    First Name:
    Derek
    Santa Clarita, CA
    Vehicle:
    06 DC 4x4 TRD Off-Road
    Its a SnugTop XTR Shell.

    It weighs about 220 lbs (my best guess). Without the winch 2 men (one on each side) can lift it.

  13. Jun 23, 2010 at 8:10 AM
    #13
    aficianado

    aficianado Well-Known Member

    Joined:
    Oct 27, 2009
    Member:
    #25015
    Messages:
    5,105
    Gender:
    Male
    bay area, california
    Vehicle:
    2006 access cab. 4x4, TRD-OR
    OME lift. 884 coils, 1.5" AAL's installed on nonTSB leafs. front diff drop kit.

    wow, in my mind..this sentence was crafted perfectly.

    thanks for the idea on weight.

  14. Jun 23, 2010 at 8:19 AM
    #14
    colinb17

    colinb17 If at first you don't succeed, don't try skydiving

    Joined:
    Jan 6, 2008
    Member:
    #4127
    Messages:
    17,492
    Gender:
    Male
    First Name:
    Colin
    Lusby, MD
    Vehicle:
    '07 TRD Sport 4x4
    Build thread in sig...
    this is essentially the same thing as what's in the first post, but cheaper. you could get away with using one (it's strong enough) but two would make it easy to lift and be plenty secure. i've used them to lift many different items. it has a lock mechanism for the rope, so even with two of them, you could completely lift the topper to the rafters by yourself. helps that they're cheap too :) http://www.performancebike.com/bikes/Product_10052_10551_1023851_-1_400028_400007_400245

  15. Jun 23, 2010 at 9:12 AM
    #15
    scocar

    scocar being weird again....still

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    23,172
    Gender:
    Male
    First Name:
    Glitterdick
    In close proximity to an undisclosed location
    Vehicle:
    15 DCLB x4 SR5, 01 Xcab TRD x4 V6 Man. SR5
    01: OME 881s, Dakars, greasable shackles, Nitrocharger sports, extended exhaust hanger, BAMF BPV relocate, Wheeler's extended brake line, rear diff breather mod, swaybar removed, Pilot backup lights, Redline hood struts, 4Runner 5-stars, Hidden Hitch Class III, 7-pin marine-grade wiring
    I thought poetic it was.

    db67fm, my SnugTop has the same close-fitting curved (I think?)edge where it rests on the bed rails, but I bought my truck used with the top on it, so I do not know what the profile of the edge is like, and I don't have the original shipping rails it came on. :confused: I'd like to know so I can consider my options when having to lift or set it down on these edges without damaging the fiberglass or rubber gasket.

    If it is convenient for you, would you be so kind as to snap some close-ups of this area on your cap while it is off, like a shot looking down along the rail edge from back to front?

    A cap lift is my next project, so I can do the next project after that: I need to replace the stupid rubber boot that the original owner had installed, which rubs against the cab, which makes noise and ruins the paint. :mad: I need to replace it with a fold-down slider, and that will require some serious adapting, because the existing hole is bigger than the window that will replace it. Anyway, I need to have this thing resting securley on the rails at workbench height for a while when I fabricate tha adpater and install the window.

    I can figure out the rigging and winching and all, but I just need to understand that bottom edge of the cap...

  16. Jun 23, 2010 at 9:29 AM
    #16
    T0LLPHR33

    T0LLPHR33 Well-Known Member

    Joined:
    Sep 26, 2007
    Member:
    #2817
    Messages:
    1,605
    Gender:
    Male
    S1N C1TY...(from Hilo, HI)...
    Vehicle:
    BSP TRD Off-Road
    APR X-1 | TRD CAI w/Clear Cover | TRD Short Shifter w/ TRD "RED" Shift Knob | SGII w/Blendmount| Snugtop SL w/KeyLess Entry | 5% Tint | Pop-n-Lock | Bosch Icon WB | S2K Antenna | HRM | LS 8K Projectors w/BSP HLM & 8K Fogs w/FLM | Debadged |Tinted Tails | Black Weathertechs | MX RGM & RBM | Optima Red Top 35 | Gatorback Belt |
    sweet set up bro...:D

    I plan on doing something similar to this for my tonneau cover when I purchase my house...

  17. Jun 23, 2010 at 10:38 AM
    #17
    Silver06Taco

    Silver06Taco Well-Known Member

    Joined:
    Aug 20, 2009
    Member:
    #21472
    Messages:
    174
    Gender:
    Male
    WA state
    Vehicle:
    Silver 06 DC TRD Sport
    I like this idea, but it says that the max load for one of them is 55 lbs. The canopy that I recently ordered is about 130 lbs., at least that's what the salesman said.

    I definitely need to make one of these hoists!

  18. Jun 23, 2010 at 10:47 AM
    #18
    colinb17

    colinb17 If at first you don't succeed, don't try skydiving

    Joined:
    Jan 6, 2008
    Member:
    #4127
    Messages:
    17,492
    Gender:
    Male
    First Name:
    Colin
    Lusby, MD
    Vehicle:
    '07 TRD Sport 4x4
    Build thread in sig...
    ^^^ my bad, i didn't even look at the load cap. you cold run 3 of them and just rerout the lines using pullies so that you only have one line to pull that opperates all of them at once. essentially like db67fm, but without the winch, and using rope instead of steel cable

  19. Mar 8, 2011 at 12:06 PM
    #19
    landis76

    landis76 New Member

    Joined:
    Mar 8, 2011
    Member:
    #52589
    Messages:
    1
    Gender:
    Male
    Hey DB,

    I bought one of those winches but I noticed there is no racheting latch. How do you keep it from unrolling?

  20. Mar 8, 2011 at 2:13 PM
    #20
    RZRob

    RZRob Well-Known Member

    Joined:
    Dec 9, 2009
    Member:
    #27315
    Messages:
    454
    Gender:
    Male
    First Name:
    Robert
    Anaheim Hills
    I bought a really cool crank hoist shelf from Costco Online and then I simply unhook their shelf and hook in 2 notched 2x4s. Notching is important so I lift from inside the shell so as to not damage by lifting from the outer edges. It works great.

    http://www.costco.com/Browse/Product.aspx?Prodid=11040990

    RZ Rob
