Anyone made some skid plates

Discussion in 'Armor' started by Darkgoatracer, May 18, 2017.

  1. May 18, 2017 at 10:24 AM
    #1
    Darkgoatracer

    Darkgoatracer [OP] Well-Known Member

    Joined:
    Feb 18, 2017
    Member:
    #210945
    Messages:
    1,001
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    2012 trd sport tacoma
    Sticker mod, bro wheels
    Hey guys, has anyone posted up a build thread of home made skid plates? Maybe with measurements? I looked and didn't see anthing.

    RIDINRICKY likes this.
  2. May 18, 2017 at 12:28 PM
    #2
    ericd

    ericd Well-Known Member

    Joined:
    Aug 13, 2012
    Member:
    #84703
    Messages:
    797
    Gender:
    Male
    First Name:
    Eric
    las vegas
    Vehicle:
    2013 DCSB 4x4 OR

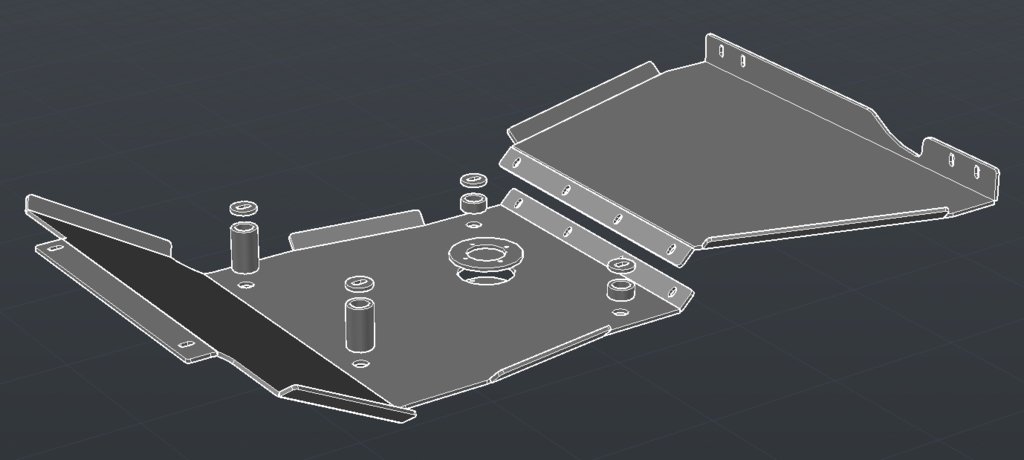

    This is a drawing I got from @Sub-Zero. I haven't had a chance to work on this yet but I did get under there and take some measurements for the mounting bolts. I'm going to make a few changes. Namely reduce the angle of the bash plate. I'll try to get that drawn as well.

    [​IMG]

  3. May 18, 2017 at 4:24 PM
    #3
    Darkgoatracer

    Darkgoatracer [OP] Well-Known Member

    Joined:
    Feb 18, 2017
    Member:
    #210945
    Messages:
    1,001
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    2012 trd sport tacoma
    Sticker mod, bro wheels
    Sweet baby jepus!

  4. May 18, 2017 at 4:27 PM
    #4
    Darkgoatracer

    Darkgoatracer [OP] Well-Known Member

    Joined:
    Feb 18, 2017
    Member:
    #210945
    Messages:
    1,001
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    2012 trd sport tacoma
    Sticker mod, bro wheels
    Do you know what the x and similar lines are for?

  5. May 18, 2017 at 4:47 PM
    #5
    ericd

    ericd Well-Known Member

    Joined:
    Aug 13, 2012
    Member:
    #84703
    Messages:
    797
    Gender:
    Male
    First Name:
    Eric
    las vegas
    Vehicle:
    2013 DCSB 4x4 OR
    It's cross bracing to protect it from bend in when it's hit.

  6. May 18, 2017 at 4:50 PM
    #6
    Darkgoatracer

    Darkgoatracer [OP] Well-Known Member

    Joined:
    Feb 18, 2017
    Member:
    #210945
    Messages:
    1,001
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    2012 trd sport tacoma
    Sticker mod, bro wheels
    Ah I see. Any ideas what he planned on making that bracing out of?

  7. May 18, 2017 at 4:52 PM
    #7
    ericd

    ericd Well-Known Member

    Joined:
    Aug 13, 2012
    Member:
    #84703
    Messages:
    797
    Gender:
    Male
    First Name:
    Eric
    las vegas
    Vehicle:
    2013 DCSB 4x4 OR
    I would use 1" x 1" x 1/4" angle iron. Lay it on the open face so it points straight up.

    I will try to get my modifications drawn in the next day or so and posted.

  8. May 18, 2017 at 4:53 PM
    #8
    Philly100000

    Philly100000 Unknown Human

    Joined:
    Oct 26, 2014
    Member:
    #141075
    Messages:
    151
    Gender:
    Male
    First Name:
    Phillip
    Regina, Saskatchewan, Canada
    Vehicle:
    2011 Toyota Tacoma 4x4 DCLB TRD Sport Edition
    Arcticelf likes this.
  9. May 18, 2017 at 4:57 PM
    #9
    Darkgoatracer

    Darkgoatracer [OP] Well-Known Member

    Joined:
    Feb 18, 2017
    Member:
    #210945
    Messages:
    1,001
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    2012 trd sport tacoma
    Sticker mod, bro wheels
    Sweet! Do you have measurements or the file for it? I really want to try making one.

  10. May 18, 2017 at 5:34 PM
    #10
    ericd

    ericd Well-Known Member

    Joined:
    Aug 13, 2012
    Member:
    #84703
    Messages:
    797
    Gender:
    Male
    First Name:
    Eric
    las vegas
    Vehicle:
    2013 DCSB 4x4 OR
    The modifications I"m making are going to make it look pretty much like yours.

  11. May 18, 2017 at 5:36 PM
    #11
    Darkgoatracer

    Darkgoatracer [OP] Well-Known Member

    Joined:
    Feb 18, 2017
    Member:
    #210945
    Messages:
    1,001
    Gender:
    Male
    First Name:
    Nick
    Vehicle:
    2012 trd sport tacoma
    Sticker mod, bro wheels
    If anyone feels like making an extra set one day and sticking them in the mail to me,feel free!

  12. May 19, 2017 at 7:13 AM
    #12
    Sub-Zero

    Sub-Zero instagram: @subzerofab

    Joined:
    Oct 15, 2014
    Member:
    #140388
    Messages:
    3,904
    Gender:
    Male
    First Name:
    Ryan
    Centennial CO
    Vehicle:
    '06 DCSB
    I used 1/8x1x1 angle

  13. May 19, 2017 at 7:14 AM
    #13
    Sub-Zero

    Sub-Zero instagram: @subzerofab

    Joined:
    Oct 15, 2014
    Member:
    #140388
    Messages:
    3,904
    Gender:
    Male
    First Name:
    Ryan
    Centennial CO
    Vehicle:
    '06 DCSB
    Also I did a 45* angle on the sides but I would do 90* if I did it again

  14. Sep 8, 2017 at 11:21 AM
    #14
    Skell

    Skell KORE

    Joined:
    Nov 11, 2016
    Member:
    #202121
    Messages:
    566
    Gender:
    Male
    First Name:
    Tony
    NE PA
    Vehicle:
    2015 DCSB, grey
    custom car grill, KORE sliders, light bar, KORE bed bars w/ tire and high lift mount. MOBTOWN front IFS skid.
    Anyone feel like sharing the files from their skids for a fellow DIY'er ?

  15. Sep 8, 2017 at 4:33 PM
    #15
    Sub-Zero

    Sub-Zero instagram: @subzerofab

    Joined:
    Oct 15, 2014
    Member:
    #140388
    Messages:
    3,904
    Gender:
    Male
    First Name:
    Ryan
    Centennial CO
    Vehicle:
    '06 DCSB
    Here ya go....double check the dimensions

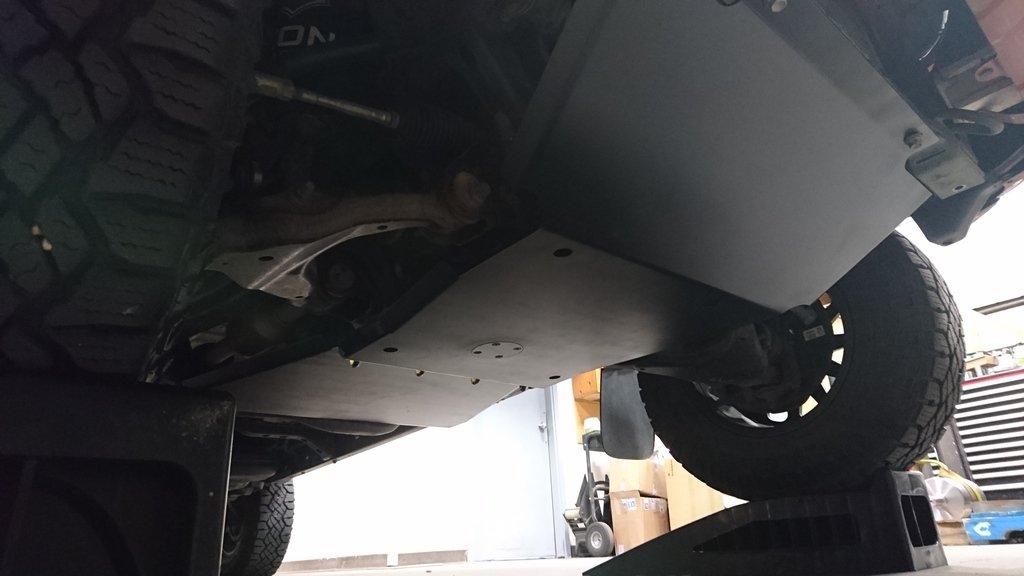

    ifs-trans skid.jpg

  16. Sep 9, 2017 at 3:50 PM
    #16
    Skell

    Skell KORE

    Joined:
    Nov 11, 2016
    Member:
    #202121
    Messages:
    566
    Gender:
    Male
    First Name:
    Tony
    NE PA
    Vehicle:
    2015 DCSB, grey
    custom car grill, KORE sliders, light bar, KORE bed bars w/ tire and high lift mount. MOBTOWN front IFS skid.
    You da man!

  17. Sep 12, 2017 at 6:05 PM
    #17
    Putzcommander

    Putzcommander Well-Known Member

    Joined:
    Jul 21, 2017
    Member:
    #224630
    Messages:
    96
    Vehicle:
    2016 Trd Sport Doublecab 5ft Box
    Softopper
    Lets say a person had access to aluminum road signs.... think theyd hold up to much of anything?

  18. Sep 12, 2017 at 10:34 PM
    #18
    Philly100000

    Philly100000 Unknown Human

    Joined:
    Oct 26, 2014
    Member:
    #141075
    Messages:
    151
    Gender:
    Male
    First Name:
    Phillip
    Regina, Saskatchewan, Canada
    Vehicle:
    2011 Toyota Tacoma 4x4 DCLB TRD Sport Edition
    I think light snow would bend them :rofl:

    But mine are 1/4" thick

  19. Sep 26, 2017 at 8:22 AM
    #19
    Sub-Zero

    Sub-Zero instagram: @subzerofab

    Joined:
    Oct 15, 2014
    Member:
    #140388
    Messages:
    3,904
    Gender:
    Male
    First Name:
    Ryan
    Centennial CO
    Vehicle:
    '06 DCSB
    :rofl: you would probably be okay if you ran over some cotton candy....but that's about it

    fatfurious2 likes this.
  20. Sep 27, 2017 at 5:53 PM
    #20
    Putzcommander

    Putzcommander Well-Known Member

    Joined:
    Jul 21, 2017
    Member:
    #224630
    Messages:
    96
    Vehicle:
    2016 Trd Sport Doublecab 5ft Box
    Softopper
    What about TWO? lol
