Anyone replaced their own clutch?

Discussion in '1st Gen. Tacomas (1995-2004)' started by bobwilson1977, Jan 14, 2009.

  1. Jan 14, 2009 at 3:20 PM
    #1
    bobwilson1977

    bobwilson1977 [OP] Well-Known Member

    Joined:
    Jan 7, 2009
    Member:
    #12328
    Messages:
    1,368
    Gender:
    Male
    KaliFORN-I-A
    Vehicle:
    96 Tacoma 2WD ( pizza delivery model)
    none except for crappy hub caps and floor mats.
    I've got a 96' tacoma 4 banger with a 5 speed manual. 216,000 miles, original clutch. Well the clutch is going bad and I have two choices: replace it myself or have someone else do it. I'm pretty handy, but I don't know if I have all the right tools to do the job. No air/impact wrench or what not. Just typical mechanic's tools. I realize that you have to drop the tranny to do it. I have no lift, which might also be a problem. How much am I looking at if I have ot done professionally?

  2. Jan 14, 2009 at 3:31 PM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,148
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Should only be about $200.00 to have the clutch replaced.

  3. Jan 14, 2009 at 3:31 PM
    #3
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,148
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    And you can use a floor jack to drop the tranny. :)

  4. Jan 14, 2009 at 3:34 PM
    #4
    Monkeysuncle

    Monkeysuncle My Cat's breath Smells like Cat Food

    Joined:
    Aug 27, 2008
    Member:
    #8809
    Messages:
    1,248
    Gender:
    Male
    First Name:
    Kevin
    Florida
    Vehicle:
    99 Tacoma SR5 4x4 5 speed Manual Hubs
    Diff Breather,CB thingy,GPS,Cop Shocks,Cop Breaks, old Man Emu 881's Dakar Leaf Springs and Nitro sport shocks. Deck Plate mod
    If it was me, I would do it myself. I did mine on an old Datsun 260Z. You don't have a transfer case to mess with, and unless you are pulling the flywheel off to have it surfaced then you don't really need air tools. Pull the driveshaft,(after you make a reference mark) use a floor jack to support the transmission, use clutch alignment tool install pressure plate clutch, throwout berring and use a new pilot berring, just re assemble, have a friend help with the heavy parts, I did mine in my garage, don't know about the cost, look around on the parts co$$t it's an easy-ish job with basic tools and a free afternoon. Plus, when you're done, a satisfied feeling knowing you did it yourself.

  5. Jan 14, 2009 at 3:57 PM
    #5
    -TRDMAN-

    -TRDMAN- ΜΟΛΩΝ ΛΑΒΕ

    Joined:
    Dec 18, 2006
    Member:
    #514
    Messages:
    2,201
    Gender:
    Male
    First Name:
    Greg
    Clarion Pa
    Vehicle:
    F-150

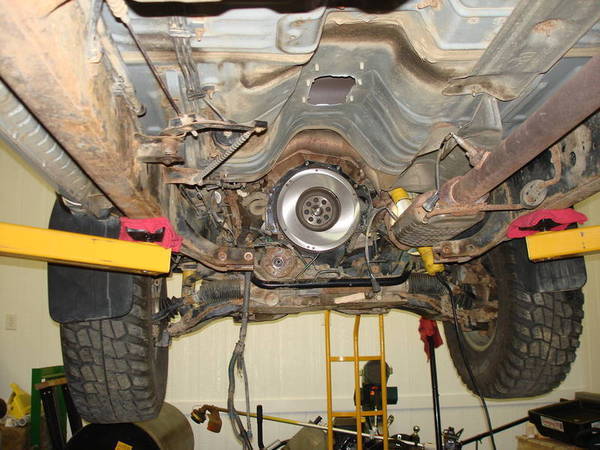

    Clutch and tranny in one night!!!
    [​IMG]

  6. Jan 14, 2009 at 4:03 PM
    #6
    RelentlessFab

    RelentlessFab Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    14,184
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras: Sparks, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the old Taco's.... new Tundra is pretty stock
    HMM. my buddy Tim (I think he registered on here as Timicha) has a 97 Tacoma 4cyl and the clutch went out a week ago. cost him $800 to get it replaced! Seemed pretty damn steep to me. Think he got taken on that?

  7. Jan 14, 2009 at 4:05 PM
    #7
    -TRDMAN-

    -TRDMAN- ΜΟΛΩΝ ΛΑΒΕ

    Joined:
    Dec 18, 2006
    Member:
    #514
    Messages:
    2,201
    Gender:
    Male
    First Name:
    Greg
    Clarion Pa
    Vehicle:
    F-150
    i hade like 180 for a clutch kit..... But i did all the work my self...... With a shop's laybor that might be about right imo....

  8. Jan 15, 2009 at 3:45 AM
    #8
    dustinuhls

    dustinuhls Well-Known Member

    Joined:
    Nov 22, 2008
    Member:
    #10939
    Messages:
    286
    Gender:
    Male
    Manhattan, KS
    Vehicle:
    '01 Limited DoubleCab 4x4
    3" SL, Nerf Bars, 33" BFGs, K&N, Deckplate, Royal Purple
    I assume you're not counting labor in your estimate if you have the dealership do it? It'll be way more than that to have them do it. You should spend a little less than $200 on a good clutch kit alone. I've replaced the clutch in 2 of my Toyota 5spd trucks and would recommend using a transmission jack. You can rent one from most rental stores for like $20 and it will save you a bunch of time. My first one I just used a floor jack, jack stands, wood blocks, etc., and it was a pain in the ass. The second truck I used a transmission jack that my uncle had and it cut the time in half. You don't need and air wrench (but it is helpful). If you're pretty good with basic tools then you should be able to do it.

  9. Jan 15, 2009 at 7:05 AM
    #9
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,148
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    I was just guessing at the labor cost. I figured it takes about 2 hours. Yeah, a dealer would charge MUCH more.

  10. Jan 15, 2009 at 7:47 AM
    #10
    98tacoma27

    98tacoma27 is gooder 'en chicken Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    49,741
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+250k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED)
    5100's all on fours
    It took me 4 hrs to get mine out and about two to put it back in. Keep in mind, I did it in my garage with out a lift by myself. Some of that time included changing a bad u-joint also.

  11. Jan 15, 2009 at 8:00 AM
    #11
    bobwilson1977

    bobwilson1977 [OP] Well-Known Member

    Joined:
    Jan 7, 2009
    Member:
    #12328
    Messages:
    1,368
    Gender:
    Male
    KaliFORN-I-A
    Vehicle:
    96 Tacoma 2WD ( pizza delivery model)
    none except for crappy hub caps and floor mats.
    Well, doesn't sound like its too big of a pain to do myself. How hard is it to get the old clutch off? This one is the original clutch so I imagine its stuck on there pretty good. Also- if I don't resurface the flywheel, I assume the new clutch will have to seat itself before it gains full traction?

  12. Jan 15, 2009 at 8:26 AM
    #12
    98tacoma27

    98tacoma27 is gooder 'en chicken Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    49,741
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+250k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED)
    5100's all on fours
    Clutch plate comes off pretty easy. The hard part is going to be seperating the tranny for the motor. They tend to stick together. It requires a lot of wiggling, patience, a pry bar or two, beer, and a few of your favorite choice words said in succession.

    Order of operations.

    1. Disconnect battery
    2. Chaulk rear wheels and/or engage e-brake
    3. Remove shifter
    4. Remove starter and the clutch cylinder. DO NOT PRESS THE CLUTCH PEDAL WITH THE CYLINDER UNBOLTED!!!
    5. a.Remove drive shaft from tranny and transfer case.
    b. It may be easier to remove transfer case from tranny for weight purposes if doing this by yourself
    6. Disconnect electrical connections to tranny
    7. Remove bolts from bell housing
    8. This is where the beer and choice words come in. Drop the tranny like it is hot. (have a support ready, like a jack and some wood)
    9. Unbolt the clutch plate. the clutch disc just sets in there. The plate is what holds it in. So it may want to fall out of there.
    10. The clutch kit will came with a plastic alignment tool. You will need to hold the disc up to the flywheel with this tool and slide it into the pilot bearing (kit should come with one of those too). Then bolt the plate back on. Once you have the plate torqued down, you can remove the tool.
    11. The throw-out bearing will be on the tranny shaft (kinky isn't it?). The fork is held into the bearing with some spring clips built into the bearing. It is pretty self explanitory. You will see.
    12. Simply reverse the process and viola- new clutch.

    If all else fails, purchase a Haynes manual. It will be easier to understand than my jibberish.

    You can purchase a new fly wheel if need be. I think you will need twelve point sockets to get those bolts off.

    I miss anything guys?

  13. Jan 15, 2009 at 10:07 PM
    #13
    crazieN8

    crazieN8 ________________

    Joined:
    Dec 3, 2008
    Member:
    #11251
    Messages:
    112
    Gender:
    Male
    yorktown Va.
    Vehicle:
    95 4x4 taco
    3" lift, custom bucket seats, removable doors, KnN, eclipse sound system
    ive changed the one on my 95 and also on my buddys 88 toy, so easy, no air tools required but to remove the flywheel for replacing or resurfacing it would be easier, you will need a pretty long extension to reach the two bolts on the top of the tranny and possibly a ujoint/knuckle. you will also need a special tool to remove the pilot bearing as well. spend a couple hundred bucks on the clutch, resurfacing the flywheel should cost under fourty bucks. some kits come with the centering tool. its worth the savings to do it yourself
    http://store.summitracing.com/partdetail.asp?autofilter=1&part=ZZZ%2DMU70116%2D1A&N=700+4294924746+4294907680+4294907573+4294839354+4294888959+4294925134+4294865886+400409+4294865898+4294897966+115&autoview=sku

  14. Jan 16, 2009 at 8:59 AM
    #14
    350TacoZilla

    350TacoZilla Well-Known Member

    Joined:
    Sep 22, 2007
    Member:
    #2767
    Messages:
    1,115
    Gender:
    Male
    Hancock MD
    Vehicle:
    1997 3RZ 5spd 4x4 Reg Cab
    2.7L 3RZ,K&N filter, 4" deck plate mod,flowmaster 40 series,3" suspension lift, hybrid 52"chevy/toyota rear springs.
  15. Jan 16, 2009 at 10:09 AM
    #15
    crazieN8

    crazieN8 ________________

    Joined:
    Dec 3, 2008
    Member:
    #11251
    Messages:
    112
    Gender:
    Male
    yorktown Va.
    Vehicle:
    95 4x4 taco
    3" lift, custom bucket seats, removable doors, KnN, eclipse sound system
