Anything Manufacturing - Small to Medium Scale Metal Work (CAD/CAM included!)

Discussion in 'Garage / Workshop' started by Kwikvette, Oct 5, 2024.

  1. May 12, 2025 at 10:47 AM
    #501
    Kwikvette

    Kwikvette [OP] Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    81,322
    Gender:
    Male
    Fresno County
    4 run, 2 don't
    And also, @Pyrotech I forgot to mention those water filler spouts all arrived on Saturday!

    Thanks for getting them all printed out.

    With just a little sanding (really, a hand file works perfect for this), I'll just need to remove a little bit of material and it'll be perfect.

    The design is meant to work with Langmuir's water table and if I recall, the wall comes up at an angle.

    The water table on the STV sits straight up like a box hence the slight adjustment. But these will be perfect!


    soundman98, Zebinator and Drainbung like this.
  2. May 12, 2025 at 11:50 AM
    #502
    Pyrotech

    Pyrotech Well-Known Member

    Joined:
    Nov 25, 2018
    Member:
    #273741
    Messages:
    2,996
    Gender:
    Male
    save the "dust" from the filing / sanding and mix with a bit of acetone to dissolve, you can then brush that back on the exposed edge to fill in the infill if you break through the top walls. but with 75% infill, it would be more for looks than strength

  3. May 12, 2025 at 12:34 PM
    #503
    Kwikvette

    Kwikvette [OP] Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    81,322
    Gender:
    Male
    Fresno County
    4 run, 2 don't
    Thank you brosef!

    Goes to show how little I know about plastics and 3D printing.

    I'm just anxious to get my new motors and plates delivered, so for the meanwhile I'll get the plates mounted for the drag chains.

    Best part is, a ton of "clips" were already removed on both my drag chains to help with installation and everything. Apparently they're a pain in the ass to remove when running cable?

    soundman98 and Drainbung like this.
  4. May 12, 2025 at 12:58 PM
    #504
    Kwikvette

    Kwikvette [OP] Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    81,322
    Gender:
    Male
    Fresno County
    4 run, 2 don't
    Just as I posted, couple things arrived!

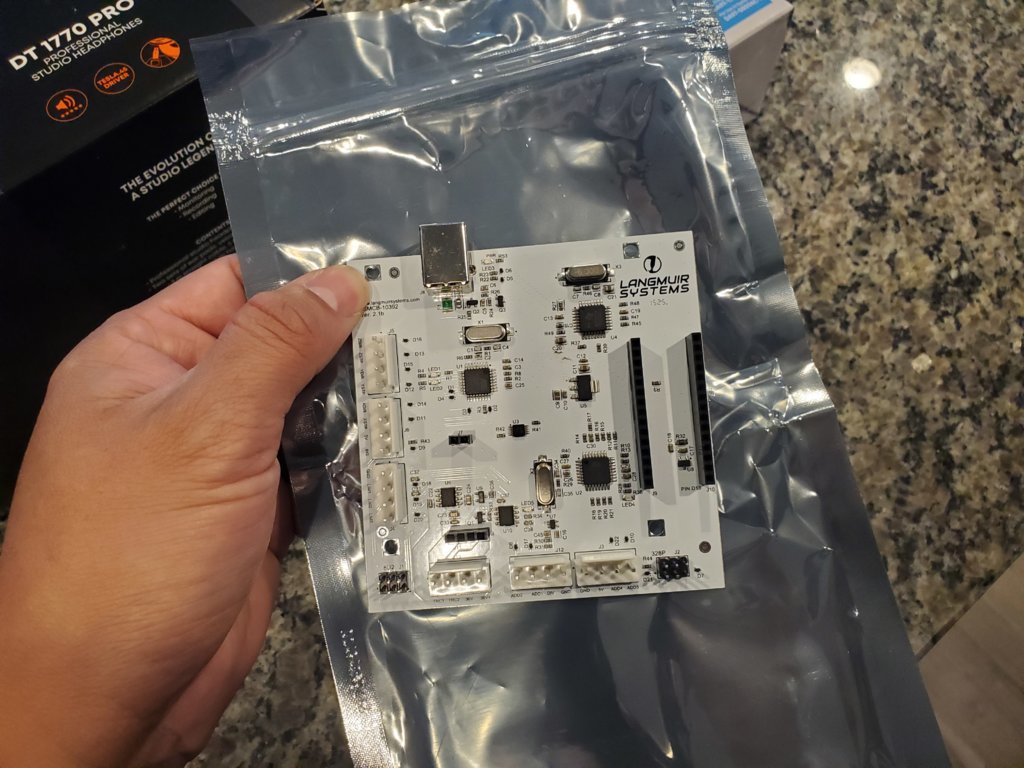

    Motion board is here from Langmuir so I'll have to get some measurements and see about "making" an STL file to get an enclosure made.



    I don't dabble in 3D at all so should be interesting.

    soundman98 and Drainbung like this.
  5. May 12, 2025 at 3:25 PM
    #505
    Kwikvette

    Kwikvette [OP] Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    81,322
    Gender:
    Male
    Fresno County
    4 run, 2 don't

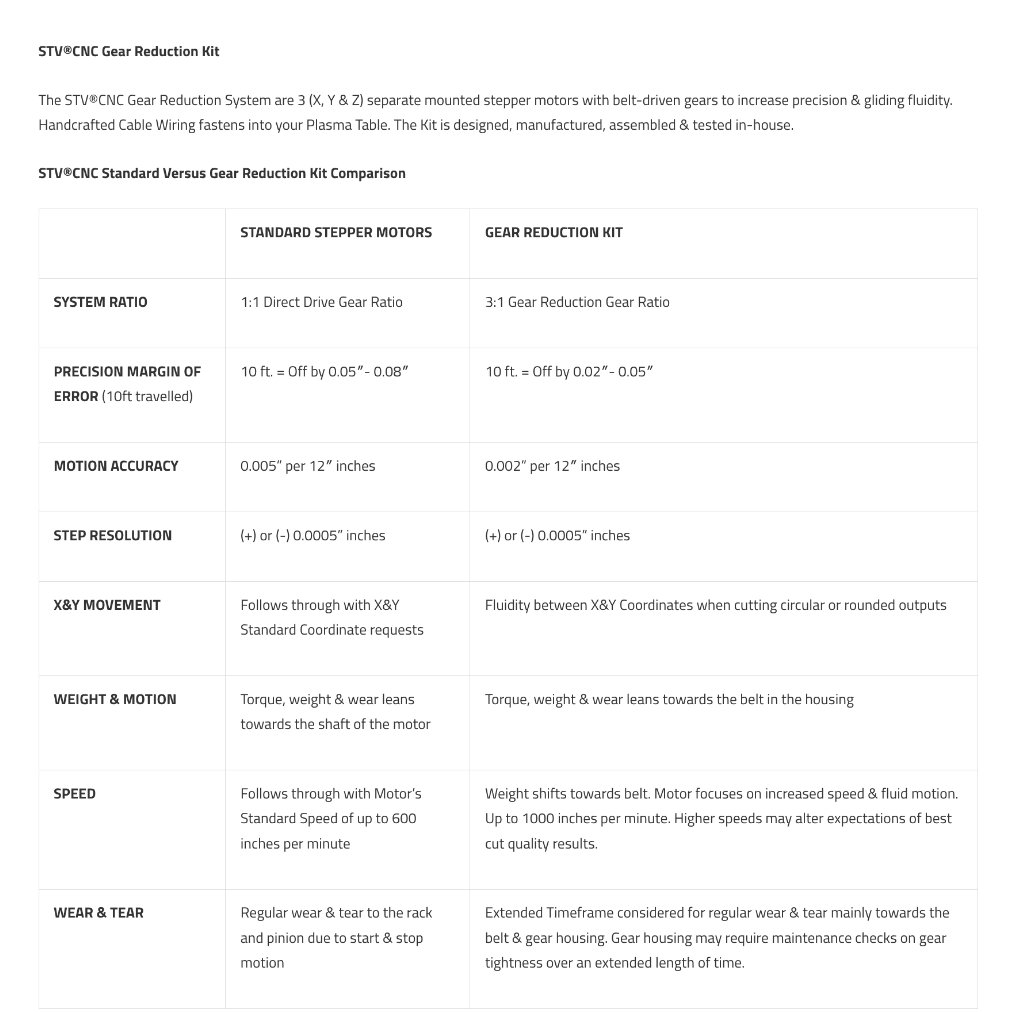

    Just leaving this here :anonymous:

    Screenshot 2025-05-12 140742.png

    Drainbung likes this.
  6. May 12, 2025 at 5:00 PM
    #506
    Pyrotech

    Pyrotech Well-Known Member

    Joined:
    Nov 25, 2018
    Member:
    #273741
    Messages:
    2,996
    Gender:
    Male

    here ya go, a starter file.. IPT is in the list of files

    change the dimensions to match the board, add stand off bosses, then add the cut outs as needed

    https://www.printables.com/model/652789-parametric-project-box

  7. May 12, 2025 at 5:02 PM
    #507
    Kwikvette

    Kwikvette [OP] Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    81,322
    Gender:
    Male
    Fresno County
    4 run, 2 don't
    Funny thing, I drew and made the tray real quick but don't know how to do the whole latch thing.

    Hmmm...maybe I'll just fuck with it in a few months :rofl:

    So, unless I heard incorrectly and they sent me the wrong email, I got an invoice of my warranty replacement and tracking notice.

    STV is upgrading me to their Gear Reduction Kit? :eek:

    Drainbung likes this.
  8. May 12, 2025 at 5:06 PM
    #508
    Pyrotech

    Pyrotech Well-Known Member

    Joined:
    Nov 25, 2018
    Member:
    #273741
    Messages:
    2,996
    Gender:
    Male
    I will see if I can find the video tutorial I used to help make the file.. but the lid on that box is good tight fit, and not one that should be taken a part very often. but it can be done with care

  9. May 12, 2025 at 5:08 PM
    #509
    Pyrotech

    Pyrotech Well-Known Member

    Joined:
    Nov 25, 2018
    Member:
    #273741
    Messages:
    2,996
    Gender:
    Male
  10. May 12, 2025 at 7:01 PM
    #510
    Kwikvette

    Kwikvette [OP] Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    81,322
    Gender:
    Male
    Fresno County
    4 run, 2 don't

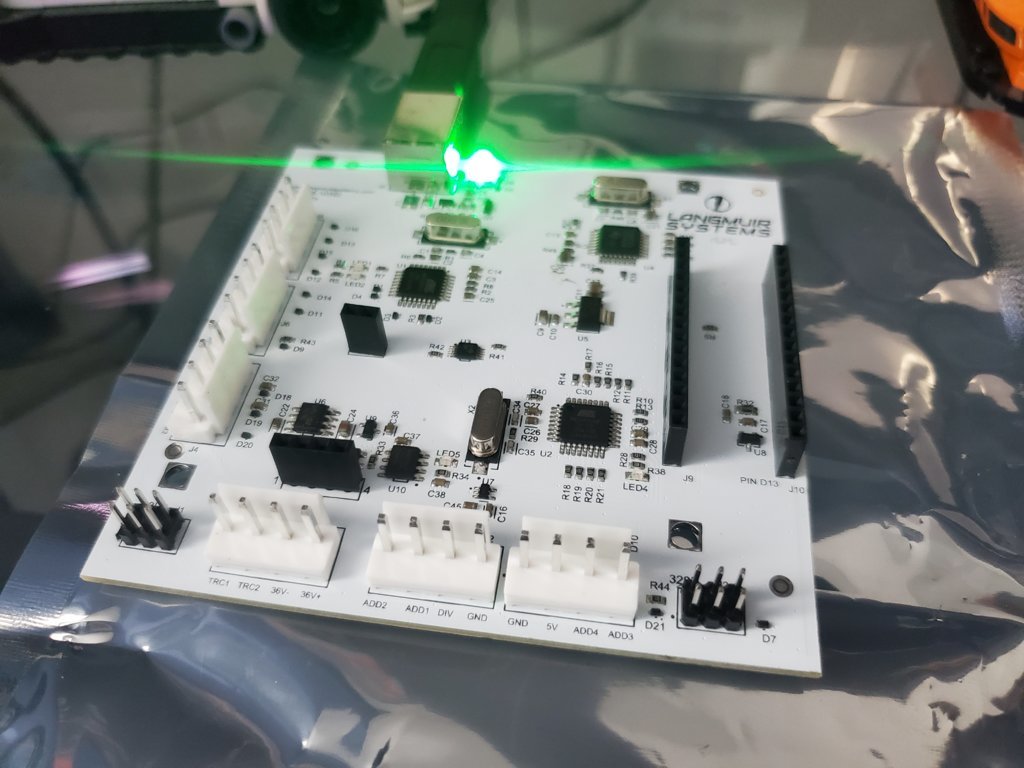

    Sick!

    Screenshot 2025-05-12 185824.png


    Drainbung likes this.
  11. May 13, 2025 at 10:15 AM
    #511
    Kwikvette

    Kwikvette [OP] Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    81,322
    Gender:
    Male
    Fresno County
    4 run, 2 don't
    No one else is really making anything?!

    Getting withdrawals from not having cut anything in awhile :rofl:

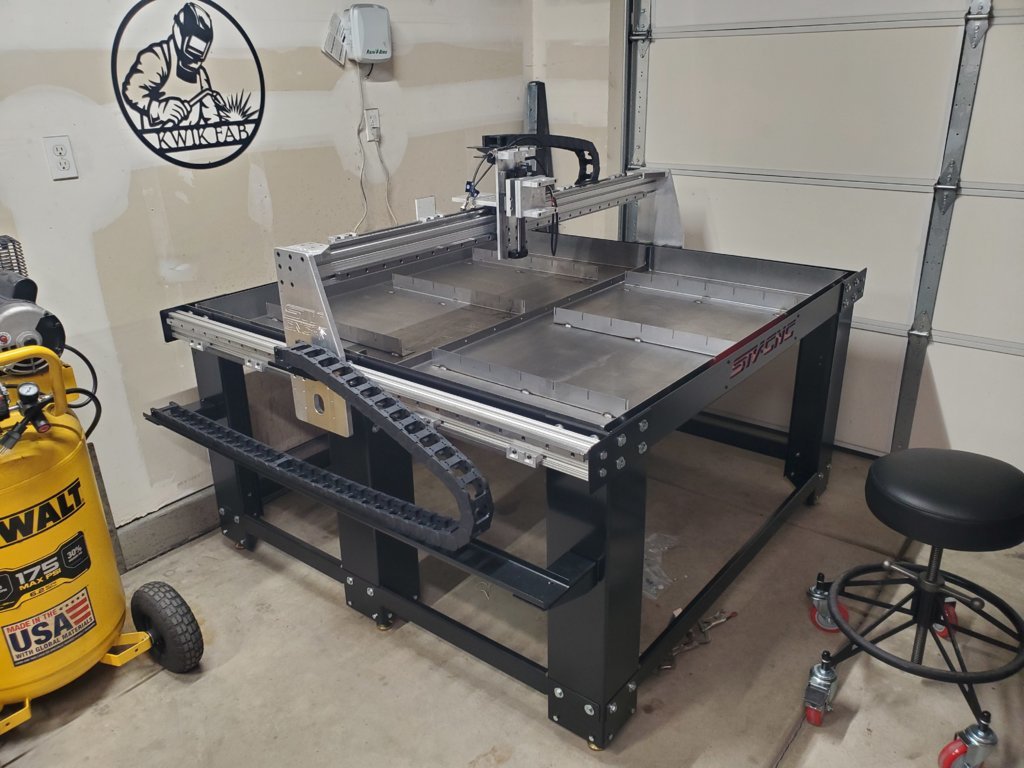

    Have to say, it's only after I placed the water table that I realize just how massive this whole thing is.


    Every bolt hole, including the edges of the two parts, all match up perfectly. Makes sense as I haven't read anything about people having issues with leaks.

    Zebinator, Drainbung and Kilo Charlie like this.
  12. May 13, 2025 at 10:19 AM
    #512
    TacoTuesday603

    TacoTuesday603 I welded it helded

    Joined:
    May 3, 2021
    Member:
    #364592
    Messages:
    3,285
    Gender:
    Male
    First Name:
    Jack
    New Hampshire
    Vehicle:
    2011 OR DCFB
    Fox and Locked suspension 63's Skinny 33's
    I should be cutting an aluminum electrical panel tonight for a local on here. Rush job but hes a super good dude so I dont mind


  13. May 13, 2025 at 11:23 AM
    #513
    Kilo Charlie

    Kilo Charlie Disruptor

    Joined:
    Nov 10, 2011
    Member:
    #66805
    Messages:
    11,129
    Gender:
    Male
    Iowa
    Vehicle:
    2017 Inferno Off Road
    My personal medium is wood, and I'm pondering a CNC Router, but no where near the size of your new table.. that thing is massive!

  14. May 13, 2025 at 11:25 AM
    #514
    Kwikvette

    Kwikvette [OP] Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    81,322
    Gender:
    Male
    Fresno County
    4 run, 2 don't
  15. May 13, 2025 at 11:26 AM
    #515
    Kilo Charlie

    Kilo Charlie Disruptor

    Joined:
    Nov 10, 2011
    Member:
    #66805
    Messages:
    11,129
    Gender:
    Male
    Iowa
    Vehicle:
    2017 Inferno Off Road
  16. May 13, 2025 at 11:29 AM
    #516
    Kwikvette

    Kwikvette [OP] Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    81,322
    Gender:
    Male
    Fresno County
    4 run, 2 don't
    Pay with a debit card! I say this because I didn't want to deal with calling my bank and doing a bank transfer for payment (which would delay things), and STV said they'd have to do a charge (forget the percentage) if using a card as a credit card.

    When I paid with debit over the phone (even if ran as credit), no transaction fee and payment was done instantly.

  17. May 13, 2025 at 11:31 AM
    #517
    Kilo Charlie

    Kilo Charlie Disruptor

    Joined:
    Nov 10, 2011
    Member:
    #66805
    Messages:
    11,129
    Gender:
    Male
    Iowa
    Vehicle:
    2017 Inferno Off Road
    Nicely done! I think I'll stick with something a little smaller.. I've got zero experience with CNC so it'll leave me room to upgrade once I've learned more.

    Drainbung likes this.
  18. May 13, 2025 at 11:35 AM
    #518
    Kwikvette

    Kwikvette [OP] Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    81,322
    Gender:
    Male
    Fresno County
    4 run, 2 don't
    Oh dude totally don't blame you!

    It's why I started small with a hobbyist plasma table. Shit spiraled from there when I began nerding out.


    Just keep in mind if you start small, you'll quickly and easily outgrow it. It's why people that buy a 300cc bike end up selling it within months! ;)

    Stick around! Even though you're into wood working, you could definitely learn a few things here from all the CNC talk as it's all the same.

    I too had zero experience, along with a few others here.

  19. May 13, 2025 at 11:36 AM
    #519
    Kilo Charlie

    Kilo Charlie Disruptor

    Joined:
    Nov 10, 2011
    Member:
    #66805
    Messages:
    11,129
    Gender:
    Male
    Iowa
    Vehicle:
    2017 Inferno Off Road
    I've been following this thread from day one HAHA

  20. May 13, 2025 at 11:39 AM
    #520
    Kwikvette

    Kwikvette [OP] Well-Known Member Vendor

    Joined:
    Feb 27, 2019
    Member:
    #284735
    Messages:
    81,322
    Gender:
    Male
    Fresno County
    4 run, 2 don't
    This thread began pretty much when I had just gotten rid of the small table, and moved up to the Pro.

    That's when I also made the switch to a Hypertherm and had that whole beveling fiasco. Some people kept telling me to just roll with it, while a few others (knowing how meticulous I am) just stuck around to see the solution.

    In short, even a basic and inexpensive table can provide excellent results with the right setting up and programming. Just have to stick to it and work out all the bugs.

    soundman98 and Drainbung like this.
