Anytime Foglight mod explained electrical (diagrams)

Discussion in 'Lighting' started by Crom, Dec 6, 2009.

  1. May 18, 2010 at 4:00 PM
    #61
    Oskie_78

    Oskie_78 Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    814
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4
    has anyone done the foglight mod like this? If so how do you like it?... I might try it right now

  2. May 18, 2010 at 4:36 PM
    #62
    Oskie_78

    Oskie_78 Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    814
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4
    c'mon anyone?

  3. May 18, 2010 at 6:03 PM
    #63
    LeadFootCaliKid

    LeadFootCaliKid It's a work in progress.

    Joined:
    Jan 21, 2010
    Member:
    #29772
    Messages:
    547
    Gender:
    Male
    First Name:
    Blake
    Temecula/North SD
    Vehicle:
    2005 DC PreRunner TRD Off-Road
    Total Chaos UCA's, Icon coil-overs, Icon gas reservoir rear shocks, Eagle Alloy 17", Nitto Terra Grappler 285/75/17, Flowmaster 40, Kenwood deck, and dual 10" Kicker subs, shorty antenna. There's more...
    Crom? Jefferson? Are you out there? They would be the people to ask

  4. May 18, 2010 at 6:22 PM
    #64
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    It will work. But it's not a switched power source so it's hot all the time. If you do that mod your fogs will not turn off when the ignition is off. Owner beware.

    Relax. Patience. We're all volunteers here.

  5. May 19, 2010 at 9:07 AM
    #65
    Oskie_78

    Oskie_78 Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    814
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4

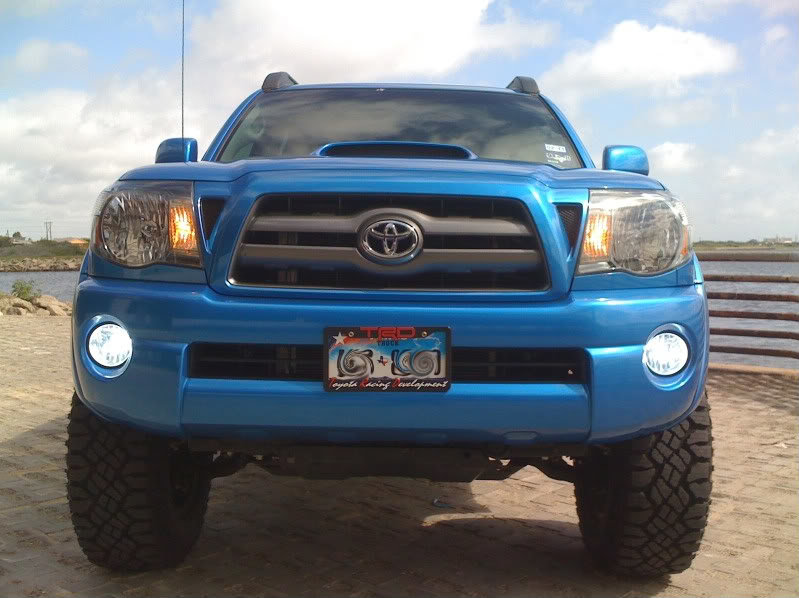

    it worked. Thank you. :)



  6. May 19, 2010 at 9:08 AM
    #66
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Congrats! :yay: Nice looking truck!

  7. May 19, 2010 at 9:21 AM
    #67
    Oskie_78

    Oskie_78 Everything's BIGGER in TX!

    Joined:
    Feb 10, 2010
    Member:
    #31131
    Messages:
    814
    Gender:
    Male
    First Name:
    Oscar
    Corpus Christi, TX
    Vehicle:
    2010 DC TRD Sport 4x4
    Thanks!

  8. May 27, 2010 at 11:41 PM
    #68
    2010 trd sport

    2010 trd sport Well-Known Member

    Joined:
    May 19, 2010
    Member:
    #37444
    Messages:
    81
    Gender:
    Male
    NY
    Vehicle:
    2010 trd sport
    none yet
    This is a great mod! I get annoyed when I switch to high beams and lose significant lighting in front of the truck. Now I will have the fog lights. Sweet! Thanks Crom

  9. May 28, 2010 at 3:11 PM
    #69
    Isthatahemi

    Isthatahemi Well-Known Member

    Joined:
    Apr 29, 2009
    Member:
    #16582
    Messages:
    1,155
    Gender:
    Male
    Vehicle:
    TRD OFF ROAD
    BFG AT's, Weathertechs, Hoppy's brake controller.
    *********EDIT

    My friends 2010 that we used an add a circuit on the single 10 amp mini fuse shown just above the fog lamp relay, that way it is switched. Not sure why mouser would use the dome fuse.

  10. May 28, 2010 at 3:25 PM
    #70
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Glad to help. :)

    Okay. I'll test with a multimeter and confirm. If there is switched power in the fuse block we should know about it! :D

  11. Nov 9, 2010 at 6:02 AM
    #71
    Cmatt1605

    Cmatt1605 Well-Known Member

    Joined:
    Oct 18, 2010
    Member:
    #44883
    Messages:
    112
    Gender:
    Male
    First Name:
    Cody
    Mount Pleasant, South Carolina
    Squeaky leaf fix
    so i did this last night, and it worked after a couple of times, but this morning several things are wrong.
    -check engine light on
    -(break!) light on
    -abs light on
    -speedo not working
    -a/c & heater fan not working
    -windows will not roll down
    -rear diff lock light is on (the red one with the x over the rear axle) BUT I DONT EVEN HAVE A REAR DIFF LOCK ON MY TRUCK!

    does anyone know what is going on?

  12. Nov 9, 2010 at 7:38 AM
    #72
    BigA

    BigA Hey you'll watch this!!!

    Joined:
    Apr 4, 2008
    Member:
    #5732
    Messages:
    132
    Gender:
    Male
    First Name:
    A
    Yadkinville,NC
    Vehicle:
    07 sr5 tacomo trd debadged
    12v outlet power always on, fog light on anytime, Window tint, Extra D-Rings in bed, cheap anti theft tailgate mod, hidden garage door opener,LEDS in the map lights and the floor boards and in the main light,DTRL mod w/ factory relay and harness
    Wow cmatt1605 you might want to check over your wiring!

  13. Nov 9, 2010 at 7:51 AM
    #73
    jivewalker

    jivewalker Well-Known Member

    Joined:
    Sep 8, 2010
    Member:
    #42903
    Messages:
    803
    Gender:
    Male
    First Name:
    Jack MeHoff
    Chucktown
    Vehicle:
    2012 4RUNNER TE w/KDSS
    :eek::eek: and I was gonna do this over lunch. Hahaha, not gonna stop me. Did anyone ever find additional switched 12v in the fuse block? Crom, you were gonna check? Thanks, and thanks for posting the diagram ;)

  14. Nov 9, 2010 at 9:59 AM
    #74
    Cmatt1605

    Cmatt1605 Well-Known Member

    Joined:
    Oct 18, 2010
    Member:
    #44883
    Messages:
    112
    Gender:
    Male
    First Name:
    Cody
    Mount Pleasant, South Carolina
    Squeaky leaf fix
    i realize that i did it wrong before i got it right, i tried just sticking the wire down in the hole, and having the fuse come down ontop of it, then this morning, all of those weird things went wrong. im pretty sure is a messed up fuse in there somewhere, but which one would cause that???
    i have checked all of the ones under the dash and there all fine, so which one in the black box would it be???

  15. Nov 9, 2010 at 11:38 AM
    #75
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    I have not further probed the fuse block for additional switched power. I suppose I could try again. I have been very busy and was hoping someone with more time would beat me to it.

    It's impossible to diagnose through the Internet... I hope you got it all worked out.

  16. Nov 9, 2010 at 12:00 PM
    #76
    jivewalker

    jivewalker Well-Known Member

    Joined:
    Sep 8, 2010
    Member:
    #42903
    Messages:
    803
    Gender:
    Male
    First Name:
    Jack MeHoff
    Chucktown
    Vehicle:
    2012 4RUNNER TE w/KDSS
    Crom, I will check this out this evening in my 2011, and I appreciate all the work you did a while back, it will save me a lot of time! I'm also going to look at the DTRL manual override mod as well. Thanks again!

  17. Nov 9, 2010 at 6:33 PM
    #77
    Cmatt1605

    Cmatt1605 Well-Known Member

    Joined:
    Oct 18, 2010
    Member:
    #44883
    Messages:
    112
    Gender:
    Male
    First Name:
    Cody
    Mount Pleasant, South Carolina
    Squeaky leaf fix
    problem solved!!!!!! after hrs of looking in the black fuse box and checking each fuse by eye, i decided to break out my test light, checked all of them, and there all good, so i also decided to check by eye under the dash once more, they looked fine.....so i tried the test light again, and it was a freaking 10A fuse that powered all of that crap! so lesson learned: always use the test light first!

    however i am not going to re-attempt to do this mod, because i also found out today it is illegal to run fogs without headlights on in my state....

  18. Nov 9, 2010 at 6:35 PM
    #78
    jivewalker

    jivewalker Well-Known Member

    Joined:
    Sep 8, 2010
    Member:
    #42903
    Messages:
    803
    Gender:
    Male
    First Name:
    Jack MeHoff
    Chucktown
    Vehicle:
    2012 4RUNNER TE w/KDSS
    I did this on my 2011. 2012 and 2013 may be different.

    Done with fog light mod in 10 minutes! I used a male thin profile blade connector from a stereo harness and slid it into the factory harness behind the ignition wire. Didn't like the idea of cutting into the factory wire, and this is a super tight connection. Anyway, pics below and thanks for all the info!:D Cmatt, glad you figured it out man!

    Crom, BTW, probed the block and all are hot +12v unswitched

    Lights on.jpg

    gunner_20, d22ndst, jcody50 and 3 others like this.
  19. Nov 10, 2010 at 10:07 AM
    #79
    Crom

    Crom [OP] 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Glad you got it figured out. Thanks for letting us know. :)

    I really like your solution! I am going remove my splice, seal the ignition wire with liquid tape, and find a thin profile blade connector like you used. Kudos to you! :thumbsup: Rep incoming. Thanks for probing the block too!

    Edit: I updated the 1st post with a link to your post with pics so that others may use this superior method for the mod.

  20. Nov 10, 2010 at 10:13 AM
    #80
    Mark C.

    Mark C. If you want it bad, you usually get it bad!

    Joined:
    Nov 20, 2009
    Member:
    #26250
    Messages:
    1,246
    Gender:
    Male
    First Name:
    Mark
    Connecticut
    Vehicle:
    2010 MGM SR5 4WD AC
    LED Dome, Reed Switched LEDs in Glove Box and Center Console, Bumper Fogs, Tailgate anti-theft, LEDs over Cig lighter, Back-up camera anytime, Outside Temp add-on, Hidden GPS power, Sockmonkey 3rd Brakelight decal, 4X4 switch illumination, reed switch controlled engine compartment Flood LEDs, Elite Hitch Cover, Plasti-dipped cupholders and door switch control panels, Elite Hitch Cover.
    I used an add a circuit off my headlight fuse under dash.....so I have to at least have the parking lights on to use the fogs.....and I can also have fogs on while using hi-beam.....
