Anytime Foglight mod explained electrical (diagrams)

Discussion in 'Lighting' started by Crom, Dec 6, 2009.

  1. Jan 1, 2012 at 11:42 AM
    #121
    jivewalker

    jivewalker Well-Known Member

    Joined:
    Sep 8, 2010
    Member:
    #42903
    Messages:
    803
    Gender:
    Male
    First Name:
    Jack MeHoff
    Chucktown
    Vehicle:
    2012 4RUNNER TE w/KDSS
    did you disconnect the neg battery cable before doing the mod? i remember someone else had blown a fuse when doing it hot causing an engiine light. Maybe try disconnecting the batt for 10-15 minutes, check ALL fuses, reconnect batt and see if it clears. If not, does it clear when you reverse the mod? Good luck, let us know..

  2. Jan 1, 2012 at 1:33 PM
    #122
    nammer

    nammer Well-Known Member

    Joined:
    Aug 1, 2011
    Member:
    #60945
    Messages:
    9,480
    Gender:
    Male
    First Name:
    Nam
    Bradenton, Florida
    Vehicle:
    Wishing I had a Taco
    hi, thanks for getting back to me, the check engine light was on with everything normal, except for one of the pins bent on the fog relay, and then I put it back to normal, and the check engine light went away. This morning, I tried bending one of the tabs on the fog relay to try the mod again, and no check engine light, so it seems ok for now!

  3. Jan 1, 2012 at 6:04 PM
    #123
    nammer

    nammer Well-Known Member

    Joined:
    Aug 1, 2011
    Member:
    #60945
    Messages:
    9,480
    Gender:
    Male
    First Name:
    Nam
    Bradenton, Florida
    Vehicle:
    Wishing I had a Taco
    I actually found this on toyotanation

    this was from one of their members

    Quick note.... When you pull the fuse out while the key is in any position other than OFF, this will trigger a CHECK ENGINE LIGHT upon completing the fog light modification. Turn the truck ON, then turn it OFF, then press the TIRE PRESSURE RESET SWITCH under the steering wheel three times, for about 1/2 second each time. START the truck - this will reset the CHECK ENGINE LIGHT.... Hope this helps someone else....Worked for me. Was not fund having a truck with 300 miles on it have a CEL on....

  4. Jan 8, 2012 at 4:48 AM
    #124
    Nick701

    Nick701 Well-Known Member

    Joined:
    Mar 26, 2011
    Member:
    #53750
    Messages:
    176
    Gender:
    Male
    32526
    Vehicle:
    17 TRD OR DC 4X4
    Posting for future reference, page 4 has the sweet stuff ;)

  5. Jan 26, 2012 at 12:05 PM
    #125
    boomer6

    boomer6 Well-Known Member

    Joined:
    Apr 22, 2011
    Member:
    #55337
    Messages:
    508
    Gender:
    Male
    First Name:
    John
    TN
    Vehicle:
    Tacoma TRD Offroad
    disabled DRLs disabled seat belt chime disabled the key in the ignition with door open buzzer Installed Illuminated 4wd switch circuit board Marker lights Flashing with turn signals Toggle switch ABS Disable Fog Lights on AnyTime Mod Changed to Yellow bulbs in the Fog Lights Converted interior lights to leds Installed oem roof rack Installed Firestone Ride Rite Air Bags and Daystar Cradles for the air bags Added oil catch can Relentless Tailgate Protector installed
    Thanks Jivewalker!! Just finished doing the fog light anytime mod.Works great! :)

  6. Feb 9, 2012 at 4:51 PM
    #126
    Cobalt719

    Cobalt719 Well-Known Member

    Joined:
    Jan 20, 2012
    Member:
    #71027
    Messages:
    291
    Gender:
    Male
    Chesapeake, VA
    Vehicle:
    '12 4 Banger PreRunner DC
    LED Interior Lights, Tailgate Anit-Theft Mod, OEM Skid Plate, Aftermarket Fogs, Tow Hitch
    So not to completely jack the thread but lets say you want to do the exact opposite and have the fogs cut off with the high beams? I bought some aftermarket fogs and after looking at the wiring it looks like they are independently wired from the lights so they will not turn off when you turn on the high beams. I live in VA and here it is unfortunately a requirement that they turn off with the high beams. Any insights would be great!

  7. Feb 25, 2012 at 2:42 AM
    #127
    Rascal737

    Rascal737 Well-Known Member

    Joined:
    Dec 29, 2011
    Member:
    #69593
    Messages:
    486
    Gender:
    Male
    First Name:
    Oliver
    Abbotsford, BC
    Vehicle:
    09 Silver DCLB TRD Sport 4X4
    Python 574 Remote start/Security system, reusable cabin air filter, led map and dome lights, led bed lights, switchback dtrl's, aftermarket dual halo projector headlights retrofitted with TRS goodies, foglights on anytime, Illuminated 4X4 switch, Redline hood struts and EZ down tailgate, Weathertech front and rear floor liners, Black Westin 4" oval step bars
    Cmatt.....thanks for running into this issue.....I attempted to do this mod yesterday but I tried doing it without bending the relay tab, it worked a couple times but then it didn't. Put everything back to normal and took off for work, noticed that my back up cam didn't work, and everything that you listed except for the check engine light. I read your post and checked all 10A fuses under the dash and found the IGN2 fuse blown, anyway I replaced that and everything works just fine again.

    Thanks......this forum is great!!!

  8. Feb 29, 2012 at 8:56 PM
    #128
    tacowestley

    tacowestley Khmer Member

    Joined:
    Sep 28, 2011
    Member:
    #64325
    Messages:
    811
    Gender:
    Male
    First Name:
    Wes
    562/626, CA
    Vehicle:
    05 DC Prerunner OR
    8k HIDs, flowmaster, bora wheel spacers 1.25'', debadged tailgate, DRL and foglight anytime mod, BHLM, 09+ LED tailights, painted valence black, mickey thompson classics 16'', switchback LEDs, reverse LEDs, tailgate clamp
    Wooooooo just did mine and they look beautiful! thanks JW!

  9. Mar 9, 2012 at 8:05 PM
    #129
    gsxrdoug

    gsxrdoug 2006 DCSB

    Joined:
    Mar 3, 2011
    Member:
    #52284
    Messages:
    400
    Gender:
    Male
    First Name:
    Douglas
    Hawaii
    Vehicle:
    06 DCSB TRD OffRoad
    This will be my first mod to the new truck. Did it on the X and now the dclb

  10. Mar 10, 2012 at 2:54 PM
    #130
    Johnny E

    Johnny E Well-Known Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    47
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Bilstein 6112 & 5160’s, OME EL096R’s, ARB RD129 Air Locker, PacBrake On-board Air, Anytime Fog Light Mod, Custom Behind the Grill Light Mount, 28” Stealth LED Bar, Headache Rack, Trimmed front Mud Flaps
    With 663 kms on my Taco its was about 662kms overdue for me to mess with something so I figured the easiest mod ever was a good pace to start. Turns out Master Yota made a mod of his own and shuffled around a relay or two. The fog relay is now in the sub panel mounted to the right side of the main panel.

    This isn't such a bad thing as there is an easy way to get from one to the other with our little jumper. Just feed the lead down here


    Then you can unclip the sub panel from the main and remove the bottom cover

    Now if you wanna realy keep things stealthy at this point you would splice into that little red/black wire in the top right. I close the bent tab route as I just couldn't bring myself to start cutting wires. So feed the lead up thru the block, that it the skinny black one over the blue


    Now you have to bend the tab carefully, we need a U shape bend as the space in the panel is very tight

    Almost done! Clip the subpanel back together and onto the main, replace the relay and connect your lead


    Now connect your jumper to the same place as always in the main panel


    And there it is your done and your new 2012 Taco has fogs available anytime you like!


  11. Mar 10, 2012 at 9:03 PM
    #131
    Johnny E

    Johnny E Well-Known Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    47
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Bilstein 6112 & 5160’s, OME EL096R’s, ARB RD129 Air Locker, PacBrake On-board Air, Anytime Fog Light Mod, Custom Behind the Grill Light Mount, 28” Stealth LED Bar, Headache Rack, Trimmed front Mud Flaps
    Try it this way, after posting this in a seperate thread cintocrunch showed the easiest way yet on a 2012. I totaly missed the switched lead right next to the relay


  12. Mar 10, 2012 at 9:09 PM
    #132
    Johnny E

    Johnny E Well-Known Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    47
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Bilstein 6112 & 5160’s, OME EL096R’s, ARB RD129 Air Locker, PacBrake On-board Air, Anytime Fog Light Mod, Custom Behind the Grill Light Mount, 28” Stealth LED Bar, Headache Rack, Trimmed front Mud Flaps
    After cintocrunch showed me the ueasy way it occured to me this could be done even cleaner. The image below is the underside of the sub panel. If you were to swap the red/black wire in the upper right corner with the pale green wire in the lower right you would not need the jumper wire or to mess with the relay. Note if you have heated seat the this would be bad as now they would only work with the headlights on lowbeam :eek:

    I took a look at this tonight and it seems there is a small clip holding the witing connector in the panel. If anyone know how to release the clipthis would be a super clean mod, heck it would even be fused as it is a factory wire :)


  13. Mar 26, 2012 at 8:58 AM
    #133
    HolyReptar

    HolyReptar Well-Known Member

    Joined:
    Jan 23, 2012
    Member:
    #71259
    Messages:
    1,791
    Gender:
    Male
    First Name:
    Bry
    Ventura
    Vehicle:
    17 TRD Offroad 4x4
    Stock for now
    what exactly is the green wire we tap for?

  14. Mar 26, 2012 at 9:00 AM
    #134
    HolyReptar

    HolyReptar Well-Known Member

    Joined:
    Jan 23, 2012
    Member:
    #71259
    Messages:
    1,791
    Gender:
    Male
    First Name:
    Bry
    Ventura
    Vehicle:
    17 TRD Offroad 4x4
    Stock for now
    oh PS can a mod Please sticky this =)

  15. Apr 1, 2012 at 12:06 PM
    #135
    KrispyTaco

    KrispyTaco Member

    Joined:
    Mar 31, 2012
    Member:
    #76031
    Messages:
    12
    Gender:
    Male
    Indio, CA.
    Fog light mod, removed mud flaps, window tint
    I did my 2012 Taco just like Johnny E., except I added a wire tie to the green wire that is being tapped into so it can help hold my tap in place. I'm a little paranoid of the tap popping out and shorting something out. The mod works great..

    Thanks guys.

  16. Apr 1, 2012 at 5:42 PM
    #136
    crooks420

    crooks420 Well-Known Member

    Joined:
    Oct 11, 2009
    Member:
    #24135
    Messages:
    70
    Gender:
    Male
    First Name:
    Jesse
    San Gabriel
    Vehicle:
    05 AC Prerunner SR5, 12 DC LB 4x4, 70 FJ40
    RE: ultra stealth mod

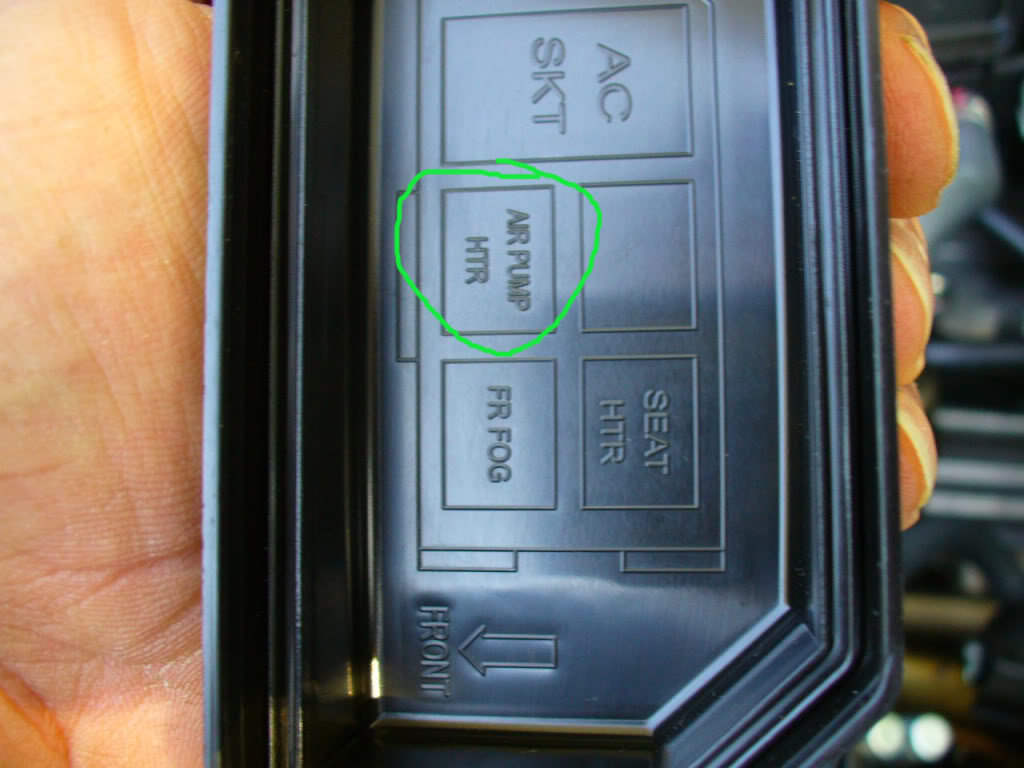

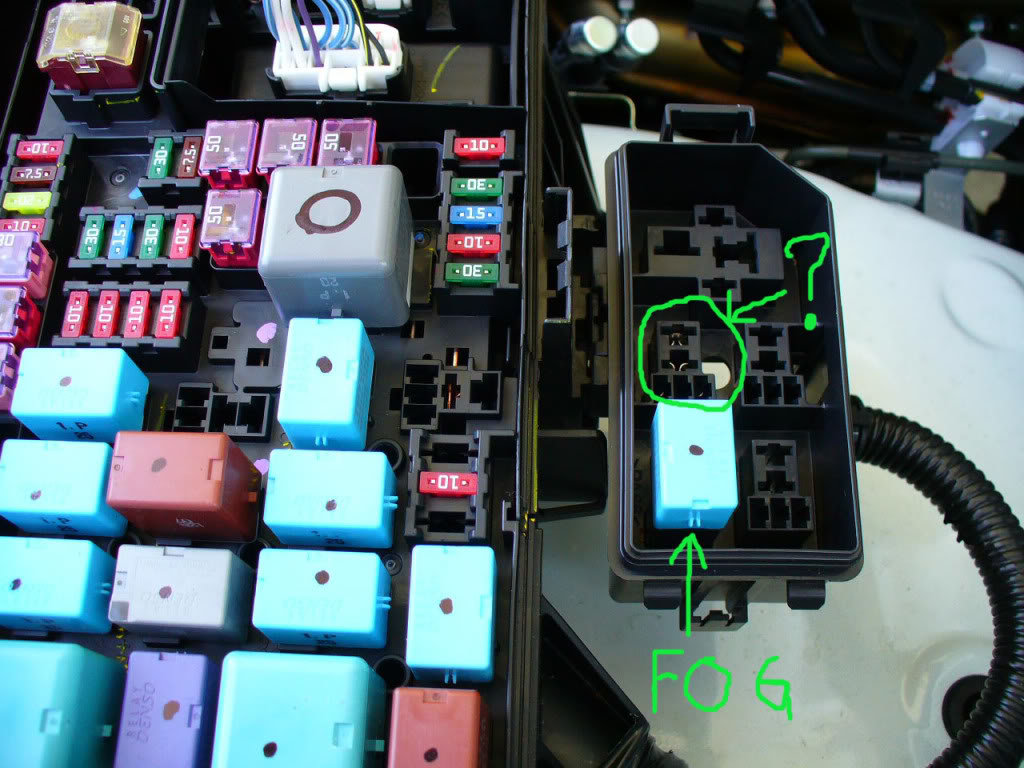

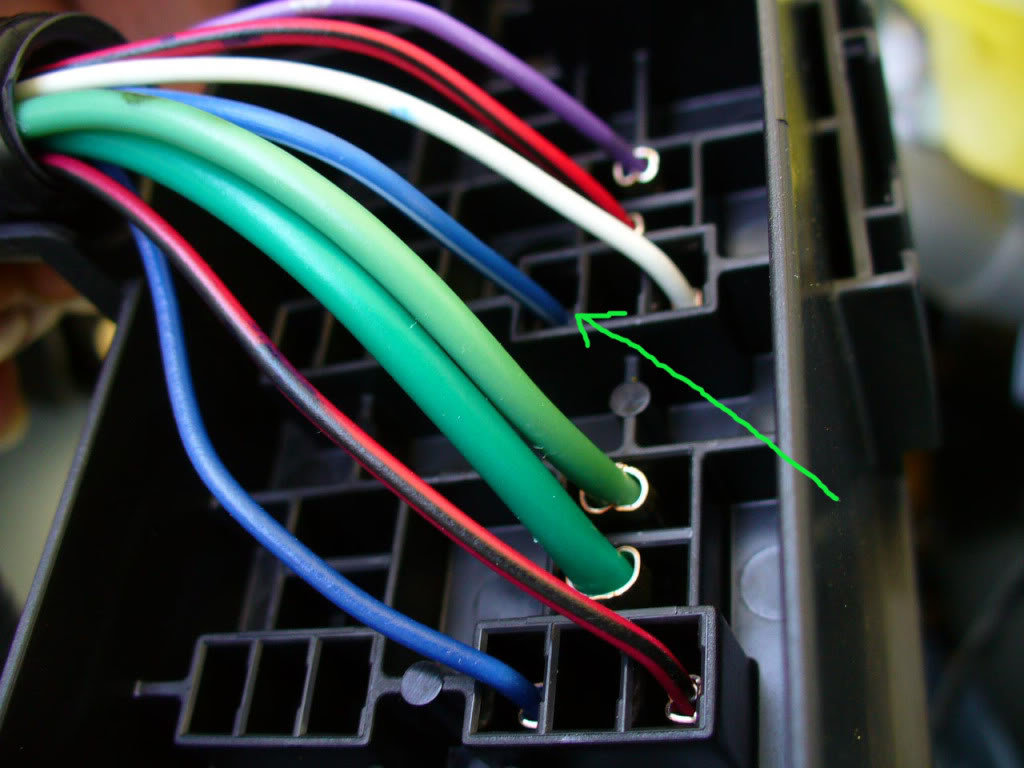

    Ok, I have a 2012 DC LB 4X4 SR5, no seat heater. I looked under the little aux relay box, next to the main fuse/relay panel under the hood; there is only 1 relay... for the fog lights, but there is an empty relay socket wired, and the little lid says AIR PUMP HTR, anyone know what this is?
    The red/black wire (lower right in first pic) for the fog relay has 12v power only when the lights are on, the blue wire with white tracer (above the green wires in first pic) has 12v power when the the key is set to ON and also when the engine is running, regardless of headlights off/low/high.... which is how I'd like to do my "anytime fog lights mod", I would swap these two wires. I just dont know what this empty spot is, which is labled AIR PUMP HTR; Will this always have power when the truck is ON? Is this a good 12v power lead to do my mod?

    Any help here is greatly appreciated.

    Jesse






  17. Apr 1, 2012 at 6:30 PM
    #137
    KrispyTaco

    KrispyTaco Member

    Joined:
    Mar 31, 2012
    Member:
    #76031
    Messages:
    12
    Gender:
    Male
    Indio, CA.
    Fog light mod, removed mud flaps, window tint
    Crooks, see post #133. IMO this is the cleanest way with the most options on how you want to run your lights. You can use the air pump heater socket (lower right slot), but it will turn on your fog lights after a few minutes of engine shutdown. You would have to remember to turn off your fog light switch when getting out of your Taco.

    No way around it. You will have to run a wire to the main fuse/relay box. It can be done very stealthy. You can use the spot mentioned in post #133 or get power from the Trailer Towing relay. You must have your parking lights on to use the fog lights if you connect to the Trailer Towing relay. If you use the spot mentioned in post#133, you can run your fogs and the DTRL. This is not possible if you use Trailer Towing relay.

    Both are excellent mods! It's all about preference.

  18. Apr 1, 2012 at 11:21 PM
    #138
    crooks420

    crooks420 Well-Known Member

    Joined:
    Oct 11, 2009
    Member:
    #24135
    Messages:
    70
    Gender:
    Male
    First Name:
    Jesse
    San Gabriel
    Vehicle:
    05 AC Prerunner SR5, 12 DC LB 4x4, 70 FJ40
    Do you have any references to the air pump heater, and why does my truck NOT have this?

    Jesse

  19. Apr 2, 2012 at 6:39 AM
    #139
    KrispyTaco

    KrispyTaco Member

    Joined:
    Mar 31, 2012
    Member:
    #76031
    Messages:
    12
    Gender:
    Male
    Indio, CA.
    Fog light mod, removed mud flaps, window tint
    I have no references and no idea. My truck has the connections there too, but no relay either.

  20. Apr 3, 2012 at 7:37 PM
    #140
    Grande

    Grande Well-Known Member

    Joined:
    Aug 3, 2010
    Member:
    #41153
    Messages:
    908
    First Name:
    John
    Victorville, CA
    Vehicle:
    Thomas, The little truck that could
    Painted badges. Bedlined grille, wheels and lower valence. Billies 5100 @.85 up front. Dodger Jack Ball Mod. Custom trail damaged rear bumper (for the time being). Lil LED light bar on grill. Hard-wired Radar Det. Custom Projector fog lights, Anytime Fog Mod, HIDS, White LED accent lighting on a Single post double toggle swicht, so they light up wit my door/dome light, or always on, or never on. LED map and dome lights.
    Score! Finally did this mod, i havent been on here in a long ass time tho.

    It was really easy, seriously did it in like 5 min. Just like post#78 explains it.

    [​IMG]
