aphex's functional build

Discussion in '2nd Gen. Builds' started by aphex, Nov 14, 2012.

  1. Nov 14, 2012 at 1:47 PM
    #1
    aphex

    aphex [OP] Well-Known Member

    Joined:
    Jun 1, 2011
    Member:
    #57575
    Messages:
    479
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    11 DC TRD OR
    Undercover Classic Tonneau, EGR Aerowrap Bug Deflector, Consolevault Custom Safe, Britax Boulevard 70 Baby Seat!, Retro TRD Shift Knob, Factory Bed Mat, Rear Leaf TSB, 265/75-16 BFG All-Terrain KO's, KMC Enduro Wheels, Front Bilstein 5100's set @ 0" w/ Toytec/Eibach Springs, Rear 5100's, TRD Grille Emblem, OEM Roof Rack, AntennaX 14" Billet Antenna
    OK, so right off the bat I admit that it's not 100% functional... there is definitely a little fun mixed in. But I've always thought of the Tacoma as kind of the swiss army knife of trucks, and I suppose I've tried to expound on that a bit. Also, beside the other beasts on this forum, this is a pretty tame "build", if you can even call it that. It's just nice having a little timeline of mods in a single place like this.

    Current List of Mod's:

    EGR Aerowrap Bug Deflector
    Undercover Classic Tonneau Cover
    Console Vault Custom Safe
    Britax Boulevard 70 Baby Seat (Mmmm Hmmmm!)
    Retro TRD Shift Knob
    Factory Bed Mat
    Rear Leaf TSB
    TRD Grille Emblem
    265/75-16 Load Range E BFG All-Terrian KO's
    Matte Black KMC Enduro Wheels
    Front and Rear Bilstein 5100 Shocks
    Eibach Coils (w/ Front 5100's set @ 0")
    OEM Roof Rack
    Antennax 14" Billet Antenna

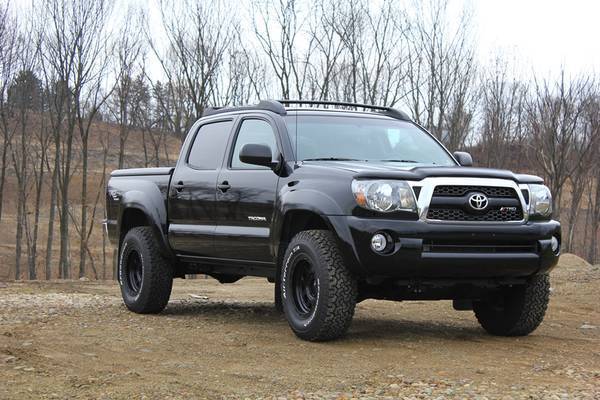

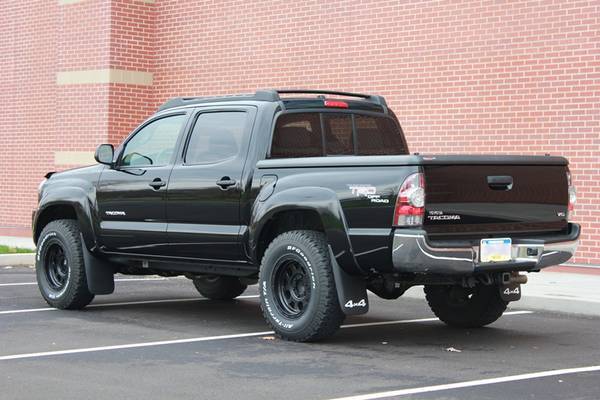

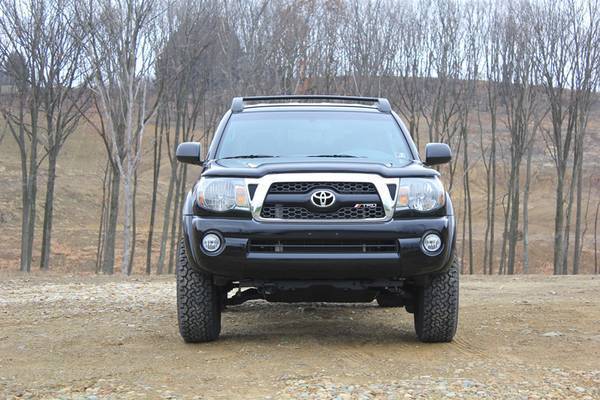

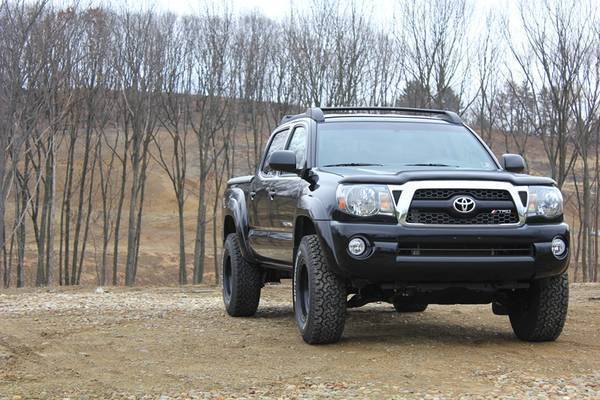

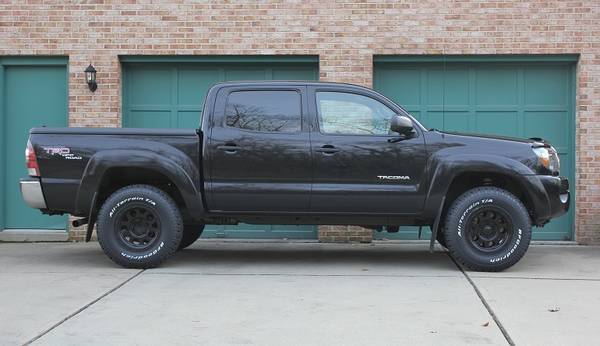

    This is how she sits today:

    [​IMG]

    [​IMG]

    [​IMG]

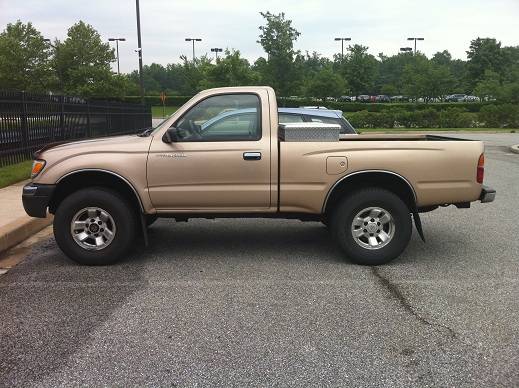

    The day I said goodbye to my beige baby. The photo below is the last time I saw her. :( It was sad, but necessary with a baby on the way. Jamming an infant in the tool box didn't seem quite... appropriate.

    [​IMG]

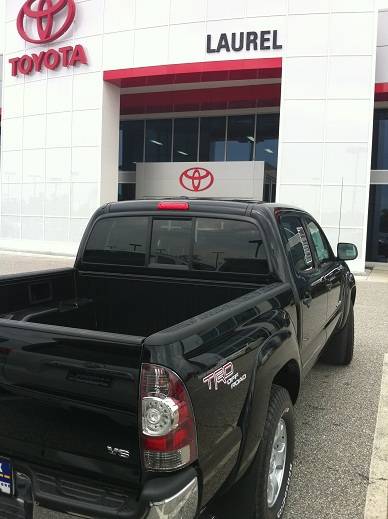

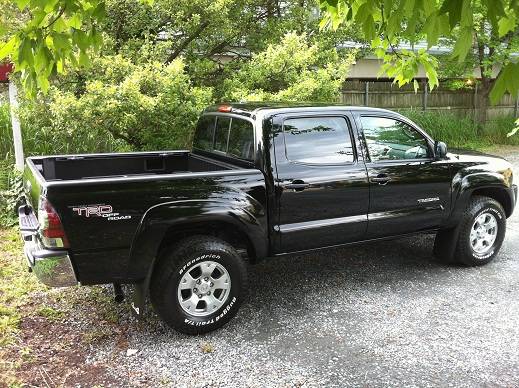

    The good news is that I was able to compromise on a 2011 double cab, short bed TRD Offroad Tacoma as a good baby-friendly substitute (could not comprehend a mini-van purchase). Shortly after the tsunami/Fukushima event, however certain pigments of Toyota's paint (specifically black) were no longer being produced by the Japanese suppliers, so I couldn't find a black Tacoma with these options in Western PA believe it or not. I had to drive to a dealership in Maryland (Laurel Toyota), but it actually turned out to be a fun road trip with the wife. The day I bought her...

    [​IMG]
    [​IMG]

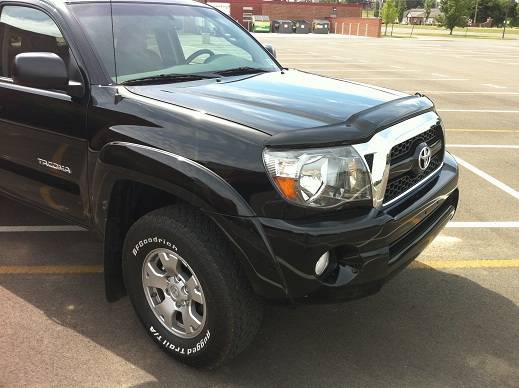

    First addition was an EGR Aerowrap bug deflector...

    [​IMG]

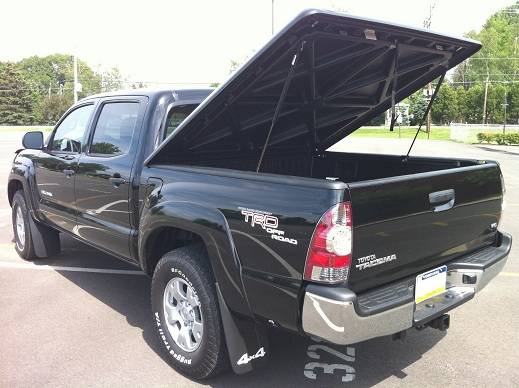

    Then came an Undercover Classic Tonneau cover...

    [​IMG]

    Next up, maybe the most important mod in many ways... The Britax Boulevard 70 baby seat :p ...

    [​IMG]

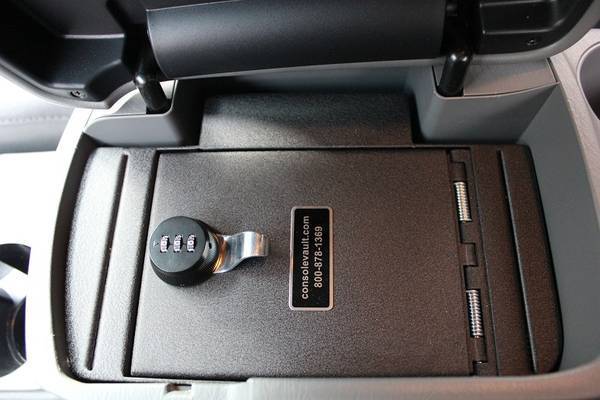

    I wanted to be able to have a way to securely keep "things" in my truck so I opted for the console vault. Love it!

    [​IMG]

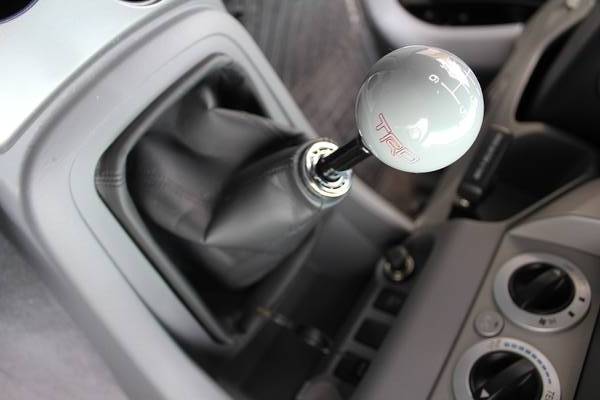

    Did not like the factory leather-wrapped shift knob. Especially the shape of it. Replaced it with this retro light grey TRD 6-speed knob, which is amazing IMO...

    [​IMG]

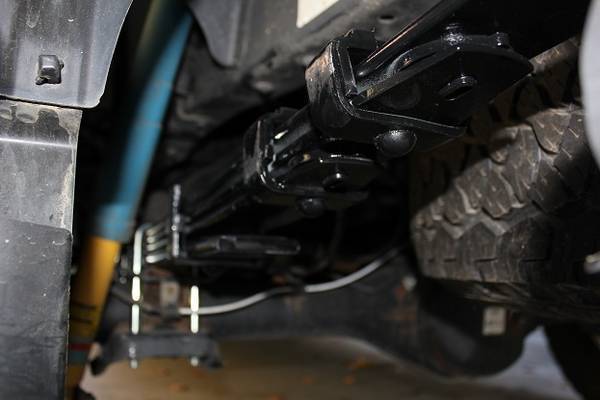

    TSB leaf springs came next (replaced at a local dealer under warranty)...

    [​IMG]

    Threw a TRD emblem on the grille to set it off a bit. Just a lil sumpin sumpin. Thanks to Benson_X for giving me the idea in this thread: http://www.tacomaworld.com/forum/2nd-gen-tacomas/104775-trd-emblem-stock-sport-grill.html ... Used his "plumber's tape" brackets" technique :thumbsup:

    [​IMG]

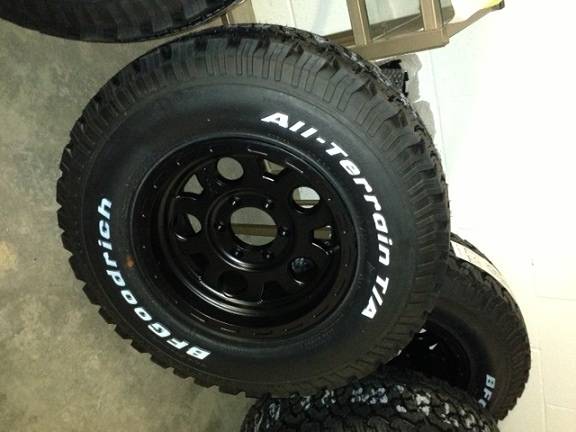

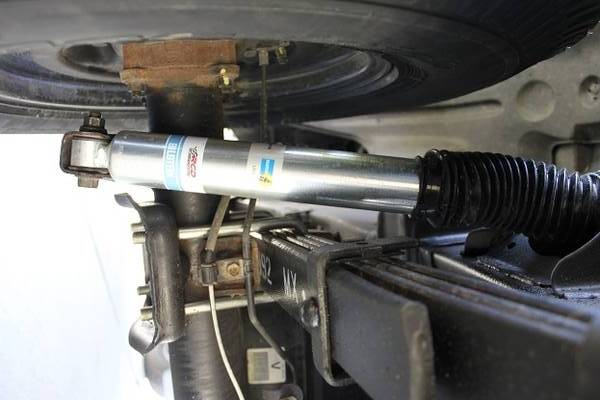

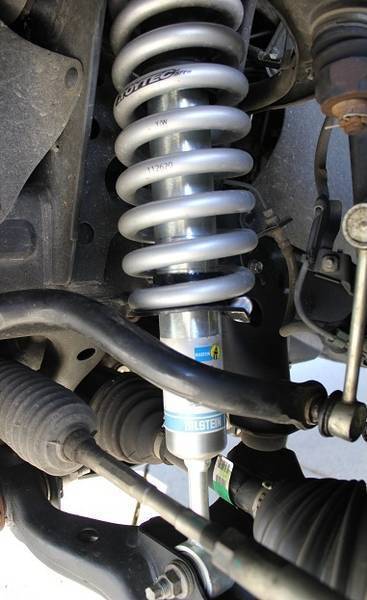

    And finally the good stuff. BFG All-Terrain's in 265/75-16 (white letters out baby!), matte black KMC enduros, 5100's x 4 with fronts set at 0" and Eibach springs. All put on at the same time. Can you imagine the anticipation when I had all this crap laying in my garage?? :D

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Leveled the truck out quite nicely. Last measurement showed about 0.5" higher in the rear max. Eibach's gave right around the 1.6" of advertised lift. Love the ride...

    [​IMG]

    The wheels (steel) and tires (load range E) are a much heavier set-up than what was on there previously, and the offset pushed the tires out a bit as well. The handling difference is amazing.

    Next the good 'ol factory Tacoma roof rack (an early Christmas present!!) ...

    [​IMG]

    And that brings us up to date...

    [​IMG]

    Stay tuned...

  2. Nov 14, 2012 at 1:59 PM
    #2
    Benson X

    Benson X ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,595
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    Nice looking rig :thumbsup:

    Is your username inspired by Richard D. James per chance?

  3. Nov 14, 2012 at 2:08 PM
    #3
    aphex

    aphex [OP] Well-Known Member

    Joined:
    Jun 1, 2011
    Member:
    #57575
    Messages:
    479
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    11 DC TRD OR
    Undercover Classic Tonneau, EGR Aerowrap Bug Deflector, Consolevault Custom Safe, Britax Boulevard 70 Baby Seat!, Retro TRD Shift Knob, Factory Bed Mat, Rear Leaf TSB, 265/75-16 BFG All-Terrain KO's, KMC Enduro Wheels, Front Bilstein 5100's set @ 0" w/ Toytec/Eibach Springs, Rear 5100's, TRD Grille Emblem, OEM Roof Rack, AntennaX 14" Billet Antenna
    Thanks! I've actually used the name 'aphex' for a long time for internets/gaming. I suppose the idea probably originated with 'Aphex Twin' since that's the only other place I've heard it used. I used to listen to them a little bit.

  4. Nov 14, 2012 at 2:19 PM
    #4
    Benson X

    Benson X ...and we're back!

    Joined:
    Nov 13, 2010
    Member:
    #46123
    Messages:
    4,595
    Gender:
    Male
    First Name:
    Ben
    Olympia, WA
    Vehicle:
    '11 MGM DC/LB
    Debadged, Black Toyota Emblem, TRD Emblem, Tint, Leer 100XL w/ Thule Tracker II rails, aFe Stage II Si Pro Dry-S CAI, aFe Mach Power 3" cat-back exhaust, Doug Thorley Y-Pipe, Bedmat, Weathertech liners, Weathertech window vents, Redline Hood Struts, 12v Anytime Mod, Maglight Mod, FOB/Seatbelt Mod, Rear Diff. Breather Mod, OEM Heated Mirrors Mod, OME 886 Coils w/ 90k Nitro Shocks up front, OME N182 Shocks with Dakars and a D29XL AAL in back, Light Racing UCAs, 1/2" Toytec Front Spacers, swaybar delete Mod, (4) 1" BORA Wheel Spacers, 285/70R17 Goodyear MT/R (originals), hidden Cobra 19DX IV w/ 4' Firestik on a Relentless Mount, custom Sliders, ARB Bumper, Warn VR-8000s w/ Syn. line, custom Tool/Hi-Lift mounts, custom Engine Bay and Winch-area LEDs, csJumper interior LEDs, custom TRD Skull Decal, 10" SeeLite LED light-bar custom mounted in the grille, custom Front & Mid skidplate, Garmin 60CSX GPS w/ RAM mounts....RAN OUT OF
    That's what I was wondering (hoping). I used to bump Aphex Twin alot back in the day and still throw it in the 'ol 8-Track every once in a while.

    Richard D. James is a musical genius (IMO), but he's still a creepy mofo...

  5. Nov 14, 2012 at 3:12 PM
    #5
    BigOly

    BigOly Well-Known Member

    Joined:
    May 3, 2012
    Member:
    #78148
    Messages:
    417
    Gender:
    Male
    Bay Area, NorCal
    Vehicle:
    04 TRD DC V6 SR5 4WD
    Sweet looking rig and I really like the look of those wheels with the BFGs. With the lift and all it's time that you hit the trails! :)

    Oh and BFGs with "white letters out" ftw! Love it!!

  6. Nov 14, 2012 at 3:39 PM
    #6
    aphex

    aphex [OP] Well-Known Member

    Joined:
    Jun 1, 2011
    Member:
    #57575
    Messages:
    479
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    11 DC TRD OR
    Undercover Classic Tonneau, EGR Aerowrap Bug Deflector, Consolevault Custom Safe, Britax Boulevard 70 Baby Seat!, Retro TRD Shift Knob, Factory Bed Mat, Rear Leaf TSB, 265/75-16 BFG All-Terrain KO's, KMC Enduro Wheels, Front Bilstein 5100's set @ 0" w/ Toytec/Eibach Springs, Rear 5100's, TRD Grille Emblem, OEM Roof Rack, AntennaX 14" Billet Antenna
    Thanks. Agree about the trails. Western PA doesn't seem to have a ton, but I'm starting to look around. Seems like all of the "off-road" people around here drive jeeps... :notsure:

  7. Nov 15, 2012 at 8:28 AM
    #7
    aphex

    aphex [OP] Well-Known Member

    Joined:
    Jun 1, 2011
    Member:
    #57575
    Messages:
    479
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    11 DC TRD OR
    Undercover Classic Tonneau, EGR Aerowrap Bug Deflector, Consolevault Custom Safe, Britax Boulevard 70 Baby Seat!, Retro TRD Shift Knob, Factory Bed Mat, Rear Leaf TSB, 265/75-16 BFG All-Terrain KO's, KMC Enduro Wheels, Front Bilstein 5100's set @ 0" w/ Toytec/Eibach Springs, Rear 5100's, TRD Grille Emblem, OEM Roof Rack, AntennaX 14" Billet Antenna
    Finally got a few more pictures up. Put them in the original post.

  8. Nov 17, 2012 at 12:16 AM
    #8
    krob32

    krob32 Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73075
    Messages:
    1,347
    Gender:
    Male
    First Name:
    Kelly
    Ft. Belvoir, VA / Asheville, NC
    Vehicle:
    2012 MGM TRD Sport DCLB
    WeatherTec Digi Liners, AVS Bugflector II, TRD FJ SE Anthracite Rims, Goodyear DuraTrac 265/75/16, AVS In-Channel Wind Deflectors, Extang Solid Fold, Pop & Lock, Color Match Grill Emblem (Anthracite), Plasti Dip Emblems, Tacoma Bed Mat, Tacoma Door Sill Protectors, ToyTec Ultimate Lift Kit, ICON UCAs, Wet Okoles, Sockmonkey 3rd Brake Light Cover, LED Hood/Bed Lighting w/ OTRATTW Switches, Famous Fabrication Sliders, Sockmonkey TRD Bed Decal, Proven Design 4x4 Mudflaps, BenWA's Rear Power Sliding Window, Jasper Off Road 6" Reverse LED Pod, ImMrYo Rear View Mirror Bracket, GrillCraft w/ Black Mesh and color matched Land Cruiser Emblem, LED Tail Lights, Badge Removal and Vinyl TRD/Tacoma Stickers.
    Nice!

  9. Nov 25, 2012 at 11:44 AM
    #9
    Lord Helmet

    Lord Helmet Well-Known Member

    Joined:
    Aug 30, 2012
    Member:
    #85875
    Messages:
    4,903
    Gender:
    Male
    First Name:
    Nick
    Lg Bch/Seal Bch
    Vehicle:
    3rd Gen DCLB TRD Sport
    Great buildup man :thumbsup: Your thoughts on the suspension setup? rough, smooth, or firm? How does it feel offroad and on the street?

  10. Nov 25, 2012 at 12:03 PM
    #10
    aphex

    aphex [OP] Well-Known Member

    Joined:
    Jun 1, 2011
    Member:
    #57575
    Messages:
    479
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    11 DC TRD OR
    Undercover Classic Tonneau, EGR Aerowrap Bug Deflector, Consolevault Custom Safe, Britax Boulevard 70 Baby Seat!, Retro TRD Shift Knob, Factory Bed Mat, Rear Leaf TSB, 265/75-16 BFG All-Terrain KO's, KMC Enduro Wheels, Front Bilstein 5100's set @ 0" w/ Toytec/Eibach Springs, Rear 5100's, TRD Grille Emblem, OEM Roof Rack, AntennaX 14" Billet Antenna
    Definitely firm. Love the ride. Handles much better on road. No heavy off-roading yet but it seems to eat up rough terrain.

  11. Dec 16, 2012 at 6:17 PM
    #11
    aphex

    aphex [OP] Well-Known Member

    Joined:
    Jun 1, 2011
    Member:
    #57575
    Messages:
    479
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    11 DC TRD OR
    Undercover Classic Tonneau, EGR Aerowrap Bug Deflector, Consolevault Custom Safe, Britax Boulevard 70 Baby Seat!, Retro TRD Shift Knob, Factory Bed Mat, Rear Leaf TSB, 265/75-16 BFG All-Terrain KO's, KMC Enduro Wheels, Front Bilstein 5100's set @ 0" w/ Toytec/Eibach Springs, Rear 5100's, TRD Grille Emblem, OEM Roof Rack, AntennaX 14" Billet Antenna
    Added OEM Roof Rack...

    [​IMG]

    Loving it!

    Also threw some new glamor shots into the OP. :p

  12. Dec 16, 2012 at 6:19 PM
    #12
    Razgriz

    Razgriz wtf am i reading

    Joined:
    Sep 9, 2012
    Member:
    #86548
    Messages:
    961
    Gender:
    Male
    First Name:
    Matt
    Saratoga, CA
    Vehicle:
    03 Double Cab SR5 TRD
    Debadged. AFE Stage II intage. Magnaflow muffler. Mid travel. Blackrocks with BFG AT
    Love it. Looks great.

  13. Dec 16, 2012 at 7:01 PM
    #13
    aphex

    aphex [OP] Well-Known Member

    Joined:
    Jun 1, 2011
    Member:
    #57575
    Messages:
    479
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    11 DC TRD OR
    Undercover Classic Tonneau, EGR Aerowrap Bug Deflector, Consolevault Custom Safe, Britax Boulevard 70 Baby Seat!, Retro TRD Shift Knob, Factory Bed Mat, Rear Leaf TSB, 265/75-16 BFG All-Terrain KO's, KMC Enduro Wheels, Front Bilstein 5100's set @ 0" w/ Toytec/Eibach Springs, Rear 5100's, TRD Grille Emblem, OEM Roof Rack, AntennaX 14" Billet Antenna
    Thanks. Next mod is likely an antennax euro-style short antenna for Christmas.

  14. Dec 16, 2012 at 7:28 PM
    #14
    sytfu510

    sytfu510 INSTAGRAM: sytfu510

    Joined:
    Aug 27, 2011
    Member:
    #62453
    Messages:
    3,845
    Gender:
    Male
    First Name:
    Alex
    Bay Area
    Vehicle:
    06 DBL Cab Long Bed TRD Sport
    RHD Fender Flares, BAMF everything, OKLEDLIGHTBARS.com lighting
    Very nice truck! Gotta throw some mods in for fun now and then, or it wouldn't be as fun!

  15. May 1, 2014 at 7:33 PM
    #15
    fourpointTRD

    fourpointTRD Well-Known Member

    Joined:
    Mar 22, 2014
    Member:
    #125886
    Messages:
    135
    Gender:
    Male
    First Name:
    Mike
    Humboldt, CA
    Vehicle:
    14 DCSB TRD Offroad 4WD Blue Ribbon
    Bilstein 5100s x4, OME 883 with 1/4 inch spacer on driver's side, OME TP04 leaf spring trim packer, Wheeler's Superbumps rear, black FJ Trail team wheels, Gorilla Wheel Locks (73631T), Huskyliners xact contour, Rockymounts Clutch SD and Driveshaft, Toyota OEM Bedmat, Plasti-dipped badges and front emblem
    Nice truck!

  16. May 9, 2014 at 8:11 PM
    #16
    J4m3z420

    J4m3z420 Active Member

    Joined:
    May 1, 2013
    Member:
    #103239
    Messages:
    28
    Gender:
    Male
    First Name:
    James
    Keystone, CO
    Vehicle:
    09 DCBS TRD Off-Road V6 4x4
    OME 884x | 90021 | CS047R (minus top overload) | 60091 | LR UCA MB-TKO Wheels

    Looks great! I am looking to do this same setup with the suspension. Bilstein 5100 and Eibach at "0". I have a 2009 DCSB off-road with 3-leaf in the rear. NO TSB. Which aftermarket leaf pack would you recommend to achieve the same lift on the rear you have? Assuming the Dakar leaf pack would make the rear too high?
