APR 4.0 Fuel Rail Upgrade Kit

Discussion in 'Performance and Tuning' started by Torspd, Mar 30, 2012.

  1. Mar 30, 2012 at 11:14 AM
    #1
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,633
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []

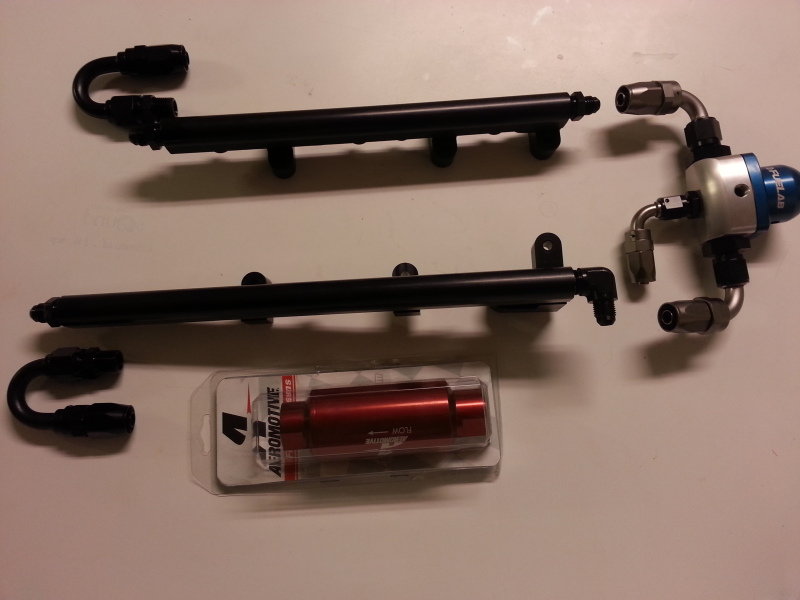

    Here are the stats from APR, for their fuel rail.

    APR 4.0L Toyota Fuel Rails
    APR Fuel Rail kits are high-performance fuel delivery system that is designed to properly
    supply the additional fuel needed for high boost/performance applications. The kit can be
    ordered in various stages from rails only to a fully assembled set of rails with a high flow
    adjustable regulator that will support our massive 386L in-tank fuel pump.
    These kits are direct bolt-on replacements of factory fuel rails, complete kits include all
    stainless steel braded hoses and AN factory style quick disconnects for quick and easy
    installation. Utilizes the factory fuel dampener to prevent unwanted pulsation pressures,
    there are two 1/8” female pipe taps for pressure transducers, gauges or additional fueling
    devices. APR Fuel Rails are machined out of aluminum and are hard black anodized for
    protection.
    The 4.0L fuel rails are offered in 5 different configurations:

    1) $389 Fuel Rails Only – includes all mounting hardware and four -6AN rail end fittings



    2) $569 Complete Fuel Rails less regulator – includes all parts needed to assemble and install (less regulator)



    3) $689 Complete Fuel Rails – includes regulator and everything needed to assemble and install


    4) $749 Assembled Fuel Rails - SS hoses are cut and assembled, includes regulator and everything needed to install



    5) $928 Assembled Fuel Rails and 386L pump

    [​IMG]

  2. Mar 30, 2012 at 11:27 AM
    #2
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,633
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    I will be getting mine next week. WOOT!

  3. Mar 30, 2012 at 9:17 PM
    #3
    toon714

    toon714 Well-Known Member

    Joined:
    Sep 15, 2010
    Member:
    #43323
    Messages:
    491
    Gender:
    Male
    First Name:
    toon
    So. Cali to H-town
    Vehicle:
    2010 turbo lowered prerunner
    garret Gt 35R front mount turbo, TR lowering kit, Work wheels, all the go fast goodies!
    get me one! ;)

  4. Mar 30, 2012 at 11:41 PM
    #4
    S7ICKlVlAN

    S7ICKlVlAN Cpt. Bubbleguts

    Joined:
    May 15, 2009
    Member:
    #17250
    Messages:
    1,376
    Gender:
    Male
    First Name:
    Dave
    Hawaii
    Vehicle:
    2012 TRD Sport DCSB
    TRD badged | Hunting Cage | Smoked Tails | LED Everything | Slim Cubby HID bi-xenon's | Spidertrax 1.25" | BHLM | FLM | S2000 Ant | 20% Shade | PL 8521 | OME 885 | Bilstein 5100's | Toytec 2" AAL | FN 18x9" Bronze BFD's | 275/65-18 Duratrac's | Wrinkle Red Valve Covers | 3M Di-Noc Wrapped Interior | Kode MB Push Button Ignition | Relentless Sliders | URD TCAI | Mr.Marv Enclosure | Arc Audio 10" | Hybrid Audio Clarus F/R | Alpine PDX-5 | Alpine INE-S920HD
    Work of art.....

    Toons, that signature rocks BTW.

  5. Mar 30, 2012 at 11:55 PM
    #5
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,243
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    Looks good. I wish I had a need for it.

  6. Mar 31, 2012 at 1:43 PM
    #6
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,633
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Get boost, and make a reason! :D

  7. Mar 31, 2012 at 1:45 PM
    #7
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,243
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    Eh maybe one day. I would rather put money into a car.

  8. Mar 31, 2012 at 1:46 PM
    #8
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,633
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Put it on the car. Win win!

  9. Mar 31, 2012 at 1:47 PM
    #9
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,243
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    Can't exactly put a fuel system for a 6 cylinder on a V8 engine.:D

  10. Mar 31, 2012 at 1:48 PM
    #10
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,633
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    I need to meet that chick! :D.

  11. Mar 31, 2012 at 1:50 PM
    #11
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,633
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    I see the problem. I have a strong feeling that there is one on the market already for what you have then. ;)

  12. Apr 1, 2012 at 11:50 AM
    #12
    toon714

    toon714 Well-Known Member

    Joined:
    Sep 15, 2010
    Member:
    #43323
    Messages:
    491
    Gender:
    Male
    First Name:
    toon
    So. Cali to H-town
    Vehicle:
    2010 turbo lowered prerunner
    garret Gt 35R front mount turbo, TR lowering kit, Work wheels, all the go fast goodies!
    hahaha. ya thats the best sig i got. :p

  13. Apr 4, 2012 at 3:55 PM
    #13
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,633
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Ordered mine today. Should have it sometime next week. Woot!

  14. Apr 8, 2012 at 6:38 PM
    #14
    ModernPopeye

    ModernPopeye Well-Known Member

    Joined:
    Oct 16, 2011
    Member:
    #65265
    Messages:
    99
    Gender:
    Male
    Hampton Rds,Va
    Vehicle:
    12 DBL Cb Sport LB
    I've bought the TRD Supercharger for my 12 (awaiting fit kit & other parts) and I'm pretty sure I'll be going with the UCON EMS. That being said what's the difference from this kit and the URD fuel pump upgrade "kit". Pro's and con's of this as opposed to the URD one. Thanks for your insight.

  15. Apr 8, 2012 at 6:41 PM
    #15
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,243
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    As far as I know the fuel pump upgrade is what it says, a higher flow fuel pump.

    This is a fuel rail and injector upgrade.

  16. Apr 9, 2012 at 6:27 AM
    #16
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,633
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    The fuel pump kit from URD is the Walbro 255lph fuel pump, and external fuel filter.
    It is not the Walbro 255 HP (High pressure), which can handle larger increased fuel pressures. It is to quite simply supply the extra fueling needed when adding boost, due to the fact that the factory fuel pump will cause a high rpm lean condition. One, due to it being small, and two, because the factory fuel system is not one that increases. It is always static.
    It is also a great upgrade for when your factory fuel filter gets clogged, and it needs to be replaced. Spend ~$500 at the dealer, or $150 for the URD kit.

    The APR fuel rail is for those that either really want it, and or are pushing their limits of the factory fuel system. It is larger, so it has more volume.
    Factory injectors, as well as aftermarket injectors will work with it the same. It was CNC'd specifically for the 1GR engine. It uses the factory fuel damper, to prevent fuel oscillations.
    The pump that you can get with the kit, or separately through them, is one that can handle rising fuel pressures. And it is even much larger than the Walbro 255, so it can supply a much greater volume of fuel. The 1:1 risinig fuel pressure regulator means that as you increase in each psi of boost, then so will your fuel pressure by the same psi. Higher psi means that your fuel atomizes better, as well as increases the "effective flow rate" of the Injector you have. Meaning that it becomes a larger Injector as the fuel pressure increases.

    So the fuel rail kit, is a performance upgrade to the fueling system at the front end of the vehicle, minus external filter(which yiu can easily add in), and the URD upgrade kit is for improving the factory pump/filter at a very reasonable cost, while also making you safe for boost.

    The Walbro in the URD kit will start fluctuating at 12+ psi increased fuel pressure over stock, of our 43.5 psi. Tested and datalogged by me. The 385 is a high pressure unit meant to handle high fuel pressures, and will not have that problem.

    One other note, I do not know of what the factory fuel rail is designed to handle, as far as psi. Not telling when it could pop at increased pressures.

    I hope all of that helps. If there are more questions, I will do my best to answer.

  17. Apr 10, 2012 at 7:52 AM
    #17
    ModernPopeye

    ModernPopeye Well-Known Member

    Joined:
    Oct 16, 2011
    Member:
    #65265
    Messages:
    99
    Gender:
    Male
    Hampton Rds,Va
    Vehicle:
    12 DBL Cb Sport LB

    Thank you very much Torspd ! That's exactly what I was looking for. It's nice to have someone that shares their experience and knowledge on here. Rep sent!

  18. Apr 10, 2012 at 10:32 AM
    #18
    Torspd

    Torspd [OP] Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,633
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    You are very welcome my friend. :thumbsup:

    That is what these forums are for though right? ;)

  19. Apr 10, 2012 at 11:07 PM
    #19
    Lucario Runner

    Lucario Runner Resident SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    2,017
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, Greddy sandwich cooler plate, Earls oil cooler, FJ TRD shocks, Cusco front and rear sway bars, LC Engineering sway bushings, ES rear track rod bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, Flexpod, Pioneer 400w speakers.
    I'm getting mine very soon as well as ID 1000 injectors. I'll more than likely upgrade the pump down the road. :D

  20. Apr 24, 2012 at 4:52 AM
    #20
    ModernPopeye

    ModernPopeye Well-Known Member

    Joined:
    Oct 16, 2011
    Member:
    #65265
    Messages:
    99
    Gender:
    Male
    Hampton Rds,Va
    Vehicle:
    12 DBL Cb Sport LB

    A little late for my response time, eh? You're exactly right. If you need to know anything about a PWC,ATV, or motorcycle let me know lol.
