Arb air locker help

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Tacomaflex4x4, Dec 30, 2019.

  1. Dec 30, 2019 at 6:34 PM
    #1
    Tacomaflex4x4

    Tacomaflex4x4 [OP] Member

    Joined:
    Dec 30, 2019
    Member:
    #314679
    Messages:
    7
    First Name:
    Sean
    Vehicle:
    White Tacoma Trd
    Hey guys I am wanting to put a arb air locker system on the rear of my 2013 trd sport but I don’t know what all I need or which kit to get can y’all help?

    Kolter45 likes this.
  2. Dec 30, 2019 at 6:37 PM
    #2
    WOODY2

    WOODY2 Well-Known Member

    Joined:
    Mar 17, 2014
    Member:
    #125541
    Messages:
    209
    Gender:
    Male
    RAMONA,CA.
    Go electric!

    Sna and whatstcp like this.
  3. Dec 30, 2019 at 7:49 PM
    #3
    Tacomaflex4x4

    Tacomaflex4x4 [OP] Member

    Joined:
    Dec 30, 2019
    Member:
    #314679
    Messages:
    7
    First Name:
    Sean
    Vehicle:
    White Tacoma Trd
    I can’t get electric unless I swap my axels and everything so that is out of the question....

    I know I would take it to a diff shop but I’m just not Shute on what all I need as in parts wise and I know there has been people do it before on a 2013 trd sport

  4. Dec 30, 2019 at 7:54 PM
    #4
    Tacomaflex4x4

    Tacomaflex4x4 [OP] Member

    Joined:
    Dec 30, 2019
    Member:
    #314679
    Messages:
    7
    First Name:
    Sean
    Vehicle:
    White Tacoma Trd
    Thank you this is new to me this helps!!!

  5. Dec 30, 2019 at 7:55 PM
    #5
    DavesTaco68

    DavesTaco68 Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200391
    Messages:
    3,205
    North Thompson, BC
    Vehicle:
    2013 Tacoma TRD
    - ICON UCAs, BP51/Kings, SCS wheels, 285 KO2s, Leer 100XR canopy. Greenlane aluminum winch bumper, Smittybilt X20 winch.
    whatstcp likes this.
  6. Dec 30, 2019 at 7:56 PM
    #6
    Tacomaflex4x4

    Tacomaflex4x4 [OP] Member

    Joined:
    Dec 30, 2019
    Member:
    #314679
    Messages:
    7
    First Name:
    Sean
    Vehicle:
    White Tacoma Trd
    What is the electric locker called????

  7. Dec 30, 2019 at 7:59 PM
    #7
    DavesTaco68

    DavesTaco68 Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200391
    Messages:
    3,205
    North Thompson, BC
    Vehicle:
    2013 Tacoma TRD
    - ICON UCAs, BP51/Kings, SCS wheels, 285 KO2s, Leer 100XR canopy. Greenlane aluminum winch bumper, Smittybilt X20 winch.
    Sna likes this.
  8. Dec 30, 2019 at 8:01 PM
    #8
    DavesTaco68

    DavesTaco68 Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200391
    Messages:
    3,205
    North Thompson, BC
    Vehicle:
    2013 Tacoma TRD
    - ICON UCAs, BP51/Kings, SCS wheels, 285 KO2s, Leer 100XR canopy. Greenlane aluminum winch bumper, Smittybilt X20 winch.
    whatstcp likes this.
  9. Dec 30, 2019 at 8:02 PM
    #9
    Tacomaflex4x4

    Tacomaflex4x4 [OP] Member

    Joined:
    Dec 30, 2019
    Member:
    #314679
    Messages:
    7
    First Name:
    Sean
    Vehicle:
    White Tacoma Trd
    Will the old Carrier bearing and gaskets work?

  10. Dec 30, 2019 at 8:09 PM
    #10
    Fixxxer

    Fixxxer Well-Known Member

    Joined:
    Nov 15, 2012
    Member:
    #91236
    Messages:
    574
    Gender:
    Male
    First Name:
    Matt
    Port Angeles
    Vehicle:
    '13 TRD Sport DCLB Super White
    ARB Front/Rear Air Lockers, Nitro Gear 4:88's, Hutchinson Rock Monsters, SOS Concepts Front Aluminium Bumper, UpTop Overland Alpha XL Roof Rack, ARB Snorkel, AVS Rainguards, Redline Hood Struts, Weathertech Mats, Flyzeye led's, MESO Molle Rack, Meso LED Dome Light, K&N Air Filter, UNI Filter Mod, Bosch Wiper Blades, Snugtop Sportster Reinforced Canopy, Viper 2-Way Remote Start, ARB Twin Compressor,
  11. Dec 30, 2019 at 8:27 PM
    #11
    Tacomaflex4x4

    Tacomaflex4x4 [OP] Member

    Joined:
    Dec 30, 2019
    Member:
    #314679
    Messages:
    7
    First Name:
    Sean
    Vehicle:
    White Tacoma Trd
    I think I’m going to go with the electric system it looks like less hassle and I want have to worry about an air pump

    TireFire and Sna like this.
  12. Dec 30, 2019 at 8:37 PM
    #12
    DavesTaco68

    DavesTaco68 Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200391
    Messages:
    3,205
    North Thompson, BC
    Vehicle:
    2013 Tacoma TRD
    - ICON UCAs, BP51/Kings, SCS wheels, 285 KO2s, Leer 100XR canopy. Greenlane aluminum winch bumper, Smittybilt X20 winch.
    I was looking at an e locker as well but there is pros and cons to both, I might end up with ARB.
    https://board.marlincrawler.com/index.php?topic=102072.0

    Kolter45 and Sna like this.
  13. Dec 30, 2019 at 9:16 PM
    #13
    Sna

    Sna Well-Known Member

    Joined:
    Mar 21, 2015
    Member:
    #151425
    Messages:
    1,392
    Gender:
    Male
    Alberta
    Vehicle:
    ‘15 trd sport 6MT dcsb, mostly stock?
    Harrop FTW.

    ECGS has ARB and also sells Harrop.

  14. Dec 30, 2019 at 9:43 PM
    #14
    Tacomaflex4x4

    Tacomaflex4x4 [OP] Member

    Joined:
    Dec 30, 2019
    Member:
    #314679
    Messages:
    7
    First Name:
    Sean
    Vehicle:
    White Tacoma Trd
    What would be the best long term arb or harrop

  15. Dec 30, 2019 at 9:50 PM
    #15
    Fixxxer

    Fixxxer Well-Known Member

    Joined:
    Nov 15, 2012
    Member:
    #91236
    Messages:
    574
    Gender:
    Male
    First Name:
    Matt
    Port Angeles
    Vehicle:
    '13 TRD Sport DCLB Super White
    ARB Front/Rear Air Lockers, Nitro Gear 4:88's, Hutchinson Rock Monsters, SOS Concepts Front Aluminium Bumper, UpTop Overland Alpha XL Roof Rack, ARB Snorkel, AVS Rainguards, Redline Hood Struts, Weathertech Mats, Flyzeye led's, MESO Molle Rack, Meso LED Dome Light, K&N Air Filter, UNI Filter Mod, Bosch Wiper Blades, Snugtop Sportster Reinforced Canopy, Viper 2-Way Remote Start, ARB Twin Compressor,
    I think in some circumstances it depends on what you intend to do. I don't have any experience with the e-lockers so can't really comment on them. I don't know if they are susceptible to failure due to moisture or not.
    The air lockers also have pros and cons to consider. You may get a leaking one but that ca generally be traced and rectified.
    Another bonus with the air locker system is that you will then have on board air which depending on your setup, can be used for airing up tires, operating small tools, blow gun nozzles, and such.

  16. Dec 30, 2019 at 9:51 PM
    #16
    TireFire

    TireFire Superunknown Member

    Joined:
    Feb 6, 2016
    Member:
    #177349
    Messages:
    7,510
    Olympic Peninsula
    Probably Harrop but I’m biased because I installed one on my truck about 2 years ago. I re-used carrier bearings cuz they’re low mileage and just used RTV for a gasket. No problems and plenty of off-roading and towing since. It’s a simpler set up (less parts) than an ARB and somehow I didn’t like the idea of sending pneumatic pressure into my diff... neither did I have a use for that stupid compressor you’d need with an ARB because I have a CO2 tank to fill tires.

    Sna, Tacomaflex4x4[OP] and whatstcp like this.
  17. Dec 31, 2019 at 7:28 AM
    #17
    Taco'09

    Taco'09 Well-Known Member

    Joined:
    Dec 31, 2008
    Member:
    #12073
    Messages:
    1,838
    Gender:
    Male
    OP, ECGS is a dealer for ARB so will likely try to steer you toward that. I went with the Harrop elocker (up front) and am frankly wowed. ECGS will however install the Harrop (they are great guys and do a super job). I ordered mine directly from OZ and at the time the exchange rates were such that it was about the price of the ARB so a super deal. If you keep a watch on the exchange rates you may get lucky, but the exchange rates are a moving target...

    Sna likes this.
  18. Jan 2, 2020 at 8:33 AM
    #18
    Jowett

    Jowett Well-Known Member

    Joined:
    May 5, 2016
    Member:
    #186182
    Messages:
    1,618
    Gender:
    Male
    First Name:
    Brian
    North Adams, MA

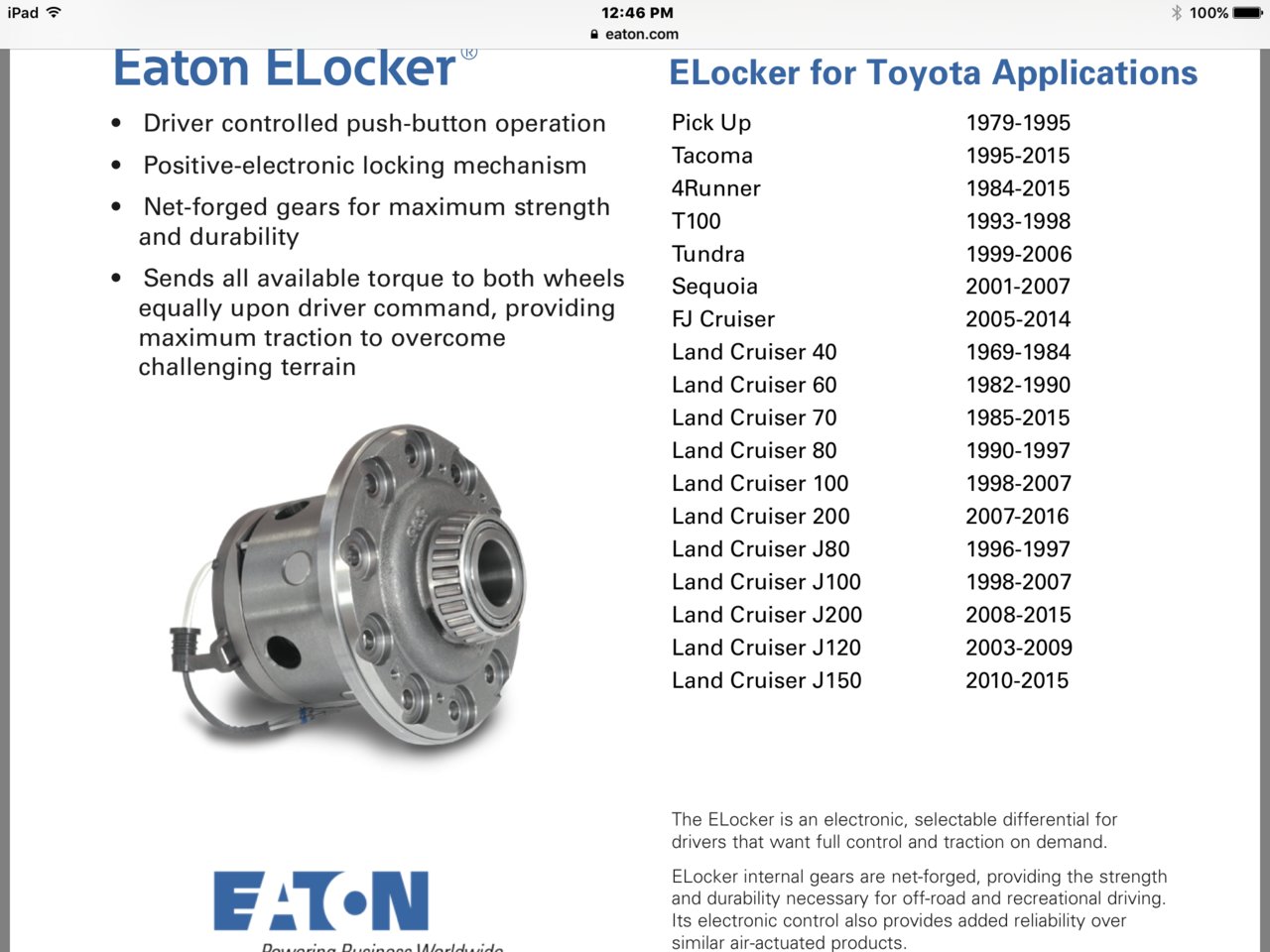

    Eaton will soon be supplying e Lockers.... I won't run ARB on dail drivers, anymore.IMG_3176.jpg
