    So I just wanted to do a quick update of my latest project. Not a very thorough step by step guide here, nonetheless all of your threads and photos have inspired me to share this information.

    So I set out to make 2 brackets so that I could mount the OBA
    $611 ARB CKMTA12 '12V' On-Board Twin High Performance Air Compressor, Ideal for Air Lockers Locking Differentials, Tire Inflator, Air Horn, Air Tools and Pneumatic Tools.
    ARB CKMTA12 compressor under the hood as well as the Blue Sea 5026 circuit panel.

    I am not finished with the project yet as I still have to mount the switches and tidy up the wiring under the dash----lets call the project 90%.

    So to start I made a cardboard template and then drew up dimensions in google sketchup
    [​IMG]

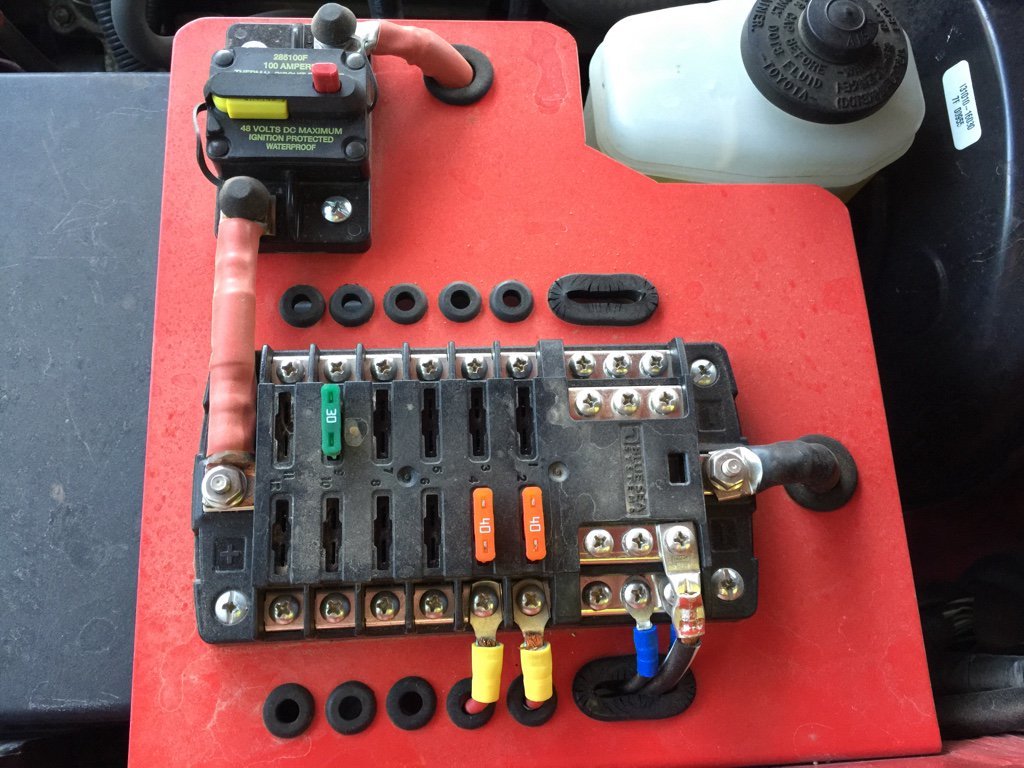

    bracket for panel 1 - power circuit panel​

    [​IMG]
    bracket for panel 2 - OBA ARB air compressor​

    After I felt very confident that this would be exactly what I wanted, I took the drawings over to an acquaintance/friend who has a fabricating shop for build. His shop specialty really is powdercoating not fabricating. Anyway so here are the brackets installed.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

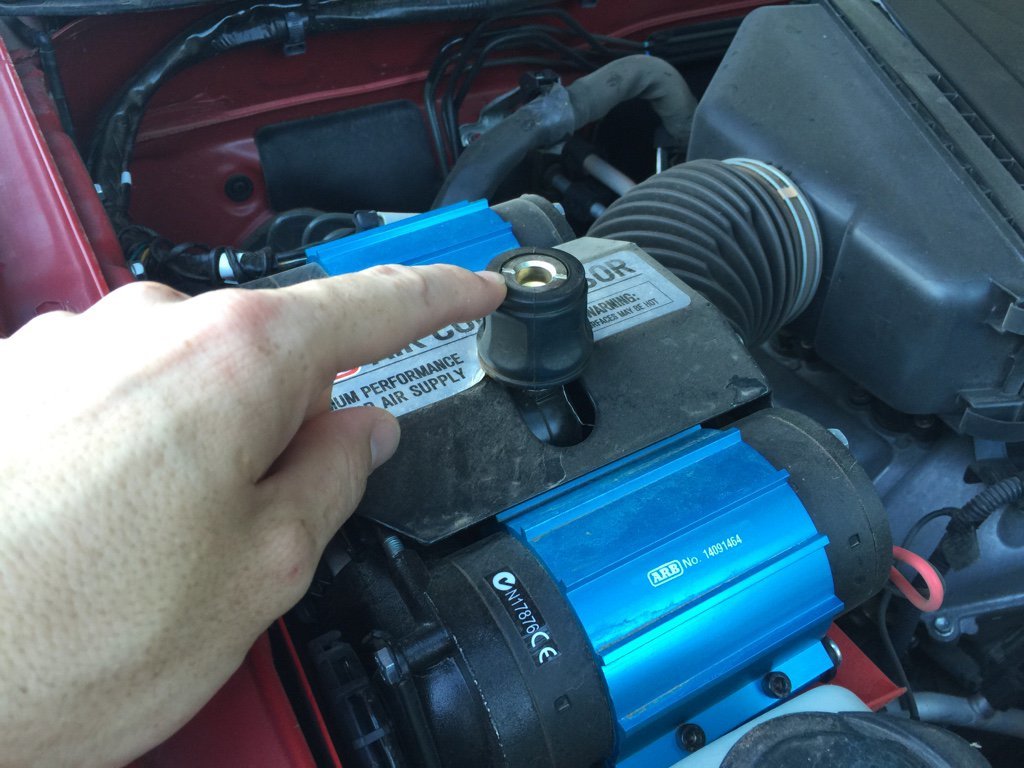

    Hoping to get the rest of the electrical tied up today. Then I'll test out my new OBA by going out in the sand, let the air down and air back up. Can't wait!!

    mik4stlcards, Mar 28, 2015
    #1
    amora9912 and V5ioV like this.
  2. Mar 28, 2015 at 9:32 AM
    #2
    Pigpen

    #2
    Pigpen My truck is never clean

    Joined:
    Mar 6, 2012
    Member:
    #74319
    Messages:
    8,962
    Gender:
    Male
    Northwest Montana
    Vehicle:
    2012 AC Manual 4.0 4x4 Base Model
    Access cab toolbox/ dog bed with seats and headrests deleted, waterproof TRD seat covers, yellow wire mod, diff breather relocated to tail light, engine block heater, Leer topper with Yakima tracks and rack, Yakima rack on cab, Ride Rite with Daystar cradles, CBI hidden front hitch, wired for winch front and rear Warn quick connect, Warn x8000i on external carrier, sway bar delete, trailer plug relocated to bumper, Pelfreybilt IFS and Mid skids, ECGS front diff bushing, ARB CKMA12 compressor, 255/85/16 Backcountrry MT 3 load E tires on stock steel rims, Up2NoGood heated mirror kit, Husky X-act Contour front floor liners, Northstar AGM 24F battery, Pelfreybilt bolt on sliders with kickout and top plates, TRD Pro headlights, Depo smoked tail lights, Energy suspension body mount bushing kit, OME Dakar leaf packs with AAL, Billstein B110 rear shocks, OME 90021 front shocks with 885 coils, SPC LR UCAs, Up2NoGood 2wd low range mod, 4 Wheel Campers Grandby slide in camper
    Nice, super clean work!

    Pigpen, Mar 28, 2015
    #2
  3. Mar 28, 2015 at 10:11 AM
    #3
    bicyclist

    #3
    bicyclist Well-Known Member

    Joined:
    Nov 17, 2013
    Member:
    #116732
    Messages:
    179
    Gender:
    Male
    Nice. Like the red powdercoat.

    bicyclist, Mar 28, 2015
    #3
  4. Mar 28, 2015 at 6:31 PM
    #4
    mlbdriver

    #4
    mlbdriver Well-Known Member

    Joined:
    Jan 3, 2009
    Member:
    #12170
    Messages:
    390
    Gender:
    Male
    First Name:
    Ben
    Santa Rosa
    Vehicle:
    2020 TRD Off-Road
    Go Fast Camper ARB Dual Air-Compressor Pro-Comp 7089 17x8 BFG AT KO2 265x70x17
    Can you air up your tires directly from compressor or do you need an air tank with that model compressor?

    mlbdriver, Mar 28, 2015
    #4
  5. Mar 28, 2015 at 6:47 PM
    #5
    mik4stlcards

    #5
    mik4stlcards [OP] Well-Known Member

    Joined:
    Feb 15, 2015
    Member:
    #148703
    Messages:
    46
    Gender:
    Male
    First Name:
    Mike
    St George Utah
    Vehicle:
    07 TRD
    Mlbdriver. You have to purchase the air up kit which is #171302 (I think). And yes you can air up directly from the compressor.

    mik4stlcards, Mar 28, 2015
    #5
  6. Mar 28, 2015 at 6:53 PM
    #6
    mlbdriver

    #6
    mlbdriver Well-Known Member

    Joined:
    Jan 3, 2009
    Member:
    #12170
    Messages:
    390
    Gender:
    Male
    First Name:
    Ben
    Santa Rosa
    Vehicle:
    2020 TRD Off-Road
    Go Fast Camper ARB Dual Air-Compressor Pro-Comp 7089 17x8 BFG AT KO2 265x70x17

    Cool thanks for the reply

    mlbdriver, Mar 28, 2015
    #6
  7. Mar 29, 2015 at 8:44 PM
    #7
    Pcyc

    #7
    Pcyc Self Proclaimed Leader

    Joined:
    Sep 10, 2012
    Member:
    #86603
    Messages:
    1,233
    Gender:
    Male
    First Name:
    Fritz
    Concord, CA
    Vehicle:
    09 DCSB TRD OR - Supercharged - Dual Cased - Twin Sticked
    https://www.tacomaworld.com/threads/pcyc-fj40-build.444289/ https://www.tacomaworld.com/threads/pcycs-2nd-gen-build.308160/
    Nice design. Looks familiar

    Pcyc, Mar 29, 2015
    #7
  8. Mar 29, 2015 at 8:51 PM
    #8
    mik4stlcards

    #8
    mik4stlcards [OP] Well-Known Member

    Joined:
    Feb 15, 2015
    Member:
    #148703
    Messages:
    46
    Gender:
    Male
    First Name:
    Mike
    St George Utah
    Vehicle:
    07 TRD
    Familiar yes, but not CNC like your design. I want to build a CNC table to make custom parts like you. Unfortunately this is what I will have to settle for based on my time available currently with work, family and life in general!

    I haven't seen any brackets for the compressor under the hood for gen 2 like I did. Not saying it hasn't been done, just haven't been a member long enough or seen enough posts about OBA I guess.

    Fav part about the whole thing is that it is under the hood and clean---almost looks factory.

    mik4stlcards, Mar 29, 2015
    #8
  9. Apr 29, 2015 at 11:55 PM
    #9
    V5ioV

    #9
    V5ioV My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    8,243
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    OP, install looks super clean!

    I'm curious on what are you planning on doing next! Are you planning on using the fill up kit directly from the compressor or through a ARB manufold? looks like the compressor sits very close to the hood when the hood it's close... if you are using the ARB manifold, where are you planning on mounting it to?

    V5ioV, Apr 29, 2015
    #9
  10. Apr 30, 2015 at 12:03 AM
    #10
    llibrm

    #10
    llibrm OH NOOOOOO!

    Joined:
    Aug 1, 2012
    Member:
    #83890
    Messages:
    4,914
    Gender:
    Male
    First Name:
    Bill
    Winthrop, WA &Convection Oven, AZ
    Vehicle:
    06 DCSB, 06 LC120 (sold)
    Pelfreybilt Aluminum Bumper, KING 2.5 on all four corners, 4x4 illuminated switch, Cobra 75 w/ 3' Firestick, 2M/ 70cm Radio w/ Diamond NR770HB, Pelfreybilt bed bar, Lightforce Stiker 170s, BD 20" OnX6, BD S2 ditch lites on SDHQ mounts, BD SAE Fogs
    super clean.

    llibrm, Apr 30, 2015
    #10
  11. Jul 19, 2015 at 8:02 PM
    #11
    2chains

    #11
    2chains Well-Known Member

    Joined:
    May 15, 2010
    Member:
    #37210
    Messages:
    376
    Gender:
    Female
    Calgary, Alberta
    Vehicle:
    2010 Tacoma DC LB 3" Revtek lift
    3" Revtek lift, k&n 63-9025 intake, tailgate debadge, OEM Bed mat, decals gone. helo black max 6 bs 4.5 os-12,duratrac 285 70 17,smittybilt light bar, kc slimlites, pioneer pb3300 bt, window tint, weathertech digfits, raider lorider elite tonneau, at2525xl,
    Looks like factory install, did you power to the Blue Sea fuse block and what size fuse did you use? Can you post more pics of the wiring?

    2chains, Jul 19, 2015
    #11
  12. Jul 23, 2015 at 6:26 AM
    #12
    mik4stlcards

    #12
    mik4stlcards [OP] Well-Known Member

    Joined:
    Feb 15, 2015
    Member:
    #148703
    Messages:
    46
    Gender:
    Male
    First Name:
    Mike
    St George Utah
    Vehicle:
    07 TRD

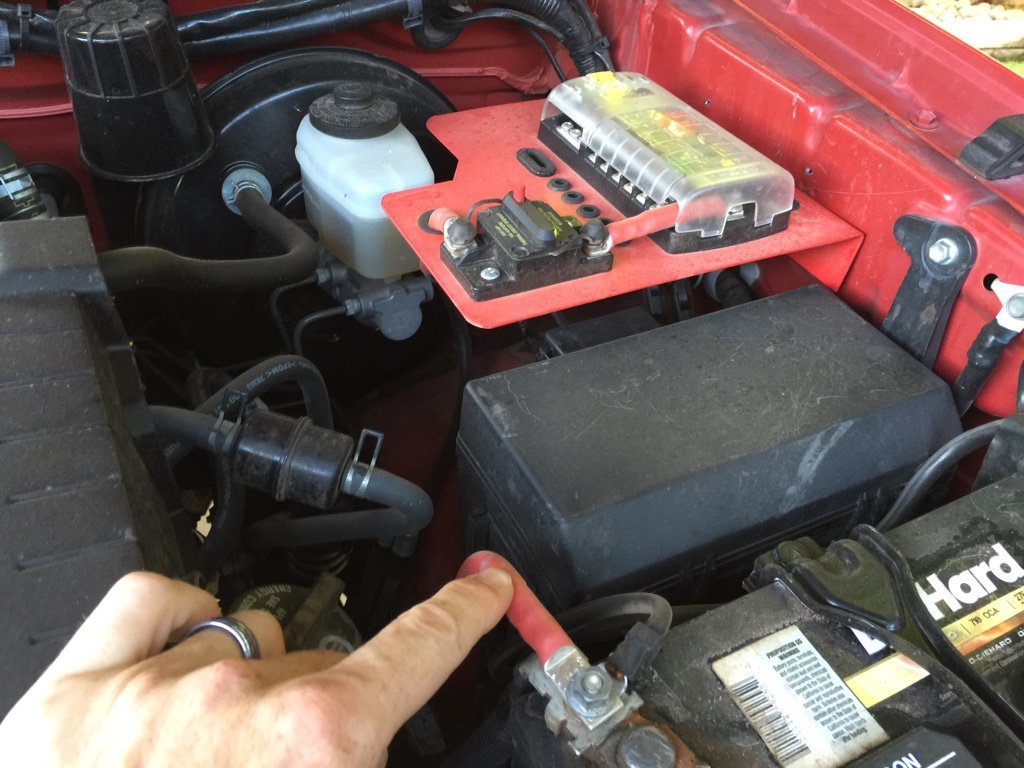

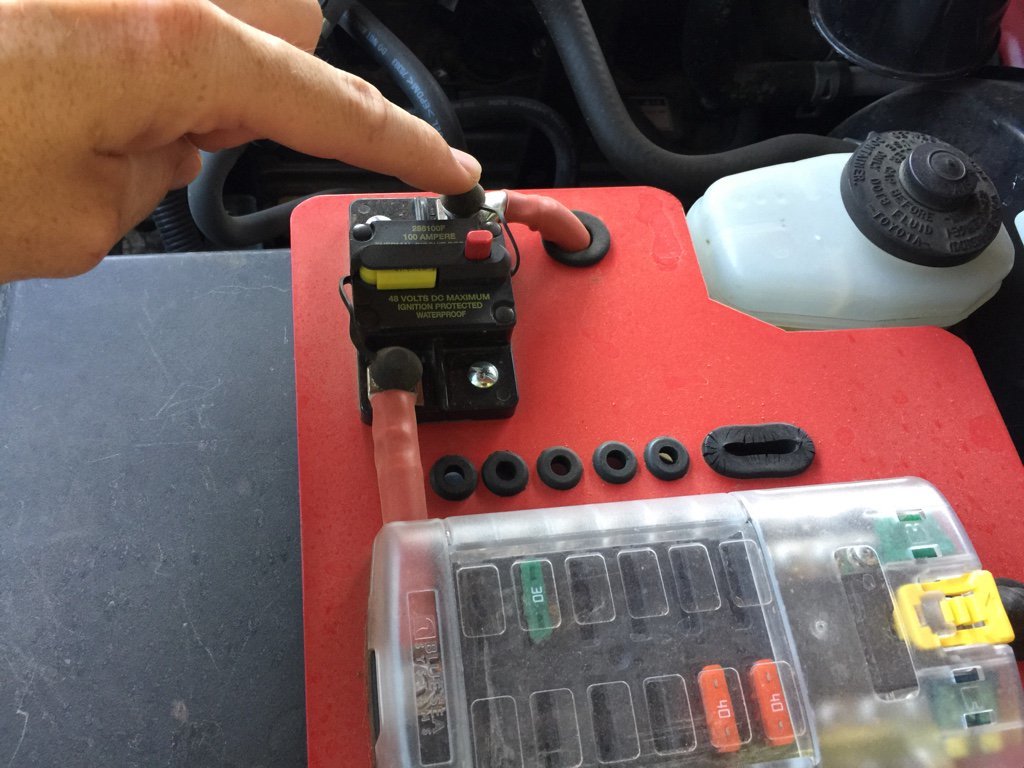

    The blue sea fuse block is powered from the terminal I have my finger via the 100amp circuit breaker pictured here


    My only circuits currently wired into the blue sea fuse block is my OBA system.


    Also I am thinking about adding a small tank so that I can air up faster. Removing the quick connect air hose fitting here


    And installing tubing to a tank I can accomplish adding an air tank remotely somewhere else as I can't fit it under the hood.

    In all I have used my OBA to air up my tires after airing down at the dunes and filling up bike tires for my kids when we have gone camping. One of the better investments IMO.

    mik4stlcards, Jul 23, 2015
    #12
  13. Jul 24, 2015 at 7:42 PM
    #13
    2chains

    #13
    2chains Well-Known Member

    Joined:
    May 15, 2010
    Member:
    #37210
    Messages:
    376
    Gender:
    Female
    Calgary, Alberta
    Vehicle:
    2010 Tacoma DC LB 3" Revtek lift
    3" Revtek lift, k&n 63-9025 intake, tailgate debadge, OEM Bed mat, decals gone. helo black max 6 bs 4.5 os-12,duratrac 285 70 17,smittybilt light bar, kc slimlites, pioneer pb3300 bt, window tint, weathertech digfits, raider lorider elite tonneau, at2525xl,
    Thanks for the pics, great looking install!

    2chains, Jul 24, 2015
    #13
    mik4stlcards[OP] likes this.
  14. Jul 24, 2015 at 7:49 PM
    #14
    Glueman

    #14
    Glueman Yersinia pestis

    Joined:
    Dec 27, 2012
    Member:
    #93882
    Messages:
    2,101
    Gender:
    Male
    Utah
    Vehicle:
    The Plague....
    6 inch Douche Bag lift...what else do I need?
    That is some OCD quality work right there. No offense since I am an OCD mod kind of guy as well. Nicely done.

    Glueman, Jul 24, 2015
    #14
    mik4stlcards[OP] likes this.
  15. Aug 12, 2015 at 9:06 AM
    #15
    raginrougarou

    #15
    raginrougarou Well-Known Member

    Joined:
    May 9, 2015
    Member:
    #154927
    Messages:
    113
    Gender:
    Male
    First Name:
    Forrest
    Vehicle:
    2015 Gray Tacoma TRD Sport
    Do you remember what size screws you used to attach the plate that holds the blue sea panel to the truck?

    raginrougarou, Aug 12, 2015
    #15
  16. Aug 12, 2015 at 10:12 AM
    #16
    Pcyc

    #16
    Pcyc Self Proclaimed Leader

    Joined:
    Sep 10, 2012
    Member:
    #86603
    Messages:
    1,233
    Gender:
    Male
    First Name:
    Fritz
    Concord, CA
    Vehicle:
    09 DCSB TRD OR - Supercharged - Dual Cased - Twin Sticked
    https://www.tacomaworld.com/threads/pcyc-fj40-build.444289/ https://www.tacomaworld.com/threads/pcycs-2nd-gen-build.308160/
    M8 or M10 I think. I got my bolts at Ace hard wear.

    Pcyc, Aug 12, 2015
    #16
  17. Aug 15, 2015 at 11:24 AM
    #17
    2chains

    #17
    2chains Well-Known Member

    Joined:
    May 15, 2010
    Member:
    #37210
    Messages:
    376
    Gender:
    Female
    Calgary, Alberta
    Vehicle:
    2010 Tacoma DC LB 3" Revtek lift
    3" Revtek lift, k&n 63-9025 intake, tailgate debadge, OEM Bed mat, decals gone. helo black max 6 bs 4.5 os-12,duratrac 285 70 17,smittybilt light bar, kc slimlites, pioneer pb3300 bt, window tint, weathertech digfits, raider lorider elite tonneau, at2525xl,
    I noticed the 40amp fuse in the fuse block, my Blue Sea fuse block(5026) has rated max circuit of 30amps. Is that a special Blue Sea kit one can buy?

    2chains, Aug 15, 2015
    #17
  18. Aug 15, 2015 at 11:11 PM
    #18
    mik4stlcards

    #18
    mik4stlcards [OP] Well-Known Member

    Joined:
    Feb 15, 2015
    Member:
    #148703
    Messages:
    46
    Gender:
    Male
    First Name:
    Mike
    St George Utah
    Vehicle:
    07 TRD
    @2chains. No this is the 30A block. It can handle higher amperage. Especially with limited use you shouldn't ever have an issue.

    mik4stlcards, Aug 15, 2015
    #18
  19. Sep 3, 2015 at 2:55 PM
    #19
    Loganc08

    #19
    Loganc08 Well-Known Member

    Joined:
    May 13, 2015
    Member:
    #155183
    Messages:
    93
    Gender:
    Male
    First Name:
    Logan
    Charlottesville, VA
    Vehicle:
    2009 Black Tacoma AC TRD OR
    OME front and rear with 886s
    Thanks for the write up!! Couple questions...

    - Since you linked into the bluesea did you get rid of the 2 inline fuses supplied by ARB?
    - Where did connect the red-yellow ignition wire and blue-white dash illumination wires?

    Never really wired anything before so sorry if those are obvious questions:confused:

    Loganc08, Sep 3, 2015
    #19
  20. Sep 7, 2015 at 4:50 PM
    #20
    Dirtboyz

    #20
    Dirtboyz Well-Known Member

    Joined:
    Nov 18, 2014
    Member:
    #142654
    Messages:
    385
    Gender:
    Male
    Spanaway, WA
    Vehicle:
    DCSB trd sport 4x4
    Front bilstein 5100 with OME 884 w/trim pack, 17" fuel trophy wheels wrapped with 32" toyot open country m/t, bakflip fibermax tonneau cover, Avec 30" led light bar behind lower grille, marathon seat covers in max 5 camo pattern, trimmed front and rear mud flaps, more to come.
    How did you mount to the truck. Did you use the pre-existing holes there already? If so how did you get to them. Last question, what material and what gauge did you use for the bracket? Thanks and awesome work by the way. I'm planning on getting the smaller 6 point box and stumbled across this and really like your work!

    Dirtboyz, Sep 7, 2015
    #20
