ARB Compressor Mounting Schemes?

Discussion in '1st Gen. Tacomas' started by tomtom, Jun 1, 2013.

  1. Jun 1, 2013 at 9:53 AM
    #1
    tomtom

    tomtom [OP] Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,823
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders

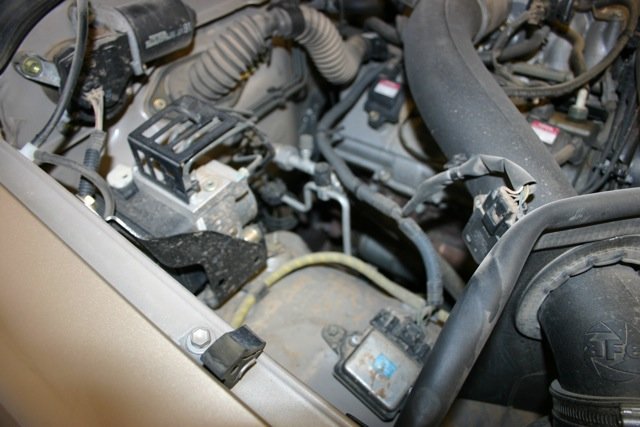

    Working on mounting an ARB compressor in my engine bay today. I've got only one obvious spot where it'll fit but not optimal.

    [​IMG]

    The ABS unit, air bag wire loom and the ignition control unit thingy make the fit a little tight and awkward.

    [​IMG]

    Anyone got advice/pictures/a write-up of how they mounted on an ABS equipped 1st Gen?

    Last edited: Jun 1, 2013
  2. Jun 1, 2013 at 10:06 AM
    #2
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,858
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    If you want it in the engine bay, I think you're pretty much stuck with that spot unless you do some modifications (I deleted the ABS system for example). If it fits there, why isn't it optimal? If it's just awkward to reach bolts and what not, I think your best bet is just build a mounting bracket that shares preexisting bolts from other equipment.

    FWIW, if it was me, I'd stick it in one of the compartments under the jump seats. The compressor is something I'd want to keep the mud and crap off of.

    Love your truck BTW.:cool:

    Last edited: Jun 1, 2013
  3. Jun 1, 2013 at 10:22 AM
    #3
    tomtom

    tomtom [OP] Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,823
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    I've considered taking out the ABS. What all did you have to do?

    Hmmm, I'll have to look at the mounting scheme for the ARB and see what I can do. Was originally thinking of mounting using the ARB template and just stacking a couple washers to clear things and level it out. Was hoping to see how others had done it before I go drilling holes.

    I'd considered this but the storage space under the jump seats are already filled up with recovery gear and tools. At one point I was even thinking of getting the big ARB compressor and mounting it under the passenger seat. I tossed that idea out after weighing the noise, heat and greater risk of nicking or pinching the locker line going out the firewall


    Thanks man! You and BoxRocket, Silas and a few others are the ones I stayed up late reading through builds. Thanks again for the input on the BudBuilts. Should be getting a new front skid from them on Wed.

    Guess I have to suck it up and figure out how to make this mounting location work.

    Last edited: Jun 1, 2013
  4. Jun 1, 2013 at 10:38 AM
    #4
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,619
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    If you mount it in the cab, it's loud enough that you'll jump out of your skin and bang your head on the roof when it unexpectedly engages to keep the pressure in the line constant. :eek:

  5. Jun 1, 2013 at 10:42 AM
    #5
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,619
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    That spot looks fine. If you really want to go slick you could fab up a bracket that

    1. moves the ignition control a litlle rearward
    2. mounts the compressor overlapping OVER the control and then
    3. shift the little air tank all the way forward and maybe a little downward (once you loosen some bolts you can orient it relative to the compressor any way you want) so that the whole thing still clears the hood.

    Just remember that when the compressor is operating it vibrates and moves about 1/4" inch in every direction as it does so. So don't butt it up right against anything else.

  6. Jun 1, 2013 at 10:48 AM
    #6
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,619
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio

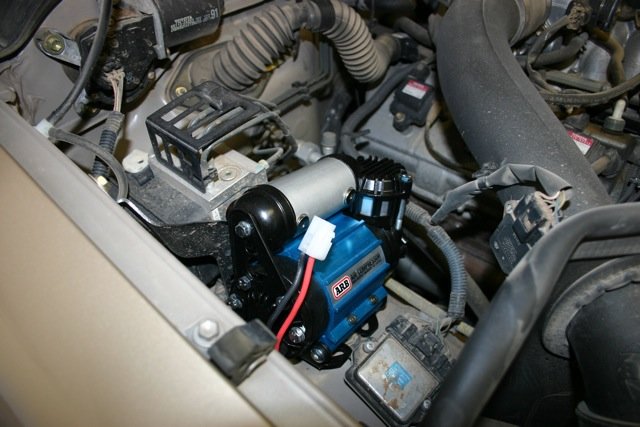

    Mine's a second gen not first gen and it's on the driver not passenger side.

    But by comparison - you've got LOTS of room.

    [​IMG]

    [​IMG]

  7. Jun 1, 2013 at 10:58 AM
    #7
    tomtom

    tomtom [OP] Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,823
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    Holy Sheet! That is tight.

  8. Jun 1, 2013 at 10:59 AM
    #8
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,619
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    Right. So, what *you* complainin' about? :cool:

  9. Jun 1, 2013 at 11:02 AM
    #9
    tomtom

    tomtom [OP] Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,823
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    absolutely nothing. :D

  10. Jun 1, 2013 at 11:02 AM
    #10
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,619
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
    One more thing:

    Like I said - don't mount it so any part of it's actually touching (or within half an inch) of anything else if you can help it. (I ended up within about 1/4" of some rubber flexible lines.)

    In a "snowball's chance in hell" type of way, I tried to minimize noise and transmitted vibration by using rubber washers on both sides of all my mounting points.

  11. Jun 1, 2013 at 11:06 AM
    #11
    tomtom

    tomtom [OP] Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,823
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    Really appreciate of the advice. It's always the little things that bite back in the end.

  12. Jun 1, 2013 at 11:17 AM
    #12
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,858
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L

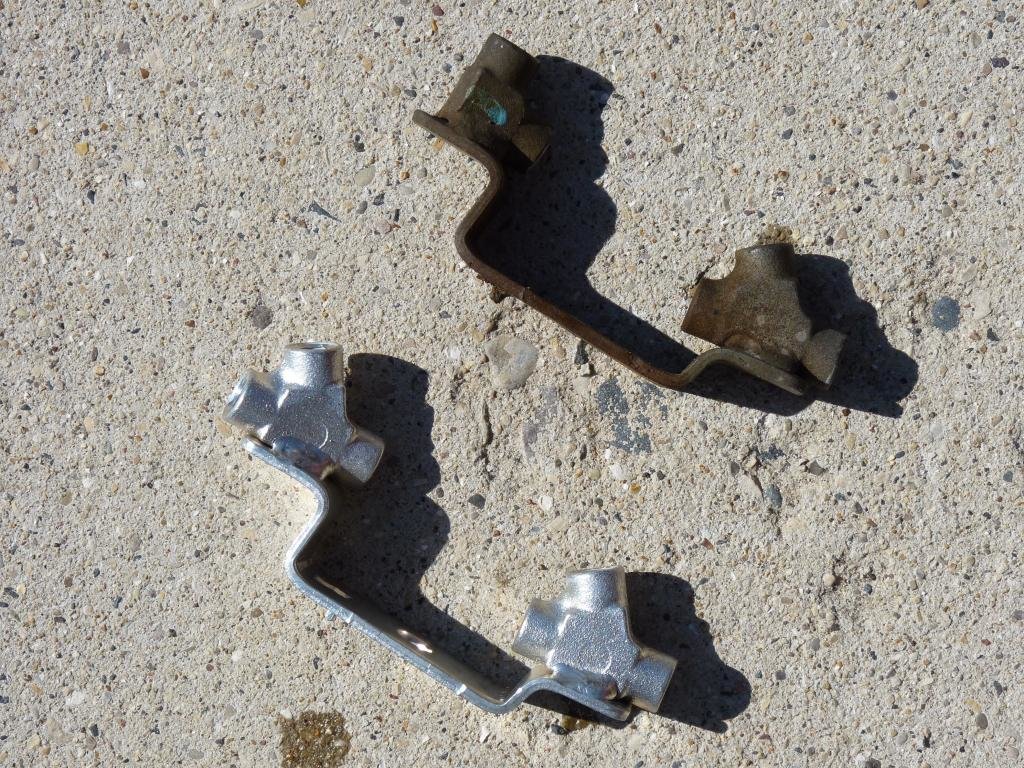

    All I did was literally pull the ABS system and put new lines in. New lines are cheap and I got an OEM union which was like 20 bucks I think. That simple really. And the truck handles much better without it.

    [​IMG]

    [​IMG]

    I used this diagram to figure out how the lines needed to be routed.

    http://www.utoyot8.com/Picture.aspx?ccId=19005699&ppId=366353924&ppInfo=ILLUST+NO.+1+OF+3+++++-----++(9501-0209)&ccode=674460&ppName=472252A

    That loud eh? Well shit. haha
    I guess the other viable option would be to get a toolbox for the bed and mount it in there. :notsure:

  13. Jun 1, 2013 at 3:56 PM
    #13
    tomtom

    tomtom [OP] Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,823
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    Spent an hour or so out in the garage brainstorming mounting schemes with a buddy. the spot I initially picked out is as good as it gets. The most empty space available just need to do something to create a shelf or some other mounting scheme. Two ideas popped out:

    1. Build a small shelf on top of the wheel well between the ABS head and the air filter heatshield and bolt the compressor to that.

    2. Bolt the compressor to the airfilter heat shield and build a cradle for the compressor to rest on against the top of the wheel well. (Probable use some silicon to mechanically isolate while not melting.)

    heading to Lowe's in a bit to see what they got in stock for sheet metal for the shelf idea.

  14. Jun 1, 2013 at 3:59 PM
    #14
    tomtom

    tomtom [OP] Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,823
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    There is a 3rd option which entails removing the ABS and purchasing and installing the ARB bigboy compressor in all that empty space. Option 3 will take some heavy deciding.

    Thanks, 45acp, for filling me in on the ABS removal.

  15. Jun 2, 2013 at 7:37 PM
    #15
    tomtom

    tomtom [OP] Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,823
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    I have a preliminary design in my head. Going to build a shelf that bolts to some pre-existing holes on the hood rail and then I'll have to drill some holes down on the wheel well.

    Now I have to go build some tooling to bend sheet metal and I have to test if 16ga is going to hold up or if I need to find some 10ga.

  16. Jun 2, 2013 at 11:02 PM
    #16
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,858
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
  17. Jun 3, 2013 at 8:14 PM
    #17
    tomtom

    tomtom [OP] Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,823
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    I did a little exploratory work tonight.

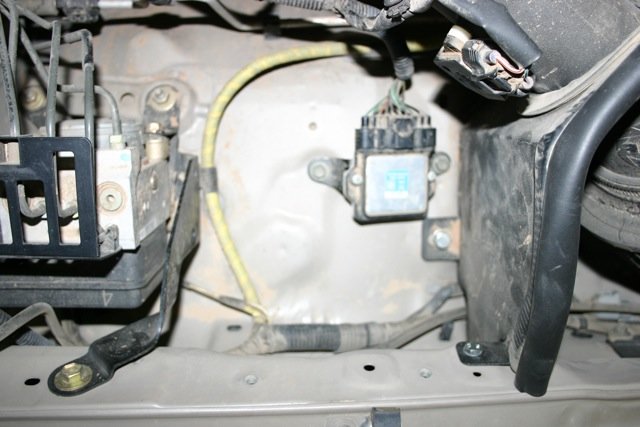

    This is the hole I need to fill with a compressor:

    [​IMG]

    There's 3 6mm holes with backing nuts already there. So my idea is to take some sheet metal and bend it into a shelf and use the 3 existing holes for mounts.

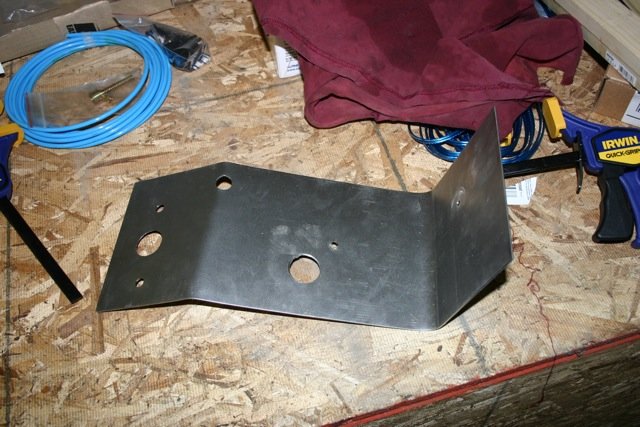

    An attempt at bending some scrap 16ga sheet metal I practiced drilling on:
    [​IMG]

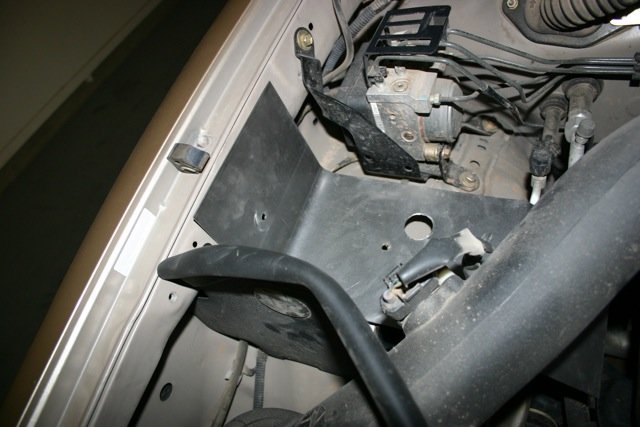

    So here it is sitting in the hole:
    [​IMG]

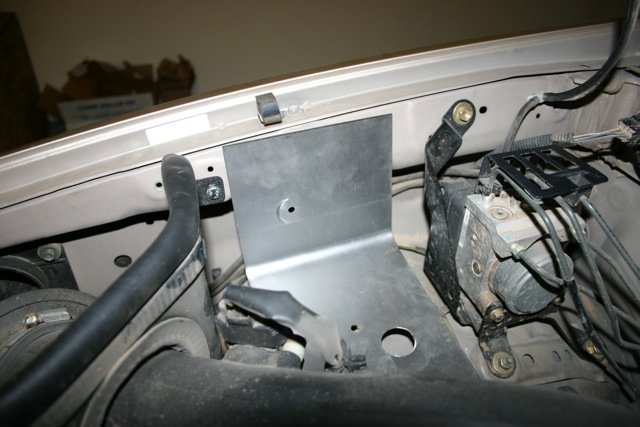

    Different angle:
    [​IMG]

    So I'm unsure if the 16ga steel will be enough to support the compressor. Thinking a block of rubber shoved underneath my be enough once I get the actual shelf built. Going to be tricky working out the bends to line up with the holes but it is a start.

  18. Jun 3, 2013 at 9:37 PM
    #18
    BigOly

    BigOly Well-Known Member

    Joined:
    May 3, 2012
    Member:
    #78148
    Messages:
    417
    Gender:
    Male
    Bay Area, NorCal
    Vehicle:
    04 TRD DC V6 SR5 4WD

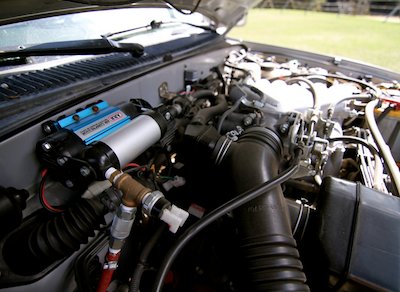

    I remember watching some awesome inspirational expedition overland vids and these folks mounted one on their beastly 1st gen taco in this location:

    [​IMG]

    Source: Expedition Overland

    Maybe this could be a good mounting location on your rig?

  19. Jun 4, 2013 at 7:11 AM
    #19
    tomtom

    tomtom [OP] Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,823
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    Hmmm. I looked at roughly that area and ruled it out for some reason I've forgotten. Going to go look at it again.

    Thanks for posting! would make the install just a bolt on.

  20. Jun 4, 2013 at 7:49 AM
    #20
    BigOly

    BigOly Well-Known Member

    Joined:
    May 3, 2012
    Member:
    #78148
    Messages:
    417
    Gender:
    Male
    Bay Area, NorCal
    Vehicle:
    04 TRD DC V6 SR5 4WD
    I'd love to eventually get me one of these ARB compressors for my rig! :) Please keep us posted once you decide the optimal place to mount it! :popcorn:
