    Installed an ARB compressor a couple months back but just got to cleaning up the install, so here are some pics.

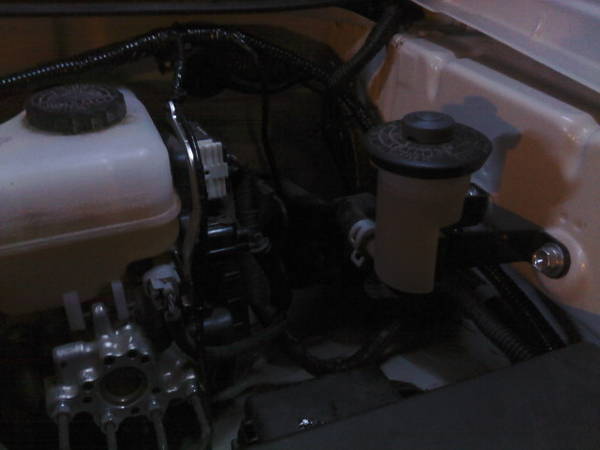

    I made this bracket to bolt to existing studs on fender well. Also used existing hole for the relay.
    [​IMG]

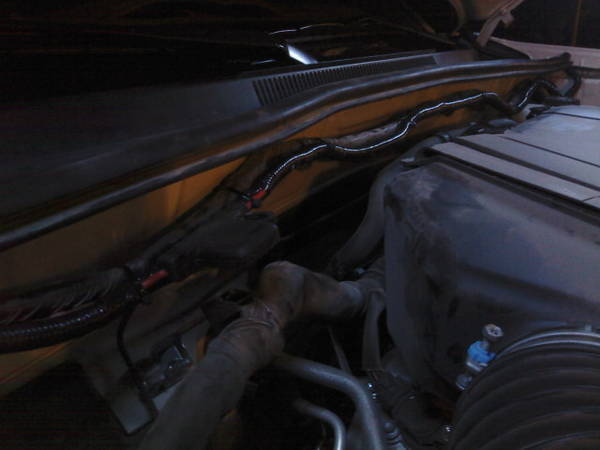

    Ran wiring along existing loom on firewall.
    [​IMG]

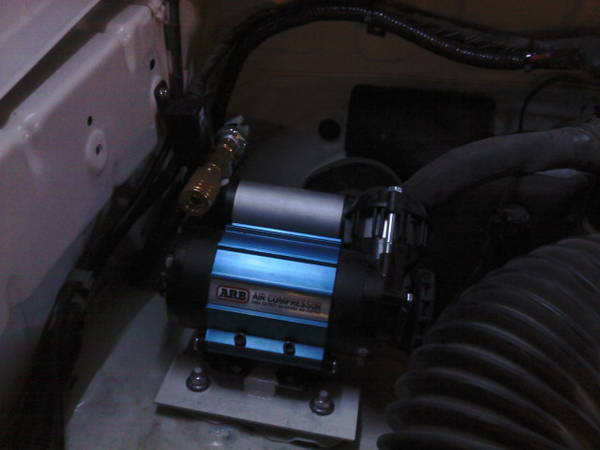

    Hooked 12v constant to terminal in fuse block, ground to battery ground on fender wall and ran the switch wires through the loom near the steering column.
    [​IMG]

    I had to take apart the whole damn dash to get to the location where I wanted to put the switch. Next to the A-TRAC and AUX
    [​IMG]

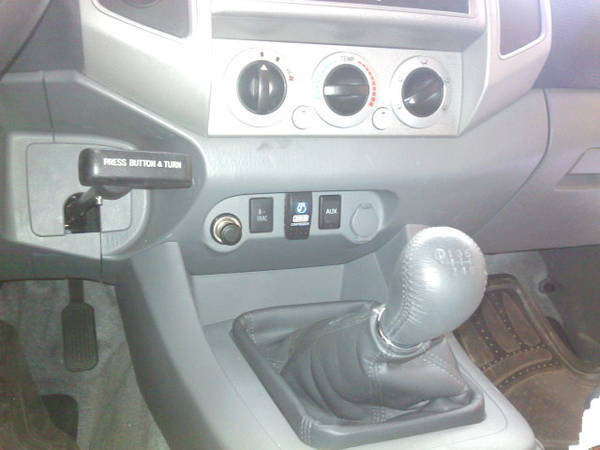

    Here is the switch location I chose. The only blank spot I had for a toggle is now occupied. I did have to trin off the backing material used for Toyota toggles and open up the hole very little vertically.
    [​IMG]

    I think it turned out great. Works wonderfully. Thanks to my cousin Jimmy for the hook up at 4Wheel Parts.
