ARB Front Bumper w/ Winch Receiver

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Poison Ivy, Mar 7, 2010.

  1. Mar 7, 2010 at 1:00 PM
    #1
    Poison Ivy

    Poison Ivy [OP] Member

    Joined:
    Mar 6, 2010
    Member:
    #32700
    Messages:
    17
    MD
    Vehicle:
    10 4x4 SR5
    I want to use the Warn 9.5ti Portable with the ARB Deluxe Front Bumper using a 2" hitch receiver. Has anyone tried this before or fabricated a hitch that mounts to the winch points of the ARB bumper?

    Some custom made bumpers have this feature but couldn't find any ARB's with it. I sent ARB an e-mail but they just said they recommend mounting it in the bumper. Having the winch permanently mounted isn't an option for me because I want the flexibility of using it in the back. I'm planning on solo expedition travel so I would need to be able to rescue myself. Also, I want to avoid the extra mass on the front bumper, I'd rather have the winch stored in my truck or in the bed. The ARB is already heavy enough without a winch.

    I'm really sold on the ARB because I'm not going to be doing hardcore stuff, just expedition travel and I really like the looks. The airbag certification is a HUGE plus since this is my daily driver too, ~600 mi/week.

    So, anyone seen this before? Anyone have a recommendation of a someone that could fab a front hitch to fit inside the ARB winch mountings (CBI or Demello maybe)? Maybe I'll try it out myself, can't be too bad, probably pretty fun too.

  2. Mar 7, 2010 at 1:02 PM
    #2
    Brunes

    Brunes abides.

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,641
    Gender:
    Male
    First Name:
    Rotorhead
    DC or New Jersey - Depends on the day....
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit
    The parts you are looking for do exist...Cause there are folks out there with stock bumpers mounted over front receivers and they use them. CBI has made them in the past.

    Good luck finding the right one!!

  3. Mar 7, 2010 at 1:03 PM
    #3
    Poison Ivy

    Poison Ivy [OP] Member

    Joined:
    Mar 6, 2010
    Member:
    #32700
    Messages:
    17
    MD
    Vehicle:
    10 4x4 SR5
    Just found this on TTORA. Mine is a different application but CBI looks promising...

  4. Apr 13, 2010 at 6:54 PM
    #4
    beer

    beer Member

    Joined:
    Mar 23, 2010
    Member:
    #33828
    Messages:
    5
    Gender:
    Male
    First Name:
    Cody
    Montana/Oklahoma
    Vehicle:
    06 Trd Sport
    lift,bumper,wheel-tires,intake,moretocome
    yeah I have a ARB bumper and i too have been think the same thing! But I think I'll just make my own and weld on in this summer.

  5. Sep 17, 2016 at 6:19 PM
    #5
    DaveSmith

    DaveSmith Active Member

    Joined:
    Oct 3, 2009
    Member:
    #23707
    Messages:
    38
    Gender:
    Male
    First Name:
    Dave
    Maine
    Vehicle:
    2010 Tacoma TRD Offroad
    I have an ARB bumper and had a Warn 9.5 XP mounted in it up until last week when the motor seized due to corrosion from New England road salt. I'm now looking for an adapter to add a standard 2" receiver hitch to the bumpers 4.5"x10" winch bolt holes. I'm going to store the winch on a cradle inside my tool box to keep the corrosive salt spray off it. It will also be nice to be able to mount the winch on the front as well as the back.

    So far I haven't found an adapter out there. I have a CBI rear bumper and love their products/customer service... so I'm going to call them up and ask them if they can make me one and perhaps offer it on their website. Or I may get one made local if its fast/cheaper.

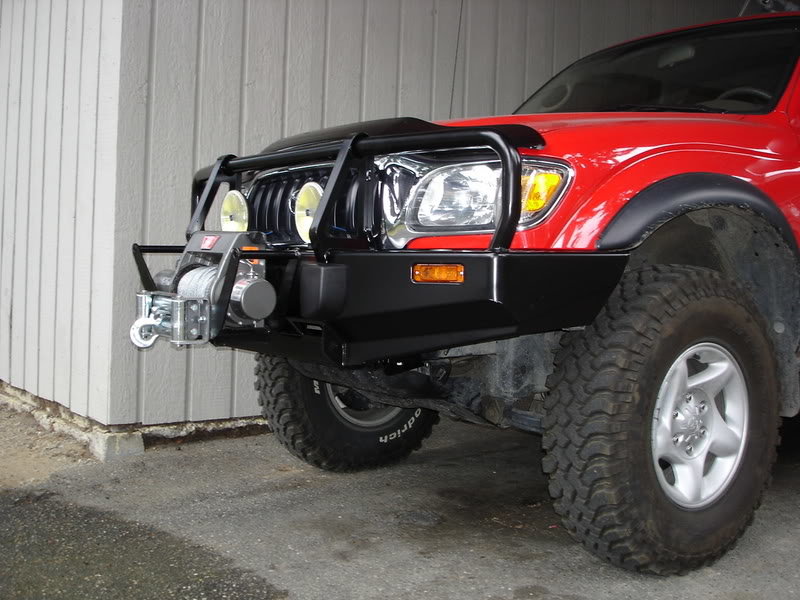

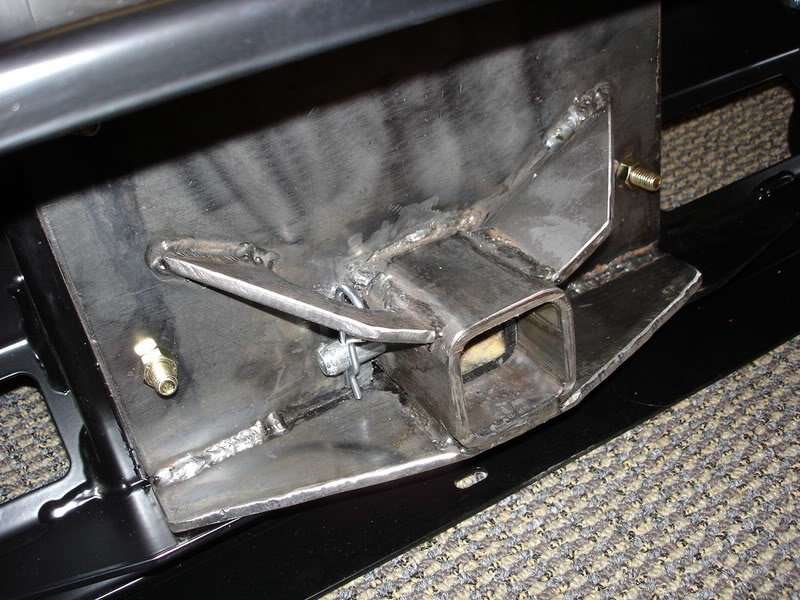

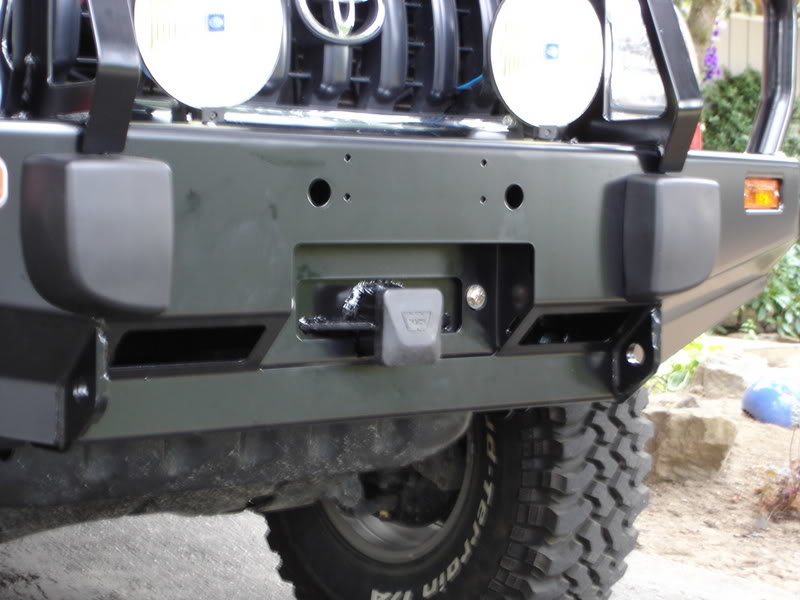

    I did find the below pics from Willman on the Expedition Portal Site (2007 post) who made his own custom ARB Front Bumper 2: receiver hitch mount. This is exactly what I need. ARB Receiver Hitch.jpg ARB Hitch on Tacoma.jpg ARB Receiver Hitch Back.jpg

  6. Dec 5, 2016 at 10:33 PM
    #6
    henryp

    henryp Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70080
    Messages:
    68
    Gender:
    Male
    First Name:
    Henry
    Livingston, MT
    Vehicle:
    09 DC TRD Off-Road 4x4
    Did you ever find what you were looking for? I'm thinking this is the way I'm going if I can find it
