Armor Tech Offroad Product Line

Discussion in 'Armor Tech Offroad' started by Fire931, Jun 26, 2009.

  1. Jun 26, 2009 at 2:32 PM
    #1
    Fire931

    Fire931 [OP] Well-Known Member Vendor

    Joined:
    Jan 18, 2009
    Member:
    #12687
    Messages:
    3,244
    Gender:
    Male
    VA
    Vehicle:
    00 4Runner
    Hey guys! So here's a basic summary of the rear bumpers we offer for the 05+ Tacomas.

    First is a Direct Bolt on Replacement Bumper. In designing this bumper we tried to follow the factory lines on the bedside while providing maximum protection to the rear of the truck. NO modifications are required to the truck to use this bumper.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    All base bumpers come with a recessed license plate mounting surface with a light for the plate. This light will have to be spliced into the factory wiring for the license plate which requires two small crimp connectors. Production models that come with the optional integrated hitch will include a tab for mounting the factory 7-pin trailer harness next to the hitch behind the license plate, as well as a hinged license plate bracket which will flip up to reveal the hitch. The bumper is constructed of 3/16ths steel, models with the integrated hitch use 1/4" mounting brackets. All Armor Tech Offroad products come painted in a Satin Black finish. We choose to use paint in an effort to make it easier for the customer to retain a "new" looking finish throughout the life of the bumper. Prices are as follows:

    Base bumper - $590 (includes recessed license plate mount and LED license plate light)
    Bottom Mount Hitch - $125
    Shackle Mounts - $40
    Hi Lift Notches - $40
    Rear Light Cutouts with Lights - $55
    Shipping - call for shipping quote
    NOTE: This item ships via Freight, a business address will be required for delivery or you may pick it up at your local distribution terminal. If you wish to have it shipped to your residence there may be an additional charge for this fee. This is a fee that I am charged by the freight companies for such deliveries.


    Second is High Clearance Wrap Around version which was designed to maximize departure angles, ground clearance, and provide vital side protection for the avid offroaders. This bumper DOES require modification to the bedsides of the truck!

    [​IMG]

    [​IMG]

    [​IMG]

    This bumper is constructed out of 3/16ths material with 1/4" used on the mounting brackets. The factory tow hitch is NOT compatible with this bumper. All Armor Tech Offroad products come painted in a Satin Black finish. We choose to use paint in an effort to make it easier for the customer to retain a "new" looking finish throughout the life of the bumper. Prices are as follows:

    Base Bumper - $810
    Integrated Hitch - $55
    Shackle Mounts - $40
    Hi Lift Notches - $40
    Rear Light Cutouts with Lights - $55
    Shipping - call for a shipping quote
    NOTE: This item ships via Freight, a business address will be required for delivery or you may pick it up at your local distribution terminal. If you wish to have it shipped to your residence there may be an additional charge for this fee. This is a fee that I am charged by the freight companies for such deliveries.

    We also offer a rear Shackle Flip Kit for those who wish to maximize suspension travel on their Tacoma. One of the main benefits tot his kit is moving the vulnerable spring hanger up and out of harms way. Our kit has shown increases in axle droop over stock while not adversely affecting ride quality. It does however provide approximately 1/2" of lift to the rear of the vehicle, due to the design on the frames and location of the springs this is unavoidable. To maximize suspension travel we do recommend longer shocks for the rear, however we recommend that you wait until the kit is installed and measure for an exact fit to your application. This kit is designed to re-use the stock shackle.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    In the last picture you can see the difference in clearance from stock to our kit. Each kit comes with install instructions and all needed hardware. All Armor Tech Offroad products come painted in a Satin Black finish. We choose to use paint in an effort to make it easier for the customer to retain a "new" looking finish throughout the life of the bumper. Prices are as follows:

    Shackle Flip is currently undergoing a redesign, at the moment there is no set ETA on the re release!


    We created this item to help those purchasing our High Clearance Wrap Around bumper find a place to locate their license plate. It comes prewired with a small LED light to keep things legal with a small plug so it can be disconnected to tow. The mount does hang down some below our bumper but this is required to keep enough clearance for the tailgate to open.

    [​IMG]


    License Plate Mount with Light for 2" Hitch - $60
    Shipping - $10
    If bought with a Wrap Around Bumper - $50 (will ship with bumper)

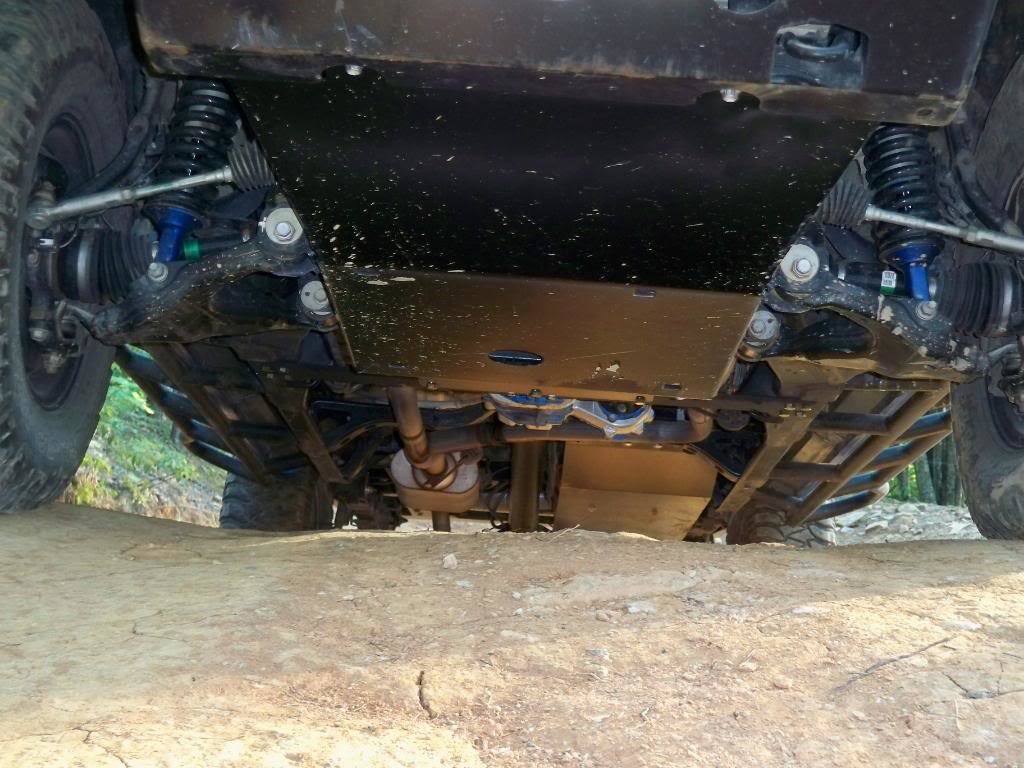

    HD Front Skid Plate

    No modifications are require to use this skid, simply bolt it on and beat it up! This is the largest, beefiest skid you will find for the Tacomas! Skid is constructed of 1/4" plate, CNC cut and CNC bent.

    [​IMG]

    [​IMG]

    weight - 70 lbs.
    $309 plus shipping

    We can also do a light duty version of this skid which is made from 3/16" plate versus the 1/4" used on the HD version. This skid won't take quite the beating the HD version will however it is still tough and will save a few pounds.

    $289 plus shipping


    Transfer Case Skid

    This skid requires rerouting the low hanging exhaust crossover pipe to behind the transfer case instead of below it. This allows us to tuck the skid up tight to maximize ground clearance at a crucial location under the truck. Skid is constructed from 3/16" plate, CNC cut and CNC bent.
    (appx. costs at different local muffler shops for new crossover pipe range from $85 and up so check around)

    [​IMG]

    [​IMG]

    [​IMG]

    weight - 50 lbs.
    $339 plus shipping


    Transmission Skid

    This skid requires no modifications to the truck to use, however it does require having the front and transfer case skid. This skid utilizes the transfer case skid and the front skid as mounting locations so it CANNOT be used without the other skids. Skid is constructed of 3/16" plate, CNC cut and CNC bent.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    weight - 30 lbs.
    $219 plus shipping

    Gas Tank Skid
    Both ACLB - DCSB and a version for DCLB

    These skids are constructed from 3/16" steel. As with all our skids they are CNC cut and CNC bent. If you have a TRD Offroad model this is a simple bolt on install, however SR5 and TRD Sport models require either changing the gas tank straps to one for a TRD Offroad or welding in studs for the skid to mount to.

    Pics to follow....

    weight - 38 lbs.
    $219 plus shipping


    All skids ship bare steel!


    Hi-Lift bed mounts for the 05+ Tacoma's.

    These mounts are the best and simplest solution to mounting your Hi-Lift in the bed of your Tacoma. They require NO modifications, NO holes drilled, just a simple bolt on installation. The only tools required are a 9/16" wrench or socket. They hold your jack securely to the side of the bed utilizing the factory track system. They can be adjusted towards the front or rear of the bed, whichever suits you better.

    $75.85 shipped anywhere within the US!

    Ship bare steel.

    [​IMG]

    [​IMG]


    Antenna / Bed Light Mounts for 05+ Tacomas.

    These little mounts will work great for installing CB antennas, Bed lights, or whatever else you need to mount in the bed. They attach via the track system, include all hardware needed, and feature a 1/2" hole to accommodate most antenna mounts as well as a 1/4" grounding stud.

    $20.35 shipped anywhere in the US!

    [​IMG]


    We will soon be developing Rear Differential Guards and a Front Winch Bumper for the 05+ Tacomas.

    Armor Tech Offroad is always open to new ideas for products so if there's something that you've always wanted and never found please let us know!!! All Armor Tech Offroad products are hand built which allows us to preform custom modifications to existing products to meet your specific needs!!!

    Thank you for your interest!! Please feel free to contact me either via PM, Email or Phone.

    Kevin McLamb
    kevin@armortechoffroad.com
    540-784-0197

  2. Jun 26, 2009 at 2:35 PM
    #2
    luk8272

    luk8272 Poodoo

    Joined:
    Feb 24, 2008
    Member:
    #4929
    Messages:
    5,842
    Gender:
    Male
    First Name:
    Lucas
    Kaplan, Louisiana
    Vehicle:
    07 Silver4dr. 4x4, V6 Shortbed
    5% Tint, Bug flector, vent Visors, Removed secondary air filter, Rear Spring TSB w/ Wheeler's Add A Leaf HD Pack, Icon 2.0 rear shocks, Toytec 3" lift up front with Total Chaos UCA's, Debadged, Billet Grille,TRD Offroad rims/17x9 Pro comp 6001 rims, Duratracs 265/75/16 or 285/70/17, Fog light anytime mod, Tailgate hose clamp mod, Pro-dry AFE filter. Extended Differential Breather, ABS on/off, 6000k LEDs from CSJumper, heads/fogs, ScanguageII, Devil horns, Devil horns on third brake light, Mounted 60" Highlift, Mounted Tool Box, Wet Okole Front/Rear Seat Covers, TW sticker, Midland Handheld CB,Painted engine cover, Revenge Fab Sliders, ARE Topper, Weather tech Floorliners.
    I have a feeling you are about to get real busy!

  3. Jun 26, 2009 at 2:41 PM
    #3
    KraQr

    KraQr WoodsDweller

    Joined:
    Dec 30, 2008
    Member:
    #12021
    Messages:
    1,020
    Gender:
    Male
    First Name:
    Dave
    Destin, Fl
    sold Tacoma, driving a Ford Raptor now.
    Hey Kev, quit posting and get back to buildng my bumper. :) j/k :)

    Cant wait to get it mounted and add some more pics to this thread.

  4. Jun 26, 2009 at 3:32 PM
    #4
    Fire931

    Fire931 [OP] Well-Known Member Vendor

    Joined:
    Jan 18, 2009
    Member:
    #12687
    Messages:
    3,244
    Gender:
    Male
    VA
    Vehicle:
    00 4Runner
    haha.. yea its on the top of the list right now!!

  5. Jun 29, 2009 at 4:39 PM
    #5
    LBtaco

    LBtaco Thread killer

    Joined:
    Jan 23, 2009
    Member:
    #12893
    Messages:
    1,250
    Gender:
    Male
    Long Beach , CA
    Vehicle:
    15 Nissan Leaf
    Jetsons mod
    hmm, I was just looking for a shackle flip the other day..
    I have a deaver 10 leaf pack , would this work with them? and do you have longer shackles to maybe put 1"-2" more lift?
    and how does it handle? much axle wrap?
    thanx

  6. Jun 29, 2009 at 4:52 PM
    #6
    Fire931

    Fire931 [OP] Well-Known Member Vendor

    Joined:
    Jan 18, 2009
    Member:
    #12687
    Messages:
    3,244
    Gender:
    Male
    VA
    Vehicle:
    00 4Runner
    the shackle flip will work with the deaver springs. there are no noticeable changes in the handing of the truck versus stock. as it is right now the kit provides appx. 1/2" of lift, if you desire more lift i can build it into the hanger, however at the moment i don't offer any replacement shackles. one customer did order and use a set of jeep extended shackles for some extra lift and he said they worked just fine.

  7. Jun 29, 2009 at 5:05 PM
    #7
    Anathollo

    Anathollo www.saveadane.org

    Joined:
    Feb 25, 2009
    Member:
    #14071
    Messages:
    1,294
    Gender:
    Male
    Houston
    Vehicle:
    07 Tacoma TRD Sport
    Icon coilovers, Rear Fox Resi-shocks, 285/70/17 Toyo A/T's, Touchscreen JVC Headunit, Custom Rhino-lined sub box, Rocksford Fosgate components and Dual Rockford Fosgate 10" shallow subs, Pioneer and Rocksford Fosgate amps, 1250 watts total, Autometer Volt and Trans gauges with Lotek A-pillar, K&N Drop-in filter, WO Seat covers, Tint, NST WP pulley, Hi-lift jack, Diff breather mod, horn relocation mod, extra "D" rings, de-pinstriped, carrier bearing drop, Rear backup 886 bulbs, Camburg UCA's, AMW Catch can, BHLM, OME Dakars with AAL, Procomp 7089's, Front single hoop Demello bumper, Superwinch Tiger Shark 9500, Amsteel 3/8th synthetic line
    Im ordering a back bumper from you in the future. It's on my to buy list.
    I can't wait to see the front winch bumper you come out with!

  8. Jun 29, 2009 at 5:21 PM
    #8
    dtrujillo63

    dtrujillo63 Well-Known Member

    Joined:
    Aug 28, 2008
    Member:
    #8827
    Messages:
    854
    Gender:
    Male
    First Name:
    Denny
    Los Angeles
    Vehicle:
    08 Tacoma DC 4x4 Sport
    Can't wait till my hi clearance bumper arrives! :)

    Is there a tracking number by chance?

  9. Jun 29, 2009 at 5:27 PM
    #9
    jhodge83

    jhodge83 Any dog under 50# is a cat and cats are useless... Thor

    Joined:
    Apr 27, 2007
    Member:
    #1432
    Messages:
    27,028
    Gender:
    Male
    First Name:
    Jamie
    Moncks Corner, SC
    Vehicle:
    09 Timberland Mica DC 4WD Sport
    wat?
    damn....now i want the rear w/ HLJ points, shackles, and hitch, along w/ the shackle flip...and on the price of about $35...haha. will definately be looking into all this when i get my next GI Bill check...so early August timeframe. and where in VA are u? i'd rather drive there then ship. i'll also be in charlottesville this weekend if ur close. lemme know!

  10. Jun 29, 2009 at 5:31 PM
    #10
    Toy4Life

    Toy4Life 668: The Neighbor of the Beast

    Joined:
    Aug 29, 2007
    Member:
    #2566
    Messages:
    4,974
    Gender:
    Male
    First Name:
    Chad
    Slippery Rock, PA
    Vehicle:
    96 Subaru Outback 2.2 5mt
    92 4Runner SR5 3.0v6 4x4(sold) 02 Tacoma SR5 TRD Offroad 4x4 (sold)
    Those are some good looking rear bumpers.

  11. Jun 29, 2009 at 7:43 PM
    #11
    Fire931

    Fire931 [OP] Well-Known Member Vendor

    Joined:
    Jan 18, 2009
    Member:
    #12687
    Messages:
    3,244
    Gender:
    Male
    VA
    Vehicle:
    00 4Runner
    thanks guys!!! jhodge... cville is about an hour from me.. kinda north east. i'm located in Lexington VA.

  12. Jun 29, 2009 at 7:47 PM
    #12
    jhodge83

    jhodge83 Any dog under 50# is a cat and cats are useless... Thor

    Joined:
    Apr 27, 2007
    Member:
    #1432
    Messages:
    27,028
    Gender:
    Male
    First Name:
    Jamie
    Moncks Corner, SC
    Vehicle:
    09 Timberland Mica DC 4WD Sport
    wat?
    mk...i'll have to keep that in mind to avoid shipping costs...haha...any trails in that area? wanna take a buddy out on some stuff that lives there.

  13. Jun 29, 2009 at 7:50 PM
    #13
    Fire931

    Fire931 [OP] Well-Known Member Vendor

    Joined:
    Jan 18, 2009
    Member:
    #12687
    Messages:
    3,244
    Gender:
    Male
    VA
    Vehicle:
    00 4Runner
    theres a few trails in the area.... nothing to crazy though. i would offer to go out this weekend but will have some family in town so that prolly wouldnt work.

  14. Jun 29, 2009 at 7:53 PM
    #14
    jhodge83

    jhodge83 Any dog under 50# is a cat and cats are useless... Thor

    Joined:
    Apr 27, 2007
    Member:
    #1432
    Messages:
    27,028
    Gender:
    Male
    First Name:
    Jamie
    Moncks Corner, SC
    Vehicle:
    09 Timberland Mica DC 4WD Sport
    wat?
    np man...just checkin

  15. Jun 29, 2009 at 7:54 PM
    #15
    Fire931

    Fire931 [OP] Well-Known Member Vendor

    Joined:
    Jan 18, 2009
    Member:
    #12687
    Messages:
    3,244
    Gender:
    Male
    VA
    Vehicle:
    00 4Runner
    yea wish i could! catch me on the next trip up!!!

  16. Jun 29, 2009 at 7:57 PM
    #16
    jhodge83

    jhodge83 Any dog under 50# is a cat and cats are useless... Thor

    Joined:
    Apr 27, 2007
    Member:
    #1432
    Messages:
    27,028
    Gender:
    Male
    First Name:
    Jamie
    Moncks Corner, SC
    Vehicle:
    09 Timberland Mica DC 4WD Sport
    wat?
    hopefully next trip up will be to get a bumper and shackle flips!!

  17. Jun 29, 2009 at 9:06 PM
    #17
    Fire931

    Fire931 [OP] Well-Known Member Vendor

    Joined:
    Jan 18, 2009
    Member:
    #12687
    Messages:
    3,244
    Gender:
    Male
    VA
    Vehicle:
    00 4Runner
    sounds like a good reason to me!! :D

  18. Jul 9, 2009 at 4:53 PM
    #18
    Fire931

    Fire931 [OP] Well-Known Member Vendor

    Joined:
    Jan 18, 2009
    Member:
    #12687
    Messages:
    3,244
    Gender:
    Male
    VA
    Vehicle:
    00 4Runner
    heres a quick shot on the current bumper i'm working on. its a bolt on replacement for a member here but this time we opted to put the hitch directly under the license plate. the bumper is still under construction at this time, thus the reason its primered and dosn't have corners yet.

    [​IMG]

  19. Jul 9, 2009 at 5:17 PM
    #19
    Dark Knight

    Dark Knight East Bound and Down

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,550
    Gender:
    Male
    First Name:
    Jeff
    SE Tennessee
    Vehicle:
    Trail Limo
    Skyjacker Platinum Coilovers w/ 16" 750# King springs, Skyjacker rear leafs, FJ TRD SE wheels, 285/75/16 MTZ's, Piaa 520 Smr Driving Lights, Yakima Rack, Bestop Canopy, TRD Exhaust, TRD CAI, Kenwood DNX5120 Navi, Fog Light Mod, Driving Light Mod, BHLM, Scanguage II on Blendmount, TC uca's, ARB Heavy Duty air compressor, ARB Rear Locker, Shrockworks Rock Sliders, ARB Front Bumper, Relentless Fab Rear Bumper w/ custom bed protection, WARN M8000
    Hotdog! thats looking good

  20. Jul 9, 2009 at 5:19 PM
    #20
    jhodge83

    jhodge83 Any dog under 50# is a cat and cats are useless... Thor

    Joined:
    Apr 27, 2007
    Member:
    #1432
    Messages:
    27,028
    Gender:
    Male
    First Name:
    Jamie
    Moncks Corner, SC
    Vehicle:
    09 Timberland Mica DC 4WD Sport
    wat?
    no....thats fire...not isocoee...geez
