ATH Fab 2005-2015 High Clearance Rear Bumper

Discussion in 'At The Helm Fabrication' started by At The Helm, Jan 10, 2020.

  1. Jan 10, 2020 at 7:01 AM
    #1
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,319
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers
    Finally, the long awaited 2nd gen Tacoma High Clearance bumper design is finished and now available to order! Shoot me a PM here or email morgan@athfab.com to order. Link to website: https://athfab.com/product/2005-2015-toyota-tacoma-high-clearance-rear-bumper/

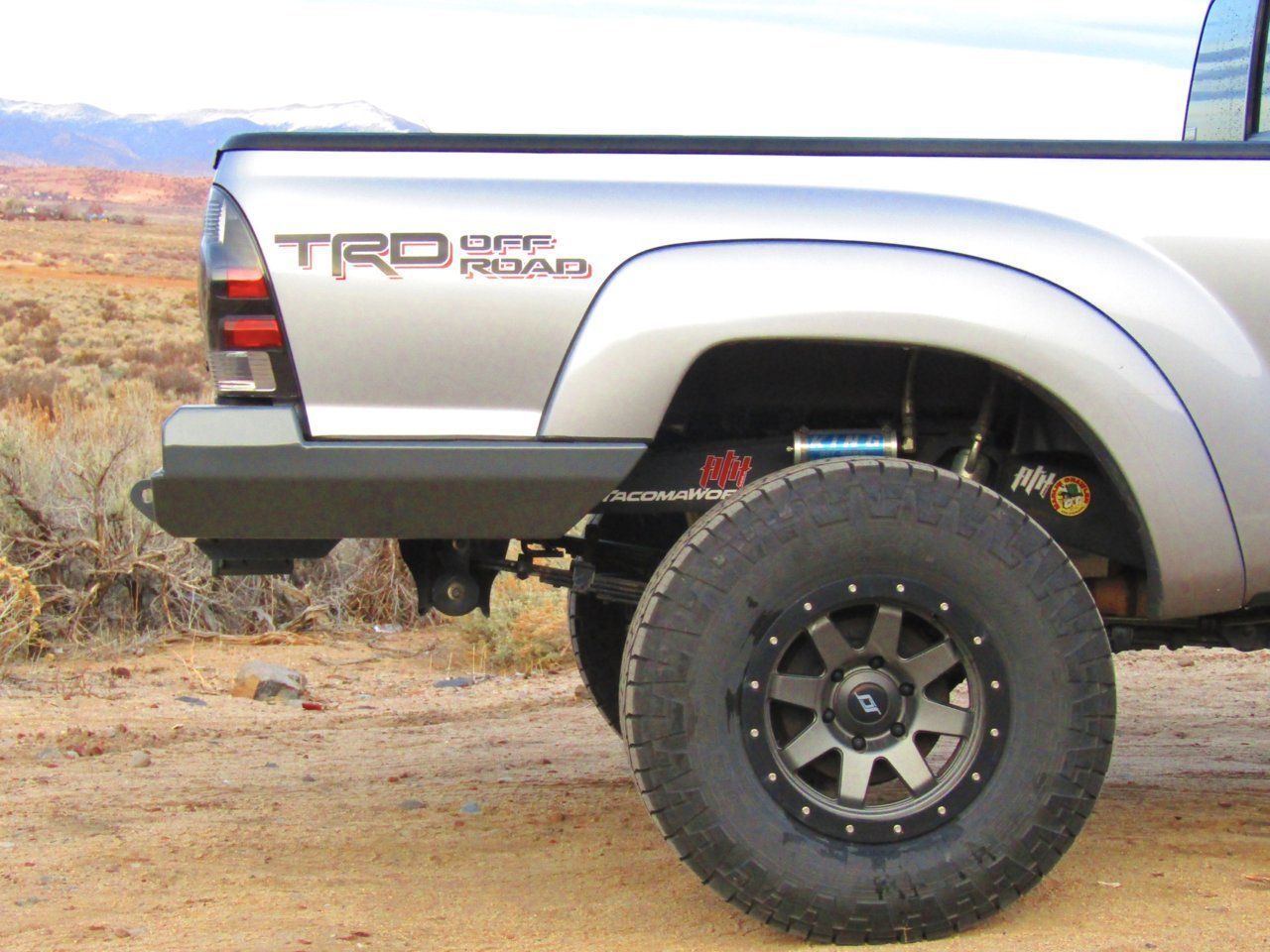

    High Clearance Tacoma rear bumpers require cutting the bedsides and are designed to give much better clearance and departure angle.

    Features Included:

    • Built from CNC cut and brake formed 3/16″ HRPO steel plate with 1/4″ mounting plates.
    • 3/4″ thick shackle tabs pass through the bumper and welded front and back.
    • 10 bolt locations makes mounting rock solid. Mounts to factory threaded frame holes and requires cutting bedsides for install. Clear written instructions are provided.
    • Holes for flush mount LED pods as backup lights. Fits most brands including Rigid Industries D series flush mount. Adapter plates for Baja Designs Squadrons are available upon request.
    • Hi-Lift jack slots for safer lifting.
    • Standard 2” receiver included, either hidden behind plate or under license plate (your choice). Hidden receivers include a flip up license plate bracket. Receiver hitches are not officially load rated, but built plenty beefy. Receiver tube is reinforced with 2”x2”x.120” tubing spanning between the mounting plates.
    • Uses OEM license plate lights. Direct bolt on without any cutting or splicing.
    • Trailer plug gets relocated under the bumper using included bracket…tucked up and out of the way.

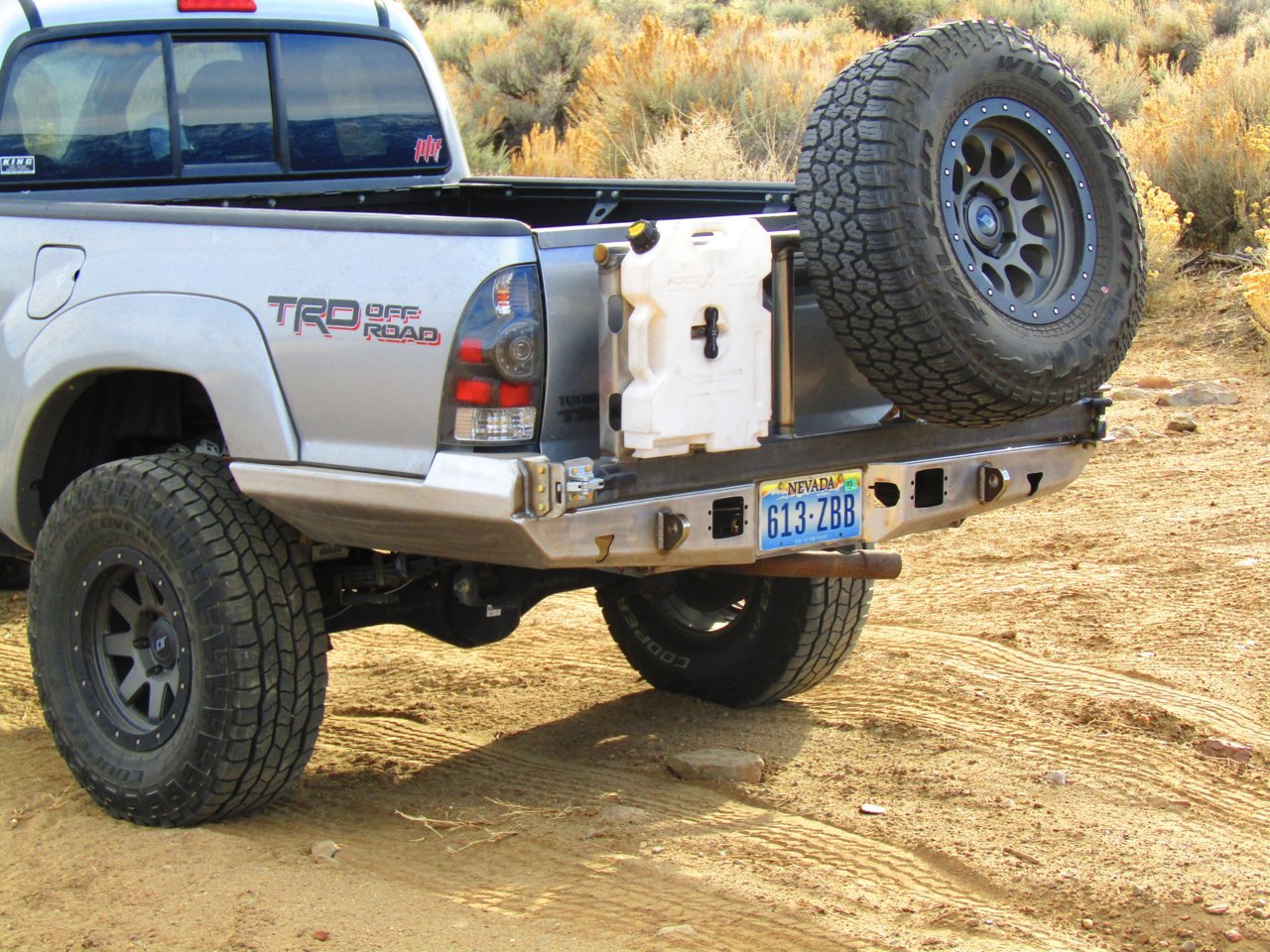

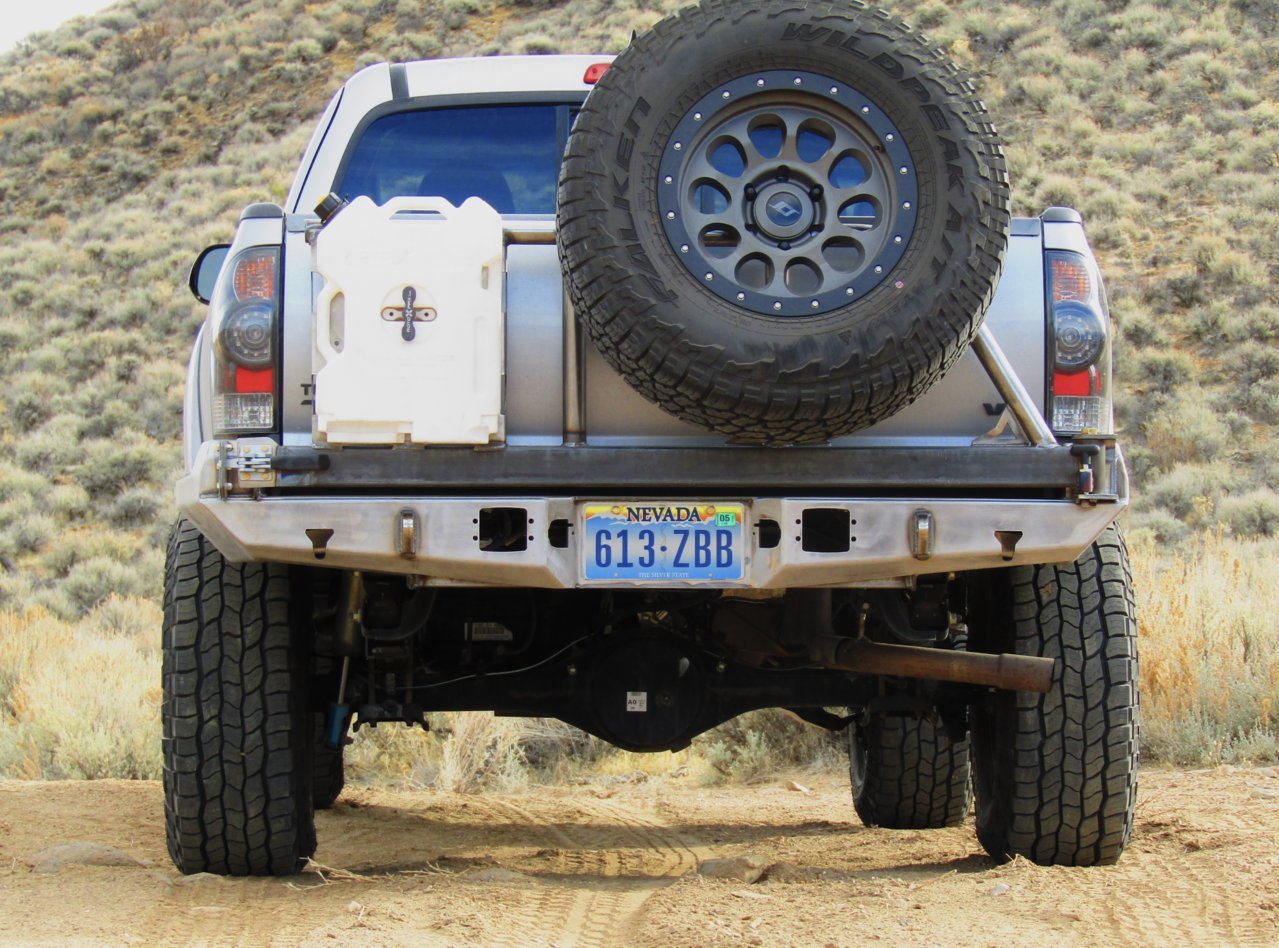

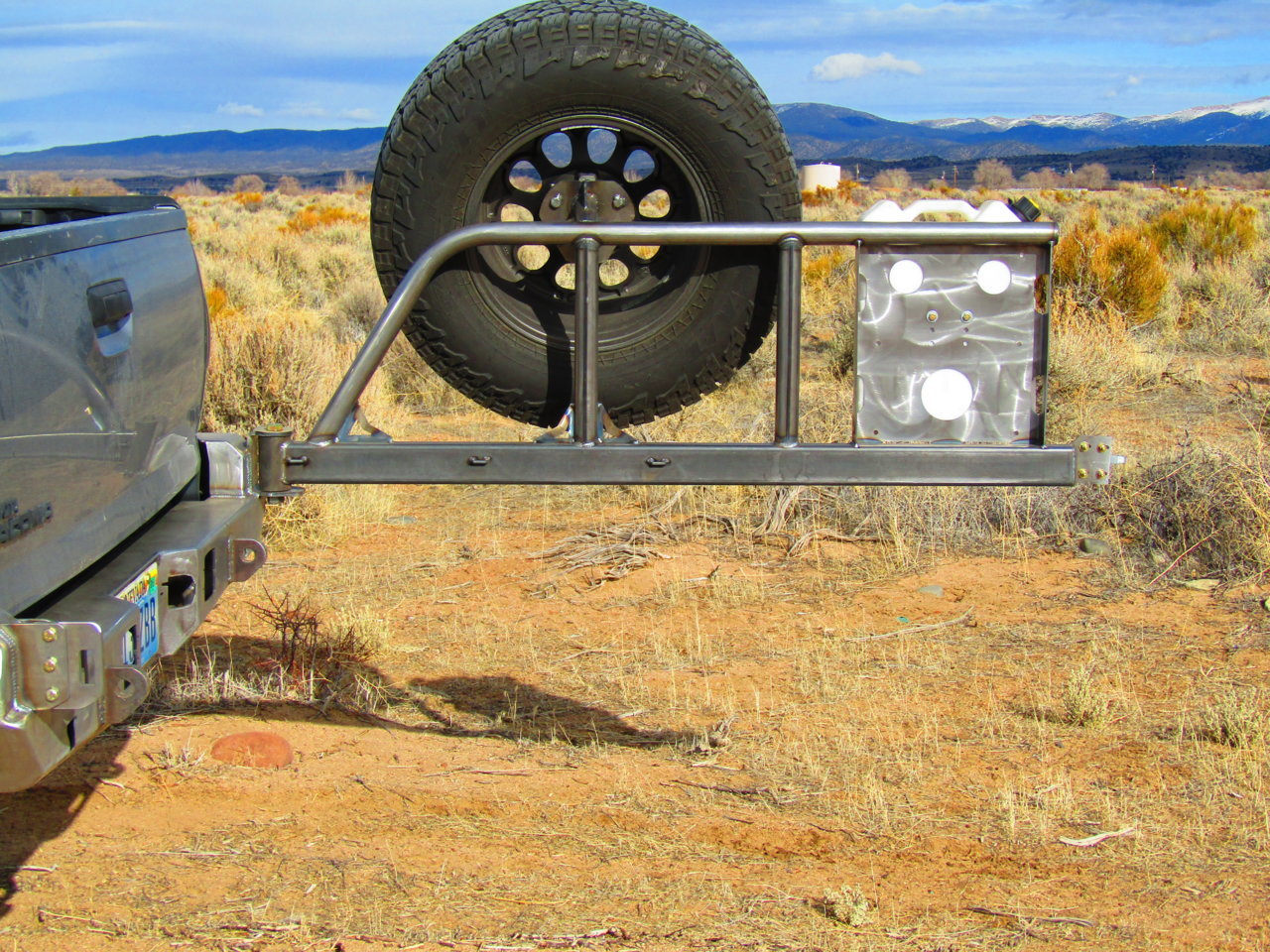

    • Tire carriers hold up to a 35″ tire and ready for Rotopax mounting. They are built from 2” x 3” x .120” box tubing, 1.75” x .120” round tubing, 11 ga cold roll sheet, and fully gusseted.

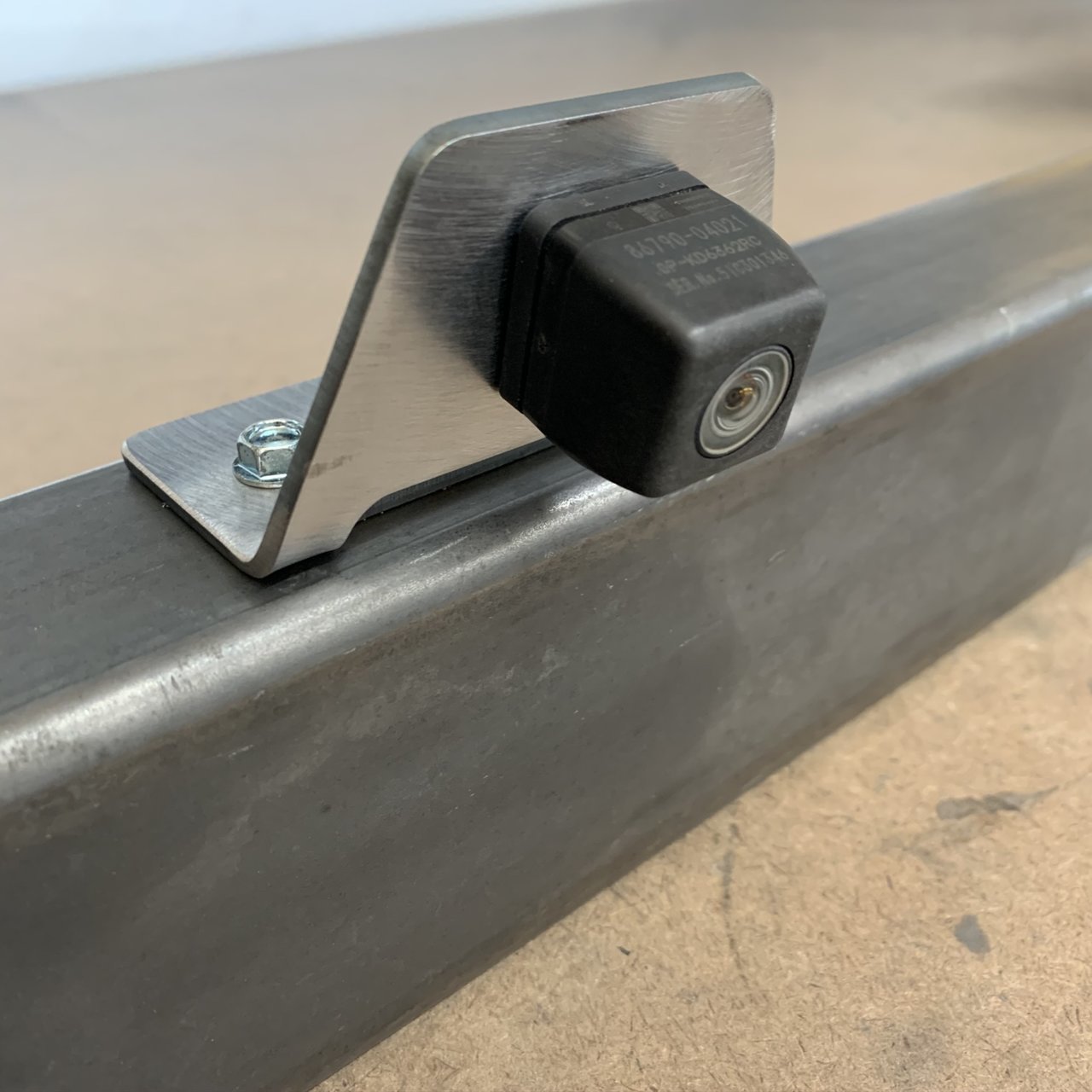

    • Camera relocation kit is included with tire carrier. Kit includes camera mounting bracket and wire to extend harness. Splicing into OEM harness is required.
    • Tire carriers are optional but must be built with the bumper. They cannot be added afterward.
    2005-2015 Toyota Tacoma High Clearance Rear Bumper – At The Helm Fabrication (athfab.com)

    Available in bare steel only

    Designed, built, and tested in the USA :oldglory:

    **Bumpers are built to order and lead times vary depending on current workload. Orders can be taken on a $100 deposit, email morgan@athfab.com for more info.
    HC Tacoma rear bumpers ship truck freight due to their size and weight. Domestic freight ranges from $200-$400 to your nearest terminal or a business address with loading dock or forklift. Please email morgan@athfab.com for a shipping quote. Shipping charges will be invoiced when bumper is ready to ship.

    Local pickup in Gardnerville NV is welcome!

    Last edited: Jan 5, 2022
  2. Jan 10, 2020 at 7:01 AM
    #2
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,319
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers

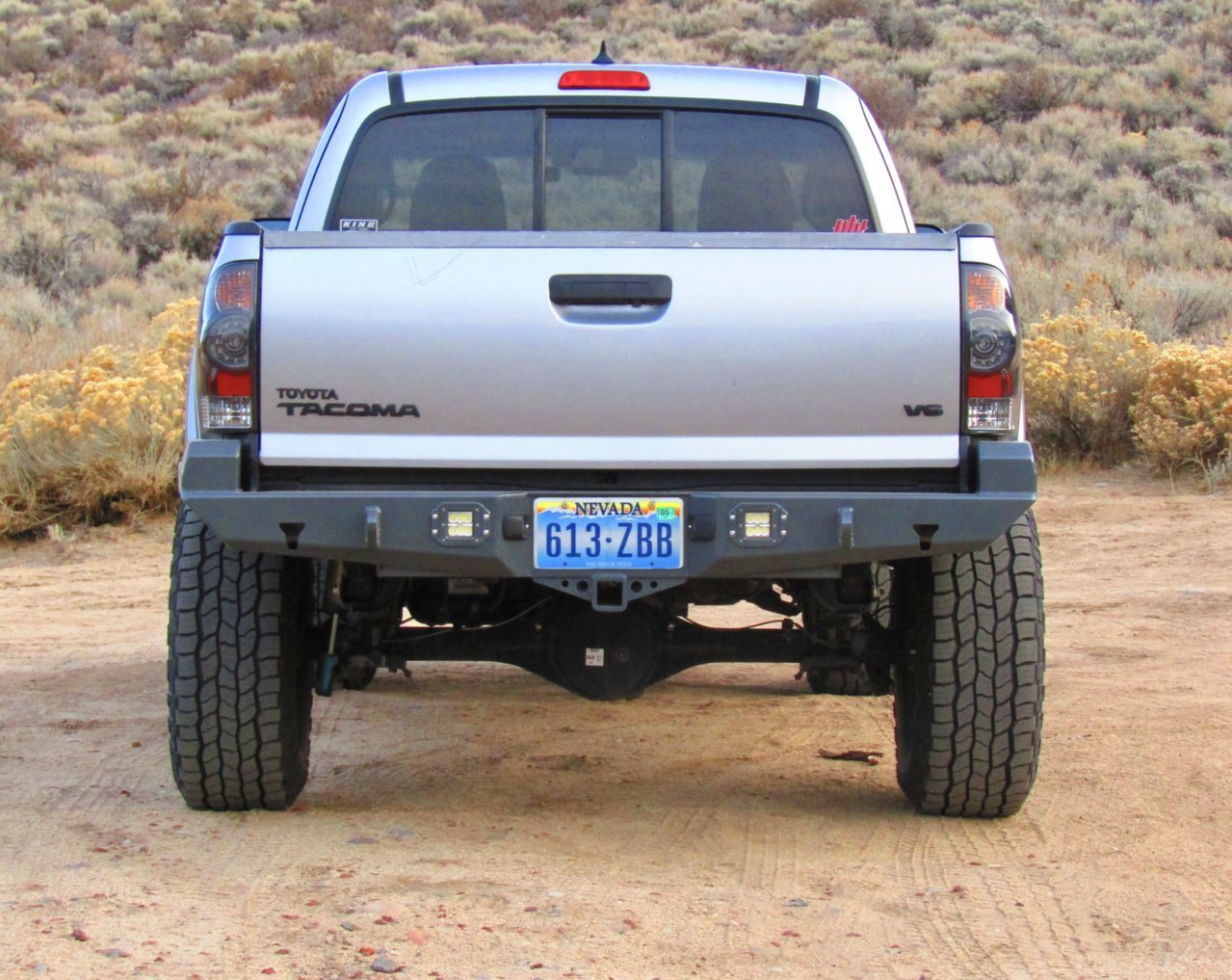

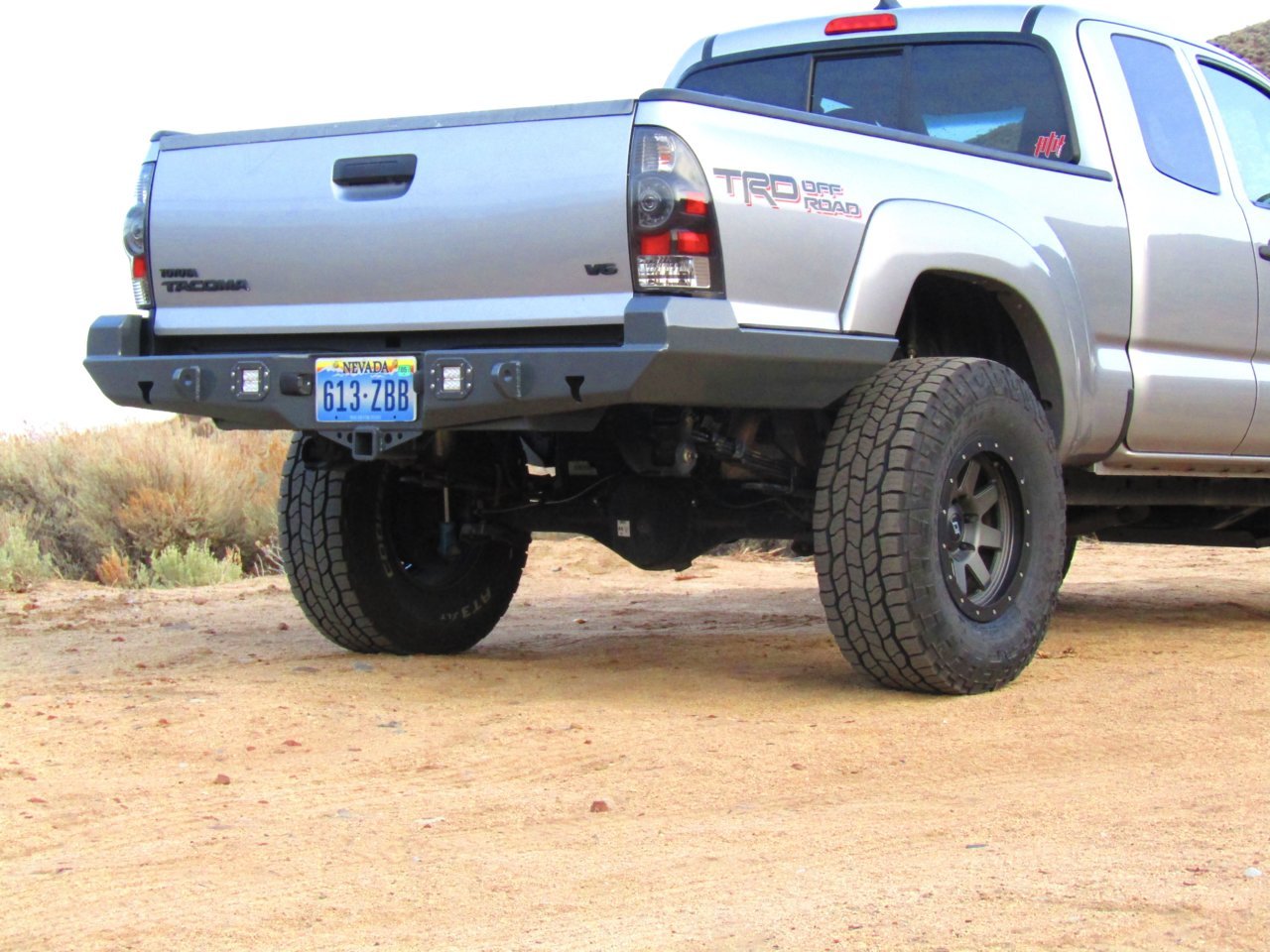

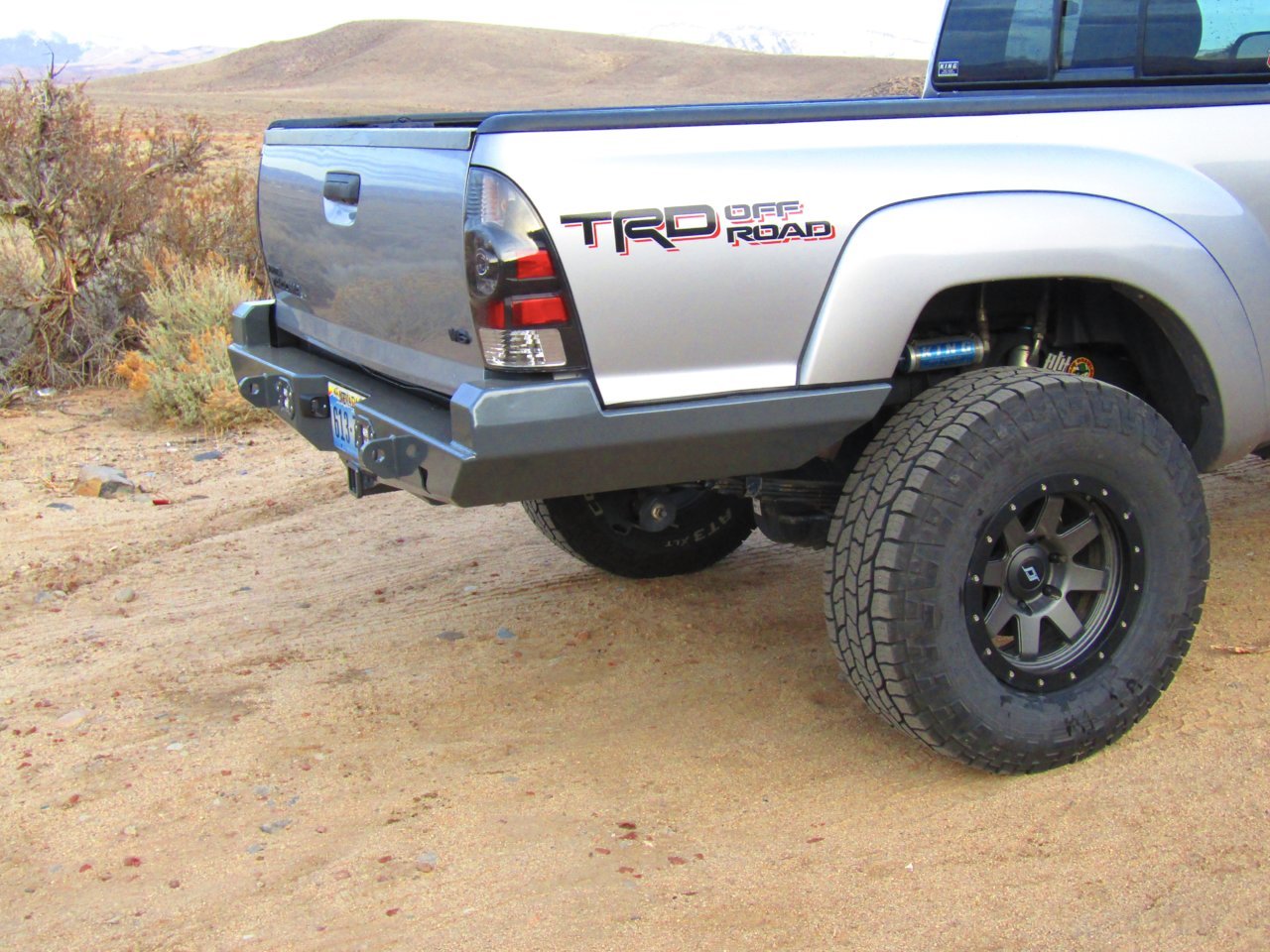

    D58F0064-F98D-4878-8708-AA1D8E9CD701.jpg C807FB3B-B9BE-4581-A8AD-7FB6A6ABF849.jpg ADFBB6F3-732D-4B6F-91CB-762310B464C0.jpg 7DADBD53-1505-46A2-BF6F-D33F2E04484B.jpg A83D14E2-F0C8-4484-B319-602D7E17B01A.jpg 75E263A7-9F29-4566-8D6D-3174BFD7358F.jpg B45AA3DE-5CC4-480E-97E8-F0B86EC90EB3.jpg D335876C-6BED-4696-89EA-B61310780F89.jpg 96A6A16D-A8C7-4C79-852C-F46F628F0494.jpg

    Last edited: Jan 10, 2020
    airmax233, Tatts521, old55guy and 4 others like this.
  3. Jan 10, 2020 at 8:01 AM
    #3
    andesite

    andesite creeper

    Joined:
    Sep 30, 2018
    Member:
    #267932
    Messages:
    394
    Gender:
    Male
    First Name:
    Brian
    Mosier, Oregon
    Vehicle:
    2.7L 5MT 2011 ACLB
    2.5” Radflo coilovers | Demello armor
    Any options for hoops? Cuz hoops are rad AF.

    At The Helm[OP] likes this.
  4. Jan 10, 2020 at 8:26 AM
    #4
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,319
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers
    I could probably add custom basic side hoops if requested. :thumbsup:

    Last edited: Jan 10, 2020
  5. Jan 10, 2020 at 10:48 AM
    #5
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,319
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers

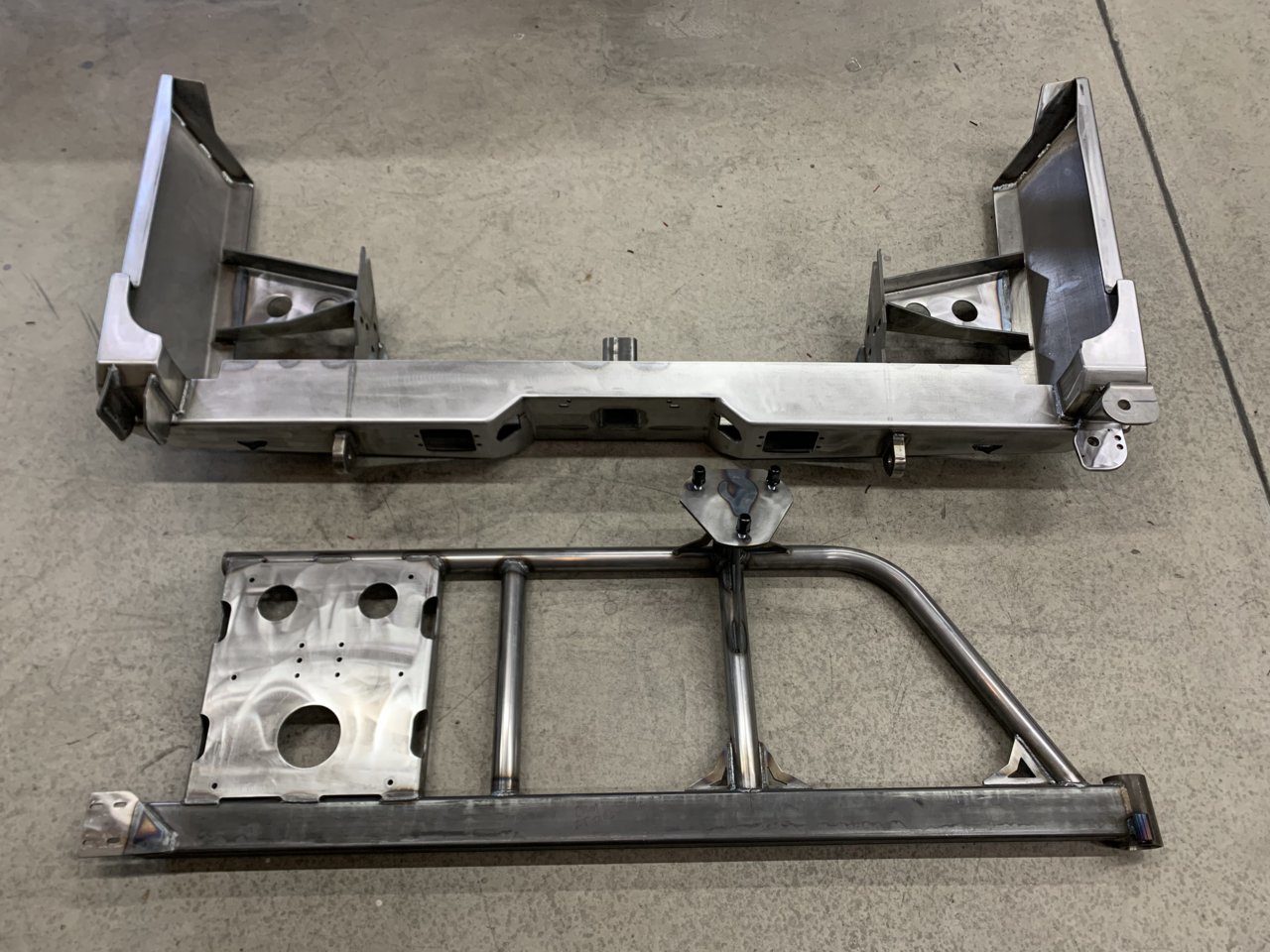

    I have one of these built and ready to go with tire carrier and hidden receiver. No wait time! :thumbsup::thumbsup::thumbsup: Shoot me a PM for a shipping quote.

    EDIT: That bumper is sold


    Last edited: Jan 17, 2020
    scleaf, Mech_Eng and msfit like this.
  6. Jan 10, 2020 at 10:54 AM
    #6
    BrandX

    BrandX Uhh, what was the question?

    Joined:
    Mar 10, 2017
    Member:
    #212891
    Messages:
    22
    Gender:
    Male
    First Name:
    Shawn
    The depths of Lake Tahoe
    Vehicle:
    2018 Tacoma TRD OF
    Not enough.
    I have the 3rd gen rear with your carrier and I love it! Great welding, clean cut and bends and top notch customer service! Highly suggested high clearance rear.

    2012JJ4x2 and At The Helm[OP] like this.
  7. Jan 24, 2020 at 9:25 AM
    #7
    Brian422

    Brian422 I fell into the pit that is TW

    Joined:
    Jun 8, 2011
    Member:
    #57958
    Messages:
    14,348
    Gender:
    Male
    First Name:
    Brian
    Birmingham, AL
    Vehicle:
    2012 DBCSB F/R Locked, 35's ,Long travel, 23 Tundra 4x4 limited
    Not Stock
    Any in stock? What about some intro pricing? :D

    JKU3000 and At The Helm[OP] like this.
  8. Jan 24, 2020 at 10:35 AM
    #8
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,319
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers
    None in stock right now, I’ve had a couple up for sale but they’re gone within a couple hours... Current lead time is about 3 weeks. :thumbsup:

  9. Feb 15, 2020 at 8:05 AM
    #9
    TrailYeti

    TrailYeti Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258358
    Messages:
    808
    Gender:
    Male
    Portland, Oregon
    Vehicle:
    05 TRD OR on SCS F5’s & 315/75r16’s
    What’s the weight of your high clearance, hidden hitch receiver bumper (no swing out)?

    These look just as good as your front bumper!

    At The Helm[OP] likes this.
  10. Feb 15, 2020 at 8:21 AM
    #10
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,319
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers
    Just threw one on the scale the other day...118 lbs without hardware.

    Bumble Bee Tuna likes this.
  11. Feb 15, 2020 at 9:32 AM
    #11
    TrailYeti

    TrailYeti Well-Known Member

    Joined:
    Jul 4, 2018
    Member:
    #258358
    Messages:
    808
    Gender:
    Male
    Portland, Oregon
    Vehicle:
    05 TRD OR on SCS F5’s & 315/75r16’s
    Cool thanks. Will be purchasing a high clearance to match my front bumper down the road.

  12. Feb 18, 2020 at 2:20 PM
    #12
    4WDTrout

    4WDTrout Perpetually dreaming of tall trees & rivers

    Joined:
    Mar 19, 2013
    Member:
    #100091
    Messages:
    3,861
    Gender:
    Male
    First Name:
    Theo
    Vehicle:
    08 4WD SR5 DCSB
    Total Tacoma nOOb.
    Yes! These are sweet! :woot:

    At The Helm[OP] likes this.
  13. Feb 19, 2020 at 10:44 AM
    #13
    Ubaderb

    Ubaderb Well-Known Member

    Joined:
    Oct 21, 2018
    Member:
    #270157
    Messages:
    258
    Gender:
    Male
    Vehicle:
    15 Tacoma TRD OR
    Any chance you would sell the camera relocation kit separate?

    At The Helm[OP] likes this.
  14. Feb 26, 2020 at 8:02 PM
    #14
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,319
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers
    Sure thing
    Pm inbound

  15. Mar 22, 2020 at 4:57 PM
    #15
    Jrgymie

    Jrgymie Tuf MuddR

    Joined:
    Jul 29, 2018
    Member:
    #260922
    Messages:
    448
    Gender:
    Male
    First Name:
    Jeff
    Glastonbury, CT
    Vehicle:
    18 DCSB CEMENT TRD SPORT 4x4

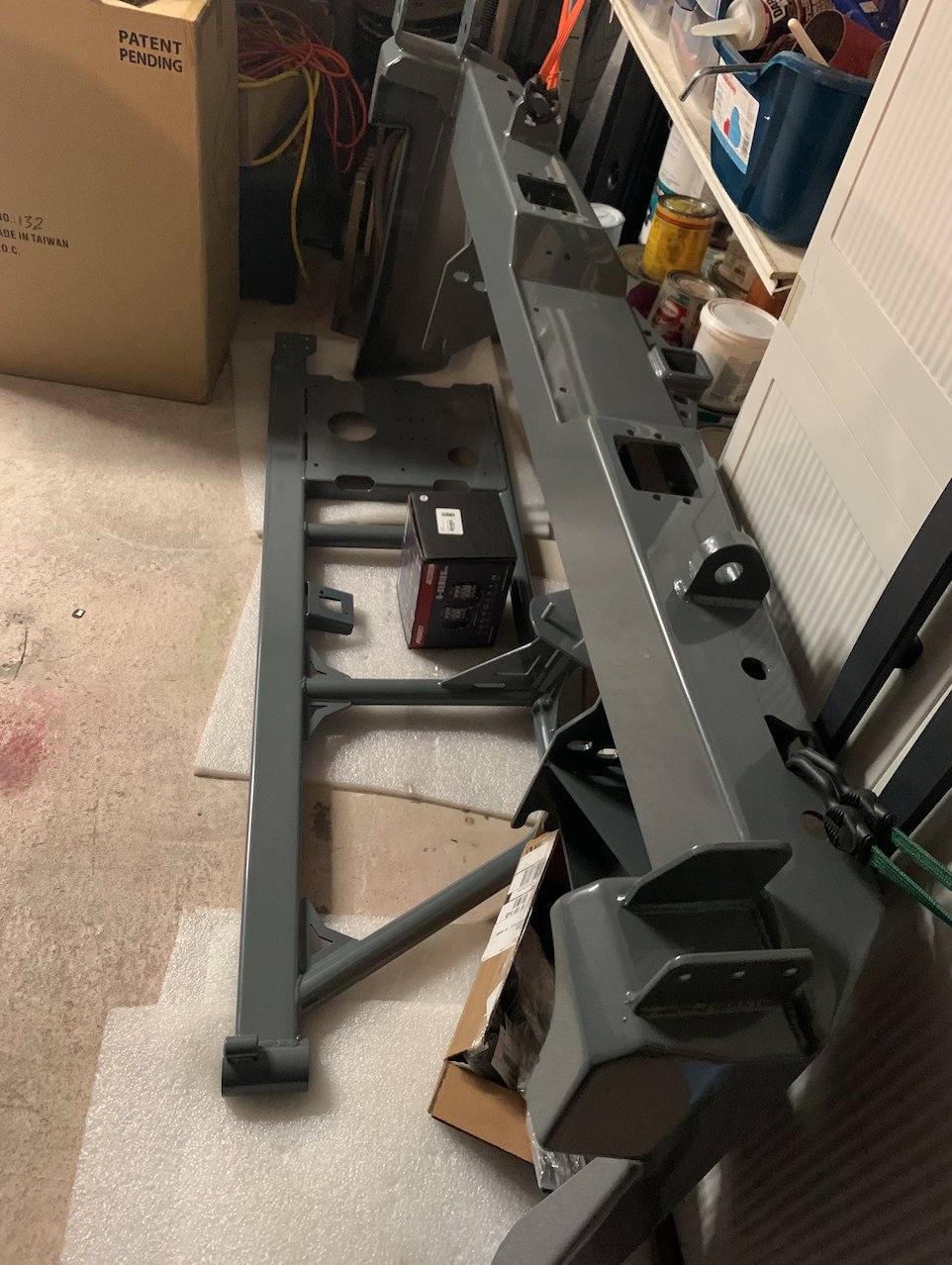

    Got the ATH HC bumper back from powder coating and ready to install this week. Can't wait to get this bumper on.
    Screen Shot 2020-03-19 at 9.16.57 PM.jpg

    scleaf, Gearheadesw, 4WDTrout and 3 others like this.
  16. Mar 28, 2020 at 9:48 AM
    #16
    Echodawg

    Echodawg Well-Known Member

    Joined:
    Jul 25, 2013
    Member:
    #109034
    Messages:
    757
    Gender:
    Male
    First Name:
    Chris
    Fremont, CA
    Vehicle:
    2014 TRD OR DCSB
    Stuff and Things!
    Curious what your estimated lead time is at the moment for one these? Are you still doing local pickup?

    At The Helm[OP] likes this.
  17. Mar 28, 2020 at 9:52 AM
    #17
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,319
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers
    Currently 3-4 weeks and yes local pickup is welcome. Just stay 6 ft away from me... :thumbsup::thumbsup:

  18. Mar 29, 2020 at 11:39 AM
    #18
    Echodawg

    Echodawg Well-Known Member

    Joined:
    Jul 25, 2013
    Member:
    #109034
    Messages:
    757
    Gender:
    Male
    First Name:
    Chris
    Fremont, CA
    Vehicle:
    2014 TRD OR DCSB
    Stuff and Things!
    Pm incoming.

    At The Helm[OP] likes this.
  19. Apr 2, 2020 at 3:16 PM
    #19
    Jrgymie

    Jrgymie Tuf MuddR

    Joined:
    Jul 29, 2018
    Member:
    #260922
    Messages:
    448
    Gender:
    Male
    First Name:
    Jeff
    Glastonbury, CT
    Vehicle:
    18 DCSB CEMENT TRD SPORT 4x4
    Finally getting the McNeil glass fenders/bedsides installed with the ATH rear HC bumper.

    Morgan, thanks for the custom cut/weld to the bumper. It lined up perfect. My local auto body guy had more difficultly getting the front fenders to line up with the hood and door. I'll post more pics once it gets back from paint.

  20. Apr 2, 2020 at 5:31 PM
    #20
    At The Helm

    At The Helm [OP] ATH Fab Vendor

    Joined:
    Mar 25, 2015
    Member:
    #151787
    Messages:
    1,319
    Gender:
    Male
    First Name:
    Morgan
    Gardnerville, NV
    Vehicle:
    2015 AC 4x4 TRD OR & 2019 T4R
    Kings, TC UCAS, SCS SR8's, ATH bumpers
    Nice! Glad it worked out :D
