auto lsd to use or not to use?

Discussion in '4 Cylinder' started by 2012TacoToy, Mar 13, 2012.

  1. Mar 13, 2012 at 8:51 PM
    #1
    2012TacoToy

    2012TacoToy [OP] Member

    Joined:
    Feb 1, 2012
    Member:
    #71893
    Messages:
    7
    Gender:
    Male
    Ohio
    Vehicle:
    2012 Tacoma 2.7l 4x4
    3in lift
    okay so iv been reading up on this and im still confused could some one clear me up on this my 2012 taco 4x4 base truck has a lsd button when i press it auto lsd off comes up on the dash how do i want to run my truck all the time its my DD and i do like to play in the mud sometimes im just confused on the whole auto lsd thing how does it work and how should i keep my truck on or off any help would be greatly appreciated thanks much

  2. Mar 13, 2012 at 8:58 PM
    #2
    AWorthyOpponent

    AWorthyOpponent Member Caught Off Road

    Joined:
    Aug 22, 2011
    Member:
    #62164
    Messages:
    2,808
    Gender:
    Male
    First Name:
    Dan
    Palm Beach County, Florida
    Vehicle:
    2013 MGM DCLB TRD SPORT 4x4
    TRD Catback Exhaust
  3. Mar 13, 2012 at 11:37 PM
    #3
    MountainEarth

    MountainEarth Well-Known Member

    Joined:
    Feb 1, 2010
    Member:
    #30519
    Messages:
    2,494
    Gender:
    Male
    First Name:
    Bryan
    CO
    Vehicle:
    2010 TRD OR Access
    Leer 100XR Shell, BedRug mat - comfy sleeping, GT Covers microfiber seat covers, BFG All Terrains 265/70r16, Dashmat, Antennax 13" shorty antenna, Weathertech liners, Ultra Gauge, Avid Light Bar, PIAA 520 ATPs, one old dog
    VSC (vehicle stability control) is for daily driving. It's a high speed system, and is on by default. The autoLSD is best used at low speed. Both pulse individual brakes to to assist in traction control. But VSC also reduces engine power when needed (remember it's all about getting you back under control in the event of traction loss). The autoLSD does not reduce engine power, which can be better in offroad situations where maximum power is desired. Both systems are off in 4lo (which why I wish Toyota would go back to a mechanical LSD).

  4. Mar 13, 2012 at 11:38 PM
    #4
    Warhorseforever

    Warhorseforever Will The Thrill

    Joined:
    May 3, 2011
    Member:
    #56023
    Messages:
    4,819
    Gender:
    Male
    First Name:
    Will
    Sand Lapper
    Vehicle:
    2001 Toyota Tacoma Pre-Runner SR5
    Kenwood KDC-348U HU Kicker DS65 Front Doors Only 2 Polk Audio MM840 Kenwood KAC 8105D for subs SuperCrewSound.com behind rear seat sub box
  5. Mar 14, 2012 at 10:57 AM
    #5
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,964
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    VSC and TRAC are two different functions.

    VSC is to keep you driving where you want to go in the event of a sudden steering change that would otherwise make you spin out of control.

    TRAC is traction control/ Limited Slip to get you moving from a stop. In 2WD it has engine output regulation, but in 4WD-HI it does not regulate the engine. 4WD TRAC is very effective off road and greatly improves the traction of the Tacoma.

    AUTO LSD is for 2WD, and is TRACtion control but without engine regulation. It is stronger than TRAC for stuck situations.

    In 4WD LOW, for slow crawling, there is no VSC or traction control EXCEPT for OFF ROAD TRD Tacomas, which have A-TRAC (Active Traction Control).

    Non Off Road 4WD Tacomas can do the 4 low trac mod to make TRAC work in Low Range.

  6. Mar 14, 2012 at 11:03 AM
    #6
    David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,964
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    It is confusing and the owners manual is of little help!

    AUTO LSD is more for 2WD Tacomas that get stuck in snow or mud, as it forces some power away from the spinning tire to the traction tire, withoutt regulating engine output. You have 4WD, so just turning on 4WD will be so much more useful to get moving from a stuck.

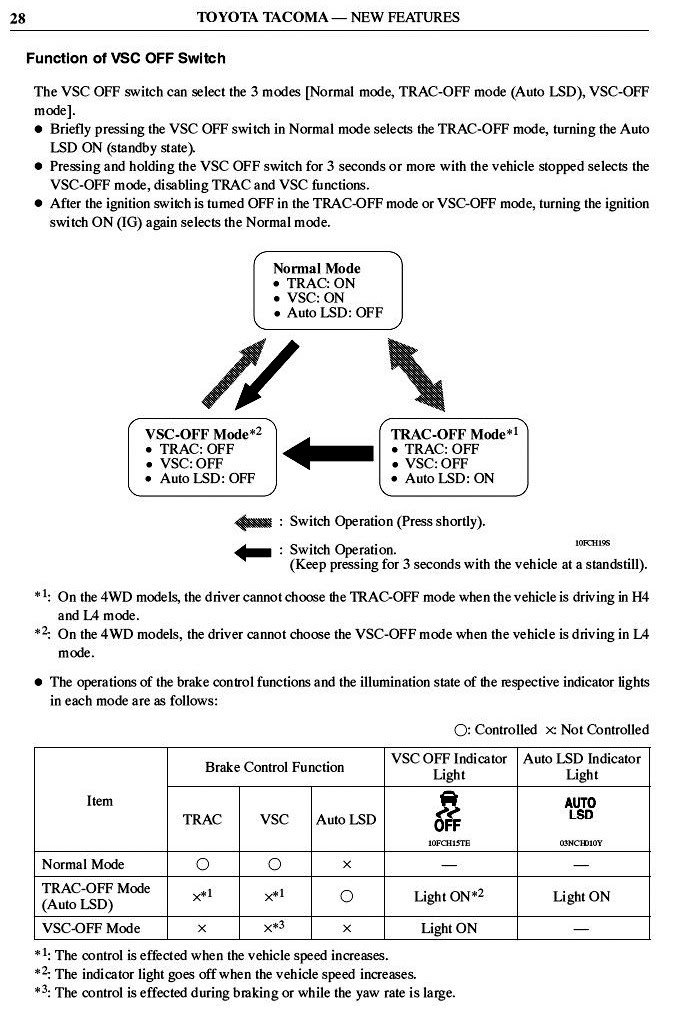

    This chart explains how to go from TRAC to AUTO LSD or VSC OFF (open differentials without traction control):

    [​IMG]

  7. Mar 23, 2012 at 8:13 PM
    #7
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    The main difference is that TRAC(normal mode) controls throttle and uses the brakes to send power to the tire with traction. ALSD doesn't control throttle.

    Check this out OP: http://www.majormedia2.com/4WDSimplifiedv5/4WD.html
