Automat Central LED Strips

Discussion in 'Product Reviews' started by ilovetacos, Jul 9, 2010.

  1. Jul 9, 2010 at 12:23 AM
    #1
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    So I got these lights about a month ago and finally had some time this evening to put them to use. These lights can be used for numerous applications but I chose to use them for lighting under my hood.

    First off shipping was quick! Received the item about 3 days from when they promised to ship them. Came in a nicely packaged box and they also threw in a hat!

    Appearance and quality of the item is very high. Very similar to other high quality LED strips I have seen. The 3M self-adhesive tape used to attach these strips stuck on very good to my hood and do not seem like they will move at all.

    Installation was a breeze...Just connect the red wire to your 12V power source and the black wire to a ground. I would recommend using an "inline fuse" when installing these. The lights do not come with one so this is something you will have to purchase seperately along with extra wire depending on your application.

    Would I buy and use these again? Yes but I think $35.99 is a little too much. I believe a fair price for these lights would be around $25.00. These lights can be used anywhere, are waterproof and everyone knows LED's last forever and hardly use any power!

    Where to purchase: http://www.automatcentral.com/headlamp-led-strips



    How I installed them....

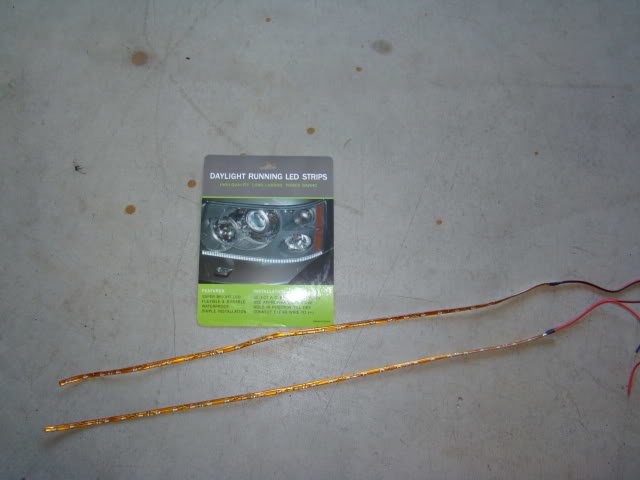

    Out of the box and taken out of the packaging.
    [​IMG]

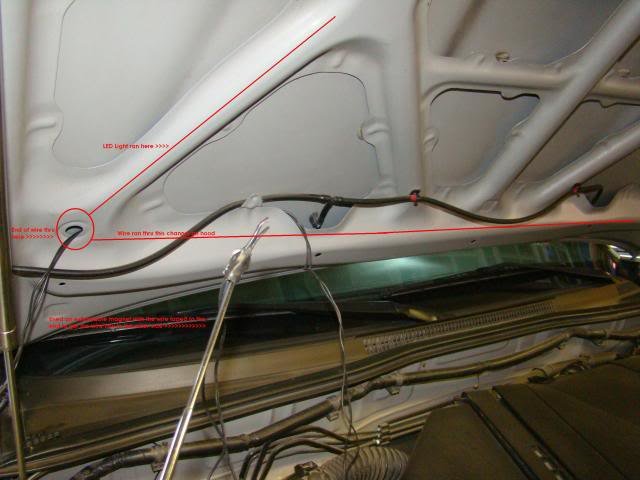

    All of the wiring is hidden thru the channels of the hood.
    [​IMG]

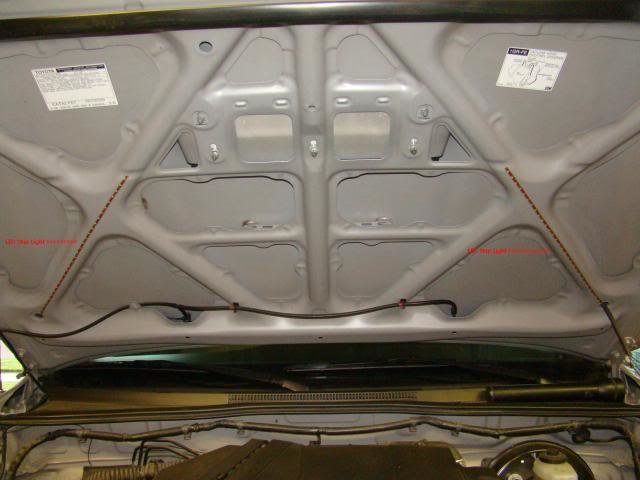

    LED Strips installed, just need to complete the wiring. They are hardly noticeable!
    [​IMG]

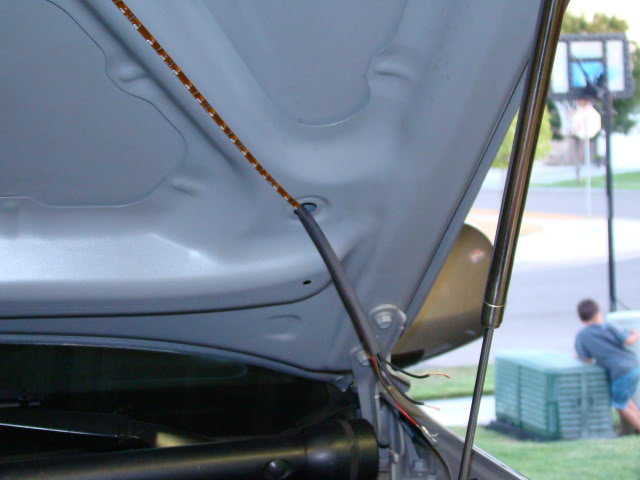

    Ran the wires to the driver side of the hood.
    [​IMG]
    [​IMG]

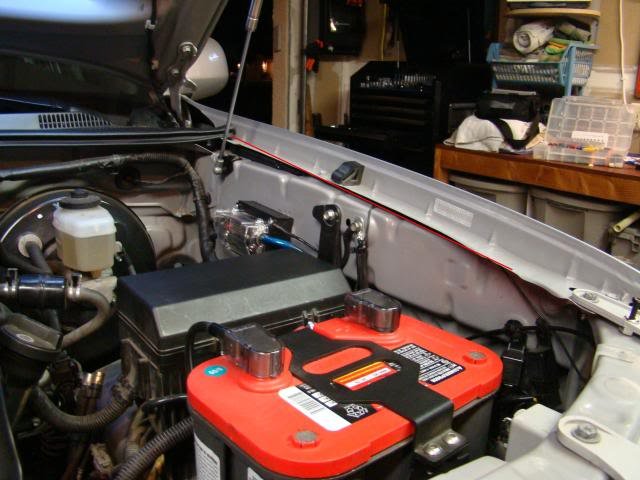

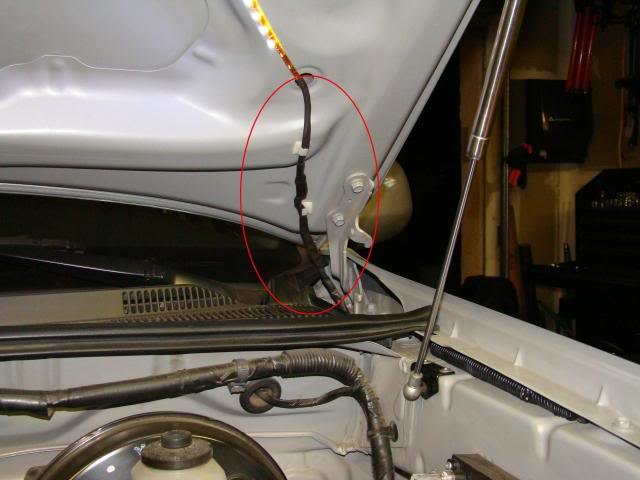

    Ran the wires down the side of the fender. The red wire went directly to the battery using an inline fuse.
    [​IMG]

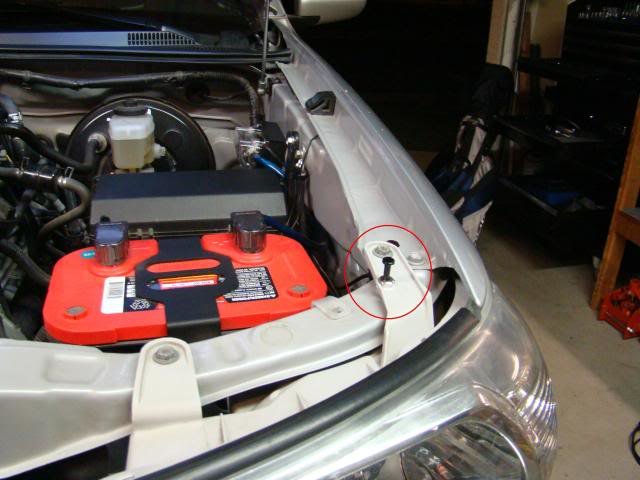

    Connected the ground wire to a door pin switch. The lights turn on automatically when I open the hood.
    [​IMG]



    Finished!
    [​IMG]

  2. Jul 9, 2010 at 2:22 PM
    #2
    CRfofiddyF

    CRfofiddyF Well-Known Member

    Joined:
    Apr 27, 2010
    Member:
    #36081
    Messages:
    159
    Gender:
    Male
    AZ
    Vehicle:
    07 TRD DC 75Kmi
    I like automat's products. I have the LED turn signals. Dude your engine comaprtiment is CLEAN!!! I need to clean my up!!!

  3. Jul 9, 2010 at 3:01 PM
    #3
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!

    I just cleaned it prior to taking the pics! :p

  4. Jul 22, 2010 at 12:29 PM
    #4
    Tacodave1

    Tacodave1 Member

    Joined:
    Jun 11, 2009
    Member:
    #18344
    Messages:
    22
    Gender:
    Male
    First Name:
    Dave
    Houston, Texas
    Vehicle:
    2009 Double Cab 4x4 Tacoma TRD
    3M Tint,AVS ventshades and bug deflector,Smittybuilt nerf bars,Decals by Sockmonkey,Infinity speakers,Leveling kit,17x9 Moto Metals MO957,Nitto Terra Grapplers 265/70/R17,Devil horns grill emblem by Andres,Bed mat by DeeZee,Bolt on tailgate security bracket by Tuffy Security Products,Viper auto alarm,Leather arm rest mod,LED interior and maplight mod,Smittybuilt light bar with twin Hella 500 lights.
    Looks Awesome and great review!!! Thinking about doing this myself. What size inline fuse did you use? Also, has the engine heat affected the adhesion of the 3m tape at all?






  5. Jul 22, 2010 at 7:54 PM
    #5
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    I used a 20 amp inline fuse.

    It has only been 2 weeks but with over 100 degree weather and the 3M tape is holding up fine.

  6. Jul 22, 2010 at 8:04 PM
    #6
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!

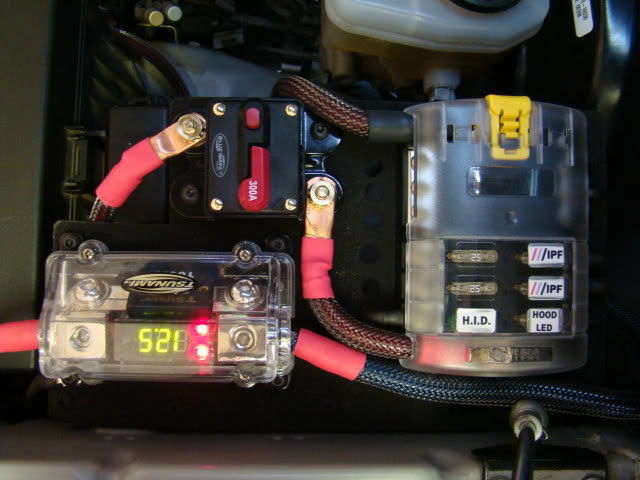

    I modified this install just a little bit...Instead of running the power wire directly to the battery it is now ran to my Blue Sea Fuse Block.

    Going this route I took the inline fuse out and is now fused with the Blue Sea Fuse Block.

    >>> Write Up <<<

    [​IMG]

  7. Jul 22, 2010 at 8:30 PM
    #7
    MHS2846bg8

    MHS2846bg8 Experienced Noob

    Joined:
    Nov 3, 2008
    Member:
    #10451
    Messages:
    745
    Gender:
    Male
    First Name:
    Nate
    South Coast of Oregon
    Vehicle:
    08 Tacoma TRD Dbl Cab 4x4 MT
    i love the clean look to that fuse block setup!

  8. Jul 24, 2010 at 6:17 AM
    #8
    MadeInMaine

    MadeInMaine MadeInMaine

    Joined:
    Nov 28, 2009
    Member:
    #26678
    Messages:
    1,169
    Gender:
    Male
    First Name:
    Owen
    Biloxi, MS
    Vehicle:
    2014 4Runner
    nice look, very clean!

    are they bright enough so you can work/ look through your engine compartment at night?

  9. Mar 17, 2011 at 10:10 PM
    #9
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    9 month update: The lights are holding up well. The 3M adhesive is still intact and show no sign of peeling off.



    Yes, they are bright enough. I use them all the time!
