Aux Fuse Block

Discussion in '2nd Gen. Tacomas (2005-2015)' started by qnyla, Apr 4, 2011.

  1. Apr 4, 2011 at 8:21 PM
    #1
    qnyla

    qnyla [OP] Well-Known Member

    Joined:
    Feb 2, 2010
    Member:
    #30604
    Messages:
    1,309
    Gender:
    Male
    NM
    Vehicle:
    2006 & 2016 DCSB TRD Off Road 6-Speed
    How do you guys think this would work as a Aux Fuse/Relay Block in a Tacoma?

    http://forum.ih8mud.com/merchandise-storefront/352802-auxiliary-fuse-relay-panel.html

    It looks like a nice handy splash proof fuse block. A little pricey but it would make for a clean install.

    I'm looking to use it to run some driving lights, radios, extra power outlets, etc.

    I have a Blue Sea Fuse Block in hand, but I am worried about it getting full of dirt and dust under the hood without being put into a box.

  2. Apr 4, 2011 at 8:23 PM
    #2
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,917
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    Kings:Camburg:BFG
    mine has stayed clean, just dusty on the cover from 4wheeling

    [​IMG]

  3. Apr 4, 2011 at 8:33 PM
    #3
    MJonaGS32

    MJonaGS32 MJ on a GS

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    10,577
    Gender:
    Male
    First Name:
    MJ
    SF Bay Area (East)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    Kings Mid Travel, BAMF bed rack, RTT, dual battery, OBA, ARB locker, 4.56 gears
    my turn to show off :D

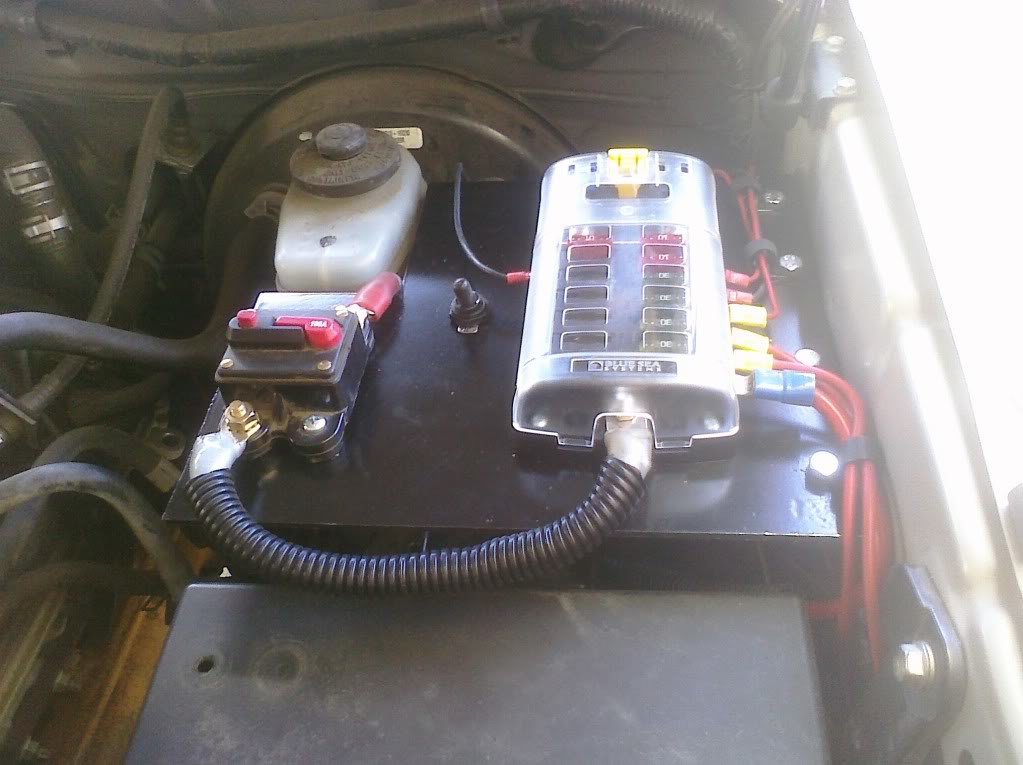

    [​IMG]

  4. Apr 4, 2011 at 8:34 PM
    #4
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,917
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    Kings:Camburg:BFG
    nice i like the breaker, i didnt feel the need for one since i'm not doing any like african safari trips, but maybe one day i'll add one

  5. Apr 4, 2011 at 8:35 PM
    #5
    S.B.

    S.B. Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18838
    Messages:
    3,566
    Gender:
    Male
    First Name:
    Sean
    SD, CA Now in Colorado Springs, CO
    Vehicle:
    08 Taco 4x4 TRD OffRoad Rugged Trail
    SAW 2.0s, Wheeler's 3-leaf AAL, On Board Air, 255/85/16 Cooper Discover S/T, CBI Sliders, Built right UCAs, 6" Harbor Freight Lights (converted to HIDs), KC Slim Lights.
    I don't have pics, but I have the blue sea as well, just the 6 terminal one with a negative bus.

  6. Apr 4, 2011 at 8:43 PM
    #6
    anethema

    anethema Well-Known Member

    Joined:
    Feb 25, 2011
    Member:
    #51833
    Messages:
    998
    Gender:
    Male
    First Name:
    J
    Dawson Creek,BC
    Vehicle:
    08 TRD OR Access cab 4x4
    ARB Bumper,OEM Roof rack modded for access cab, Allpro Rock Sliders,Icon Adjustable coilovers,More Tie Downs in bed, Firestone Airbags in rear,Block heater
    Breaker isn't for safari trips its for if you get a short of some kind in the fuse panel or wiring to it. Breaker setup you hear a click. Direct setup you have a fire in your engine bay and your truck is garbage.

    Better hope you have fire insurance and they somehow don't find that :D

    As I posted earlier, I did bluesea as well, though I used a dist panel. Shows which circuits are on/off/blown with a switch for each. And yes I used a breaker.

    None of my wiring is cleaned up yet, don't judge meeee.

    [​IMG]

    [​IMG]

  7. Apr 4, 2011 at 8:45 PM
    #7
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,917
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    Kings:Camburg:BFG
    it will blow a fuse before it ignites in fire

  8. Apr 4, 2011 at 8:45 PM
    #8
    S.B.

    S.B. Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18838
    Messages:
    3,566
    Gender:
    Male
    First Name:
    Sean
    SD, CA Now in Colorado Springs, CO
    Vehicle:
    08 Taco 4x4 TRD OffRoad Rugged Trail
    SAW 2.0s, Wheeler's 3-leaf AAL, On Board Air, 255/85/16 Cooper Discover S/T, CBI Sliders, Built right UCAs, 6" Harbor Freight Lights (converted to HIDs), KC Slim Lights.
    If its a first gen just keep driving.:D

  9. Apr 4, 2011 at 8:47 PM
    #9
    S.B.

    S.B. Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18838
    Messages:
    3,566
    Gender:
    Male
    First Name:
    Sean
    SD, CA Now in Colorado Springs, CO
    Vehicle:
    08 Taco 4x4 TRD OffRoad Rugged Trail
    SAW 2.0s, Wheeler's 3-leaf AAL, On Board Air, 255/85/16 Cooper Discover S/T, CBI Sliders, Built right UCAs, 6" Harbor Freight Lights (converted to HIDs), KC Slim Lights.
    You can get breakers for reg size fuses. Can get auto reset, manual reset, or plain fuses.

  10. Apr 4, 2011 at 9:00 PM
    #10
    anethema

    anethema Well-Known Member

    Joined:
    Feb 25, 2011
    Member:
    #51833
    Messages:
    998
    Gender:
    Male
    First Name:
    J
    Dawson Creek,BC
    Vehicle:
    08 TRD OR Access cab 4x4
    ARB Bumper,OEM Roof rack modded for access cab, Allpro Rock Sliders,Icon Adjustable coilovers,More Tie Downs in bed, Firestone Airbags in rear,Block heater
    ER, no it wont, since aux fuxe panels are wired directly to the battery. There is no fuse to blow, you will have a fire.

    You are not paying attention :D

    We are talking about the circuit breaker that goes between the battery and aux fuse panel. You can see it in the pic in post number 3.

  11. Apr 4, 2011 at 9:01 PM
    #11
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,917
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    Kings:Camburg:BFG
    well that is why i have a fire extinguisher :cool:

  12. Apr 4, 2011 at 9:02 PM
    #12
    S.B.

    S.B. Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18838
    Messages:
    3,566
    Gender:
    Male
    First Name:
    Sean
    SD, CA Now in Colorado Springs, CO
    Vehicle:
    08 Taco 4x4 TRD OffRoad Rugged Trail
    SAW 2.0s, Wheeler's 3-leaf AAL, On Board Air, 255/85/16 Cooper Discover S/T, CBI Sliders, Built right UCAs, 6" Harbor Freight Lights (converted to HIDs), KC Slim Lights.
    I know. I was talking about the last pic, so one doesn't have to buy that monster of a circuit breaker panel.

  13. Apr 4, 2011 at 9:04 PM
    #13
    anethema

    anethema Well-Known Member

    Joined:
    Feb 25, 2011
    Member:
    #51833
    Messages:
    998
    Gender:
    Male
    First Name:
    J
    Dawson Creek,BC
    Vehicle:
    08 TRD OR Access cab 4x4
    ARB Bumper,OEM Roof rack modded for access cab, Allpro Rock Sliders,Icon Adjustable coilovers,More Tie Downs in bed, Firestone Airbags in rear,Block heater
    Good luck putting out an electric fire with an extinguisher! That heat ain't going away

    Tacoma -->:bananadead:

    :D

  14. Apr 4, 2011 at 9:05 PM
    #14
    anethema

    anethema Well-Known Member

    Joined:
    Feb 25, 2011
    Member:
    #51833
    Messages:
    998
    Gender:
    Male
    First Name:
    J
    Dawson Creek,BC
    Vehicle:
    08 TRD OR Access cab 4x4
    ARB Bumper,OEM Roof rack modded for access cab, Allpro Rock Sliders,Icon Adjustable coilovers,More Tie Downs in bed, Firestone Airbags in rear,Block heater
    Sorry SB my bad. That is not a circuit breaker panel. It is a fuse panel like the other. It just has some more features :D A switch for each circuit, and an indicator LED that tells you if the circuit is switched on and fuse ok, switched off but fuse ok, or fuse blown.

    It fits nice back there, no intrusion. And again, I'm not done wiring so much cleanup still to be done.

  15. Apr 4, 2011 at 9:05 PM
    #15
    S.B.

    S.B. Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18838
    Messages:
    3,566
    Gender:
    Male
    First Name:
    Sean
    SD, CA Now in Colorado Springs, CO
    Vehicle:
    08 Taco 4x4 TRD OffRoad Rugged Trail
    SAW 2.0s, Wheeler's 3-leaf AAL, On Board Air, 255/85/16 Cooper Discover S/T, CBI Sliders, Built right UCAs, 6" Harbor Freight Lights (converted to HIDs), KC Slim Lights.
    Thats a bannana.:D

    I'll just wish it away.:cool:

  16. Apr 4, 2011 at 9:06 PM
    #16
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,917
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    Kings:Camburg:BFG
    i only have a cb and a few lights wired into it, i bet i'll ne fine :) :knocks on wood:

  17. Apr 4, 2011 at 9:06 PM
    #17
    S.B.

    S.B. Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18838
    Messages:
    3,566
    Gender:
    Male
    First Name:
    Sean
    SD, CA Now in Colorado Springs, CO
    Vehicle:
    08 Taco 4x4 TRD OffRoad Rugged Trail
    SAW 2.0s, Wheeler's 3-leaf AAL, On Board Air, 255/85/16 Cooper Discover S/T, CBI Sliders, Built right UCAs, 6" Harbor Freight Lights (converted to HIDs), KC Slim Lights.
    oh, I thought they where breakers.

  18. Apr 4, 2011 at 9:14 PM
    #18
    anethema

    anethema Well-Known Member

    Joined:
    Feb 25, 2011
    Member:
    #51833
    Messages:
    998
    Gender:
    Male
    First Name:
    J
    Dawson Creek,BC
    Vehicle:
    08 TRD OR Access cab 4x4
    ARB Bumper,OEM Roof rack modded for access cab, Allpro Rock Sliders,Icon Adjustable coilovers,More Tie Downs in bed, Firestone Airbags in rear,Block heater
    What you put on the fuse block isn't the issue. What if something comes loose in the fuse block itself, and shorts? What if the wire to the fuse block rubs on something and shorts?

    1 truck destined for the rubbish heap is the result heheh.


  19. Apr 4, 2011 at 9:15 PM
    #19
    S.B.

    S.B. Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18838
    Messages:
    3,566
    Gender:
    Male
    First Name:
    Sean
    SD, CA Now in Colorado Springs, CO
    Vehicle:
    08 Taco 4x4 TRD OffRoad Rugged Trail
    SAW 2.0s, Wheeler's 3-leaf AAL, On Board Air, 255/85/16 Cooper Discover S/T, CBI Sliders, Built right UCAs, 6" Harbor Freight Lights (converted to HIDs), KC Slim Lights.
    This is true

  20. Apr 4, 2011 at 9:15 PM
    #20
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,917
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    Kings:Camburg:BFG
    true
