Auxbeam 32” Straight and 42” Curved 5D Series Cree Combo Light Bar Installation And Review

Discussion in 'Lighting' started by RobP62, Nov 25, 2018.

  1. Nov 25, 2018 at 11:22 AM
    #21
    Jckdnls

    Jckdnls Roads less explored

    Joined:
    Apr 27, 2017
    Member:
    #217530
    Messages:
    3,610
    Gender:
    Male
    First Name:
    John
    Spicer, mn
    Vehicle:
    93 3.0 v6 sr5 5spd 08 ac or 6sp
    Dakar torsion bars
    Yes just checked. Not sure if discounts are applied. But rigid side shooters vs auxbeem side shooters rigids are 20 more. But the 52 inch bar is about half for the auxbeem. May have to go with auxbeem but than i might not be able to have them at work.

    RobP62 [OP] likes this.
  2. Nov 25, 2018 at 3:28 PM
    #22
    RobP62

    RobP62 [OP] Those fuk'n squirrels!

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    39,219
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Explain "might not be able to have them at work" please John. If you don't mind. Thanks.

  3. Nov 25, 2018 at 3:45 PM
    #23
    Jckdnls

    Jckdnls Roads less explored

    Joined:
    Apr 27, 2017
    Member:
    #217530
    Messages:
    3,610
    Gender:
    Male
    First Name:
    John
    Spicer, mn
    Vehicle:
    93 3.0 v6 sr5 5spd 08 ac or 6sp
    Dakar torsion bars
    My work is a rigid dealer. Thats how i can get them cheep.

    RobP62 [OP] likes this.
  4. Nov 25, 2018 at 4:06 PM
    #24
    RobP62

    RobP62 [OP] Those fuk'n squirrels!

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    39,219
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    :ohsnap: yeah, might want to chill then. Or put covers on them with Rigid decals on them :D
    :anonymous:

    Jckdnls likes this.
  5. Nov 27, 2018 at 5:20 PM
    #25
    Technique

    Technique Well-Known Member

    Joined:
    Nov 4, 2017
    Member:
    #235046
    Messages:
    1,806
    Gender:
    Male
    First Name:
    Alex
    Utah
    Vehicle:
    2017 Silver Offroad DCSB
    5100s with 888 coils
    Nice write up! Do both of your lights shoot straight? Looks like the lower one goes off to the left a bit? That's how my 32" auxbeam bar is...hate it but I got a partial refund...so I'm living with it until I order my caliraised 32" spot bar.

    RobP62 [OP] likes this.
  6. Nov 27, 2018 at 6:24 PM
    #26
    RobP62

    RobP62 [OP] Those fuk'n squirrels!

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    39,219
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Hmmmmm, I attributed it to the fact that the light bar mounting system holes were not quite symmetrical. I wonder if that's the case or is it off as you say?

    I do kinda wish I had gotten the curved 32" so that it followed the contour of the face of the grill but originally I was going to put it behind the grill. The mounting system was a late change of mind.

    Now I'm going to have to take it all apart, fix the mounting system and see what's up. I know on the road I never really noticed it.

    Thanks for posting!

  7. Dec 26, 2018 at 5:04 PM
    #27
    Big Brutus

    Big Brutus Active Member

    Joined:
    Sep 15, 2018
    Member:
    #266313
    Messages:
    42
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2010 4x4 TRD Sport
    Great job Rob, I just got an Auxbeam 30” Aux-Trend with the amber DLR’s. I love it! It’s soooo bright. Did you wire the harness directly to the battery? I want to wire it so it only has power when the ignition switch is on and I’m not sure how to do that. Any suggestions?

    RobP62 [OP] likes this.
  8. Dec 27, 2018 at 9:25 AM
    #28
    RobP62

    RobP62 [OP] Those fuk'n squirrels!

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    39,219
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Hi Mike,
    Thank you! I really like these Auxbeam light bars too!

    Yes, mine are both wired directly to the battery. I am definitely not an expert in this but I believe if you tap your hot into another circuit like the hot wire for the 7 pin trailer harness (an easy to get to exterior wire) or the hot wire to the stereo (an interior wire not impossible to get to) you would be achieving what you want.

    Personally, I like it directly wired to the battery. Only because if you're out and need the light, say while setting up camp, you don't need the truck running. Sure this will drain the battery but never all the way in the amount of time they will be on. Then as soon as you are running the engine you're gonna be charging again.

    I'm tagging a couple guys I know are more up to speed on what you want than me. They should be able to answer your question better.

    @EatSleepTacos @Parker315 please see the post above. Can either of you help, if I haven't covered it?
    Thanks guys.

  9. Dec 27, 2018 at 11:47 AM
    #29
    Parker315

    Parker315 Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127
    Hey Mike!! I would suggest the following, it the first thing that comes to mind, there are other options if this isn't what you want to do...

    First thing, You need a mini "Add-A-Circuit" Fuse TAP Adapter. This is a super clean way of tapping into your factory harness without compromising the factory wiring in any way. It can be found HERE and it will include x2-10A & x2-20A fuses. The bottom fuse location is for the factory circuit. You need to match that fuse to whatever was in the factory location. The top fuse protects the circuit your adding, which in this case it the light bar.

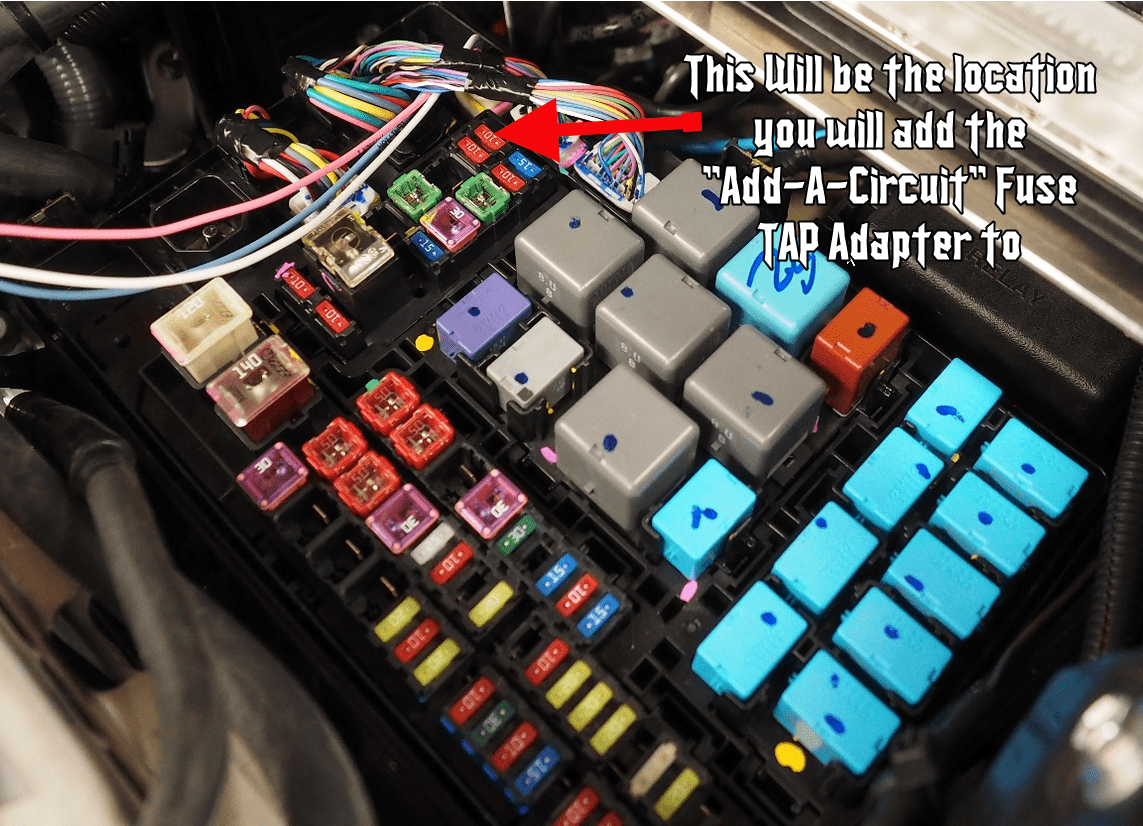

    I would suggest adding the "Add-A-Circuit" Fuse TAP Adapter to the AC/Ignition fuse location located under the hood in the fuse box. See photo below...

    Add a Circuit location.png

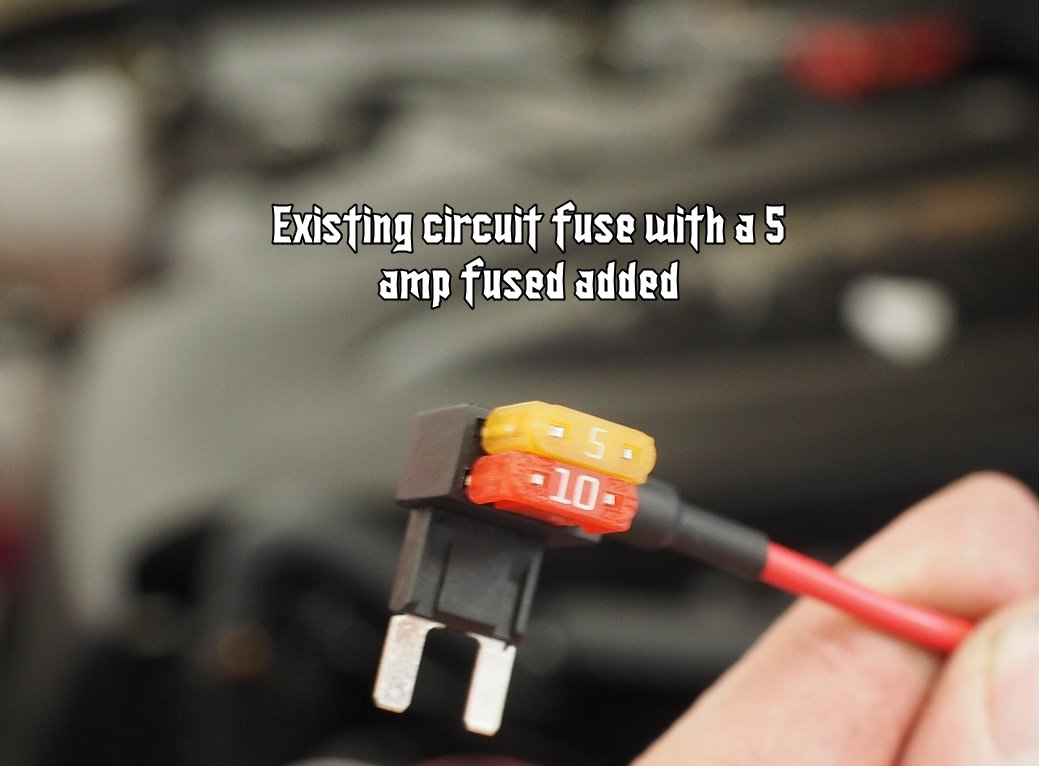

    added fuse.jpg

    You can still use the wiring harness that came with the lightbar if that's what you were going to use. You just need to cut off the inline fuse and the electrical connector. Strip the end where you cut and crimp the "Add-A-Circuit" Fuse TAP Adapter in place. In the photo below just reference the location with the green check and ignore the red X location. These photos were used for a different demonstration for the SP9100 unit. It just for a good reference for you. I hope this helps!:thumbsup::cheers:

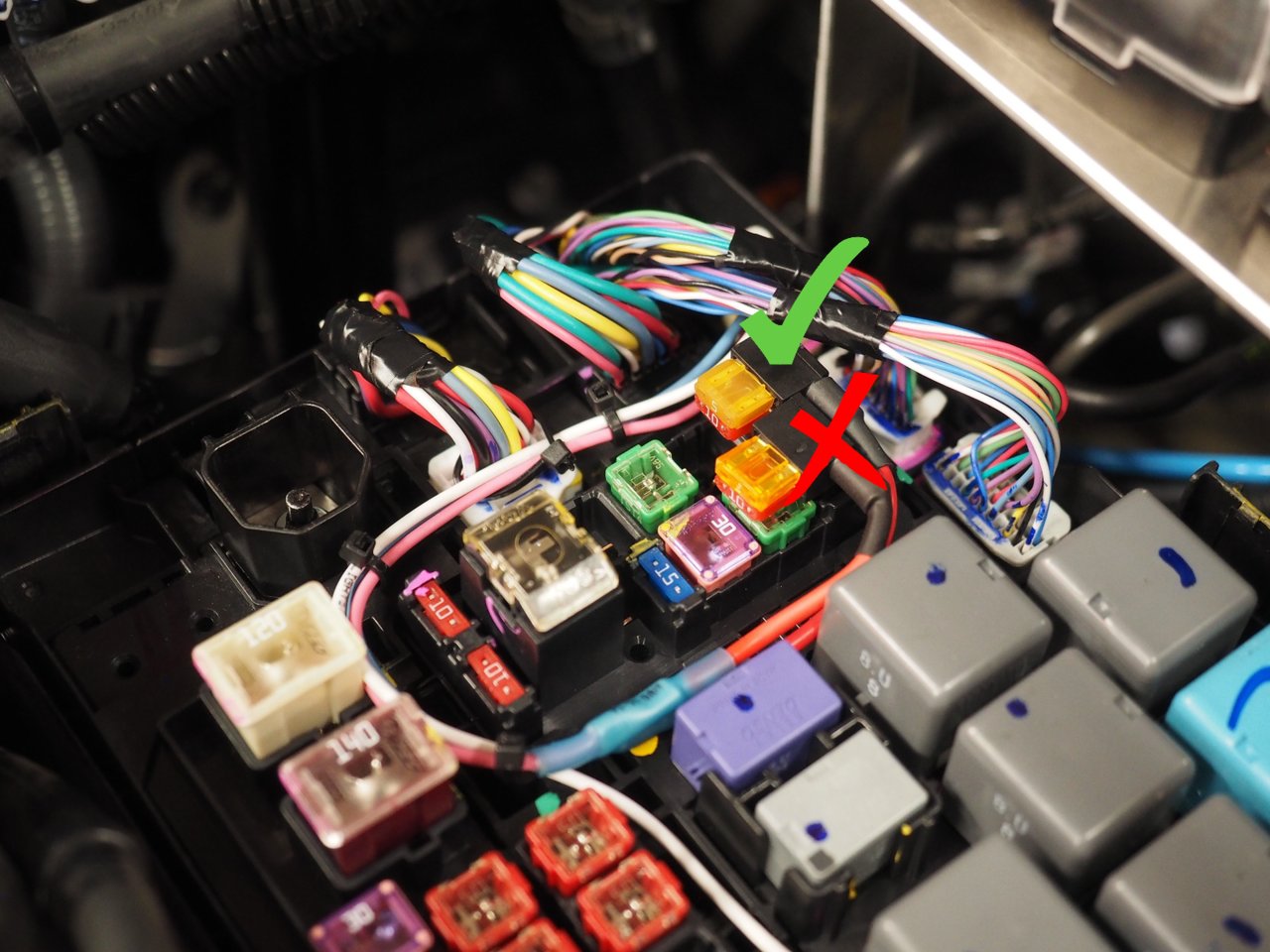

    Add a Circuit location installed.jpg

    Big Brutus and RobP62 [OP] like this.
  10. Dec 27, 2018 at 11:57 AM
    #30
    RobP62

    RobP62 [OP] Those fuk'n squirrels!

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    39,219
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    See, this is why I leave it to the experts! So much freaking detail! Thanks Brett!
    :bowdown:

    Parker315 likes this.
  11. Dec 27, 2018 at 12:14 PM
    #31
    Parker315

    Parker315 Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127
    :cheers: Thanks Rob! Any time I can share some knowledge to help someone else :thumbsup:

    RobP62 [OP] likes this.
  12. Dec 27, 2018 at 12:18 PM
    #32
    RobP62

    RobP62 [OP] Those fuk'n squirrels!

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    39,219
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Exactly why I asked Brett! :cheers:

    Parker315 likes this.
  13. Dec 27, 2018 at 12:29 PM
    #33
    Parker315

    Parker315 Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127

    RobP62 [OP] likes this.
  14. Dec 27, 2018 at 12:32 PM
    #34
    RobP62

    RobP62 [OP] Those fuk'n squirrels!

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    39,219
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    :rofl:

    Parker315 likes this.
  15. Jan 8, 2019 at 9:15 AM
    #35
    RobP62

    RobP62 [OP] Those fuk'n squirrels!

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    39,219
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Updated my first post on Page 1, all the way at the bottom. FYI, in the future, all updates will be made to the first post.

    Jckdnls and Parker315 like this.
  16. Jan 8, 2019 at 11:30 AM
    #36
    FadedComa

    FadedComa Failed Porn Star.........

    Joined:
    Apr 27, 2017
    Member:
    #217518
    Messages:
    6,180
    Gender:
    Male
    Vehicle:
    09 BSP TRD SPORT......
    Wiper Blades
    My phone always dies before I can even get to the bottom of the first post.......


    And that's with it plugged into the charger. :anonymous:

    BravesRunner and RobP62 [OP] like this.
  17. Jan 8, 2019 at 11:33 AM
    #37
    RobP62

    RobP62 [OP] Those fuk'n squirrels!

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    39,219
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    That's because you have AADD and get distracted by squirrels easily.

    Oh and if you think that is bad, wait until I do my Mod thread. That will be a 4 page first post at least. You better hook up solar.

    Parker315 likes this.
  18. Jan 8, 2019 at 12:27 PM
    #38
    FadedComa

    FadedComa Failed Porn Star.........

    Joined:
    Apr 27, 2017
    Member:
    #217518
    Messages:
    6,180
    Gender:
    Male
    Vehicle:
    09 BSP TRD SPORT......
    Wiper Blades
    Gonna try my damndest to steal the 2nd post

    RobP62 [OP] likes this.
  19. Jan 8, 2019 at 1:05 PM
    #39
    RobP62

    RobP62 [OP] Those fuk'n squirrels!

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    39,219
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Well, I'm not letting any of you delinquents know until the first post is ready. I'm working it up in a word document and storing it and the photos on a special location on my hard drive so I can just do a master cut and paste. Otherwise it will be public and unfinished then I will have to hear you all say "IT'S UNFINISHED!!!!!!"

    :rofl:

    But I might have to give you dibs now. :thumbsup:

    Parker315 likes this.
  20. Jan 8, 2019 at 1:09 PM
    #40
    Parker315

    Parker315 Modding on a Budget | TTC Member #0127

    Joined:
    Dec 27, 2017
    Member:
    #239512
    Messages:
    1,392
    Gender:
    Male
    First Name:
    Brett
    Cypress Texas
    Vehicle:
    17 Tacoma TRD Sport DCSB MGM
    TTC (Texas Toyota Coalition) Member #127
    The best tactic is to definitely write it up in a word document, so your good there. Second, you can create your build thread and go ahead and post your write up in post #1 and quickly reply to the post by just typing a period and send and again on post #3 to reserve those posts. Or create the thread now with a title and in Post #1 just put coming soon and again reply with a period on post 2 and 3 to reserve those spots.

    RobP62 [OP] likes this.
