Auxiliary Fuse Box and Bracket-another option

Discussion in '1st Gen. Tacomas (1995-2004)' started by shmabs, Apr 23, 2018.

  1. Apr 23, 2018 at 12:07 PM
    #1
    shmabs

    shmabs [OP] Well-Known Member

    Joined:
    Jan 31, 2018
    Member:
    #243083
    Messages:
    147
    Gender:
    Male
    First Name:
    Mike
    Greetings folks,

    This weekend I spent some starting the electrical upgrades on my truck in anticipation of adding more protected circuits for accessories. In the past I have always used blue sea system fuse boxes and a separate relay setup, but this time I decided to try something a little different and friend had showed me these bussman fuse/relay boxes. They seem to be nearly water proof, are compact, should work well. You need to buy the relay's and pins separately, which adds to the cost, but i feel it's worth it for what seems to be a better product and solution.

    https://www.amazon.com/COOPER-BUSSM...d=1524509685&sr=8-3&keywords=bussman+fuse+box

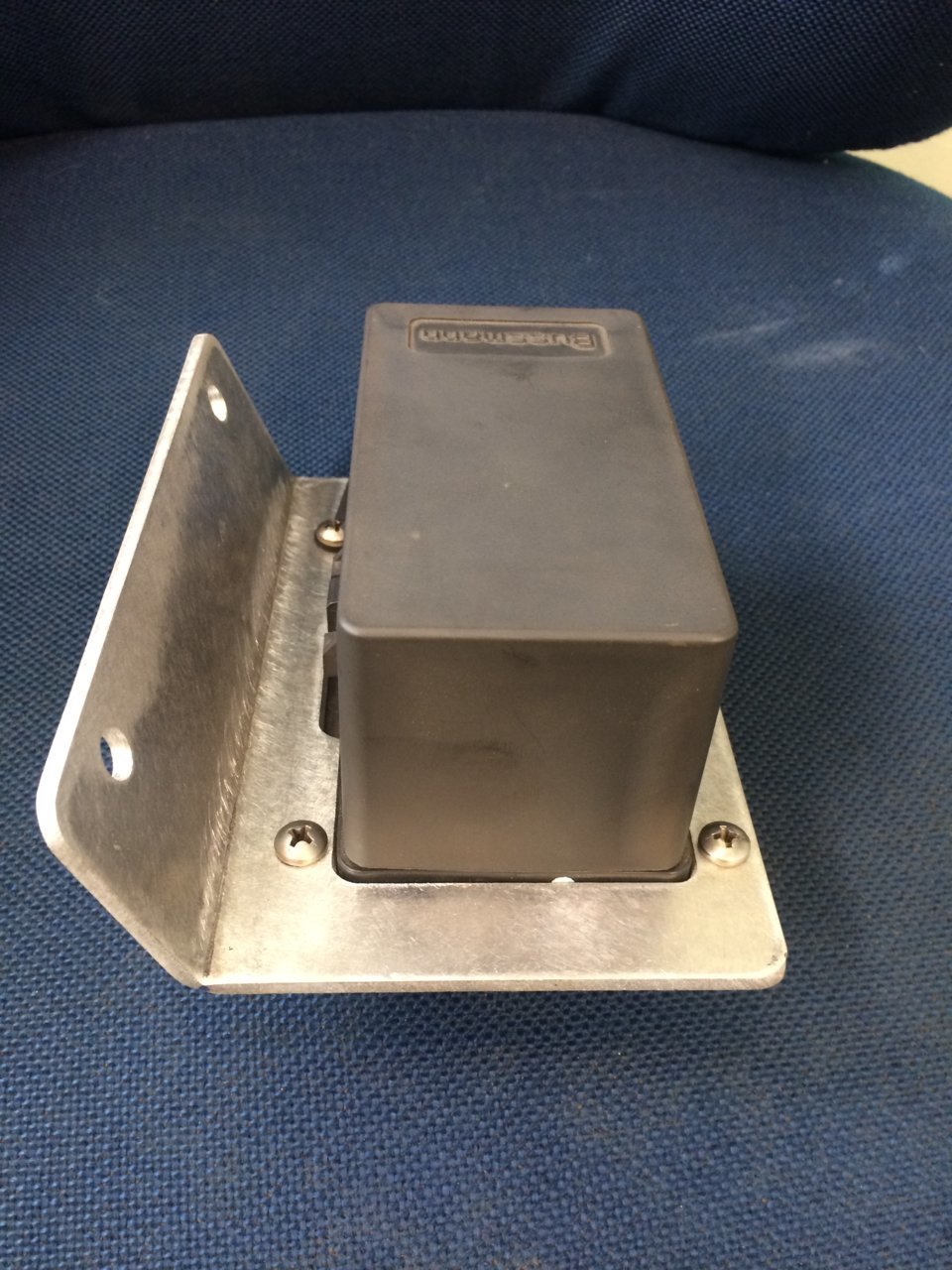

    I built a bracket that mounts to the factory holes on the passenger wheel well just forward of the ABS module. This holds the fuse box itself and allows plenty of clearance at the rear for the wiring installation.

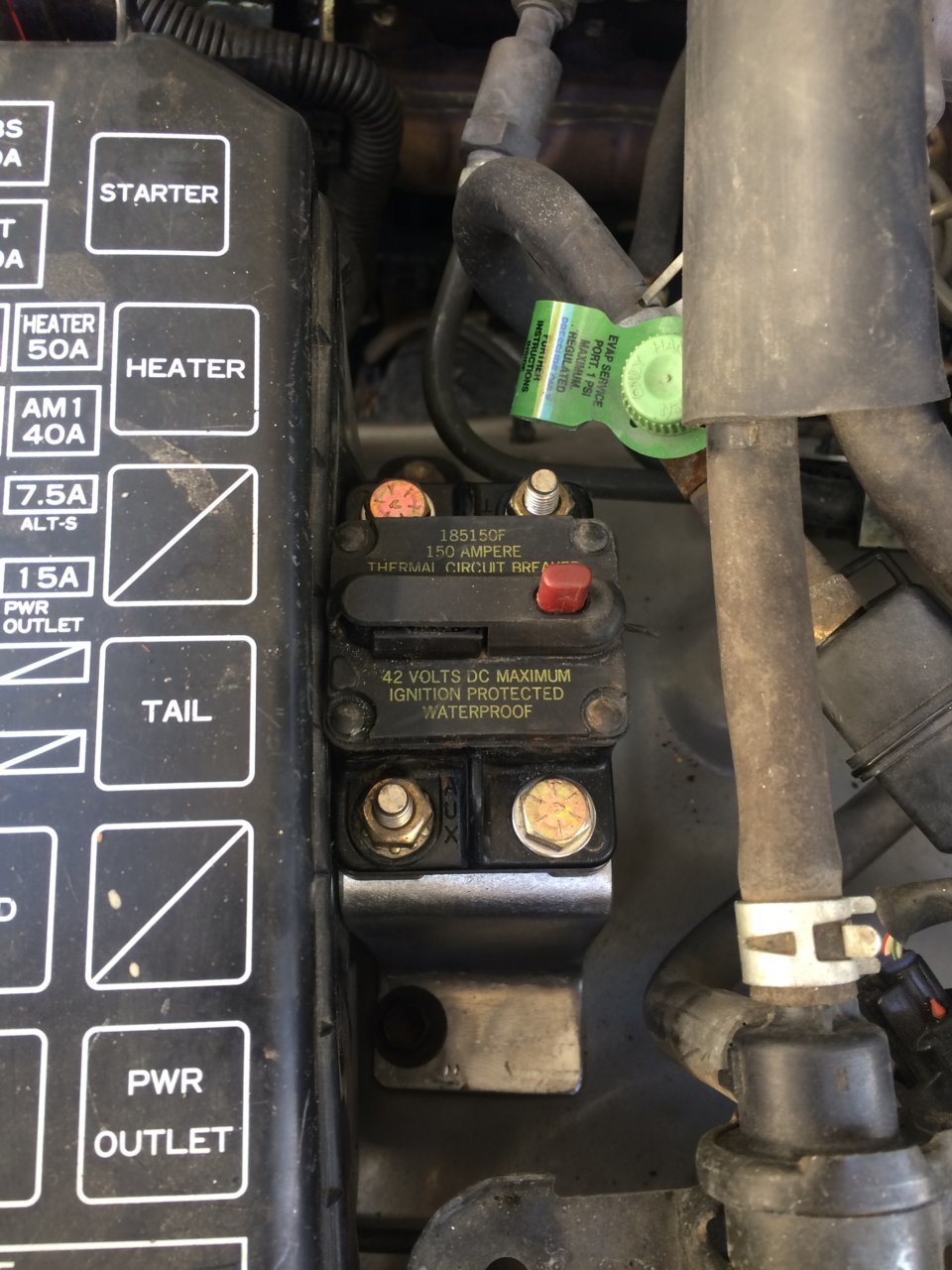

    I also built a simple bracket that will hold a 150 amp circuit breaker to protect the large power wire going from the battery to the fuse box itself.

    The battery received the large military style terminals, and the battery itself will be upgraded in the near future, and possibly the alternator too.

    I always love seeing how people solve problem on their vehicles, and thought it might be worth sharing my solution.

    I have an extra fuse box bracket for sale if someone was interested.
