Thanks! It wasn't as hard as I was anticipating. Sometimes I look at those wiring diagrams and just see a bunch of scribbles on the page. Haha!

That's an Air-On-On-Board switch. They have a bunch of different designs and colors. It fits well in the blank spots. I'm sure I'm not the first to have this setup, get the stuff that makes you and your truck happy!

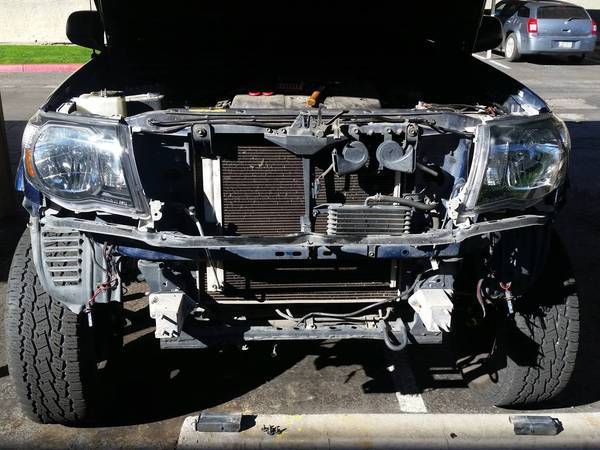

I took off the grill and lower valence tonight. Not quite sure how you got the light to sit in the lower bumper/valence like you did. Did you use different mounts than the ones that come with the light? I'd prefer to mount it up like you did instead of behind the bumper.



You can either make your own bracket or buy a rigid one and modify it a little bit.

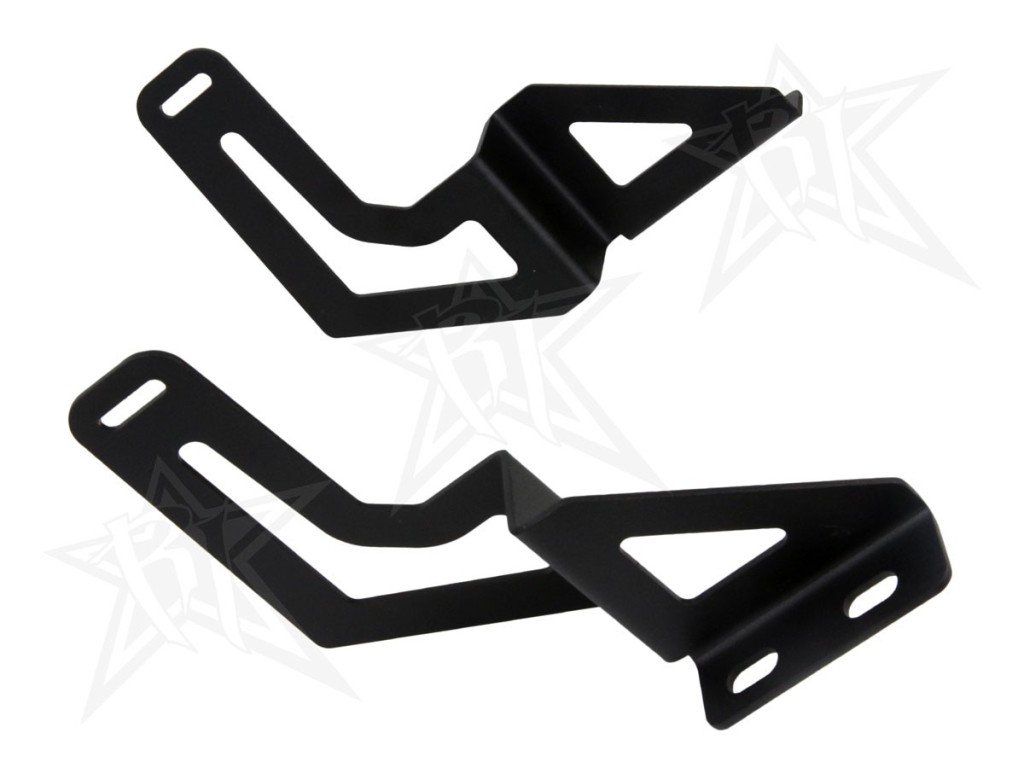

Gym jamz is right. I used the rigid industries mounts that connect to the bolts that hold the crash bar to the frame. It's a really tight but if you trim a little of the inner corners of the valence plastic you can get it all fit in there. It is tight. I put the mounts in and left everything loose until I had it all where I wanted it and then slowly tightened everything up. The mounts look like this:



Nice ...



sub'd

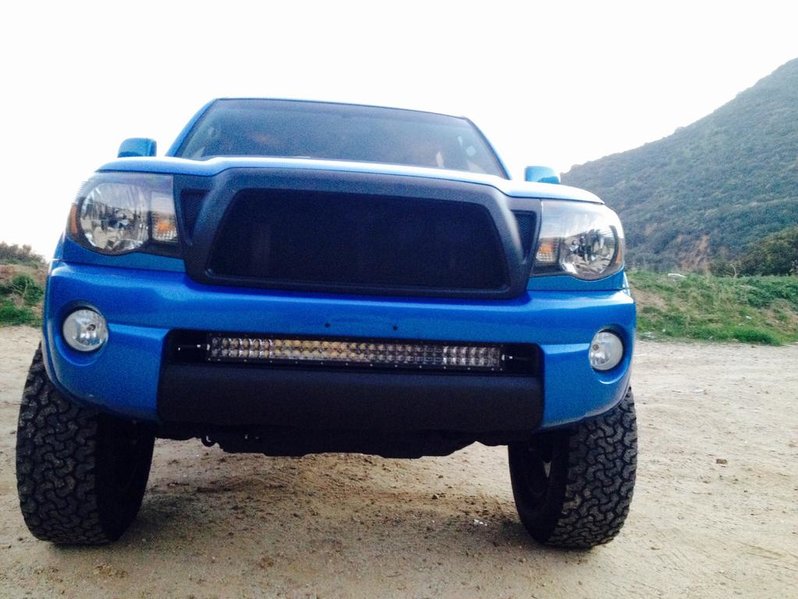

I got around to installing my 30" optic... This thing is bright!



Looks good!



Bump



Got the bar mounted up front and the pods in the back. Those pods are BRIGHT. For floods they have a lot of reach.



Any pics?!



so what is the remote harness?



the remote is an actual wireless remote. the standard harness is a push button



He's right!

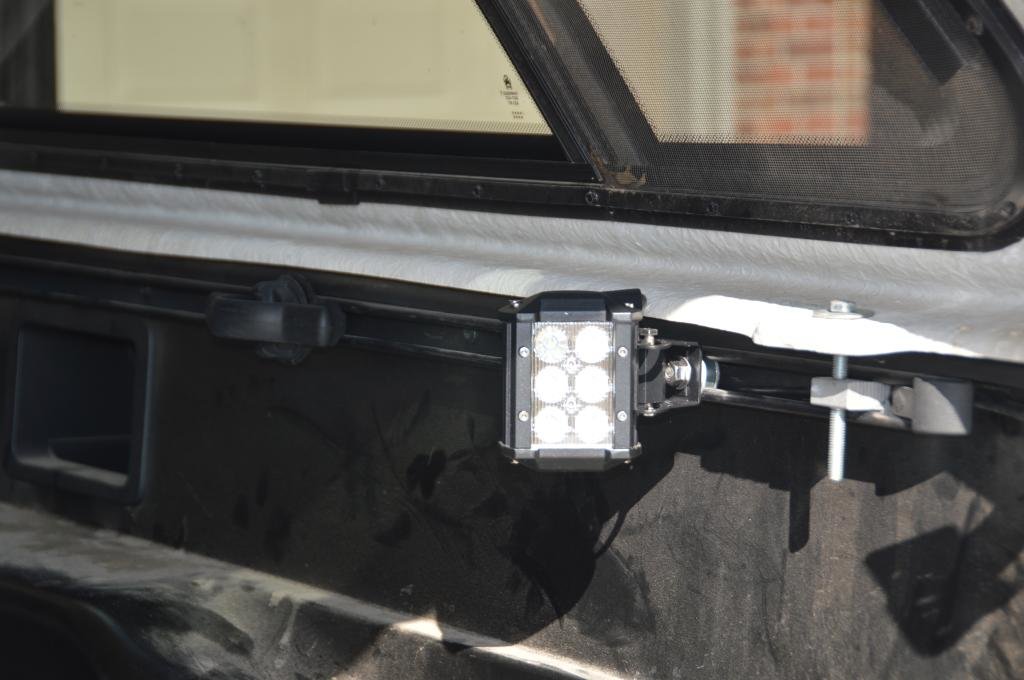

For right now the pods are mounted to the bed rail. They rotate to cover both the bed and out the back. I'll experiment with them as far as where to have them and not get them knocked off. Eventually I will add a rack to the shell and they will be mounted on the underside of the roof using the same bolts to hold the rack on. I don't want to drill extra holes in the shell before then.



Mike,
Got the package Friday, Thanks bro. Installed the 20 inch optic bar and LED fog lights. Anyone looking for an outstanding product and fast courteous service..... Look no further....... Mike's your guy to get lights..... Hope you get curved bars soon...... Looking to mount on the roof.........

Before


After



Here are the pods at work. The fence is 15 yards from the truck. Not bad for two small flood lights mounted inside the bed with a shell on top. Both pictures are taken at the same setting to give a good idea of just how bright they are. If you notice the two small blue lights over the yellow light on the right in the second picture, those are two road signs being lit up over 100 yards away.



TTT



Stoked they worked out for you!



Mike, you have any Optic flush mount pods?(flood)
