AVIC X930BT Installed

Discussion in 'Audio & Video' started by gov875, Jun 24, 2011.

  1. Jun 24, 2011 at 6:26 PM
    #1
    gov875

    gov875 [OP] WahooTaco

    Joined:
    Jun 15, 2010
    Member:
    #38970
    Messages:
    683
    Gender:
    Male
    First Name:
    Matt
    Pacific Beach, CA
    Vehicle:
    TRD Sport DCLB
    Wet Okole's (front & rear), Weathertech Floormats (front & rear), cheap tailgate theft mod, extra d-rings, low profile toolbox (flat black), Thule Roof Rack (58" load bars), Thule Ski/Snowboard Roof Rack, Blacked Out Badges, Fishing Bobber Trailer Ball Cover, AVIC-X930BT w/ XM & steering controls, 5100s All Around (front set at .85), Eibach Coils, Rear TSB, rear AAL, LR UCAs, Toytec Diff. Drop, Mudflap Delete, Tailgate Reinforcement, Spidertrax (all 4), 285 Nittos, Rear Diff Breather Extension, TRD Exhaust, Powered Rear Sliding Window, DeeZee Bedmat, rear-view anytime mod, trailer bracket relocate, fog light anytime mod, redline hood struts, Satoshi with Homertaco Custom TRD Mesh, Hella 500s behind the grill, Brighter Reverse Lights

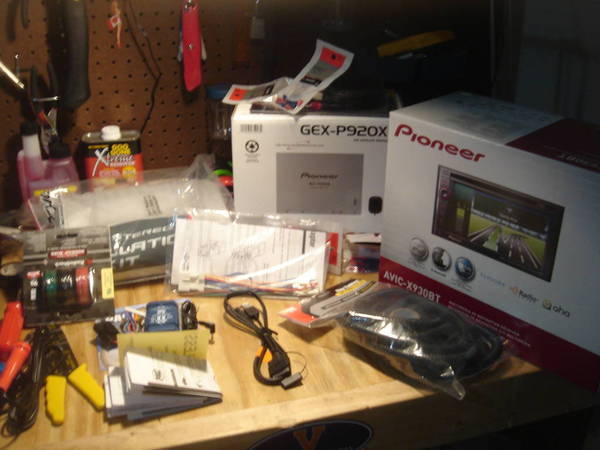

    all the goodies ready to be installed:
    [​IMG]

    Details:
    Pioneer X930BT
    Pioneer GEX-P920XM (XM Radio unit)
    Steering Wheel Control Adapter
    Ipod Cable

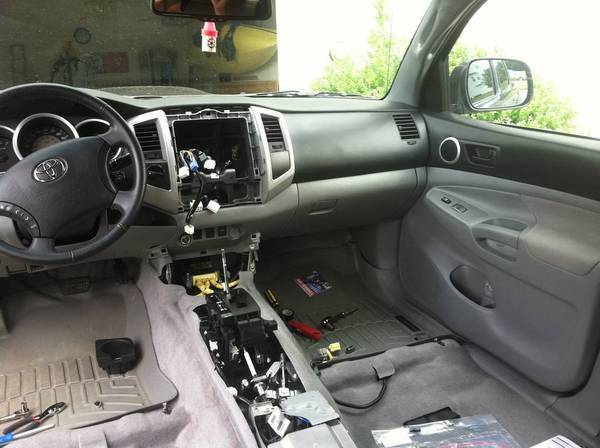

    Beginning of the disassembly:
    [​IMG]

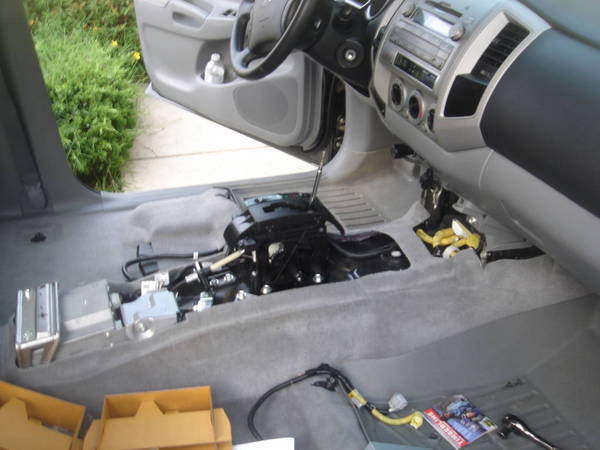

    Fully Disassembled:
    [​IMG]

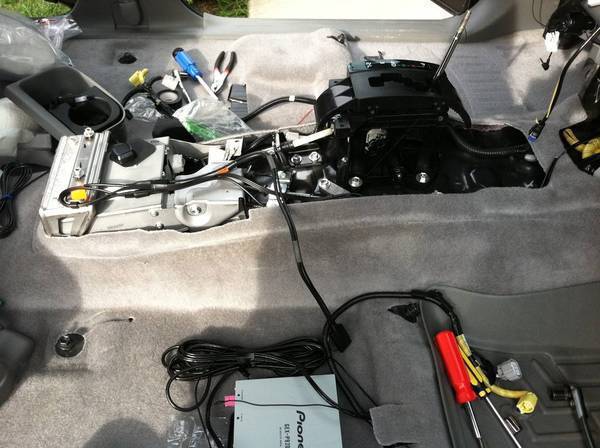

    XM Unit Location Under Passenger Seat:
    [​IMG]

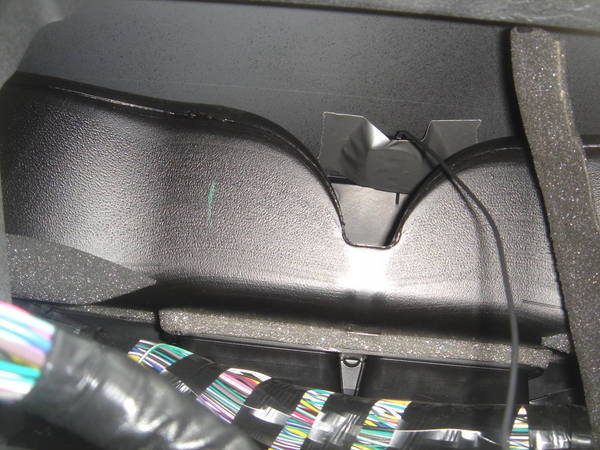

    Super Secure Antenna Mount:
    [​IMG]

    Put Back Together:
    [​IMG]

    Up and Running:

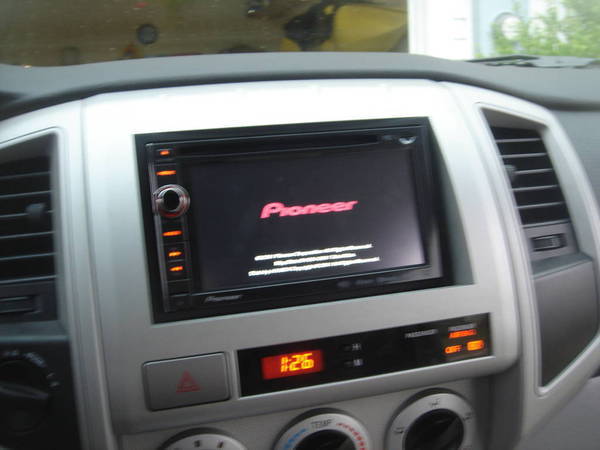

    [​IMG]

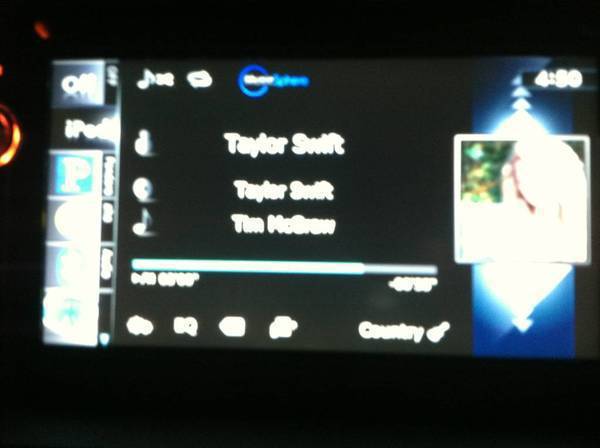

    Playin' my girl from the iphone:
    [​IMG]

    Did the Bypass to allow en route navigation changes and video playback. So far all is good. Still need to open it back up to wire in the back up camera and the steering wheel controls. Also, the nav antenna gets enough reception underneath the dash but the XM does not so I need to move it to the top of the dash on the side.

    Many many thanks to all those on TW who helped me do this with the how to's!

  2. Jun 24, 2011 at 10:36 PM
    #2
    booboy

    booboy Well-Known Member

    Joined:
    Aug 13, 2010
    Member:
    #41642
    Messages:
    316
    Gender:
    Male
    PaCiFiC nOrThWeSt
    Vehicle:
    2010 TrD SpOrT 4x4
    Looks good.

  3. Jul 4, 2011 at 3:37 PM
    #3
    paidfor

    paidfor Well-Known Member

    Joined:
    Aug 21, 2009
    Member:
    #21536
    Messages:
    757
    Gender:
    Male
    Austin, TX
    Vehicle:
    2013 TRD OR 4x4
    Hidden GPS tracking system. Backflip cover, weather techs, bed mat, tailgate lock, OME 885 springs, blistein shocks, 2.5 in AAL/
    I am also considering this unit for my 09 Tacoma. I was wondering if you can link you existing backup camera system to the Pioneer unit or if you just have to buy a new camera and hardware. I have the bluetooth already in the truck so I can either use that one or the one in the new HU..would probably be a better choice. Oh, by the way, a question about the NAV system. I really like the Garman but understand that is not available with the 930BT.
    Any comments would be appreciated. I am still on the fence trying to decide what to do. :cool:

  4. Jul 5, 2011 at 1:22 AM
    #4
    seksilumpia

    seksilumpia Well-Known Member

    Joined:
    Oct 25, 2009
    Member:
    #24905
    Messages:
    593
    Gender:
    Male
    First Name:
    Brandon
    El Dorado Hills
    Vehicle:
    05 TRD Sport DCSB
    Performance mods: TRD CAI, AFE throttle body spacer, Doug Thorley headers, TRD exhaust. Cosmetic mods: HID 10k head+3k fog lights, BHLM, T-rex 2 eyelids, billet grill (5 piece), 20% front window tint, 4% back window tint, tinted 3rd brake light, altezza tail lights, LED license plate lights, door skid protectors, slotted drilled rotors,plasti dip rims,painted rotor and drums. Interior mods: TRD seat covers, LED map and dome lights, 2 kicker 10' w/ 500 watt amp, pioneer door speakers,and Pioneer AVIC X930BT.
    Looks really good OP! im waiting for my unit in the mail,of course i order on 4th of july weekend for a longer wait time..Where did you mount the antenna? I cant really tell where it is in that picture

  5. Jul 7, 2011 at 7:58 AM
    #5
    gov875

    gov875 [OP] WahooTaco

    Joined:
    Jun 15, 2010
    Member:
    #38970
    Messages:
    683
    Gender:
    Male
    First Name:
    Matt
    Pacific Beach, CA
    Vehicle:
    TRD Sport DCLB
    Wet Okole's (front & rear), Weathertech Floormats (front & rear), cheap tailgate theft mod, extra d-rings, low profile toolbox (flat black), Thule Roof Rack (58" load bars), Thule Ski/Snowboard Roof Rack, Blacked Out Badges, Fishing Bobber Trailer Ball Cover, AVIC-X930BT w/ XM & steering controls, 5100s All Around (front set at .85), Eibach Coils, Rear TSB, rear AAL, LR UCAs, Toytec Diff. Drop, Mudflap Delete, Tailgate Reinforcement, Spidertrax (all 4), 285 Nittos, Rear Diff Breather Extension, TRD Exhaust, Powered Rear Sliding Window, DeeZee Bedmat, rear-view anytime mod, trailer bracket relocate, fog light anytime mod, redline hood struts, Satoshi with Homertaco Custom TRD Mesh, Hella 500s behind the grill, Brighter Reverse Lights
    You can still link your backup camera into this unit. There is a write up on here for how to tap into the line. Search "HU Installation Links" and it should be in a really helpful post there.

    The Bluetooth with the unit has been great so far. I ran the mic around the drivers side and put it up on top of my rear view mirror. Most people don't even notice it. The unit syncs with my phone pretty quickly and the calls are clear.

    The GPS so far has been pretty accurate and helpful. Just made a 9 hour road trip with it and other than a couple times it wanted me to take another route it worked great. It has lane guidance for highways to let you know where you should be which is nice and the display gives you more info than you could ever want if you set it up that way. It also auto soft-mutes your music when alerting you of directions and unmutes after it is done talking. I just gave my regular garmin unit to my sister since I won't need it anymore.

    I'd say go for it if the unit has all the features you want. I'm nothing but happy so far with it.

  6. Jul 7, 2011 at 8:03 AM
    #6
    gov875

    gov875 [OP] WahooTaco

    Joined:
    Jun 15, 2010
    Member:
    #38970
    Messages:
    683
    Gender:
    Male
    First Name:
    Matt
    Pacific Beach, CA
    Vehicle:
    TRD Sport DCLB
    Wet Okole's (front & rear), Weathertech Floormats (front & rear), cheap tailgate theft mod, extra d-rings, low profile toolbox (flat black), Thule Roof Rack (58" load bars), Thule Ski/Snowboard Roof Rack, Blacked Out Badges, Fishing Bobber Trailer Ball Cover, AVIC-X930BT w/ XM & steering controls, 5100s All Around (front set at .85), Eibach Coils, Rear TSB, rear AAL, LR UCAs, Toytec Diff. Drop, Mudflap Delete, Tailgate Reinforcement, Spidertrax (all 4), 285 Nittos, Rear Diff Breather Extension, TRD Exhaust, Powered Rear Sliding Window, DeeZee Bedmat, rear-view anytime mod, trailer bracket relocate, fog light anytime mod, redline hood struts, Satoshi with Homertaco Custom TRD Mesh, Hella 500s behind the grill, Brighter Reverse Lights
    I got mine next day somehow so thankfully I didn't have to wait long. The antenna in the pic was my xm one which I moved on top of my dash after running behind the glove box. The gps antenna is right where this one is directly behind the stereo head unit though. It has a magnetic pad that is sticky on one side and I attached it upside down. Hasn't affected signal or come loose yet. You'll see the place once your stock stereo is out. I'm pretty sure that the plastic you can see in the pic is ducting for the ventilation system in the cabin. Let me know if that makes no sense and I'll get a better pic. Also the duct tape isn't necessary with the gps antenna at all.

  7. Jul 7, 2011 at 9:01 AM
    #7
    seksilumpia

    seksilumpia Well-Known Member

    Joined:
    Oct 25, 2009
    Member:
    #24905
    Messages:
    593
    Gender:
    Male
    First Name:
    Brandon
    El Dorado Hills
    Vehicle:
    05 TRD Sport DCSB
    Performance mods: TRD CAI, AFE throttle body spacer, Doug Thorley headers, TRD exhaust. Cosmetic mods: HID 10k head+3k fog lights, BHLM, T-rex 2 eyelids, billet grill (5 piece), 20% front window tint, 4% back window tint, tinted 3rd brake light, altezza tail lights, LED license plate lights, door skid protectors, slotted drilled rotors,plasti dip rims,painted rotor and drums. Interior mods: TRD seat covers, LED map and dome lights, 2 kicker 10' w/ 500 watt amp, pioneer door speakers,and Pioneer AVIC X930BT.
    thanks man,i know what youre talking about. i took it apart one day so i can be ready for the new unit install..im still waiting for everything in the mail,its coming in 4 shipments..i HATE waiting hahaha but it was worth it for saving about 560.00,i think id wait since i saved that much

  8. Jul 7, 2011 at 10:57 AM
    #8
    bonfire

    bonfire Well-Known Member

    Joined:
    Feb 18, 2011
    Member:
    #51408
    Messages:
    68
    Gender:
    Male
    Seattle WA
    Vehicle:
    TRD Sport LB
    Do you have the JBL stock system? I hear you have to buy an adapter if you have the JBL system.

  9. Jul 10, 2011 at 1:45 PM
    #9
    paidfor

    paidfor Well-Known Member

    Joined:
    Aug 21, 2009
    Member:
    #21536
    Messages:
    757
    Gender:
    Male
    Austin, TX
    Vehicle:
    2013 TRD OR 4x4
    Hidden GPS tracking system. Backflip cover, weather techs, bed mat, tailgate lock, OME 885 springs, blistein shocks, 2.5 in AAL/
    after much research, I have also decided to get the 930BT. I cannot find any negatives about it and the reviews on the HU is positive. The cost is a little more than what I want to pay but the others in this class are much more. Going to pull the triger this coming week and install it myself.

  10. Jul 10, 2011 at 11:24 PM
    #10
    seksilumpia

    seksilumpia Well-Known Member

    Joined:
    Oct 25, 2009
    Member:
    #24905
    Messages:
    593
    Gender:
    Male
    First Name:
    Brandon
    El Dorado Hills
    Vehicle:
    05 TRD Sport DCSB
    Performance mods: TRD CAI, AFE throttle body spacer, Doug Thorley headers, TRD exhaust. Cosmetic mods: HID 10k head+3k fog lights, BHLM, T-rex 2 eyelids, billet grill (5 piece), 20% front window tint, 4% back window tint, tinted 3rd brake light, altezza tail lights, LED license plate lights, door skid protectors, slotted drilled rotors,plasti dip rims,painted rotor and drums. Interior mods: TRD seat covers, LED map and dome lights, 2 kicker 10' w/ 500 watt amp, pioneer door speakers,and Pioneer AVIC X930BT.
    I got mine on eBay for 614.89 no tax and free shipping.. He has good reviews and top rated seller.he responds to all emails too.. I'll get mine installed maybe Tuesday so I'll let you know!

  11. Jul 10, 2011 at 11:46 PM
    #11
    pinktaco808

    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    2,838
    Gender:
    Male
    taylor swift wtf lol

  12. Jul 13, 2011 at 2:50 AM
    #12
    seksilumpia

    seksilumpia Well-Known Member

    Joined:
    Oct 25, 2009
    Member:
    #24905
    Messages:
    593
    Gender:
    Male
    First Name:
    Brandon
    El Dorado Hills
    Vehicle:
    05 TRD Sport DCSB
    Performance mods: TRD CAI, AFE throttle body spacer, Doug Thorley headers, TRD exhaust. Cosmetic mods: HID 10k head+3k fog lights, BHLM, T-rex 2 eyelids, billet grill (5 piece), 20% front window tint, 4% back window tint, tinted 3rd brake light, altezza tail lights, LED license plate lights, door skid protectors, slotted drilled rotors,plasti dip rims,painted rotor and drums. Interior mods: TRD seat covers, LED map and dome lights, 2 kicker 10' w/ 500 watt amp, pioneer door speakers,and Pioneer AVIC X930BT.
    I got my avic x930 installed today with all the goodies to go with it. However,some odd reason,my rear right sub isnt working. The deck is good,the cable is good,and the other sub is good. Any help on this one?

  13. Jul 13, 2011 at 4:23 AM
    #13
    gov875

    gov875 [OP] WahooTaco

    Joined:
    Jun 15, 2010
    Member:
    #38970
    Messages:
    683
    Gender:
    Male
    First Name:
    Matt
    Pacific Beach, CA
    Vehicle:
    TRD Sport DCLB
    Wet Okole's (front & rear), Weathertech Floormats (front & rear), cheap tailgate theft mod, extra d-rings, low profile toolbox (flat black), Thule Roof Rack (58" load bars), Thule Ski/Snowboard Roof Rack, Blacked Out Badges, Fishing Bobber Trailer Ball Cover, AVIC-X930BT w/ XM & steering controls, 5100s All Around (front set at .85), Eibach Coils, Rear TSB, rear AAL, LR UCAs, Toytec Diff. Drop, Mudflap Delete, Tailgate Reinforcement, Spidertrax (all 4), 285 Nittos, Rear Diff Breather Extension, TRD Exhaust, Powered Rear Sliding Window, DeeZee Bedmat, rear-view anytime mod, trailer bracket relocate, fog light anytime mod, redline hood struts, Satoshi with Homertaco Custom TRD Mesh, Hella 500s behind the grill, Brighter Reverse Lights
    haha hell yea man, what of it?

  14. Jul 13, 2011 at 6:56 AM
    #14
    stephen11ty7

    stephen11ty7 Well-Known Member

    Joined:
    Jun 5, 2011
    Member:
    #57798
    Messages:
    493
    Gender:
    Male
    First Name:
    Stephen
    Villa Park
    Vehicle:
    07 white taco
    Total Chaos 2" LT, Icon coilovers
    I am considering this or the new appradio headunit by pioneer. Anybody have a side/arguements

  15. Aug 10, 2011 at 6:46 AM
    #15
    OmegaQuest

    OmegaQuest Well-Known Member

    Joined:
    Aug 10, 2011
    Member:
    #61464
    Messages:
    190
    Gender:
    Male
    Maryland
    Vehicle:
    2013 Tacoma Limited Double Cab 4X4
    Oil Catch Can, Motorcycle Chock, WeatherTech Window Deflectors, Bilstein 5100, OEM 4 Leaf, Chrome Satoshi Grille, FX-R Stage III Retrofit, Color Match Head Light Mod, Front Hella 500 HID, Behind Grill Light Bar, Rear LED Bed Lights, Pop and Lock Tailgate, Chrome License Plate Covers, AFE Air Filter, Removed Secondary Air Filter, Paint engine cover (Red), ImMrYo Rear-View Mirror Lift Bracket, Center Console Organizer, ScanGauge 2, Firestone W217602407 Ride-Rite Kit, Firestone WR17602178 Air-Rite Dual Electric Air Command
    I seem to have a slight problem with this project.

    I have the following:
    · AVIC-X930BT
    · The Tacotunes.com Kit for the 2011 Tacoma Without JBL http://shop.tacotunes.com/Toyota-Tacoma-Textured-Double-DIN-TACO-DASH2-T.htm
    · Wire Harness and Steering Wheel Kit from Tacotunes
    My 2011 Taco has the 6 Disc with XM Radio Factory Radio (NON JBL) (Model Number: 86120-04200)

    My problem is when I disconnect the factory radio there are 2 extra wire harnesses that plug into it that do not plug into anything from Tacotunes kit.

    One is a Black rectangle harness with very small pins; the other is a blue square harness with a single round cable in it.

    I found out there the Blue square harness is the XM antenna, but for the life of me I cannot figure out what the other black harness is for. Any suggestions?
    ** Also any ideas what the Orange/Black wire goes on the Tacotunes wire kit?

  16. Aug 10, 2011 at 8:29 AM
    #16
    gov875

    gov875 [OP] WahooTaco

    Joined:
    Jun 15, 2010
    Member:
    #38970
    Messages:
    683
    Gender:
    Male
    First Name:
    Matt
    Pacific Beach, CA
    Vehicle:
    TRD Sport DCLB
    Wet Okole's (front & rear), Weathertech Floormats (front & rear), cheap tailgate theft mod, extra d-rings, low profile toolbox (flat black), Thule Roof Rack (58" load bars), Thule Ski/Snowboard Roof Rack, Blacked Out Badges, Fishing Bobber Trailer Ball Cover, AVIC-X930BT w/ XM & steering controls, 5100s All Around (front set at .85), Eibach Coils, Rear TSB, rear AAL, LR UCAs, Toytec Diff. Drop, Mudflap Delete, Tailgate Reinforcement, Spidertrax (all 4), 285 Nittos, Rear Diff Breather Extension, TRD Exhaust, Powered Rear Sliding Window, DeeZee Bedmat, rear-view anytime mod, trailer bracket relocate, fog light anytime mod, redline hood struts, Satoshi with Homertaco Custom TRD Mesh, Hella 500s behind the grill, Brighter Reverse Lights
    i dont have the taco tunes kit but when i did my swap there were three connectors that didn't go to anything on the harness (might've been two i'm not positive). i figured one was for steering wheel controls and the others i didn't have a clue.

    so far everything functions perfectly on mine. still need to disassemble and get back in there to wire up the PAC-SWI to actually use those steering controls. if you wire it all up and all the connections on your kit are good then i think you'll be ok

  17. Aug 10, 2011 at 7:25 PM
    #17
    lbridges

    lbridges Well-Known Member

    Joined:
    Mar 6, 2011
    Member:
    #52434
    Messages:
    403
    Gender:
    Male
    First Name:
    Lee
    Indialantic, FL
    Vehicle:
    '11 PreRunner SR5
    The black connector is for the OEM AVC-LAN protocol for a CD-Changer, BluLogic, and/or iPod adapter. Not needed or probably useful for any aftermarket headunit due to Toyota unique protocols on the data link.

    What Orange/black wire? Do you mean the red wire and the black wire that comes off the ASWC wiring adapter? Those go to the same connection between the red and black wires coming to/from the headunit.
