B.A.M.F Bed Rack build

Discussion in 'Bay Area Metal Fabrication' started by JLee, Aug 8, 2011.

  1. Aug 8, 2011 at 11:32 AM
    #1
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    17,235
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

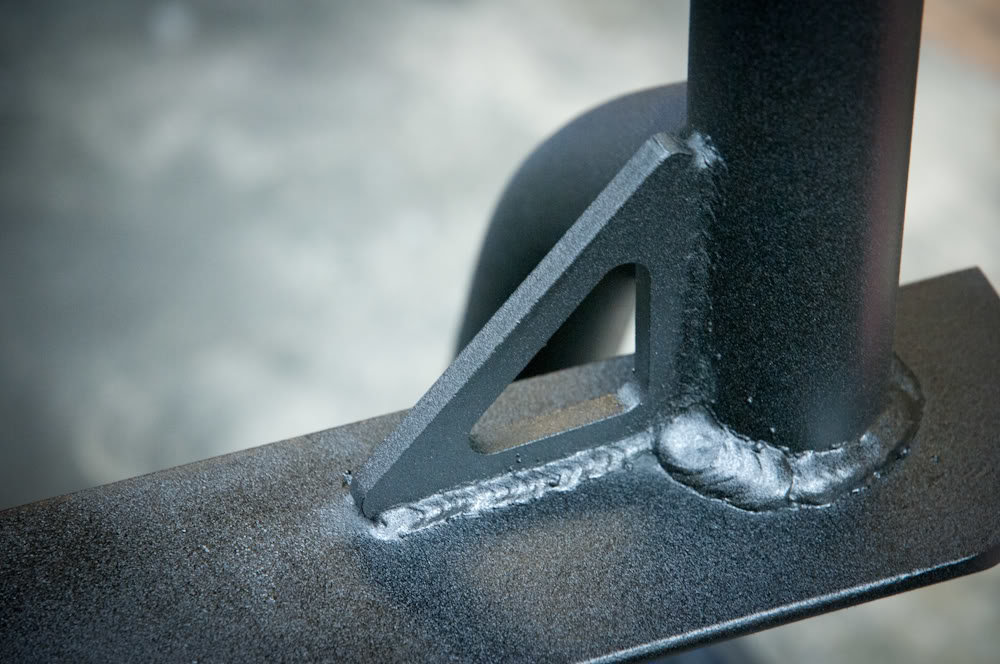

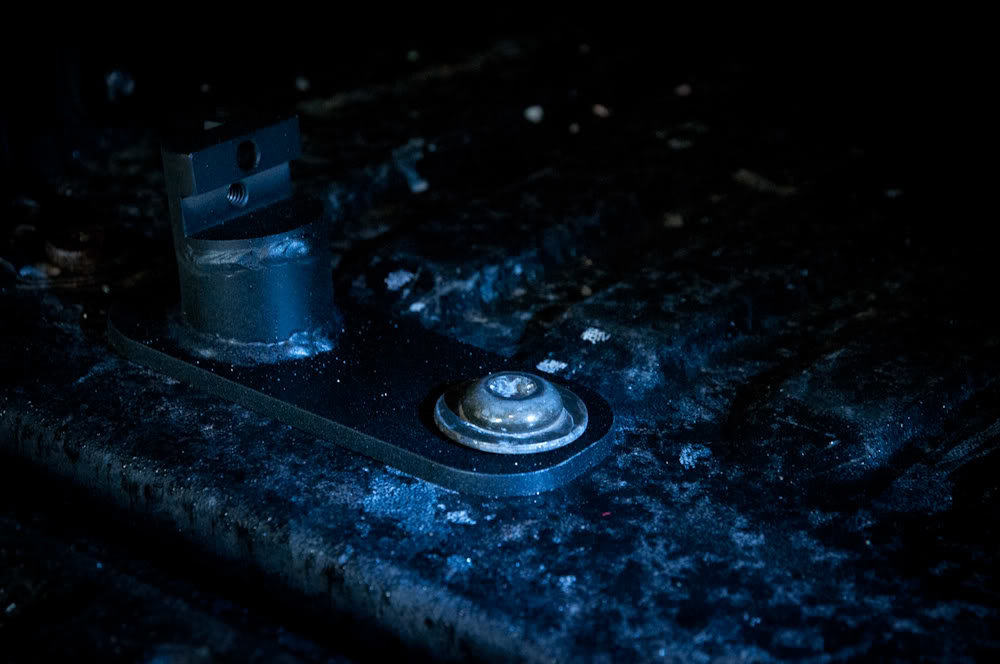

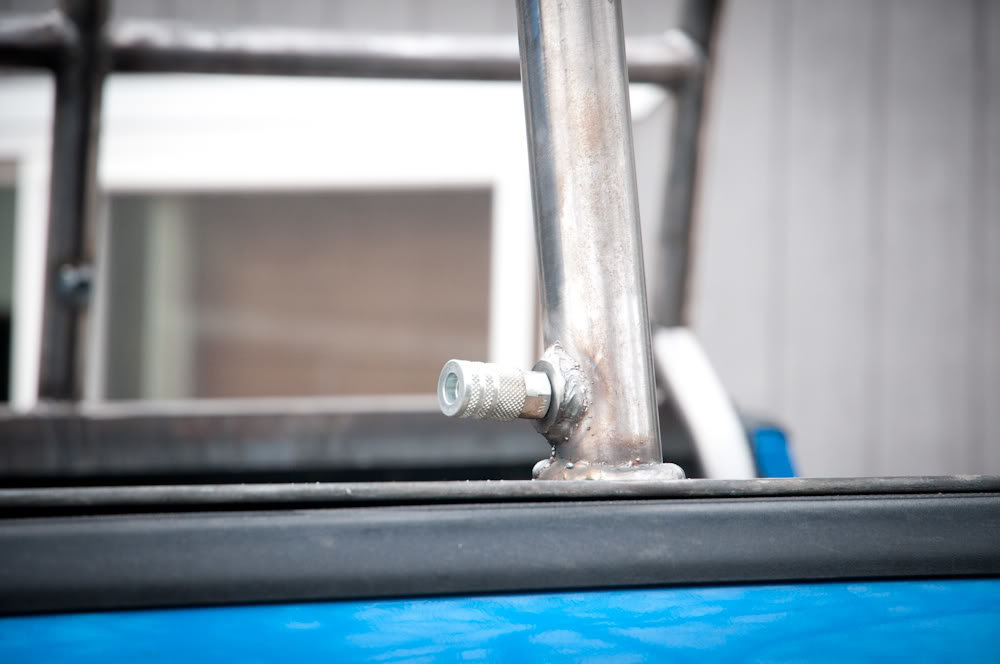

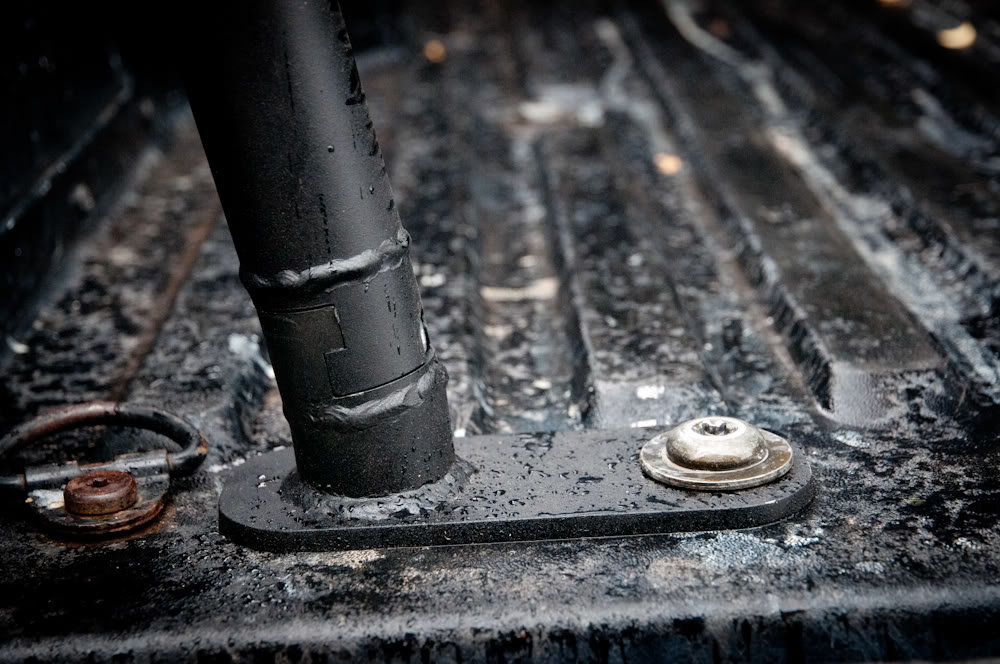

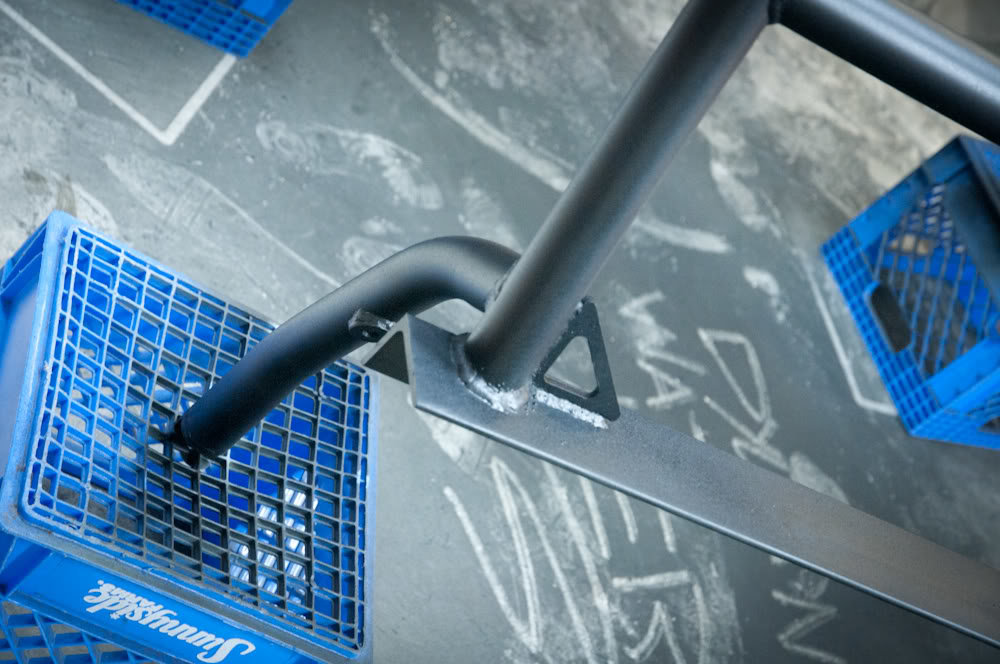

    I started designing a bad rack for a customer over the weekend I thought id show you guys the progress. It's for a 2nd Gen DCSB the rack is going to sit a little lower then the cab at about the height of the rear window so the driver can still see. The customer wants to mount a tire on the top of the rack to get it out of the way for camping trips. The rack will have 4 mounting points onto the bed bolts with tube copulers and the feet so the bet bolts wont have to be removed when taking off the rack. There are 1/4" plate triangular gussets welded to the frame for tie downs and to give the frame more rigidity. Its constructed out of 1.75" .120 wall HREW, 1/4" angle iron for the bed rails and 1/4" plate for the mounting feet. The tire mount will be a 1/4" plate with a 1/4" upright with a 3/8" mounting plate for the tire bolted to a 1/4" plate with 4 1/2" grade 8 bolts.

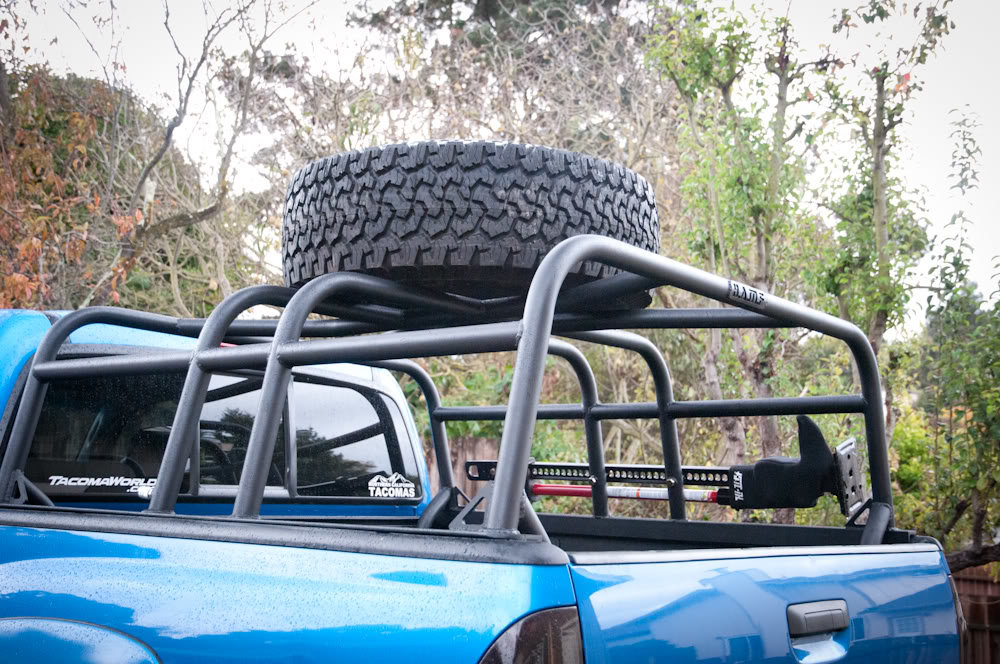

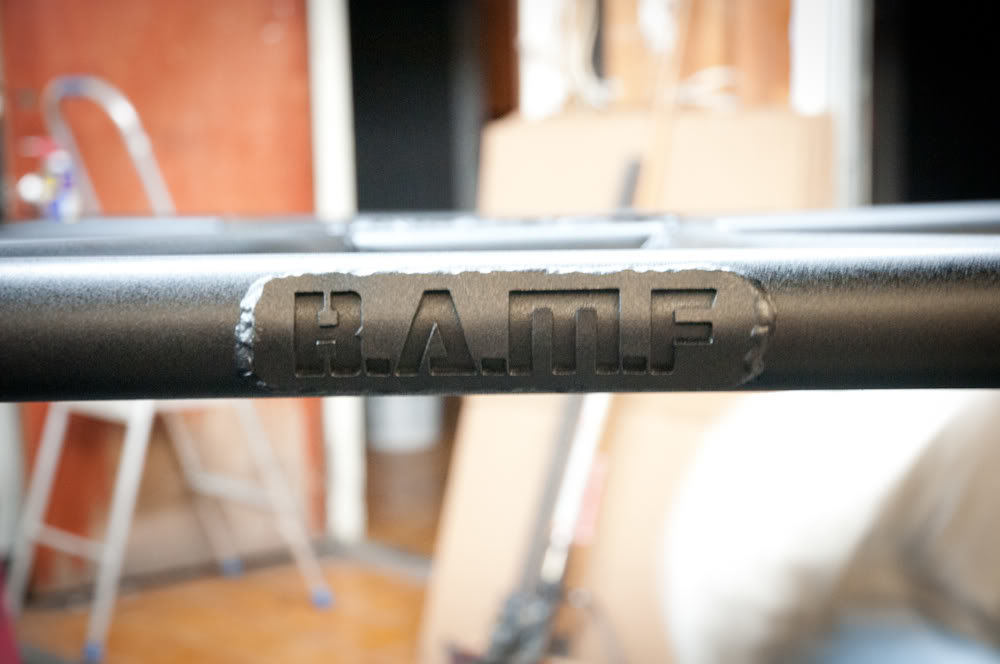

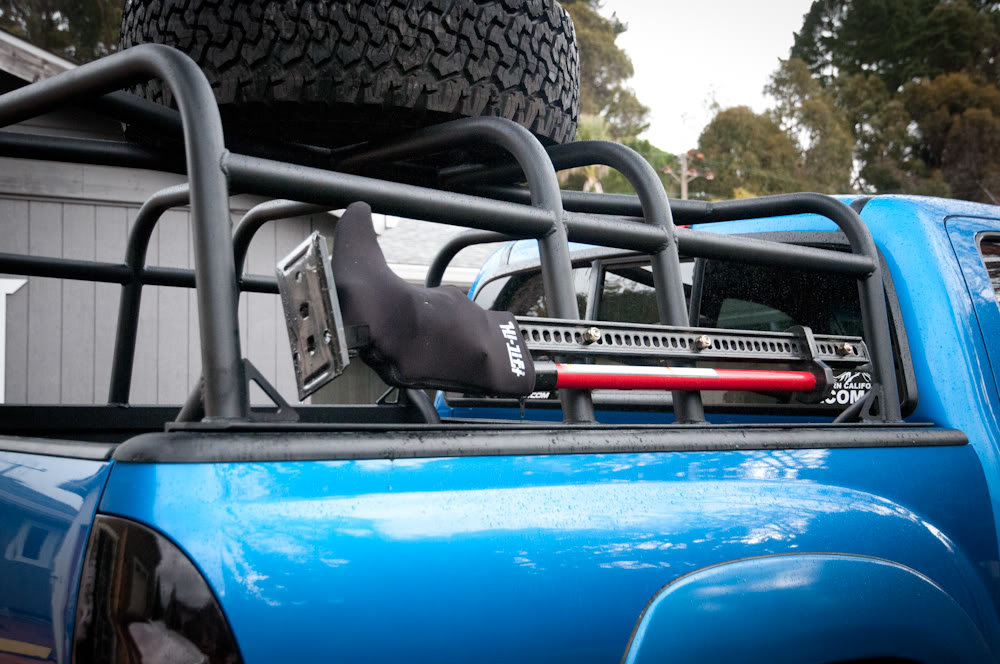

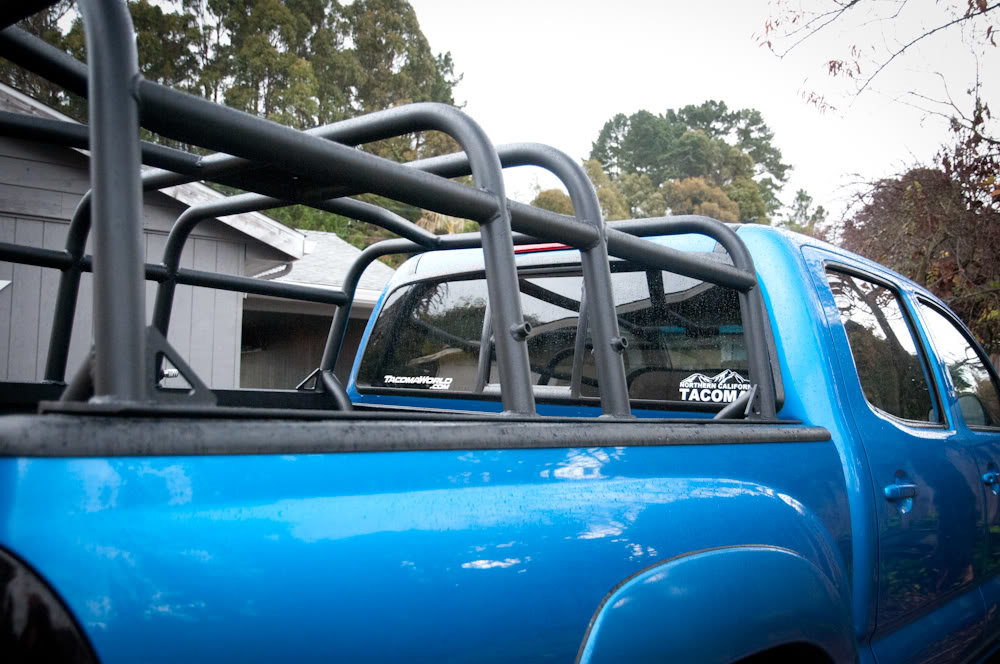

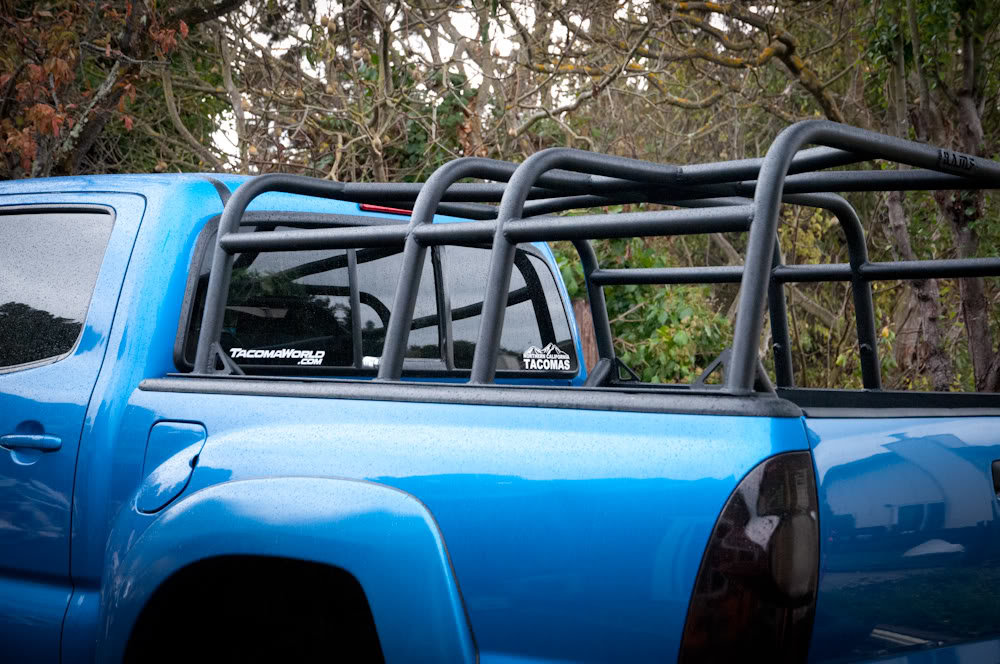

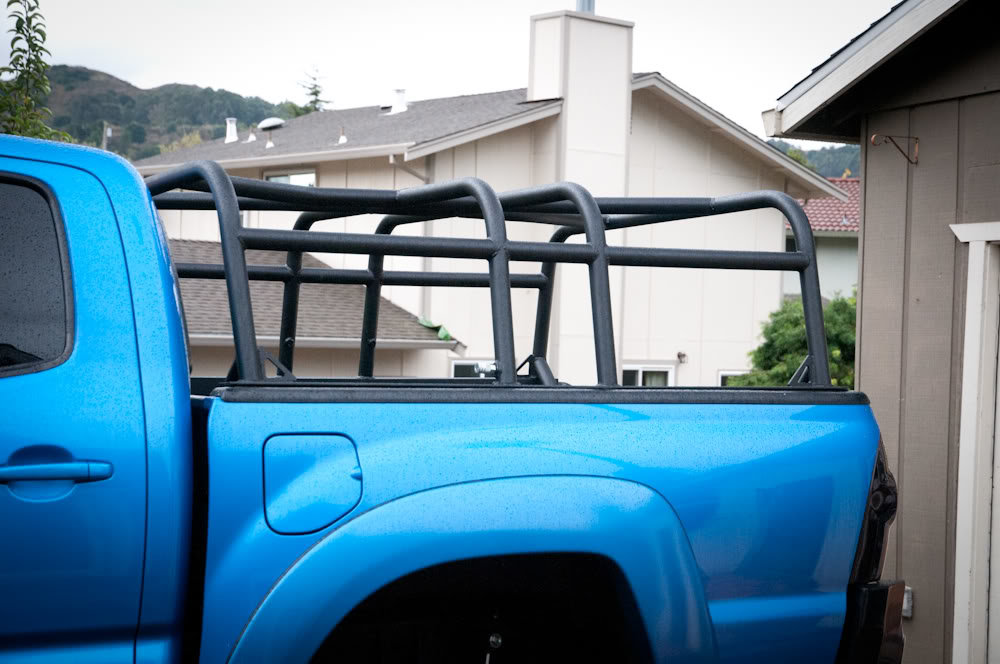

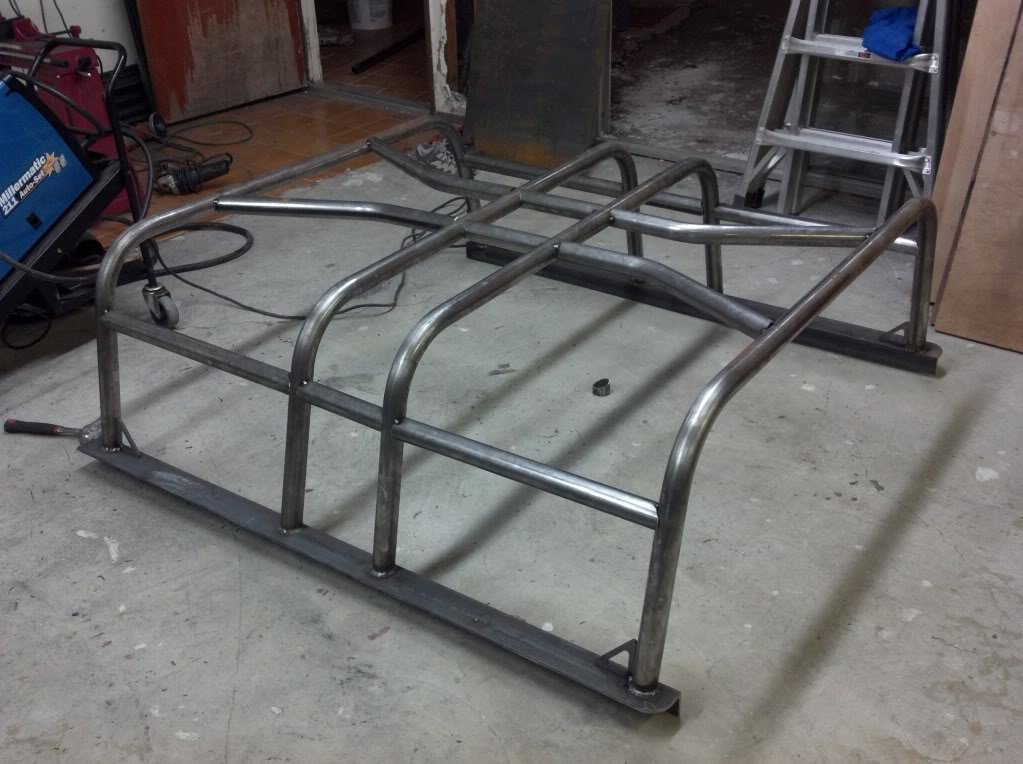

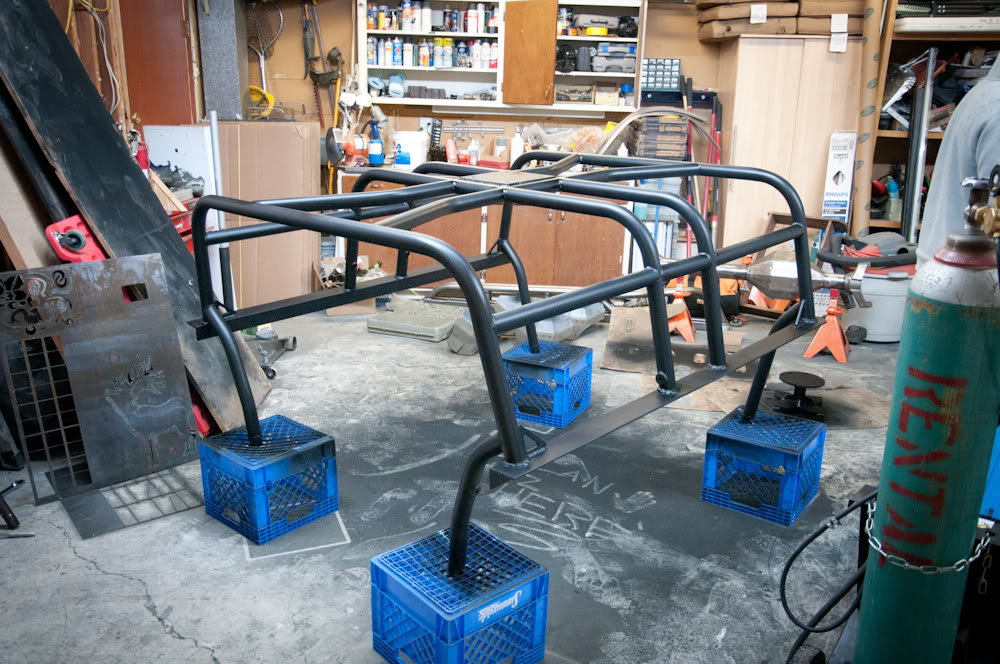

    Finished product

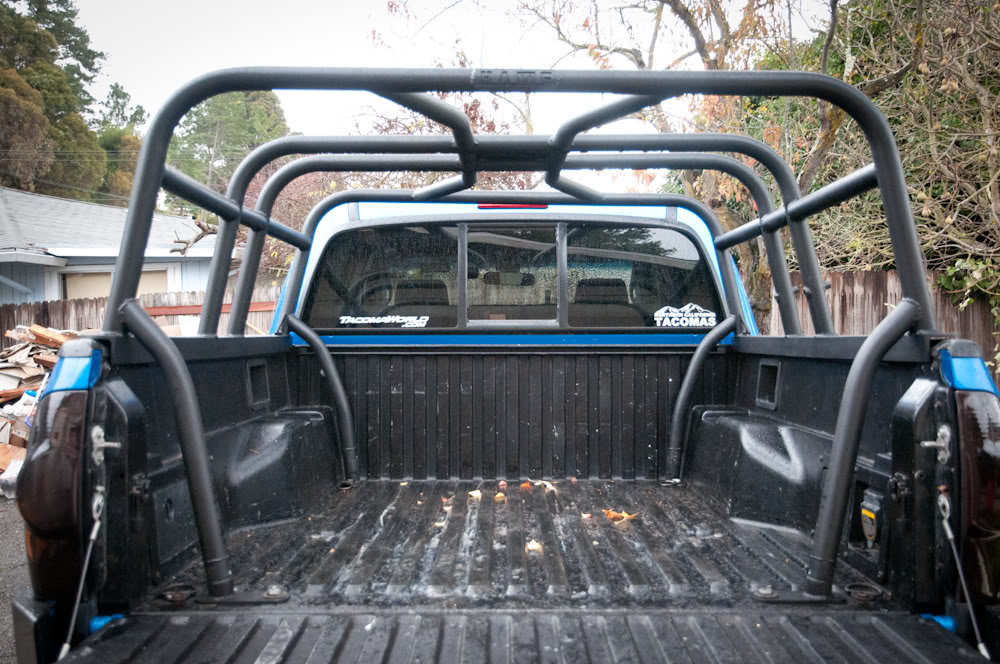

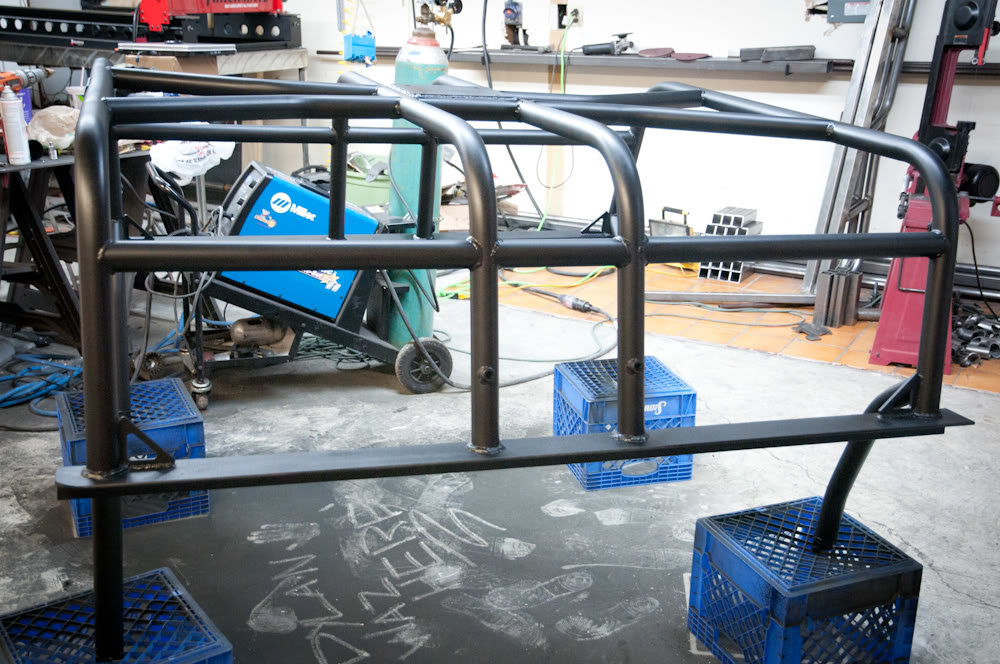

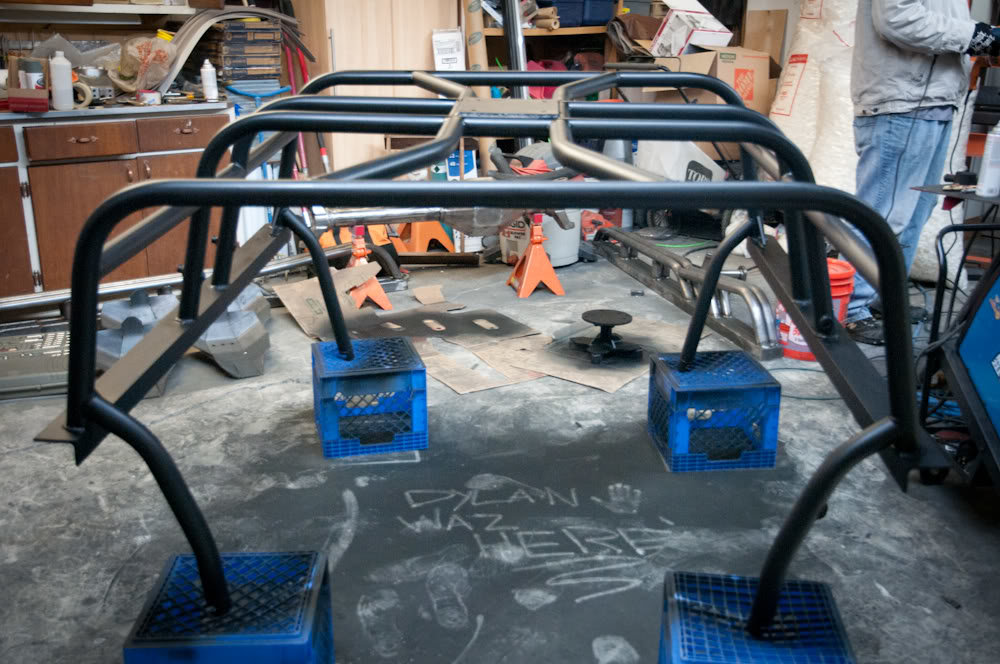

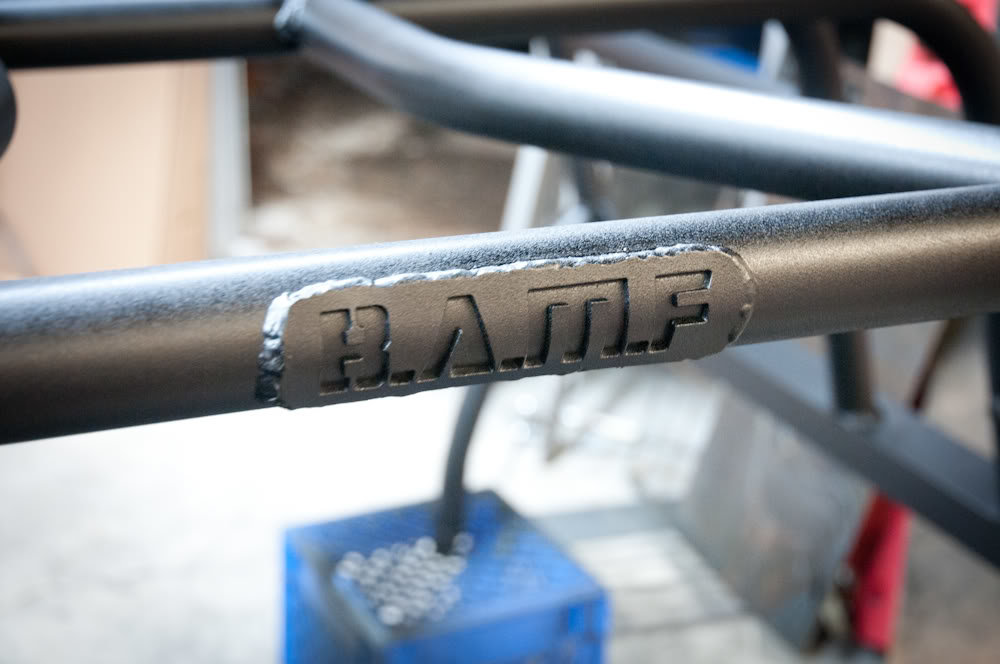

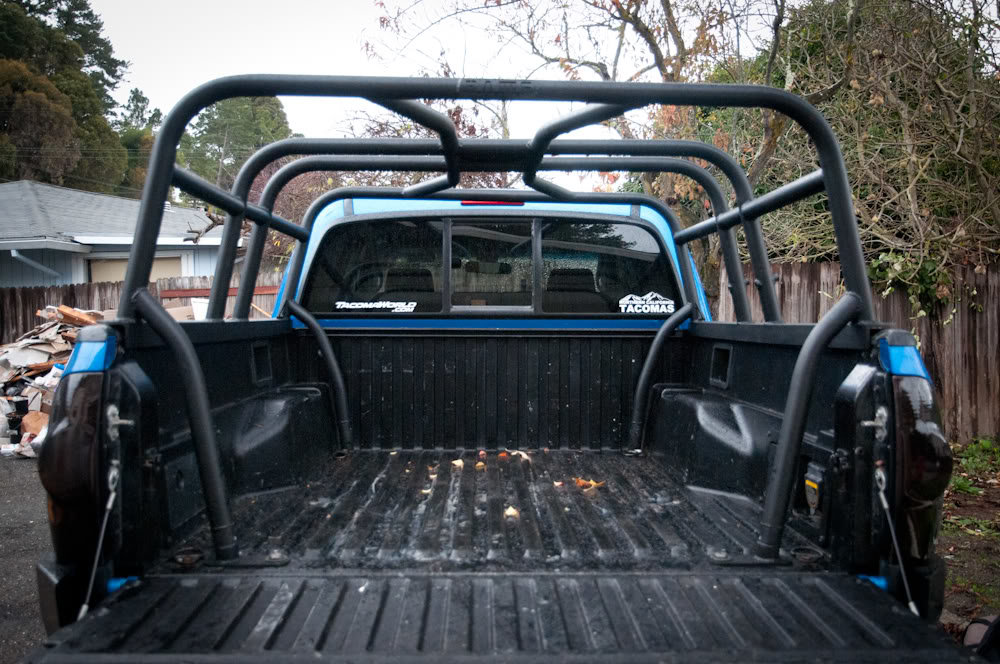

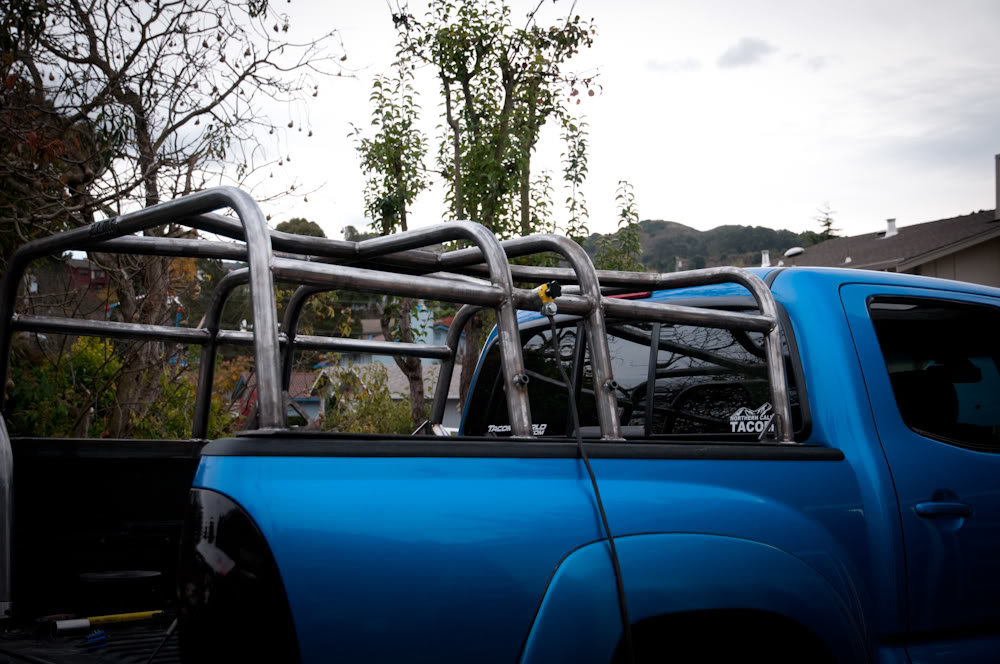

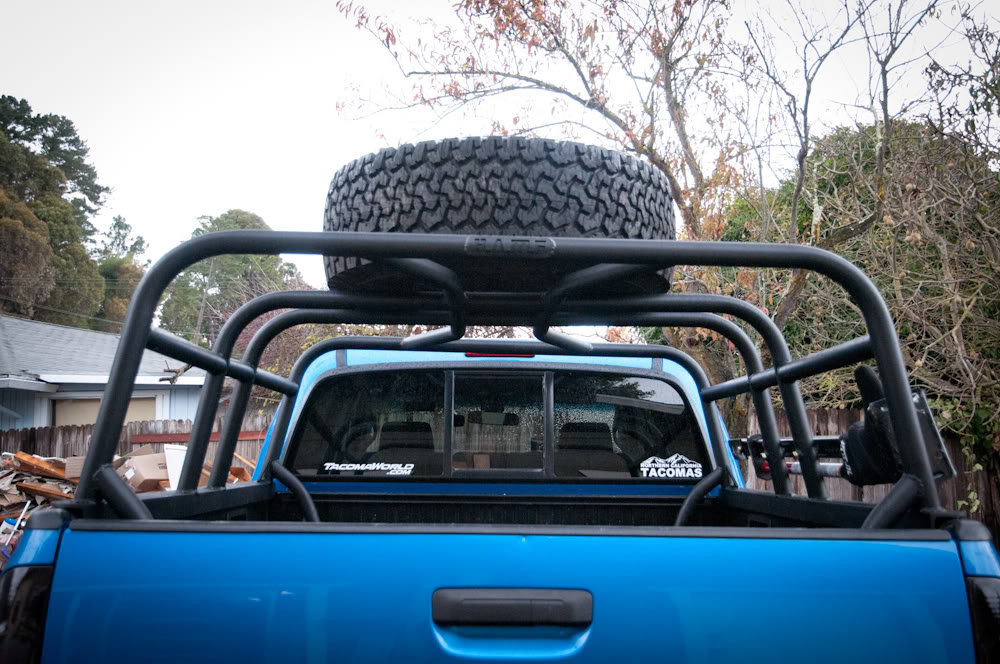

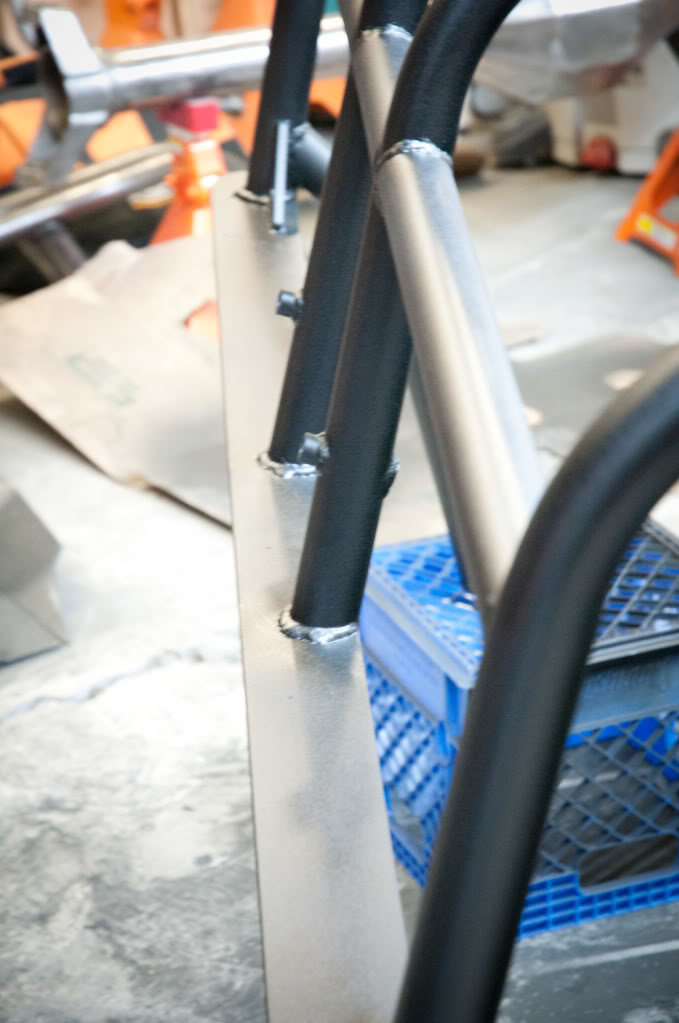

    And the build progression

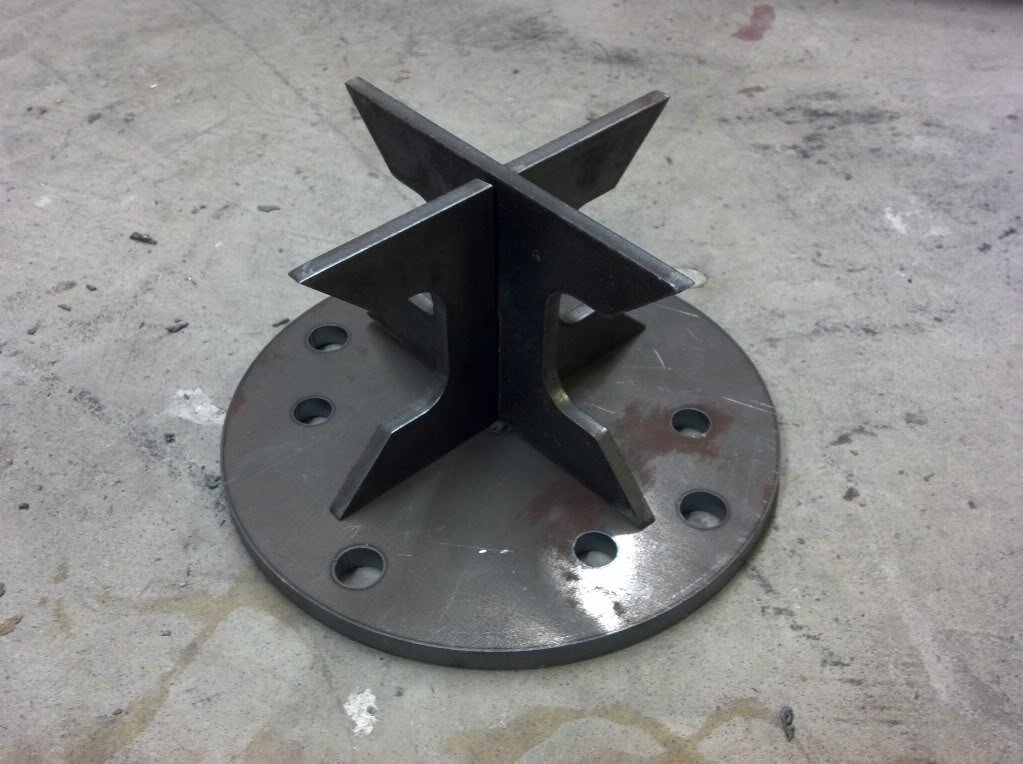

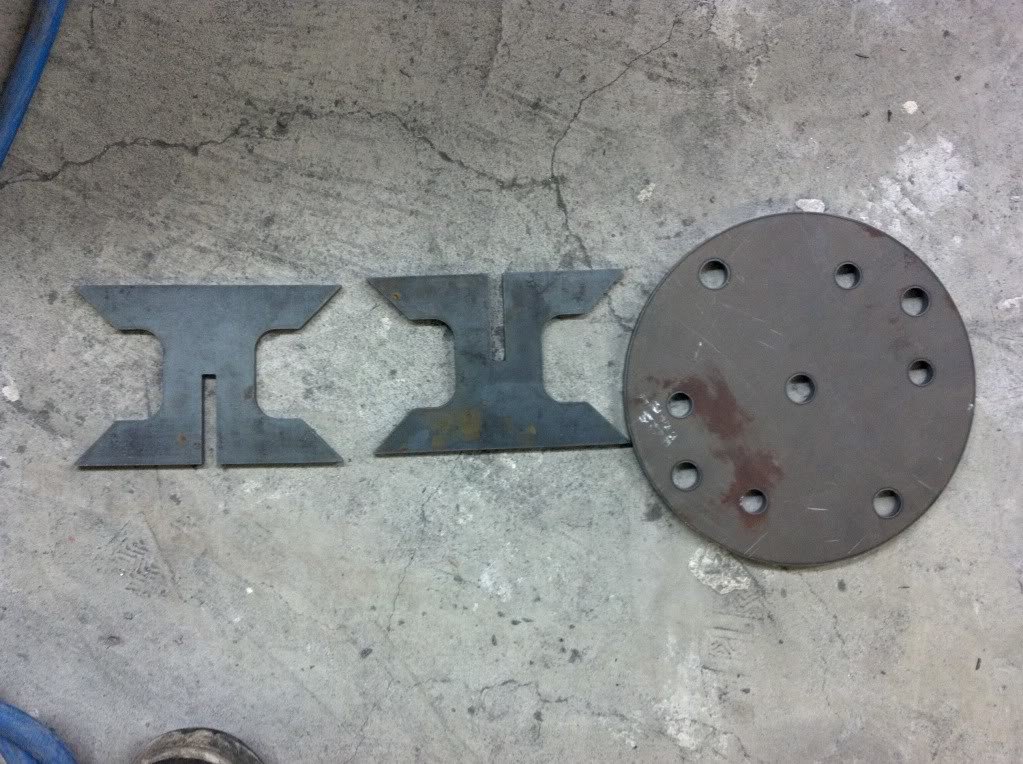

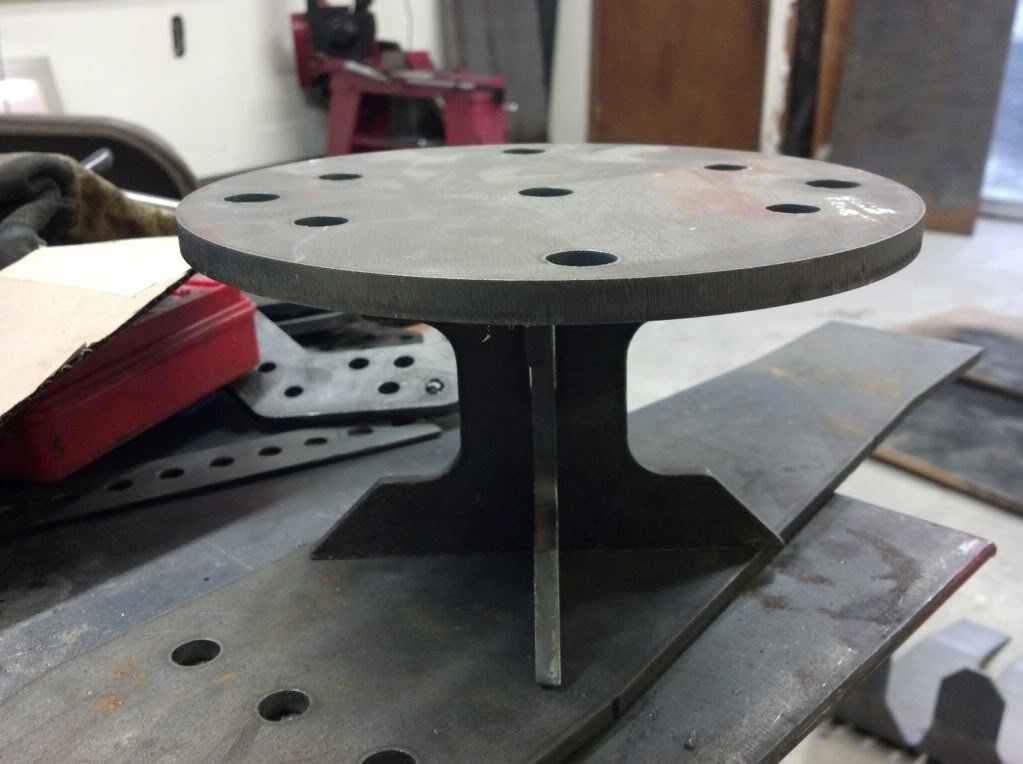

    I started the tire mount today. It's 3/8th plate with 1/4" uprights.

    I still need to cut the plates to mount it to the rack I'll have those done this weekend.

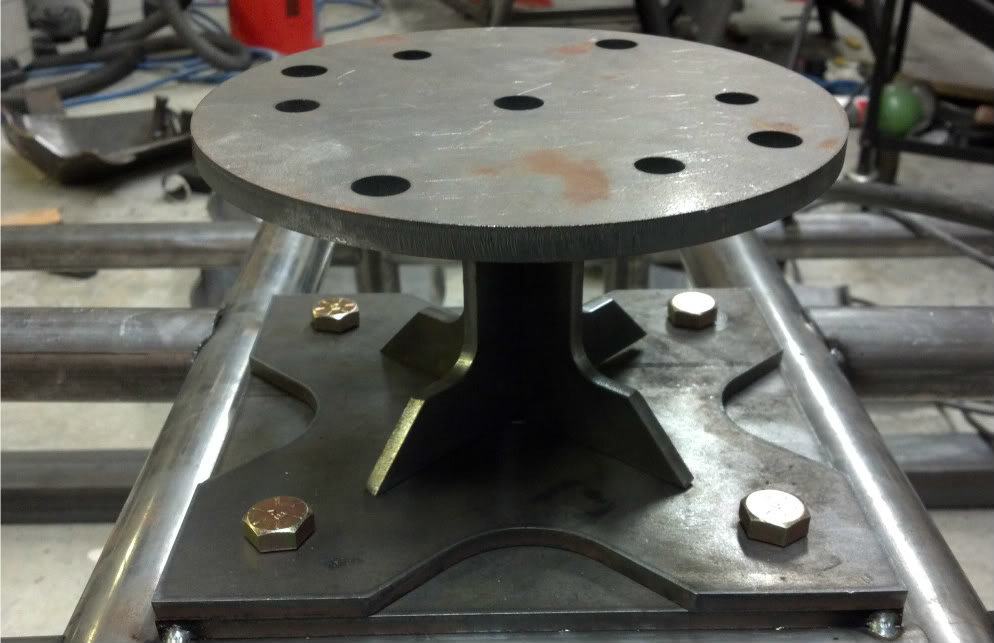

    This is how the tire mount will sit on the rack it's just tacked up with and bolts in the holes. It's all removable and unchangeable with whatever you want to add to the rack.






















































    Pirhett, jwctaco and JWhitTac05 like this.
  2. Aug 8, 2011 at 11:34 AM
    #2
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,297
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    Looks good. I saw those pics on your fb page

  3. Aug 8, 2011 at 11:36 AM
    #3
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    32,046
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    Nice! If you ever need a guinea pig on the east coast for product trials, let me know... really, no trouble at all :D

  4. Aug 8, 2011 at 11:37 AM
    #4
    Fink

    Fink Motorboatin' SOB

    Joined:
    Mar 12, 2009
    Member:
    #14624
    Messages:
    6,499
    Gender:
    Male
    First Name:
    Chris
    Orlando, FL
    Vehicle:
    2013 Regular Cab 4x4
    WeatherTechs, 265/75-16 DuraTracs, ATX Mojave Teflon Wheels, ARE V-Series Shell
    Looks awesome dude!

    Fink

  5. Aug 8, 2011 at 11:40 AM
    #5
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    17,235
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Thanks man It just the rough design. I got the bed mounting points designed last night so I just need to add those and do some little touches like Hi-Lift mounts.

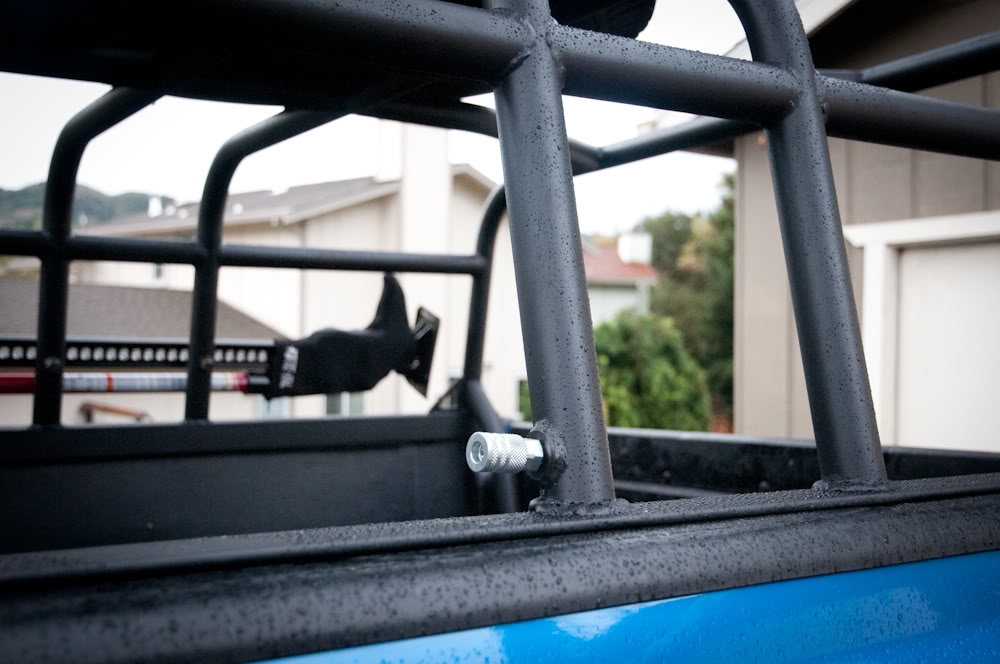

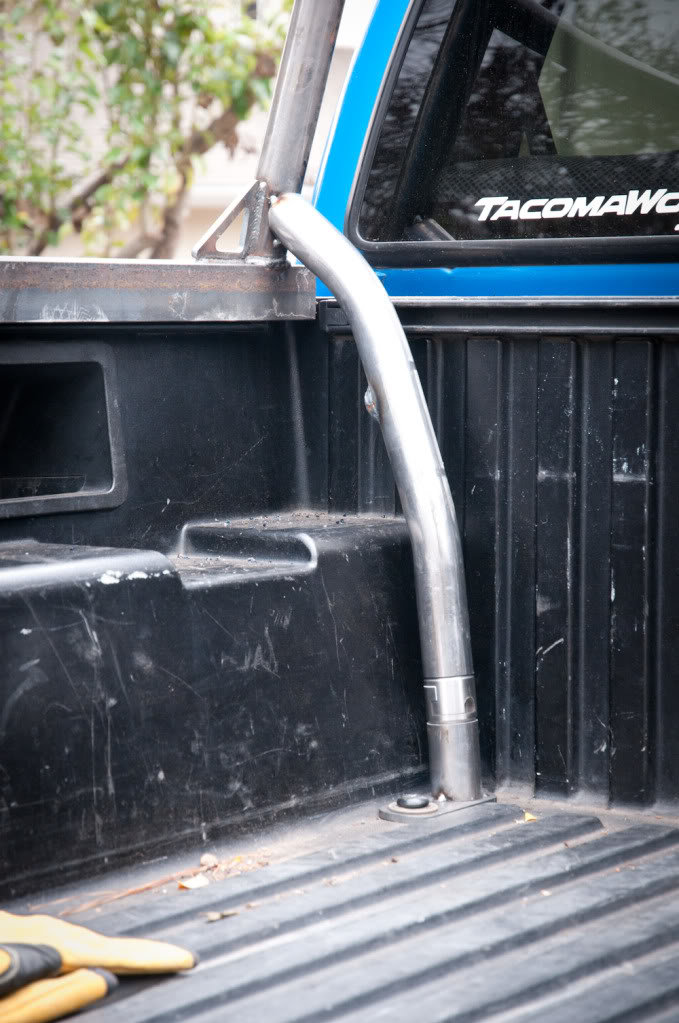

    One thing i didn't add in the OP the rack will removable without removing the bed bolts. The mounting tubes with have Billet tubing couplers welded in for easy removal.
