B.A.M.F BPV Relocate bracket

Discussion in 'Bay Area Metal Fabrication' started by JLee, Oct 23, 2011.

  1. Oct 23, 2011 at 8:08 PM
    #1
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Every one that lifts there 1st Gen truck needs to relocate the BPV (Brake-Proportioning-Valve) to the height you lifted your truck. All the company's selling these brackets are flimsy and cheap sheet metal.

    I wanted to take it to the next level so I designed a BPV relocate bracket for the 1st Gen Tacomas that is BAMF!

    Specs

    1/4" CNC Plasma cut Steel I have two sizes to choose from set up for all lifts from 1" too 5.5" or 3.5" in .5" increments at the same great price. 2, 5/16th"x 1" grade 8 nuts and bolts are supplied with the bracket and the stock 2 attach it to your axle shipped in raw steel lightly oiled to prevent rusting. The great thing about this bracket is if your rear springs sag over time you wont have to make a new one just move it down a notch and your good to go.
    Sure you can make your own for less but to make it adjustable takes a lot of measuring and time also if you have ever tried to cut 1/4" plate by hand you would buy one of these just to not do it. I'm taking out the guess work and effort to build your own at not much more then it would cost to buy the bolts and plate from Home Depot.



    Price is $20.00 for the 3.5", $21.95 for the 5.5" And we now have a 3.5" cut in 1/8th plate for $17.00 all shipping is included HERE and order from my site.



    [​IMG]
    -

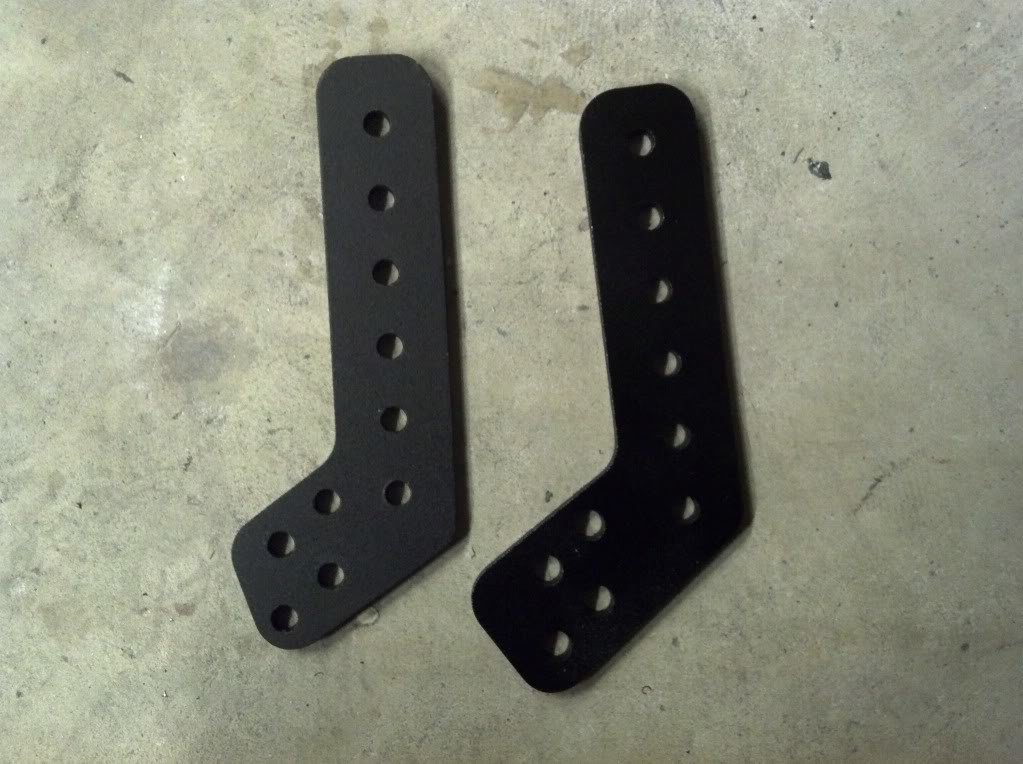

    The two sizes on the left is a 5.5" total lift and the right is a 3.5" total lift.

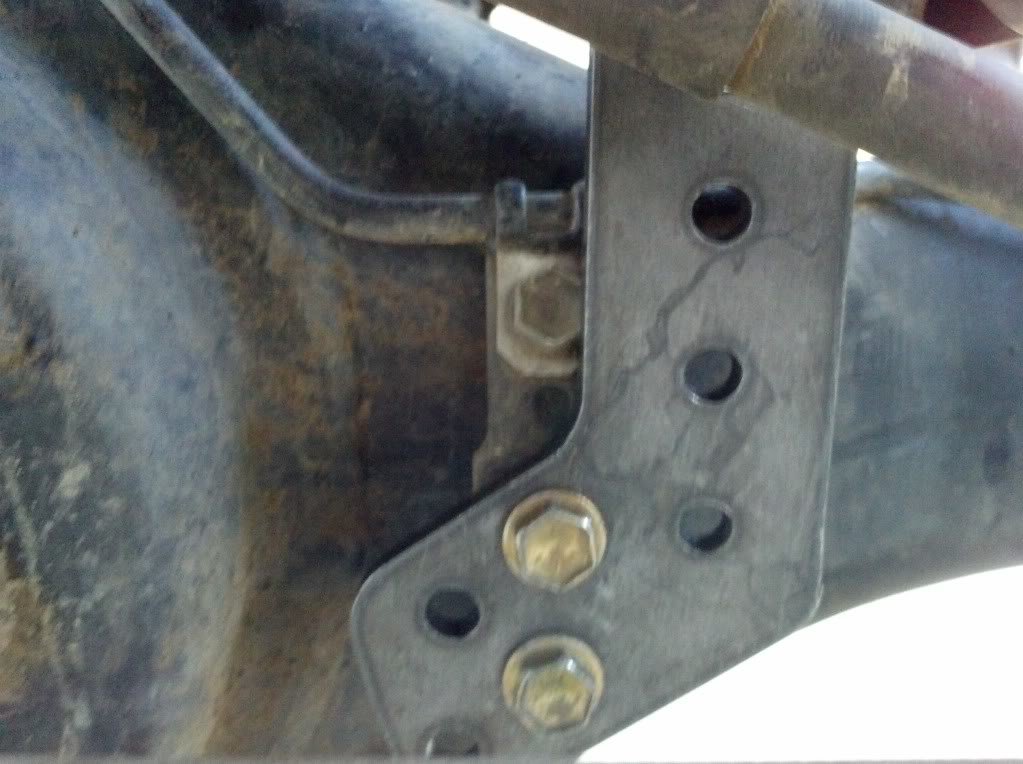

    [​IMG]


    [​IMG]

    Last edited: Nov 3, 2013
  2. Oct 23, 2011 at 8:14 PM
    #2
    45acp

    45acp Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,949
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Sign me up for one! :D

  3. Oct 23, 2011 at 8:15 PM
    #3
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    PM coming your way :cool:

  4. Oct 23, 2011 at 8:22 PM
    #4
    pyroskier

    pyroskier A country boy can survive

    Joined:
    Mar 24, 2011
    Member:
    #53622
    Messages:
    1,002
    Gender:
    Male
    First Name:
    Jacob
    Laramie, WY
    Vehicle:
    2004 Ext Cab TRD 3.4
    -5100's up front w/Eibachs -AllPro Expo packs -Rear 5150's -Granite Alloy GA9's -33x12.5x15 Duratracs -AllPro extended brake line -B.A.M.F. BPV Bracket -18" Magnaflow
    Thanks Jerry! Can't wait to have it installed. 45acp and I are wheeling Sunday the 30th, should be here by then, right?

  5. Oct 23, 2011 at 8:23 PM
    #5
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Yeah they are going out tomorrow.

  6. Oct 23, 2011 at 8:24 PM
    #6
    Blue

    Blue You're my boy blue

    Joined:
    Mar 14, 2010
    Member:
    #33255
    Messages:
    3,006
    Gender:
    Male
    First Name:
    Dylan
    Sierras
    Vehicle:
    ex 99 current 04 TRD
  7. Oct 23, 2011 at 8:27 PM
    #7
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Also I have 9 Blems that I cut today that I'm selling for 10.00 bucks shipped you would just need to drill the holes a little bigger a good 5/16th and 3/8th bit is all you would need but they have to be good or you will dull out the bit on the first hole.

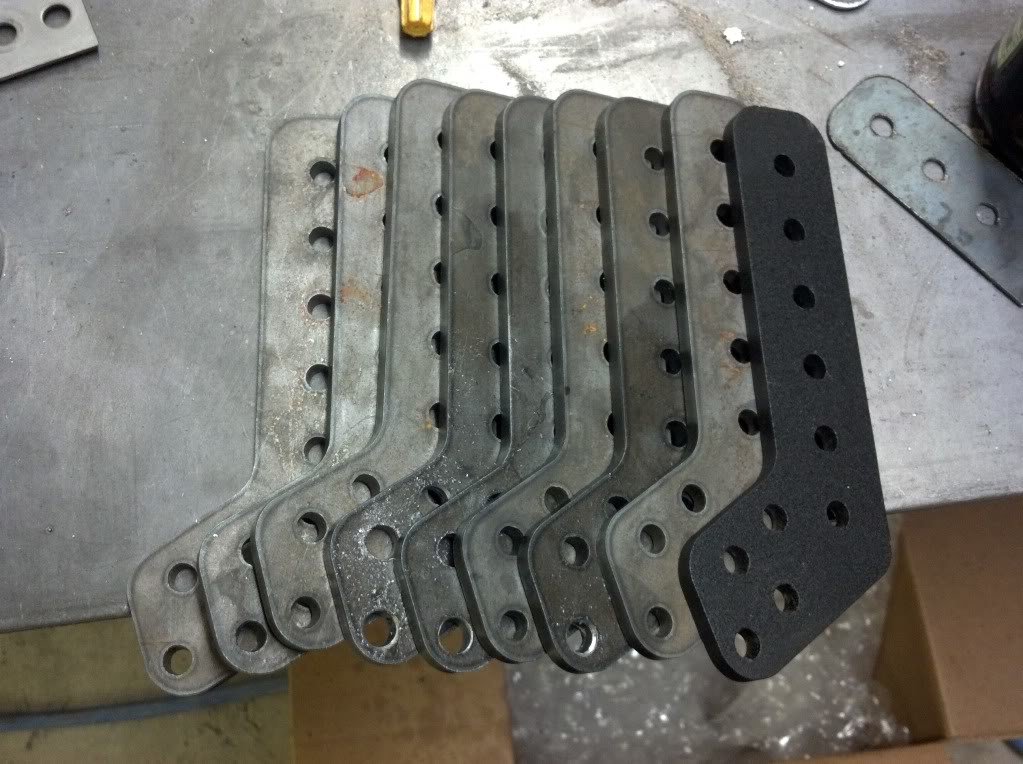

    These are the blems
    [​IMG]

    the top 5 holes need to be bored out to 5/16th and the 4 lowers need to be 3/8th. And it hits the bolt for the hard line so it will have to be hit with a grinder to fit right. I widened the bracket by 1.5" to clear the hard line bolt.
    [​IMG]

    This is a shot of the new ones and the blem new on the right blem on the left.
    [​IMG]


    (Note) Plasma cutting hardens the edge of the cut so these holes are hardened steel and a normal high speed drill bit will dull out on the first hole.

  8. Oct 23, 2011 at 8:32 PM
    #8
    pyroskier

    pyroskier A country boy can survive

    Joined:
    Mar 24, 2011
    Member:
    #53622
    Messages:
    1,002
    Gender:
    Male
    First Name:
    Jacob
    Laramie, WY
    Vehicle:
    2004 Ext Cab TRD 3.4
    -5100's up front w/Eibachs -AllPro Expo packs -Rear 5150's -Granite Alloy GA9's -33x12.5x15 Duratracs -AllPro extended brake line -B.A.M.F. BPV Bracket -18" Magnaflow
    You're the best!

  9. Oct 23, 2011 at 8:34 PM
    #9
    ForeRunner

    ForeRunner BBC. Bring Back Clarkson Staff Member

    Joined:
    Sep 9, 2006
    Member:
    #7
    Messages:
    7,091
    Gender:
    Male
    First Name:
    Drunken Sailor
    Paroled from CA!
    Vehicle:
    4Runner Trail Edition
    Jerry,

    Whats the price if picking up?

  10. Oct 23, 2011 at 8:35 PM
    #10
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    20 bucks

  11. Oct 23, 2011 at 8:36 PM
    #11
    ForeRunner

    ForeRunner BBC. Bring Back Clarkson Staff Member

    Joined:
    Sep 9, 2006
    Member:
    #7
    Messages:
    7,091
    Gender:
    Male
    First Name:
    Drunken Sailor
    Paroled from CA!
    Vehicle:
    4Runner Trail Edition

    Might swing by then. Flying up to Seattle on Tuesday and I know Gina could use one.

  12. Oct 23, 2011 at 8:40 PM
    #12
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

    Okay just hit me up tomorrow.

  13. Oct 23, 2011 at 8:46 PM
    #13
    Slodgetto

    Slodgetto Über Posre

    Joined:
    Jan 18, 2011
    Member:
    #49483
    Messages:
    9,300
    First Name:
    Silas
    Vehicle:
    Dirty Terc
    Scratches, dents, and junkyard parts.
    I'll take a blem! :) I might as well replace the half-assed one I made a month or so ago... lol

    Looks like a good product, Jerry!

  14. Oct 23, 2011 at 9:02 PM
    #14
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Okay PM coming your way.

  15. Oct 24, 2011 at 1:37 AM
    #15
    UndefinedTaco

    UndefinedTaco I'll eat all your food.

    Joined:
    Jul 4, 2011
    Member:
    #59313
    Messages:
    2,036
    Gender:
    Male
    First Name:
    Justin
    Tracy, CA
    Vehicle:
    Toyota
    It's an 89 Toyota Pickup. I got some stuff done to it.. FJ axles going under it soon.
    jerry put one of the blems aside for me..i'll give ya a pack of Reeses peanut butter cups for it at the next mod day
    or 10 bucks your choice

  16. Oct 24, 2011 at 2:52 AM
    #16
    Alpha Q Up

    Alpha Q Up Well-Known Member

    Joined:
    Aug 18, 2011
    Member:
    #61921
    Messages:
    2,297
    Gender:
    Male
    First Name:
    Ruben
    San Jose
    Vehicle:
    2003 4WD DC Tacoma
    I'll take one.

    I just installed my lift on Saturday and driving around all weekend my brakes felt funny. This may be the solution. A couple of questions.

    Is this a basic bolt off bolt on? (no brake bleeding or anything)

    and

    if i have a 2" AAl would i have the bracket set up as in your photos?

    Thanks

  17. Oct 24, 2011 at 6:08 AM
    #17
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Okay will do yumm I do love Reeses but I'll take the money ;)

    It is bolt on it takes about 2min to put on.

    The pictures are for a 4" lift you would want to put it 2 holes down.

  18. Oct 24, 2011 at 8:13 AM
    #18
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Here is the mounting explained all measurements are on center. So the left lower mount is in 1.5" increments and the right higher mount is 1" increments.

    [​IMG][​IMG]

  19. Oct 24, 2011 at 10:27 AM
    #19
    UndefinedTaco

    UndefinedTaco I'll eat all your food.

    Joined:
    Jul 4, 2011
    Member:
    #59313
    Messages:
    2,036
    Gender:
    Male
    First Name:
    Justin
    Tracy, CA
    Vehicle:
    Toyota
    It's an 89 Toyota Pickup. I got some stuff done to it.. FJ axles going under it soon.
    good diagram for the people who don't understand amount of lift ^
    bpv is a important part of your truck.

    I used to have the opposite problem with my lowered truck..the valve would sit super low to the axle..causing the bpv to tell the brakes the truck is "loaded"..so it would increase braking pressure in the rear end. Slam on the brakes and the rear wheels would lock up always lol.

    I fixed it by making a bracket myself..but still lol.

  20. Oct 24, 2011 at 10:36 AM
    #20
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,480
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    So you guys with the pre Tacomas have the same BPV?
