Backlit Toyota Grill Logo Mod

Discussion in 'Lighting' started by ToyotaKTMracing, Sep 15, 2012.

  1. Sep 15, 2012 at 11:45 PM
    #1
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    I did this mod myself and came up with the idea so here is my write up on it. :D Sorry for the low quality photos. Especially the first and last one. :eek:

    To do this mod, you will need some plexiglass, super glue, and a 12v 48 LED panel for a dome light: http://www.amazon.com/BestDealUSA-W...s=BestDealUSA+12+led+panel&tag=amazonquery-20
    Make sure to test your light before doing this mod to make sure it works! (My wires were backwards on my panel. Red was negative and black was positive.)

    [​IMG]

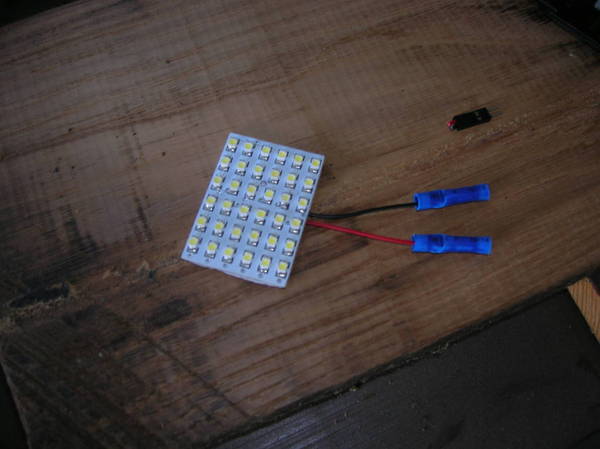

    1st step is to cut off the adapter at the end of the 2 wires from the LED panel and attach two connector to the wire like so:

    [​IMG]

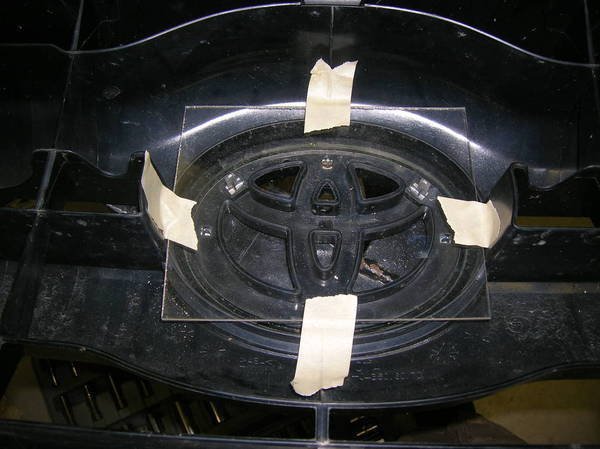

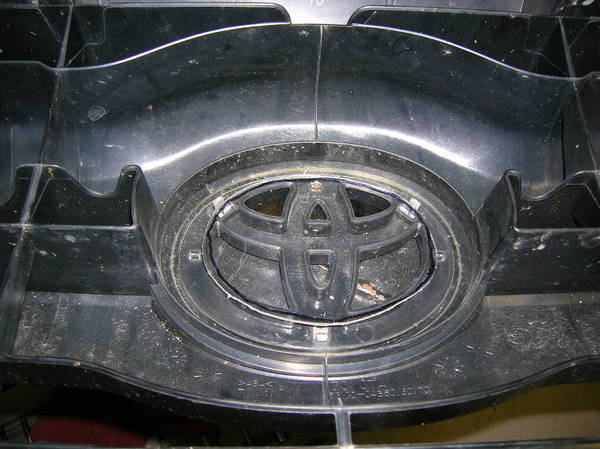

    After you have done that step, you can now move on to working with the plexiglass. To get the plexiglass part that goes behind the logo, you need to cut out a piece of plexiglass that will fit inside the grill to where it's laying on the back side of the logo so you can trace the back side of the logo where the plexiglass will connect to.

    [​IMG]

    After you have it traced, you can now cut the logo shape out of the piece of plexiglass. NOTE: The logo shape DOES NOT have to be cut perfect. As long as it covers the holes with a little over hang.

    [​IMG]

    After you have the shape cut out, you will need to sand both sides of the plexiglass so the light will spread. You can also use frosted plexiglass so you wouldn't have to sand the plexiglass.

    [​IMG]

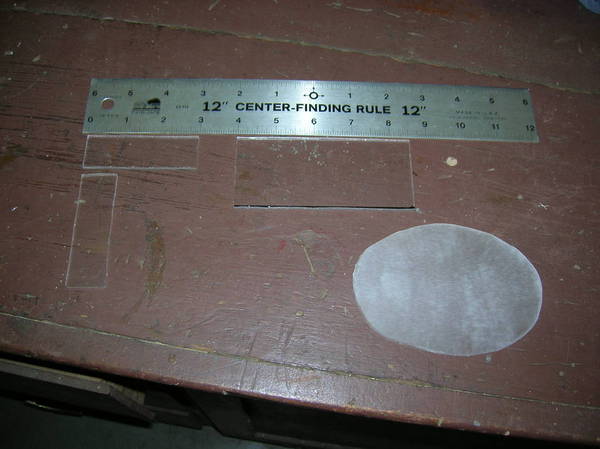

    Next you will need two 1"x3" and one 2 1/2"x4 1/2" piece of plexiglass. These will be used to make the whole "housing" of the light.

    [​IMG]

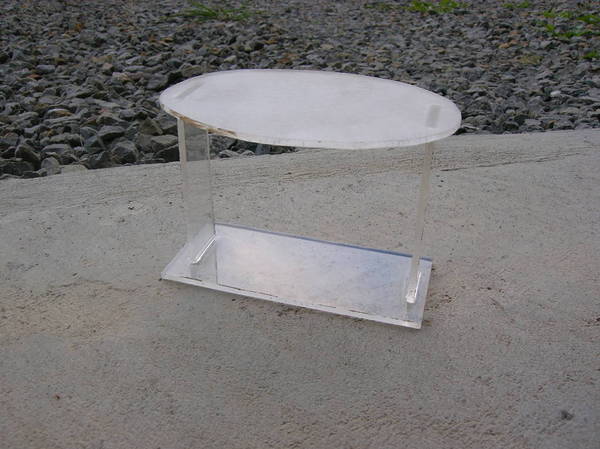

    Now to bring in the super glue. Attach all the plexiglass pieces together like in the picture below. (Don't be afraid to use extra glue for extra bonding. I glued the pieces then went around the bases of the 1"x3" pieces.) The housing is used for this because it makes the light go wider so the whole light is more even.

    [​IMG]

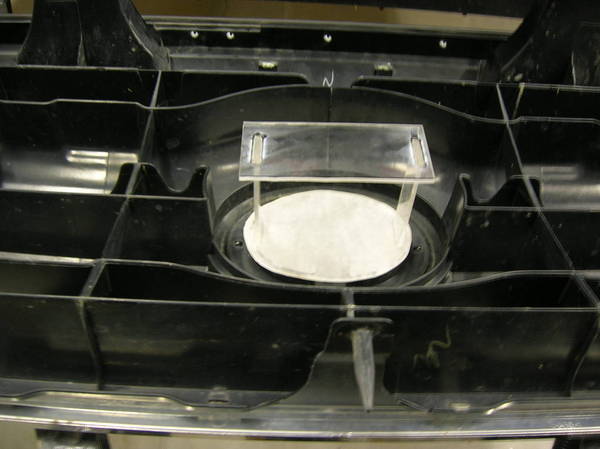

    Then you attach the whole housing to the back side of the logo. Best way is to put glue on the back side of the logo then attach the housing to it.

    [​IMG]

    Once it has dried, you can hook up the light. (I connected mine to the battery and grounded the negative wire. Hooked up to a switch in the cab.) The panel comes with an adhesive backing, but I decided to add a little more bonding to it by putting super glue on the adhesive pad. Attatch light panel as center as you can with the logo to the inside of the 2 1/2"x4 1/2" piece of plexiglass. (Between the two wall pieces.) After everything is dried, you can now put the grill back on and admire your modified grill logo. It even lights up the radiator a little to add some extra light. :D

    [​IMG]

    ANOTHER NOTE: I am NOT held responsible if this mod violates any of your local laws and you get in any kind of trouble for it. I am also NOT held responsible if you mess up or damage your truck in any way by doing this mod.

    Blewter and AntonioAbad like this.
  2. Sep 15, 2012 at 11:58 PM
    #2
    ColtsTRD

    ColtsTRD .....

    Joined:
    May 13, 2009
    Member:
    #17177
    Messages:
    18,036
    Gender:
    Male
    First Name:
    Scott
    AZ
    Vehicle:
    2005 TRD DCSB
    Dude thats pretty creative! Nice job!

  3. Sep 16, 2012 at 12:01 AM
    #3
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    Thanks! :D I just hope the panel is weatherproof. :eek:

  4. Sep 16, 2012 at 12:03 AM
    #4
    ColtsTRD

    ColtsTRD .....

    Joined:
    May 13, 2009
    Member:
    #17177
    Messages:
    18,036
    Gender:
    Male
    First Name:
    Scott
    AZ
    Vehicle:
    2005 TRD DCSB
    haha

  5. Sep 16, 2012 at 12:12 AM
    #5
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    Yeah, I hope it is. If not, I'll need to fix that somehow.

  6. Sep 16, 2012 at 12:32 AM
    #6
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    Well I guess that explains the issue haha.

    Nice job, it looks sweet.

  7. Sep 16, 2012 at 12:38 AM
    #7
    tinker_troy

    tinker_troy I feel so Devo

    Joined:
    Sep 17, 2007
    Member:
    #2718
    Messages:
    9,063
    Gender:
    Male
    WA
  8. Sep 16, 2012 at 6:04 AM
    #8
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,829
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    i make things cook Marshmallows
    hahaha thanks for an awesome idea for my wicked raptor grill :D

  9. Sep 16, 2012 at 7:00 AM
    #9
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    Haha, yeah. :anonymous: Thanks though! :D

  10. Sep 16, 2012 at 7:25 AM
    #10
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    That's what I was hoping people would do. Do this mod or make ideas of their own. If you make something for your grill, post it!

  11. Sep 16, 2012 at 7:27 AM
    #11
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,829
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    i make things cook Marshmallows
    honestly i've had the idea for quite some time, mine just has a TON more lumens lol

  12. Sep 16, 2012 at 7:31 AM
    #12
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    Oh, I see. lol

  13. Sep 16, 2012 at 10:33 AM
    #13
    Fractured

    Fractured FPS-a-holic

    Joined:
    Dec 23, 2011
    Member:
    #69293
    Messages:
    828
    Gender:
    Male
    First Name:
    Corey
    NOR*Cal
    Vehicle:
    2012 MGM DCSB 4x4
    TRD wheels, TRD cat back exhaust, ScanGauge 2, Debadged, Avid sliders, UWS bed box w/automatic LED light, Led Interior/Reverse/Lic. Plate lights, Yellow Fogs, Flyzeye Light, Color matched grill, Rearview mirror relocate bracket, Power Sliding rear window, Plasti-dipped bumper/"T" emblem
    Great job!

  14. Sep 16, 2012 at 10:44 AM
    #14
    Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,368
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.
    You should throw in a picture of where you stuck the led panel and some of the wiring.

  15. Sep 16, 2012 at 11:36 AM
    #15
    brian

    brian Another Traitor

    Joined:
    Apr 15, 2009
    Member:
    #16011
    Messages:
    7,568
    Gender:
    Male
    Roseville, CA
    Vehicle:
    2008 F-350 Powerstroke
    Creative idea, not my taste and you're probably gonna get pulled over, BUT If I could give you a suggestion (since you don't have pics of the LED installed), I'd make sure you have an LED with a radial pattern if you're sticking it from the back side, or if you have a flood pattern, or spot pattern, stick it in on the edges of the plexi, that way it is not shining directly outward towards people coming down the road. Also, maybe beneficial to paint the back side of the plexiglass white, OR leave the protective backing on it, thus ensuring the light is bounced forward, and not back into your grill.


    EDIT: I see your LED"s now, didn't load the first time, that is WAYYY too much light. To each his own but you're not going to make it past a cop with that color and intensity. Use your head man.

  16. Sep 16, 2012 at 2:55 PM
    #16
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    It's white and our laws here you're allowed to have running lights no higher than the headlights. But it isn't really bright. Just looks like it because of the pic.

  17. Sep 16, 2012 at 2:58 PM
    #17
    yota04

    yota04 Well-Known Member

    Joined:
    Sep 8, 2012
    Member:
    #86491
    Messages:
    66
    Gender:
    Male
    First Name:
    Cory
    GA
    Vehicle:
    04 Tacoma 4x4
    Leveling kit, all the plastic, UWS tool box! Don't plan to lift want it to be able to drive daily and work the woods as well!!
    Cover the board in silicon gel should help!

  18. Sep 16, 2012 at 4:41 PM
    #18
    brian

    brian Another Traitor

    Joined:
    Apr 15, 2009
    Member:
    #16011
    Messages:
    7,568
    Gender:
    Male
    Roseville, CA
    Vehicle:
    2008 F-350 Powerstroke

    If you're running stock headlights, it will likely look blue against the warmer color of them. Just sayin. It is what it is. Where are you located?

  19. Sep 16, 2012 at 6:05 PM
    #19
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    WV. I'm pretty sure that's the law unless it was changed.

  20. Sep 16, 2012 at 7:48 PM
    #20
    ToyotaKTMracing

    ToyotaKTMracing [OP] The Blue Warrior

    Joined:
    Apr 15, 2011
    Member:
    #54976
    Messages:
    3,413
    Gender:
    Male
    First Name:
    Shay
    West Virginia
    Vehicle:
    2008 DCSB Ink 4WD Auto
    285 BFG ATs, Custom dual exhaust system, 4" total lift (adjustable billies with 885 coils in front and AALs with 1" block in rear), interior LED lighting, LED reverse lights, LED license plate lights, fog light anytime mod, JVC KW-R500 stereo, 20" okledlightbars.com LED light bar, coverking seat covers
    Thanks! I could try that. As long as I use something that doesn't mess up the light brightness or wide angle beams.
