Backup camera malfunction

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Ottawa river taco, Apr 16, 2020.

  1. Apr 16, 2020 at 4:44 AM
    #1
    Ottawa river taco

    Ottawa river taco [OP] Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244089
    Messages:
    82
    Gender:
    Male
    First Name:
    Tim
    Westmeath
    Vehicle:
    09 dclb sport barcelona red
    Bought it with 3" lift and xd rims wrangler tires
    I have gone through multiple threads but I need more/cant find an answer. I have done a visual check of the wire. I have checked and cleaned the connection under the bed, in the tailgate and the one inside the camera housing. All seem fine. I get blue screen on mirror then nothing. How do I trace the problem? Is it the camera itself? Is it the reverse switch? Is it the mirror?
    I'm leaning towards the camera itself because it would work intermittently with tailgate open/closing but now nothing. I thought it was going to be a simple wiring issue but I cant find anything. Help! I laughed at backup cameras but now I really miss it.

  2. Apr 16, 2020 at 6:22 AM
    #2
    Tigerian

    Tigerian Well-Known Member

    Joined:
    Oct 20, 2017
    Member:
    #233607
    Messages:
    1,378
    Gender:
    Male
    Iowa, unfortunately
    Vehicle:
    2024 GR Corolla
    Are your reverse lights still turning on when your camera isn't?

  3. Apr 16, 2020 at 6:22 AM
    #3
    Ottawa river taco

    Ottawa river taco [OP] Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244089
    Messages:
    82
    Gender:
    Male
    First Name:
    Tim
    Westmeath
    Vehicle:
    09 dclb sport barcelona red
    Bought it with 3" lift and xd rims wrangler tires
  4. Apr 16, 2020 at 6:29 AM
    #4
    Tigerian

    Tigerian Well-Known Member

    Joined:
    Oct 20, 2017
    Member:
    #233607
    Messages:
    1,378
    Gender:
    Male
    Iowa, unfortunately
    Vehicle:
    2024 GR Corolla
    I would say you probably have a connection or camera issue. I'd go through and check the connections going back towards the camera and see if you can find anything. I believe it was a common issue that a connection somewhere would loosen up and cause the bluescreen.

  5. Apr 16, 2020 at 9:07 AM
    #5
    Sharpix

    Sharpix Active Member

    Joined:
    Jun 15, 2017
    Member:
    #221600
    Messages:
    40
    Gender:
    Male
    First Name:
    Tony
    Vehicle:
    Tacoma Sport 4x4 '15 Magnetic
    Multimeter, check voltage at camera at the gate, and check under the bed the cam connector if its well connected. Just follow the wire from tlunder the gate.


    Then investigate google where is the camera connector under the steering wheel next to fuses.

    Next take out head unit and check if the HU sends voltage or signal to cam

  6. May 27, 2020 at 4:07 AM
    #6
    Ottawa river taco

    Ottawa river taco [OP] Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244089
    Messages:
    82
    Gender:
    Male
    First Name:
    Tim
    Westmeath
    Vehicle:
    09 dclb sport barcelona red
    Bought it with 3" lift and xd rims wrangler tires
    So I have checked connections at tailgate and they seem fine. Wires are all intact. The tailgate harness at the camera is getting low voltage readings when in reverse - around 1.8. Tried new camera. Still getting blue screen. What next?

  7. May 27, 2020 at 6:36 PM
    #7
    Jedwin

    Jedwin Well-Known Member

    Joined:
    Jun 28, 2016
    Member:
    #190760
    Messages:
    136
    Gender:
    Male
    SF
    Vehicle:
    1994 LITTLE RED TRUCK (SINGLE CAB 4X4)
    Little. Red.

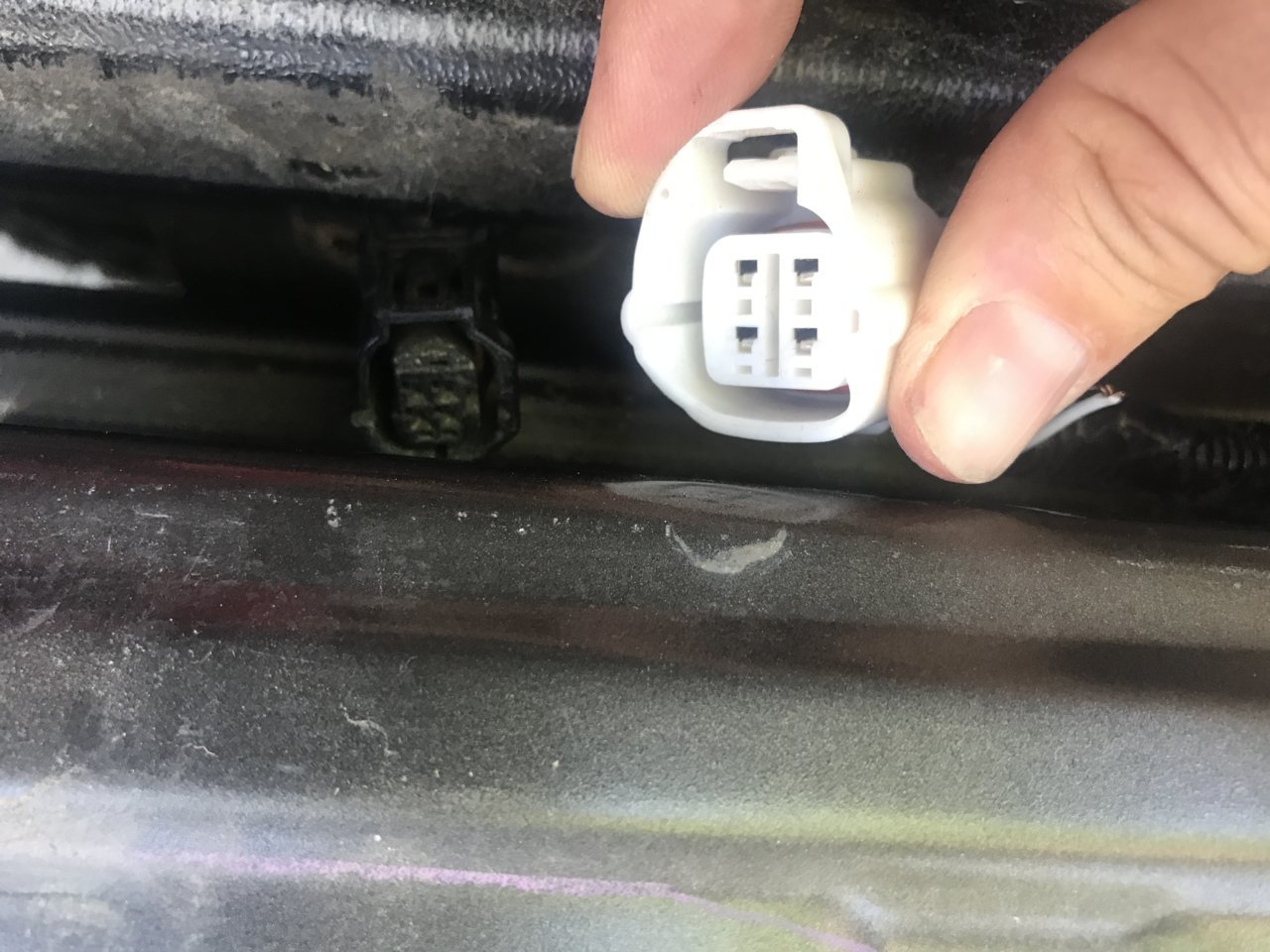

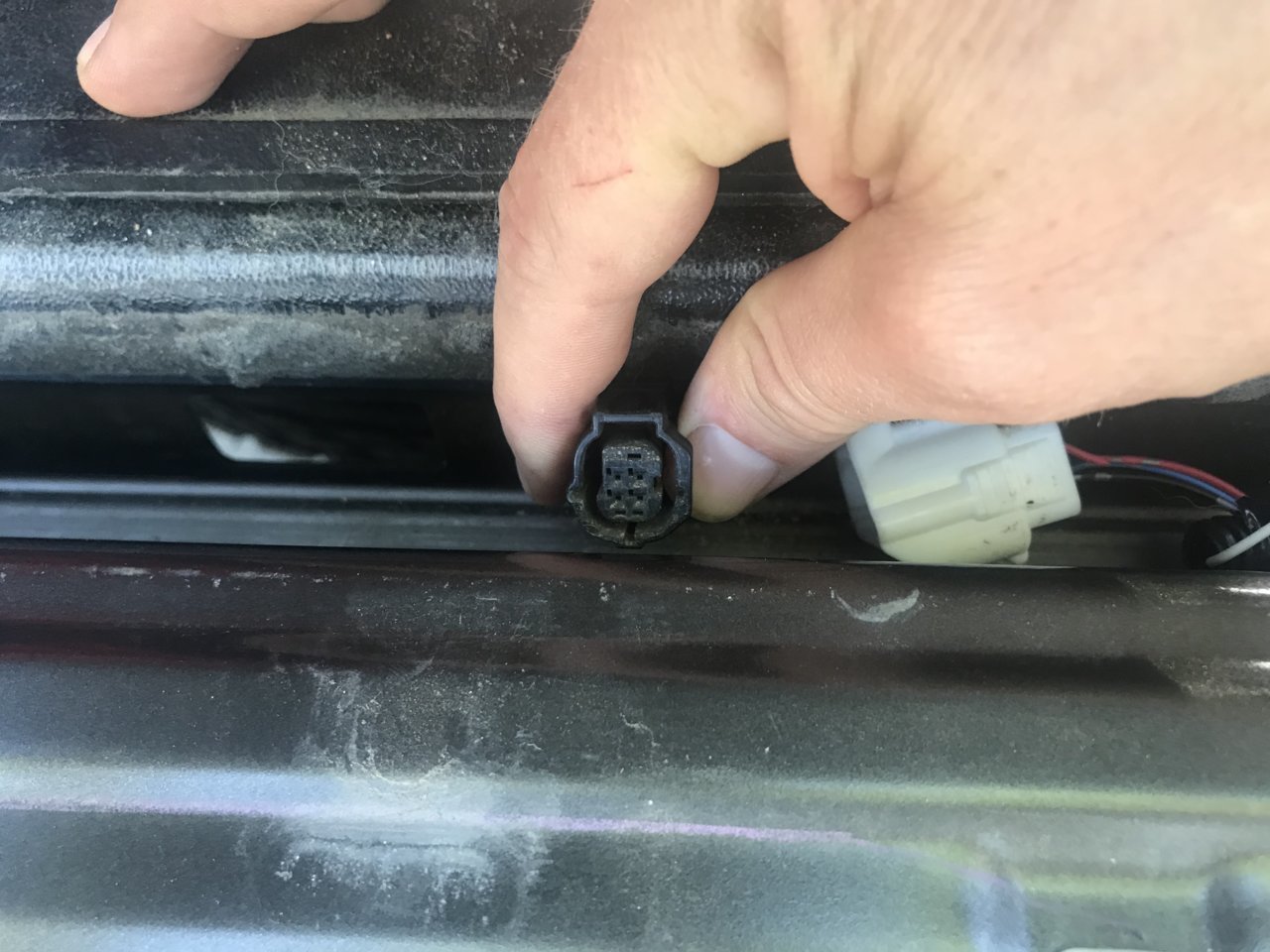

    Apologies for the thread interruption but im on a similar goose chase. Im trying to troubleshoot my own back up camera issues (truck didn't come with a working one). Can you possibly be post a picture of the connection that runs from your tailgate to the truck? As you can see in the pics below im missing something:IMG_7403.jpg IMG_7404.jpg

  8. May 27, 2020 at 7:07 PM
    #8
    Ottawa river taco

    Ottawa river taco [OP] Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244089
    Messages:
    82
    Gender:
    Male
    First Name:
    Tim
    Westmeath
    Vehicle:
    09 dclb sport barcelona red
    Bought it with 3" lift and xd rims wrangler tires
    Sorry no photo of that connection. But I can tell you the white connector you show connects to the male 4 blade connector under the bed. The black connector connects direct to the camera.

  9. May 28, 2020 at 8:35 AM
    #9
    Ottawa river taco

    Ottawa river taco [OP] Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244089
    Messages:
    82
    Gender:
    Male
    First Name:
    Tim
    Westmeath
    Vehicle:
    09 dclb sport barcelona red
    Bought it with 3" lift and xd rims wrangler tires
    This is the male 4 blade connector that connects to the white plug you are showing. It is passenger side right behind rear bumper. It comes off the wire loom that goes to rear lights. The connections you show should be on either end of a short wiring harness inside the tailgate that allows you to disconnect for tailgate removal. Again the black plug connects into camera in the tailgate.


  10. May 29, 2020 at 9:31 PM
    #10
    Jedwin

    Jedwin Well-Known Member

    Joined:
    Jun 28, 2016
    Member:
    #190760
    Messages:
    136
    Gender:
    Male
    SF
    Vehicle:
    1994 LITTLE RED TRUCK (SINGLE CAB 4X4)
    Little. Red.
    so strange. Mine just has the female coming out from the bed. No white male end whatsoever. Looks like an aftermarket towbar was installed, but not sure, why the camera set up would change.

  11. May 30, 2020 at 6:41 AM
    #11
    TexasWhiteIce

    TexasWhiteIce Well-Known Member

    Joined:
    Sep 12, 2010
    Member:
    #43160
    Messages:
    5,345
    Gender:
    Male
    Texas
    Vehicle:
    2022 White DCLB SR5 - Blackout
    uhhhhhhh

  12. May 30, 2020 at 8:29 AM
    #12
    Ottawa river taco

    Ottawa river taco [OP] Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244089
    Messages:
    82
    Gender:
    Male
    First Name:
    Tim
    Westmeath
    Vehicle:
    09 dclb sport barcelona red
    Bought it with 3" lift and xd rims wrangler tires
    Shit just got weird.

  13. May 30, 2020 at 10:12 AM
    #13
    Jedwin

    Jedwin Well-Known Member

    Joined:
    Jun 28, 2016
    Member:
    #190760
    Messages:
    136
    Gender:
    Male
    SF
    Vehicle:
    1994 LITTLE RED TRUCK (SINGLE CAB 4X4)
    Little. Red.
    hahahaha!

  14. May 30, 2020 at 10:27 AM
    #14
    Jedwin

    Jedwin Well-Known Member

    Joined:
    Jun 28, 2016
    Member:
    #190760
    Messages:
    136
    Gender:
    Male
    SF
    Vehicle:
    1994 LITTLE RED TRUCK (SINGLE CAB 4X4)
    Little. Red.
    Ok jokes aside, does anyone know what the fuck is going on? I can't seem to find anyone that has the black female connector coming out of the bed like that. Are the 2011's wired different than 12-15 models? The tailgate is not original, but that shouldn't change what's running from the bed.

  15. May 30, 2020 at 11:23 AM
    #15
    TexasWhiteIce

    TexasWhiteIce Well-Known Member

    Joined:
    Sep 12, 2010
    Member:
    #43160
    Messages:
    5,345
    Gender:
    Male
    Texas
    Vehicle:
    2022 White DCLB SR5 - Blackout
    ok maybe I can try to explain. The reason why they call it a male is because it looks like it has a peepee, while they call it a female because it has nothing that looks like a peepee.

    SparkyIX likes this.
  16. May 30, 2020 at 11:28 AM
    #16
    Ottawa river taco

    Ottawa river taco [OP] Well-Known Member

    Joined:
    Feb 11, 2018
    Member:
    #244089
    Messages:
    82
    Gender:
    Male
    First Name:
    Tim
    Westmeath
    Vehicle:
    09 dclb sport barcelona red
    Bought it with 3" lift and xd rims wrangler tires
    Do you have an OEM camera in the tailgate? If you do plug it in to that black connection see if you get a picture.

  17. Jun 7, 2020 at 12:01 PM
    #17
    Alex88

    Alex88 Well-Known Member

    Joined:
    Oct 19, 2010
    Member:
    #44912
    Messages:
    80
    Gender:
    Male
    First Name:
    Alex
    Oakland, CA
    Vehicle:
    2010 DCLB Sport
    i ha
    i have a 2010, i just found the plugs shown. I had a crappy ass image ever since i had my frame replaced and couldn't figure it out. well i saw these pics today and figured id look. Sure as shit when they were taking it apart or putting it back together whey pulled the white wire out of the Deutsch connector, couple of heat shrink butt connectors and 2" of wire to bypass the connector and its perfect again.

    so im willing to bet that the '11 and '10 are wired the same way, its literally right under the tailgate about a foot, maybe 18" from the passenger side tail light tucked up and a plastic clip is holding it up against the frame
