Backup signal in the 7-pin connector don’t work in my 2010 Taco.

Discussion in 'Towing' started by hgfontana, Feb 3, 2012.

  1. Feb 3, 2012 at 9:29 AM
    #1
    hgfontana

    hgfontana [OP] Well-Known Member

    Joined:
    Sep 16, 2010
    Member:
    #43357
    Messages:
    102
    Gender:
    Male
    First Name:
    Hernan
    Resda, Ca
    Vehicle:
    12 Tundra CrewCab 4x4
    Hi. I connect my trailer to the second generation 2010 Tacoma (equipped with a factory towing package) and for my surprise the backup light don’t work. I suspect to the trailer but it is ok, so I found that the signal in the 7-pin connector don’t work. I tested it by put the truck in reverse and I can see the stock backup light turning on in to the truck but no signal in the towing plug. I check all the fuses and are all ok!
    I check the electrical diagram and I can not find any fuse for that connection only, it is supposed to be connected to the same wire all three connections (left white backup light, red white backup light and the center connector of the 7-pin factory pin)
    I found a posting where one complain about the same issue but he just use the wire from the lamp to solve the problem.
    Someone found a problem like me?
    Thanks!

  2. Feb 4, 2012 at 3:31 AM
    #2
    Rellik01

    Rellik01 Well-Known Member

    Joined:
    Apr 14, 2011
    Member:
    #54920
    Messages:
    835
    Gender:
    Male
    First Name:
    Craig
    Windermere, Florida
    Vehicle:
    2012 TRD Sport 4x4 White
    Bull Guard powder coated white, chrome aftermarket tail lights,Led interior lights, Factory roof rack, Bug deflector, Factory tow package, Garmin GPS, Viper 5901 alarm with auto start, Weather tech window wind deflectors, , 3" Tube steps powder coated white, CB Radio, Radio Scanner.
    I thought I read somewhere that there is a TSB for a missing relay. Maybe someone on here can chime in with more info. Good luck.

  3. Feb 4, 2012 at 3:32 AM
    #3
    Greensystemsgo

    Greensystemsgo Clean 1 owner with low miles.

    Joined:
    Jun 13, 2011
    Member:
    #58216
    Messages:
    2,991
    Gender:
    Male
    First Name:
    Nickers
    Peoria, AZ
    Vehicle:
    99' 4x4
    Suspension/bumpers/lights/sound/wheels and tires/old man tan camper
    have you checked continuity? checked the trailers line continuity?

  4. Apr 7, 2012 at 5:15 AM
    #4
    Nick54

    Nick54 Well-Known Member

    Joined:
    Jun 27, 2010
    Member:
    #39497
    Messages:
    1,327
    Gender:
    Male
    First Name:
    Nick
    Mentor Ohio
    Vehicle:
    2010 Tacoma TRD Sport
    ARB Rear Locker & Compressor, Bakflip F1, Antennex 13" flexable antenna, WeatherTech Floor Liners, WeatherTech Side Window Visors, Tacoma Bed Mat, Demello Rock Crushers, Dynamax Ultraflow SS Muffler, TSB 4-Pak Leaf Springs, AFE Pro Dry Filter, Redline Hood Struts, Color Matched Angry Eyelids, Combo Lock Bed Compartments, Bed Mat, Pop-N-Lock, Wet Okoles, Goodyear Duratracs on ProComp 7033's, M101A2 Trailer, Grillcraft Mesh Grill, Light Racing UCA's, King OEM Performance Remote Reservoir Adjustable Front & Rear Shocks, JVC NT3HDT, Blue Sea Aux Fuse Panel, BAMF Behind Grill Light Bracket, Kragen 55W 7" HID's, CBI Front Receiver, Home Link Garage Door Opener, FlyEyez Light Unit, Bud Built Front to Back Skids...
  5. Apr 8, 2012 at 4:29 AM
    #5
    spetro

    spetro Member

    Joined:
    Apr 7, 2012
    Member:
    #76430
    Messages:
    24
    Gender:
    Male
    Florida
    Vehicle:
    2014 prerunner long bed sport
    Yep...had the same problem. Missing back up relay from the factory 2010 prerunner sport. Took it to the dealer...fixed with no questions asked!

  6. Apr 9, 2012 at 7:49 AM
    #6
    hgfontana

    hgfontana [OP] Well-Known Member

    Joined:
    Sep 16, 2010
    Member:
    #43357
    Messages:
    102
    Gender:
    Male
    First Name:
    Hernan
    Resda, Ca
    Vehicle:
    12 Tundra CrewCab 4x4
    Defective relay, took to the dealer and fix it under warranty.

    Looks like the quality control or final inspection before to deliver the truck isn’t too good...

  7. Feb 11, 2014 at 10:36 AM
    #7
    RoyR

    RoyR Well-Known Member

    Joined:
    May 13, 2011
    Member:
    #56577
    Messages:
    279
    Gender:
    Male
    San Diego, CA
    Billies, TSB
    Apparently, many trucks were manufactured without including the back up light relay when factory towing package was orderd. Relay is right behind the glove box. Toyota relay part # is 90080-87026. This relay is about $70 at the dealer or $15 at Autozone (Duralast # 41-5465). This is same relay as fog light relay.

    Any pictures of where this relay is supposed to be plugged in?

    Last edited: Feb 11, 2014
  8. Feb 11, 2014 at 3:39 PM
    #8
    Indy

    Indy Master of all I survey.

    Joined:
    Sep 15, 2013
    Member:
    #112518
    Messages:
    1,112
    Gender:
    Male
    Reminds me of the tow package ford did on my f150. Everything was installed but if you wanted to actually tow you still needed the last bits, relay in the box and connection for the brake controller to the trucks wiring. 10 or $20 bag of parts that should have already been installed with the, i dont know, tow package.

  9. Feb 16, 2014 at 3:12 PM
    #9
    RoyR

    RoyR Well-Known Member

    Joined:
    May 13, 2011
    Member:
    #56577
    Messages:
    279
    Gender:
    Male
    San Diego, CA
    Billies, TSB

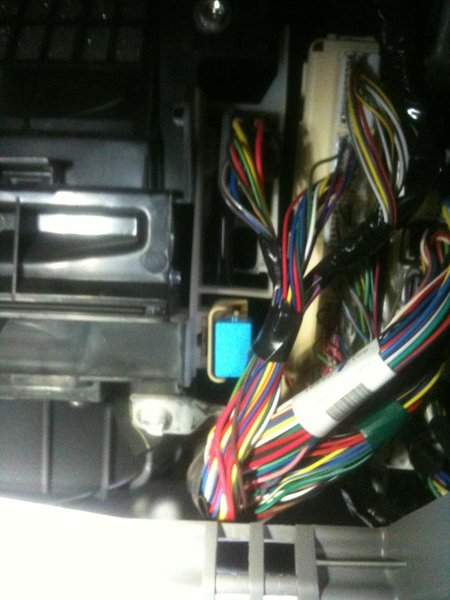

    Ok, it works....ordered the relay, and this is where you plug it in.
