Bakflip MX4 Prelim Review

Discussion in '3rd Gen. Tacomas (2016+)' started by socal4x, Jul 17, 2016.

  1. Apr 3, 2019 at 5:19 PM
    #421
    bcgill

    bcgill Well-Known Member

    Joined:
    Jan 1, 2019
    Member:
    #277739
    Messages:
    105
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    2019 SR 4x4 Magnetic Grey
    1) I think the best option (others can chime in here) is drilling into side of the bed instead on the floor. Trust me, I'm not wild about adding extra holes in my truck. I didn't have a bed mat when I installed mine, but now have the OEM bed mat and option of having a mat was definitely a consideration when I decided on the location for my drains.

    2) Yep you are correct.

  2. Apr 19, 2019 at 2:04 PM
    #422
    magicroy

    magicroy Well-Known Member

    Joined:
    Aug 2, 2016
    Member:
    #193577
    Messages:
    58
    Gender:
    Male
    First Name:
    Marty
    Vehicle:
    2016 Toyota Tacoma
    None yet
    Mine is a short bed and I drill down through top of fenders instead of bed. See post #11 in this thread.

  3. May 27, 2019 at 4:30 PM
    #423
    yoshm0

    yoshm0 Member

    Joined:
    Sep 23, 2015
    Member:
    #164992
    Messages:
    19
    Gender:
    Male
    So Cal
    Vehicle:
    2019 Toyota Tacoma Double Cab TRD Sport 4x2

    Much thanks for taking the time to compile this info. Thank you all that took the time to post regarding your experiences and fixes!

    Bought a Mx4 and the damn thing leaks. When I registered the cover, I made them aware of the leaking cover. I’ll use these mods and hopefully it’ll be a lot more rain proof than it currently is.

    bcgill likes this.
  4. May 27, 2019 at 5:25 PM
    #424
    GotExhaust

    GotExhaust Well-Known Member Vendor

    Joined:
    Mar 22, 2014
    Member:
    #125915
    Messages:
    249
    Gender:
    Male
    Let us know if we can help with any info and pricing on covers. We offer most brands and sell a ton of the BAKFlip covers!

  5. Jun 4, 2019 at 2:56 PM
    #425
    bonifacio

    bonifacio Well-Known Member

    Joined:
    Jan 15, 2019
    Member:
    #279429
    Messages:
    662
    Gender:
    Male
    First Name:
    Chris
    Central PA
    Vehicle:
    2019 Cement Gray Tacoma OR 4x4
    I did the 1/4" wide by 1/8" on the sides. Did 2 rows on the front of the cover.
    Was going to just wedge foam in there, but wanted to use the higher quality dense foam.
    Got a sheet from Hobby Lobby for $1.77. I think it was 12" x 18". There were 2 thickness. Got the thicker one. Then got the double sided sticky tape. It was $2.22 or something.
    I cut out squares and put them on top of the squares that Bakflip included. Then I closed up the other opening on the end of the rails with a L shaped piece. This made it look clean and didn't look bad. The foam matches the Bakflip foam they sent out. All of it was the same type.
    Going to RTV under the folding seals on top and where the border aluminum meets the panels.

    [​IMG]

    tekoma likes this.
  6. Jul 19, 2019 at 10:57 AM
    #426
    blitzkrieg3002

    blitzkrieg3002 Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188296
    Messages:
    236
    Gender:
    Male
    First Name:
    Rick
    California
    Vehicle:
    2019 Tacoma SR5 4x4
    Debadged/Stickers Removed, Paint to match Bumper caps, Bakflip MX4 Tonneau Cover, Start-X Remote Start, Pop N Lock Tailgate lock, Taco Garage TRD PRO grille, Prodigy P3 Trailer Brake Controller.
    Awesome looking cover. question, after silicone sealing it up are you still able to remove it from the truck? or does removal involve cleaning up silicone and re applying when you re install? also will occasionally carry dirtbikes in the back of my Tacoma with tailgate down, do you guys think I could do this with the cover folded up against the glass and have the bikes front tire up to the front of the bed or would I need to remove the cover all together? is removal a pain?

    Last edited: Jul 19, 2019
    FishnTx likes this.
  7. Jul 19, 2019 at 11:08 AM
    #427
    FishnTx

    FishnTx Father of the one they call Asher

    Joined:
    Mar 22, 2017
    Member:
    #214004
    Messages:
    1,300
    Gender:
    Male
    South East Texas
    Vehicle:
    ‘17 Trd 4x4 OR
    trd pro grille, pro tail lights, baja designs wide corner fogs ,ditch pro spots, v led micro headlight v led turn signals, all brand new painted gloss black badges all rockford audio 2x t2 components t 600 x4 with cap and 360.3 processor sound deadened doors and back cab with custom box( 2 t1s1 10s )t500 per sub, total chaos bed stiffeners, sliders coming soon, jack mount , ax and shovel mount rod holder mount numerous meso mods...
    I’ve been lookin at these for a while now, was in the market for a diamond back , dont really like the double wing design. Soon as I get a chance I’m ordering a mx4

  8. Jul 31, 2019 at 4:59 PM
    #428
    blitzkrieg3002

    blitzkrieg3002 Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188296
    Messages:
    236
    Gender:
    Male
    First Name:
    Rick
    California
    Vehicle:
    2019 Tacoma SR5 4x4
    Debadged/Stickers Removed, Paint to match Bumper caps, Bakflip MX4 Tonneau Cover, Start-X Remote Start, Pop N Lock Tailgate lock, Taco Garage TRD PRO grille, Prodigy P3 Trailer Brake Controller.
    Getting ready to install on Friday and ordering extra rubber seals, I’ve got the 1/4” x 1/8” seal and tailgate gasket but where can I find this 3/16” seal and the gasket underneath? Or should I just use the 1/4 x 1/8” pieces also in these locations at the front and for the underneath at bulkhead gaskets

  9. Aug 1, 2019 at 5:24 AM
    #429
    tekoma

    tekoma Member

    Joined:
    May 14, 2010
    Member:
    #37114
    Messages:
    289
    Gender:
    Male
    First Name:
    Jarz
    Apex, NC
    Vehicle:
    16 Tacoma TRD Sport 4x4 Manual
    OVtuned TRD Pro Wheels 265/70R17 BFG KO2 Bilstein 5100s (0.85") Firestone Ride Rite BAK MX4 Tonneau Black front valence Pro grill
    I just had some laying around. You can pretty much use scraps of anything 3/16” or less. I was just filling a small void that didn’t have a great way to seal. You could also put a glob of RTV.

    The gray gaskets underneath probably don’t do much, I just jammed them in there because I could still see a smidge of daylight. RTV is probably better to fill any tiny gap remaining. I think you could even apply it such that it doesn’t touch the truck bed on only fills between the other gaskets and the corner of the rails.

  10. Nov 20, 2019 at 4:21 PM
    #430
    Adoan

    Adoan Well-Known Member

    Joined:
    Aug 13, 2019
    Member:
    #302116
    Messages:
    77
    Gender:
    Male
    We got some rain here in SoCal and definitely have some water leaking through. I’m a little confused on where the weather stripping goes. Do I need to remove the cover bracket and put them between the bracket and the frame?

    blitzkrieg3002 likes this.
  11. Dec 3, 2019 at 2:56 PM
    #431
    Admiral_Akbar

    Admiral_Akbar Well-Known Member

    Joined:
    Aug 13, 2016
    Member:
    #194494
    Messages:
    453
    Gender:
    Male
    Vehicle:
    '17 Cement Pro

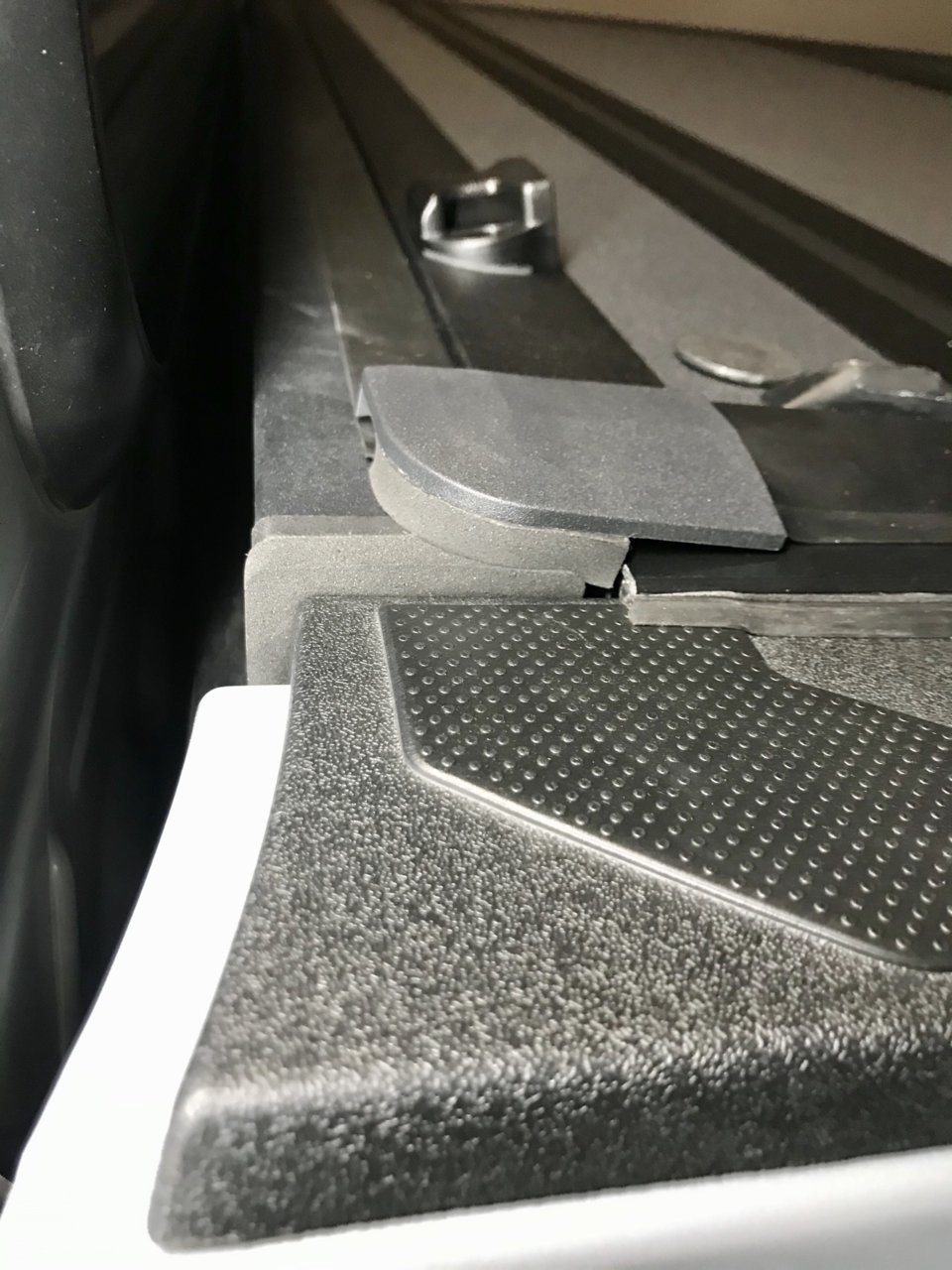

    Just installed a new MX4 (redesigned?) and noticed foam at all the corners. It’s preventing the cover from sitting flush.

    Is this foam for packaging or actually for sealing? Seems to make the seal worse.


  12. Dec 4, 2019 at 6:34 PM
    #432
    bcgill

    bcgill Well-Known Member

    Joined:
    Jan 1, 2019
    Member:
    #277739
    Messages:
    105
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    2019 SR 4x4 Magnetic Grey
    I'm pretty sure you need to remove that. I seem to recall those are just packaging. Regardless they aren't on the rails on my installed MX4 any more.

  13. Dec 4, 2019 at 8:47 PM
    #433
    viperbsd

    viperbsd Well-Known Member

    Joined:
    Jan 19, 2014
    Member:
    #120999
    Messages:
    48
    Gender:
    Male
    Sacramento, Ca
    Vehicle:
    2020 MGM TRD Pro Auto

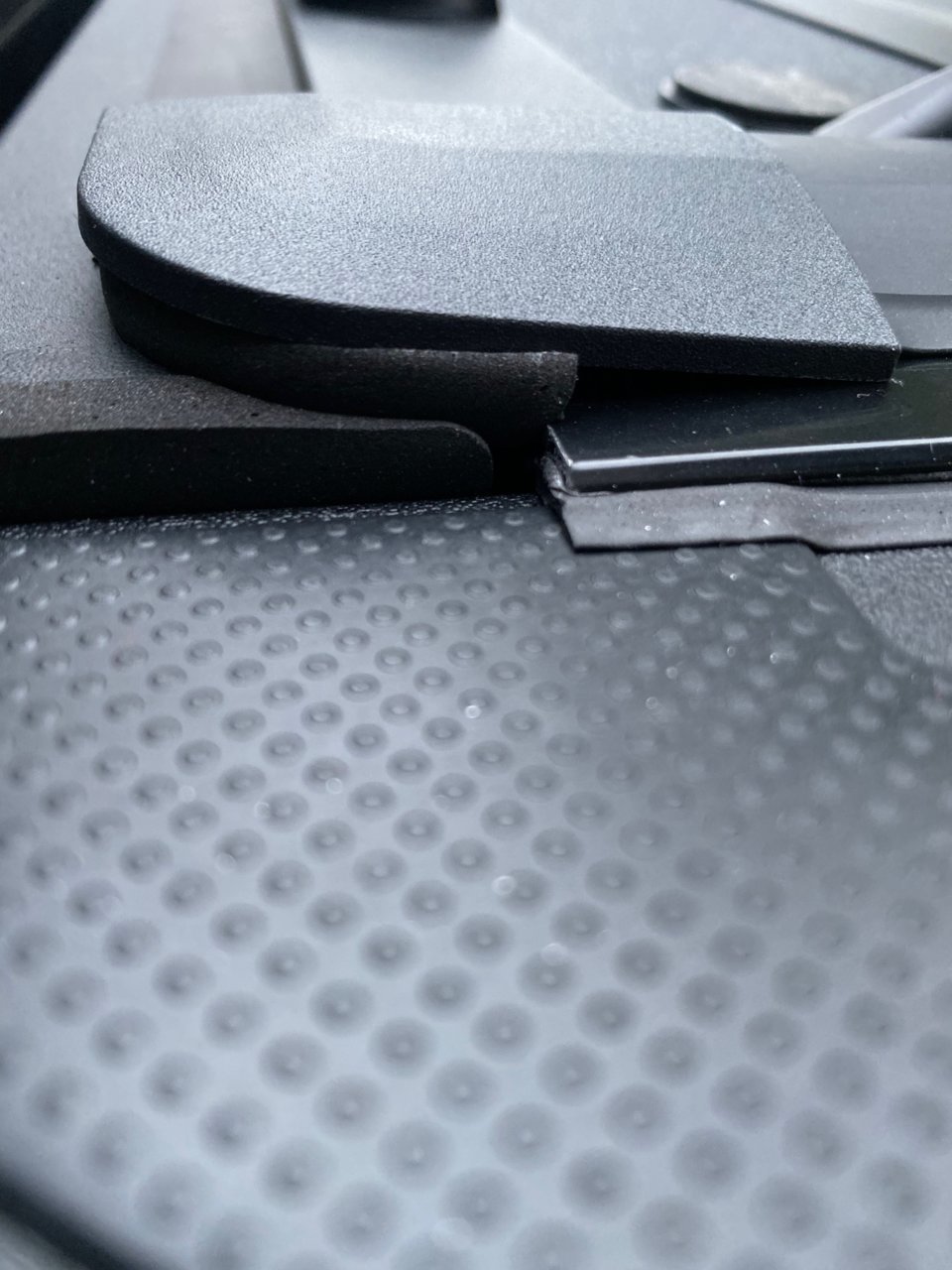

    IMG_0132 2.jpg I just installed my MX4 yesterday and I wondered about the foam at the front corners as well. It does not look right, but I wanted to make sure they were not there for a reason before I removed them...

  14. Dec 5, 2019 at 10:45 AM
    #434
    bcgill

    bcgill Well-Known Member

    Joined:
    Jan 1, 2019
    Member:
    #277739
    Messages:
    105
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    2019 SR 4x4 Magnetic Grey
  15. Dec 5, 2019 at 10:51 AM
    #435
    Admiral_Akbar

    Admiral_Akbar Well-Known Member

    Joined:
    Aug 13, 2016
    Member:
    #194494
    Messages:
    453
    Gender:
    Male
    Vehicle:
    '17 Cement Pro

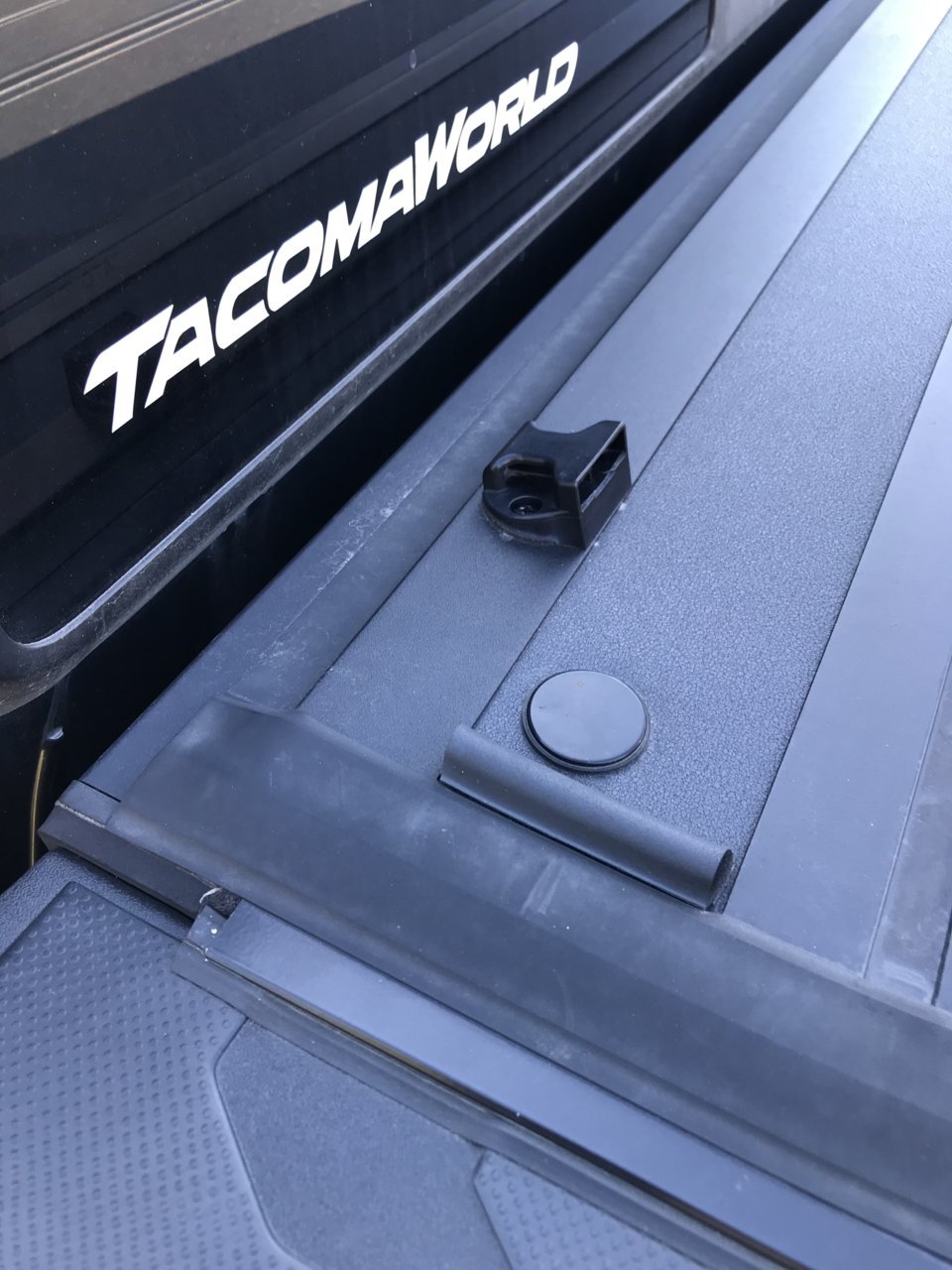

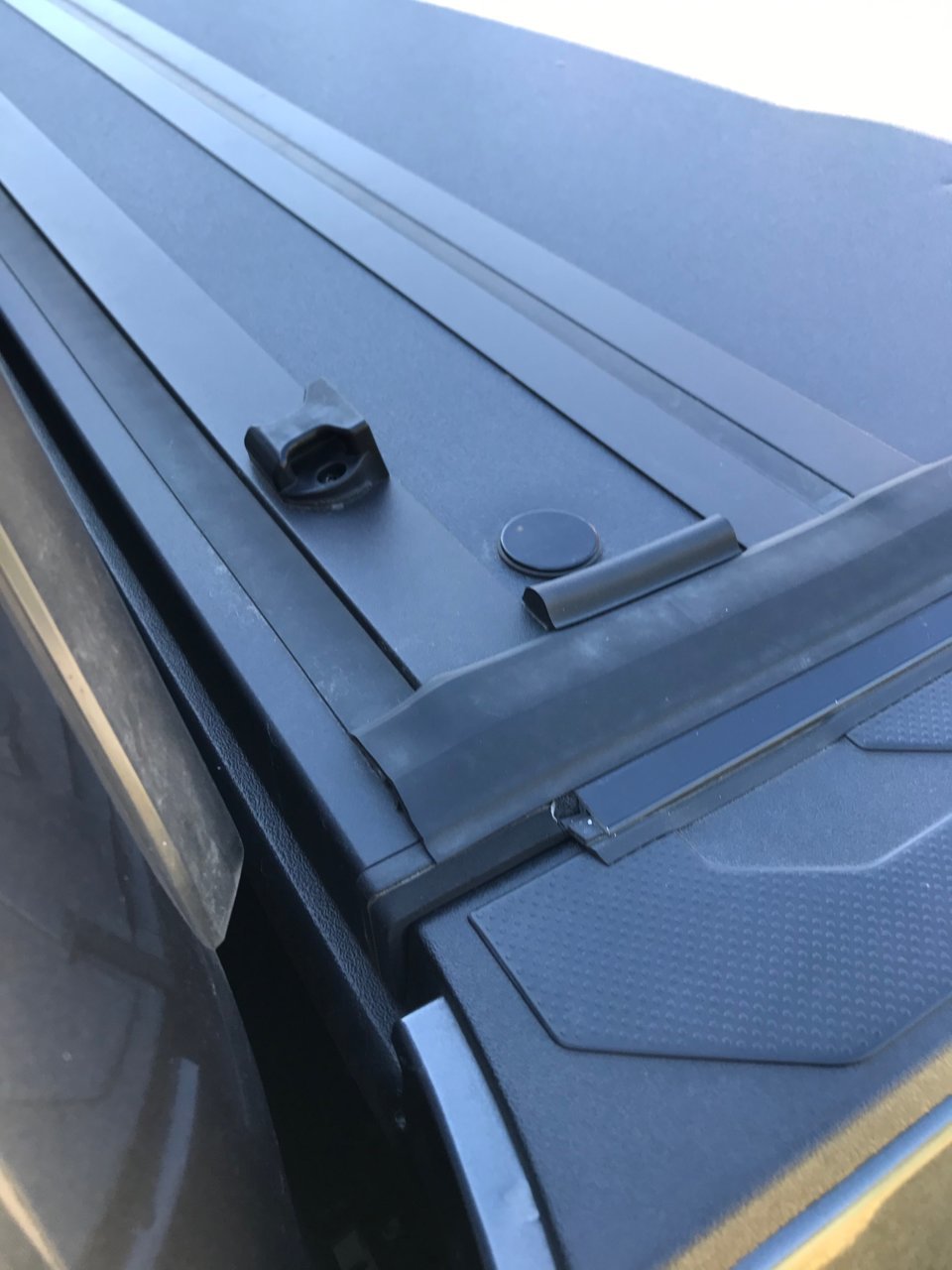

    I wonder when they redesigned it. Yours does not have the new plastic corner piece that ours have.

  16. Dec 5, 2019 at 10:52 AM
    #436
    bcgill

    bcgill Well-Known Member

    Joined:
    Jan 1, 2019
    Member:
    #277739
    Messages:
    105
    Gender:
    Male
    First Name:
    Ben
    Vehicle:
    2019 SR 4x4 Magnetic Grey
    Hmm, mine's less than a year old. I bought it back in February, so recently!

  17. Dec 5, 2019 at 10:55 AM
    #437
    TacoBuffet

    TacoBuffet Well-Known Member

    Joined:
    Jun 9, 2018
    Member:
    #255903
    Messages:
    3,200
    Vehicle:
    Taco #10, 2019 TRD Sport DCSB 4WD Tech and Prem
    Tint, Bedmat, LEDs, WeatherTechs
    Redesign, I have the older version on my last truck and didnt have these same with my Dad's raptor, my new one has these, I was like WTF is this. It definatley looks odd and doesnt seem to be packing its on there good and would be overkill just to protect the seal in shipping, not sure why they added it.

    Last edited: Dec 5, 2019 at 12:35 PM
    bcgill likes this.
  18. Dec 5, 2019 at 1:56 PM
    #438
    viperbsd

    viperbsd Well-Known Member

    Joined:
    Jan 19, 2014
    Member:
    #120999
    Messages:
    48
    Gender:
    Male
    Sacramento, Ca
    Vehicle:
    2020 MGM TRD Pro Auto
    Update: Just spoke to BakFlip and the foam at each front corner is part of the new redesigned "finishing Kit" on the MX4. I was told that the foam should not be removed.

    Looks like they just redesigned the MX4 a very short time ago..

    bcgill and Admiral_Akbar like this.
  19. Dec 8, 2019 at 11:12 AM
    #439
    blitzkrieg3002

    blitzkrieg3002 Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188296
    Messages:
    236
    Gender:
    Male
    First Name:
    Rick
    California
    Vehicle:
    2019 Tacoma SR5 4x4
    Debadged/Stickers Removed, Paint to match Bumper caps, Bakflip MX4 Tonneau Cover, Start-X Remote Start, Pop N Lock Tailgate lock, Taco Garage TRD PRO grille, Prodigy P3 Trailer Brake Controller.
    So I’ve done all the foam, silicone, tailgate weatherstripping, got inside and 0 daylight anywhere when closed and mine still leaks. It’s not too bad but deff more than I would expect. I think the water is just getting into the channel where it’s supposed to drain down the tube and just not draining right and over flowing over the edge into the bed. Kind of sucks for how expensive this thing is to have this much water getting in.

  20. Dec 8, 2019 at 12:48 PM
    #440
    tekoma

    tekoma Member

    Joined:
    May 14, 2010
    Member:
    #37114
    Messages:
    289
    Gender:
    Male
    First Name:
    Jarz
    Apex, NC
    Vehicle:
    16 Tacoma TRD Sport 4x4 Manual
    OVtuned TRD Pro Wheels 265/70R17 BFG KO2 Bilstein 5100s (0.85") Firestone Ride Rite BAK MX4 Tonneau Black front valence Pro grill
    yep you will still get some leaks but they will be relatively insignificant. Without the extra seals the rails leak horrifically.
