Ballistic Fab's Prototype Long Travel Kit

Discussion in 'Long Travel Suspension' started by BallisticFab, Jul 19, 2013.

  1. Jul 19, 2013 at 9:38 AM
    #1
    BallisticFab

    BallisticFab [OP] Active Member

    Joined:
    Jul 9, 2013
    Member:
    #107921
    Messages:
    33
    Gender:
    Male
    A couple of the guys at Ballistic have 1st gen Tacomas and we decided to use their trucks as test mules for a +3.5 long travel setup. The guys here wanted to build an extremely tough kit that would stand up to continual abuse. After lots of hours of design we came up with an extremely strong lower arm design.
    The arm is boxed and internally braced (the other side of the arm will have a cross brace as well). The shock tabs weld to the bottom and top of the arm to distribute the load over the top and bottom of the arm instead of just the top. We'll be using a 1" uniball on the top arm and a Ballistic custom uniball to replace the stock lower ball joint. The arm mounts to the frame with poly bushings. The entire arm is laser cut and hand finished. We still have some testing to do and we need to build the upper arm but we thought we would see what you guys thought of the lower arm and the overall design.
    Here are some pictures:
    [​IMG]
    [​IMG]
    [​IMG]

    The test mule is a first gen extended cab with a dcab bed (the frame has been shortened 13") and a turbocharged 3rz. We'll get some pictures of the test mule up as well.

    We're looking forward to hearing some of your feedback and we'll keep this thread updated with progress of the build.

    Last edited: Jul 19, 2013
  2. Jul 19, 2013 at 9:40 AM
    #2
    tostidos

    tostidos Well-Known Member

    Joined:
    Dec 24, 2010
    Member:
    #48149
    Messages:
    4,710
    Gender:
    Male
    First Name:
    Chris
    Apple Valley, CA
    Vehicle:
    07 LT 6spd
  3. Jul 19, 2013 at 9:41 AM
    #3
    tostidos

    tostidos Well-Known Member

    Joined:
    Dec 24, 2010
    Member:
    #48149
    Messages:
    4,710
    Gender:
    Male
    First Name:
    Chris
    Apple Valley, CA
    Vehicle:
    07 LT 6spd
    Are you going to offer a LCA with a secondary shock tab?

  4. Jul 19, 2013 at 9:47 AM
    #4
    Trusso24

    Trusso24 Well-Known Member

    Joined:
    Feb 2, 2013
    Member:
    #96649
    Messages:
    672
    Gender:
    Male
    First Name:
    Tony
    San Luis Obispo
    Vehicle:
    99 Prerunner XCab
    Fox Coilovers Blacked Out Debadged
  5. Jul 19, 2013 at 9:49 AM
    #5
    BallisticFab

    BallisticFab [OP] Active Member

    Joined:
    Jul 9, 2013
    Member:
    #107921
    Messages:
    33
    Gender:
    Male
    An arm with secondary shock tabs would certainly be available when the product hits the shelf. We'll keep you guys posted!

  6. Jul 21, 2013 at 11:22 AM
    #6
    biggie

    biggie Well-Known Member

    Joined:
    Aug 23, 2011
    Member:
    #62237
    Messages:
    304
    Gender:
    Male
    First Name:
    Collin
    Tucson
    Vehicle:
    LT Silver Bullet
    very nice subd

  7. Jul 24, 2013 at 3:47 PM
    #7
    BallisticFab

    BallisticFab [OP] Active Member

    Joined:
    Jul 9, 2013
    Member:
    #107921
    Messages:
    33
    Gender:
    Male

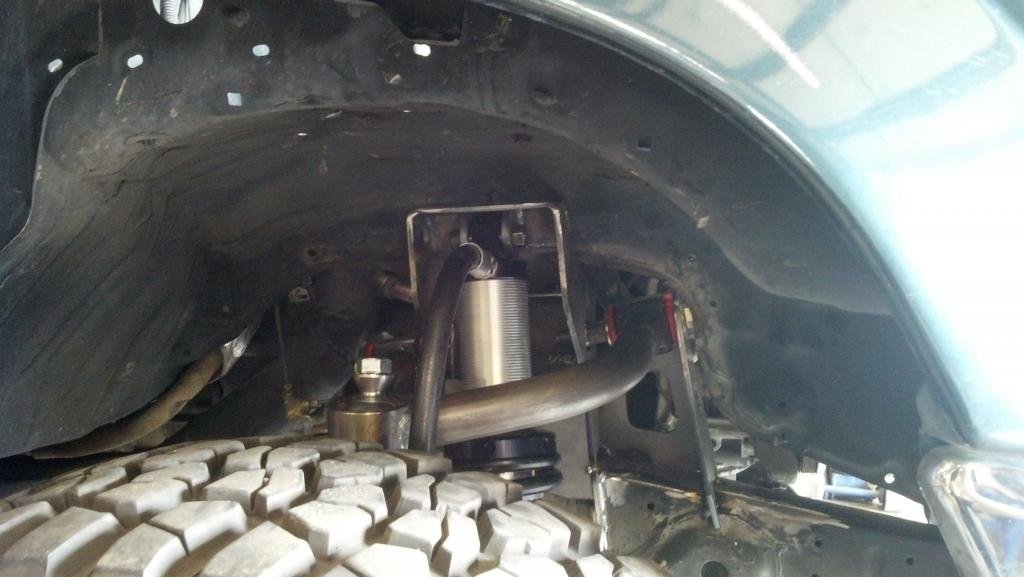

    The first side of the truck has the upper and lower control arms on it.
    [​IMG]

    With 4wd the kit will have about 13" of travel and without 4wd should yield about 15-16" of wheel travel. The production kit will come standard with tabs for a second shock and a bump pad. We're still establishing pricing but based on what we've got so far we think a basic kit with coilovers will be in the $3-$3500 range. The lower arms will come standard with secondary shock mounts and a bump pad.

    We'll keep the thread updated as we make more progress.

    No word on a 2nd gen kit just yet.

  8. Jul 24, 2013 at 5:24 PM
    #8
    Anthony250

    Anthony250 E-Fabber

    Joined:
    Sep 29, 2010
    Member:
    #44016
    Messages:
    3,096
    Gender:
    Male
    First Name:
    Anthony
    San Gabriel Ca
    Vehicle:
    99 Tacoma LT Prerunner
    Eagle Alloy's 058 on Goodyear BFG All Terrians . 265/75/16. Kenwood Stereo, 12" JL Audio Sub. Led Lighting interior. Led Turn Signals. Custom Bumper ,Total Chaos Long travel Sway away shocks, glassworks fenders, ,Spintech Super Pro street muffler, Hellas 500ff HID Converted, Window Tint,Black Emblems, Deckplate, , Deaver Prerunner Pack, Bilstein 7100's 12" SB's and Sway Away 2" Air Bumps
    Pics on how the lower is connected to the spindle.

  9. Jul 24, 2013 at 5:27 PM
    #9
    Anthony250

    Anthony250 E-Fabber

    Joined:
    Sep 29, 2010
    Member:
    #44016
    Messages:
    3,096
    Gender:
    Male
    First Name:
    Anthony
    San Gabriel Ca
    Vehicle:
    99 Tacoma LT Prerunner
    Eagle Alloy's 058 on Goodyear BFG All Terrians . 265/75/16. Kenwood Stereo, 12" JL Audio Sub. Led Lighting interior. Led Turn Signals. Custom Bumper ,Total Chaos Long travel Sway away shocks, glassworks fenders, ,Spintech Super Pro street muffler, Hellas 500ff HID Converted, Window Tint,Black Emblems, Deckplate, , Deaver Prerunner Pack, Bilstein 7100's 12" SB's and Sway Away 2" Air Bumps
    I also see you cut out center sleeve inside the coil bucket for the upper arm bolt to run two bolts. Nice touch!

  10. Jul 24, 2013 at 5:59 PM
    #10
    BallisticFab

    BallisticFab [OP] Active Member

    Joined:
    Jul 9, 2013
    Member:
    #107921
    Messages:
    33
    Gender:
    Male
    We're going to keep that piece of information under wraps for a little bit. It's definitely what's going to separate our kit from the rest of the bolt on kits out there. I've personally had that lower ball joint fail and it took out a CV, fender, and part of door so getting rid of that was important to us. We'll release the full pictures in a few weeks when testing is done. -Allen

  11. Jul 24, 2013 at 6:00 PM
    #11
    BallisticFab

    BallisticFab [OP] Active Member

    Joined:
    Jul 9, 2013
    Member:
    #107921
    Messages:
    33
    Gender:
    Male
    and we plan on putting both bolts in double shear with the addition of a few pieces of tube and plate. That's the project for tomorrow and Friday assuming we get a few moments to work on this.

  12. Aug 4, 2013 at 10:48 AM
    #12
    biggie

    biggie Well-Known Member

    Joined:
    Aug 23, 2011
    Member:
    #62237
    Messages:
    304
    Gender:
    Male
    First Name:
    Collin
    Tucson
    Vehicle:
    LT Silver Bullet
    any updates?

  13. Aug 4, 2013 at 12:11 PM
    #13
    CliffordBRD

    CliffordBRD Well-Known Member

    Joined:
    Mar 29, 2012
    Member:
    #75835
    Messages:
    189
    Gender:
    Male
    First Name:
    Cliff
    Alexandria, VA
    Retro'd headlights
  14. Aug 5, 2013 at 12:53 PM
    #14
    BallisticFab

    BallisticFab [OP] Active Member

    Joined:
    Jul 9, 2013
    Member:
    #107921
    Messages:
    33
    Gender:
    Male
    Yes, we completed the shock tower design and mock up last week. As soon as we get them welded on the frame we'll post some new pictures.

  15. Aug 5, 2013 at 7:19 PM
    #15
    paranoid56

    paranoid56 Well-Known Member

    Joined:
    Jul 25, 2012
    Member:
    #83443
    Messages:
    968
    Gender:
    Male
    San Diego
    Vehicle:
    0 double cab taco
    looking good.

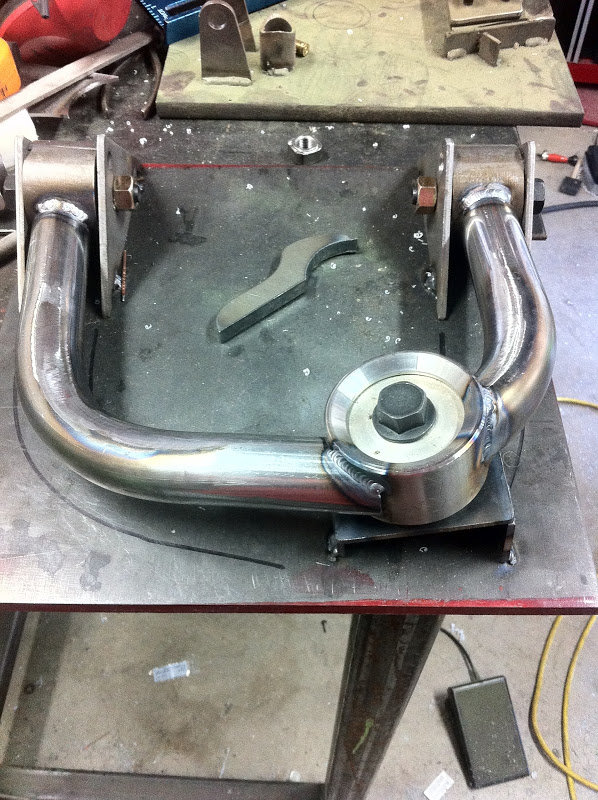

    but turn your uniball cups 180 degs. then your laser cut head is up and down. bad pic but one i did a wile ago using your cups.
    [​IMG]

  16. Aug 6, 2013 at 8:01 AM
    #16
    Humphreys

    Humphreys Well-Known Member

    Joined:
    Mar 27, 2013
    Member:
    #100761
    Messages:
    60
    Gender:
    Male
    First Name:
    Michael
    WhittierCA,
    Vehicle:
    97/04 TacoRunner
    1997 4runner 04 tcaoma conversion more to come
    KINDA CURIOUS TO SEE HOW IT COMES OUT ACTUALLY.... A BIT OVER PRICED AT 3500 BUT HEY THTS JUST ME LOL. KIT LOOKS GOOD SO FAR THO.

  17. Aug 7, 2013 at 3:13 PM
    #17
    BallisticFab

    BallisticFab [OP] Active Member

    Joined:
    Jul 9, 2013
    Member:
    #107921
    Messages:
    33
    Gender:
    Male
    I'm not sure what you mean. There is not a laser cut piece on the upper control arm spherical bearing.

    From the research we've done $3500 is cheaper than most of the major competitors with a similarly built kit.

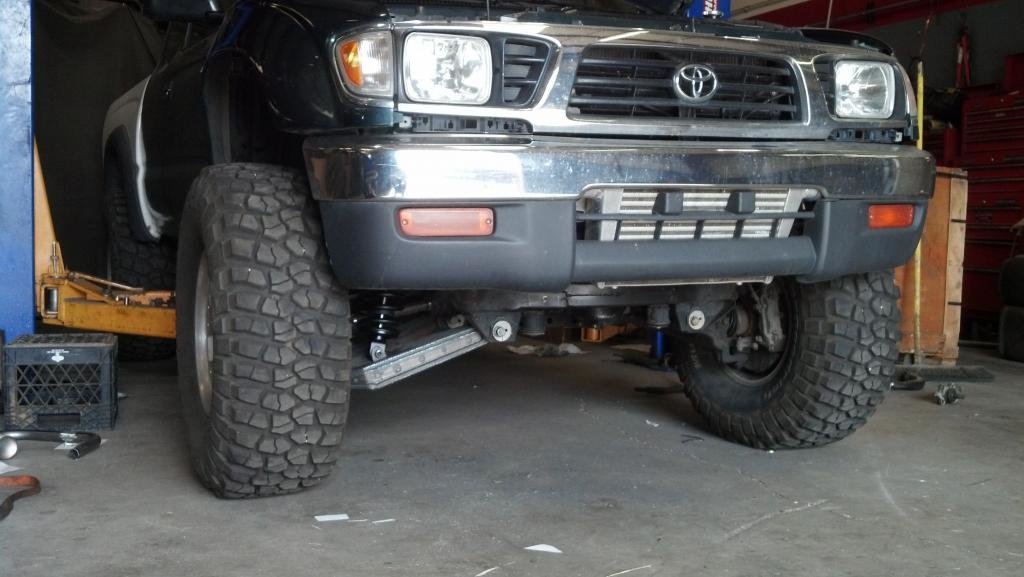

    A few updated pictures.

    [​IMG]

    [​IMG]

  18. Aug 7, 2013 at 3:18 PM
    #18
    DTFtacoma

    DTFtacoma Dezert Toy Fabrication

    Joined:
    Mar 5, 2009
    Member:
    #14364
    Messages:
    6,710
    Gender:
    Male
    First Name:
    Anthony
    Santa Maria, CA
    Vehicle:
    06 PreRunner D-cab
    DTF LT front & rear
    Looking good buddy

    Do you guys offer a TW discount? I'm in need of threaded bungs, heims, and what not

  19. Aug 7, 2013 at 3:22 PM
    #19
    BallisticFab

    BallisticFab [OP] Active Member

    Joined:
    Jul 9, 2013
    Member:
    #107921
    Messages:
    33
    Gender:
    Male
    Yes, give us a call at (520) 888-4441. I'll let the sales guys know to give anyone from TW 10% off their order.

  20. Aug 7, 2013 at 4:41 PM
    #20
    jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    13,785
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
    Is that a 10" shock?
    Guessing that's why you cut out the factory coil bucket and UCA bolt sleeve?
