BAMF 1st Gen rear shock relocation kit

Discussion in 'Bay Area Metal Fabrication' started by JLee, Nov 15, 2013.

  1. Nov 15, 2013 at 8:50 AM
    #1
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,416
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

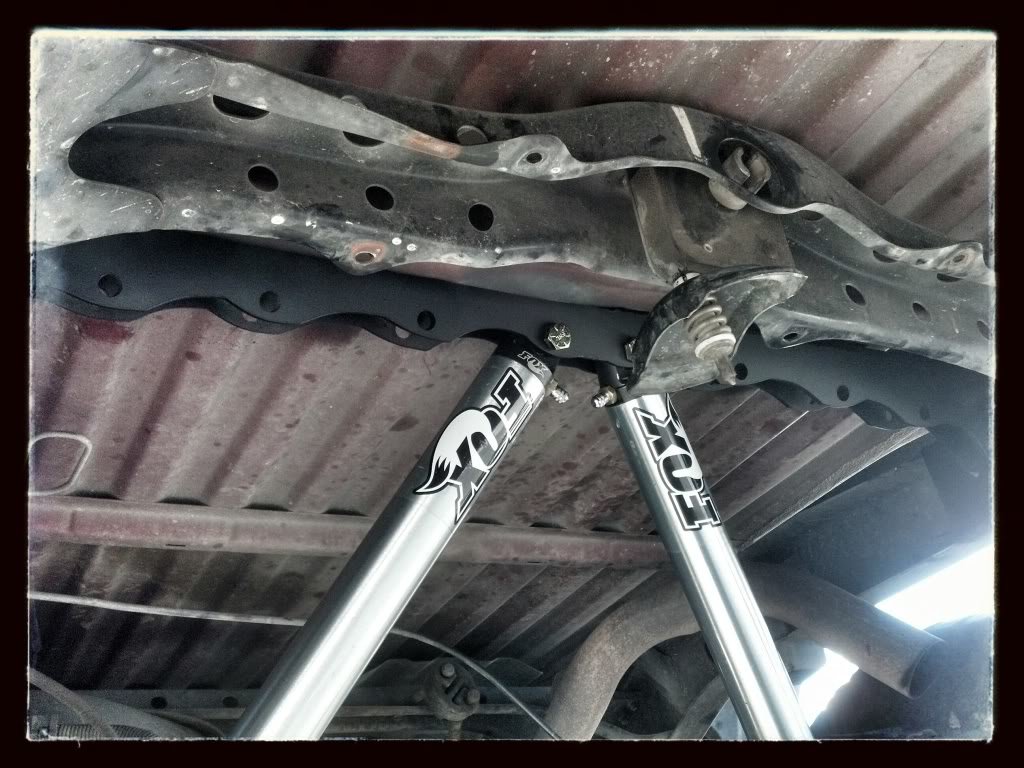

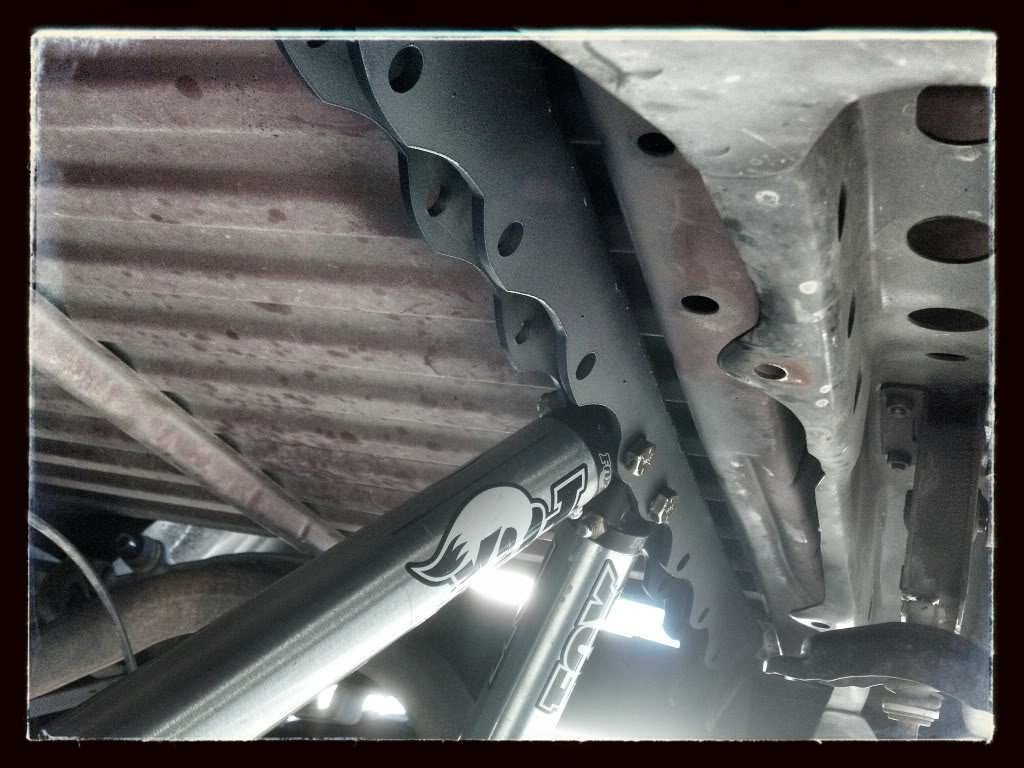

    Here at BAMF we have developed a shock relocation kit for your 1995 to 2004 Tacoma that allows you to run up to a 12" stroke shock and stay under the bed. We have two different sizes on the mounting width 1.25" and 1.5" with a 1/2" bolt we recommend uni ball shocks with misalignment spacers only we do not recommend rubber bushing shocks. Valving will depend on the angle you mount your shocks talk with your shock dealer about your set up.

    To get the most flex out of your rear suspension you need to run longer shocks the stock mounting points wont allow it. This kit allows that without having to cut holes in your bed to do so.

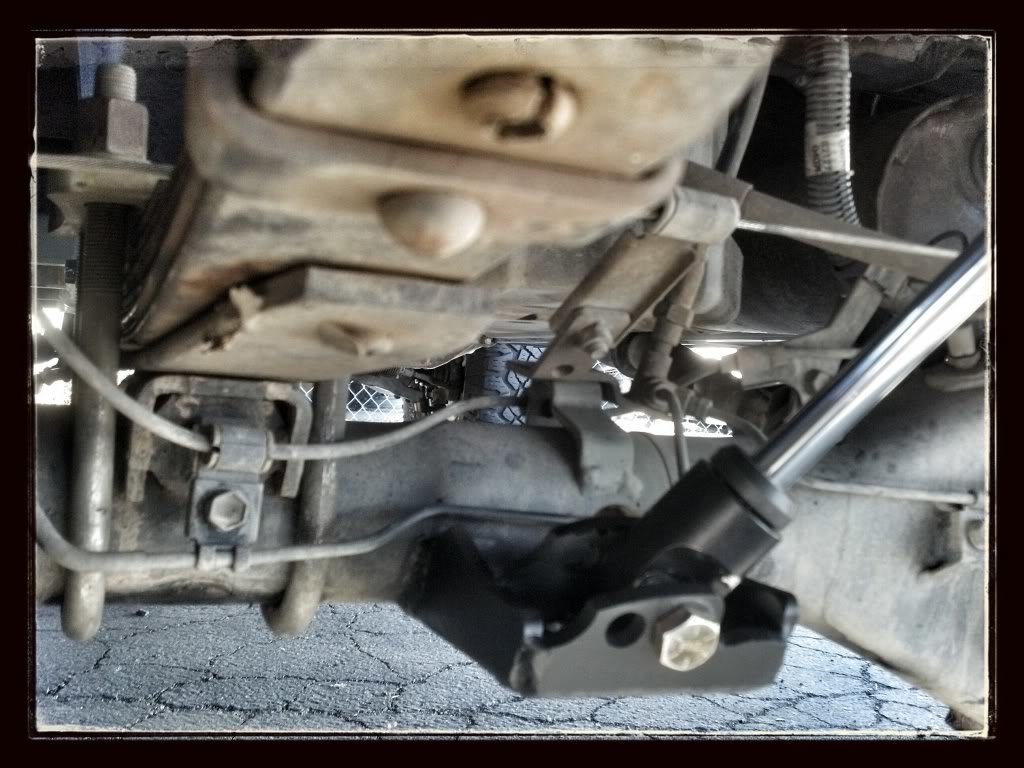

    The kit moves both shocks to the rear of the axle the only modification before welding the crossmember on is the rear upper shock mount needs to be removed before welding the plates on. A Ubolt flip kit is recommended to gain more ground clearance. (That we have in the works as well)

    Specs
    Upper Crossmember and lower mounts are CNC cut & formed from 1/4" plate this is the strongest relocation kit on a market.

    You can order HERE

    Here is the coupon for the first 10 orders twfirst10 Note it's set to a max of 10 uses so once we hit 10 orders it will no longer work.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Last edited: Jun 26, 2014
  2. Nov 16, 2013 at 6:12 AM
    #2
    Sloth

    Sloth Baby Ruth?

    Joined:
    Nov 16, 2012
    Member:
    #91263
    Messages:
    6,013
    Gender:
    Male
    First Name:
    Seth
    Peoples Republic of Massachusetts
    Vehicle:
    07 FJ Cruiser
    Awesome

    Sub'd

  3. Nov 20, 2013 at 10:43 AM
    #3
    yamahahauler

    yamahahauler Well-Known Member

    Joined:
    Apr 17, 2012
    Member:
    #77126
    Messages:
    93
    Gender:
    Male
    First Name:
    tyler
    Culver
    Vehicle:
    98 white
    bilsteins all around with emu springs.
    Dang I was hoping to buy this kit on the black Friday sale. Looks awesome guys!

  4. Nov 20, 2013 at 8:49 PM
    #4
    cbassd

    cbassd Member

    Joined:
    Apr 21, 2012
    Member:
    #77328
    Messages:
    826
    Gender:
    Male
    First Name:
    sebastian
    Socal
    Vehicle:
    02 tacoma
    tc uca, 2.5 icon coilovers with resis, trd supercharger,flow master,u-bolt flip kit,,, all-pro standard pack leaf springs,10 inch travel 2.0 fox shocks with remote resis,21inch led bar,ham and cb radio,4xinnovation sliders, custom from bumper, prp bucket seats and deist 5-point harness
    is the crossmember going to be welded on or bolt on

  5. Nov 20, 2013 at 8:51 PM
    #5
    Ahshiet

    Ahshiet Well-Known Member

    Joined:
    Sep 5, 2009
    Member:
    #22303
    Messages:
    5,552
    Gender:
    Male
    Maui,Hawaii
    Vehicle:
    09 MG Sport DC 4x4
    Set #1 16x10 ion alloy wheel 31x12.5 super swampers Set#2 17x9 KMC Diesel black 305/65/17 M/T ATZ baja Set#3 TRD offroad wheels painted wrinkle black with H/T tire 275/70/16 Set#4 Weld racing 16x12 Typhoon with 305/70/16 BF KO tires Set#5 Weld racing 16.5x12 36x16 fun country Set#6 TRD rugged edition wheels 305/75/16 baja claws Set#7 16x10 procomp steel "beadlooks" 33x12.50 TSL Boggers Spider track spacers in front Wet Okole black seat covers fronts with pockets,back and armrest HIDs high Lexus projector fogs h11 hid 3500k Toyota bed mat black trd exhaust Fujita intake black Xrunner badges carbon fiber door sills Alpine double din 2 8" bazookas (modded) 2 Alpine type-r 8's in tubes Rockford fosgate 1500w silverstar blinker bulbs front and back Led lic plate bulbs Led dome light Led map lights Black eBay headlights VHT night shade tails and 3rd brake light Custom made rear fog lights(next to 3rd brake light) Sticker bombed bed walls and pass. A-pill
    That's sweet looking 2nd gen dreams....

  6. Nov 20, 2013 at 8:51 PM
    #6
    YotaOverAll

    YotaOverAll Run it

    Joined:
    Jul 9, 2012
    Member:
    #82254
    Messages:
    7,996
    Gender:
    Male
    First Name:
    Jessie
    Panama City, FL
    Vehicle:
    02 Prerunner SR5
    3" Toytec spacers, Bilstein 5100s in the back with add a leaf and overloads removed.
    Definitley sub'd to this!

  7. Nov 20, 2013 at 8:51 PM
    #7
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,416
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Welded.

  8. Nov 22, 2013 at 8:29 PM
    #8
    w00dy

    w00dy Hey Now!

    Joined:
    Nov 7, 2009
    Member:
    #25556
    Messages:
    1,946
    Gender:
    Male
    First Name:
    Jeff
    North of the Wall
    Vehicle:
    03 dCab tURD
    BAMF kick out sliders, SkidRow skids,Pro Comp 7069, Kelly Safari TSR 285's, Elite front bumpa, OME 883 & Dakars w/ D6XL AAL, Nitro sport shocks, Eddie209 Soft topper, Satoshi, k&n fipk, Clarion vx400, Ultra Gauge, Debadgination mod
    Jerry...You are making it very easy to give you my money! Sub'd

  9. Nov 22, 2013 at 8:37 PM
    #9
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,416
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Thats the plan :D hoping to have it on the site by the new year.

  10. Nov 22, 2013 at 8:40 PM
    #10
    Bennett707

    Bennett707 Yeti Hunter

    Joined:
    Apr 28, 2012
    Member:
    #77793
    Messages:
    11,192
    Gender:
    Male
    Oregon
    Vehicle:
    '04 V6 3.4 TRD
    zip ties and scotch tape (duct tape is too expensive)
  11. Nov 23, 2013 at 10:10 PM
    #11
    Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,764
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    By moving the shock up towards vertical, will that change the length of the shocks?

  12. Nov 23, 2013 at 10:12 PM
    #12
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,416
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Yes it will.

  13. Nov 23, 2013 at 10:15 PM
    #13
    AK Taco

    AK Taco Your opinion? Fuck it.

    Joined:
    Apr 14, 2012
    Member:
    #76924
    Messages:
    3,140
    Gender:
    Male
    First Name:
    matt
    Anchorage, Ak/ Corvallis, Or
    Vehicle:
    chrome-free '99 sr5
    20% tint on all windows, Deckplate mod, satoshi-ish grille, blacked out and/or body matched emblems, rattle canned rims, red l.e.d. interior lights, bilstein 5100's and OME 881 coils , deaver 8 leaf pack, 1.5" lift shackle, alpine sound system, 55w HID lightforce 140 and 170 fogs, 6k hid's
    Any idea on pricing?

  14. Nov 23, 2013 at 10:17 PM
    #14
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,416
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Not at the moment.

  15. Dec 10, 2013 at 2:09 PM
    #15
    getsideways

    getsideways Member

    Joined:
    Jul 19, 2013
    Member:
    #108616
    Messages:
    21
    Gender:
    Male
    First Name:
    Trevor
    Allentown PA
    Vehicle:
    01 Xtra Cab SR5 TRD
    Any more news about this?

  16. Dec 10, 2013 at 3:45 PM
    #16
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,416
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Nothing really we are still testing the first one. Id expect it to be on the site by late January or early feb.

  17. Dec 11, 2013 at 2:07 PM
    #17
    w00dy

    w00dy Hey Now!

    Joined:
    Nov 7, 2009
    Member:
    #25556
    Messages:
    1,946
    Gender:
    Male
    First Name:
    Jeff
    North of the Wall
    Vehicle:
    03 dCab tURD
    BAMF kick out sliders, SkidRow skids,Pro Comp 7069, Kelly Safari TSR 285's, Elite front bumpa, OME 883 & Dakars w/ D6XL AAL, Nitro sport shocks, Eddie209 Soft topper, Satoshi, k&n fipk, Clarion vx400, Ultra Gauge, Debadgination mod
    So I can assume that 60062 OME rears will not work with this set up? I am planning on collecting what I may need so I can buy this as soon as its released.

  18. Dec 11, 2013 at 2:46 PM
    #18
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,416
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    I wouldn't use rubber bushing shocks on this mount. I would go with FOX or KING or anything with uni ball misalignment.

  19. Jan 8, 2014 at 6:28 AM
    #19
    w00dy

    w00dy Hey Now!

    Joined:
    Nov 7, 2009
    Member:
    #25556
    Messages:
    1,946
    Gender:
    Male
    First Name:
    Jeff
    North of the Wall
    Vehicle:
    03 dCab tURD
    BAMF kick out sliders, SkidRow skids,Pro Comp 7069, Kelly Safari TSR 285's, Elite front bumpa, OME 883 & Dakars w/ D6XL AAL, Nitro sport shocks, Eddie209 Soft topper, Satoshi, k&n fipk, Clarion vx400, Ultra Gauge, Debadgination mod
  20. Jan 8, 2014 at 7:51 AM
    #20
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,416
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Just waiting on my press brake to get here and then I'll finalize the design and we should be good to go.
