    Quick Links: ARB lockers available RD121 RD129 + twin compressors. Spiker Engineering 15% off July 4th Group Buy - now through July 6th! Vantrue N3 Touch Screen Dual Dash Cam Group Buy Spiker Engineering Ultimate Lift Hood Strut Black Friday Sale! **CLOSED**ARB Snorkels 2.0 - Group Buy** **CLOSED**ARB Compressors - Group Buy

BAMF 3rd gen front bumper

Discussion in 'Automotive Group Buys' started by JLee, Aug 12, 2019.

Page 1 of 10
  1. Aug 12, 2019 at 5:49 AM
    #1
    JLee

    #1
    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,562
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    It's been a long weekend! I've spent countless hours in the last few days creating what I think is one of the best #3rdgentacoma front bumpers.

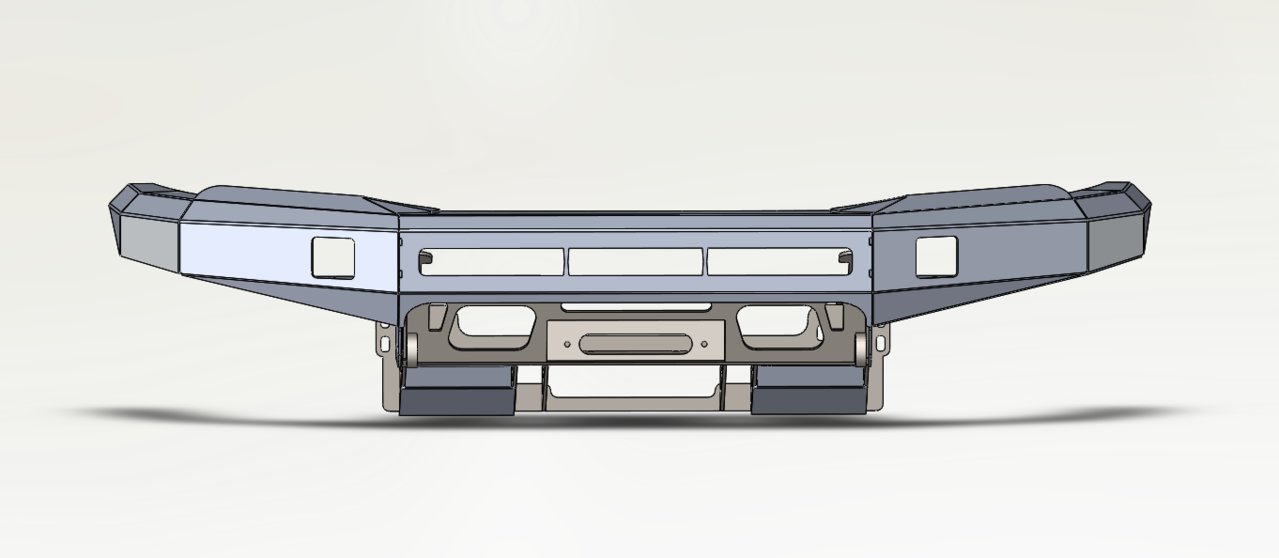

    Drafted in @solidworks tabbed and slotted ready for quick manufacturing. @toynado1 will be by this week for the final mockup cant wait! Installed pics with full hoops on his truck later in the week.

    We wanted to develop a lighter bumper that you could be confident winching from in a sticky situation. Most Aluminum bumpers on the market "hell all of them" cant handle a hard pull. Thats when you really need it. We set out to change that! This bumper is a two peice " hybrid" design.

    The Winch plate is .250" A36 HRPO Steel gusseted in all the right places and locked to the truck with our reinforcement brackets, So all the business is covered! No need to worry. We added weight reduction holes in the winch plate and
    Bumper Shell, It bolts on the winch plate with 22 3/8th grade 8 bolts. They will be offered in 190" 5052 Aluminum for the customers that want to keep the weight down. The wings are gusseted to take "light wheeling" (Will have weights next week)

    And .187" A36 HRPO Steel for the guys that want to beat it up. With the same gussets as the Aluminum shell PUREBEEF. The lower skid plates will be offered in both materials as well. And bolt on with 2 3/8th grade 8 bolts so more weigh can be reduced when not running them.

    Our plan is to develop more Shells for this winch plate giving you options on the design. Alowing you to change the bumper without replacing the whole thing.



    http://www.bayareametalfab.com/2016...r-Pre-production-sale-going-on-now_p_144.html


    Hybrid cover mock up.




    Center hoop mock up on a steel shell.

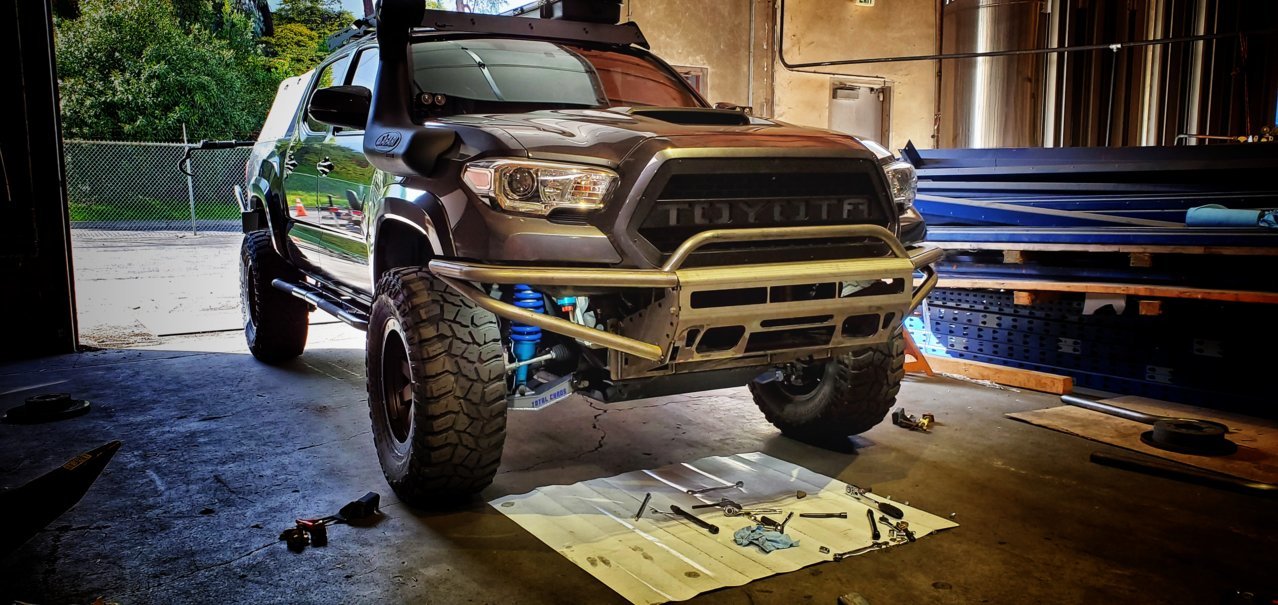

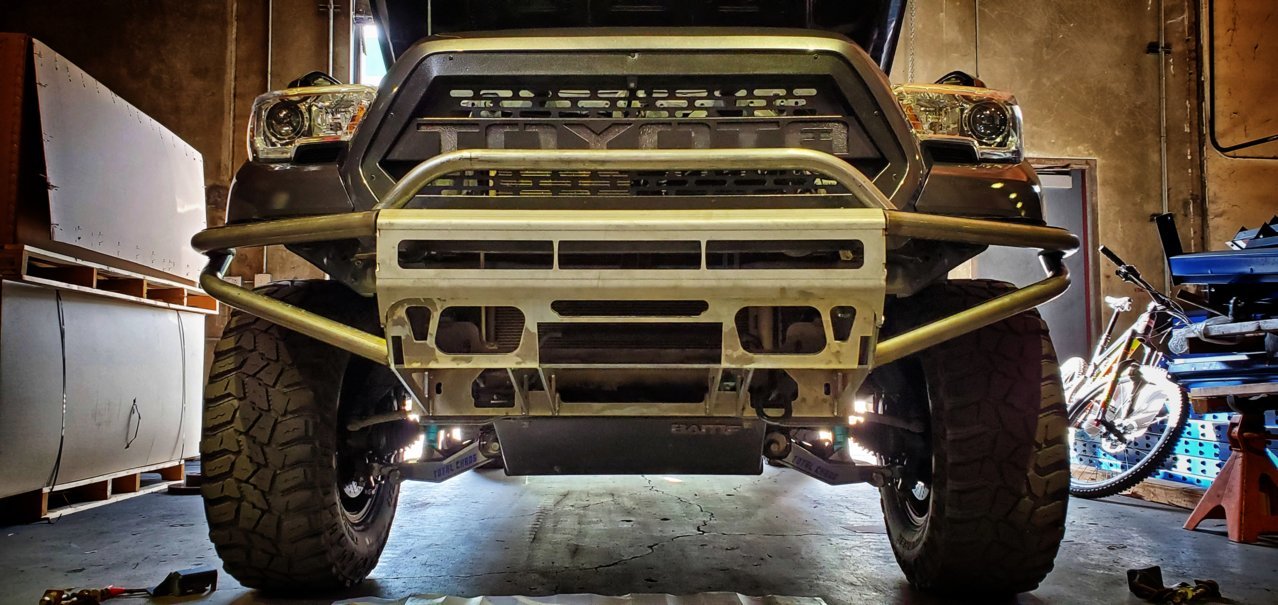

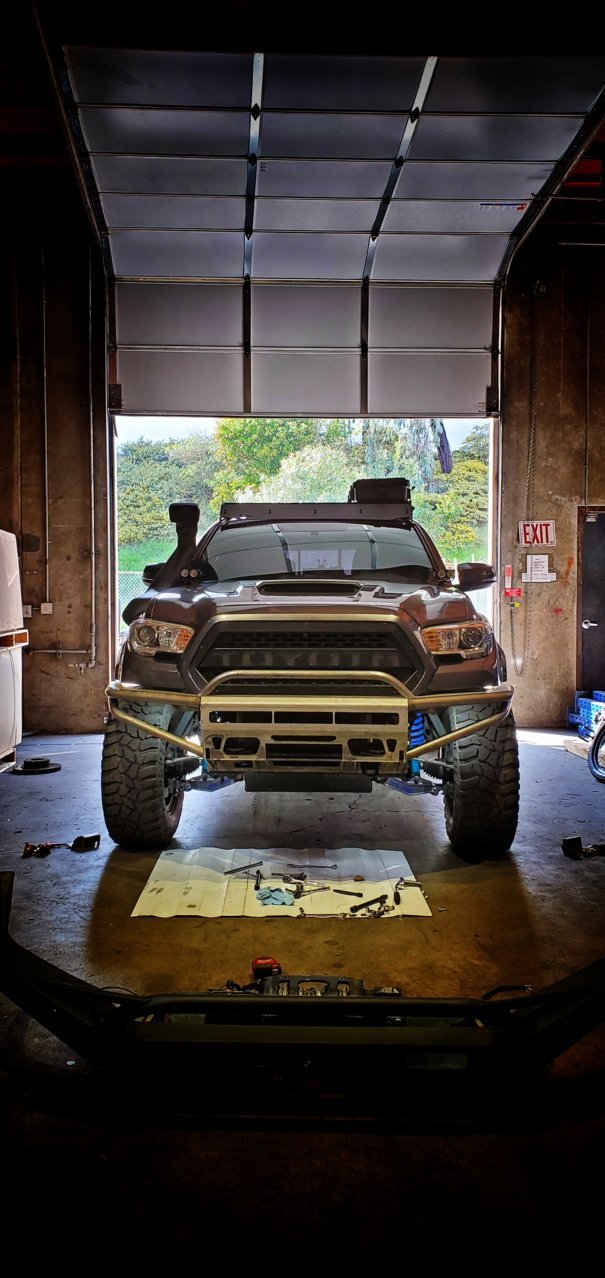

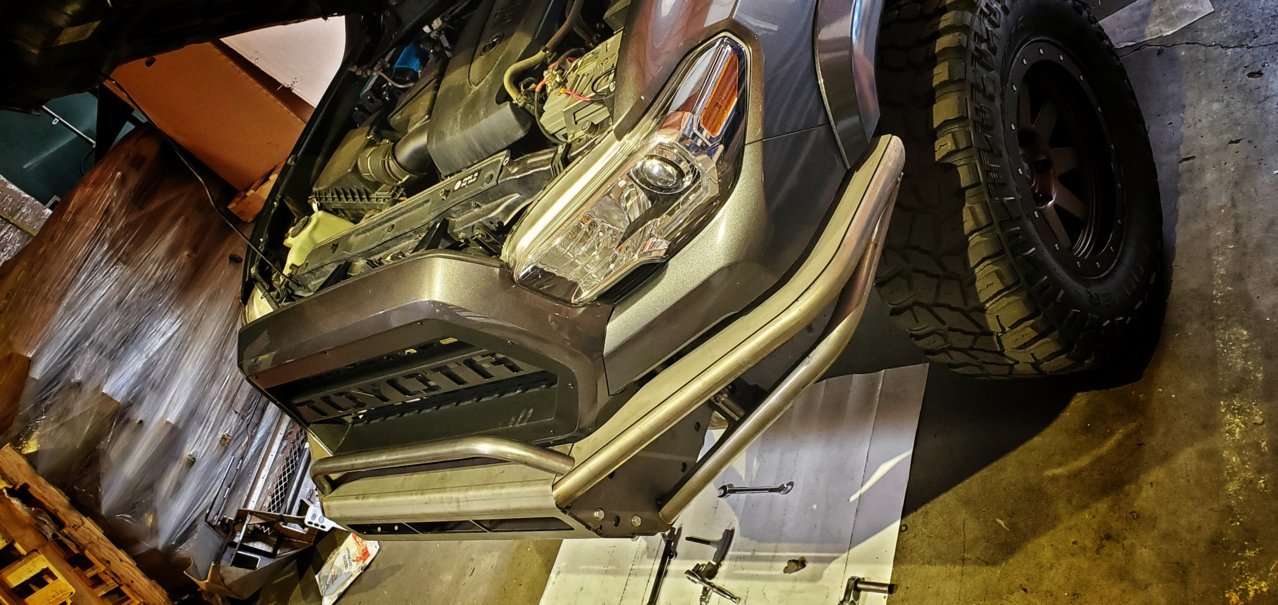

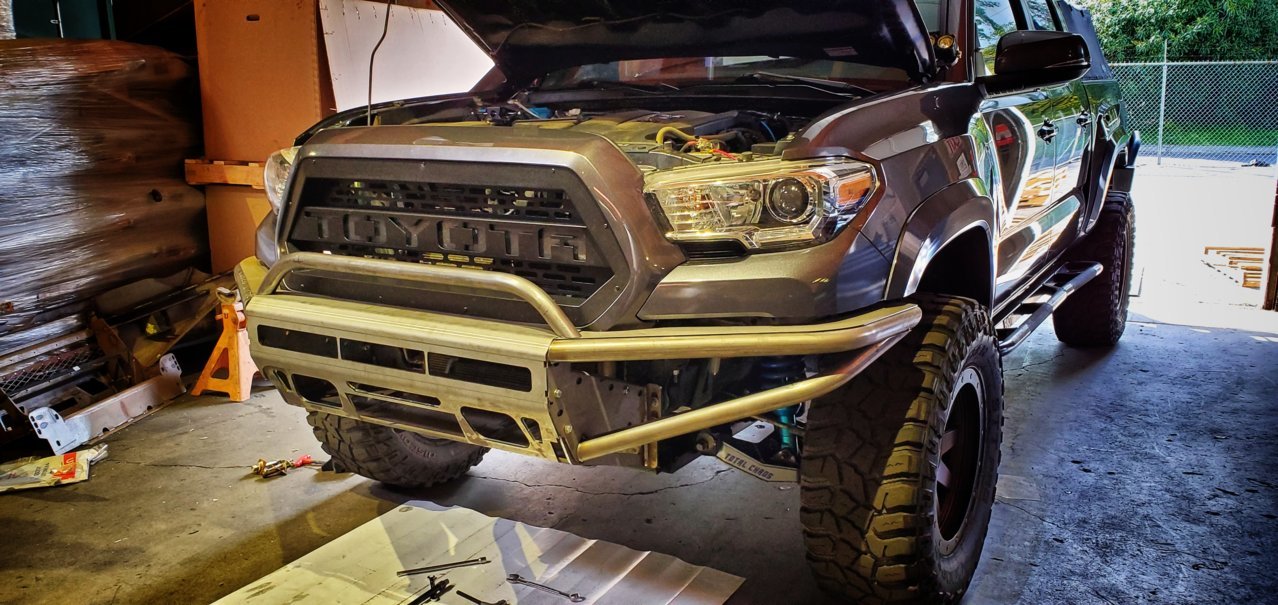

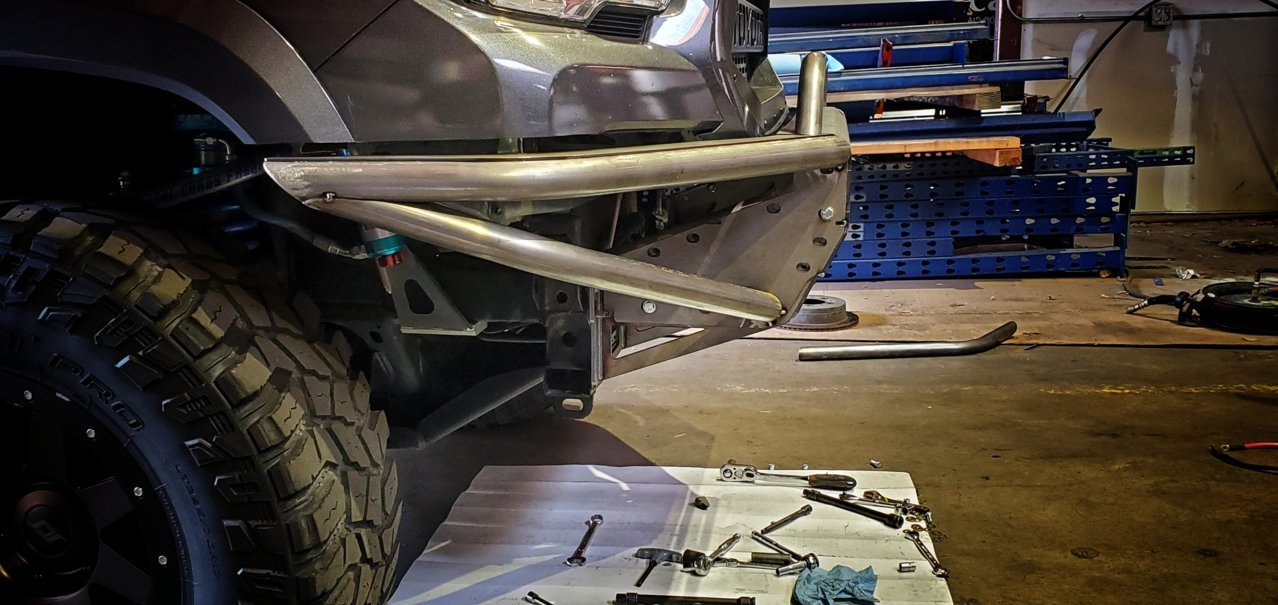

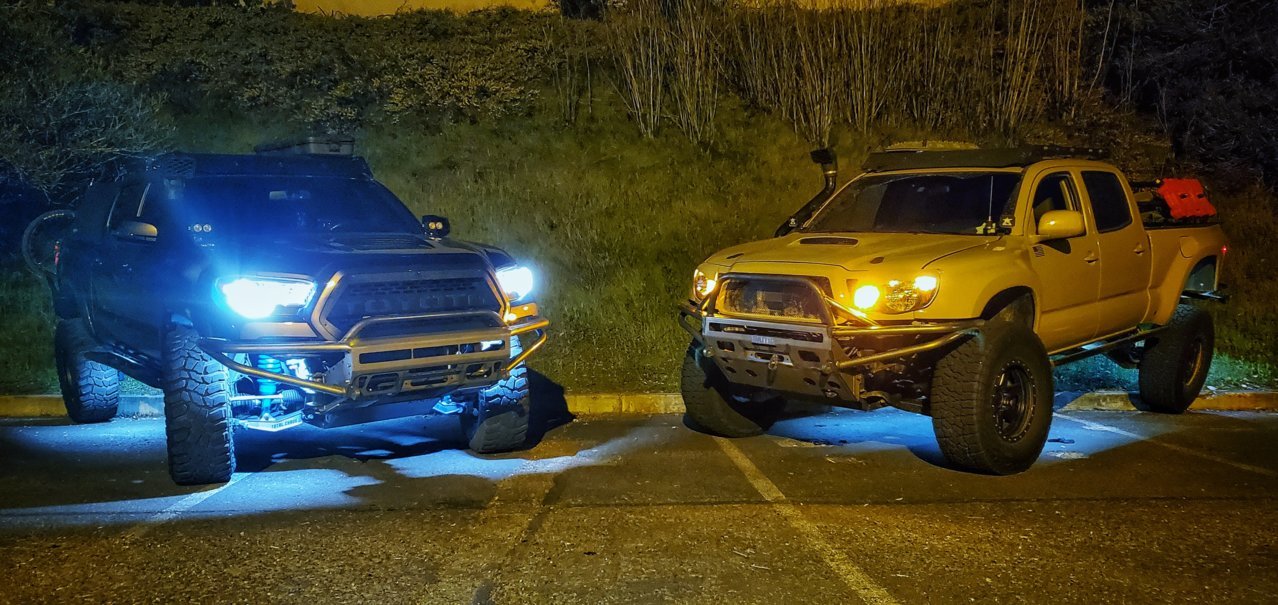

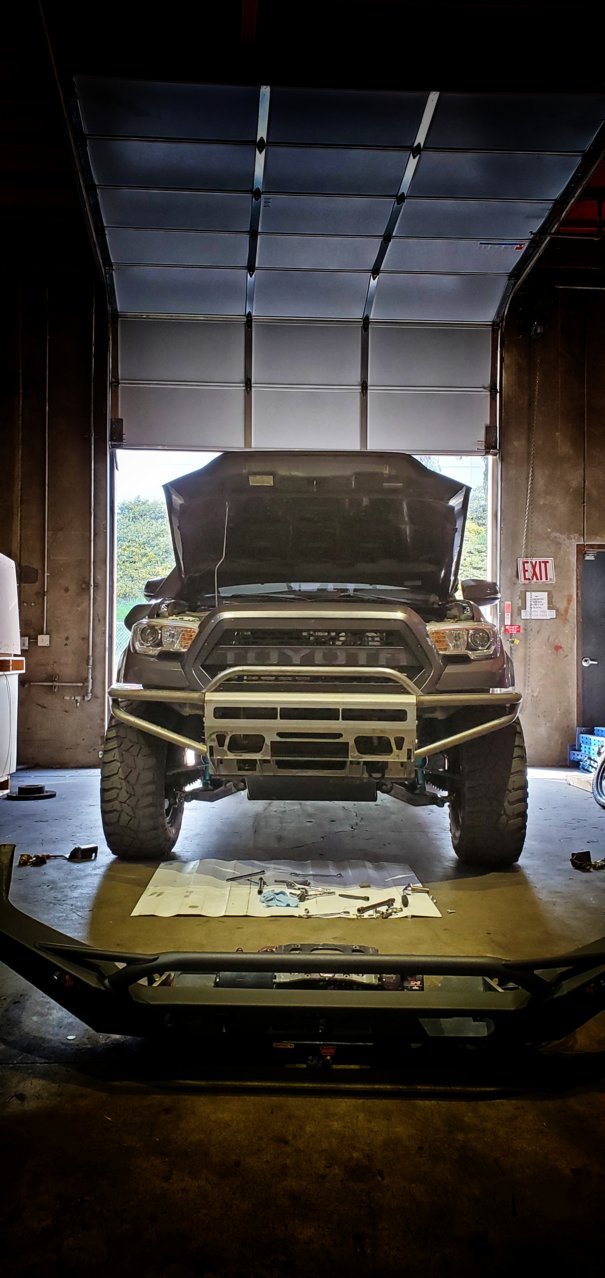

    Full hoops mocked up. We just need to adjust notches in Dragon cam and we can start burning and turning!

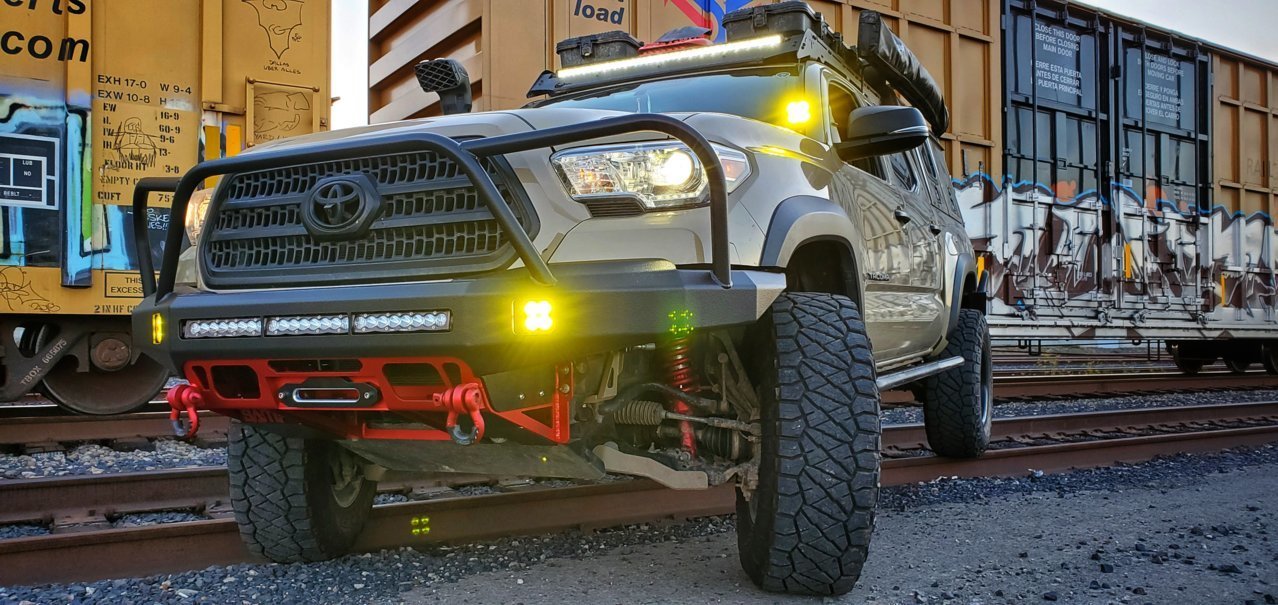

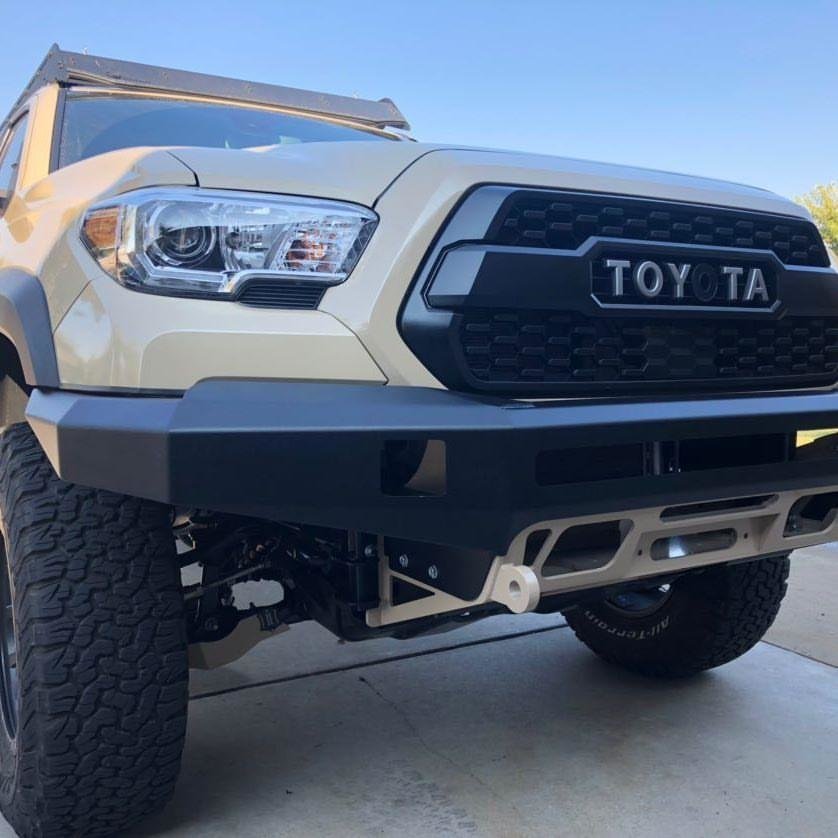

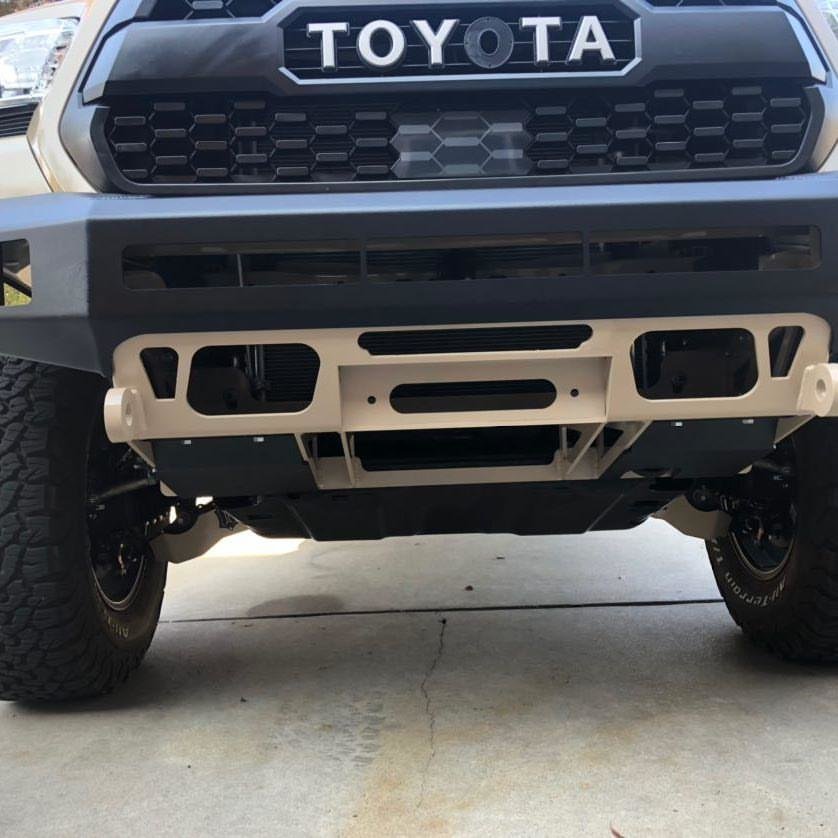

    Powder shots he went two tone it turned out so good!

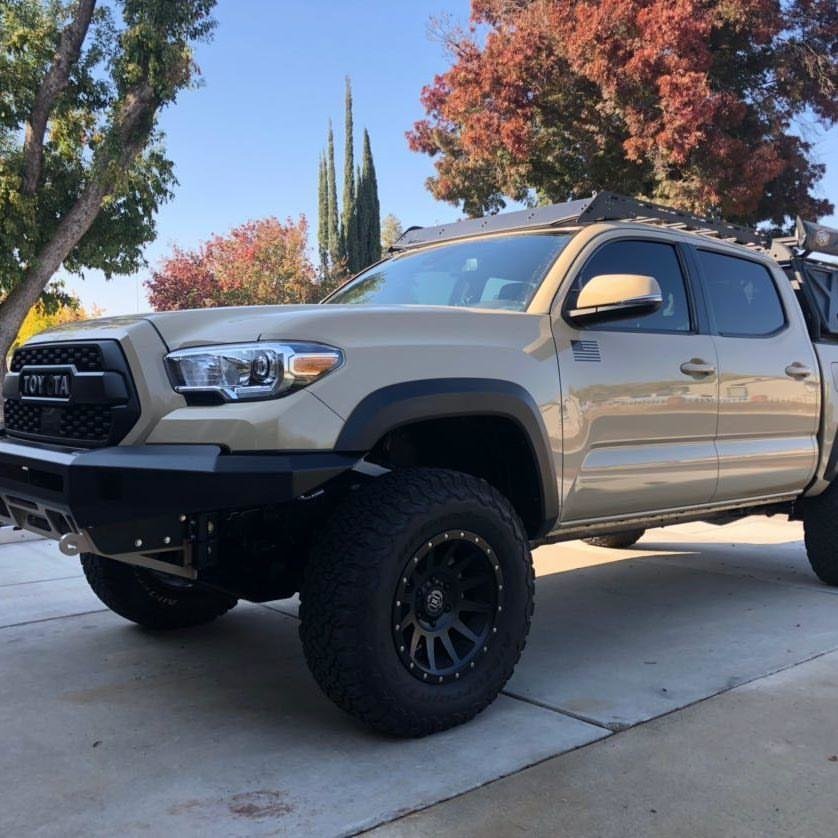

    IMG_20191118_131920_587.jpg IMG_20191118_131924_611.jpg IMG_20191118_131939_763.jpg


    Attached Files:

    Last edited: Mar 2, 2020
    JLee, Aug 12, 2019
    #1
    crazychris4124, Daddy_Firebird, CaptainBart45 and 30 others like this.
  2. Aug 12, 2019 at 8:50 AM
    #2
    Beef Nachos

    #2
    Beef Nachos Here for a good time, not a long time

    Joined:
    Apr 6, 2017
    Member:
    #215592
    Messages:
    7,766
    Gender:
    Male
    Dallas/Ft. Worth
    Vehicle:
    2017 SR5 DCSB 4x4
    Looks great!

    Beef Nachos, Aug 12, 2019
    #2
    mcharfauros likes this.
  3. Aug 12, 2019 at 9:03 AM
    #3
    Zac of all trades

    #3
    Zac of all trades FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,877
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Well if a few days is 3 like it typically is then that has a max of 72 hours, so i would estimate the amount of hours spent to be less than 72. LOL. Looks amazing!!!

    Zac of all trades, Aug 12, 2019
    #3
    JKU3000 likes this.
  4. Aug 12, 2019 at 9:05 AM
    #4
    RangerComa

    #4
    RangerComa 58008

    Joined:
    Mar 14, 2017
    Member:
    #213317
    Messages:
    2,823
    Gender:
    Male
    First Name:
    Adam
    Marin, CA
    Vehicle:
    17 DCLB
    list is growing fast
    :spy:

    RangerComa, Aug 12, 2019
    #4
  5. Aug 12, 2019 at 9:05 AM
    #5
    _gray_knight_

    #5
    _gray_knight_ Well-Known Member

    Joined:
    Aug 10, 2010
    Member:
    #41508
    Messages:
    1,702
    Gender:
    Male
    SoCal
    Vehicle:
    '18 Mall Crawler
    Just washed
    :popcorn:

    _gray_knight_, Aug 12, 2019
    #5
  6. Aug 12, 2019 at 9:07 AM
    #6
    upTOPOverland_Drew

    #6
    upTOPOverland_Drew upTOP Overland Technical Design and Application

    Joined:
    May 22, 2016
    Member:
    #187612
    Messages:
    2,709
    Gender:
    Male
    First Name:
    Drew
    Littleton, CO
    Vehicle:
    2017 TRD OR DCSB SUPER WHITE
    All the things...click the link in sig
    TAKE MY MONEY!

    upTOPOverland_Drew, Aug 12, 2019
    #6
    uploadadventure and JLee[OP] like this.
  7. Aug 12, 2019 at 9:08 AM
    #7
    AY_ARONTRD

    #7
    AY_ARONTRD Well-Known Member

    Joined:
    Sep 25, 2017
    Member:
    #231065
    Messages:
    3,913
    Gender:
    Male
    First Name:
    Aaron
    Murrieta ,CA
    Vehicle:
    2019 DCLB Cement OR 4x4
    :bowdown:

    AY_ARONTRD, Aug 12, 2019
    #7
  8. Aug 12, 2019 at 9:42 AM
    #8
    JLee

    #8
    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,562
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

    Yeah that's about right I have about 80 hours into the drawing as of today. I'll expect at least another 30 or 40 fine tuning everything.

    JLee, Aug 12, 2019
    #8
    JKU3000, mcharfauros, SuperBad and 1 other person like this.
  9. Aug 12, 2019 at 9:44 AM
    #9
    RangerComa

    #9
    RangerComa 58008

    Joined:
    Mar 14, 2017
    Member:
    #213317
    Messages:
    2,823
    Gender:
    Male
    First Name:
    Adam
    Marin, CA
    Vehicle:
    17 DCLB
    list is growing fast
    I can't wait to see this on @Toynado 's truck.

    RangerComa, Aug 12, 2019
    #9
    Anderson likes this.
  10. Aug 12, 2019 at 10:00 AM
    #10
    Zac of all trades

    #10
    Zac of all trades FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,877
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    LOL. So how many bolts are we talking here to mount the shell to the winch plate?

    Zac of all trades, Aug 12, 2019
    #10
    JKU3000 likes this.
  11. Aug 12, 2019 at 10:18 AM
    #11
    JLee

    #11
    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,562
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

    22

    JLee, Aug 12, 2019
    #11
    mcharfauros likes this.
  12. Aug 12, 2019 at 10:26 AM
    #12
    Zac of all trades

    #12
    Zac of all trades FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,877
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Oh wow. Well that should help with shipping a bit. Also a fan of the recessed fairlead mount.
    is this a separate piece or does this still need to be tweaked?

    Zac of all trades, Aug 12, 2019
    #12
    mcharfauros likes this.
  13. Aug 12, 2019 at 10:30 AM
    #13
    JLee

    #13
    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,562
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

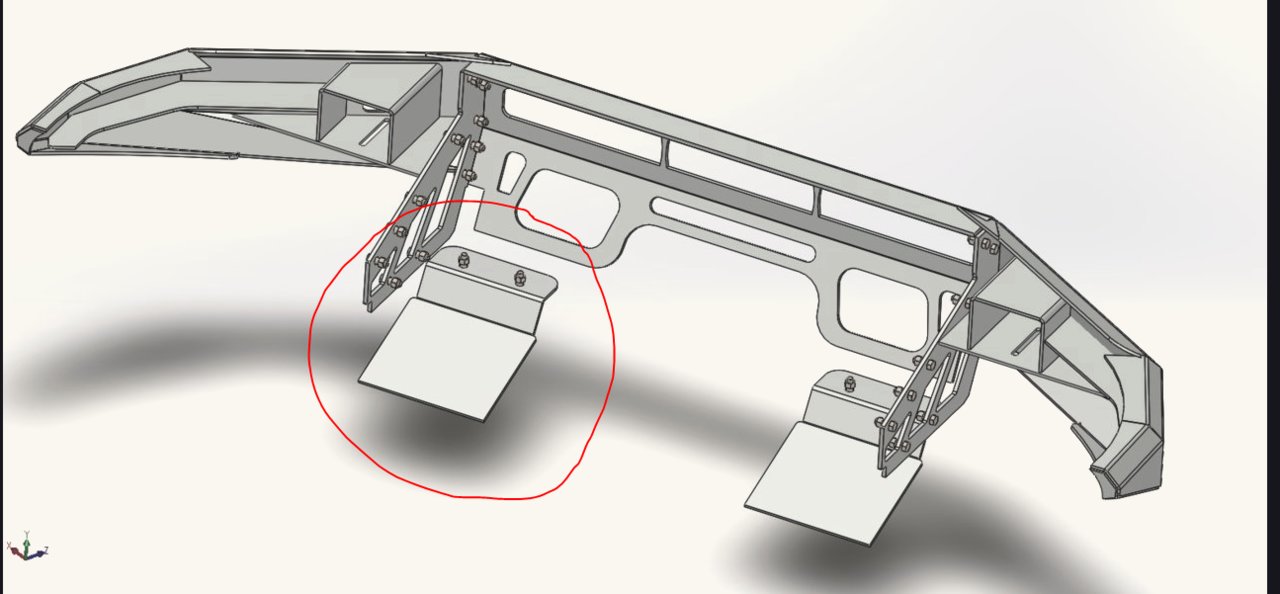

    Those are separate skids. That image is showing the Aluminium components of the bumper.

    JLee, Aug 12, 2019
    #13
    Zac of all trades[QUOTED] and SuperBad like this.
  14. Aug 12, 2019 at 12:06 PM
    #14
    Zac of all trades

    #14
    Zac of all trades FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,877
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    When your going down hill and your aluminum skids hit a rock...
    [​IMG]

    Zac of all trades, Aug 12, 2019
    #14
    m603holden, TACOVRD, GHOST SHIP and 1 other person like this.
  15. Aug 12, 2019 at 12:44 PM
    #15
    JLee

    #15
    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,562
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

    LOL that's the way i see it! the skids will be offered in steel as well.

    JLee, Aug 12, 2019
    #15
    JKU3000, Zac of all trades[QUOTED] and Anderson like this.
  16. Aug 12, 2019 at 1:18 PM
    #16
    bestcoast91

    #16
    bestcoast91 Well-Known Member

    Joined:
    Oct 30, 2018
    Member:
    #271090
    Messages:
    76
    Gender:
    Male
    Concord, CA
    Vehicle:
    2018 OR 6MT
    I'm very interested in this. Any estimate when these will be available for purchase? Also, will the recessed fairlead mount be compatible with a roller fairlead?

    bestcoast91, Aug 12, 2019
    #16
  17. Aug 12, 2019 at 1:39 PM
    #17
    JLee

    #17
    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,562
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

    Once I work up the pricing they will be available for pre production ordering, Later this week or early next week. The first 50 bumpers will be discounted 25% off that we will be setting up group buy on our site.

    As for the Fairlead it's designed for a Hawse and I don't have any rollers to check so I'm not sure. Your just over the bridge so if your around this week swing by we can check and see.

    JLee, Aug 12, 2019
    #17
    JKU3000, PvilleJohn, Burqueboy505 and 1 other person like this.
  18. Aug 12, 2019 at 1:43 PM
    #18
    bestcoast91

    #18
    bestcoast91 Well-Known Member

    Joined:
    Oct 30, 2018
    Member:
    #271090
    Messages:
    76
    Gender:
    Male
    Concord, CA
    Vehicle:
    2018 OR 6MT
    Thanks. Is there a day that would be good to stop by? I could leave for lunch and be there around 11-11:30 if that timing works.

    bestcoast91, Aug 12, 2019
    #18
  19. Aug 12, 2019 at 2:00 PM
    #19
    upTOPOverland_Drew

    #19
    upTOPOverland_Drew upTOP Overland Technical Design and Application

    Joined:
    May 22, 2016
    Member:
    #187612
    Messages:
    2,709
    Gender:
    Male
    First Name:
    Drew
    Littleton, CO
    Vehicle:
    2017 TRD OR DCSB SUPER WHITE
    All the things...click the link in sig
    watching :)

    upTOPOverland_Drew, Aug 12, 2019
    #19
  20. Aug 12, 2019 at 2:17 PM
    #20
    JLee

    #20
    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,562
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    It's always crazy here so whenever during business hours works.

    JLee, Aug 12, 2019
    #20
    mcharfauros likes this.
