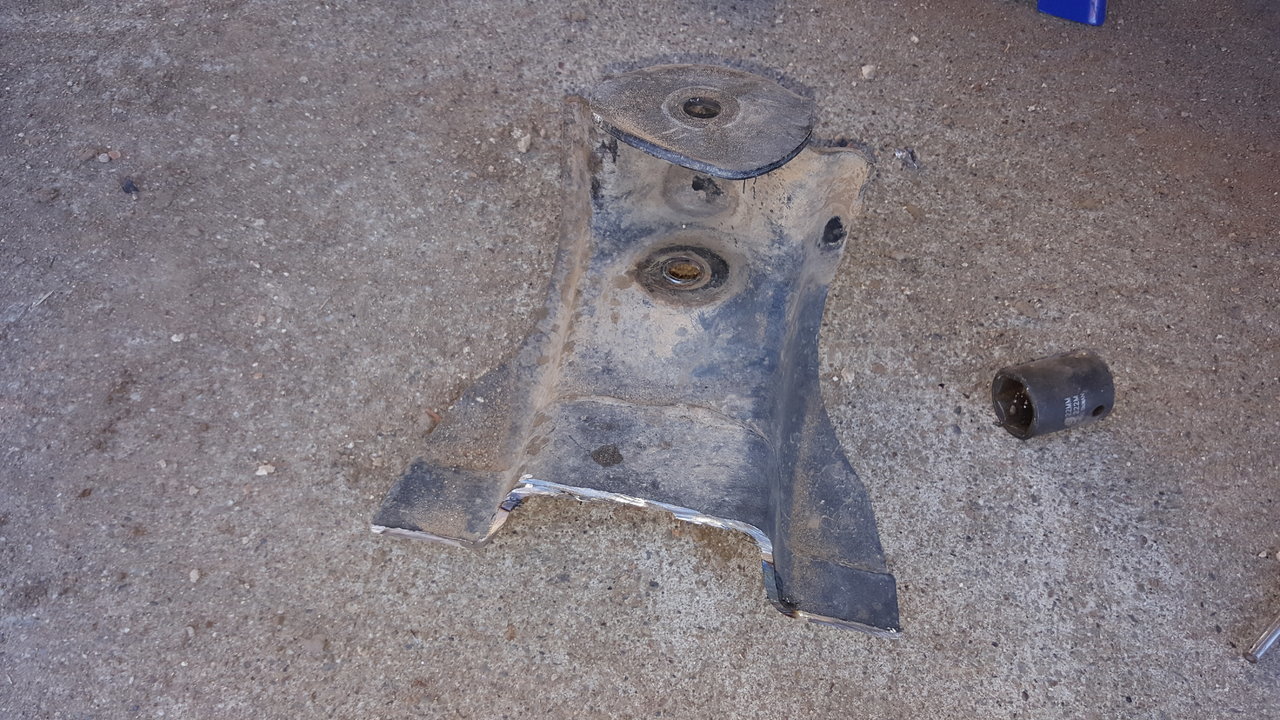

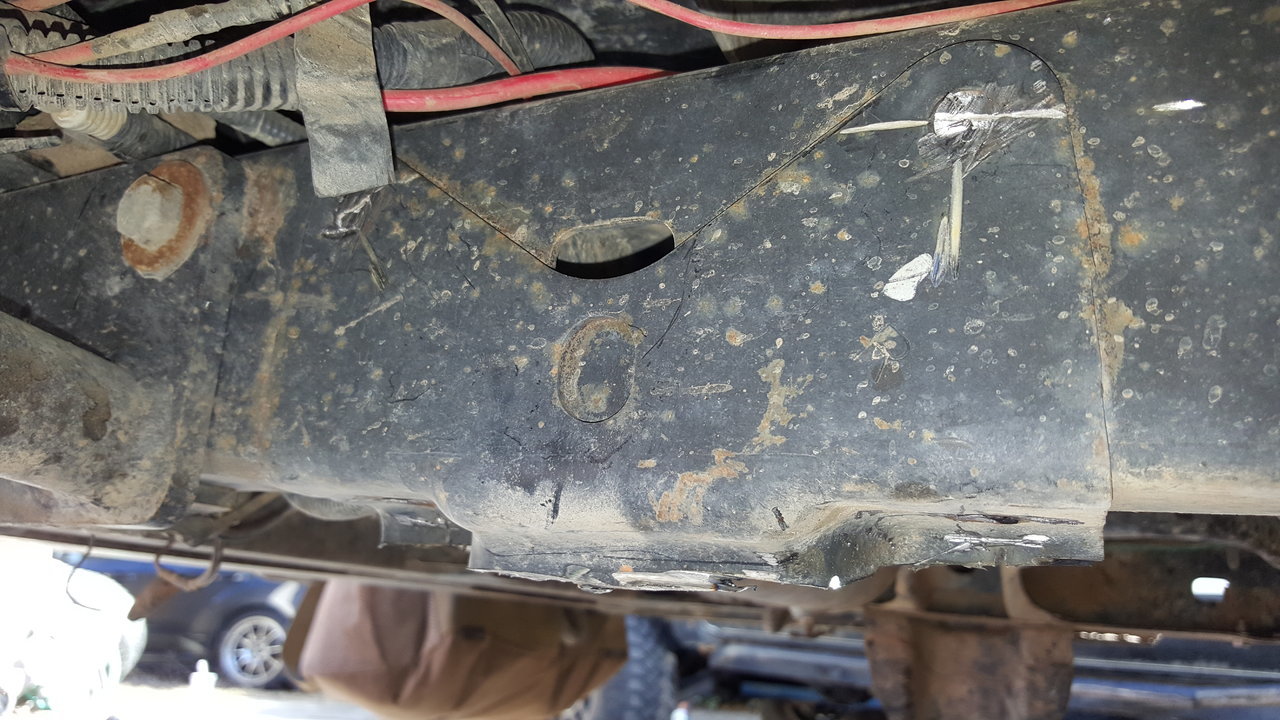

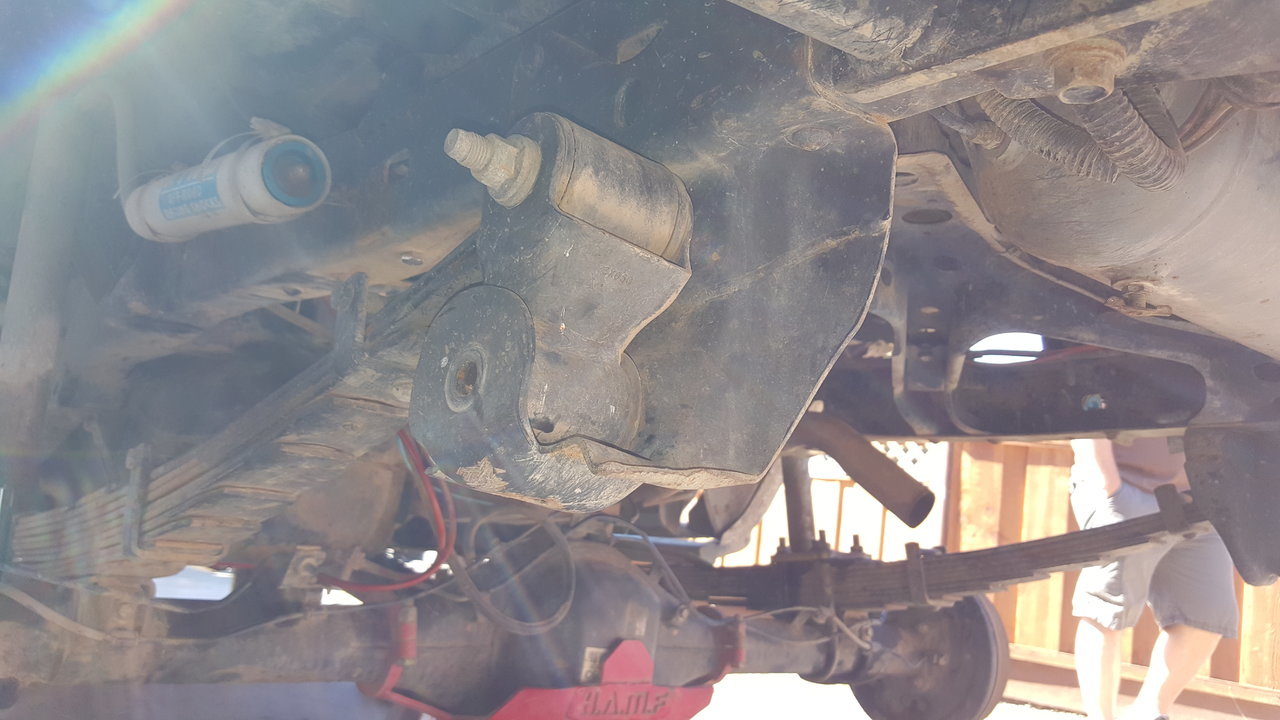

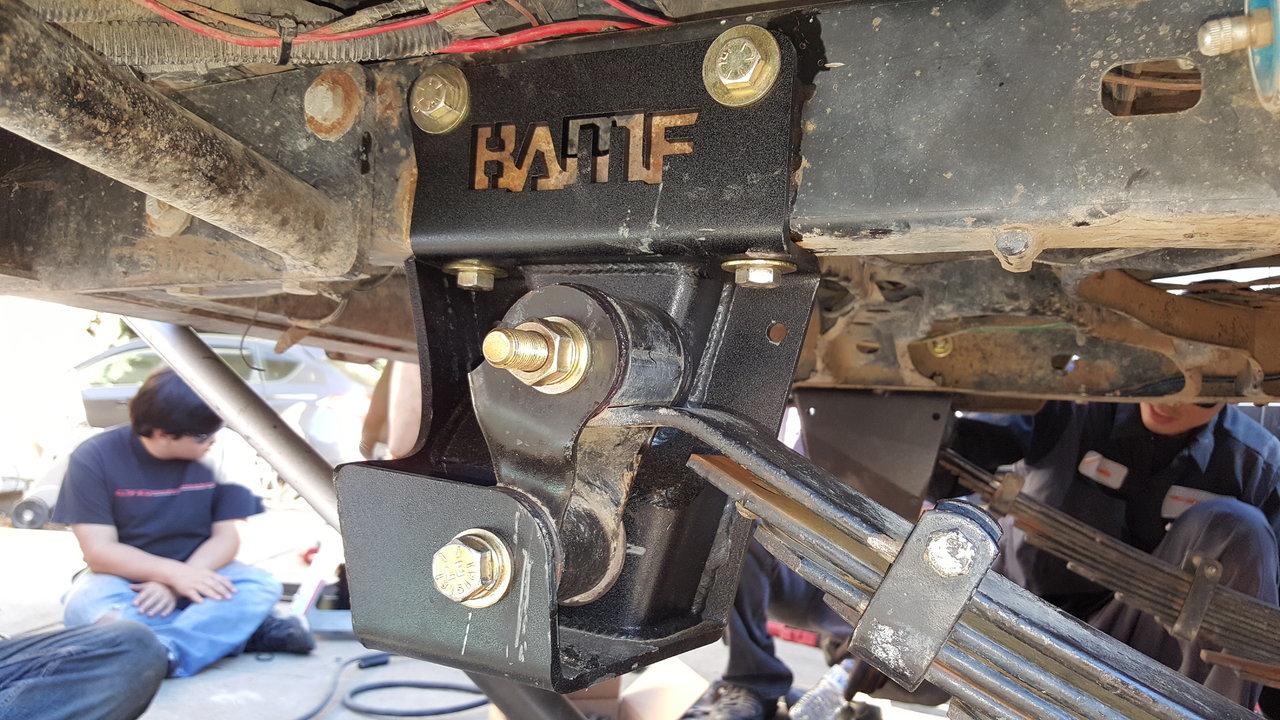

BAMF HD Shackle hangers

Discussion in 'Bay Area Metal Fabrication' started by JLee, Jun 13, 2017.

Page 6 of 81
  1. Dec 14, 2017 at 12:29 PM
    #101
    NYCO

    #101
    NYCO go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    19,121
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches

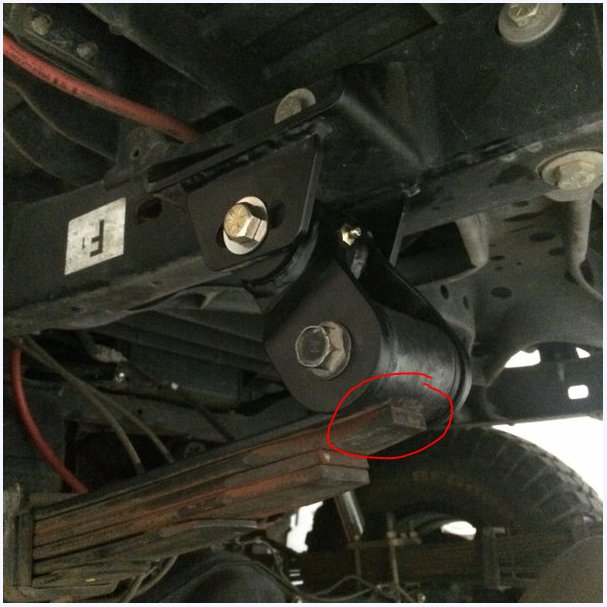

    he answered that with the photo above...that's what i was thinking but the ATO is a different design

    NYCO, Dec 14, 2017
    #101
    ragincajun35[QUOTED] likes this.
  2. Dec 14, 2017 at 12:31 PM
    #102
    NYCO

    #102
    NYCO go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    19,121
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    grind down the center gusset maybe? or see if someone local wants to trade a HD for a OEM? then order a BAMF when they're ready

    NYCO, Dec 14, 2017
    #102
    ragincajun35[QUOTED] likes this.
  3. Dec 14, 2017 at 12:35 PM
    #103
    ragincajun35

    #103
    ragincajun35 Well-Known Member

    Joined:
    Jul 4, 2013
    Member:
    #107595
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Spencer
    Louisiana
    Vehicle:
    2015 DCSB MG TRD Offroad
    See Builds....
    Yea the ATO doesnt have an orientation that i can tell. It has that center gusset that works fine with the shackle flip kit but when you invert them (stock setup) the center gusset is hitting the leaf spring. Im scrambling to try and get my truck put back together. Not sure what im going to do yet

    ragincajun35, Dec 14, 2017
    #103
  4. Dec 14, 2017 at 12:38 PM
    #104
    NYCO

    #104
    NYCO go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    19,121
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    if you can't modify the ATO or find an OEM...is there a junkyard that has a 05+ tacoma or an Cherokee XJ (83-01) that you can get a set of shackles off?

    NYCO, Dec 14, 2017
    #104
    ragincajun35[QUOTED] likes this.
  5. Dec 14, 2017 at 12:38 PM
    #105
    tetten

    #105
    tetten Cynical Twat Waffle

    Joined:
    Nov 2, 2014
    Member:
    #141581
    Messages:
    2,504
    First Name:
    Andy
    Socal
    I don't see any reason that leaf can't be trimmed a bit until it clears, I would just take a cut off wheel to it and call it a day

    tetten, Dec 14, 2017
    #105
    ragincajun35[QUOTED] likes this.
  6. Dec 14, 2017 at 12:38 PM
    #106
    ragincajun35

    #106
    ragincajun35 Well-Known Member

    Joined:
    Jul 4, 2013
    Member:
    #107595
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Spencer
    Louisiana
    Vehicle:
    2015 DCSB MG TRD Offroad
    See Builds....
    Perhaps this is a good option. Ill look. But ill still have to drill out the factory shackles from what it looks like

    ragincajun35, Dec 14, 2017
    #106
  7. Dec 14, 2017 at 12:43 PM
    #107
    JLee

    #107
    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,563
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

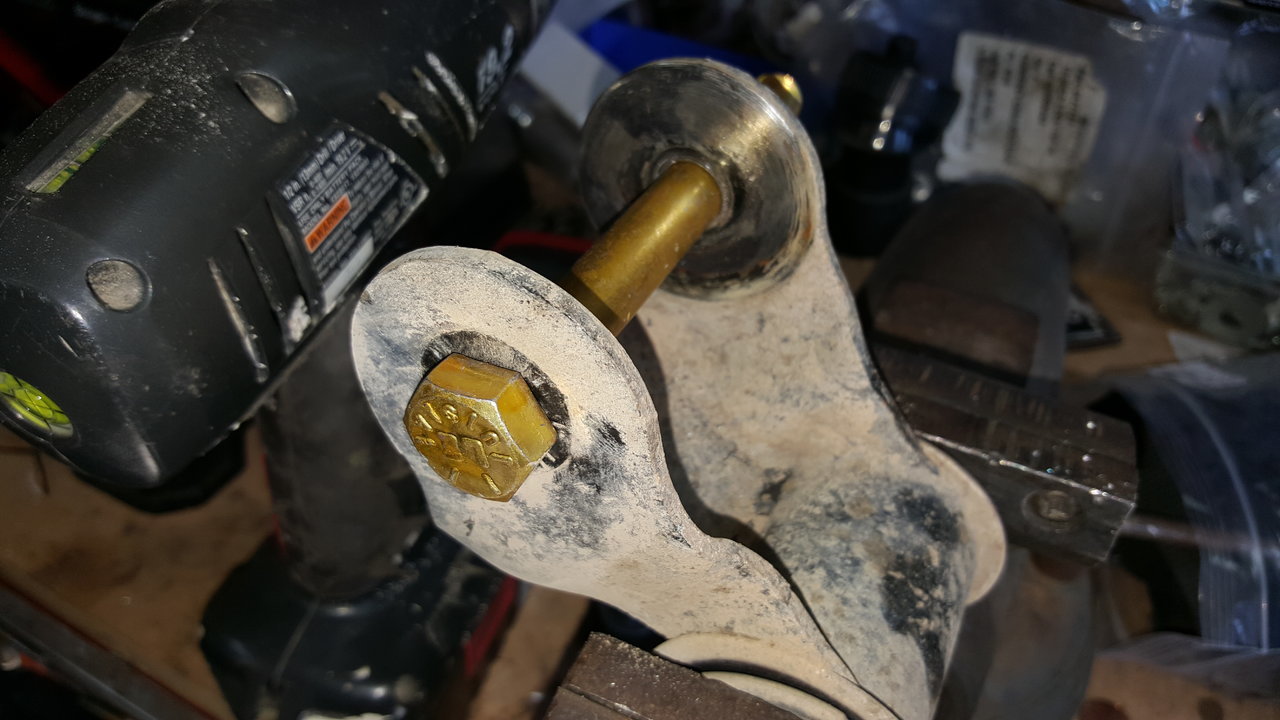

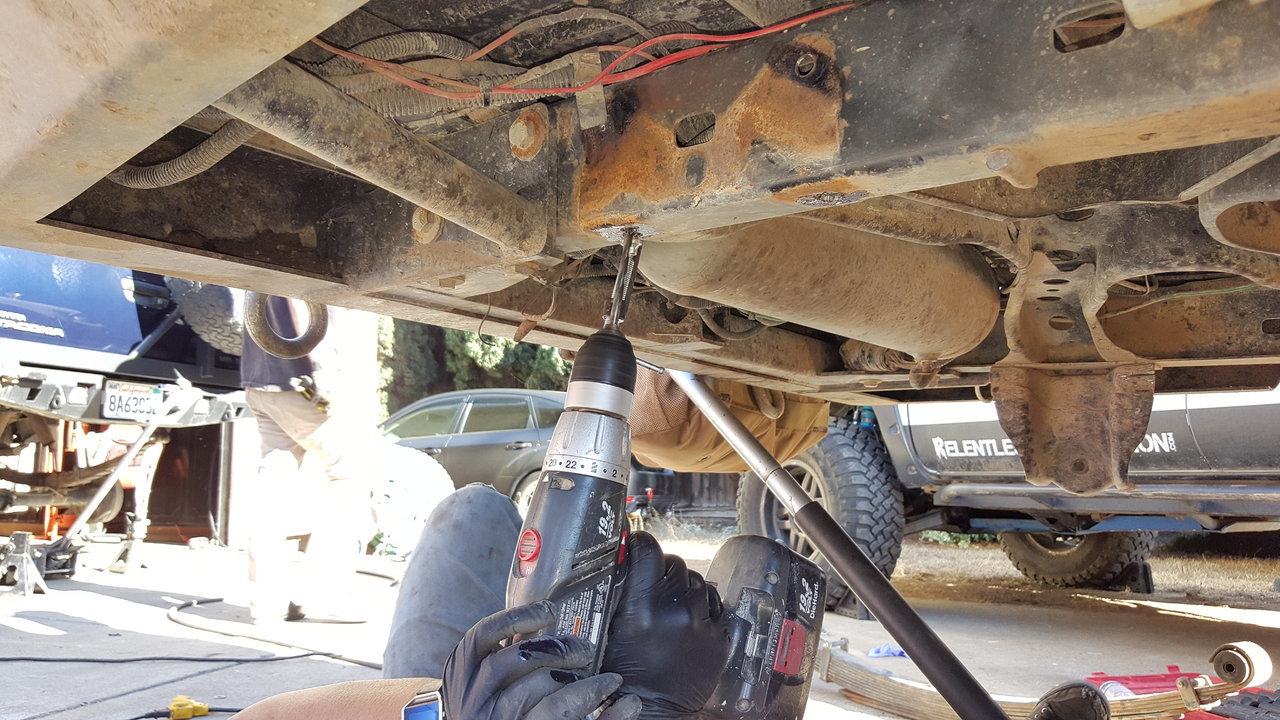

    It's very simple to drill the factory shackles. It's a split sleeve in the bushing that fits the 9/16th bolt to the center they are just misaligned ever so slightly so you have to drill it. And the other side is just 10 gauge stamped steel.

    JLee, Dec 14, 2017
    #107
    ragincajun35[QUOTED] likes this.
  8. Dec 14, 2017 at 12:45 PM
    #108
    ragincajun35

    #108
    ragincajun35 Well-Known Member

    Joined:
    Jul 4, 2013
    Member:
    #107595
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Spencer
    Louisiana
    Vehicle:
    2015 DCSB MG TRD Offroad
    See Builds....
    Thats good because going from 1/2" to 9/16" with a drill and a bit didnt go so well last night... need a drill press. Ill try and find some factory shackles.

    ragincajun35, Dec 14, 2017
    #108
  9. Dec 14, 2017 at 12:46 PM
    #109
    JLee

    #109
    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,563
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Yeah factory are pretty much 9/16th that's why we went with that over 1/2".

    JLee, Dec 14, 2017
    #109
    ragincajun35[QUOTED] likes this.
  10. Dec 14, 2017 at 2:21 PM
    #110
    ragincajun35

    #110
    ragincajun35 Well-Known Member

    Joined:
    Jul 4, 2013
    Member:
    #107595
    Messages:
    3,001
    Gender:
    Male
    First Name:
    Spencer
    Louisiana
    Vehicle:
    2015 DCSB MG TRD Offroad
    See Builds....

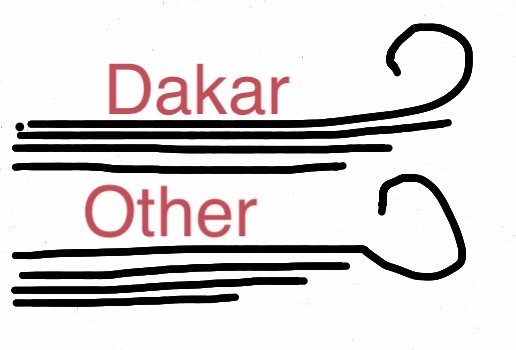

    Another observation... the ends of the Dakar springs seem to be different than others I've seen (deaver, all pro, etc). The ends of the main leaf goes straight into the bend. Also the second and third leafs go much further back. Sorry for the crude drawing. For factory shackles this doesn't seem to be a problem but just wanted to point that out.


    Also I got my hands on a set of factory shackles. Hopefully have everything buttoned up tonight. I'd like to place an order for your HD shackles when you start putting those together @JLee

    ragincajun35, Dec 14, 2017
    #110
    bsp_taco and NYCO like this.
  11. Dec 14, 2017 at 2:28 PM
    #111
    JLee

    #111
    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,563
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    They shouldn't be a problem on ours as well they wont have a gusset in the center like the ATO. It will be more like stock but .250" plate.

    JLee, Dec 14, 2017
    #111
    tacoma16 likes this.
  12. Dec 14, 2017 at 2:38 PM
    #112
    jberry813

    #112
    jberry813 Professional Fluffer Moderator

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    28,471
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    2012 DCSB Sport
    ...too much shit to list.

    Some small additions:
    Make sure to use anti-seize on the 4 bolts that go through the bushing sleeves.

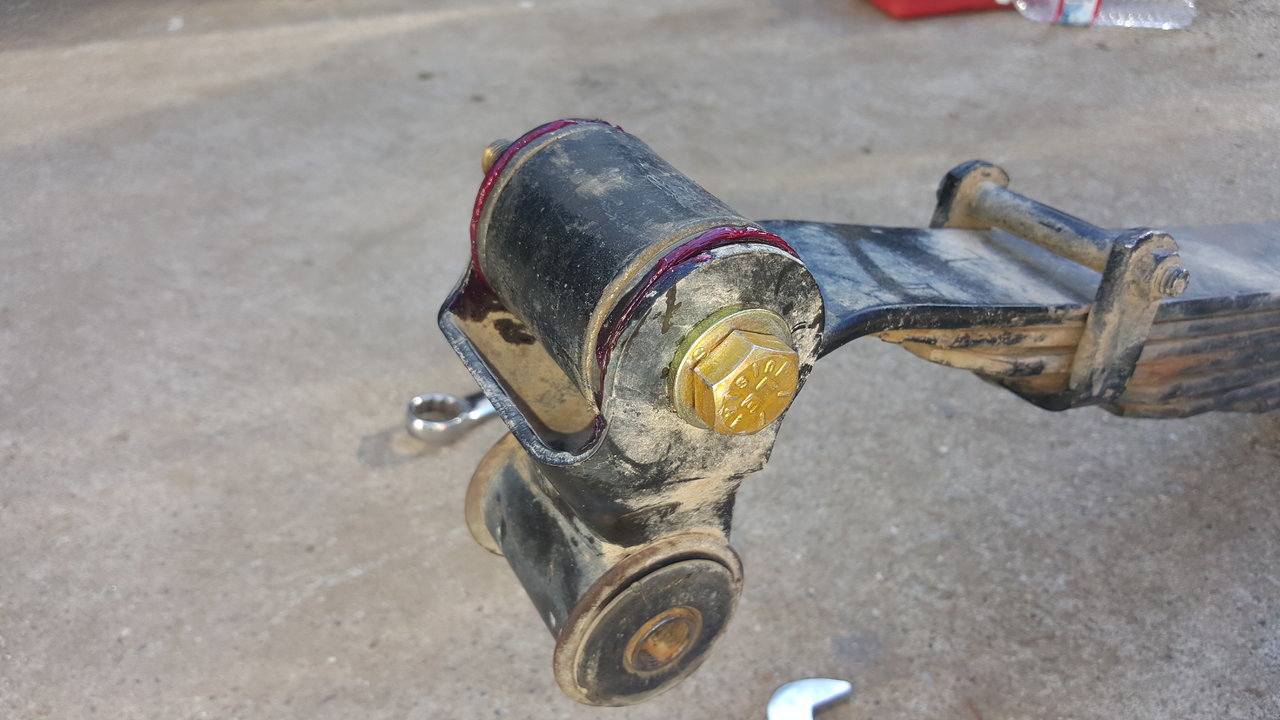

    Deaver uses a 9/16" sleeve and can accept a 9/16" bolt or the factory M13 bolt.
    Dakar and OEM leaf packs use a M13 sleeve and a 9/16 bolt will not fit. If you have dakars or OEM, just use the stock bolts you already have and throw the spare 9/16" hardware in your box-o-shit.

    If you have ATO shackles
    ATO shackles use 1/2" hardware and sleeves. The sleeves are plenty thick. All you need to do is drill out the sleeve to 9/16" to fit the AT shackle into the BAMF hanger with the 9/16" hardware. Don't use shitty drill bits for this process. Make sure you have a quality bit and use cutting fluid or diff oil to keep the drill bit happy. If it gets hot, let it cool down so you don't ruin the drill bit.
    As for the opposite side of the ATO shackle, again this will depend on your leaf pack. Stock packs or Dakar, just use the factory M13 hardware and don't worry about the included 9/16" hardware. For Deaver, you have your option to use the factory M13 hardware, or drill out the holes on the ends of the shackle to 9/16" and use the included 9/16" hardware.

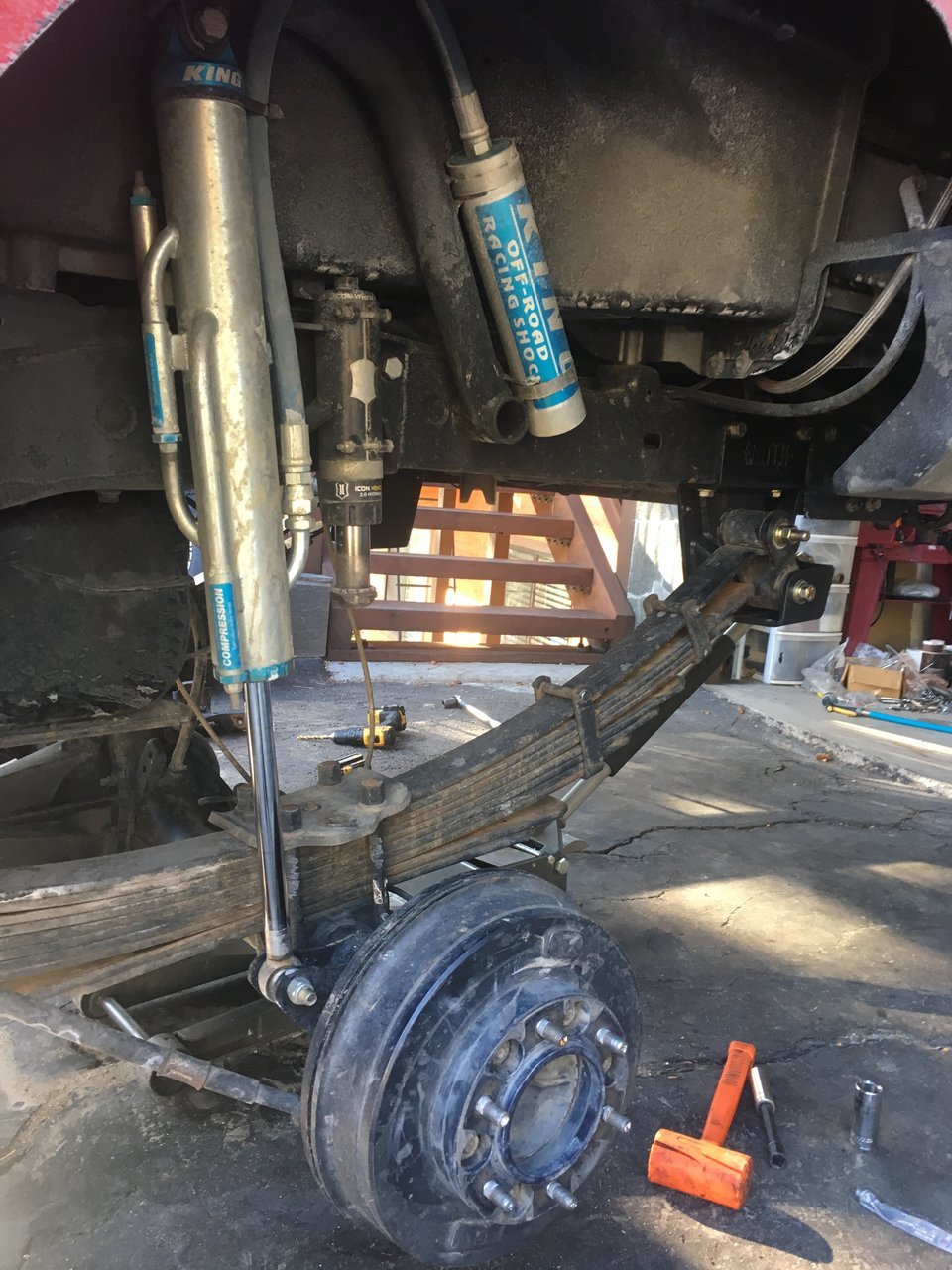

    Deavers with ATO and BAMF:

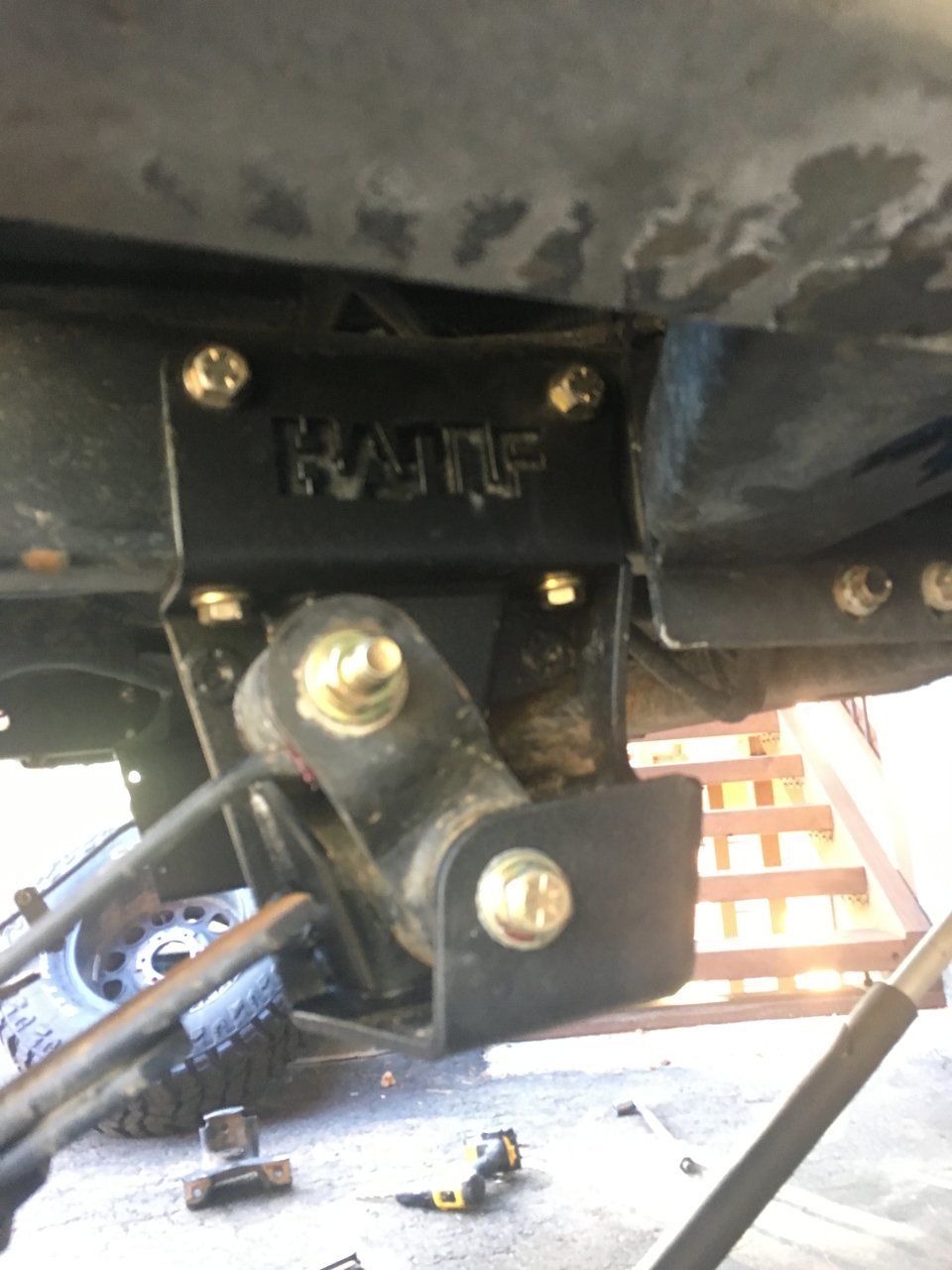

    Sorry I took this photo with a potato

    jberry813, Dec 14, 2017
    #112
    Overlanerd, Pirhett, JLee[QUOTED][OP] and 4 others like this.
  13. Dec 14, 2017 at 4:56 PM
    #113
    jberry813

    #113
    jberry813 Professional Fluffer Moderator

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    28,471
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    2012 DCSB Sport
    ...too much shit to list.
    @JLee this shit is doesn't work. I need a bigger rock on my property.


    jberry813, Dec 14, 2017
    #113
    TacoEspecial, MattCowsmasher, Overlanerd and 6 others like this.
  14. Dec 15, 2017 at 2:00 PM
    #114
    Arcticelf

    #114
    Arcticelf Well-Known Member

    Joined:
    Jul 18, 2015
    Member:
    #159735
    Messages:
    7,572
    Gender:
    Male
    Vehicle:
    Gladiator
    @JLee is there a reason to use a non-oem shackle either these?

    Arcticelf, Dec 15, 2017
    #114
  15. Dec 15, 2017 at 2:05 PM
    #115
    jberry813

    #115
    jberry813 Professional Fluffer Moderator

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    28,471
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    2012 DCSB Sport
    ...too much shit to list.
    Aftermarket gets rid of the stupid tension bushing that's in the stock shackle.

    jberry813, Dec 15, 2017
    #115
    Arcticelf[QUOTED] likes this.
  16. Dec 15, 2017 at 2:06 PM
    #116
    NYCO

    #116
    NYCO go explore...

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    19,121
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    OEM is non-greaseable. the BAMF and other aftermarket are greaseable

    and +45 EAF points

    NYCO, Dec 15, 2017
    #116
    RobertOchoa3, Overlanerd, jberry813 and 2 others like this.
  17. Dec 15, 2017 at 2:09 PM
    #117
    Arcticelf

    #117
    Arcticelf Well-Known Member

    Joined:
    Jul 18, 2015
    Member:
    #159735
    Messages:
    7,572
    Gender:
    Male
    Vehicle:
    Gladiator
    Are the bamf ones for sale yet?

    Arcticelf, Dec 15, 2017
    #117
    ragincajun35 likes this.
  18. Dec 15, 2017 at 2:29 PM
    #118
    JLee

    #118
    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,563
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    You can order them with a hanger kit that will be shipping in January. but not as a stand alone item.

    JLee, Dec 15, 2017
    #118
    Wagsbro likes this.
  19. Dec 16, 2017 at 5:35 AM
    #119
    Arcticelf

    #119
    Arcticelf Well-Known Member

    Joined:
    Jul 18, 2015
    Member:
    #159735
    Messages:
    7,572
    Gender:
    Male
    Vehicle:
    Gladiator
    I've got a pending order for a hanger, with cross-member. Any chance of adding shackles to that?

    Arcticelf, Dec 16, 2017
    #119
  20. Dec 16, 2017 at 6:50 AM
    #120
    JLee

    #120
    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    19,563
    Gender:
    Male
    First Name:
    Jerry
    Benicia, CA
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Not a problem you will have to reply to the email confirmation you received when placing the order.

    JLee, Dec 16, 2017
    #120
