BAMF High Clearance rear bumper "Modular DUAL swing out"

Oh yeah



Thank you!

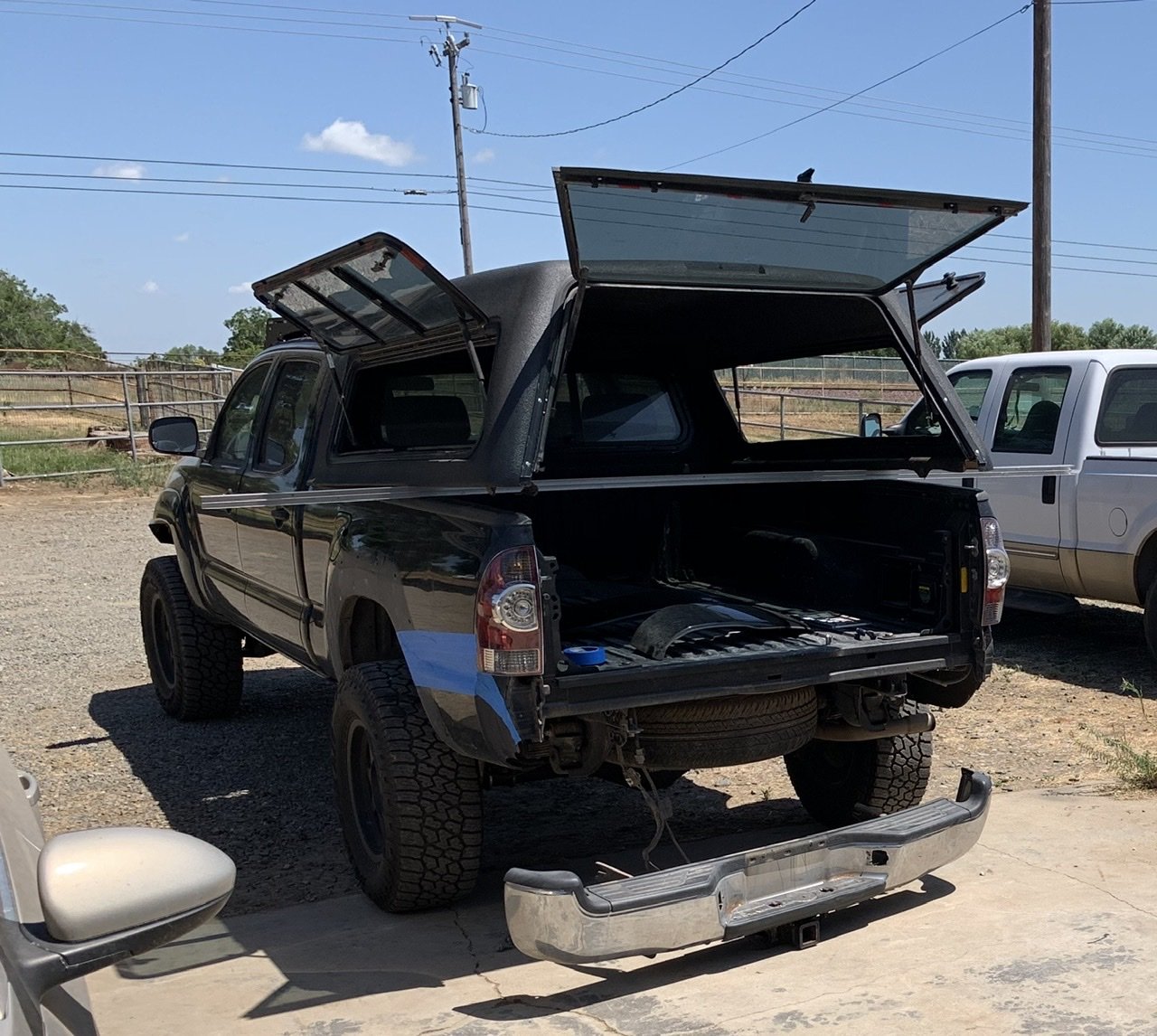

i should have them back Tuesday the 16th. Install that night and Wednesday and then we leave for wyoming/montana for ten days on friday!



Their has to be an easier way to install these shackle hangers than cutting the bed sides off



@foxrcing07 thanks for the tip.
Those are on my list of mods to come.



Anyone with a 2nd gen have pics of where or along what line you cut?
Thx

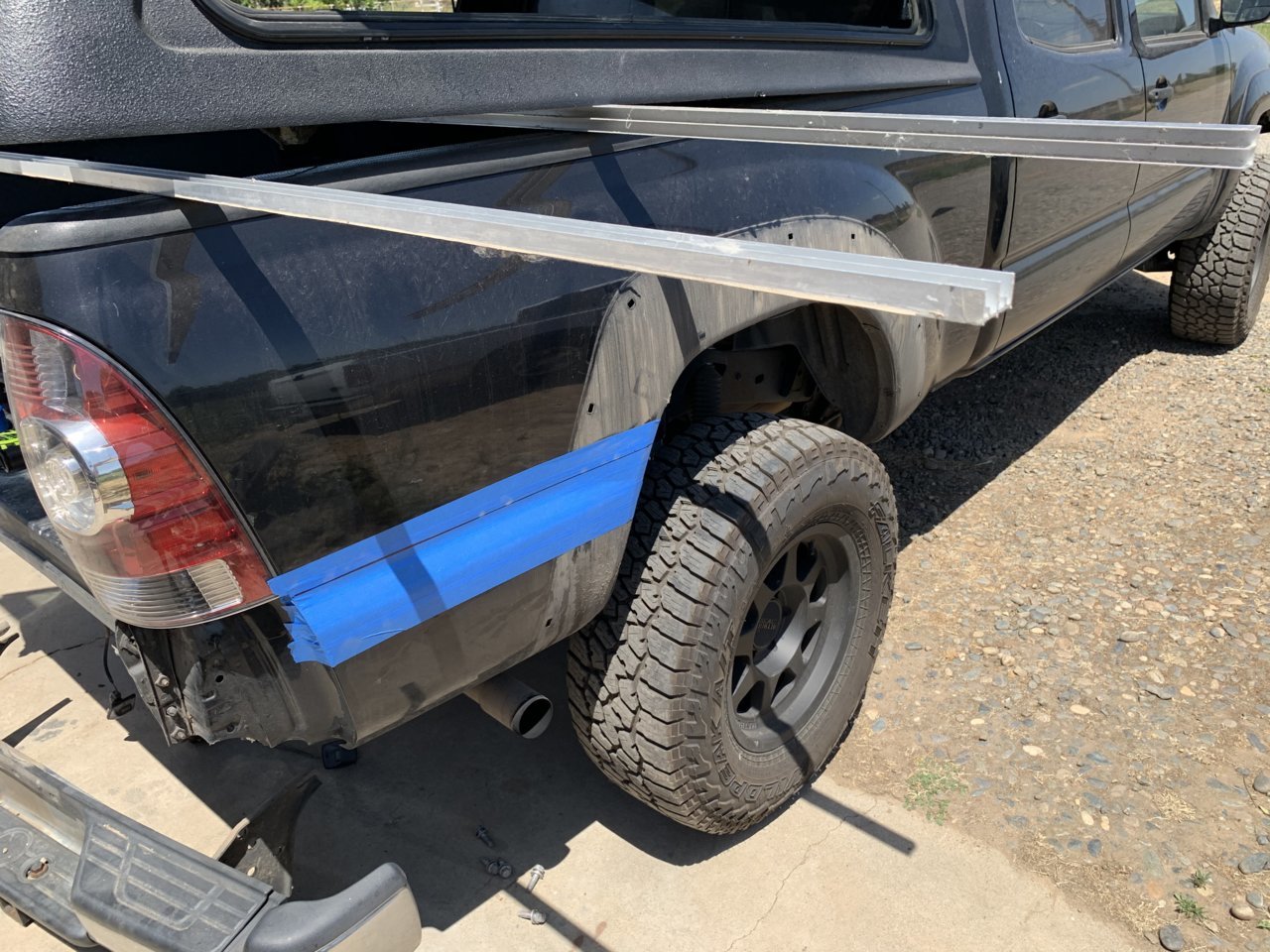

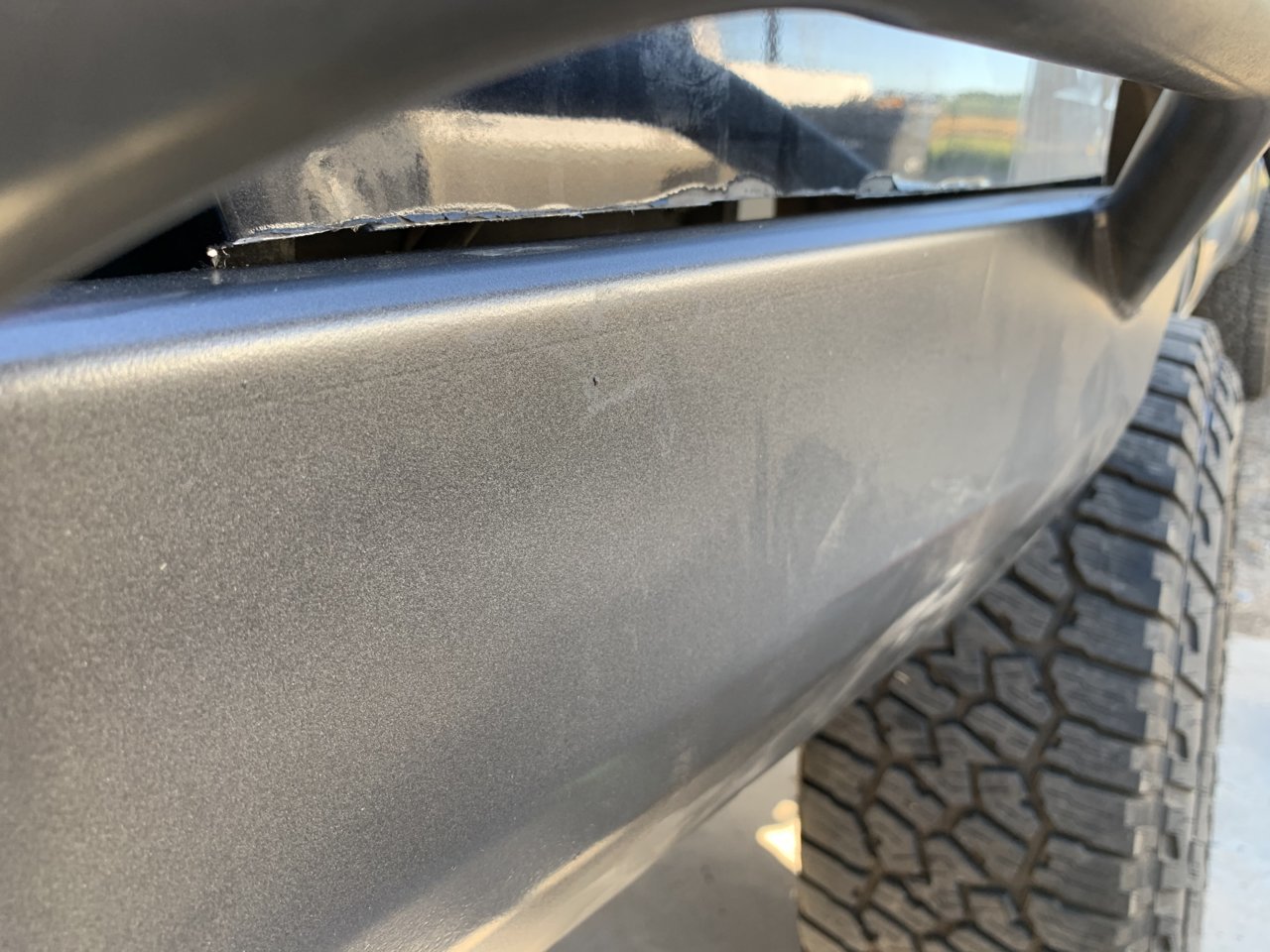

I went with a 1/4 inch below the tail light
We’ll see how it fits this afternoon



Kool.
What does the line follow?
Is it so many inches from the top of the fender or along a line that follows the shaped of the fender.
I'm trying to describe I see where you start the cut but how is the line you cut along determined.
I wouldn't think its a line level to the ground.



I think the line would be parallel to the top of the bed.



That's the perfect gif Brother!

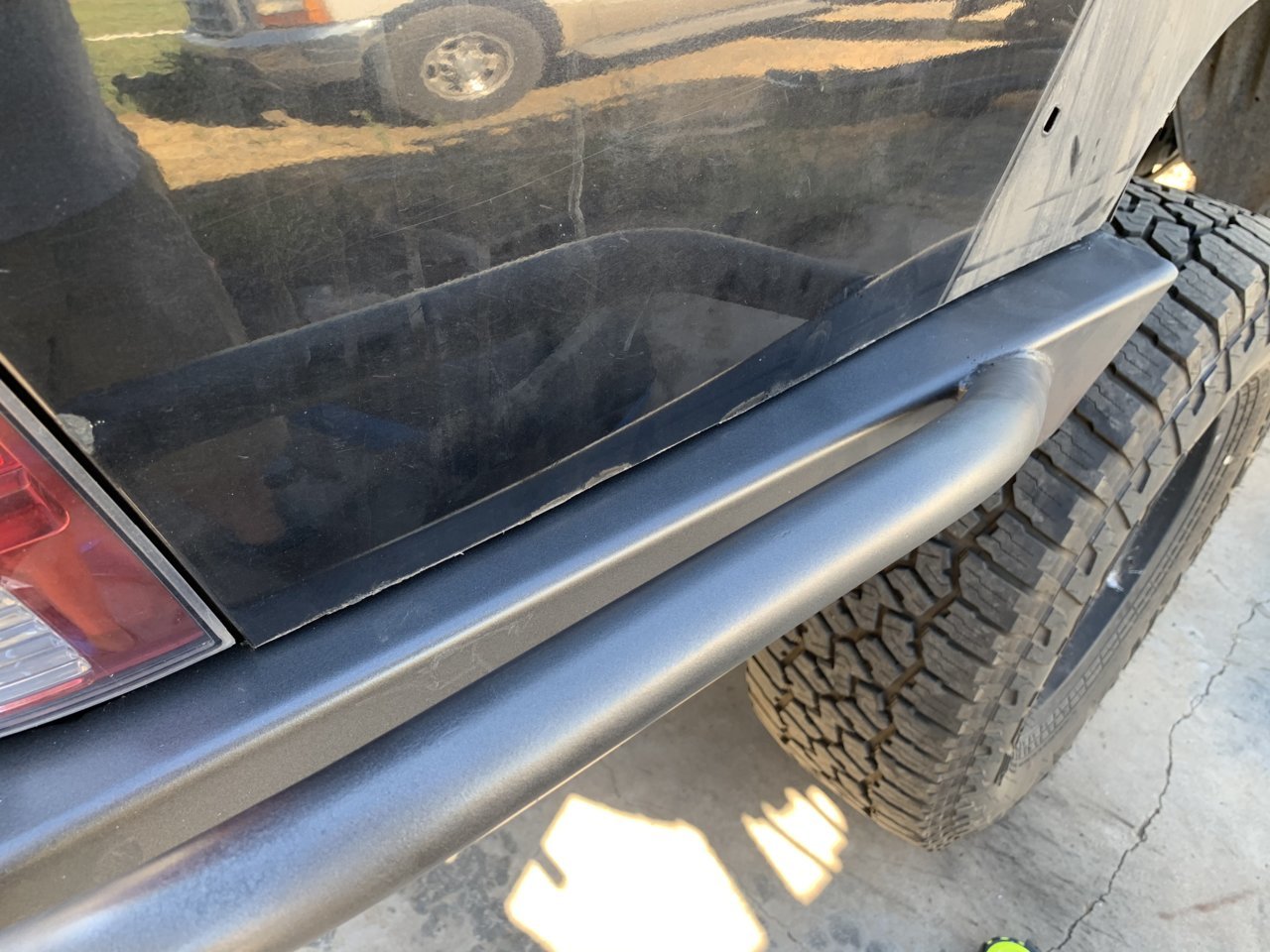

@foxrcing07 Can you post an after shot so I can see cut fender along the bumper.
Thx again



Yea I’ll get that

it will be later tonight tho I’m helping the neighbor put up his shop right now

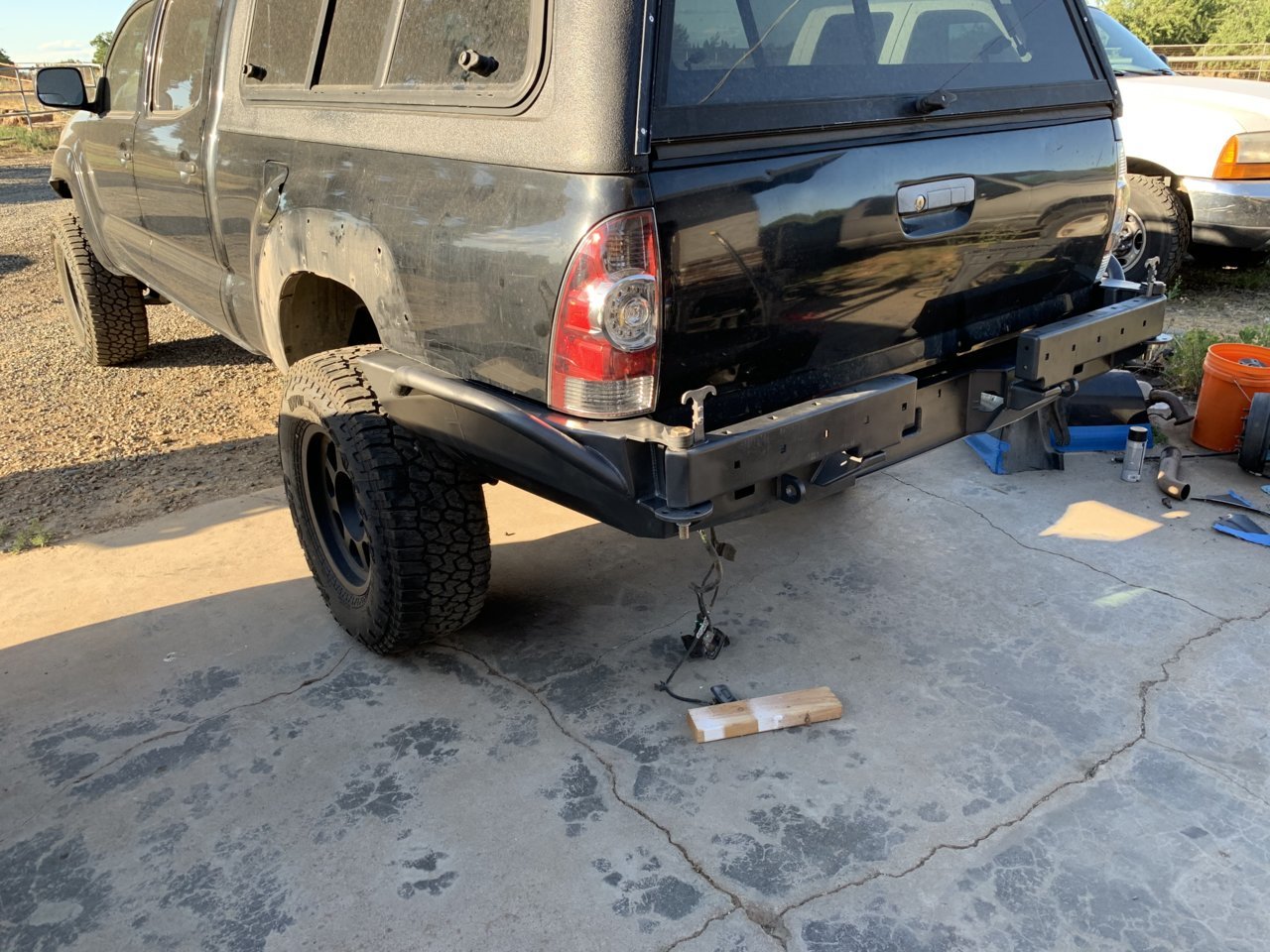

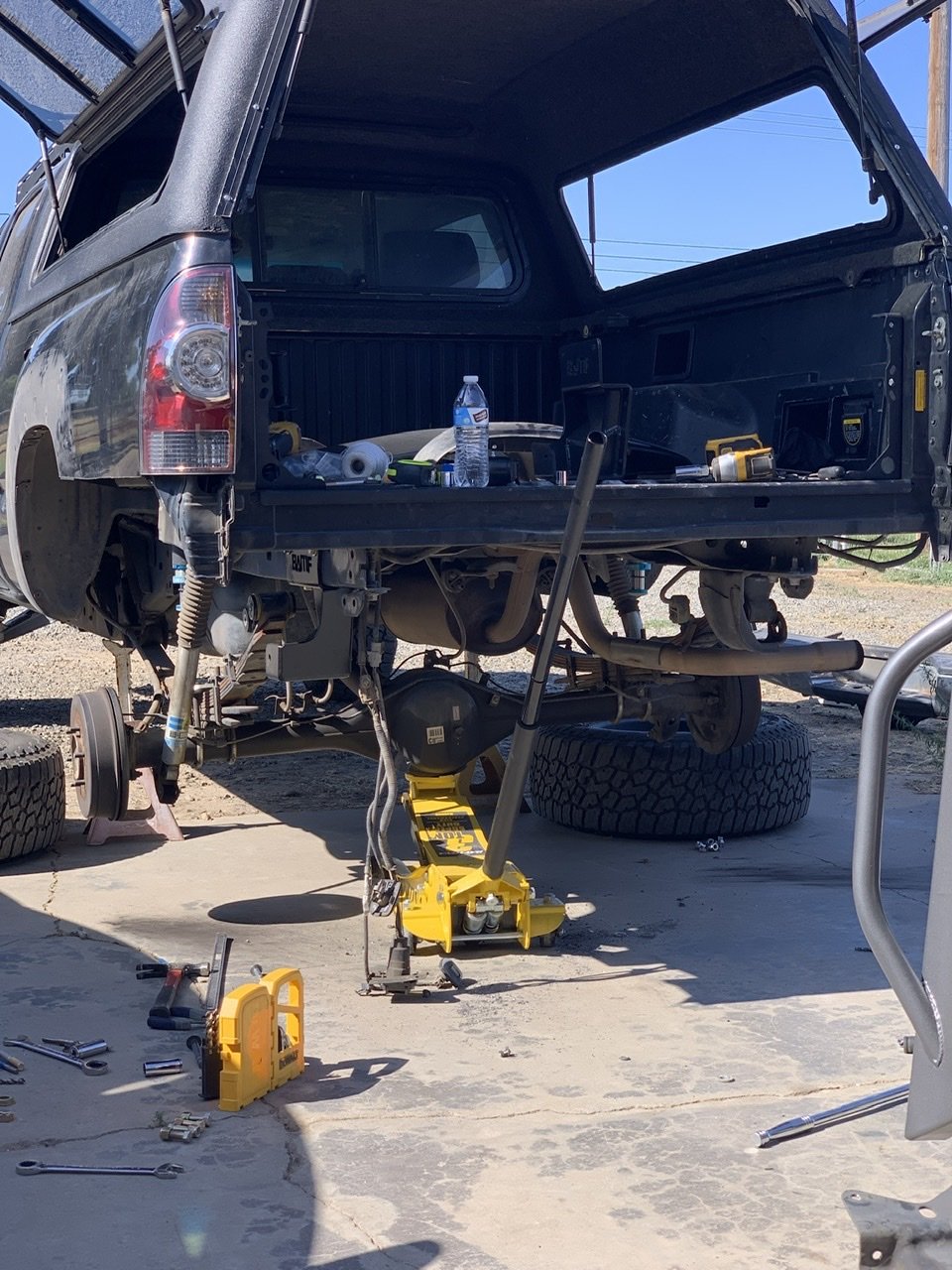

More pictures and instructions later but here’s a few



looks good man!



My input towards install/parts breakdown
If I did something wrong @JLee can you let me know so I can correct this post
And sorry for the big post

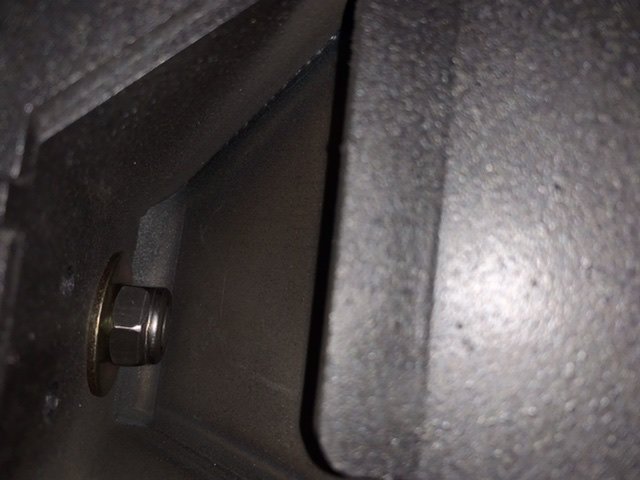

1st I wish I had installed the post for the latch before I installed the bumper, it would have been way easier to get the nut on the backside
3/4” or a 19mm wrench and socket

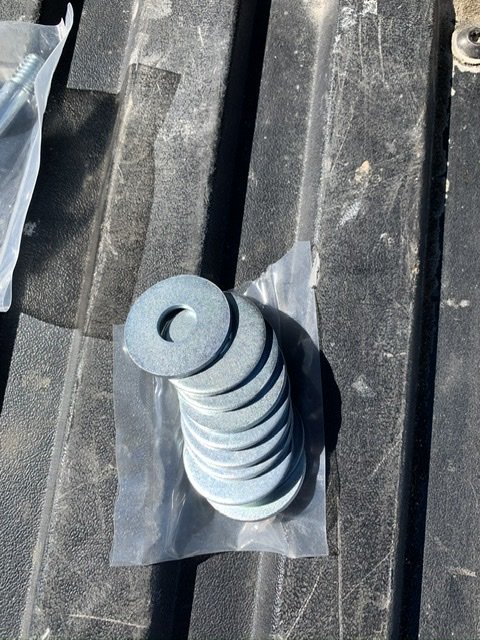

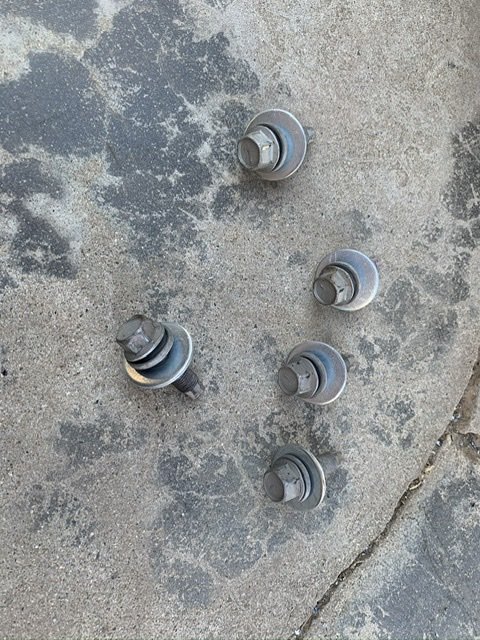

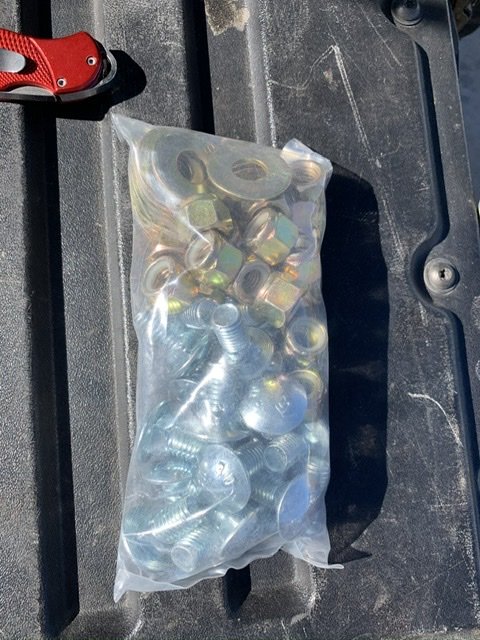

these washers were for the bolts to the frame

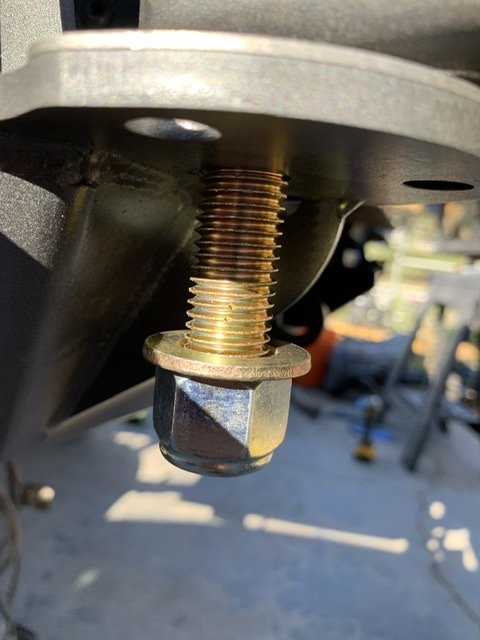

17mm

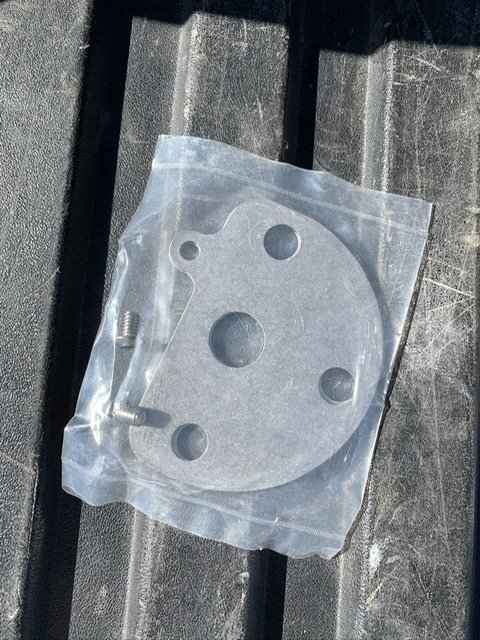

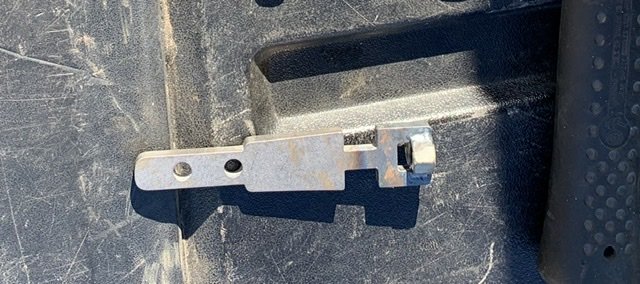

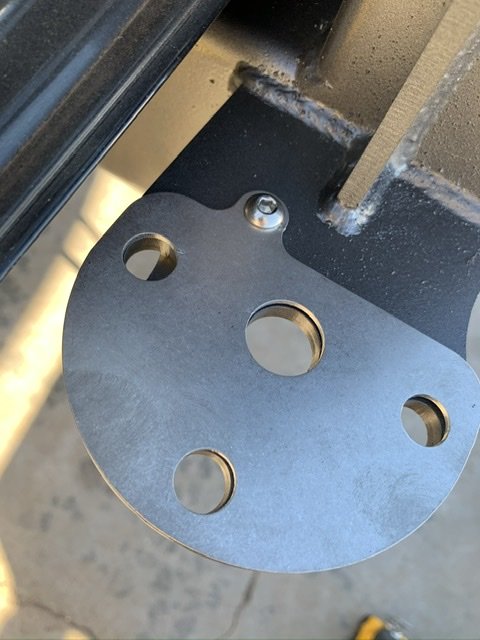

Wear plate for the swing outs/locking pin

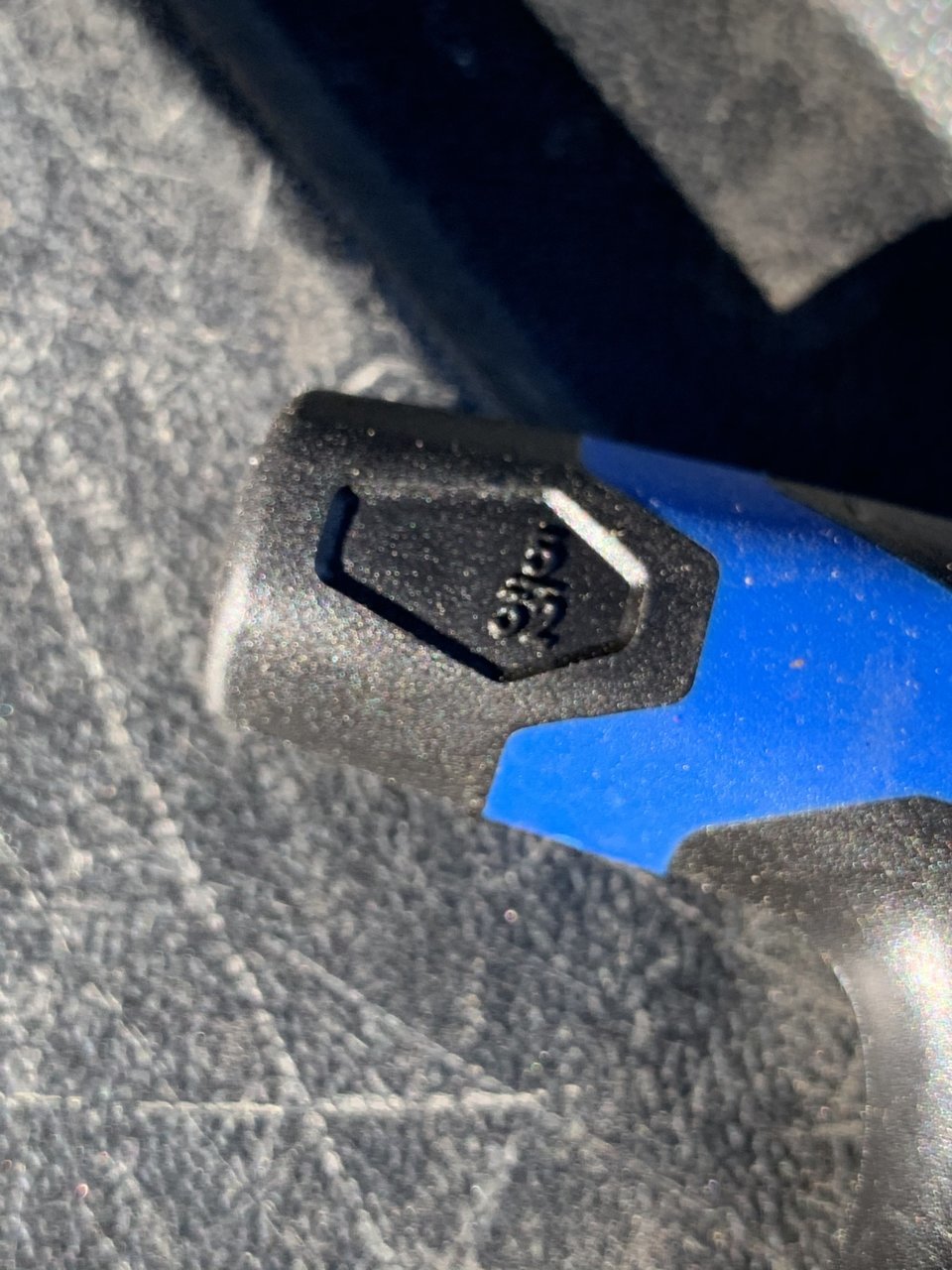

5/32” Allen wrench

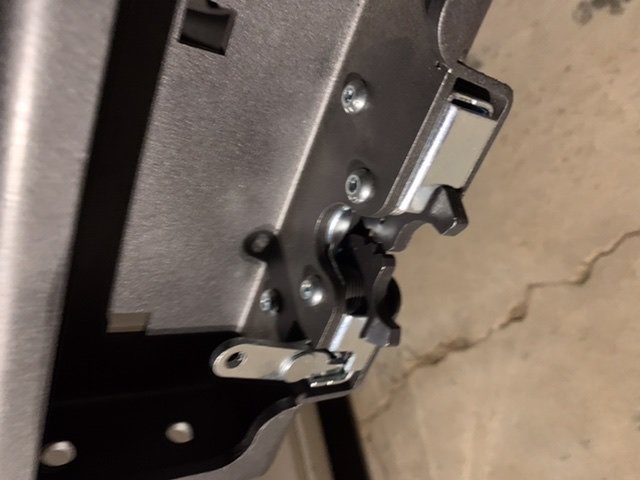

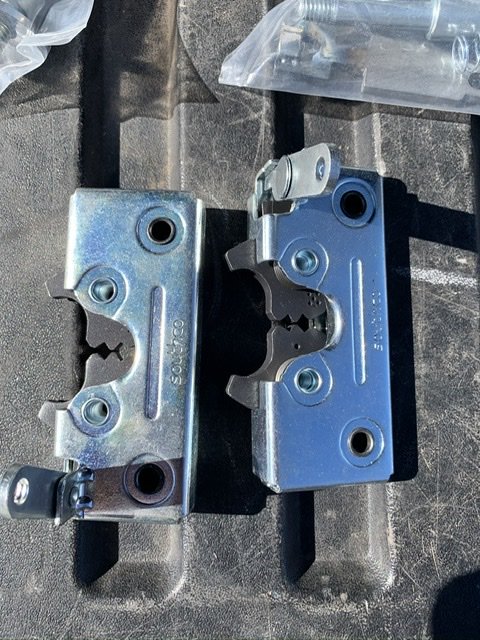

Swing position latch
Install this before installing the swing outs onto the bumper


this piece slides in from the opening and takes a little maneuvering to get into place

I installed he swing arms and had to remove to install the hardware

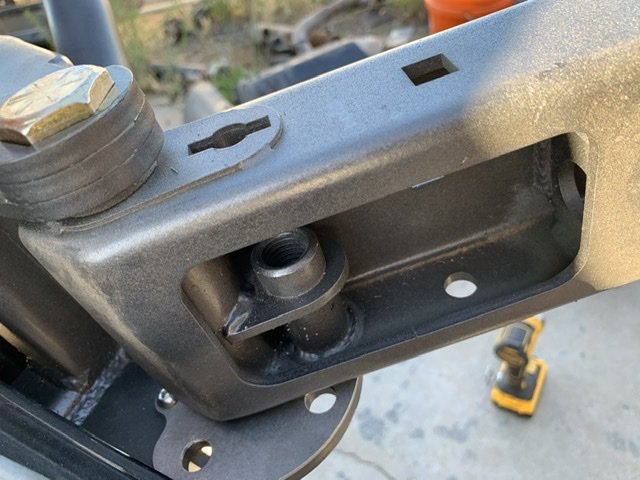

the externally threaded sleeve goes in and tightened

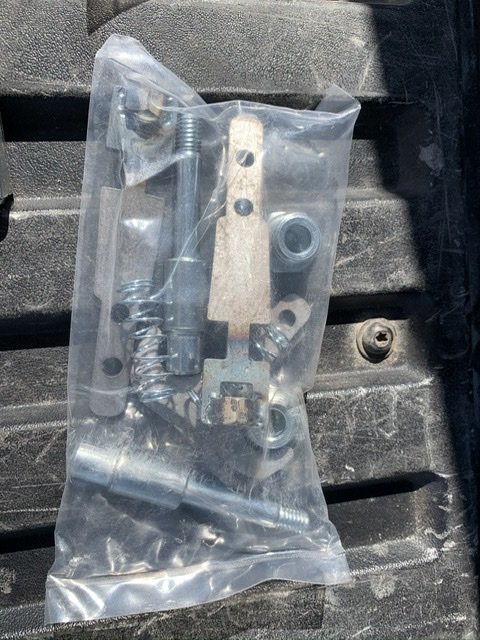

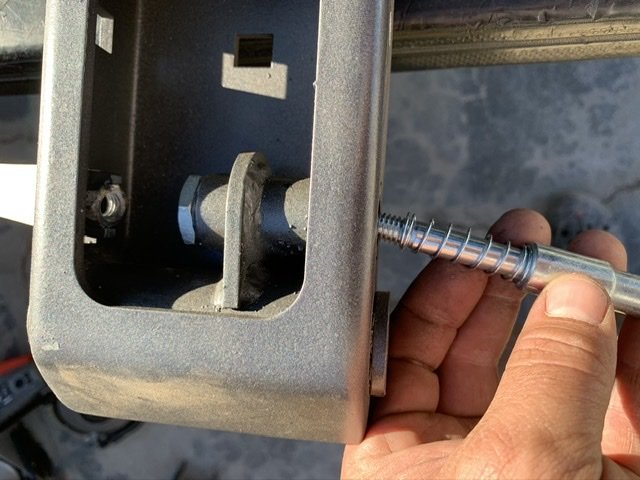

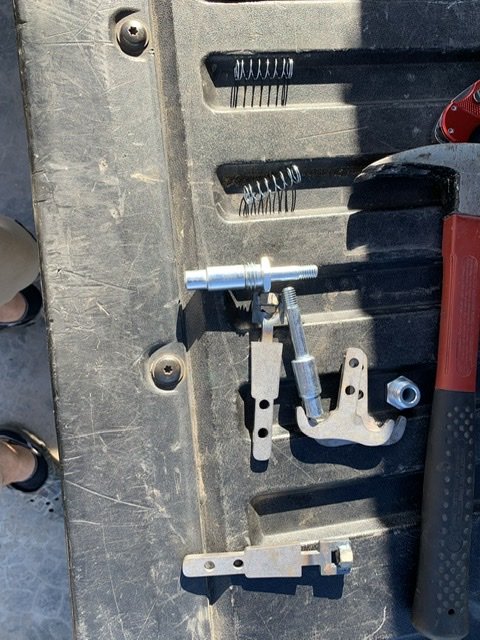

Then the pin and spring from he bottom and they thread into the top piece

Latches also use 5/32” allen


now that the latches are installed

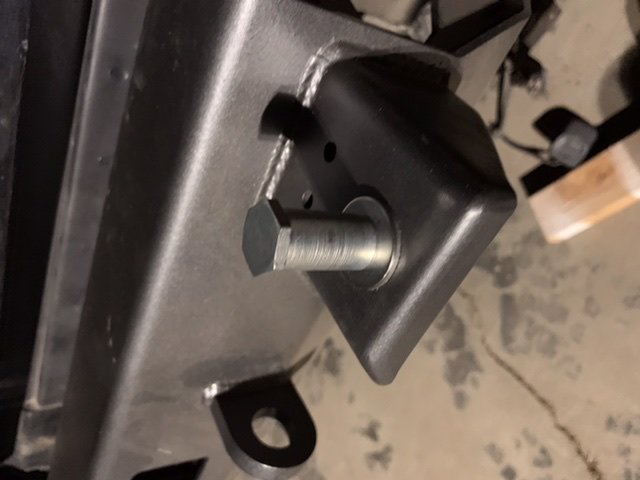

Install swing outs the bolt slides down into hex slot

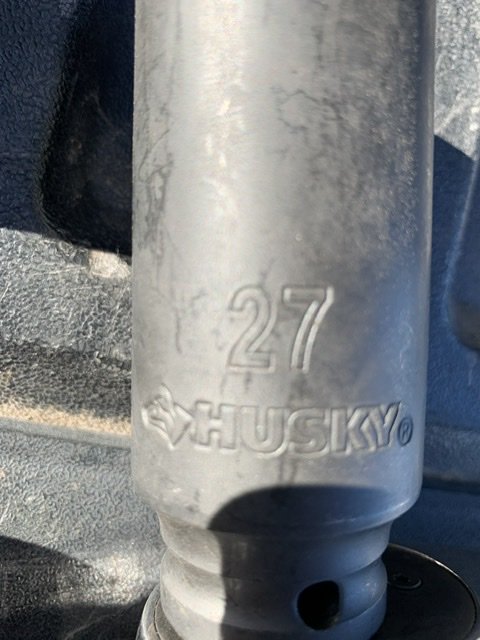

I used a 27mm, it’s probably standard, but the 27mm fit perfectly for me

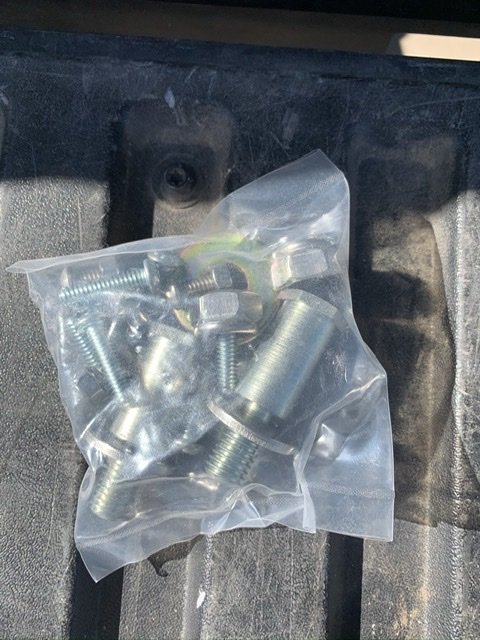

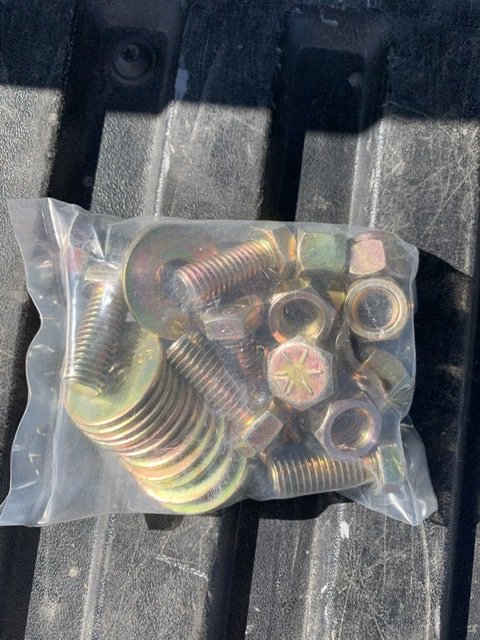

Accessory hardware (tire carrier, etc....)

Swing arm to modular plate hardware



Correct I did parallel to the top of the bed



@foxrcing07 you're awesome, thanks again.

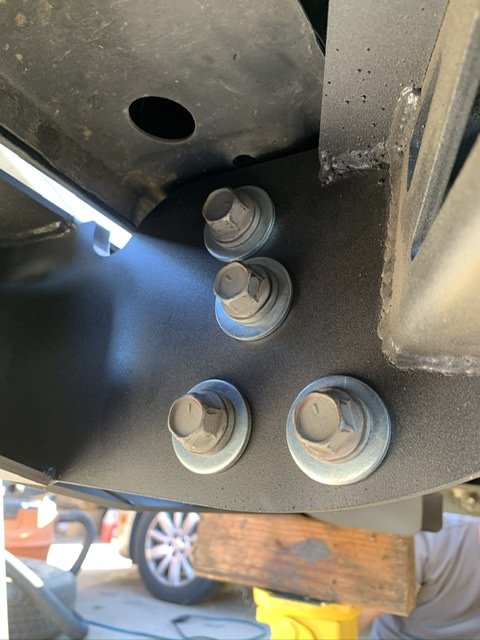

Looks really good man! What are the bottom to bolts attached to on the mounting plate to the frame? Is it that little OEM long L shaped bracket? Because i need to get those if that is the case



Correct the bottom holes are the L bracket on the bottom of the frame.
