BAMF Rock sliders "most" Trucks

Yeah this is really not a GB the next 10 orders no matter how long will get 20% off so it could take a week/ a month or even 12 hours



You are both the angel on my shoulder and the devil on my shoulder. I'm going to get off TW and study for my final that's in two hours haha before I buy more shit I can't afford.



To bad your skid plates aren't ready



That's exactly what I said!!!!


SO.....I decided to draw some up myself, and test out my fab'ing skillz...





We'll see how close I can get to making BAMF quality...



how do i get them and how much?

Specs

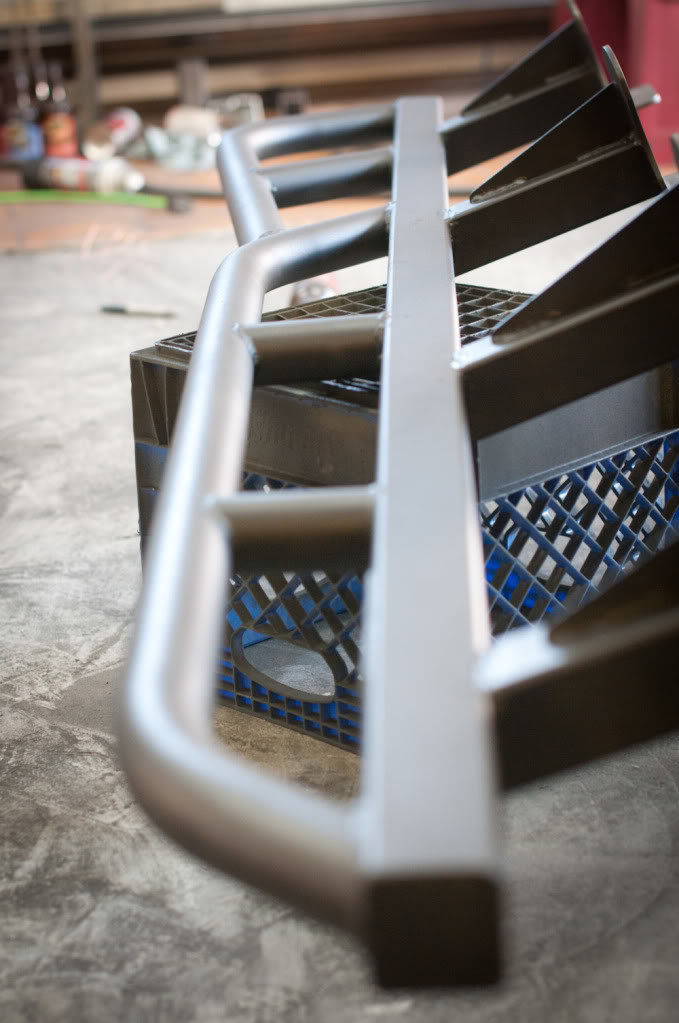

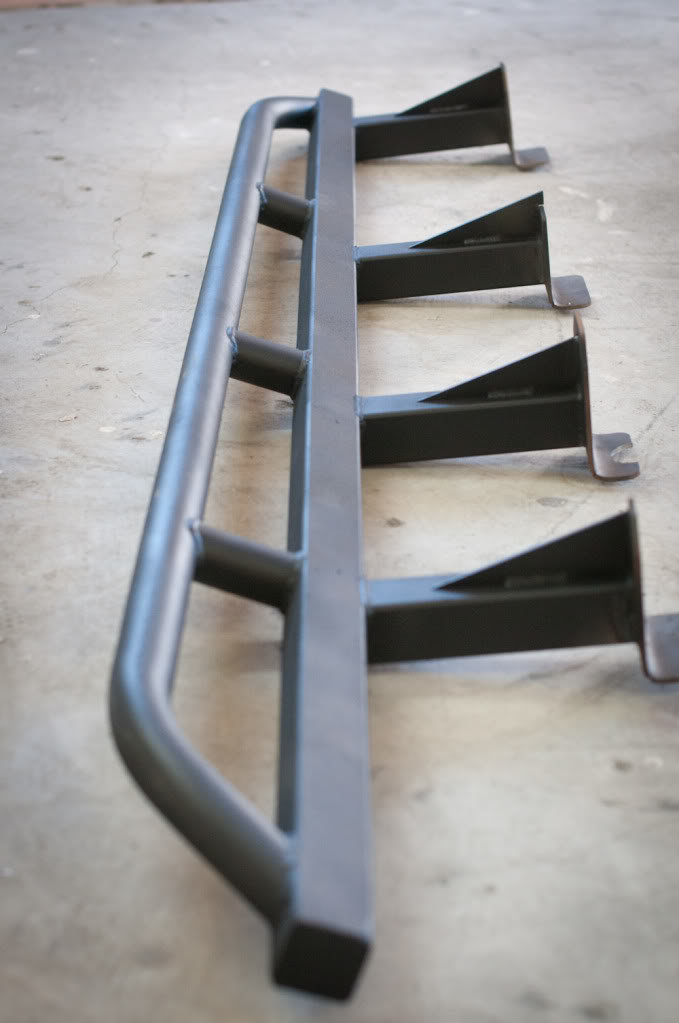

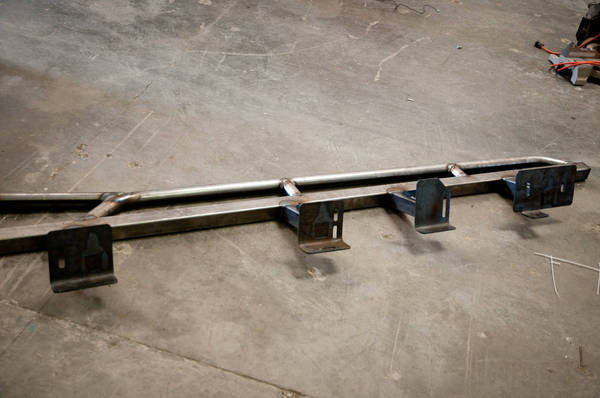

Built from 1.75" .120 wall HREW or DOM bent, notched and fully welded to a 2x2 square tube with square legs and 3/16th frame plates and gussets. The sliders have a 1.5" taper towards the rear of the truck to aid in pushing the truck away from obstacles. With a added kick out (highly recommended for longer wheel base trucks) they will stick out 3.5" past the slider.

Some people ask why I use a square tube here is your answer
2 x 2 .120 square has nearly the same MOI (Moment of Inertia) as the 2 x 250 round, and is 35% lighter still (or 25% stronger and less than half the weight of the 1.75 x .5 round)


OD_ / ID_ = ....MOI........ Weight
.......... round square ,round square
1.5 /.120 = .125 , .212 , 1.77 , 2.25
1.5 /.188 = .170 , .289 , 2.63 , 3.35
1.5 /.250 = .199 , .339 , 3.34 , 4.11
1.5 /.375 = .233 , .... , 4.51
1.5 /.500 = .245 , .... , 5.34

1.75/.120 = .205 , .348 , 2.09
1.75/.188 = .285 , .484 , 3.14
1.75/.250 = .341 , ....., 4.01
1.75/.375 = .411 , .... , 5.51
1.75/.500 = .445 , .... , 6.68

2.0 /.120 = .314 , .534 , 2.41 , 3.05
2.0 /.188 = .444 , .754 , 3.64 , 4.32
2.0 /.250 = .537 , .911 , 4.67 , 5.41
2.0 /.375 = .666 , .... , 6.51
2.0 /.500 = .736 , .... , 8.01

2.25/.120 = .457 , .... , 2.73
2.25/.250 = .798 , .... , 5.34
2.25/.375 =1.01 , ..... , 7.51
2.25/.500 =1.138 , .... , 9.35

2.5 /.120 = .637 , .... , 3.05
2.5 /.250 =1.132 , .... , 6.01
2.5 /.375 =1.457 , .... , 8.51
2.5 /.500 =1.669 , .... ,10.68



HREW Prices PM for current DOM price

63" (Regular Cab Tacoma's and FJ Cruisers) $275.00
Kick out add $30.00
Filler plates $115.00

68" (3rd Gen 4Runner) $290.00
Kick out add 30.00
Filler plates $115.00

79" (05 to 12 Tacoma DC) 80" (95 to 04 Tacoma's EX cab & DC) $300.00
1st Gen Extra Cab Kick Up's $100.00
Kick out add $40.00
Filler plates $125.00

96" (05 to 12 Tacoma DCLB) $350.00
Kick Up's $75.00
Kick out add $50.00
Filler plates $150.00

Bolt on is $100.00 extra for all trucks.

For local customers PM me for installation prices.

Ordering can be done Via PM or you can simply go HERE and place your order

The key: Blue during the build: Orange Paid in full: Red shipped/installed

Orders
1. Bryan DCLB W/Kickout
2. Zlagger DCLB W/Kickout
3. 06RadiantRed EX cab
4. HIYota DCSB W/Kickout
5. hawker25 DCSB W/Kickout
6. Yep 1st Gen DC W/Kickout
7. deejaecee DCSB no/Kickout
8. sytfu510 DCLB W/Kickout & Filler plates
9. Rucas 1st Gen Extra Cab no/Kickout
10. SCSPerformance 1st Gen Extra Cab W/Kick up
11. xrmitchell Access Cab no/kickout
12. dollabill415 DCLB W/Kickout
*13. Piratefish DCSB W/Kickout Installing in May
14. bulhas DCLB W/Kickup & filler plates
*15. ortlie09 Reg cab no/Kickout powder coat & install
16. darkgreentaco Access Cab W/kickout
17. chaz834 1st Gen DC no/Kickout
18. munkel 1st Gen DC W/Kickout
19. Blackdawg 1st Gen EX W/Kickout
20. deadhed61 DCSB W/Kickout
21. HuntnTruk AC No/Kickout
*22. tbturner47 DCLB No/Kickout & Bed Mounted Tire Carrier shipping with Tire Carrier
23. johnw DCSB No/Kickout
24. fishtacoz AC W/Kickout picking up 3/25
25. jr97tacoma 1st Gen EX No/Kickout + DIY Kick up's
26. rushr 1st Gen DC No/Kickout
27. red2last DCSB W/Kickout Installing in May
28. joeymgd78 DCSB W/Kickout BO
29. allian04 1st Gen EX W/Kickout
30. LT1 DCLB W/Kickout
31. BuzzardsGottaEat + Shipping AC W/Kickout no logo
32. Jo Dog DCSB no/Kickout
33. Kappes03 + Shipping AC W/Kickout
34. DrunknSloth + shipping 2nd Gen Access Cab w/ Kickouts
35. Dirty5Thirty 2nd Gen Access Cab w/o Kickouts
36. SCRunner12 picking up 68" 1st 4runner Order! W/ kickout installing soon
37. jky999 + shipping 2nd Gen no/kickout
38. htuong95 1st Gen Extra cab no/Kickout
39. Steezyskis 2nd Gen DCSB W/kickout Ready for pickup
40. Stan Humphries 2nd Gen AC bolt on W/Kick no logo powder coated
41. rhion82 + shipping 2nd Gen Double Cab w/ Kickouts
42. SJginger + shipping 2nd Gen Access Cab w/ Kickouts
43. rmerchant3 + shipping 2012 2nd Gen DCSB w/Kickouts
44. nieb15 Picking up 91 long bed, 66" w/ Kickouts
45. Idaholandho + shipping 2nd Gen DCSB w/ Kickouts bolt on
46. logcabinwc picking up 2nd gen DCSB w/ kickouts
47. TacoBran + shipping 1st gen DCSB w/ Kickouts
48. Loudpedal + shipping 1st gen Extra cab w/ kickout
49. NoSoup4You + shipping 2nd Gen DCSB No/Kickout
50. hpvds 2nd gen DCSB no taper Bolt-on
51. Spark4 + shipping 2nd Gen DCSB No/Kickout Bolt-on
52. 92shawman 1992 pickup extended cab W/kick out
53. xSectionxEightx + shipping 2nd Gen Access Cab W/Kickout
54. Tacoafloat 2nd gen DCSB no/kickout
55. ffdawson 2nd gen DCSB- w/kickout
56. justinhw picking up 2nd gen reg cab
57. jeffsdeere + shipping (2nd gen dcsb W/kickout mounted flat bolt on
58. ag4892 + shipping DCLB W/kickout bolt on
59. mclovin + shipping 2nd gen access cab No/Kick bolt and CMC plates
60. doja1234 + shipping DCSB W/kickout Bolt on PM about angle before mounting
61. TheGrinch picking up DCSB W/kickout
62. tooth sleuth + shipping DCSB W/Kickout
63. 05sctaco AC W/Kickout
64. cram89 AC W/Kickout
65. ant749S DCSB No/kickout Bolt on powder coated
66. sdwiredog + Shipping DCSB W/Kickout
67. BradleyJ33 + Shipping DCSB W/Kickout Bolt on
68. BradyT88 + shipping DCSB W/Kickout Bolt on
69. Web order non member DCSB No/Kick
70. drtydru 2nd Gen reg cab W/Kickout
71. stlstrs 1st Gen W/Kickout Bolt on TTORA
72. Hokiruu 1st Gen W/Kickout
73. WillzTaco

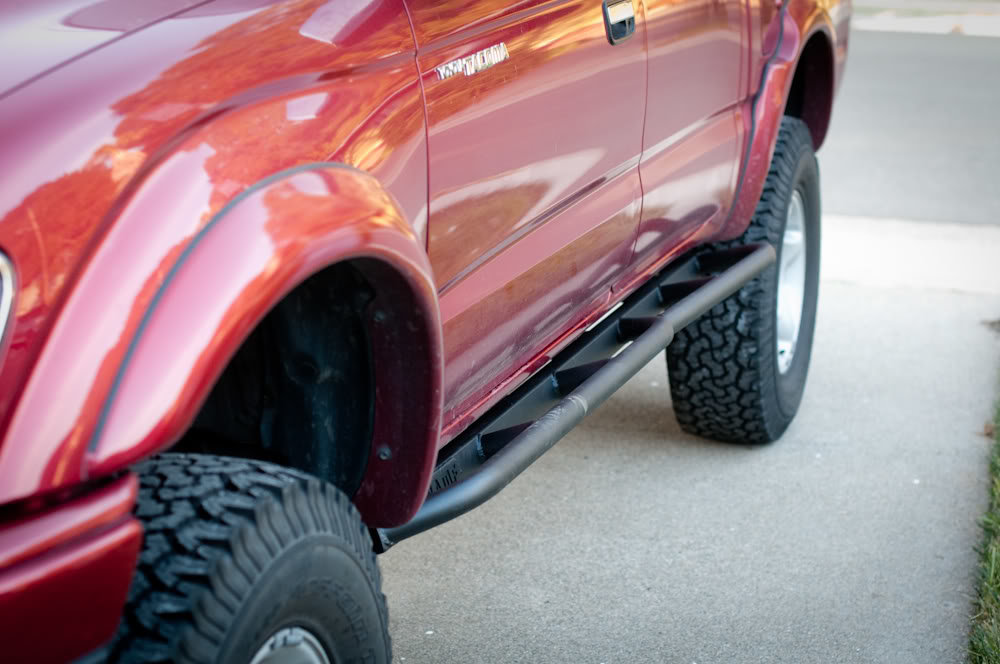

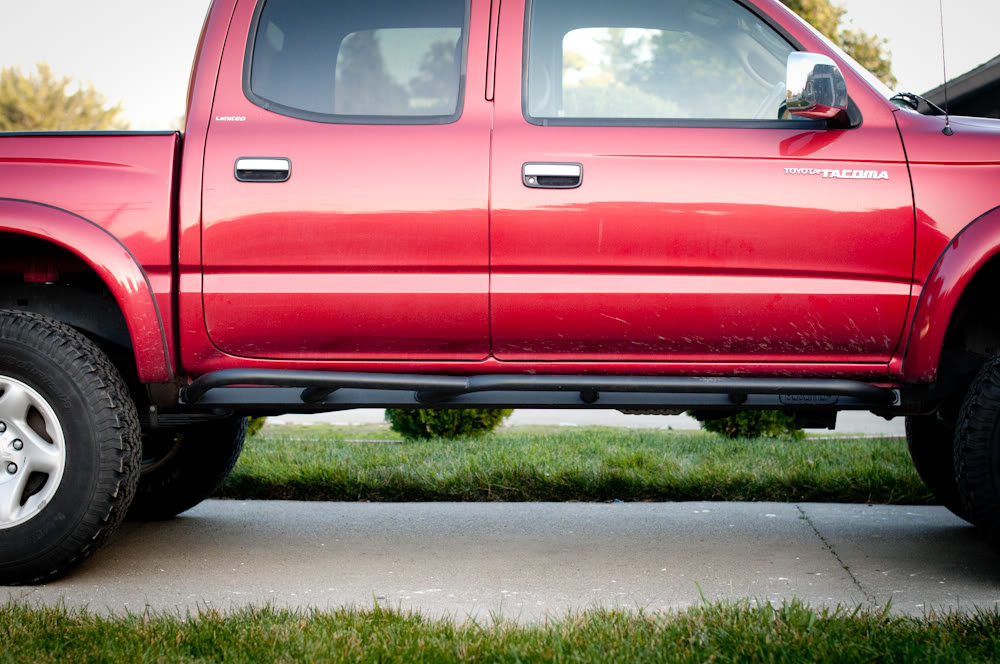

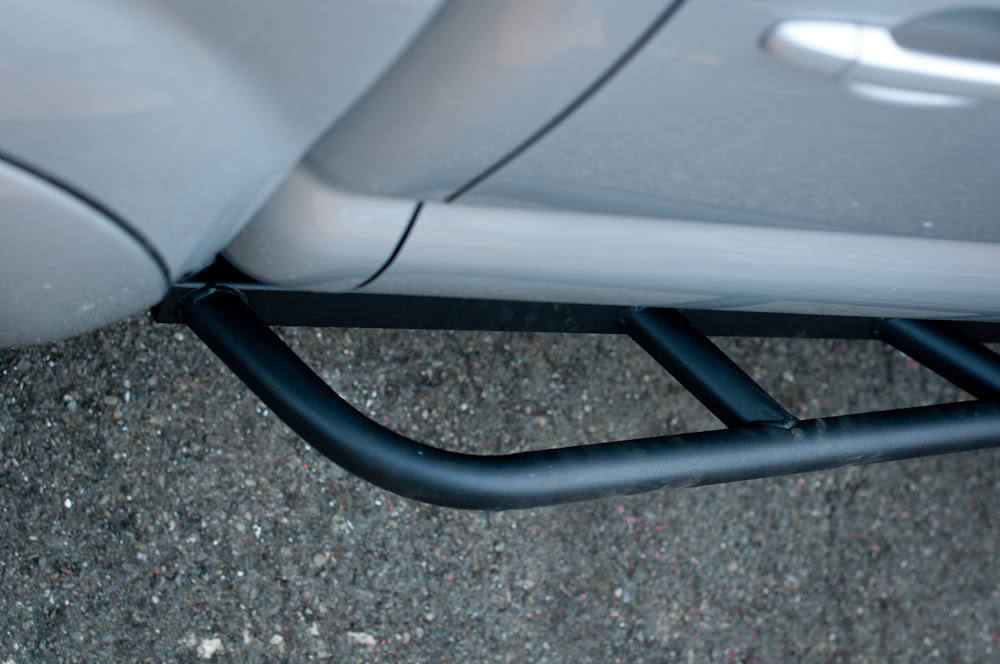

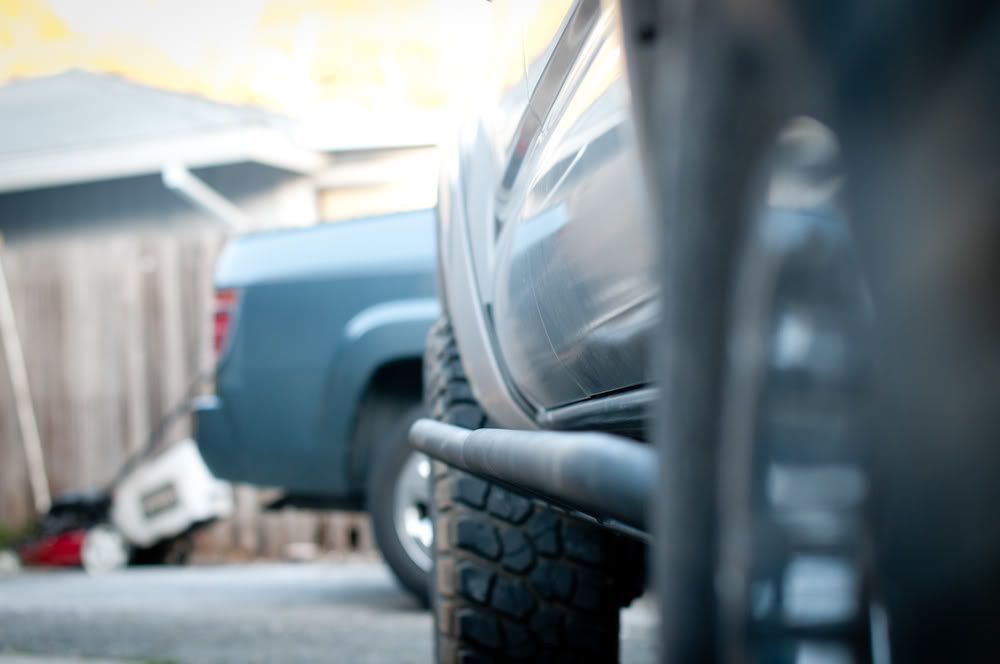

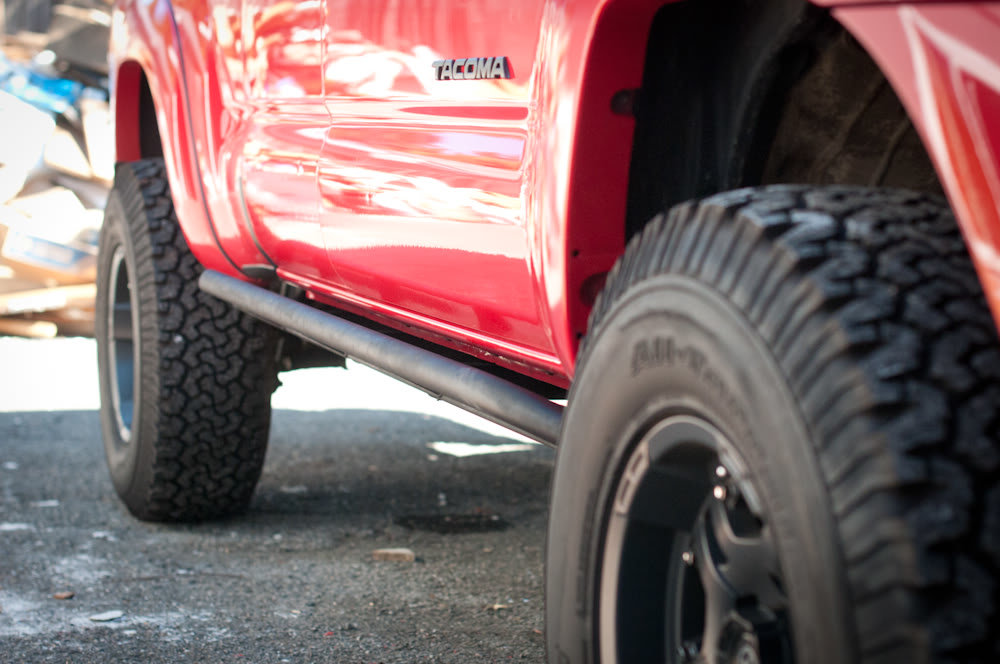

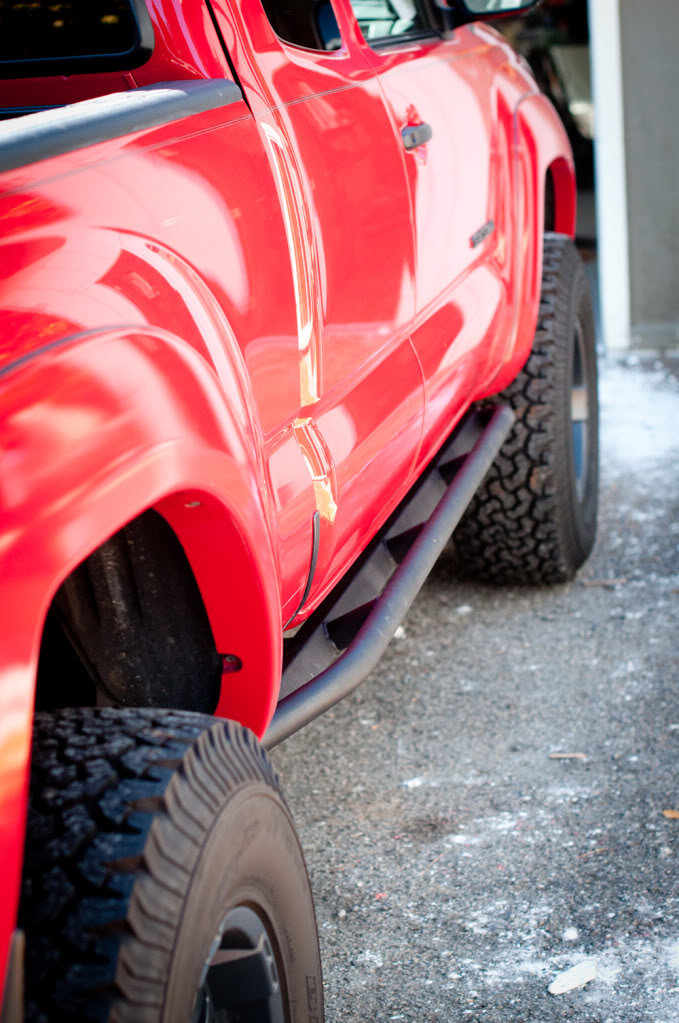

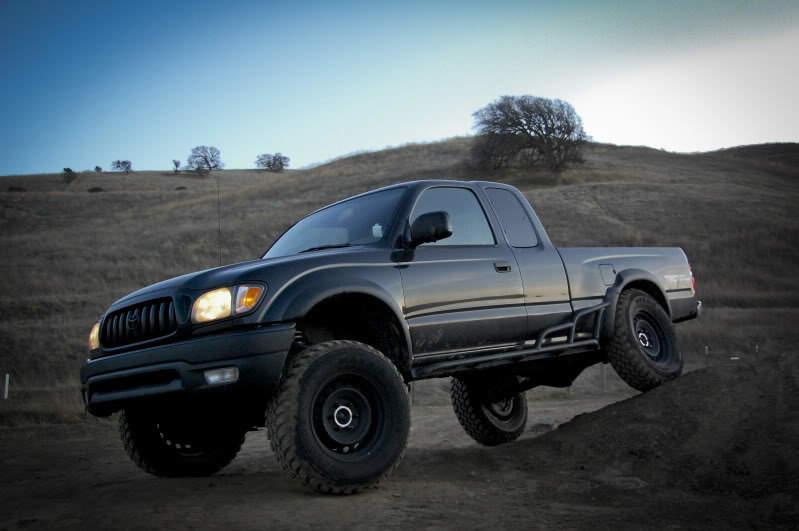

79" 2nd Gen/ 1st Gen Extra & DC's no Kickout

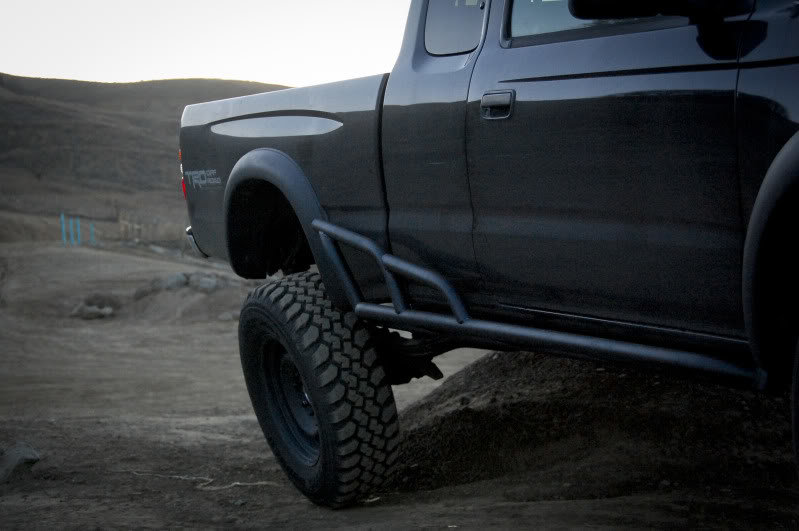

79" 2nd Gen/ 1st Gen Extra & DC's Kickout

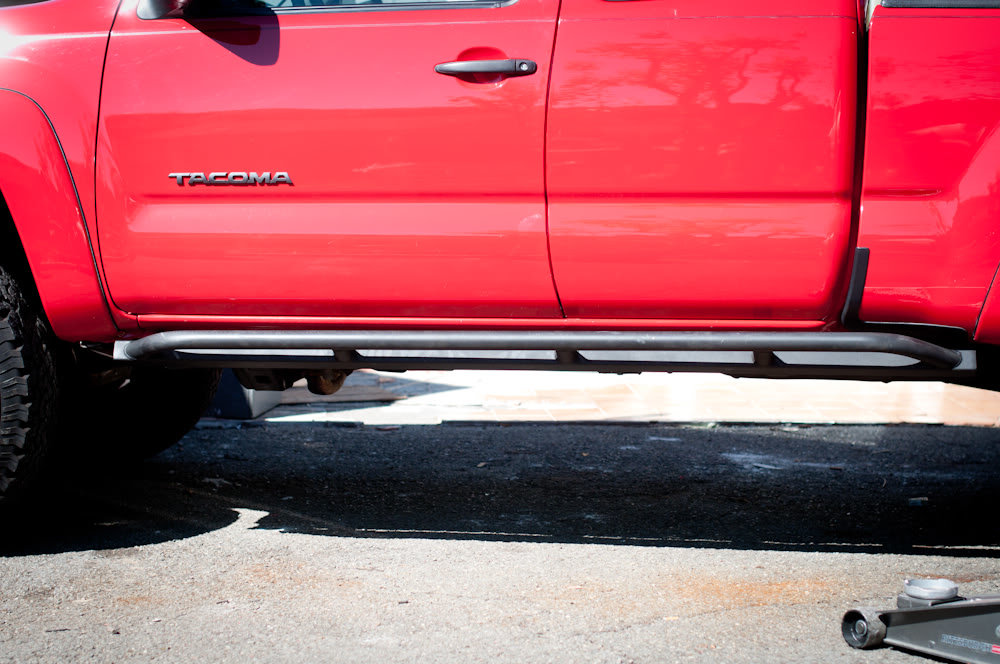

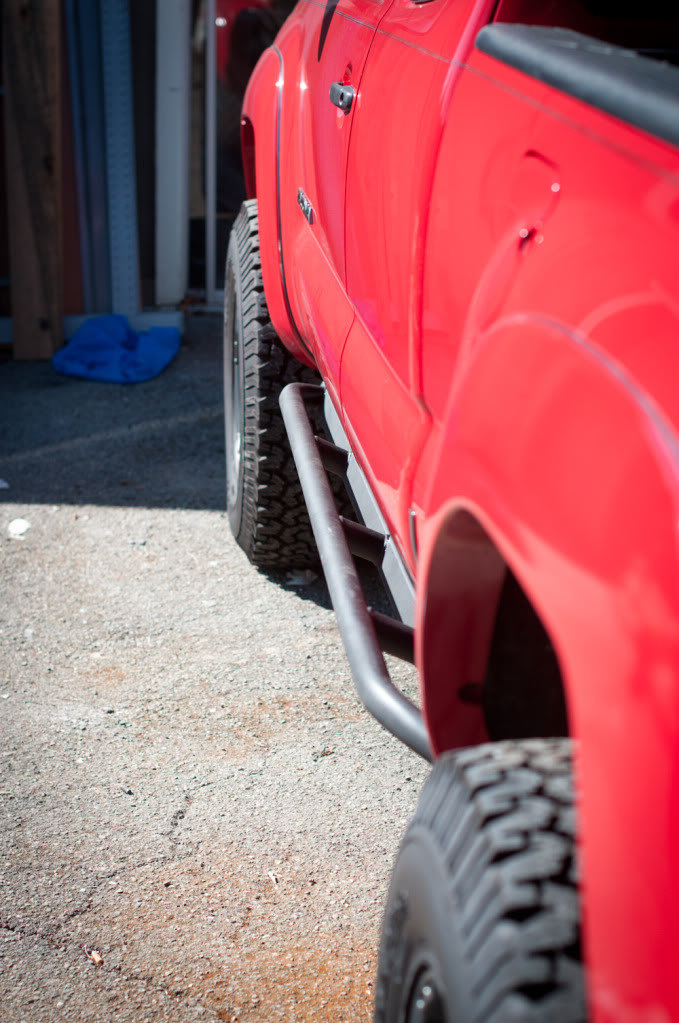

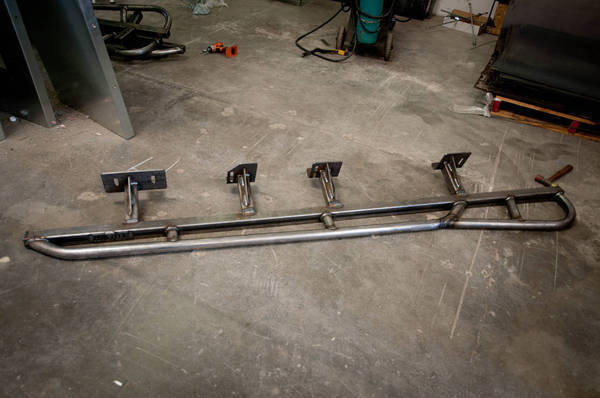

2nd Gen DCLB kickout sliders. 96" long with a 8" kickout.

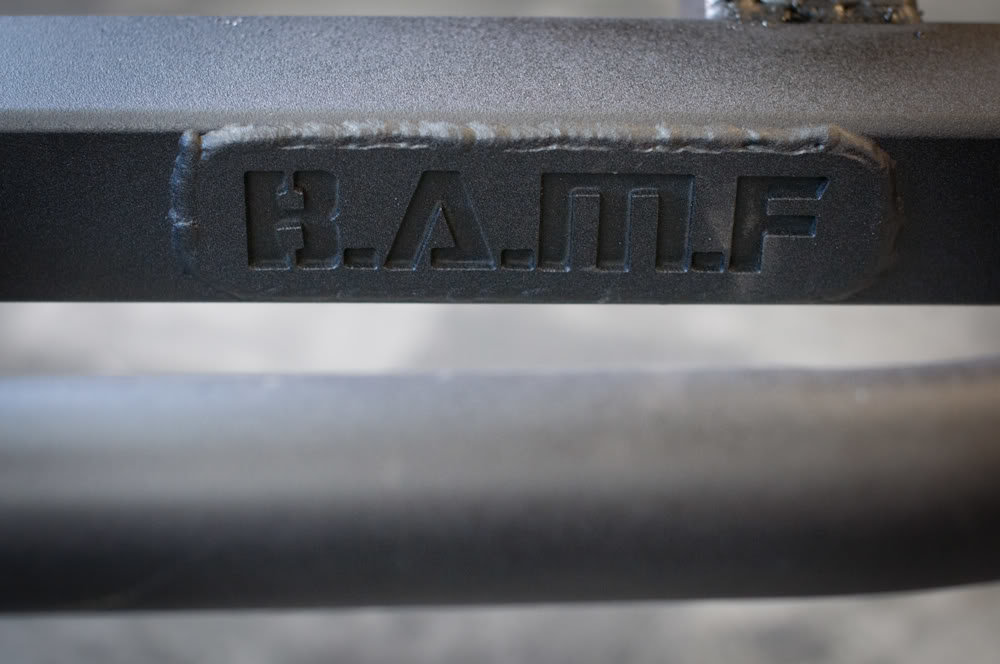

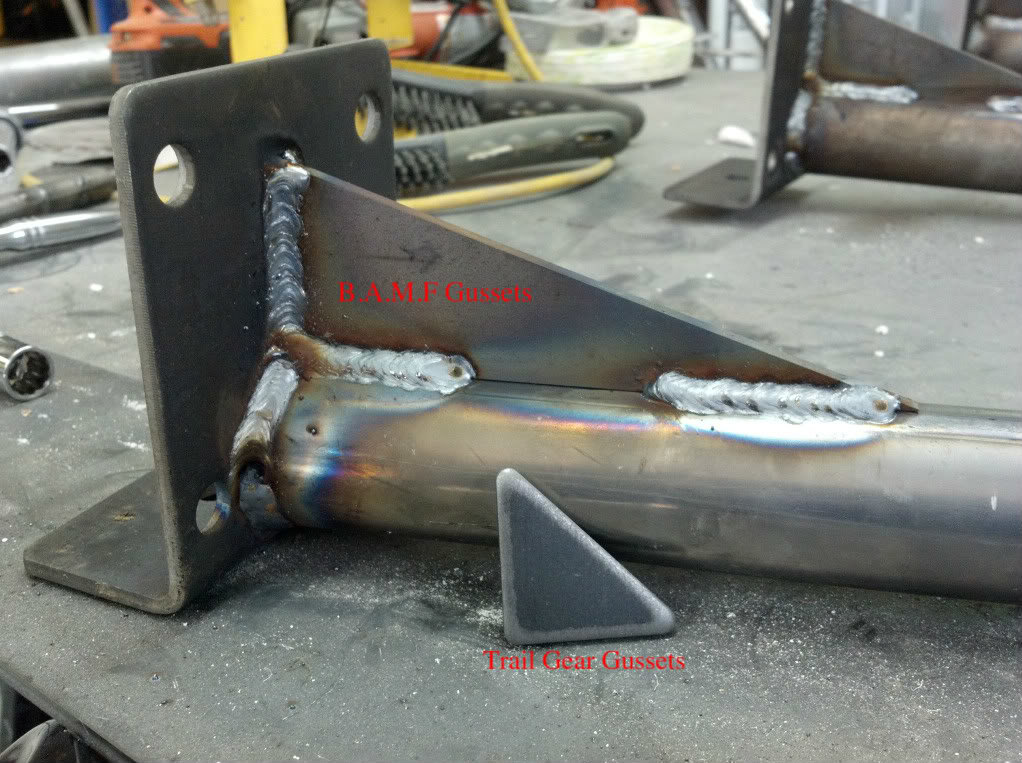

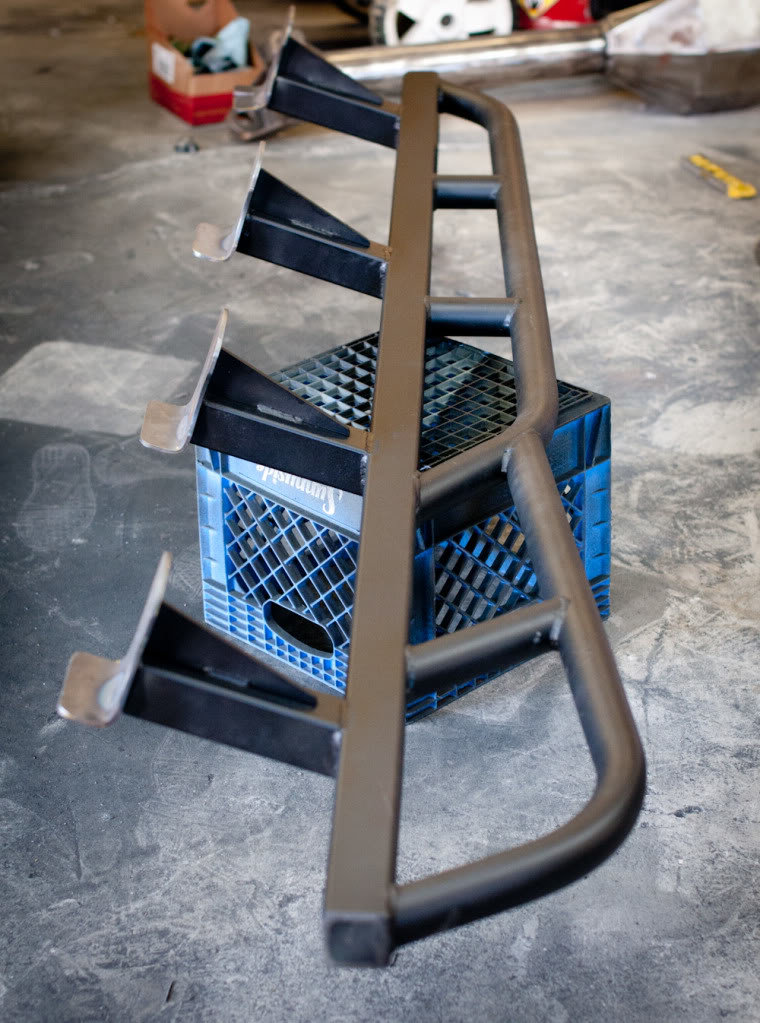

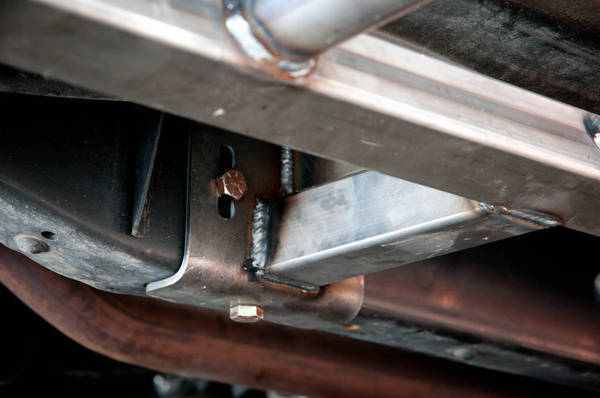

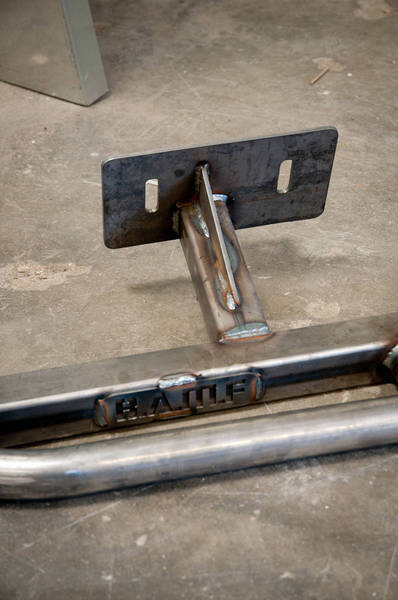

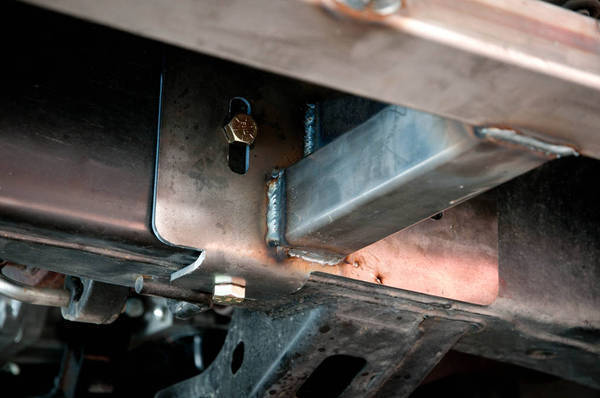

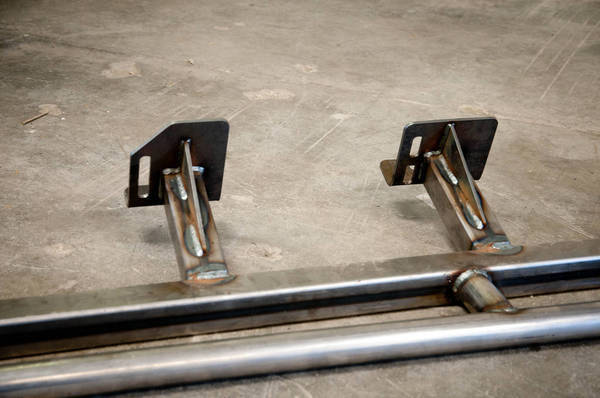

Our CNC Plasma cut gusset (Note the frame plates pictured are not a ours)

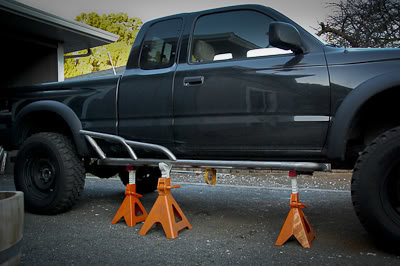

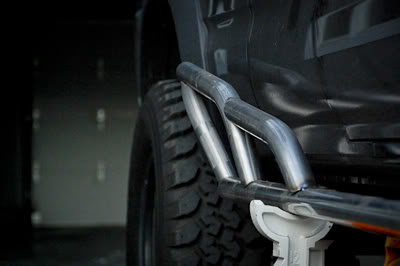

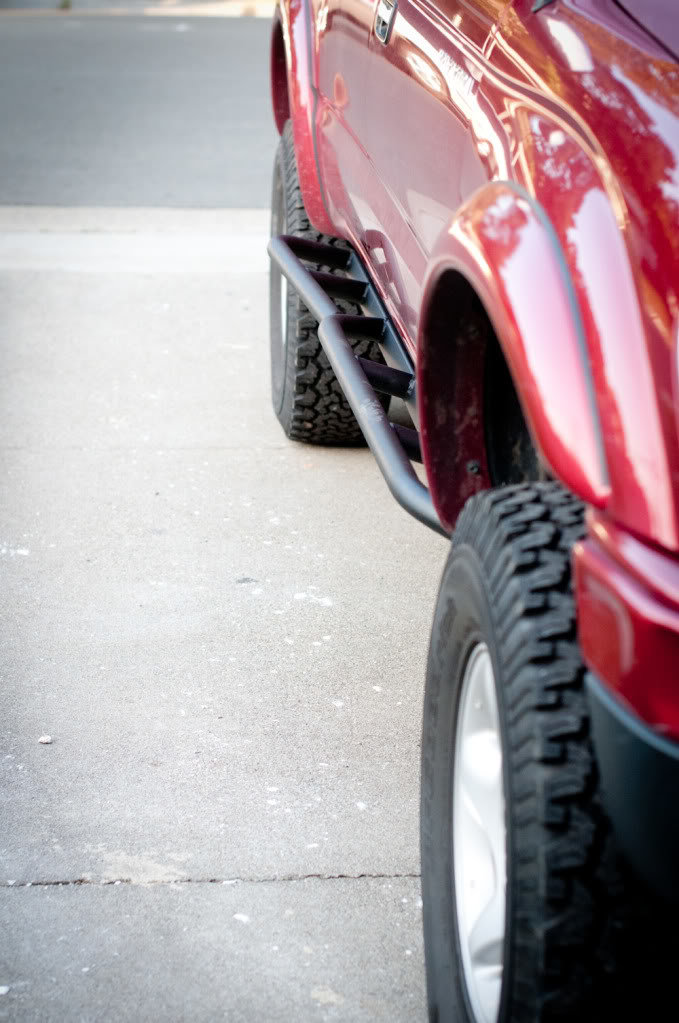

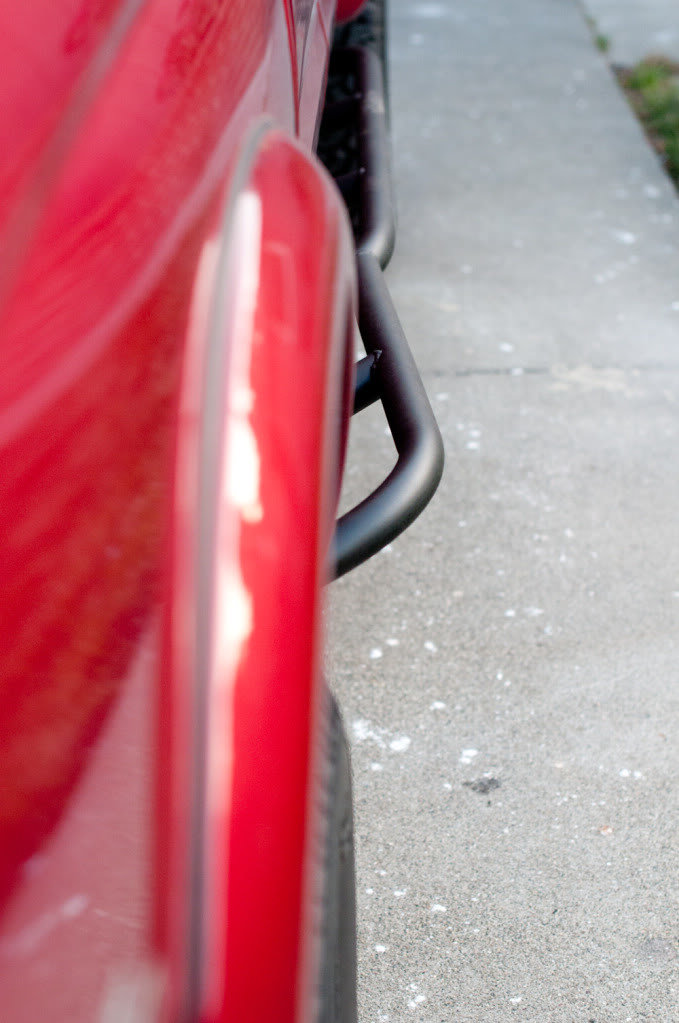

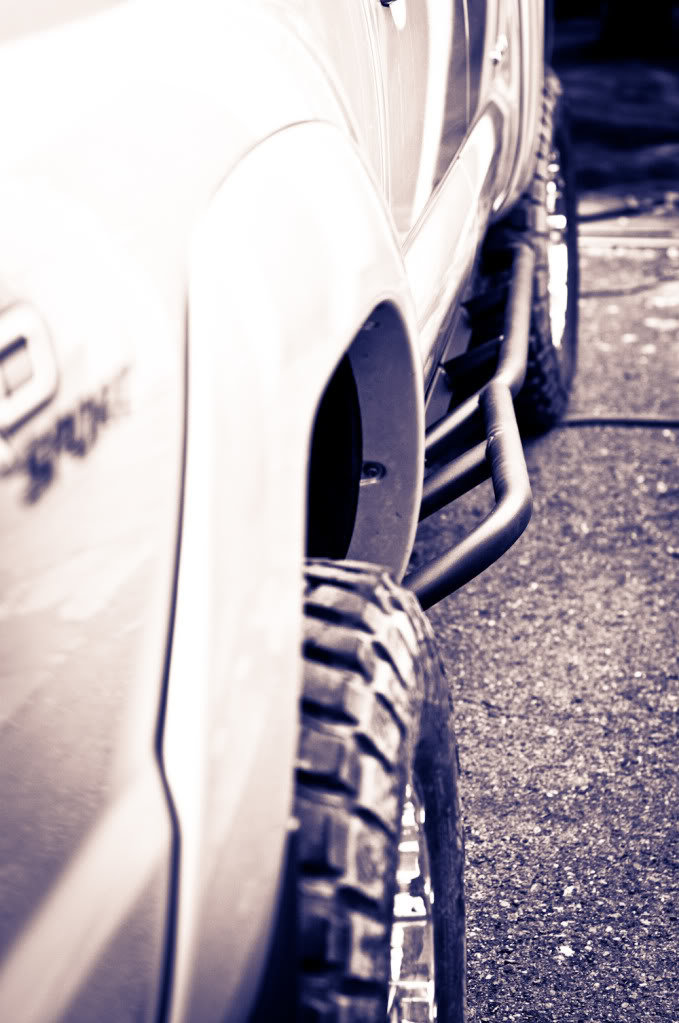

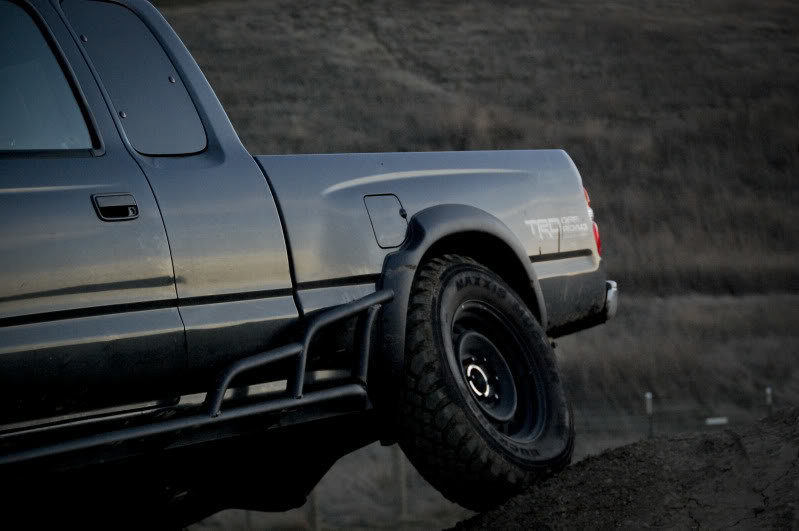

All new 1st Gen Extra Cab kick up's Kinda pricey at $100.00 but pretty bad ass

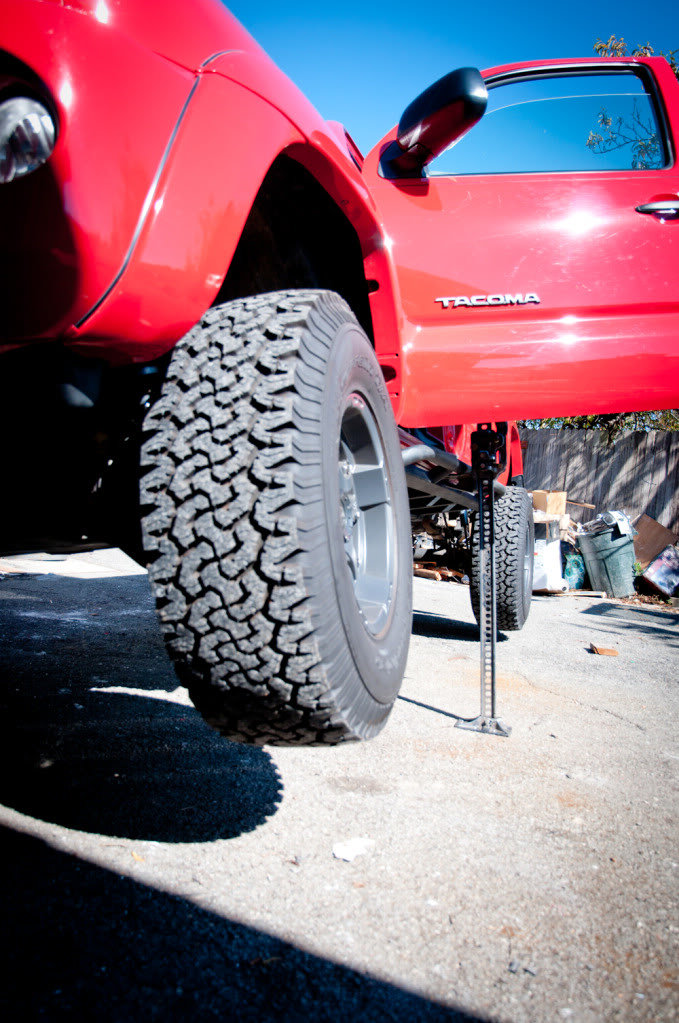

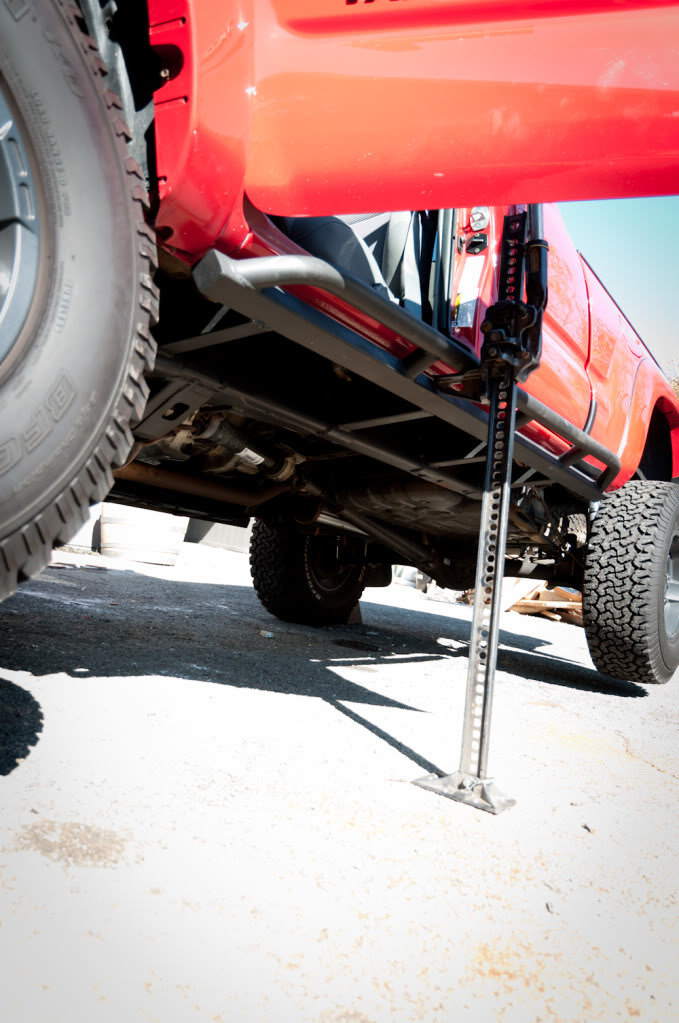

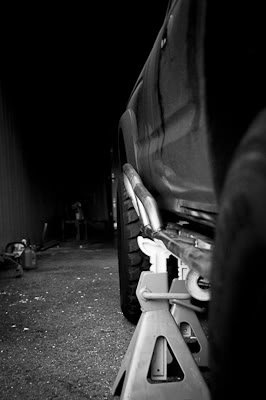

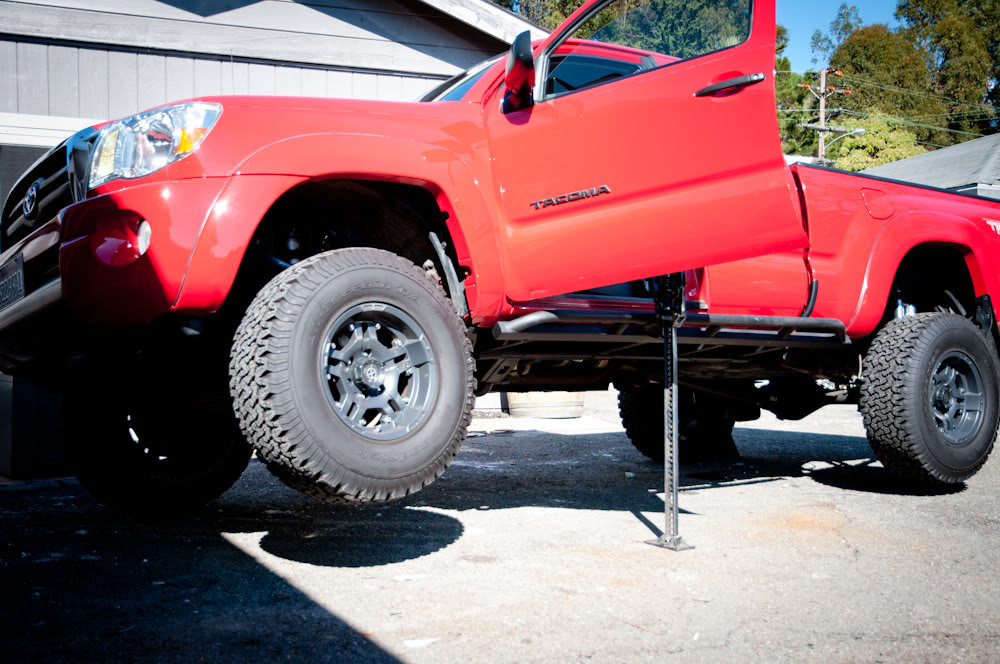

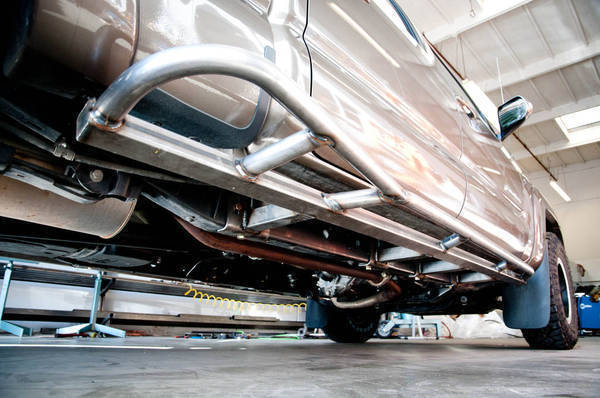

And for those of you that asked yes they support the truck

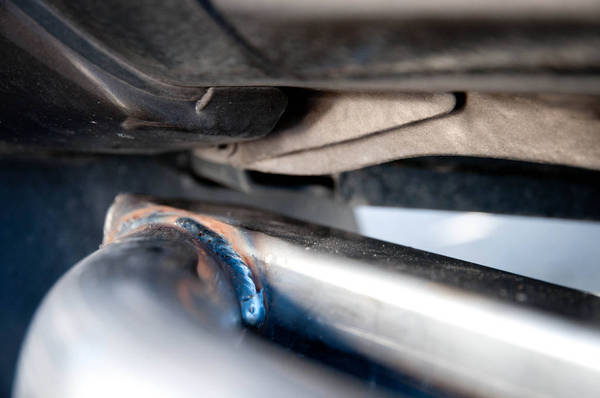

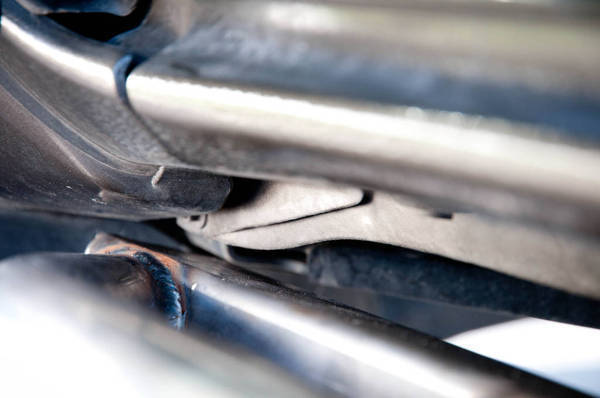

Very little deflection about 1/8th" of deflection lifted with both wheels off te ground.

on the ground.

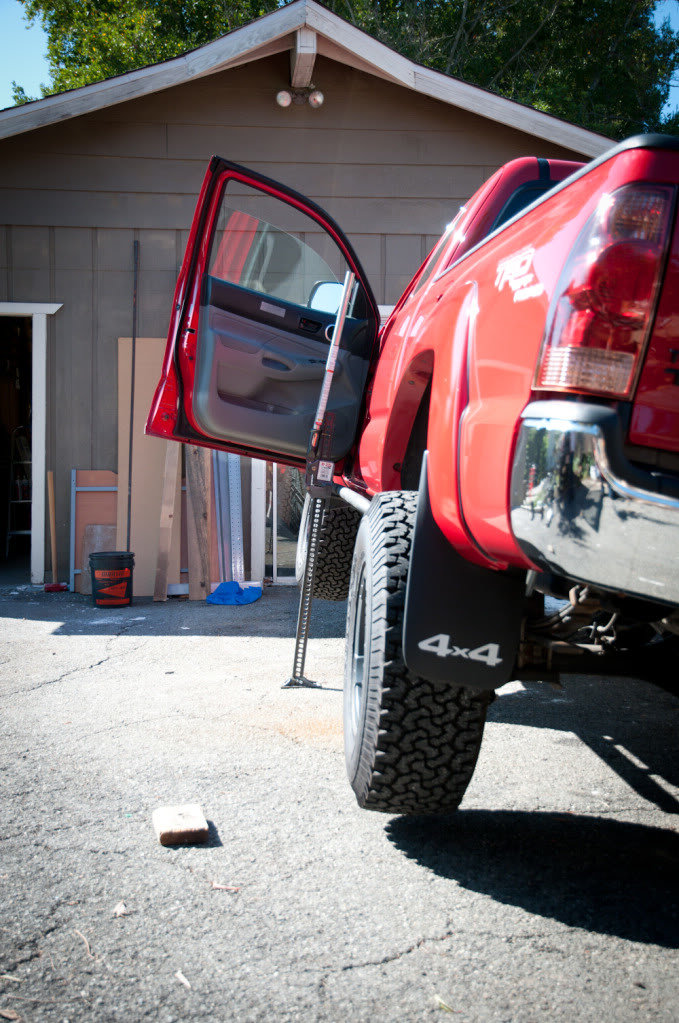

Fully supported from the sliders.
[/QUOTE]



PM incoming



I will jump on that 20% off deal if i can. I want 1st gen double cab bolt ons with a kickout. I will pm you.



PM Sent!



Jerry got my sliders painted an ready to weld. I'm itchin to get em on. Let me know when u got time for me to come down and mock up the bolt ons.

Think we can weld mine when were done with that?



Have any pix of one with the kick-out for a DCSB on a DCLB?



Prob not.... Measurements are for the different wheel lengths from the back doors... Why u thinking of doing that?



Back from Moab, Jerry?



Done with MOAB still in Utah for another day or so.



BTW to all those interested. I rolled my rig with these bad boys on it and they just had paint scuffed lol the whole truck was on one of the kick outs too



Free advertisement!



you bet! lol

use any pic of my truck rolled ya want Jerry..as long as i get a 10% discount for life lol jk



I told you my products are bad ASS sorry you had to find out that way. Well at least you don't need new sliders also when you re build your truck



i never doubted them for a second man your sliders are one of the reasons to keep the truck and frame ha












but seriously..5%? lol



Pics or it didn't happen!
