BD harness switch wires

Discussion in 'Lighting' started by thelate1, Jul 19, 2021.

  1. Jul 19, 2021 at 7:52 AM
    #1
    thelate1

    thelate1 [OP] Well-Known Member

    Joined:
    Oct 8, 2018
    Member:
    #268740
    Messages:
    195
    PA
    Vehicle:
    2013 DCLB Sport 4x4
    Can anyone confirm what the three BD switch wires do that come with their harnesses? I’m trying to wire a set of S1’s to an oem FJ fog (6 pin) switch.

    I believe it’s:
    Red - 12v feed
    Black - ground
    White - 12v out to lights

    Thanks!

  2. Jul 19, 2021 at 12:23 PM
    #2
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,167
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Pic of the relay bottom showing the wire colors would help...

    thelate1[QUOTED][OP] likes this.
  3. Jul 19, 2021 at 12:26 PM
    #3
    YF_Ryan

    YF_Ryan Well-Known Member

    Joined:
    Feb 23, 2017
    Member:
    #211450
    Messages:
    4,830
    Gender:
    Male
    First Name:
    Ryan
    Kent, WA
    Vehicle:
    2011 Silver Tacoma TRD Offroad
    Icon Coil Overs. Deaver U402 Stage 3 Leafs w/ Bilstein 5160s. ARB Deluxe Bull Bar. Fuel Boost wheels w/ Wrangler Duratracs. Brute Force Fab Sliders & HC Rear Bumper w/swingout
    Pics and/or part numbers would help. They have multiple harnesses and switches they use.

    thelate1[QUOTED][OP] likes this.
  4. Jul 19, 2021 at 1:59 PM
    #4
    thelate1

    thelate1 [OP] Well-Known Member

    Joined:
    Oct 8, 2018
    Member:
    #268740
    Messages:
    195
    PA
    Vehicle:
    2013 DCLB Sport 4x4
    My BD 4 pin relay goes like this:
    86 - ground from the battery and switch
    85 - white to switch
    87 - red out to lights
    30 - red from battery and switch

    I believe I figured it out now after searching multiple diagrams. I finally found this. It shows a blue instead of white but I believe it’s the same. I figured I’d tie the grounds together just to simplify things.


    FJ switch:
    1 red/blue ——— switch white & FJ #4
    2 black ——— switch black & FJ #5
    3 green/purple ——— switch red
    4 red/green ——— switch white & FJ #1
    5 brown ——— switch black & FJ #2
    6 purple ——— green from adjacent switch (illum 12+)

  5. Jul 19, 2021 at 2:04 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,167
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  6. Jul 19, 2021 at 2:05 PM
    #6
    thelate1

    thelate1 [OP] Well-Known Member

    Joined:
    Oct 8, 2018
    Member:
    #268740
    Messages:
    195
    PA
    Vehicle:
    2013 DCLB Sport 4x4
  7. Jul 19, 2021 at 2:13 PM
    #7
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,167
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Relay - 5 = 87
    3 = 30
    2 = 85
    1 = 86

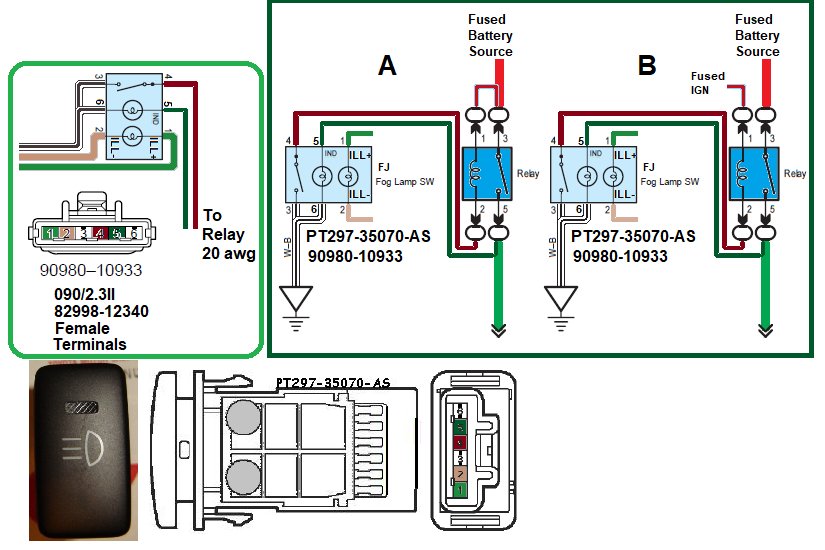

    Indicator LED (switch #5) is to let you know juice is getting to accessory (lights) it uses small gauge wire. [20 awg].
    The relay you have is always "hot" so remember to turn OFF switch. Unless you change the power source of input to pin 86 on relay or not use the power input of the added harness (red wire) and select a fuse ign source to send from switch to relay. The pic you posted is for LS which does not have 6 pins, only 5.

    Last edited: Jul 19, 2021
  8. Jul 19, 2021 at 2:27 PM
    #8
    thelate1

    thelate1 [OP] Well-Known Member

    Joined:
    Oct 8, 2018
    Member:
    #268740
    Messages:
    195
    PA
    Vehicle:
    2013 DCLB Sport 4x4
    Awesome, thank you for the help. I will not be changing anything as I’m leaving the BD harness intact. I’m simply using the FJ switch for the oem look and to be able to see if they’re on as they are hot all the time. If I’m understanding it right I’ll be option A on your diagram?

  9. Jul 19, 2021 at 2:39 PM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,167
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Yes, option A.
    Red wire from relay through harness might be an issue.
    Would love to see the relay wires at the pin side.

  10. Jul 19, 2021 at 2:46 PM
    #10
    thelate1

    thelate1 [OP] Well-Known Member

    Joined:
    Oct 8, 2018
    Member:
    #268740
    Messages:
    195
    PA
    Vehicle:
    2013 DCLB Sport 4x4
    It’s already mounted in my engine bay and it has their heat shrink over it. Are you saying it’s a potential problem? I’m hoping they wouldn’t sell something if it was.
    Also, the factory harness has resistors on the red/green. Do I keep them or ditch em?

    Last edited: Jul 19, 2021
  11. Jul 19, 2021 at 3:13 PM
    #11
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,167
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    I don't know without viewing it. The resistor looks like a diode. Leave it there.

  12. Jul 26, 2021 at 12:09 PM
    #12
    thelate1

    thelate1 [OP] Well-Known Member

    Joined:
    Oct 8, 2018
    Member:
    #268740
    Messages:
    195
    PA
    Vehicle:
    2013 DCLB Sport 4x4

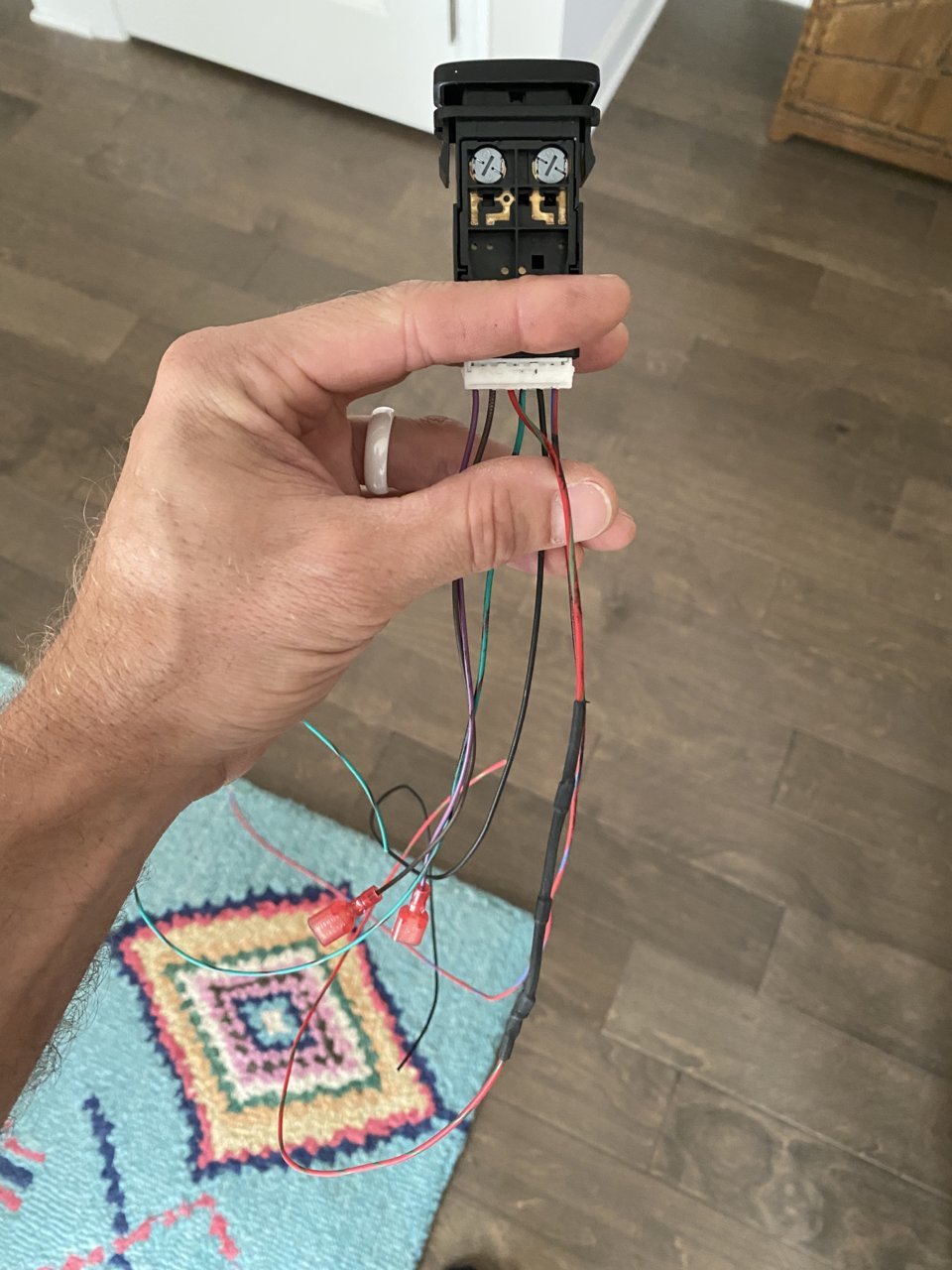

    For anyone who stumbles upon this and needs the final info. Here’s the wiring breakdown from the BD switch to a 6 pin FJ fog switch.


    *BD red (switch +) - FJ green/red #4
    *BD white (switch out) - FJ red/green #3 and red/blue #6
    *BD black (switch -) - FJ black #5
    *FJ purple #1 is illum +
    *FJ brown #2 is illum -

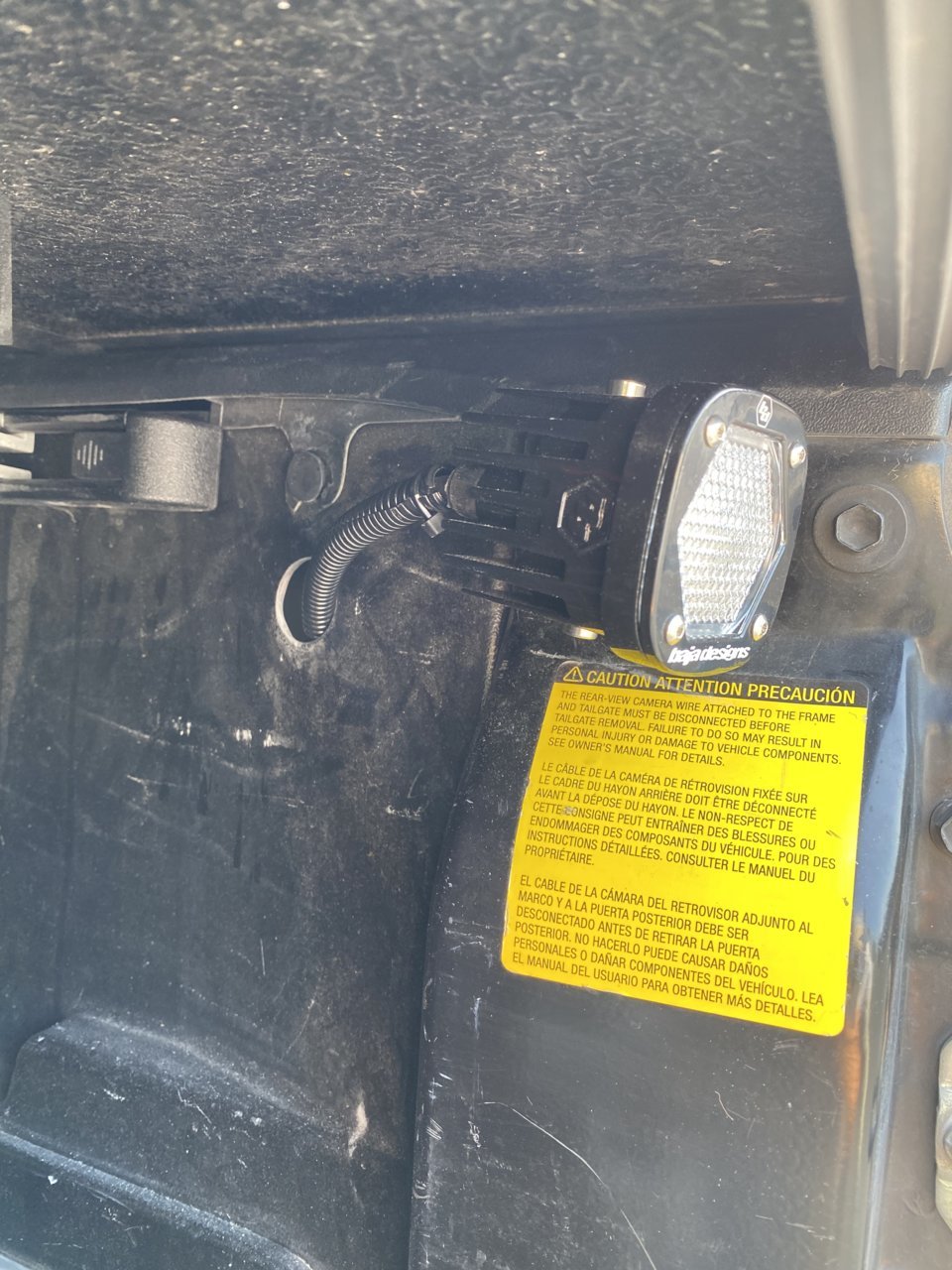

    They came out sick, and should serve as great work lights. I opted to mount within the bed to ease theft, as my bed does lock.

  13. Jul 26, 2021 at 1:23 PM
    #13
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,167
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    That is incorrect, but if it works more power to ya...:burp:

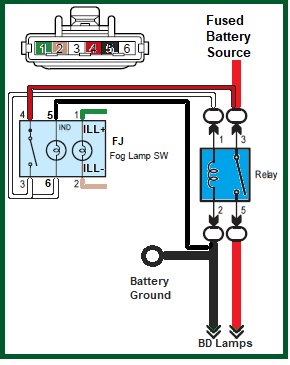

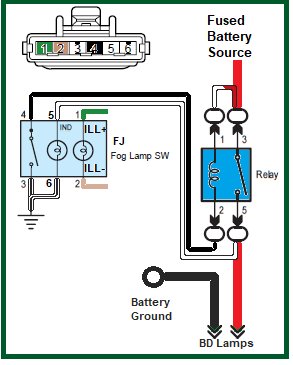

    You:

    What it should be:

    kmorgan3 likes this.
  14. Jul 27, 2021 at 5:02 AM
    #14
    thelate1

    thelate1 [OP] Well-Known Member

    Joined:
    Oct 8, 2018
    Member:
    #268740
    Messages:
    195
    PA
    Vehicle:
    2013 DCLB Sport 4x4

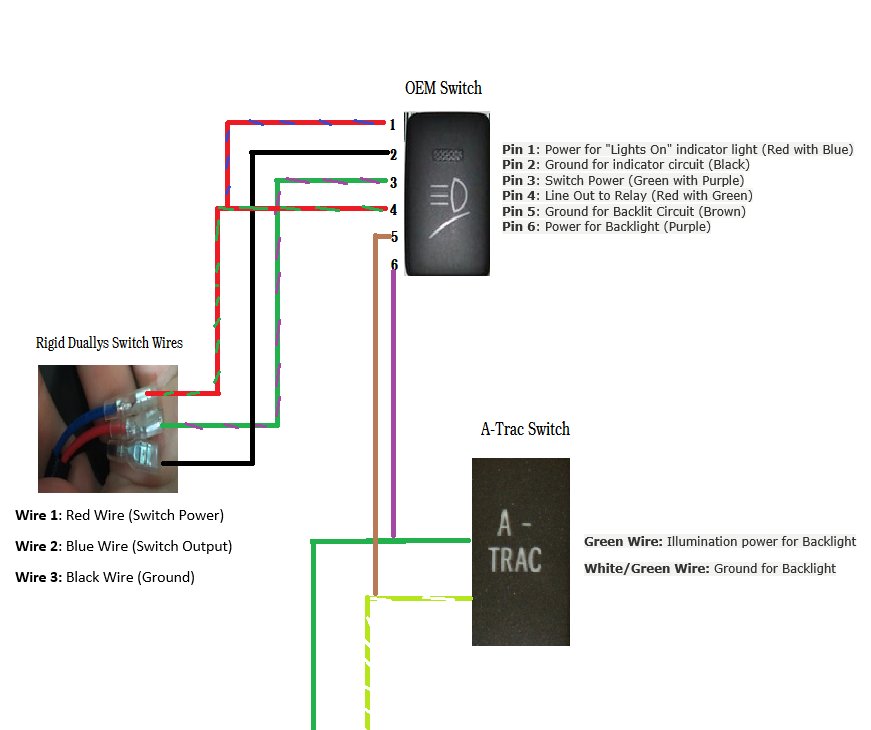

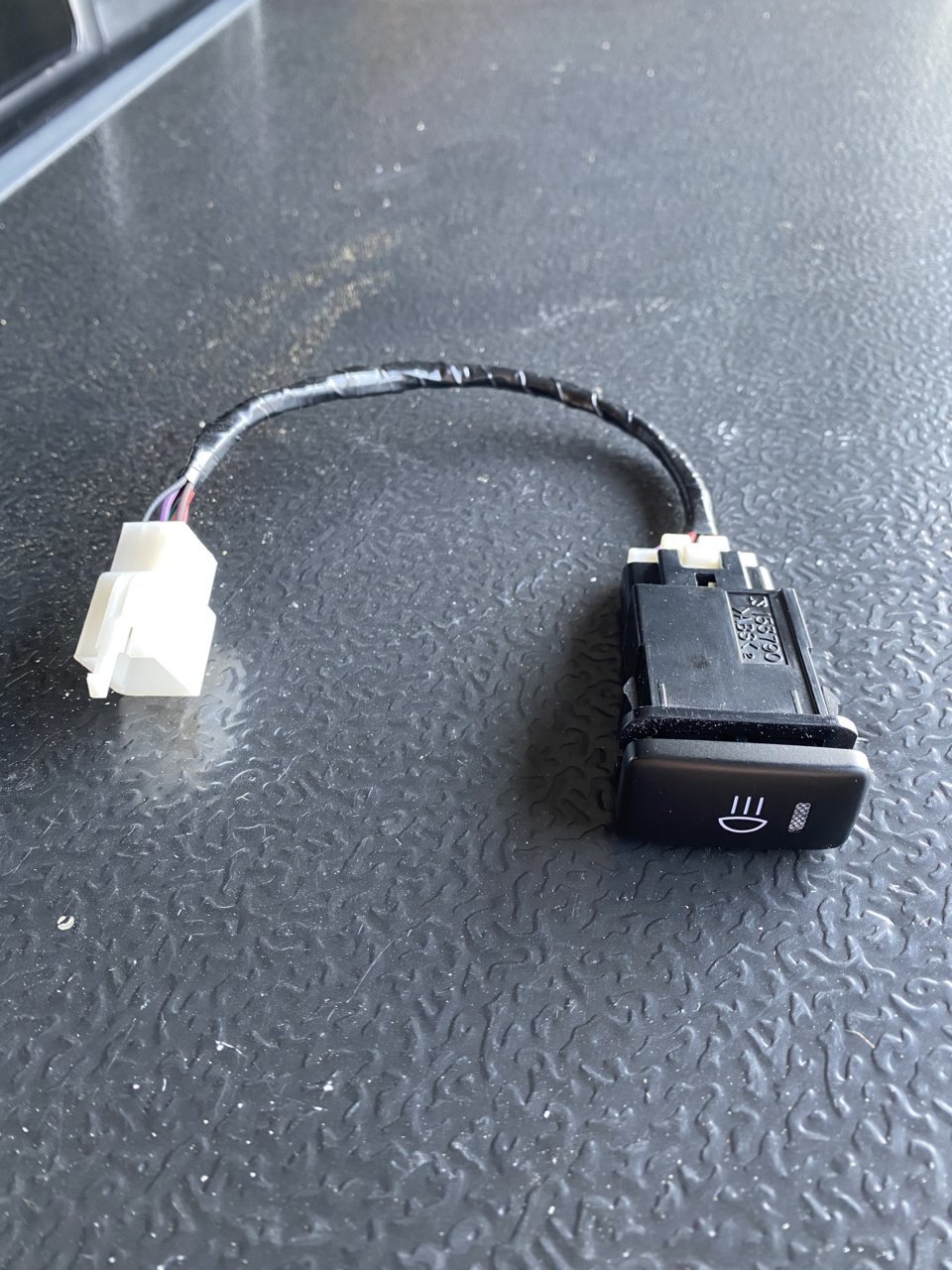

    Please elaborate. I used the relay and harness exactly how it came wired from BD. The only change was not using their three wire switch but the FJ switch instead. I ended up using this diagram for the switch and it functions exactly how it should. I’m not sure how it can be “wrong”.

  15. Jul 27, 2021 at 1:27 PM
    #15
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,167
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

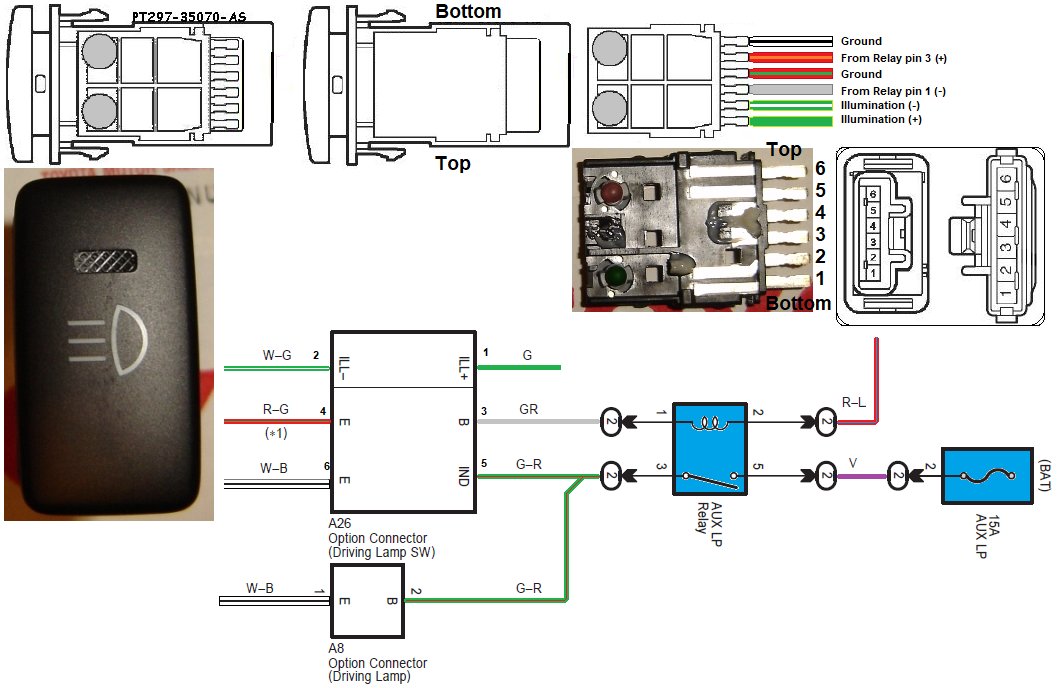

    Like I wrote, the FJ switch is wired incorrectly, but it works for ya.

    You do have a choice, re-wire the relay like shown in post #13 or ignore it.
    The indicator lamp in the FJ switch is meant to show that the relay is functional, as in if it fails or the fuse does, the indicator lamp will let you know by not illuminating.:burp:

    P.S. the switch you are referencing with the wiring is also the incorrect FJ Switch picture. The FJ switch shown there has 5 pins not 6.
    whoever did that drawing goofed and still hasn't fix it.

    Beerpayzdabillz and kmorgan3 like this.
  16. Jul 27, 2021 at 1:41 PM
    #16
    thelate1

    thelate1 [OP] Well-Known Member

    Joined:
    Oct 8, 2018
    Member:
    #268740
    Messages:
    195
    PA
    Vehicle:
    2013 DCLB Sport 4x4
    Your picture also doesn’t match my oem FJ harness though either. It shows #6 as a ground and it wasn’t on my harness, #5 was. To my understanding my indictor lamp shouldn’t light the way I have it either if the fuse or relay fails. I also don’t understand how the FJ switch is any different than the BD switch wiring wise. I tried multiple ways and this is what worked. I’m pretty sure BD doesn’t design their harnesses with the idea that folks will need to rewire their relays.

  17. Jul 27, 2021 at 1:49 PM
    #17
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,167
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    It's exactly drawn as you wrote it.
    "*BD white (switch out) - FJ red/green #3 and red/blue #6"
    BD does not. One who'd need to add the FJ correctly should, if they want it as it is in an FJ.
    It's my suggestion to get it done correctly. Again, it works for you.

  18. Jul 27, 2021 at 2:26 PM
    #18
    thelate1

    thelate1 [OP] Well-Known Member

    Joined:
    Oct 8, 2018
    Member:
    #268740
    Messages:
    195
    PA
    Vehicle:
    2013 DCLB Sport 4x4
    You misunderstood. The FJ harness #6 is not a ground like you show it to be. I’m using the exact same wires that BD does to power their switch/illumination and also to feed the lights. I’m not understanding how that translates to needing to change the relay wiring if it’s wired the same way.
    I’m sorry but what you’re saying doesn’t make sense at all (to me). If the fuse or relay fails, my switch shouldn’t work. Just like theirs wouldn’t have either. No?
