Bed Basket Project

Discussion in 'Off-Roading & Trails' started by mreimann, Oct 4, 2009.

  1. Oct 4, 2009 at 9:47 AM
    #1
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,077
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
    I've been planning to build one of these things for months and everything finally lined up to give me enough time to get the steel, and grab a buddy to weld it.

    This basket is ganna house all my off road stuff, like spare tire, hi jack, tow straps, gas cans, fire extinguisher ect.

    It's a pretty basic design, and fits perfect in the bed. We're ganna use the factory bed rails to attach it, that way i can take it off when i don't need it (like driving to school...it's 1 mile away.):rolleyes:

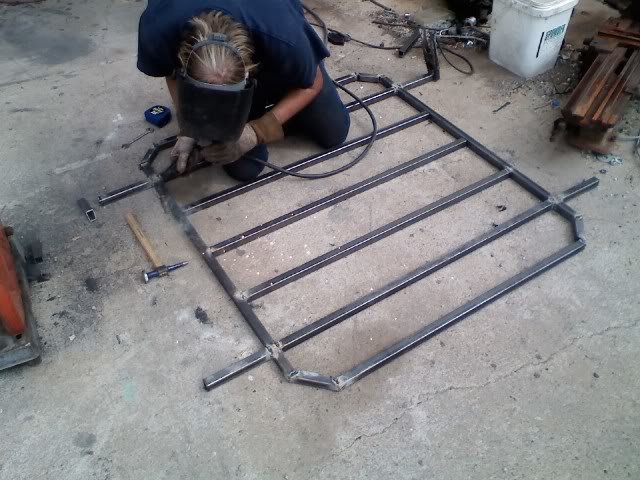

    basic frame. 42x48

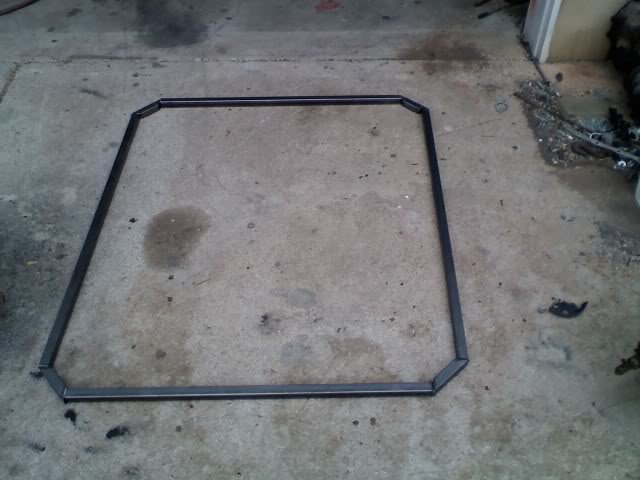

    [​IMG]

    the four pegs sticking out are the attachment points to the bed rails
    the pegs and the cross member they line up with are a thicker gauge than the rest of the basket for added support
    [​IMG]

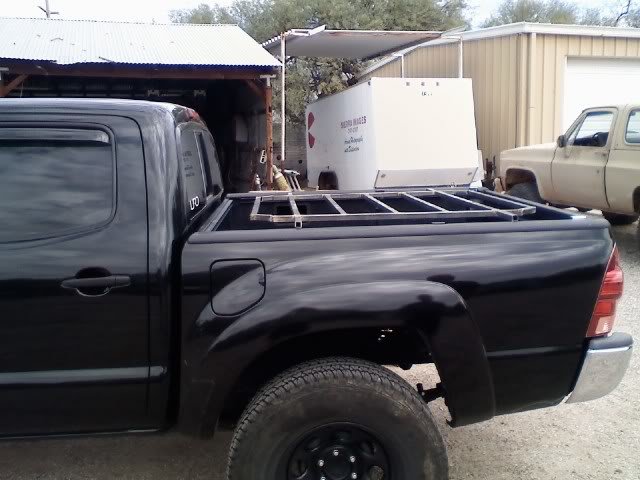

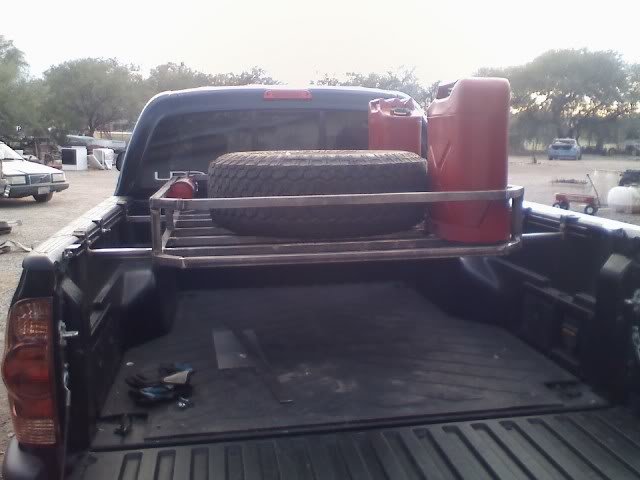

    the test fit! it's the perfect size for the bed. all thats left is to add the 6" lip that will hold everything in.
    [​IMG]

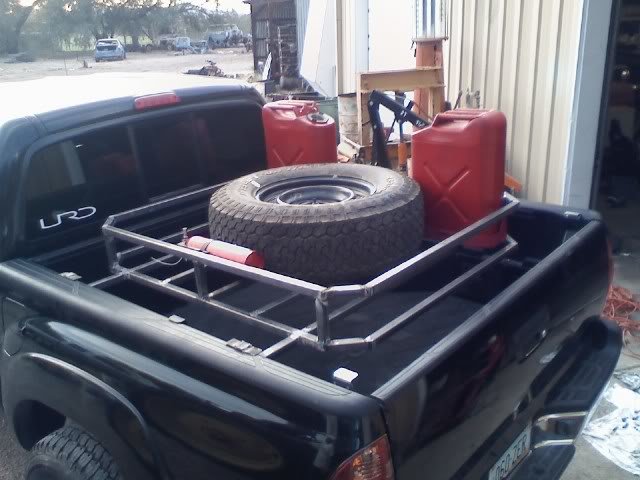

    when it's done it'll the bottom will lay flush with the bed.
    [​IMG]

    sorry for the crappy cell phone pics, but you get the idea. when I finish it (hopefully monday) i'll bring my camera:eek:

  2. Oct 4, 2009 at 9:50 AM
    #2
    taco06

    taco06 Well-Known Member

    Joined:
    Feb 21, 2009
    Member:
    #13903
    Messages:
    533
    Gender:
    Male
    First Name:
    Alex
    West Covina ,California
    Vehicle:
    06 sprt
    looks good bro

  3. Oct 4, 2009 at 9:51 AM
    #3
    07trd4x4

    07trd4x4 Well-Known Member

    Joined:
    Jun 7, 2009
    Member:
    #18143
    Messages:
    13,573
    Gender:
    Male
    First Name:
    Greg
    Sacramento CA
    Vehicle:
    LX470
    Looking good bro! So pictures loaded up!! Like to see it all put together!!

  4. Oct 4, 2009 at 10:00 AM
    #4
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,077
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
    Thanks guys. I should have it finished by tomorrow, then i just have to figure out the mounts for everything. I'm ganna try and make this thing pretty tamper proof, so if any one has any suggestions on sturdy mounts for a hi jack and jerry cans that would be a lot of help.

  5. Oct 4, 2009 at 10:02 AM
    #5
    ChocoTaco08

    ChocoTaco08 Can't Fix Broke!

    Joined:
    Apr 11, 2008
    Member:
    #5914
    Messages:
    347
    Gender:
    Male
    First Name:
    Shooter
    MD
    Vehicle:
    08 DC 4X4 BSP
    [Tinted Windows]-[Clean Shaven Emblems]-[Husky Floor Liners]-[AVS Vent Visors]-[TRD Seat Covers]-[Tacoma Bed Mat]-[6000K H.I.D.'s]-[Coverking Backseat Covers]-[BHLM]-[Altezza Taillights]-[Scanguage II]-[Eyelids]-[Tinted Third Brake Light]-[Grillcraft Upper]-[Toytec Ultimate Lift Kit]-[BFG KM2's (285-70-17)]-[XD Revolvers (17X9)]-[PIAA 510's]-[All Pro Front Bumper]-[Cobra Cb]-[Wilson 4' Cb Antenna]-[BudBuilt Skids]-[Devil Horns Symbol]-[FLM]-[Demello Hybrid Sliders]
    thats badass i like that alot.

  6. Oct 5, 2009 at 9:53 PM
    #6
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,077
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
    Bump.

    any ideas on mounting all the gear? I'm a little worried that if I mount a fire extinguisher on the back it'll explode in the hot sun:notsure:

  7. Oct 6, 2009 at 1:34 PM
    #7
    Incognito

    Incognito μολὼν λαβέ

    Joined:
    May 25, 2009
    Member:
    #17626
    Messages:
    13,625
    Gender:
    Male
    First Name:
    Colton
    VA
    Vehicle:
    2012 Pyrite AC TRD OR
    See Build thread
    I like it! Nice job on it. I would personally just put the fire extinguisher in the cab...

  8. Oct 6, 2009 at 1:37 PM
    #8
    otter

    otter Well-Known Member

    Joined:
    Jul 27, 2009
    Member:
    #20249
    Messages:
    265
    Gender:
    Male
    First Name:
    Rob
    MI
    Vehicle:
    09 4 cyl Reg Cab
    A fire extinguisher won't explode in the heat. However, it can corrode. Keep it in the cab where it'll stay dry.

  9. Oct 6, 2009 at 1:59 PM
    #9
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,077
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
    yah, good point.....now it's almost almost done. probly just 30 min. of welding to finish it up. I also figure out the mounting brackets so all i have to do is decide on how to mount the tire and hi jack. The jerry cans should be pretty easy though

  10. Oct 6, 2009 at 2:02 PM
    #10
    bigyetti

    bigyetti Well-Known Member

    Joined:
    Apr 12, 2009
    Member:
    #15880
    Messages:
    399
    Gender:
    Male
    First Name:
    mike
    asheville, nc
    Vehicle:
    08 taco dc 4x4 short bed
    sirius satilite radio, more on the way when i get more money. oh ya removed the secondary filter
    Dam you now i want one. Looks great

  11. Oct 6, 2009 at 2:12 PM
    #11
    DellGSG5

    DellGSG5 Well-Known Member

    Joined:
    May 24, 2009
    Member:
    #17584
    Messages:
    787
    Gender:
    Male
    First Name:
    Dell
    San Diego, California
    Vehicle:
    2009 PreRunner TRD
    Step rail, Grill guard, bug deflector,bed lights, Window Deflectors.
    Look nice.

  12. Oct 6, 2009 at 4:11 PM
    #12
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,077
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
    If you can weld or know some one who can, then it's easy. All the metal for this cost me like $53

  13. Oct 6, 2009 at 4:24 PM
    #13
    white+Peal

    white+Peal Well-Known Member

    Joined:
    Mar 27, 2009
    Member:
    #15238
    Messages:
    344
    Gender:
    Male
    First Name:
    Kris
    Henderson, NV
    Vehicle:
    08 prerunner
    Magaflow catback exhaust, AEM CAI, front bumper made by famous fabrication, JBA long tube headers, All pro back bumper, BPF raptor style grill, 3' toytech lift
    looks good can't wait to see the finished product.

  14. Oct 6, 2009 at 11:15 PM
    #14
    Siebler

    Siebler Duck Killing Machine

    Joined:
    May 9, 2009
    Member:
    #17019
    Messages:
    779
    Gender:
    Male
    First Name:
    CJ
    Portland, OR
    Vehicle:
    99 5 lug LT
    TC LT Front, F67 on 12" shackle, LCE Underdrive Pulley, Flex-a-lite fan, DT headers, Super 44 muffler, 4:11's and Aussie Locker, 22 Gallon Fuel Cell, Beard seats, custom bumpers, sliders, bed cage
    Go with a Marine Grade extinguisher. I have one and work by the beach. No problems mounted on my roll bar in the bed. Most components are high quality plastic so they cant corrode. If its approved by USCG its good enough for me, Boat safety isnt a laughing matter.

  15. Oct 11, 2009 at 3:43 PM
    #15
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,077
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT
    ahh so I finished yesterday. It holds up great, with the spare tire, fire extinguisher and gas cans mounted. I just need to make a strap to hold in the cans. and then get a jack and mount for that.

    To attach the basket to the bed I used the bed rails. made an L shaped bracket and drilled a whole through it. then welded a bolt to a slice of flat stock to go in the rail. so now I can put it in and take it off myself.

    ohh and the reason I mounted the cans on the same side was so that I could still see out my back window.....it's reduced down to 1/3 of the window, but it's better than nothing.

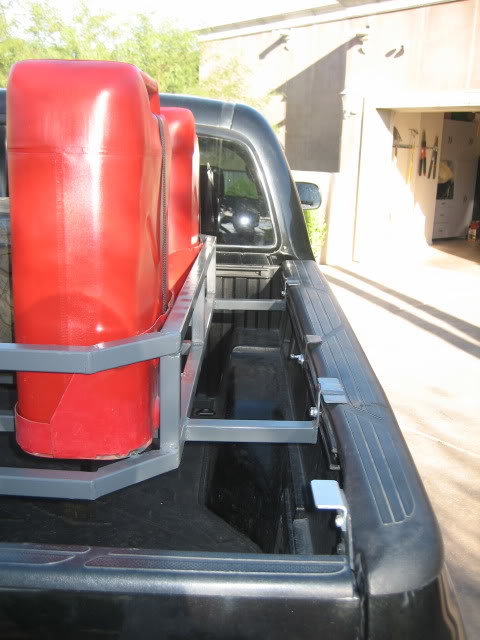

    [​IMG]

    [​IMG]

    I'm painting it right now. so i'll post pics of that later today or tomorrow

  16. Oct 11, 2009 at 3:59 PM
    #16
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,077
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT

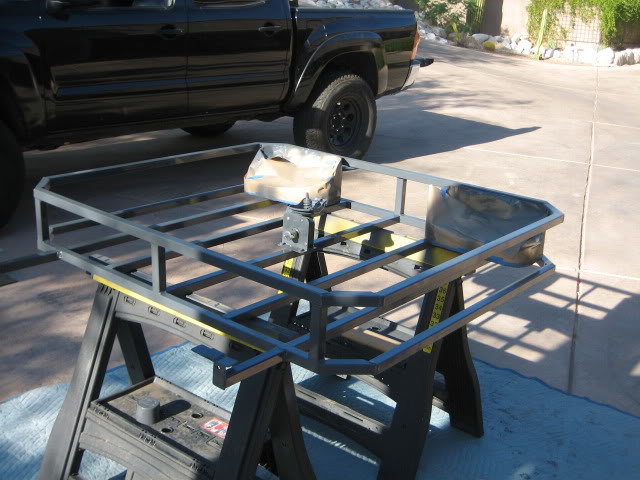

    okay, well i finished that faster than I thought, so here are the painted pics :D

    [​IMG]

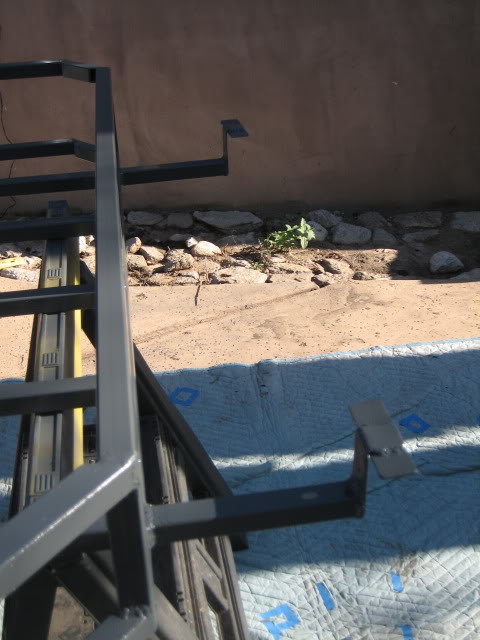

    this is a pic of the brackets i made to bolt in into the bed
    [​IMG]

    [​IMG]

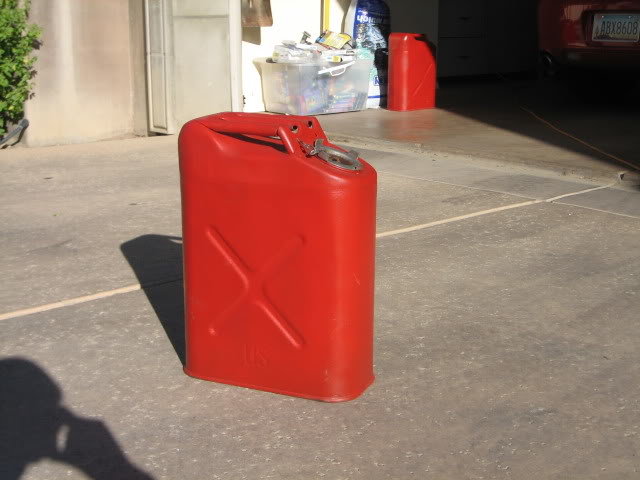

    and i restored the jerry cans a lot. they were faded, chipped and the inside was coated in oil. So after cleaning them up they look like this :cool:

    and they are dated and marked USMC 1979 :eek:
    [​IMG]

  17. Oct 13, 2009 at 4:24 PM
    #17
    mreimann

    mreimann [OP] vv I think it's growing

    Joined:
    Aug 19, 2009
    Member:
    #21434
    Messages:
    2,077
    Gender:
    Male
    First Name:
    Matt
    Denver, CO
    Vehicle:
    05 dbl cab 4x4 TRD OR
    Icon C/O, Bilstien 5100, All Pro Expo leafs, Total Chaos UCA's, URD CAI, Magnaflow 40, Custom Built Bed Rack, sliders and skid plate. CBI bumpers front and rear, SmittyBuilt winch. RTT

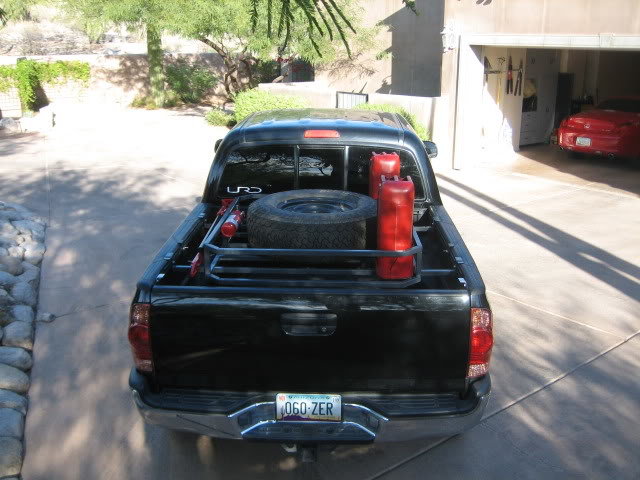

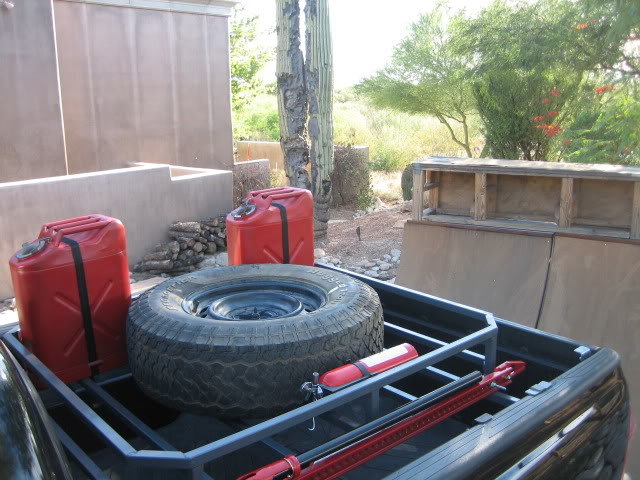

    okay, so now it's all done and i have everything mounted!!

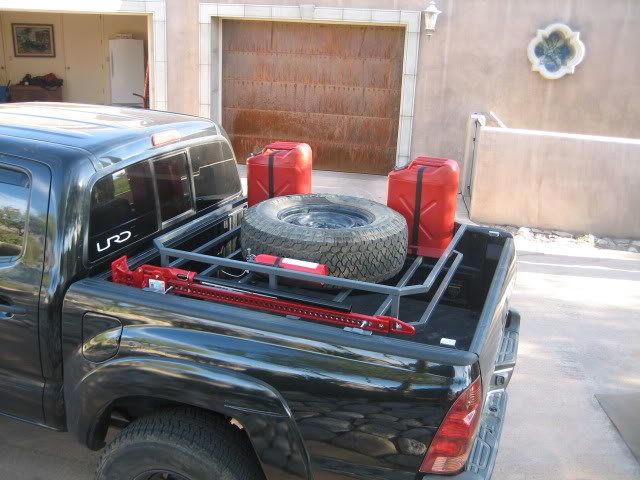

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    all in all, it's very sturdy. it can carry 200 lb of gear easy. it fits in the bed perfect and is super easy to take off.

    now i just need to get out and use it :p

  18. Oct 13, 2009 at 5:47 PM
    #18
    Masada

    Masada Well-Known Member

    Joined:
    Sep 10, 2009
    Member:
    #22555
    Messages:
    3,093
    Gender:
    Male
    First Name:
    Taylor
    Laveen, AZ
    Vehicle:
    05 Tacoma 4x4 TRD Off Road
    All Pro Steel Plate Front Bumper| All Pro Light Bar| All Pro IFS Skid Plate| All Pro E-locker guard| PIAA 510 Fog Lights| Hella 700FF| Fox 2.5 Coilover| Bilstein 5100 on the rear| BHLM| Grill Craft MX Series insert| Added two D-rings to bed|AVID Off Road sliders| AFE Dry Flow S| Gibson Cat Back| Custom Bedbar with hilift mount| Camburg 1" Uni-Ball UCA's| Hi-Lift 48" Extreme
    Very nice looking, are you taking orders? :)

    Good job...

  19. Oct 13, 2009 at 5:55 PM
    #19
    johnecon2001

    johnecon2001 Well-Known Member

    Joined:
    Apr 26, 2009
    Member:
    #16456
    Messages:
    1,019
    Gender:
    Male
    Phoenix, AZ
    Vehicle:
    2005 TRD Sport 4x4 Access Cab
    Downey front skid, Trail Gear U-Bolt flip, Toytec AAL, Total Chaos UCA's, Bilstein 5100's x4 + Eibach adjustable coils, Doug Thorley Long Tube Headers, Custom Rear bumper, TRD OffRoad front tow hook, TRD Trail Team wheels, Federal Couragia M/T 265's, ARB rear locker + on board air (CKMA12), TRD shift knob, Alpine W205, TRD seat covers, Tom Woods 1 Piece drive shaft, Powermaster D2700, Stubbs HD-SKO Sliders.
    Jerry cans on the right to offset Taco Lean? :p

  20. Oct 13, 2009 at 6:01 PM
    #20
    AFButters

    AFButters Rigger, Please!!

    Joined:
    Sep 10, 2008
    Member:
    #9113
    Messages:
    9,542
    Gender:
    Male
    First Name:
    "Butters"
    Rio Rancho, NM
    Vehicle:
    2008 DC 4x4 TRD-Sport
    Lifted
    That shit looks really good.. so yea.. how much would one of these cost.. It would def be awesome for the URE trip coming up.. I could take off the Tonneau cover and slip that on..
