Bed mounted winch (lightweight pulling)

Discussion in '3rd Gen. Tacomas (2016-2023)' started by 5nahalf, Sep 11, 2022.

  1. Sep 11, 2022 at 8:38 AM
    #1
    5nahalf

    5nahalf [OP] I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    10,833
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed
    Im getting older, and its getting harder and harder for me to be lifting my ice fishing house and kayak into the bed. Their not that heavy (100lbs or so) its just their super awkward to lift and big, plus right now I am 2.5 inches lifted, but with my new tires I will be another 1 inch higher.

    So I am looking to build a "ramp" and bolt a winch down in the bed that I can just pull them up. Since I would be pulling a max of 150lbs up a pvc or roller ramp it shouldn't need a ton of structural support.

    What are all your thoughts about just bolting the winch plate to the floor of the bed with some plates behind it? Or should I build the full frame that ties to the top rails?



    *Additional notes for those who dont know me
    I got spinal damage a few years ago, lifting is not my strong point anymore. If I am tired from pulling my sled or paddling all day, then I need to flag down help to lift my gear back into my truck.

  2. Sep 11, 2022 at 8:45 AM
    #2
    Trail Limo

    Trail Limo Well-Known Member

    Joined:
    Aug 7, 2018
    Member:
    #262048
    Messages:
    791
    Use the bed bolts for the winch???

    Another option is to mount the winch on a 2x6 and put in the bed pockets so that you can remove the winch if you need full access to the bed. Could then put straps to the D rings to hold the 2x6 down while winching.

  3. Sep 11, 2022 at 8:45 AM
    #3
    Rock Lobster

    Rock Lobster Thread Derailer

    Joined:
    Dec 14, 2018
    Member:
    #275833
    Messages:
    13,012
    Gender:
    Male
    First Name:
    Ryan
    Dee Eff Dub
    Vehicle:
    I drive a Miata.
    I'd put a boat winch on the rail. The higher off the deck you can get it, the easier the angle of attack.


    Though the easiest way to load would be to put that ice house on a trailer.

    :anonymous::crapstorm::D

    Key-Rei likes this.
  4. Sep 11, 2022 at 8:46 AM
    #4
    bulalo

    bulalo Well-Known Member

    Joined:
    Oct 21, 2017
    Member:
    #233682
    Messages:
    2,782
    Gender:
    Male
    SoCAL Inland Empire
    Vehicle:
    2017 trd offroad 4wd LB
    KDMax pro 9.0
  5. Sep 11, 2022 at 8:50 AM
    #5
    5nahalf

    5nahalf [OP] I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    10,833
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed
    Thats a good idea with putting a 2x6 and some straps. Though that wouldnt let my kayak fit all the way into the bed :(

    Not a bad idea, I could put it up front. Though I would need to have it a powered winch so I can guide it and since I have a cover I cant get into the bed with my ice shack.


    My dad had suggested one of those too, but I need to be able to run it while outside of the bed, also a cheaper atv winch is less than half that price.

    Rock Lobster[QUOTED] likes this.
  6. Sep 11, 2022 at 8:52 AM
    #6
    bulalo

    bulalo Well-Known Member

    Joined:
    Oct 21, 2017
    Member:
    #233682
    Messages:
    2,782
    Gender:
    Male
    SoCAL Inland Empire
    Vehicle:
    2017 trd offroad 4wd LB
    KDMax pro 9.0
    Idea Out of my mind is to attach it to bed bolt ring. Should be able to handle 100 lbs

  7. Sep 11, 2022 at 8:55 AM
    #7
    Trail Limo

    Trail Limo Well-Known Member

    Joined:
    Aug 7, 2018
    Member:
    #262048
    Messages:
    791
    If you use the pockets you won't need any bolts just a strap to keep it from lifting up. This should allow you to remove the 2x6 after the kayak is in the bed then slide the kayak forward in the space the 2x6 was occupying.

    5nahalf[QUOTED][OP] likes this.
  8. Sep 11, 2022 at 8:58 AM
    #8
    Rock Lobster

    Rock Lobster Thread Derailer

    Joined:
    Dec 14, 2018
    Member:
    #275833
    Messages:
    13,012
    Gender:
    Male
    First Name:
    Ryan
    Dee Eff Dub
    Vehicle:
    I drive a Miata.

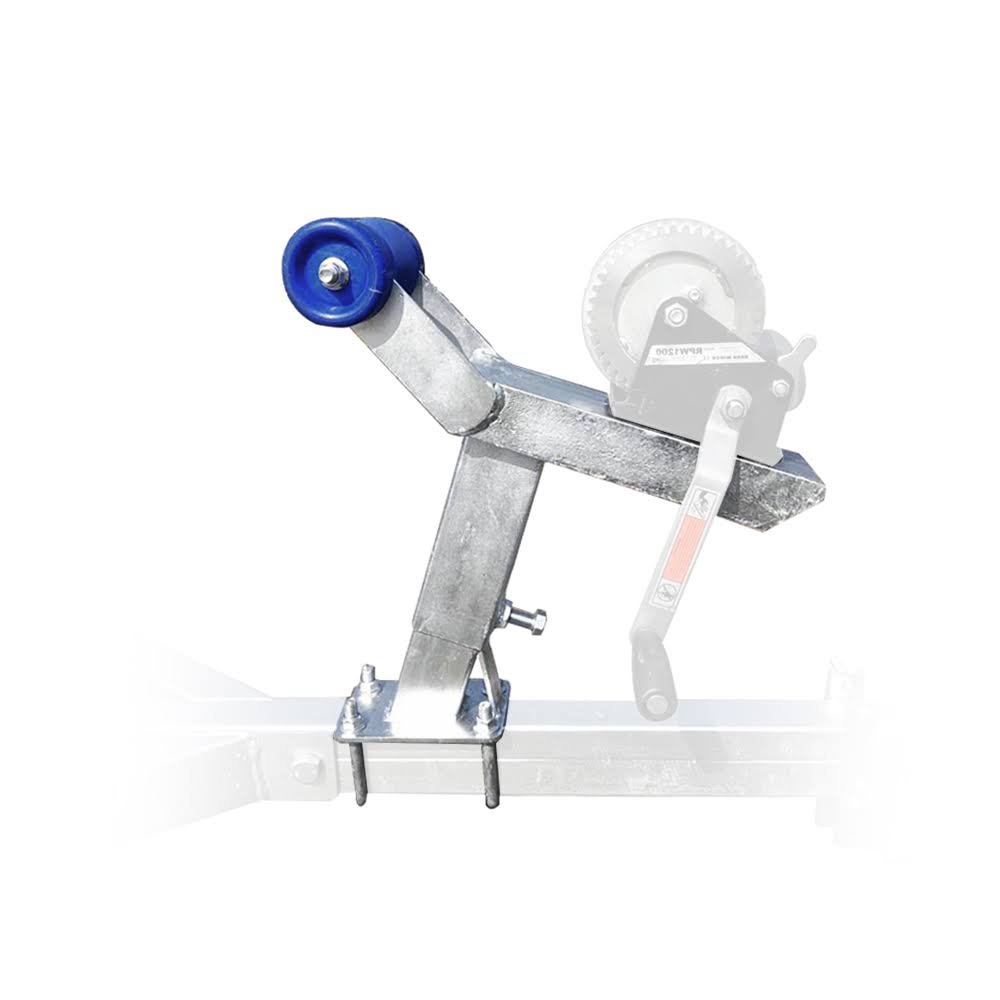

    So maybe an ATV winch on the bed floor, boat pulley on a portable a-frame so you can lift it into the tailgate, stow the pulley, and use the remaining slack to pull it towards the cab.

  9. Sep 11, 2022 at 9:02 AM
    #9
    Trail Limo

    Trail Limo Well-Known Member

    Joined:
    Aug 7, 2018
    Member:
    #262048
    Messages:
    791
  10. Sep 11, 2022 at 9:04 AM
    #10
    Trail Limo

    Trail Limo Well-Known Member

    Joined:
    Aug 7, 2018
    Member:
    #262048
    Messages:
    791
  11. Sep 11, 2022 at 9:08 AM
    #11
    Trail Limo

    Trail Limo Well-Known Member

    Joined:
    Aug 7, 2018
    Member:
    #262048
    Messages:
    791
    5nahalf[OP] likes this.
  12. Sep 11, 2022 at 9:49 AM
    #12
    5nahalf

    5nahalf [OP] I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    10,833
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed
  13. Sep 11, 2022 at 9:53 AM
    #13
    5nahalf

    5nahalf [OP] I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    10,833
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed

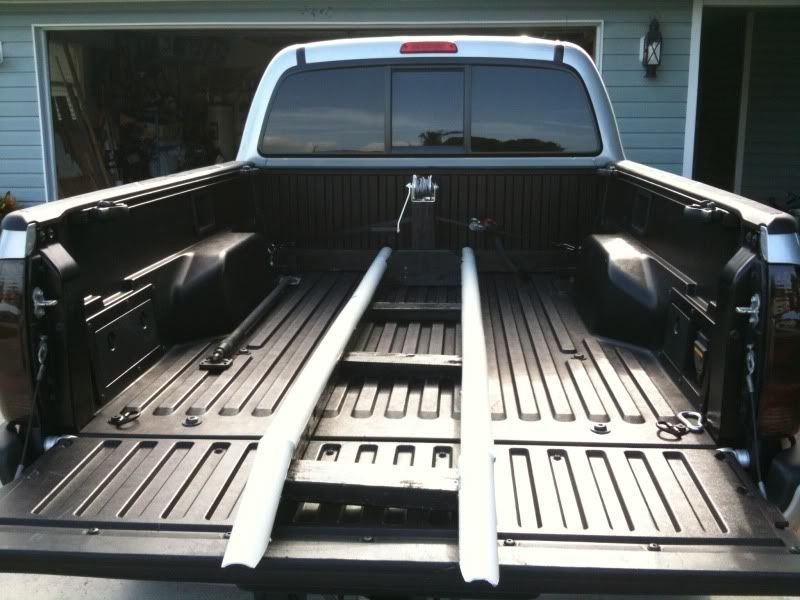

    I think I found a good solution that doesnt require drilling bed really.... So I already have o-tracks in my bed to secure my mini bike, I could build a frame with the winch and the kayak/ice house sliding rails (PVC pipe) already on it. Then I would just bolt the frame down to my o-tracks. This guy uses a hand winch, but I could use the part @Rock Lobster posted but with a electric winch mounted to it.





  14. Sep 11, 2022 at 10:11 AM
    #14
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,622
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    How about a rope pull pulley system?


    Last edited: Sep 11, 2022
    ponts and AmateurTaco1313 like this.
  15. Sep 11, 2022 at 10:48 AM
    #15
    5nahalf

    5nahalf [OP] I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    10,833
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed
    Not sure I would be able to pull hard enough to do that. Maybe with a few extra pullies for a multiplier, but no way would I be able to pull it with feet on ice.

  16. Sep 11, 2022 at 11:24 AM
    #16
    RX1cobra

    RX1cobra Well-Known Member

    Joined:
    May 20, 2019
    Member:
    #293789
    Messages:
    2,137
    Gender:
    Male
    Vehicle:
    19 OR

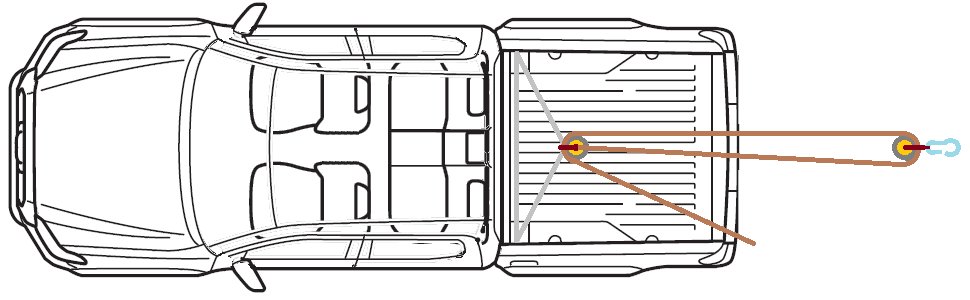

    What if you mounted the winch on one of back d rings and a pulley on the top front bed rail? That will raise the line up and give you easier access to the winch. You can also watch/move the sled easier to make sure it's going in how you want.

  17. Sep 11, 2022 at 1:46 PM
    #17
    5nahalf

    5nahalf [OP] I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    10,833
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed
    That might work, I will have to see as the sled is pretty wide, but I dont think its too wide to block me from being able to do that.

  18. Sep 11, 2022 at 2:32 PM
    #18
    soundman98

    soundman98 Well-Known Member

    Joined:
    May 31, 2021
    Member:
    #367288
    Messages:
    5,367
    Gender:
    Male
    NW Indiana
    Vehicle:
    '18 Taco Sport, '14 Ranger
    there was another guy a few months ago that just asked the same thing-- a winch for kayaks.

    all the same suggestions, i believe he ended up building a winch mount out of some aluminum x-channel that mimicked the toy loader design.

    otherwise, i'm using these for inspiration for my own bed mount winch design. i want it, don't need it...

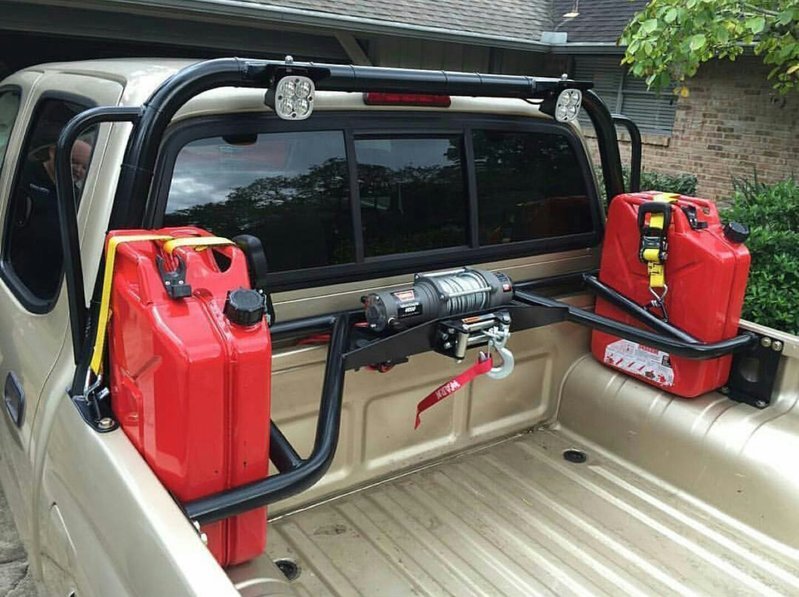

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    this is a custom bed rack with a 2" reciever winch
    https://www.tundras.com/threads/tundra-winch-bed-install.69464/
    [​IMG]

  19. Sep 11, 2022 at 2:37 PM
    #19
    5nahalf

    5nahalf [OP] I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    10,833
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed
    These would be great, but they would block my soft topper and I need that in the winter time to keep the snow and ice out of the bed.... plus my ice shack pretty much lives in the bed of my truck all winter long.

  20. Oct 3, 2022 at 7:17 PM
    #20
    5nahalf

    5nahalf [OP] I build dumb things

    Joined:
    Sep 22, 2018
    Member:
    #267058
    Messages:
    10,833
    Gender:
    Male
    First Name:
    Erik
    Minnesota
    Vehicle:
    2018 Inferno Longbed
    Just wanted to update my thread here with what I have sofar. I got a 2500lb winch with wireless remote at harbor freight, then using some 1 inch box tubing and the bed rails I made a mount for it.
    I still need to clean up my wiring and figure out if I am just going to leave a deep cycle battery in the back or if I am going to run a power cable to the bed. Going to swap out the cable with a synthetic rope to make cold weather use a bit less of a pain, also going to pull it out and paint the whole thing black. Finally I need to figure out a power switch for it, If I keep the battery in the bed then I will just put a switch inline there, but if I am going to run power from the battery then I will put a power switch inside the cab.
