Bed Rail CB Antenna Mount with Tonnau Cover

Discussion in 'Audio & Video' started by Sullyman, Nov 27, 2011.

  1. Nov 27, 2011 at 3:40 PM
    #1
    Sullyman

    Sullyman [OP] Crusty ole' conservative fart

    Joined:
    Apr 26, 2010
    Member:
    #36054
    Messages:
    561
    Gender:
    Male
    Augusta, Georgia area
    Vehicle:
    2010 Black TRD Sport
    Cat-back exhaust, BluLogic, Back-up Camera, Extang Solid Fold Tonnau cover, Pop-n-Lock PL8521 electronic tailgate lock, 4-leaf TSB, Illuminated 4x4 switch, Smittybuilt Nerf Step Bars, Toyota bed mat, Tinted the windows darker, CB with custom fab'd antenna mount, Grillcraft grill, AFE Pro Dry S filter with secondary filter removed. Differential breather relocation mod. Bridgestone Dueler AT/Revo 2 tires Weathertech mats Spec-D HID Halo's Bilstein 5100s front set at 2.5" w/OEM springs 4-leaf TSB w/ SkyJacker add-a-leaf
    Starting this thread becuase I've had people contact me about the bed-rail antenna mount I made for use with my Extang Solid Fold Tonnau cover.

    I started out buying a 3" wide x 1/8" thick steel blank from Ace Hardware and then did some bending...Dimensions are shown in the pic below...
    [​IMG]

    On a couple of the bends (I was using a sledge and a workbench vice) I cut 1/2" grooves just to make bending the metal a little easier...If you can get away with out doing this it will only make your mount stronger...not that I've had any problems with it bending...

    I ran the antenna ground wire through the back bed rail to the first bolt on the side rail (as shown in the picture below)...I got a good ground there...

    [​IMG]

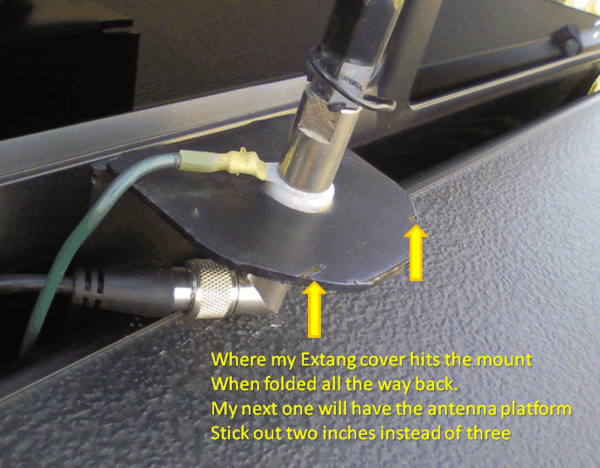

    I will be making a second one and shortening the antenna platform from three to two inches...when I fold my cover back all the way it hits the front of the antenna mount (you can see the rust spots in the picture below)...Something I didn't factor into my original cuts...

    [​IMG]

    So then I simply rounded the edges on the antenna platform for asthetics (sp?) and spray-painted it with rustoleum.

    I used two 1" x 3" x 1/8" rectangles slid into the rail to bolt the bracket down...used two for added strength...

    Have made a coupla road trips with it and it has not come loose or bent...

    Hope someone finds this helpfull...

    Here's a pick of how it looks with the bed cover on...

    [​IMG]

  2. Nov 27, 2011 at 3:57 PM
    #2
    dayNnite4

    dayNnite4 We can't stop here, this is bat country.

    Joined:
    Jul 10, 2011
    Member:
    #59655
    Messages:
    1,134
    Gender:
    Male
    First Name:
    Nick
    Southern NH
    Vehicle:
    '11 4x4 5-speed AC
    that looks awesome! very crafty :broccoli:

  3. Nov 27, 2011 at 4:36 PM
    #3
    Sullyman

    Sullyman [OP] Crusty ole' conservative fart

    Joined:
    Apr 26, 2010
    Member:
    #36054
    Messages:
    561
    Gender:
    Male
    Augusta, Georgia area
    Vehicle:
    2010 Black TRD Sport
    Cat-back exhaust, BluLogic, Back-up Camera, Extang Solid Fold Tonnau cover, Pop-n-Lock PL8521 electronic tailgate lock, 4-leaf TSB, Illuminated 4x4 switch, Smittybuilt Nerf Step Bars, Toyota bed mat, Tinted the windows darker, CB with custom fab'd antenna mount, Grillcraft grill, AFE Pro Dry S filter with secondary filter removed. Differential breather relocation mod. Bridgestone Dueler AT/Revo 2 tires Weathertech mats Spec-D HID Halo's Bilstein 5100s front set at 2.5" w/OEM springs 4-leaf TSB w/ SkyJacker add-a-leaf
    Thanks Nick...

  4. Nov 27, 2011 at 8:16 PM
    #4
    huang

    huang Active Member

    Joined:
    Nov 12, 2011
    Member:
    #66925
    Messages:
    25
    Gender:
    Male
    San Diego
    Vehicle:
    12 Prerunner
    Sullyman,
    Thanks so much for taking the time to do this. You Rock man. A few questions do you get much mositure in the bed due to the mount? How hard was it to get the antenna cable back into the truck.

    Ric

  5. Nov 28, 2011 at 2:36 AM
    #5
    Sullyman

    Sullyman [OP] Crusty ole' conservative fart

    Joined:
    Apr 26, 2010
    Member:
    #36054
    Messages:
    561
    Gender:
    Male
    Augusta, Georgia area
    Vehicle:
    2010 Black TRD Sport
    Cat-back exhaust, BluLogic, Back-up Camera, Extang Solid Fold Tonnau cover, Pop-n-Lock PL8521 electronic tailgate lock, 4-leaf TSB, Illuminated 4x4 switch, Smittybuilt Nerf Step Bars, Toyota bed mat, Tinted the windows darker, CB with custom fab'd antenna mount, Grillcraft grill, AFE Pro Dry S filter with secondary filter removed. Differential breather relocation mod. Bridgestone Dueler AT/Revo 2 tires Weathertech mats Spec-D HID Halo's Bilstein 5100s front set at 2.5" w/OEM springs 4-leaf TSB w/ SkyJacker add-a-leaf
    Ric...the moisture is minimal...on the Extang Solid Fold, the foam around the base of the cover smushes nicely over the bracket and the ground wire to seal things up pretty well...

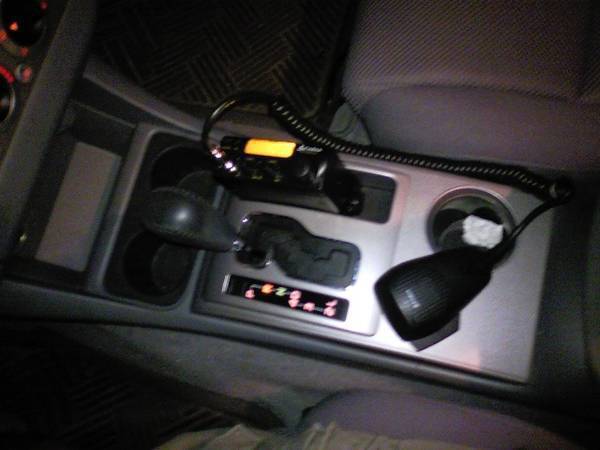

    On the Antenna Cable, I put my CB in the center console's hot-dog holder (see the pic below)...ran an 18' radio shack cable forward and then left behind the driver's side dash and then down through the driver's side door sill's cable tray to the hole under the driver's seat...then underneath the cab to split between the cab-n-bed and up to the antenna...

    [​IMG]

  6. Nov 28, 2011 at 4:13 AM
    #6
    Namyo

    Namyo -

    Joined:
    Apr 28, 2010
    Member:
    #36165
    Messages:
    14,142
    Gender:
    Male
  7. Nov 28, 2011 at 7:09 AM
    #7
    hookedontronics

    hookedontronics Well-Known Member

    Joined:
    Jan 6, 2010
    Member:
    #28863
    Messages:
    2,783
    Gender:
    Male
    First Name:
    Jake
    Glenville, NY
    Vehicle:
    2010 DC Off Road 4x4
    Icon extended travel 3.5" front coilovers, DSM UCAs, TSB leaf pack w/ wheelers AAL, All Pro U-bolt flip kit, Walker Evans 2.0 rear shocks, 18" XD Monster rims, Nitto trail grappler 285/65R18 Tires, Color matched grill, Grillcraft, Kragen HIDs, Carling switches, my bed light mod, diff drop, Alpine IVA-W505, JL Audio C5 componets and coaxials, JL 300/4 and 250/1 amps and JL stealthbox, wheathertechs, avs vent visors, toyota bed x-tender, alcantara center console cover and door pocket covers, console vault, color matched mirrors, heated mirrors, etc etc etc
    I also just made a bracket to work with my tonaue cover. Used a peice of steel and a 90 degreen antenna bend/fold bracket to locate it under the toneau cover. pics in my build thread

  8. Sep 1, 2012 at 5:34 AM
    #8
    AJ1G

    AJ1G Member

    Joined:
    Jul 21, 2012
    Member:
    #83112
    Messages:
    17
    Gender:
    Male
    First Name:
    Chris
    Stonington, CT
    Vehicle:
    2012 2.7L Auto 4X4 SR5 Access Cab
    Just came across this old thread while searching for ideas on an antenna mount to fit onto the Tacoma tie down rails. While I appreciate the mechanical idea of this install, the electrical side is VERY wrong! It looks to me like the green "ground wire" that is run over to the left side bed rail is attached to the antenna feed point ABOVE the feed through insulator on the bracket! This arrangement shorts the center conductor of the feed line (and the bottom of the antenna itself) directly to ground! What needs to be grounded on this installation is the L bracket itself. At 27 Mhz, you want to make that ground lead as short as possible, only a few inches, otherwise you will throw the tuning of the antenna way off. If this installation worked at all, it was only because the length of the "ground wire" might have a high enough impedance (resistance) to not completely shunt out all of the RF to the antenna!

    Also, putting an antenna close in to the back if the cab, even if the feed point was properly connected, still will dump most of the energy radiated by the antenna into the metal of the cab. Same problem with using bumper mounts that keep most of the the antenna very close to the truck body. Antennas need to be mounted out in the clear, best spot would be back on the left rear corner of the bed rail by the tailgate, or attach the bracket to the two bolts on the top of pedestal just inside the tailgate.

  9. Sep 1, 2012 at 5:34 AM
    #9
    AJ1G

    AJ1G Member

    Joined:
    Jul 21, 2012
    Member:
    #83112
    Messages:
    17
    Gender:
    Male
    First Name:
    Chris
    Stonington, CT
    Vehicle:
    2012 2.7L Auto 4X4 SR5 Access Cab
    Just came across this old thread while searching for ideas on an antenna mount to fit onto the Tacoma tie down rails. While I appreciate the mechanical idea of this install, the electrical side is VERY wrong! It looks to me like the green "ground wire" that is run over to the left side bedrail tailgate is attached to the antenna feed point ABOVE the feed through insulator on the bracket! This arrangement shorts the center conductor of the feed line (and the bottom of the antenna itself) directly to ground! What needs to be grounded on this installation is the L bracket itself. At 27 Mhz, you want to make that ground lead as short as possible, only a few inches, otherwise you will throw the tuning of the antenna way off. If this installation worked at all, it was only because the length of the "ground wire" might have a high enough impedance (resistance) to not completely shunt out all of the RF to the antenna!

    Also, putting an antenna close in to the back if the cab, even if the feed point was properly connected, still will dump most of the energy radiated by the antenna into the metal of the cab. Same problem with using bumper mounts that keep most of the the antenna very close to the truck body. Antennas need to be mounted out in the clear, best spot would be back on the left rear corner by the tailgate.
