Bed rails attachments.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by EricGagne, Sep 18, 2010.

  1. Jan 27, 2017 at 7:43 PM
    #461
    Gregthespy

    Gregthespy Well-Known Member

    Joined:
    Apr 27, 2015
    Member:
    #154090
    Messages:
    1,354
    Gender:
    Male
    First Name:
    Greg
    Orlando
    Vehicle:
    2015 Blue Ribbon Metallic TRD Sport 4X4

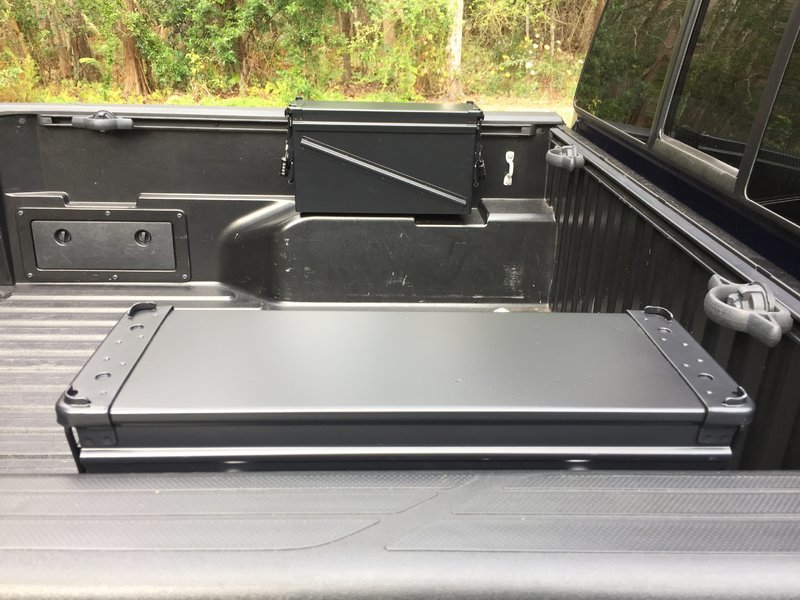

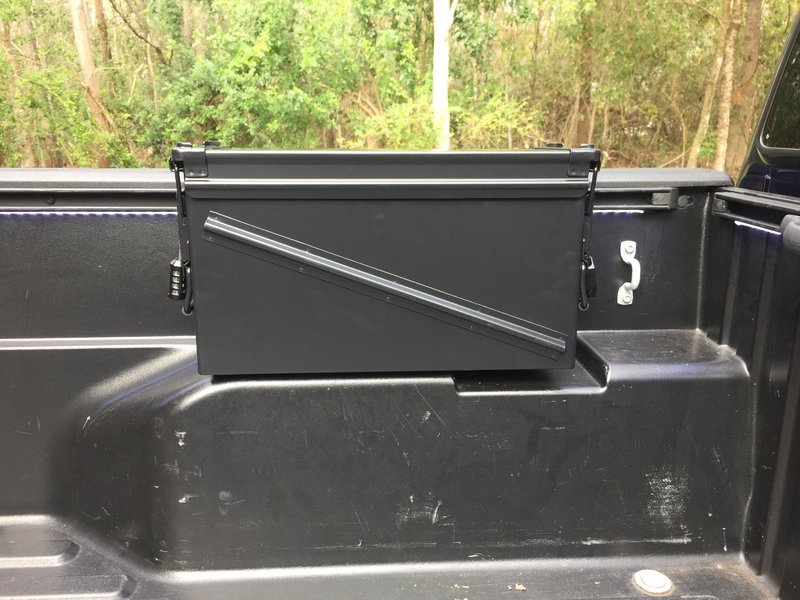

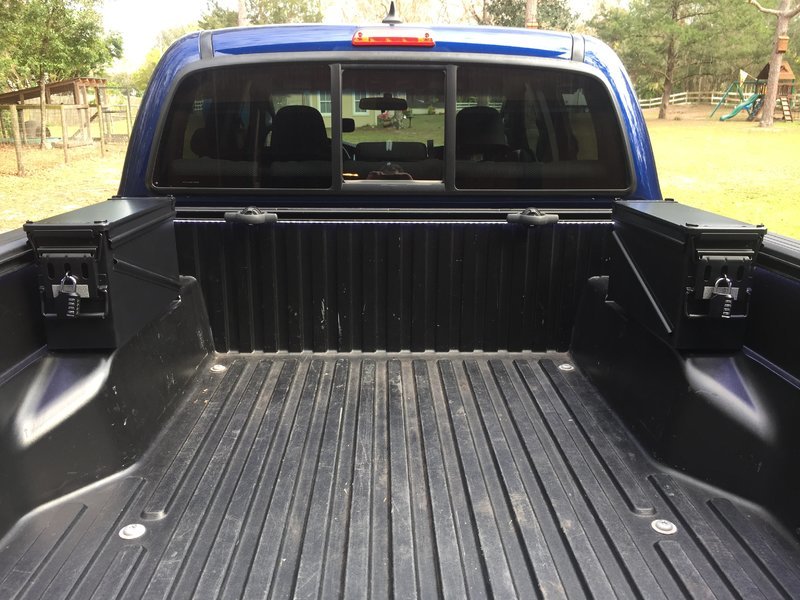

    Yassssssss!!!! Thanks to Tacoma World and this thread I now have super awesome 40mm ammo boxes mounted on my bed rails!


    LowFourJoe and itaro like this.
  2. Jan 27, 2017 at 7:51 PM
    #462
    Joethebugman

    Joethebugman Well-Known Member

    Joined:
    Aug 10, 2016
    Member:
    #194254
    Messages:
    345
    Gender:
    Male
    First Name:
    Joe
    Vehicle:
    '17 Trd OR DBCLB

    O yea! That looks nice! Where did you get the boxes? They look like nice boxes.

  3. Jan 28, 2017 at 5:38 AM
    #463
    Gregthespy

    Gregthespy Well-Known Member

    Joined:
    Apr 27, 2015
    Member:
    #154090
    Messages:
    1,354
    Gender:
    Male
    First Name:
    Greg
    Orlando
    Vehicle:
    2015 Blue Ribbon Metallic TRD Sport 4X4
    I picked them up from a Jeep parts site called Quadratec. They have brand new ones (remakes of the original military style) they even have lock hasps built in on them already! They were $29 each and you can get them in the original olive drab color or black. They even have free shipping on orders over $50, which was a huge plus, since most places online charged more for shipping on a used can of unknown condition than just buying shiny new ones!
    http://www.quadratec.com/products/44036_0011_07.htm

    Joethebugman and Ex-MA Hole like this.
  4. Jan 28, 2017 at 6:50 PM
    #464
    Joethebugman

    Joethebugman Well-Known Member

    Joined:
    Aug 10, 2016
    Member:
    #194254
    Messages:
    345
    Gender:
    Male
    First Name:
    Joe
    Vehicle:
    '17 Trd OR DBCLB
    Thank you. This is the perfect solution to nit having a tool box.

  5. Jan 28, 2017 at 7:42 PM
    #465
    Gregthespy

    Gregthespy Well-Known Member

    Joined:
    Apr 27, 2015
    Member:
    #154090
    Messages:
    1,354
    Gender:
    Male
    First Name:
    Greg
    Orlando
    Vehicle:
    2015 Blue Ribbon Metallic TRD Sport 4X4
    Yes, this was my solution to losing my rear seat storage once I installed a 2nd car seat for the new arrival. I didn't want to sacrifice my bed space with a typical truck bed tool box, and only needed a small amount of space for some tow straps, shackles, hitch receivers/balls, jumper cables and small emergency air compressor. This seems to be a great option. Again, I wouldn't have been able to come up with this without this great site for the inspiration and guidance!

    Joethebugman likes this.
  6. Feb 3, 2017 at 5:13 AM
    #466
    NorthGeorgiaTaco

    NorthGeorgiaTaco Well-Known Member

    Joined:
    Jan 30, 2016
    Member:
    #176622
    Messages:
    139
    Gender:
    Male
    First Name:
    Joshua
    Chatsworth, Ga
    Vehicle:
    2015 Tacoma SR5 Prerunner MGM

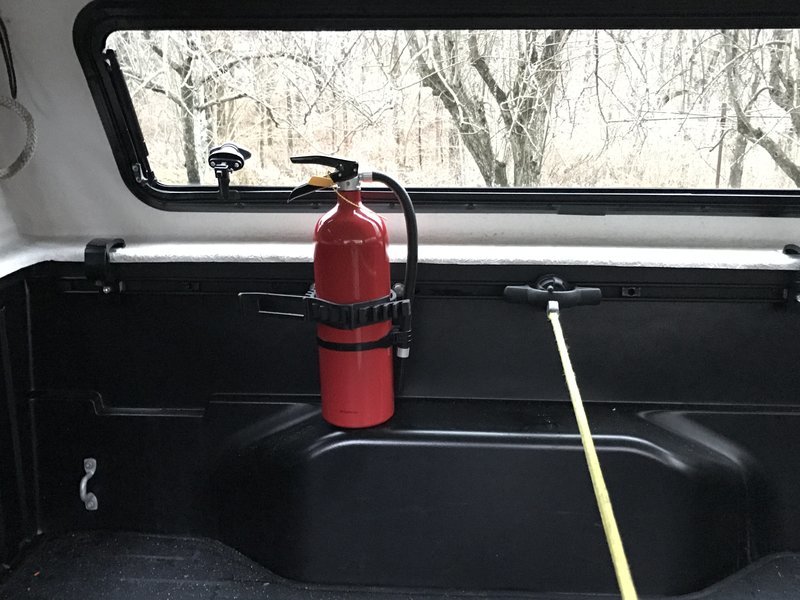

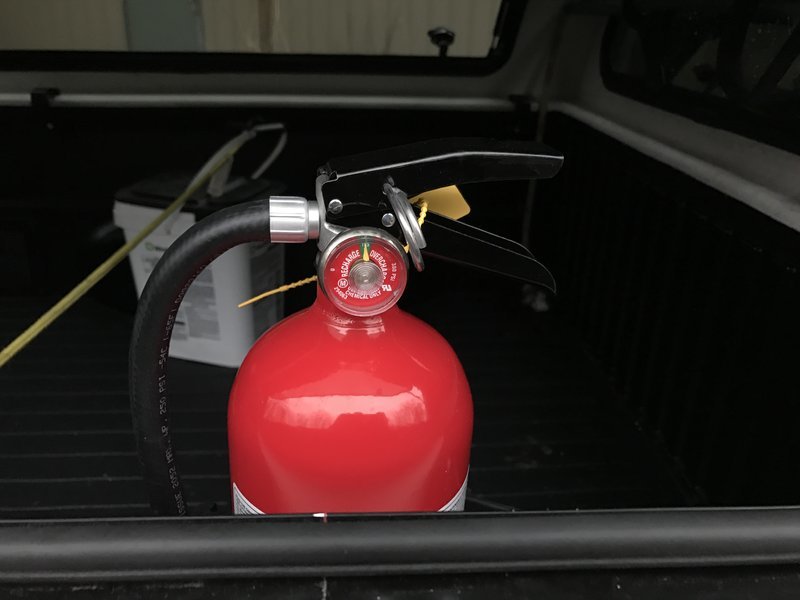

    What did you use to hold your fire extinguisher? I would love to have one in my truck.

  7. Feb 3, 2017 at 5:43 AM
    #467
    Tractorman

    Tractorman Just A Dumb Farmer

    Joined:
    Aug 17, 2014
    Member:
    #136355
    Messages:
    17,053
    First Name:
    Stupid
    Misery
    Vehicle:
    2015 DCSB / MGM
    Clazzio leather seat covers, SCS wheels, Fold-A-Cover, LED bed light, Weather Tech window guards, Weather Tech floor liners,LED under hood light, MUTH signal mirrors,Firestick under tailgate light, temp-compass-auto dimming mirror, N-Fab step nerf bars, window tint, Firestone Ride Rites with Daystar cradles, G-Fab sill protectors,
  8. Feb 3, 2017 at 7:38 AM
    #468
    Joethebugman

    Joethebugman Well-Known Member

    Joined:
    Aug 10, 2016
    Member:
    #194254
    Messages:
    345
    Gender:
    Male
    First Name:
    Joe
    Vehicle:
    '17 Trd OR DBCLB
  9. Feb 16, 2017 at 11:41 AM
    #469
    Joethebugman

    Joethebugman Well-Known Member

    Joined:
    Aug 10, 2016
    Member:
    #194254
    Messages:
    345
    Gender:
    Male
    First Name:
    Joe
    Vehicle:
    '17 Trd OR DBCLB
    Your such a bad influence. So I broke down and bought a pair myself. These things a heavier and bigger than I though. Just have a quick question though @Gregthespy. Are you using any kind of spacer between the rail and the box? Thanks for recommending these.

  10. Feb 16, 2017 at 3:10 PM
    #470
    Gregthespy

    Gregthespy Well-Known Member

    Joined:
    Apr 27, 2015
    Member:
    #154090
    Messages:
    1,354
    Gender:
    Male
    First Name:
    Greg
    Orlando
    Vehicle:
    2015 Blue Ribbon Metallic TRD Sport 4X4
    Yes sir,

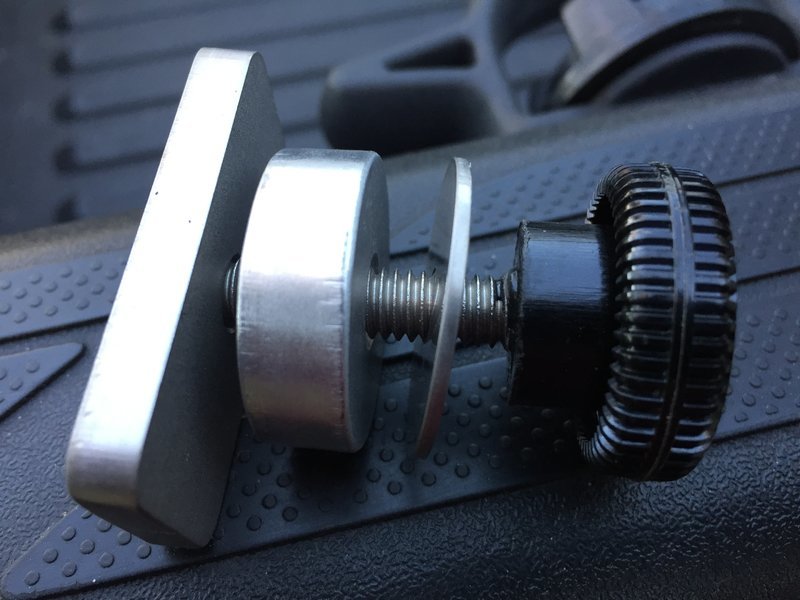

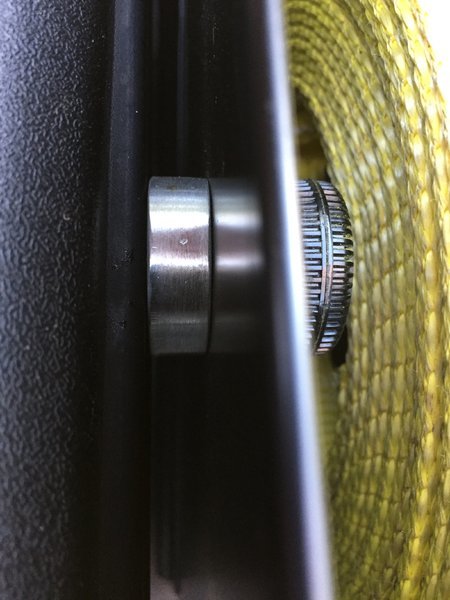

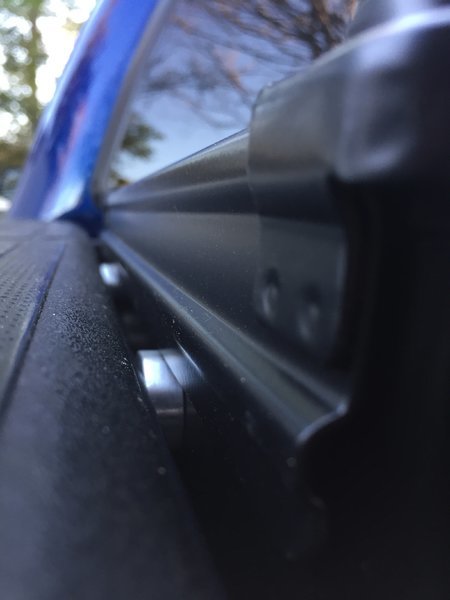

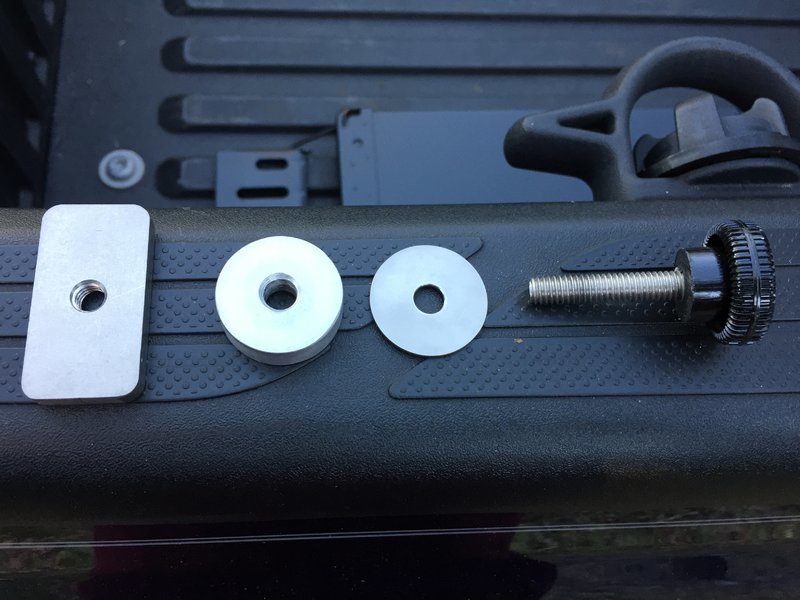

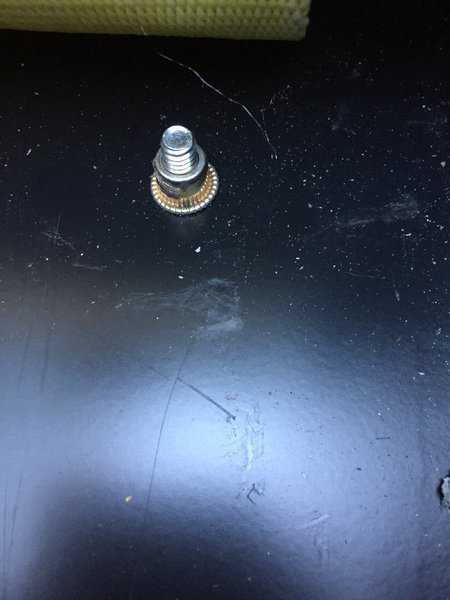

    I'm the CAD designer/programmer at a sheet metal shop so the following breakdown of components are slightly custom. I used a 3/8" thick aluminum washer at 1.25" in diameter to offset the box to avoid the stiffening rib that's welded onto the sides of the box.

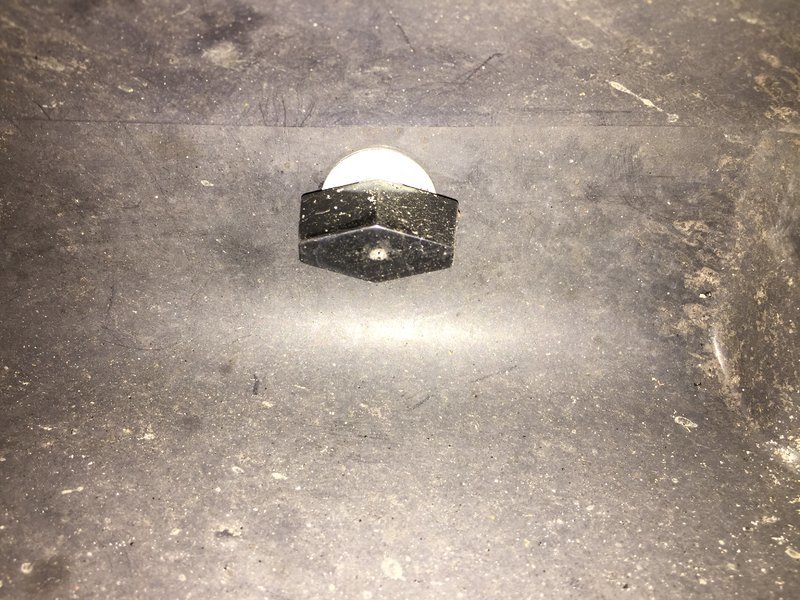

    I also made my own rail nut out of 1/4" stainless steel tapped for a 5/16-18 threaded knob. One of the things I noticed is that if your spacer is any larger than 1.25" it will interfere with the lid overhang when the lid is on. I also found after a little use that the boxes lifted off of the fender hump when I tightend them to the rail, I didn't like that so I added a threaded insert to the bottom of the box and ran another threaded knob into it from the underside of the fender we'll. I'm sure you could simply use a nut and bolt, but I had the technology available to put a threaded insert in, so I did.

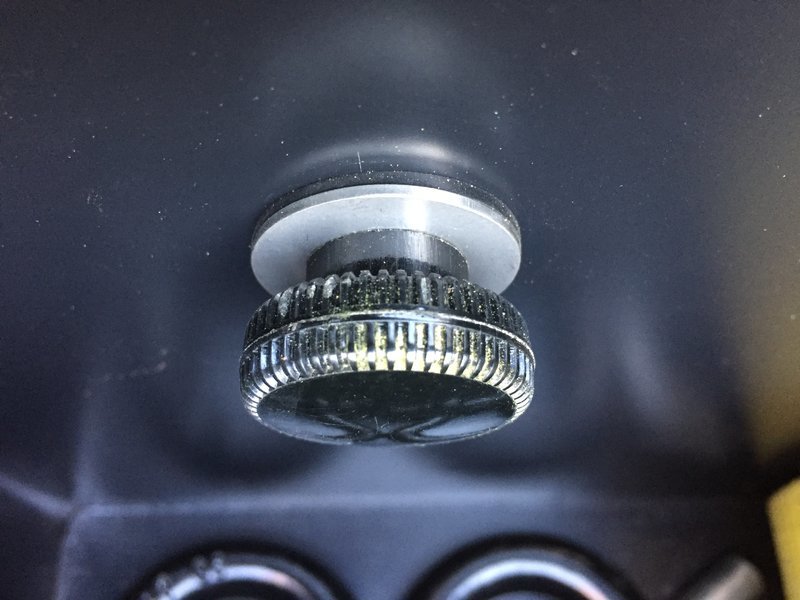

    I lastly, put a thin rubber washer under the washer inside of the box to help stop any water that may make its way across the threads of the bolts that hold it to the bed rail. Below are some pics of the items for a better look.
    Glad I'm an inspiration (or bad influence!). So far I'm loving these boxes, the only thing I've done since installing them is to add some large heat shrink around my combination locks to avoid the swinging locks from wearing into the boxes finish.
    If you havd any more questions feel free to ask!


  11. Feb 16, 2017 at 3:12 PM
    #471
    Joethebugman

    Joethebugman Well-Known Member

    Joined:
    Aug 10, 2016
    Member:
    #194254
    Messages:
    345
    Gender:
    Male
    First Name:
    Joe
    Vehicle:
    '17 Trd OR DBCLB
    Ummmm wow! And all I can do is kill bugs. Lol.
    Ok so when are you going to start manufacturing these?

  12. Feb 20, 2017 at 4:55 PM
    #472
    Marbleyard

    Marbleyard Thread killer

    Joined:
    Jul 15, 2016
    Member:
    #192084
    Messages:
    806
    Gender:
    Male
    First Name:
    John
    Virginia
    Vehicle:
    2019 4Runner Pro
    SOLD 2016 taco: premium technology and tow package. OV Tune 1.05; A.R.E. V Camper Shell; BRO grille & Tails; OEM bed mat; Xenon Depot HID headlight conversion; reflective gray tailgate letter inserts; GoPro session; Hondo radio knobs; K&N cold air intake, quicksand painted dash bezels, Subaru dash speakers, Kicker CS 6x9 fronts and 6.5 rear speakers; All LED interior lights and LED high-beam headlights. Redline elite hood shock props. prinsu cab and camper rack with rough country 30" light bar; (2) 8" rear facing “F.U.”rough country black LED lights; prinsu cargo basket kit, (2) prinsu load racks; roadshower 4; ARB 2500 awning and room kit; weather tech floor mats; carhart seat covers; ckma12 ARB air compressor under the hood; blue ridge overland gear air tools bag, tool bag, driver's seat molle. Rack mounted TRED 800 recovery treds and plano case. Rotopax water and fuelpax fuel canisters; Pelican cased first aid kit in bed. rockblokz mud flaps. ARB rear dif. breather. Stand alone fuse block. SSO bumper with 10k smittybilt synthetic line winch and factor55 ultrahook. Pro Eagle 2-Ton “The Beast” jack. OME lift kit: 90000 front shocks and 886 OME coils, Camburg 310078 UCA, 60091 rear shocks with light duty Dakar leafs. Good Year duratracs 285/75R16. Black vinyl inlays on factory OR wheels; RCI Steel Front/Trans/Trans Case/Rear Diff Skids, Alum A-Arm; Mobtown bolt-on sliders with scorpion bed coating; pelfreybilt aluminum fuel tank skid; Cali-Raised full length Molle storage LH & RH bed sides; Caliraised bedside reinforcements; HELLA sharptone horns; Optima blue-top battery with AJT machined red tiedown bracket. AJT quicksand key fob. Overland Bound member #6996

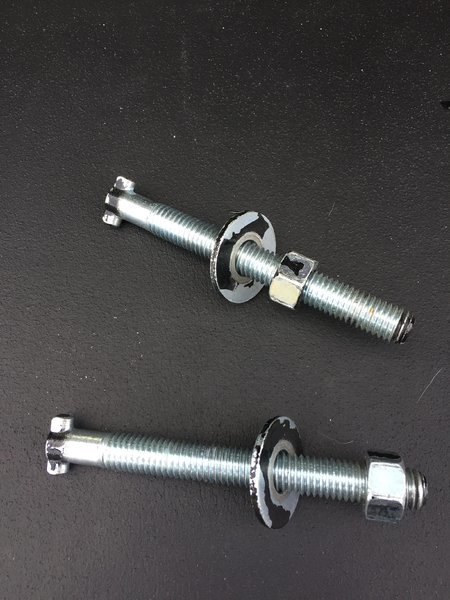

    Had surprising results with these. I think I will have better if I grind down the thread side of the "wings" flat. Now who can tell me what they are, I know, do you :D

  13. Feb 22, 2017 at 8:07 AM
    #473
    mobgma

    mobgma Well-Known Member

    Joined:
    Nov 12, 2012
    Member:
    #91006
    Messages:
    214
    Gender:
    Male
    Edmonton, AB, Canada
    Vehicle:
    2016 Toyota Tacoma TRD Double Cab Long Box
  14. Apr 23, 2017 at 9:30 PM
    #474
    hoski_in_sd

    hoski_in_sd Well-Known Member

    Joined:
    Mar 31, 2017
    Member:
    #214953
    Messages:
    83
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    2017 Tacoma SR5 4WD DCSB
  15. Apr 26, 2017 at 10:20 PM
    #475
    Borealis

    Borealis Active Member

    Joined:
    Mar 6, 2017
    Member:
    #212506
    Messages:
    29
    Gender:
    Male
    First Name:
    Willy
    Yukon Territory
    Vehicle:
    1980 4x4 Pickup, '96 White Taco,'96 Blue Taco,'06 TRD Taco
    bush-road clusterfuck
  16. Apr 26, 2017 at 11:45 PM
    #476
    x250f23x

    x250f23x Going in dry

    Joined:
    Oct 23, 2016
    Member:
    #200471
    Messages:
    226
    Gender:
    Male
    Lake Elsinore
    I could make some laser cut strips of aluminum or steel that had holes for pressing in PEM nuts. Then you could cut the strips to whatever length you needed/ press in the PEM nuts to only the holes needed. Maybe ya'll just want a supplied kit?

  17. Apr 27, 2017 at 12:01 AM
    #477
    Joethebugman

    Joethebugman Well-Known Member

    Joined:
    Aug 10, 2016
    Member:
    #194254
    Messages:
    345
    Gender:
    Male
    First Name:
    Joe
    Vehicle:
    '17 Trd OR DBCLB

    I'm all set now. But a kit would be awesome. I bought the T nuts online then went to the hardware for the bolts. A kit with varies sized bolts would rock.

  18. May 11, 2017 at 11:39 AM
    #478
    montanacruiser

    montanacruiser Well-Known Member

    Joined:
    Apr 27, 2017
    Member:
    #217487
    Messages:
    170
    Vehicle:
    2017 DCLB Off Road
    Just ordered the t-nuts for a tool mounting project. Are the quick fist the best option for mounting a shove and ax?
    Thanks

  19. May 11, 2017 at 6:05 PM
    #479
    Taylor@KC HiLiTES

    Taylor@KC HiLiTES Well-Known Member Vendor

    Joined:
    Nov 11, 2016
    Member:
    #202104
    Messages:
    1,061
    Gender:
    Male
    First Name:
    Taylor
    Arizona
    Vehicle:
    2010 DCSB TRD OR 4x4
    See build thread
    That's what I use! I have only had my shovel fall out of the mount (1 of the 2) once, and I think it was user error of not tightening it.

  20. May 12, 2017 at 6:14 PM
    #480
    pc3coyote

    pc3coyote www.pc3coyote.com

    Joined:
    Sep 28, 2014
    Member:
    #139276
    Messages:
    1,559
    Gender:
    Male
    First Name:
    Paul
    SoCal
    Vehicle:
    17 BBP Sport DCSB 4x4
    I used @RelentlessFab hi-lift mounts to hold a 60" hi-lift with a daystar handle isolator and a @Shmellmopwho slider adapter (cut to 55" to fit under my low-profile tonneau cover) and dual quick-fist mounts to mount a 40" shovel and 26" axe. I also mounted a hi-lift base to the front bed rail with 1/2" carriage bolts. I painted the tools to match my blazing blue pearl truck because I'm a crazy person.. More pictures and instructions are in my write-ups for the tool mounts here.




































    lpfe42, bigfella13 and BenTheMan like this.
