    Quick Links: H11 in H16 fog housing TRD Sport Front camera position on SR5 grill? Amazon lightning deal on tailgate lettering for 3rd gen RAM X-mount, my version. T-SLOT NUT FOR BED RAIL... SO U CAN MOUNT YOUR STUFF Transmission Fluid Temperature PIDs for Torque Pro and NOW APPLE!

Bed storage container ideas

Discussion in '3rd Gen. Tacomas (2016+)' started by Metalnut, Jan 5, 2016.

Page 3 of 23
  1. Jan 16, 2016 at 11:45 AM
    #41
    theredofshaw

    #41
    theredofshaw Well-Known Member

    Joined:
    Aug 10, 2010
    Member:
    #41484
    Messages:
    7,022
    Gender:
    Male
    First Name:
    John
    Somewhere on the East coast
    Vehicle:
    not a taco (guess that means I can be a MOD now)
    (totaled) 2011 Tacoma DC
    theredofshaw, Jan 16, 2016
    #41
    generalslee and Anton like this.
  2. Jan 16, 2016 at 12:29 PM
    #42
    Mitchal

    #42
    Mitchal Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172768
    Messages:
    119
    Gender:
    Male
    First Name:
    Mitch
    Vehicle:
    2016 Tacoma
    I need a "Flush Mount Box" or one built into the Cover.

    This could work but not very big and none for the 2016 Tacoma
    http://bakindustries.com/p-8254-bakbox-2-tonneau-toolbox-overview.html

    I like something like this but better fit.



    I think I'm looking for a "Utility Chest" that would have a nice width in the back next to the cab.
    I see Toyota is showing the inside width of the bed as 56.7"
    Does this mean I can drop and secure a 56" width chest in the back or does it taper in towards the bed floor?
    with a bed depth of 19.1" these should work. If I have a tri fold cover , does it take up any more space?

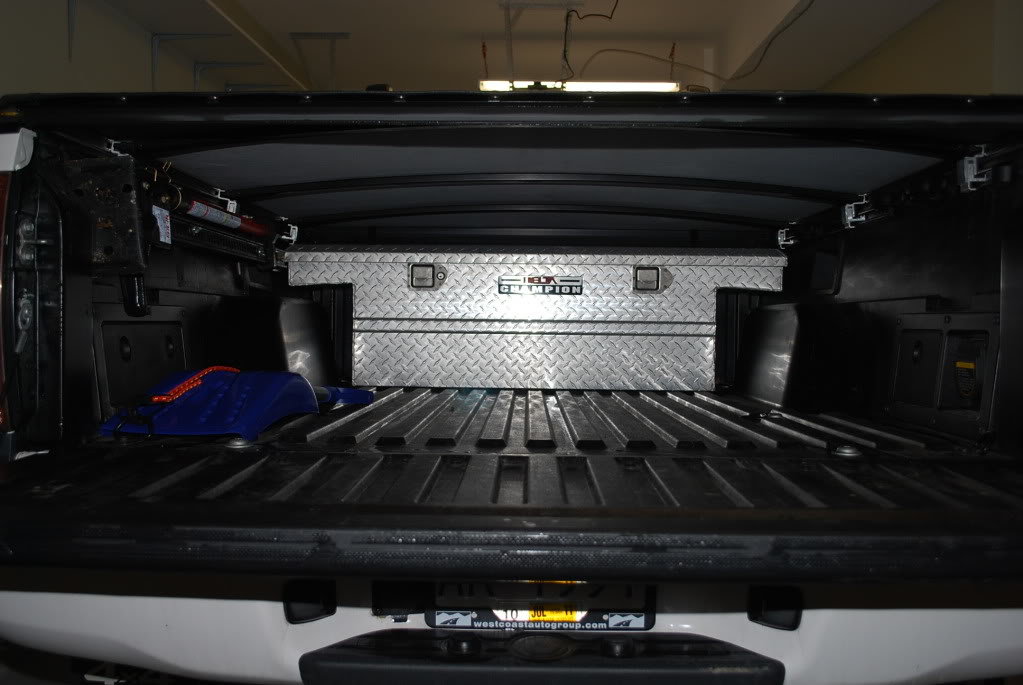

    I would like to use this box
    [​IMG]

    Last edited: Jan 16, 2016
    Mitchal, Jan 16, 2016
    #42
    1R0NMAN811 and black_cukui like this.
  3. Jan 16, 2016 at 12:41 PM
    #43
    Mitchal

    #43
    Mitchal Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172768
    Messages:
    119
    Gender:
    Male
    First Name:
    Mitch
    Vehicle:
    2016 Tacoma
    .....................

    Last edited: Jan 16, 2016
    Mitchal, Jan 16, 2016
    #43
  4. Jan 16, 2016 at 6:43 PM
    #44
    Mitchal

    #44
    Mitchal Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172768
    Messages:
    119
    Gender:
    Male
    First Name:
    Mitch
    Vehicle:
    2016 Tacoma
    What tri fold allow you to open the tri fold next to the cab and the tail gate both.

    I would like to be able to just open the trifold near the cab to access the box.

    Also any suggestions on how to bolt the Utility Box the bed floor?

    Last edited: Jan 16, 2016
    Mitchal, Jan 16, 2016
    #44
  5. Jan 16, 2016 at 6:49 PM
    #45
    81435

    #45
    81435 Well-Known Member

    Joined:
    Oct 10, 2015
    Member:
    #166346
    Messages:
    179
    Gender:
    Male
    Colorado
    Vehicle:
    2016 TRD OR AC MGM
    3/2 lift, TRD Pro wheels, 275/70/17 KO2's
    Check out the Fold-a-Cover: http://www.foldacoverfactorystore.com/TT6312-G4-Elite-Fold-A-Cover.html
    It looks like it actually has 4 panels, but you can open from either end.

    Also check out the Diamondback SE - they are more expensive, but looks like a much sturdier and more secure cover.

    81435, Jan 16, 2016
    #45
    Justintheegreat likes this.
  6. Jan 16, 2016 at 6:49 PM
    #46
    s2kshock

    #46
    s2kshock Well-Known Member

    Joined:
    Oct 5, 2015
    Member:
    #165883
    Messages:
    275
    Gender:
    Male
    First Name:
    A
    Vehicle:
    2020 Tacoma TRD OR DCSB w/ Tech, Cement
    265/70/17 Tires and Upgraded Wheels
    s2kshock, Jan 16, 2016
    #46
  7. Jan 16, 2016 at 7:35 PM
    #47
    Mitchal

    #47
    Mitchal Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172768
    Messages:
    119
    Gender:
    Male
    First Name:
    Mitch
    Vehicle:
    2016 Tacoma
    Anyone have any tips on bolting the box to the floor of the trick bed?

    Mitchal, Jan 16, 2016
    #47
  8. Jan 16, 2016 at 9:11 PM
    #48
    splitbolt

    #48
    splitbolt Well-Endowed Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    6,330
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    I bolted bed rail to the floor.
    The box bolts in with t-slot nuts so I can take the box in and out, no hassle.
    Use the drainage holes as your reference, when checking underneath.



    splitbolt, Jan 16, 2016
    #48
    GSDLVR123, AxisCab, mcharfauros and 1 other person like this.
  9. Jan 16, 2016 at 11:23 PM
    #49
    Tacomadre16

    #49
    Tacomadre16 Active Member

    Joined:
    Dec 22, 2015
    Member:
    #172903
    Messages:
    30
    Gender:
    Male
    First Name:
    Pepe
    Vehicle:
    16 Taco
    can you take more pictures of the process, picture of the box bolts in with t-slot nuts please and where you got the extra bed rail?

    I like that setup

    Tacomadre16, Jan 16, 2016
    #49
    Cactuskid, GSDLVR123 and ebrisse like this.
  10. Jan 16, 2016 at 11:28 PM
    #50
    Broccoli

    #50
    Broccoli Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166833
    Messages:
    2,101
    Gender:
    Male
    Airdrie Alberta
    Vehicle:
    2016 trd sport blazing blue,
    I personally like the side mounted boxes, that way u have the full length of the bed and only lose 8-16" of width depending on style. I have seen some that use the cargo management rail for mounting.

    Broccoli, Jan 16, 2016
    #50
  11. Jan 16, 2016 at 11:30 PM
    #51
    Herniator

    #51
    Herniator Well-Known Member

    Joined:
    Apr 9, 2015
    Member:
    #152886
    Messages:
    3,333
    Gender:
    Male
    Edmonton
    Vehicle:
    2016 Toyota Tacoma TRD Sport
    chrome valve stems covers
    I got my extra bed rail from the dealership. It isn't listed as a 2016 part but as a 2nd gen Tacoma part. It fits perfect.
    Or you can also find it at a online store.

    Herniator, Jan 16, 2016
    #51
  12. Jan 16, 2016 at 11:34 PM
    #52
    splitbolt

    #52
    splitbolt Well-Endowed Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    6,330
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    splitbolt, Jan 16, 2016
    #52
  13. Jan 16, 2016 at 11:35 PM
    #53
    Herniator

    #53
    Herniator Well-Known Member

    Joined:
    Apr 9, 2015
    Member:
    #152886
    Messages:
    3,333
    Gender:
    Male
    Edmonton
    Vehicle:
    2016 Toyota Tacoma TRD Sport
    chrome valve stems covers
    I got my extra bed rail from the dealership. It isn't listed as a 2016 part but as a 2nd gen Tacoma part. It fits perfect.
    Or you can also find it at a online store.

    Herniator, Jan 16, 2016
    #53
  14. Jan 16, 2016 at 11:55 PM
    #54
    splitbolt

    #54
    splitbolt Well-Endowed Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    6,330
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM
    Are you buying a long bed or short bed?
    It's 42" between the wheel wells.
    I'd imagine 56.7" is the rail-to-rail dimension.

    splitbolt, Jan 16, 2016
    #54
  15. Jan 17, 2016 at 9:44 AM
    #55
    Mitchal

    #55
    Mitchal Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172768
    Messages:
    119
    Gender:
    Male
    First Name:
    Mitch
    Vehicle:
    2016 Tacoma
    good point , I 'm getting a short bed., I was thinking the box space was before you get to the wheel well.
    Now that I see it I realize I'll need a 42" box.
    I like the rail you placed
    What height will I need ip I want to keep it below the rails , in case I want a cover later on.

    What box did you get?
    Can you post more info on how you did it.

    Last edited: Jan 17, 2016
    Mitchal, Jan 17, 2016
    #55
  16. Jan 17, 2016 at 11:37 AM
    #56
    splitbolt

    #56
    splitbolt Well-Endowed Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    6,330
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM

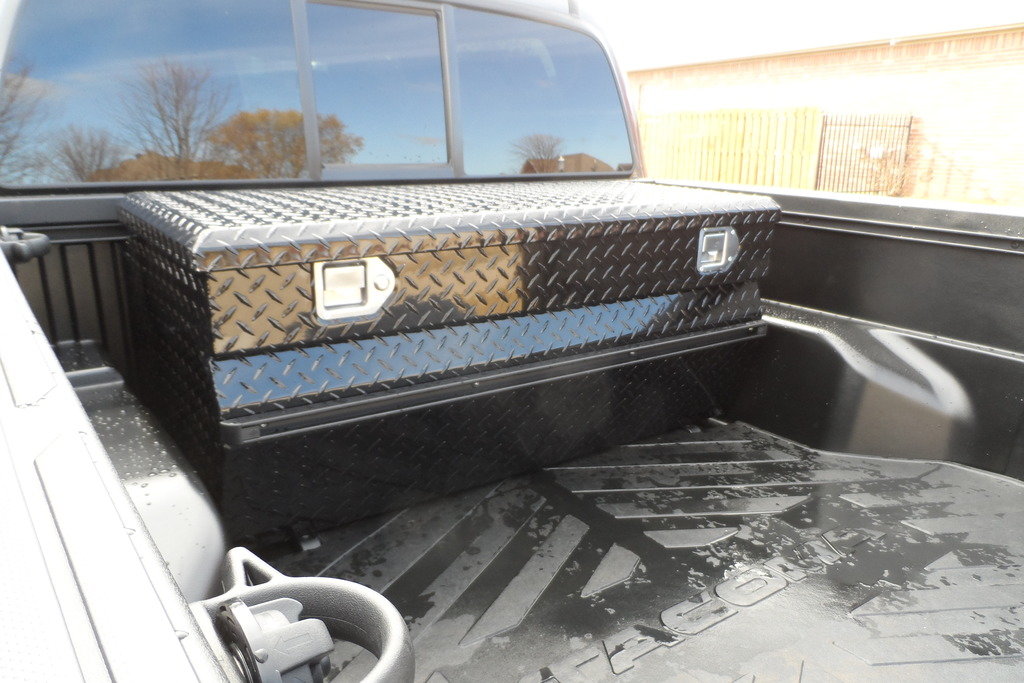

    $501 UWS TBC-42-W-BLK 42". Standard Chest Wedged with Beveled Insulated Lid - Black
    UWS TBC-42-W-BLK.

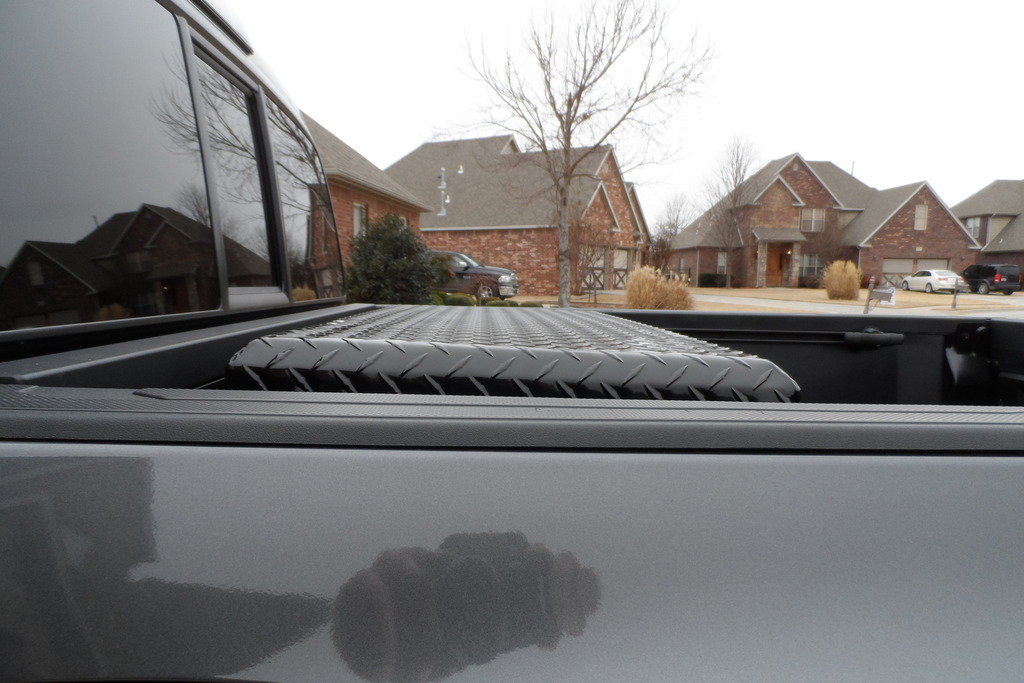

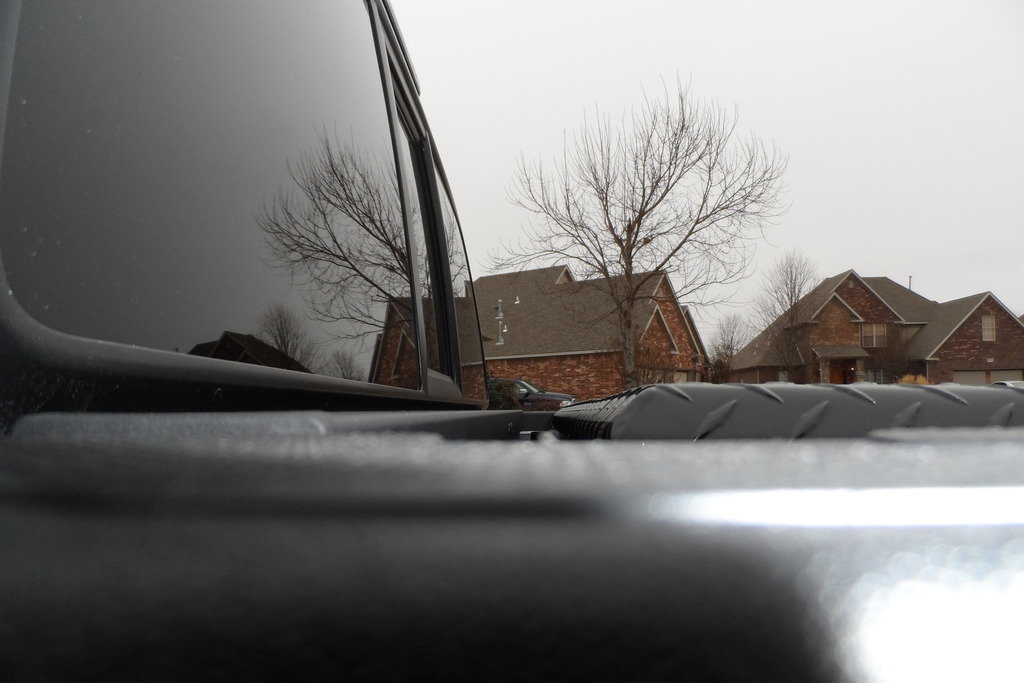

    Because of the bed rail it's mounted on, it does stick up passed the top of the bed rail just barely.
    I'm pretty sure if you mounted it directly to the bed it would not; it's 18-1/2 tall.
    Give me a little bit; I'll pull it and post pics.

    splitbolt, Jan 17, 2016
    #56
  17. Jan 17, 2016 at 2:21 PM
    #57
    splitbolt

    #57
    splitbolt Well-Endowed Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    6,330
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM

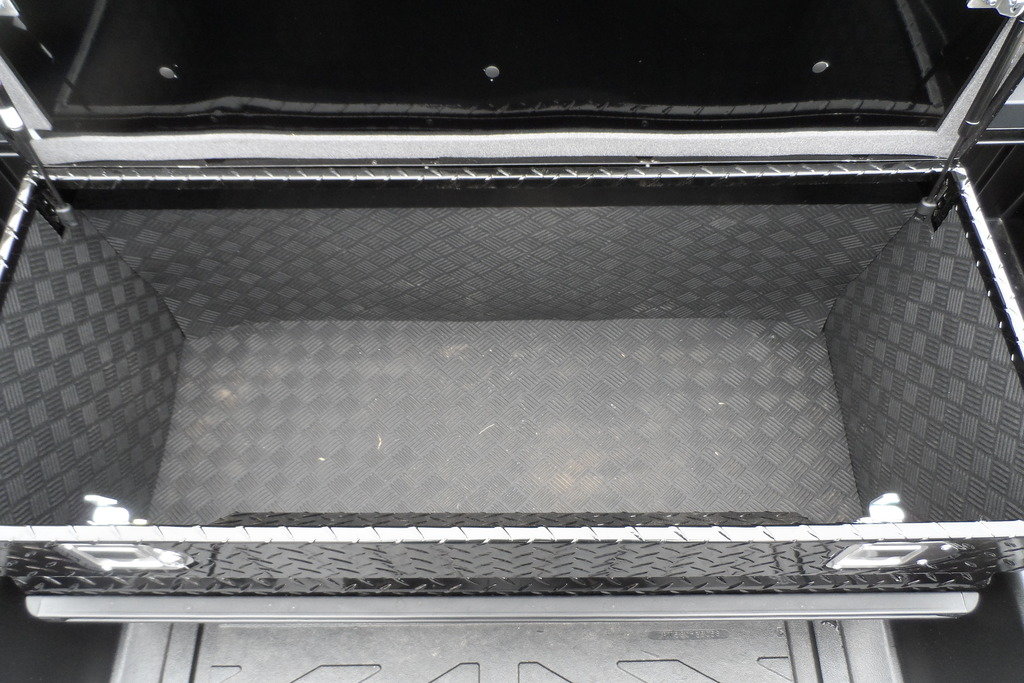

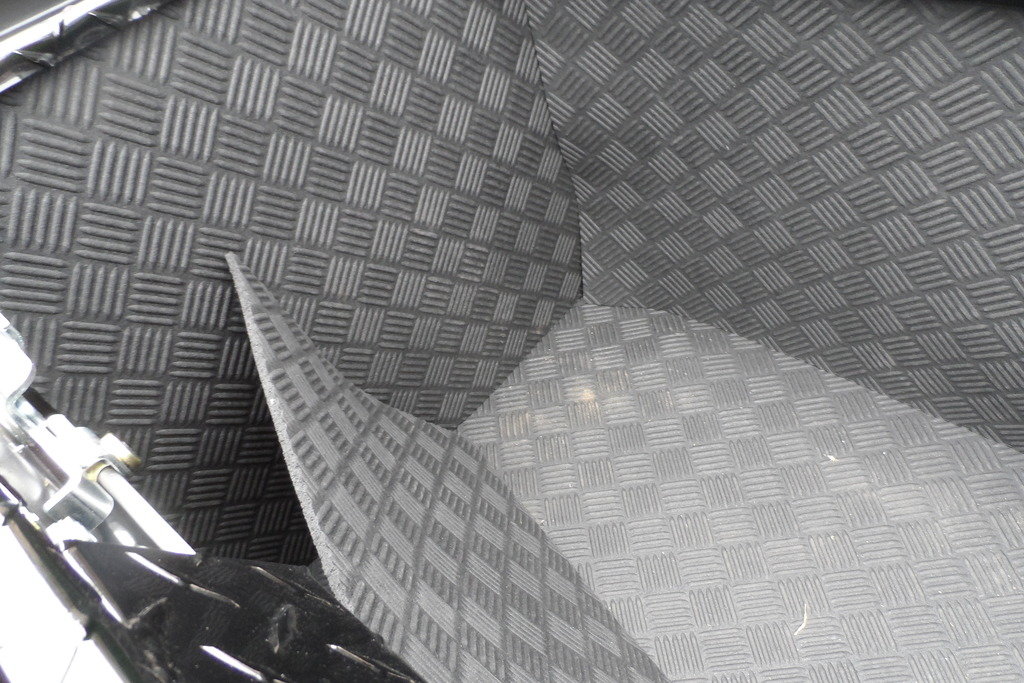

    This is some door mat material I cut up to keep down on noise.

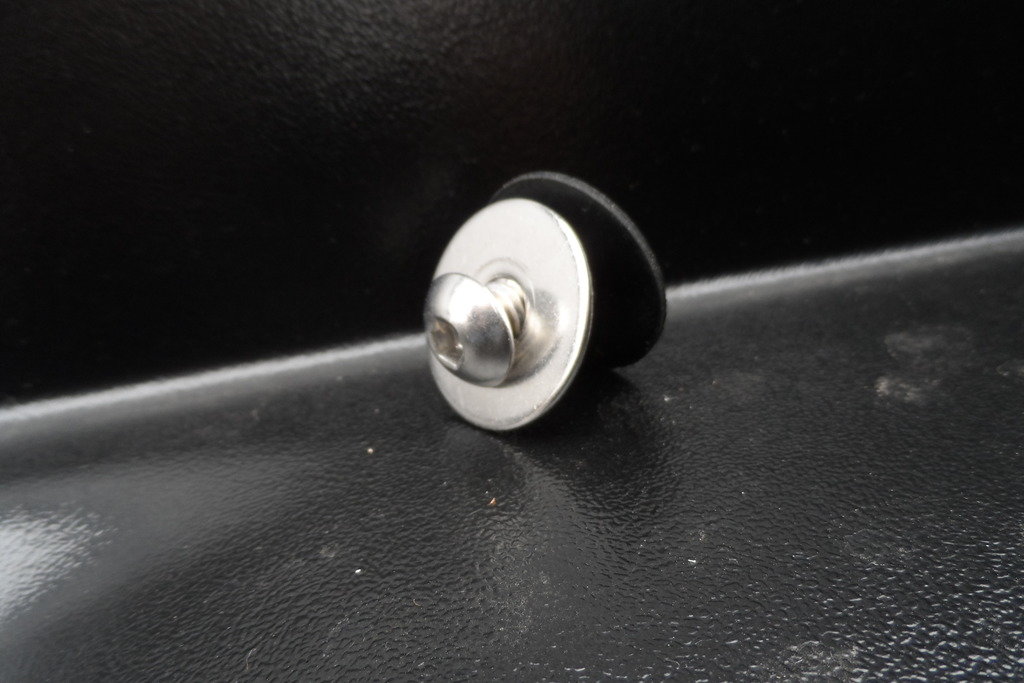

    stainless 3/8" hardware and neoprene washers used throughout

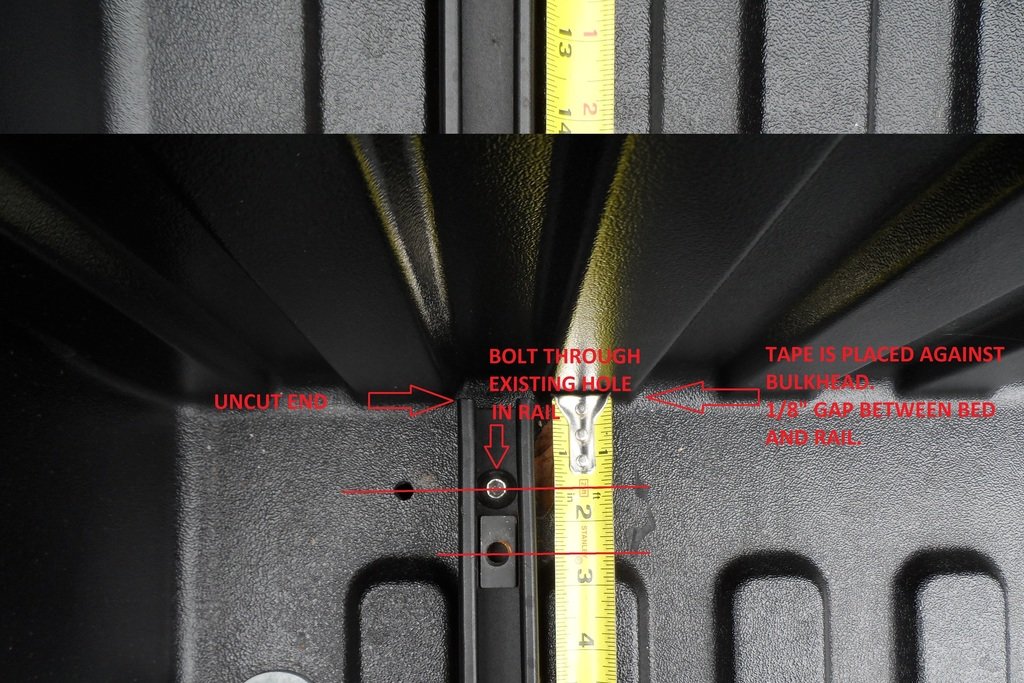

    Install t-nuts in rail before bed bolts; t-nuts are too tall to clear by sliding over.

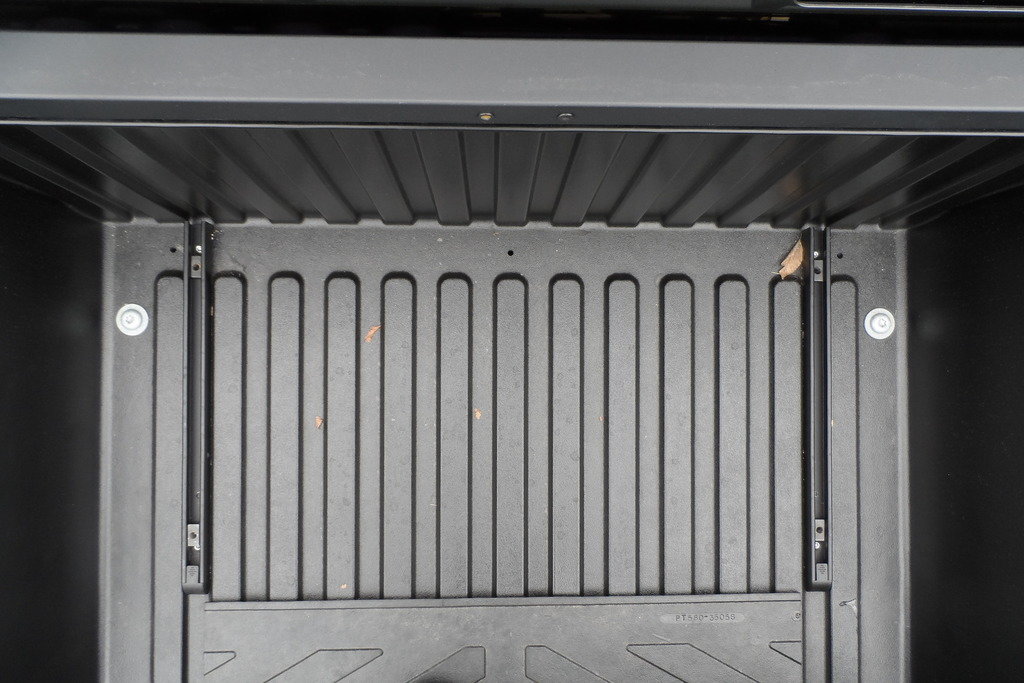

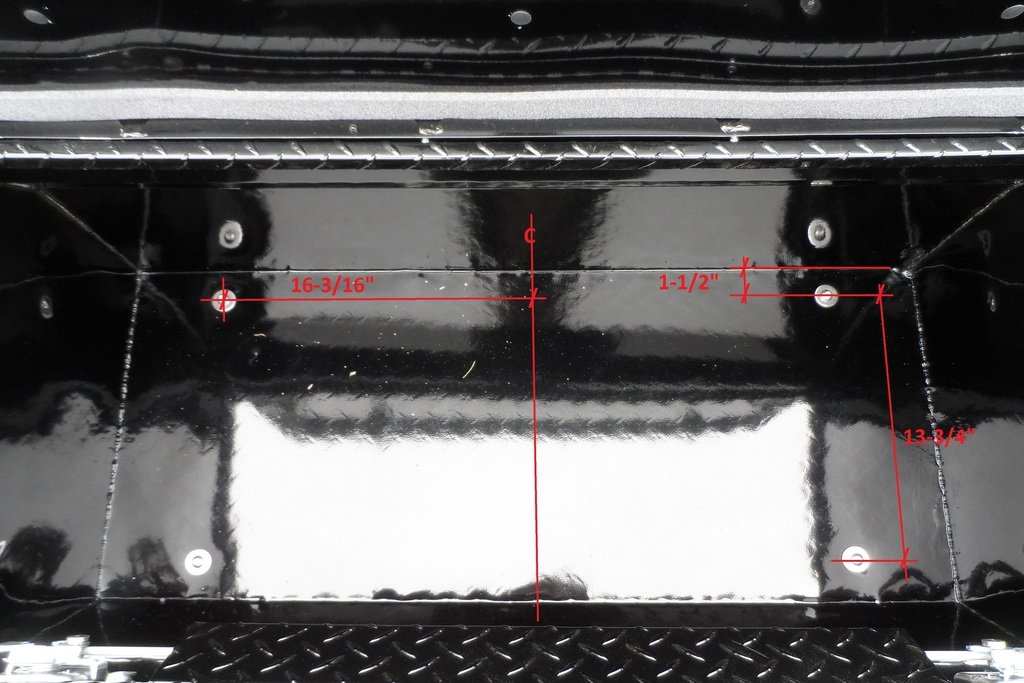

    Bed rail sections are 18-1/2"

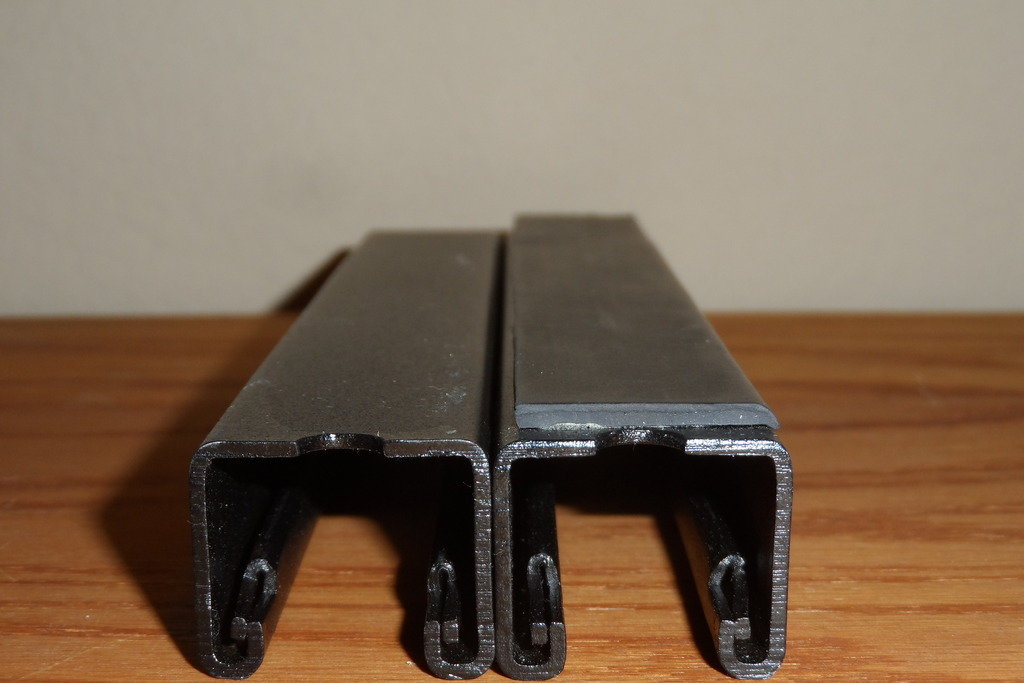

    -the bed rail is just a hair too wide to sit flat in the valleys
    -I cut and glued some vinyl wall trim material so it would clear

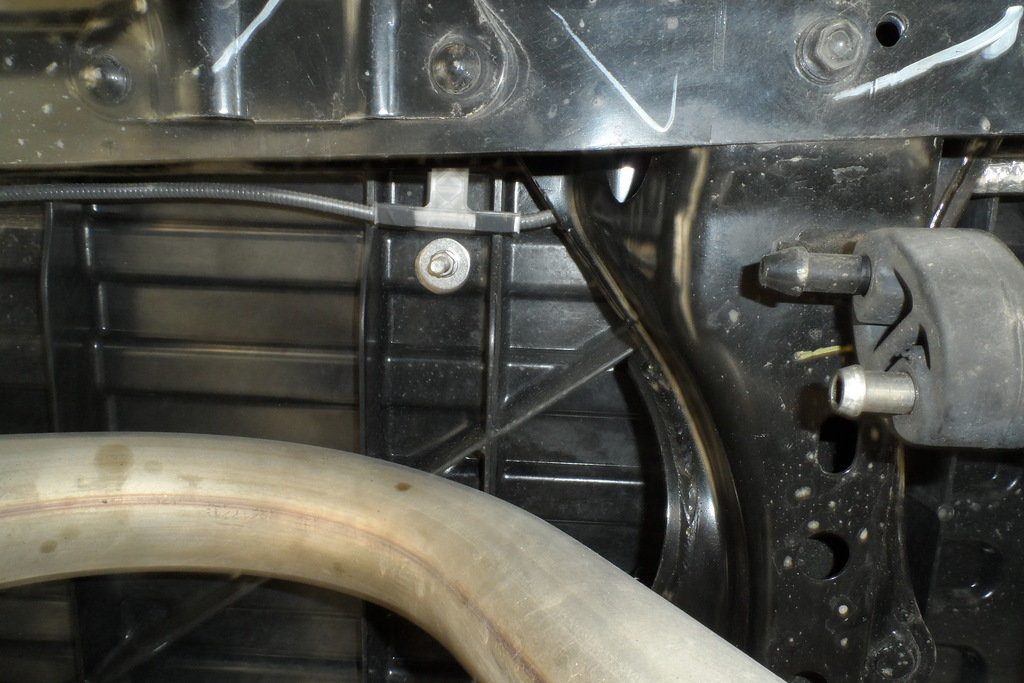

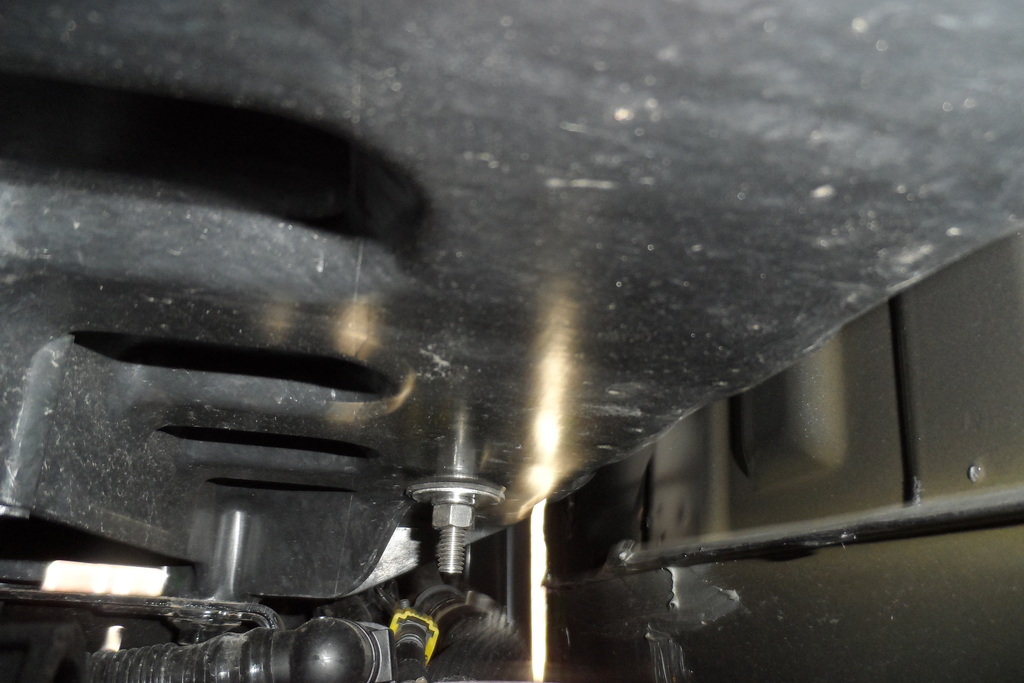

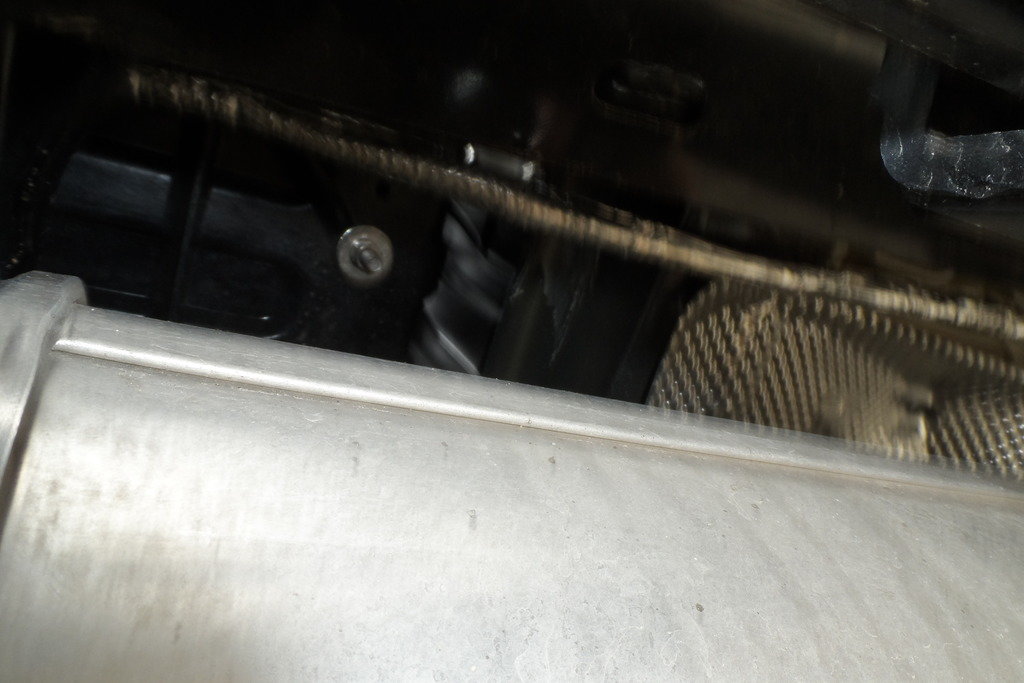

    driver-side front(above gas tank; be careful)
    -this was a pain to get to; I used electrical tape to hold my hardware together while I threaded it on 'blind'

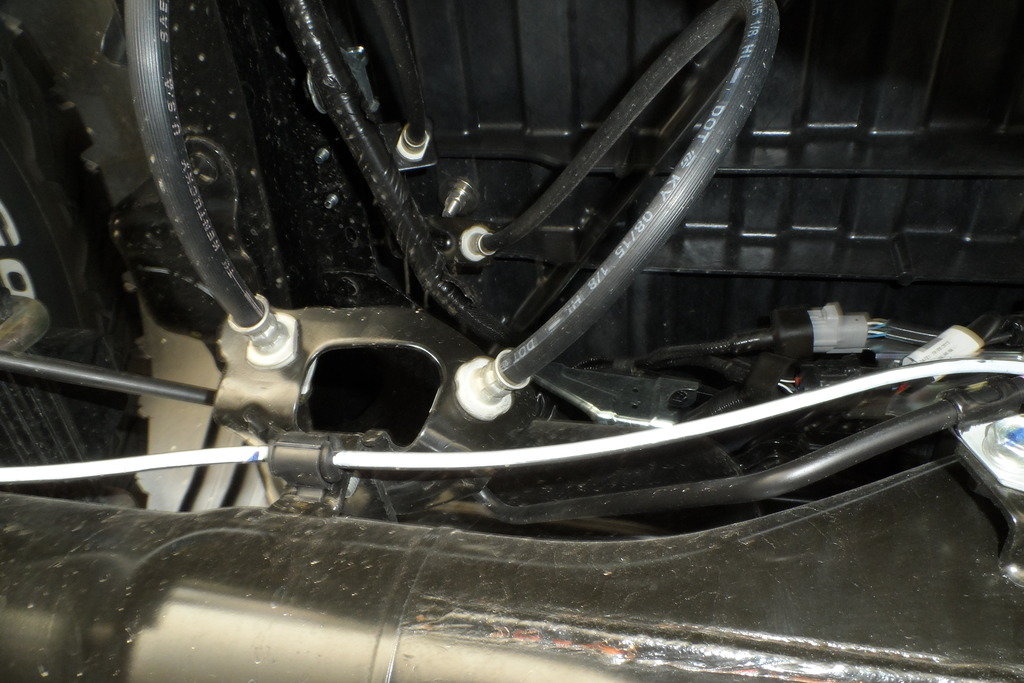

    driver-side rear

    passenger-side front

    passenger-side rear

    Last edited: Jan 17, 2016
    splitbolt, Jan 17, 2016
    #57
    Califor2A, shadowler, AWD OWNZ U and 6 others like this.
  18. Jan 17, 2016 at 2:58 PM
    #58
    Mitchal

    #58
    Mitchal Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172768
    Messages:
    119
    Gender:
    Male
    First Name:
    Mitch
    Vehicle:
    2016 Tacoma
    nice job. Thanks for the schematics , that will help.

    1. do think galvanized or Stainless bolts are needed for under the bed.
    2. the holes in the bed. Did you drill all four for the rail mount or are you using two closest to the cab and then only drilling two extra holes.
    did you have any issues accessing the under side of the bed.
    3. did you use loctite on the rail bolts?
    4. I'm having a hard time finding the rails online. (what did you pay for them?)
    Thanks

    Last edited: Jan 17, 2016
    Mitchal, Jan 17, 2016
    #58
  19. Jan 17, 2016 at 3:19 PM
    #59
    splitbolt

    #59
    splitbolt Well-Endowed Member

    Joined:
    Mar 7, 2010
    Member:
    #32761
    Messages:
    6,330
    Gender:
    Male
    NW Arkansas
    Vehicle:
    2016 TRD OFFROAD DCSB MGM

    splitbolt, Jan 17, 2016
    #59
  20. Jan 17, 2016 at 3:24 PM
    #60
    Mitchal

    #60
    Mitchal Well-Known Member

    Joined:
    Dec 21, 2015
    Member:
    #172768
    Messages:
    119
    Gender:
    Male
    First Name:
    Mitch
    Vehicle:
    2016 Tacoma
    how about the rails/track?
    about how much should I expect to pay for it?

    Mitchal, Jan 17, 2016
    #60
