Ben's FX-R Retrofit-

Discussion in 'Lighting' started by BenJammn5, Oct 10, 2011.

  1. Oct 10, 2011 at 7:01 PM
    #1
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,524
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5, 3.5 BS, 305/70 GT Radial MT, King extended travel front/rear, 2" add-a-leaf, Maxtrack Spindles, Sway bar delete, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, cali raised amber LED fogs, 6K FX-R Morimoto projectors with 55watt ballast, fog mod, cheap rear dust lamp from autozone, Hellas 500 behind grill, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    Got sick of blinding people with the plug-n-play 6500k HID's from Xenon depot so when my philips bulbs burned out after a year (weak sauce :stirthepot:) I upgraded to the FX-R's with 5000k morimoto's, and 35w ballasts from xenondepot.
    Started my retrofit today, tell me what you guys think and please add your impute. I've read a lot and looked at tons of pics from all you guys, thank you much by the way. Whoever can do this in 6 hrs, well, you're awesome :bowdown:. This is my first retrofit and honestly I'm a bit nervous :confused: cutting my lights and roasting them in the oven like a turkey.

    1)Not entirely sure what I should re-seal the lights with. When done should I just put the lights back in the oven, reheat the black silicone material on the ebay lights and smash them together with alligator clips? Or reheat the lights, remove all the black silicone (bitch of a job) junk and put in a bead of 3M Window Seal. What'cha think?

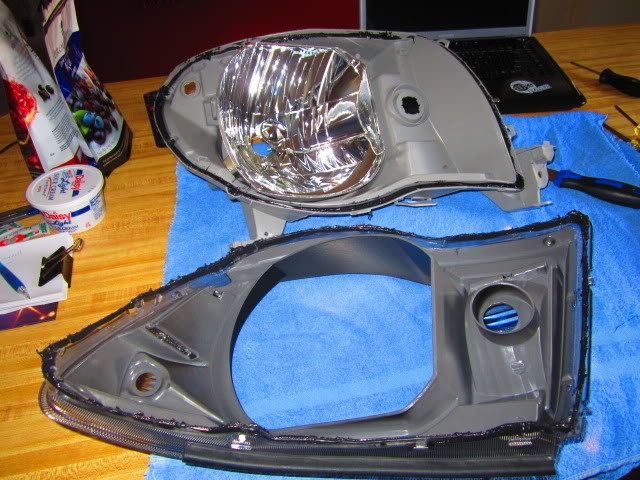

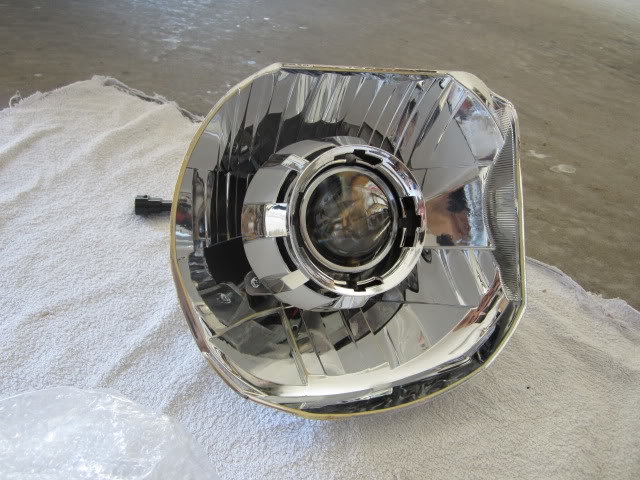

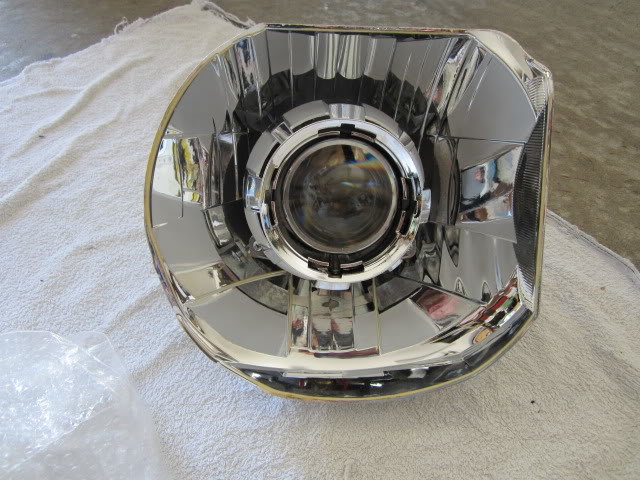

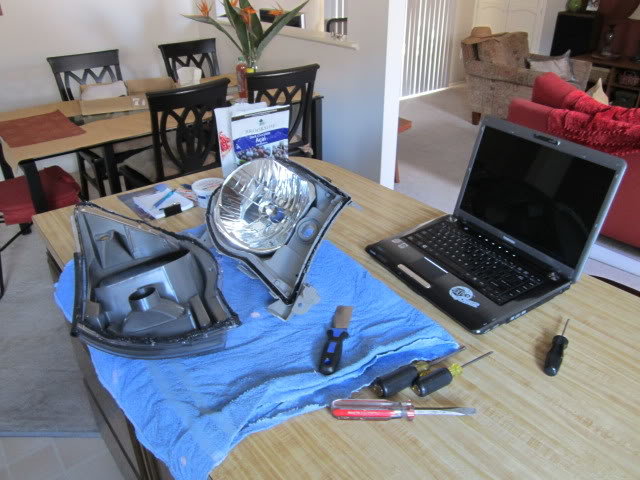

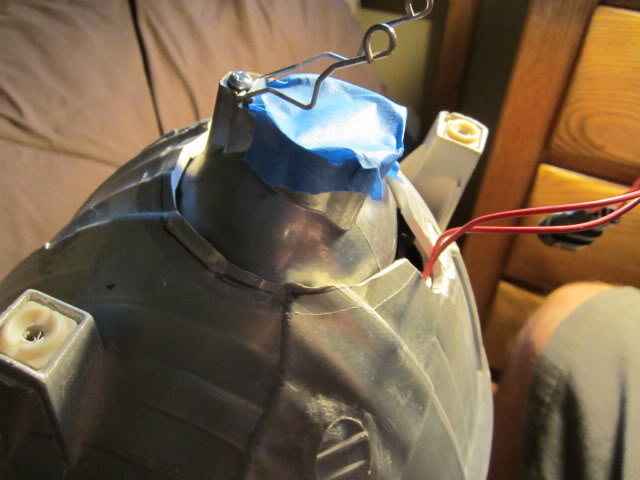

    IMG_1286_450f341527fd24f5c94815238664cfa443eb5ae2.jpg Pick of the lights w/ the black seal.

    2) Is the whole big enough/too small? When I put the Gatling shroud over the projector there seems to be a lot of space between the shroud and the reflector. From what I've read, most are trimming the shroud... why? From what I can tell it clears everything. Also the bottom mounts for the screws show, is that cool? Thought the shroud was supposed to cover it.

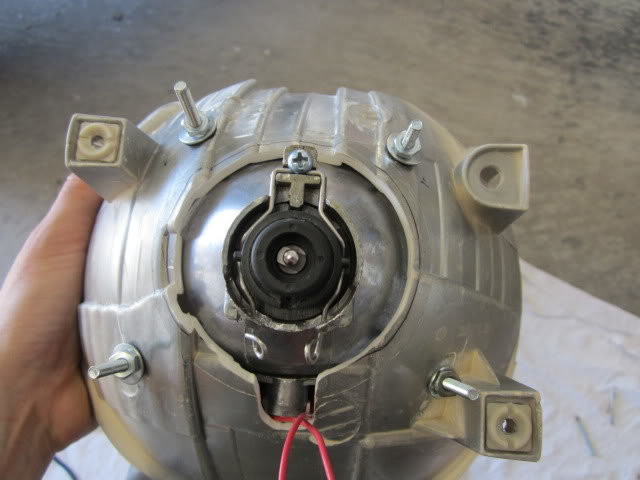

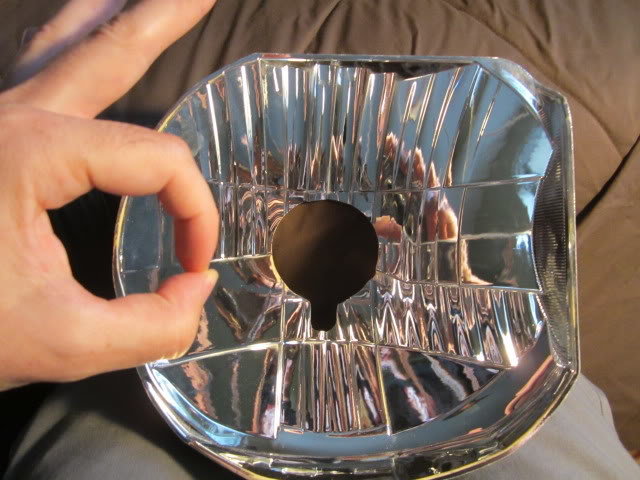

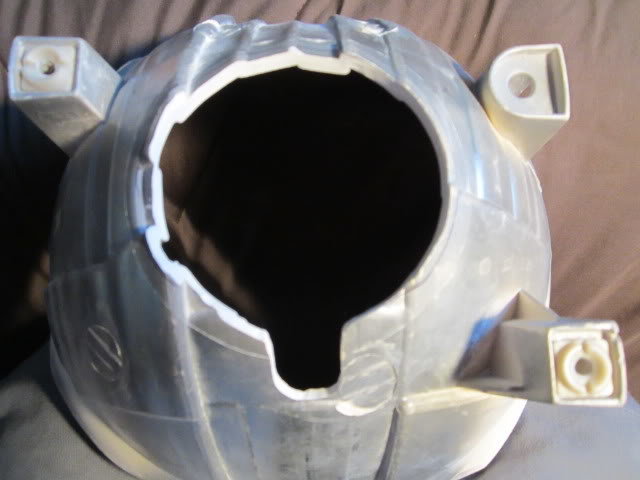

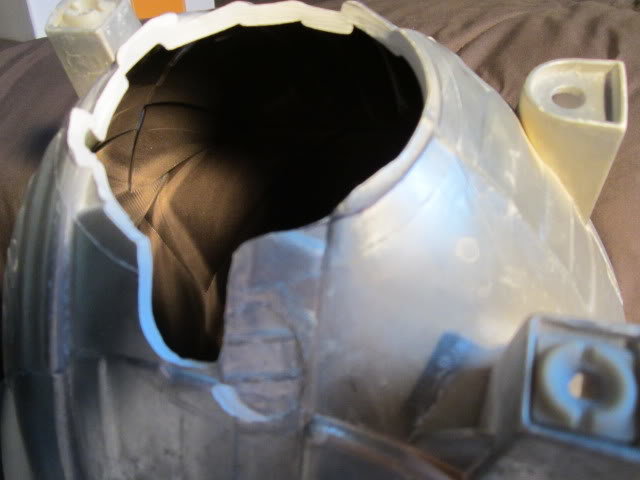

    IMG_1401_6e6c53a99d0ed474b47c5df49b6685f838b225a4.jpg Hole

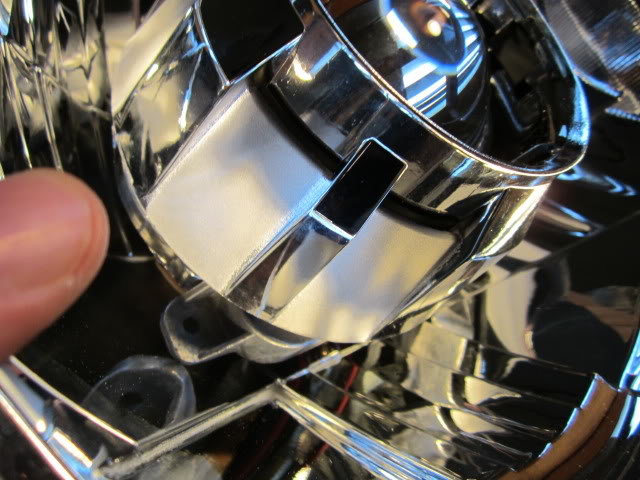

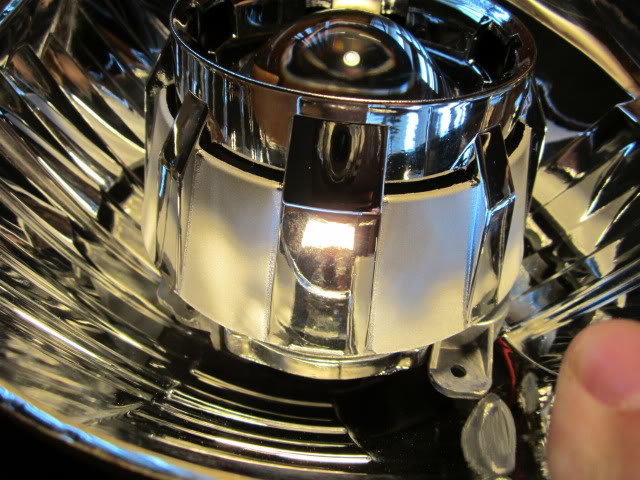

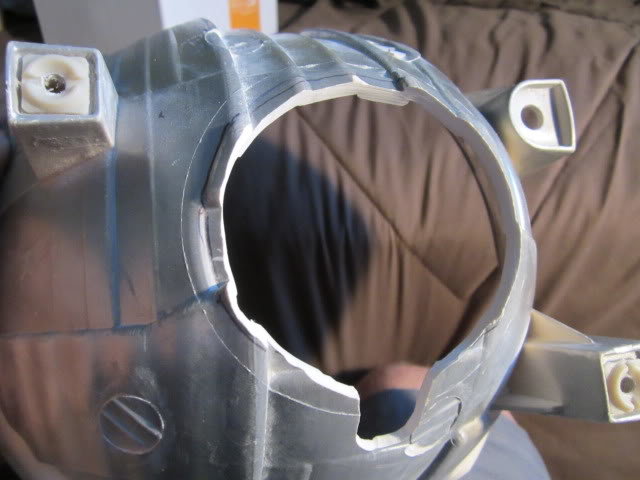

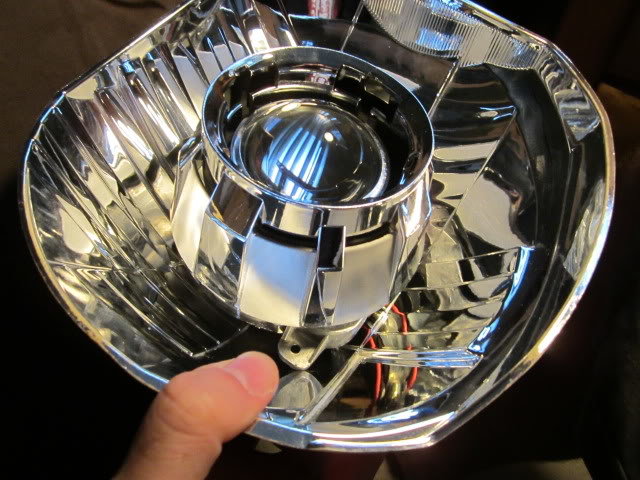

    IMG_1409_96855e18fa1ec92d02ce4c5d1d58678217a27d51.jpgSpace, is that too much space between the shroud and reflector?

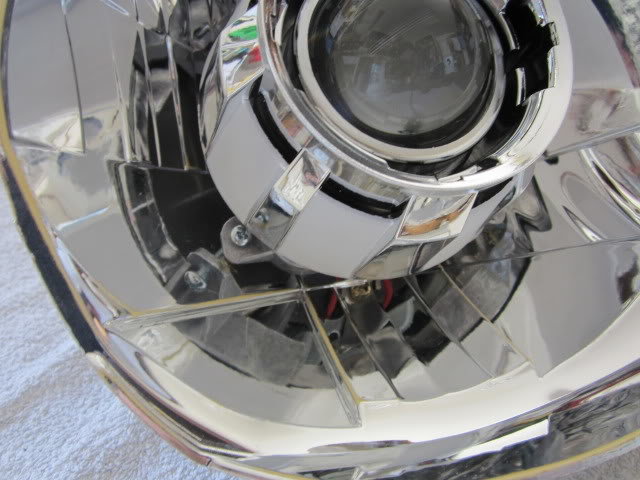

    IMG_1410_077f32a25ac0502aab8b1fca439b13d543c28a94.jpg more pics of the space

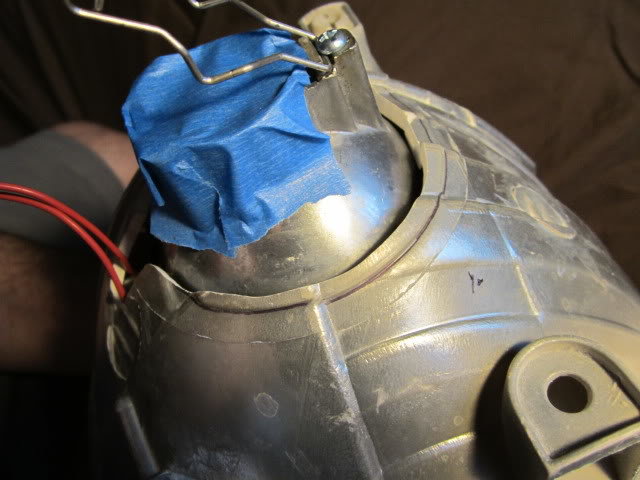

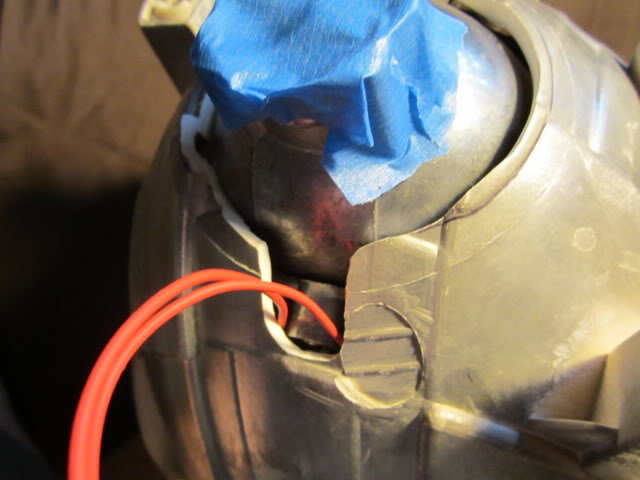

    Rear housing:

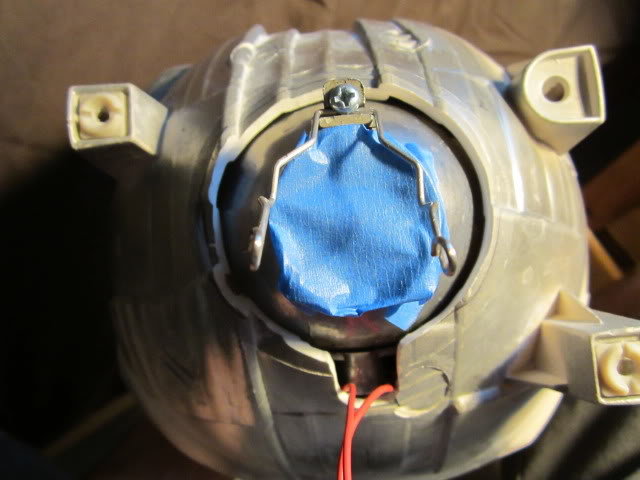

    Lastly, when I mount the four 8-32 screws with washers and bolts, how exactly do I make sure the they are mounted horizontally straight. Eye ball it and line them up best I can w/ the lines on the reflector housing? I dunno if you get what I'm saying, but thanks anyways gents.

  2. Oct 10, 2011 at 8:11 PM
    #2
    08PRELB

    08PRELB Don't Tread On Me

    Joined:
    Jun 3, 2010
    Member:
    #38329
    Messages:
    1,072
    Gender:
    Male
    First Name:
    Adam
    805
    Vehicle:
    08 Prerunner LB
    Toy Tech Ultimate Lift kit,Buildt Right UCA's 285/70/17 BFG AT, Camburg Spindles, BHLM, K&N, Flow Master 50, Spider Trax, URD MAF CAL, Satoshi Grill, any time fog mod, 20% tint, Katzkins Leather Interior, FX-R Projector Retro
    Lookin good man!

    1. You can just reheat the lights and put them back together. After they cool down you can run a beed of silicone around the outside edge of the lights to make sure you have a good seal.

    2. The hole looks plenty big... As for the shroud I trimmed the inner ring so it would sit down further on the projector and on each corner ware the mounting screw sits.

    3. To get the projectors horizontally level first you will have to eyeball it to get it as close as possible. Then you will have to mount them on your truck and plug every thing in and turn them on to make sure the cut off line is perfictally horizontal.

  3. Oct 10, 2011 at 8:26 PM
    #3
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,524
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5, 3.5 BS, 305/70 GT Radial MT, King extended travel front/rear, 2" add-a-leaf, Maxtrack Spindles, Sway bar delete, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, cali raised amber LED fogs, 6K FX-R Morimoto projectors with 55watt ballast, fog mod, cheap rear dust lamp from autozone, Hellas 500 behind grill, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    ^Thanks Adam, you're the man.
    I see you what you mean by trimming the shroud so it sits further. TRS provided spacers with the kit, so i'll start by removing the spacers and trimming away. Awesome! Getting excited to finish this up. I think I'll leave the housing chrome. Love the blacked out look though.

  4. Oct 10, 2011 at 8:50 PM
    #4
    907taco

    907taco Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    can't wait to see this finished, i plan on doing mine over a weekend as soon as i get mine in, curious for how long it takes you. lookin good so far man. your kit came with a power lead right ? and what are sealing the back of your housing when mounted?

  5. Oct 10, 2011 at 10:37 PM
    #5
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,524
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5, 3.5 BS, 305/70 GT Radial MT, King extended travel front/rear, 2" add-a-leaf, Maxtrack Spindles, Sway bar delete, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, cali raised amber LED fogs, 6K FX-R Morimoto projectors with 55watt ballast, fog mod, cheap rear dust lamp from autozone, Hellas 500 behind grill, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    Thanks
    Honestly, it's gonna take me pretty long since I work on it between school and work when I have the time. If I had a complete weekend to devote it would be possible.

    Power lead? You mean the two wires coming off the projector that actuate the cut off shield for the high beam? If so, yes the projector comes with them pre-installed

    I'll be using JB weld to seal the rear housing and bolts once everything is aimed.

  6. Oct 11, 2011 at 8:30 AM
    #6
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,524
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5, 3.5 BS, 305/70 GT Radial MT, King extended travel front/rear, 2" add-a-leaf, Maxtrack Spindles, Sway bar delete, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, cali raised amber LED fogs, 6K FX-R Morimoto projectors with 55watt ballast, fog mod, cheap rear dust lamp from autozone, Hellas 500 behind grill, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    Good info! The guy probably would still need to work by pulling the lights apart and cutting the whole for the projectors, no? Or did you already have an existing hole? Window weld + Clear seal on outside... sounds like a good idea. That sucks UPS destroyed your hard work, I'd be pissed!

    Plan for today: pick up JB weld, window weld and clear seal, drill holes, find a wall and start aiming then trim the shroud.

  7. Oct 11, 2011 at 1:58 PM
    #7
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,524
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5, 3.5 BS, 305/70 GT Radial MT, King extended travel front/rear, 2" add-a-leaf, Maxtrack Spindles, Sway bar delete, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, cali raised amber LED fogs, 6K FX-R Morimoto projectors with 55watt ballast, fog mod, cheap rear dust lamp from autozone, Hellas 500 behind grill, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers

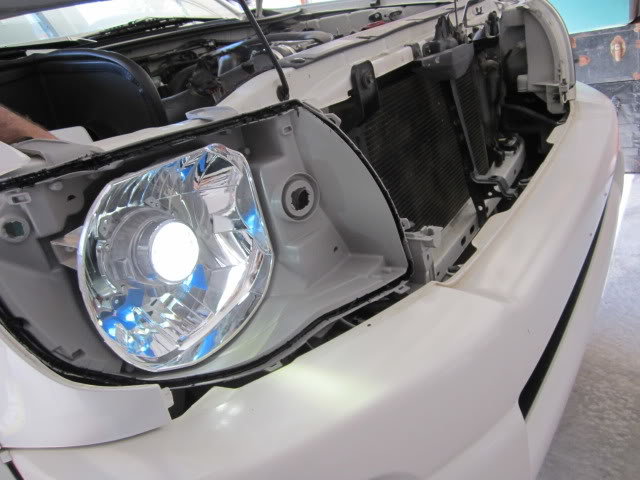

    Made some progress today. Scratched the reflector housing while moving the projector around but otherwise it seems to coming out okay.

    Anybody use lamin X on the headlights? I noticed my OEM set showed some damage after a few years.

  8. Oct 14, 2011 at 9:02 AM
    #8
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,945
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    LS Swap 500 hp......
    looking good man, im just waiting on parts now :D

    i went with the MCR though, i want the LEDS :D

  9. Oct 14, 2011 at 9:03 AM
    #9
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,524
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5, 3.5 BS, 305/70 GT Radial MT, King extended travel front/rear, 2" add-a-leaf, Maxtrack Spindles, Sway bar delete, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, cali raised amber LED fogs, 6K FX-R Morimoto projectors with 55watt ballast, fog mod, cheap rear dust lamp from autozone, Hellas 500 behind grill, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    ^You can do it, I believe in you!

  10. Oct 14, 2011 at 9:42 AM
    #10
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,945
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    LS Swap 500 hp......
    wont be my first ever retrofit

    first on a tacoma though :p

    chevy cobalts sure made some awesome lights retrofitted

  11. Oct 14, 2011 at 10:31 AM
    #11
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,524
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5, 3.5 BS, 305/70 GT Radial MT, King extended travel front/rear, 2" add-a-leaf, Maxtrack Spindles, Sway bar delete, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, cali raised amber LED fogs, 6K FX-R Morimoto projectors with 55watt ballast, fog mod, cheap rear dust lamp from autozone, Hellas 500 behind grill, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    Funny you mention that, I just saw a cobolt on HIDP with retros... did look cool.

  12. Oct 15, 2011 at 5:13 PM
    #12
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,594
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
    What washers are these? Did they come with the kit? I only ask because I've see others use "finishing washers" that look like this:
    [​IMG]

    I was thinking about the lamin x or 3M clear tape to protect these lights after putting mine on. Good idea

  13. Oct 16, 2011 at 10:30 AM
    #13
    4x4Tacoma01

    4x4Tacoma01 Well-Known Member

    Joined:
    Mar 19, 2011
    Member:
    #53296
    Messages:
    82
    Gender:
    Female
    First Name:
    Holly
    Canada Eh?
    Vehicle:
    SR5 Tacoma 4x4
    This is coming along great!

  14. Oct 16, 2011 at 10:37 AM
    #14
    cummins6speed

    cummins6speed Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12426
    Messages:
    1,818
    Gender:
    Male
    Vehicle:
    '05 4Runner Limited Edition
    Custom extended travel 2.5" King RR coilovers, 1.25" Camburg uniball uppers, homebuilt tube bumper
    Looking good

  15. Oct 16, 2011 at 4:12 PM
    #15
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,524
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5, 3.5 BS, 305/70 GT Radial MT, King extended travel front/rear, 2" add-a-leaf, Maxtrack Spindles, Sway bar delete, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, cali raised amber LED fogs, 6K FX-R Morimoto projectors with 55watt ballast, fog mod, cheap rear dust lamp from autozone, Hellas 500 behind grill, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers

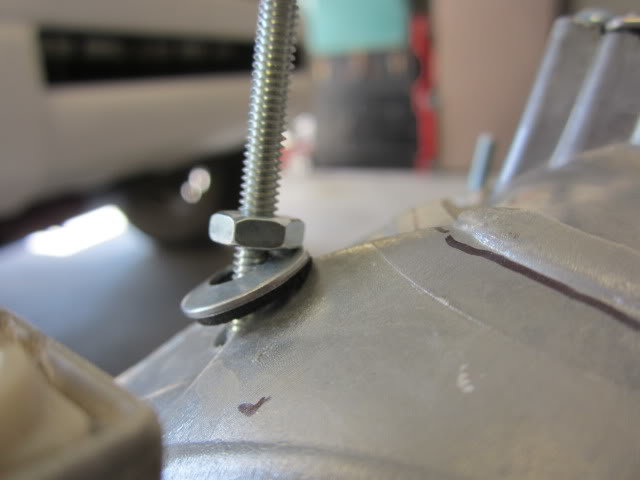

    I bought the washers and bolts from home depot as the kit does not come with hardware. They are 8-32 size bolts and I wanted washers that wouldn't 'dig' into the plastic so I chose neoprene, the ones featured with the soft back. They seem to work pretty good.
    I'm sure finishing washers would work fine to, just a preference of what you like.


    Thank you Holly.

    Thanks Brian, excited to be done with this project.

  16. Oct 16, 2011 at 6:33 PM
    #16
    JustinL

    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,594
    Gender:
    Male
    First Name:
    Justin
    Newington, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
    Thanks for the source - now lets hope home depot has some in stock!

  17. Oct 16, 2011 at 6:38 PM
    #17
    MY50cal

    MY50cal - IPFK -

    Joined:
    Apr 5, 2009
    Member:
    #15613
    Messages:
    3,135
    Gender:
    Male
    First Name:
    Mojo
    Chester County, PA
    Vehicle:
    09 PM RC / 05 SWB AC (RIP)
    Yep.
    nice retro! always better to take your time, do it right the first time :thumbsup:

  18. Oct 16, 2011 at 9:34 PM
    #18
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,524
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5, 3.5 BS, 305/70 GT Radial MT, King extended travel front/rear, 2" add-a-leaf, Maxtrack Spindles, Sway bar delete, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, cali raised amber LED fogs, 6K FX-R Morimoto projectors with 55watt ballast, fog mod, cheap rear dust lamp from autozone, Hellas 500 behind grill, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    thanks mojo:)

  19. Oct 16, 2011 at 9:45 PM
    #19
    907taco

    907taco Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    you might get some pm's from me when i start my retro. looking good so far man.

  20. Oct 16, 2011 at 9:49 PM
    #20
    BenJammn5

    BenJammn5 [OP] RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,524
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5, 3.5 BS, 305/70 GT Radial MT, King extended travel front/rear, 2" add-a-leaf, Maxtrack Spindles, Sway bar delete, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, cali raised amber LED fogs, 6K FX-R Morimoto projectors with 55watt ballast, fog mod, cheap rear dust lamp from autozone, Hellas 500 behind grill, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers

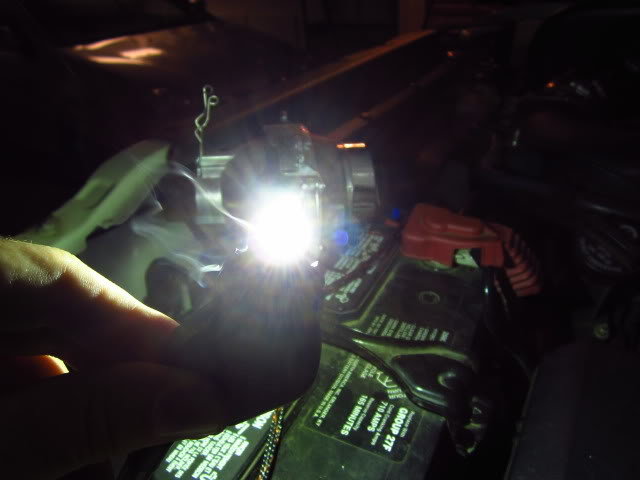

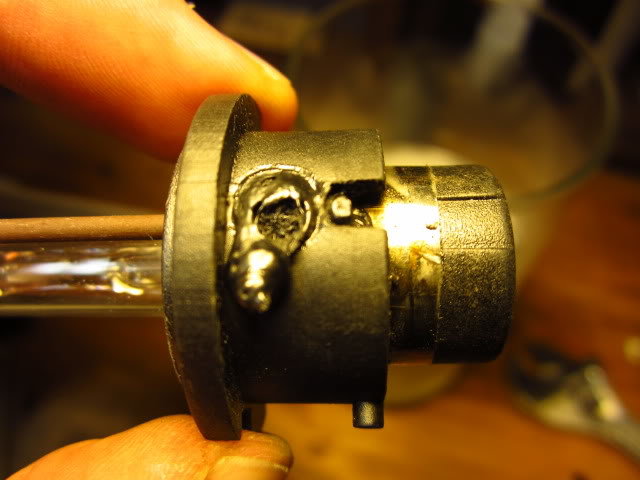

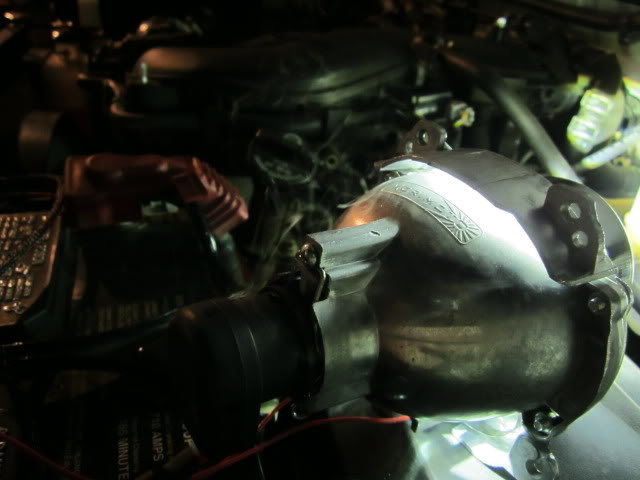

    That's right, that is SMOKE spewing from the morimoto 5k D2S bulb... wtf... really... passenger side works great but this stupid bulb decided to commit suicide and internally com-bust into a smear of foul smelling polymer. When I received the package it was loose in the box so maybe that's why.

    In the meantime, I went down to Ralphs to make sure my horizontal alignment was was within reasonable spec on the passenger side. Check it

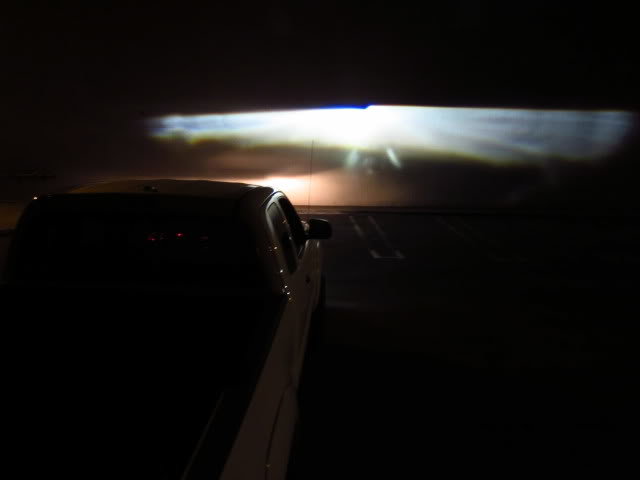

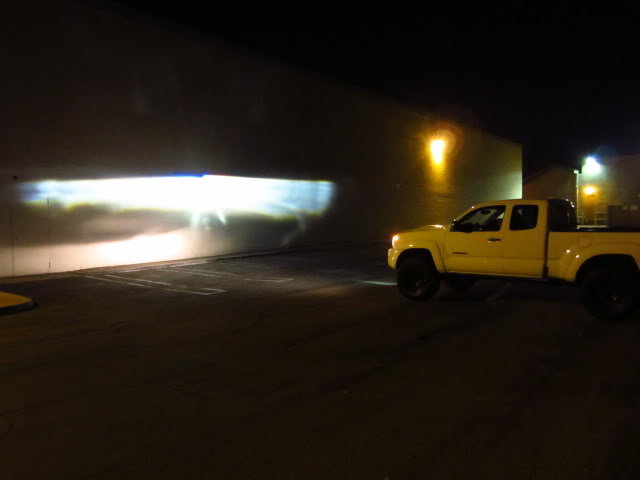

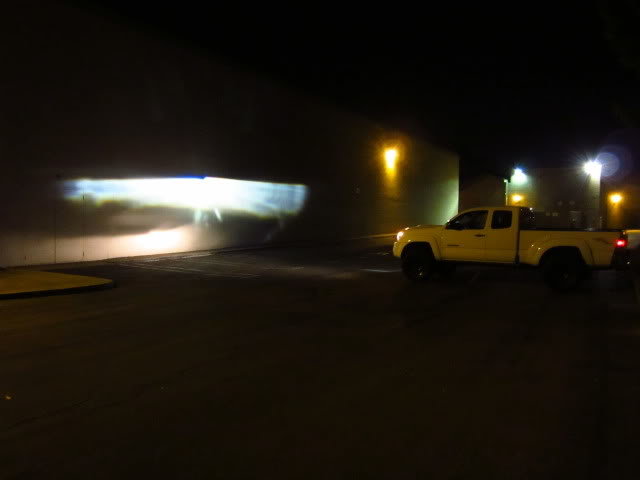

    IMG_1524_95a744a999f23e136c515ff09cfa4704382d4923.jpgI know its way high, I need to adjust the screws down and left, but horizontally the drilled holes look pretty good.

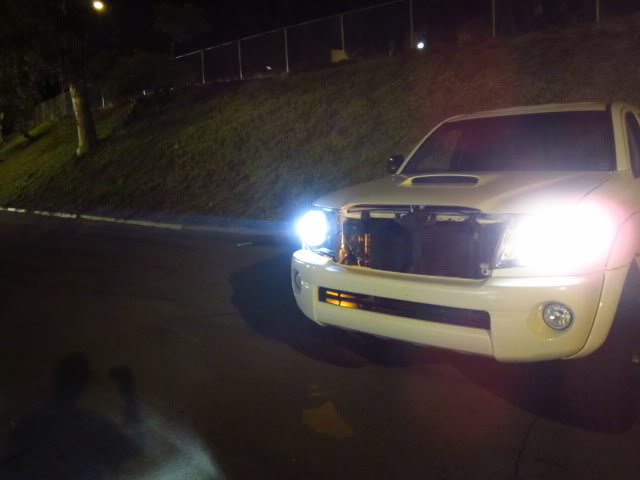

    IMG_1526_bf452d0aa7bdbfecc085dac74b5b1204d42cd102.jpgcyclopes, poor thing looks molested.

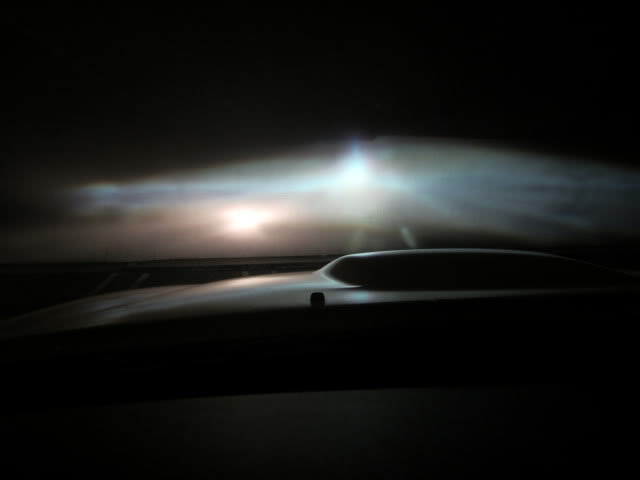

    IMG_1530_48e538b3578bf59dab4bdd1c841b396876067c5f.jpghigh beam...
