Best way to align front leafspring eyebolts

Discussion in 'Suspension' started by TacoHank12, Apr 27, 2024.

  1. Apr 27, 2024 at 8:04 PM
    #1
    TacoHank12

    TacoHank12 [OP] Member

    Joined:
    Mar 21, 2024
    Member:
    #446312
    Messages:
    20
    Gender:
    Male
    First Name:
    Hank
    San Antonio
    Vehicle:
    2005 TRD OR
    Bilstein 5100s front and back with OME 885s. Supreme suspensions UCAs. Icon RXT leafs with dobinson greasable bolts. Ditch lights, bumper lights. Android touch screen radio, LED lights, voltmeter. Swiss camper shell, bumper guard.
    Last step of my icon rxt stage 2 install is to align the front eyebolts.

    What is the best route to go about doing this?

    I see alot of guys use a strap from axel to frame, to do this, do you tighten down the ubolts into place?

    Where is the best place to secure the strap on the frame?

    What other options?

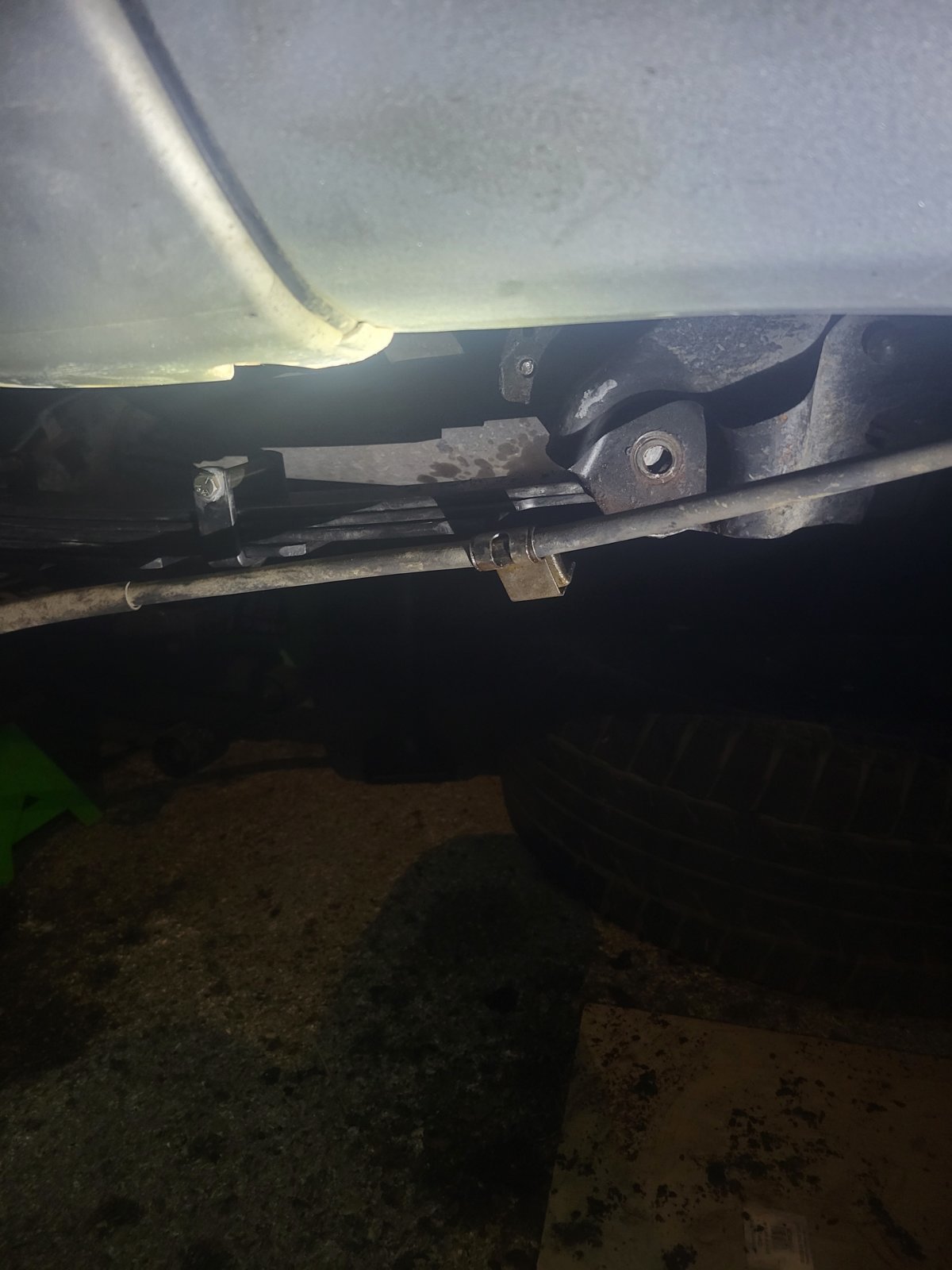

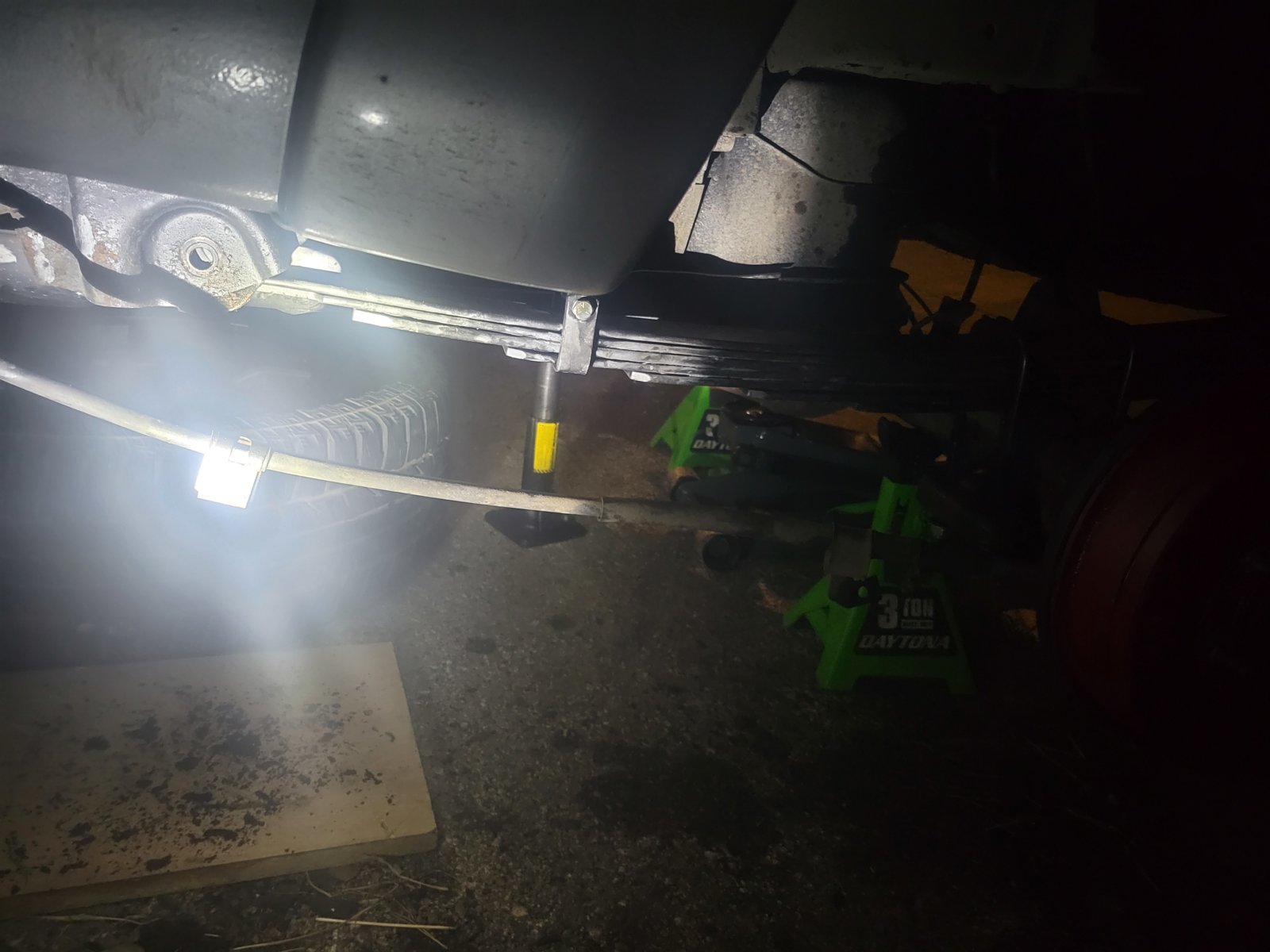

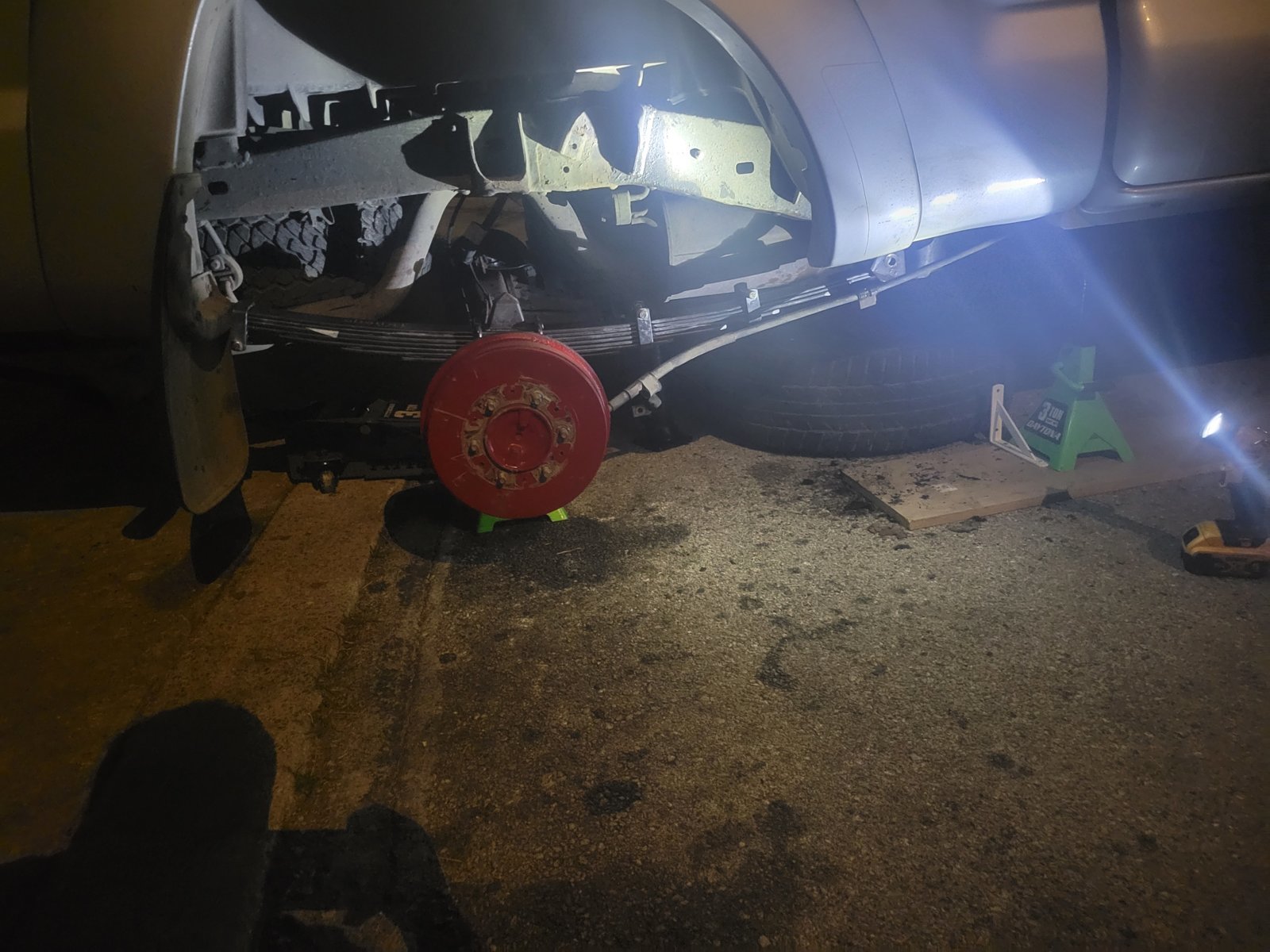

    20240427_212307.jpg 20240427_212247.jpg


  2. Apr 27, 2024 at 8:15 PM
    #2
    3JOH22A

    3JOH22A トヨタ純正男娼

    Joined:
    Mar 27, 2019
    Member:
    #288172
    Messages:
    12,730
    Gender:
    Male
    District 6ix
    Vehicle:
    3G Tacoma on 35"s, 5G 4Runner
    ^Leave the U-bolts loose on the opposite side. That'll let you shift the axle on the working end fore and aft as needed.

  3. May 3, 2024 at 9:05 PM
    #3
    JFriday1

    JFriday1 Well-Known Member

    Joined:
    Jan 14, 2019
    Member:
    #279318
    Messages:
    681
    Gender:
    Male
    First Name:
    Jesse
    Lakewood, CO
    Vehicle:
    19 Taco TRD-Sport, 16 4Runner
    Mobile Mechanic in Denver Instagram - "Jfriday123"
    Take the ubolts off. Droop the axle. Then there will be slack to just use a soft hammer on the leaf pack to shift it. Otherwise it will be a big fight.

    TacoToucher and Bishop84 like this.
  4. May 3, 2024 at 9:07 PM
    #4
    Bishop84

    Bishop84 Well-Known Member

    Joined:
    Dec 17, 2015
    Member:
    #172494
    Messages:
    11,851
    Gender:
    Male
    It's so hard on your poor back when you do this on the ground haha.

    Leaf springs always first, then axle last.

    I start with forward eyelet, then shackle loose, then axle, jack up and torque all bolts.

    TacoHank12[OP] likes this.
  5. May 22, 2024 at 5:56 PM
    #5
    TacoHank12

    TacoHank12 [OP] Member

    Joined:
    Mar 21, 2024
    Member:
    #446312
    Messages:
    20
    Gender:
    Male
    First Name:
    Hank
    San Antonio
    Vehicle:
    2005 TRD OR
    Bilstein 5100s front and back with OME 885s. Supreme suspensions UCAs. Icon RXT leafs with dobinson greasable bolts. Ditch lights, bumper lights. Android touch screen radio, LED lights, voltmeter. Swiss camper shell, bumper guard.
    So I ended up pretty much laying the axel on the ground, undoing the shackles and ubolts, and just starting with the front eyebolts beating them into place with a mallet and lots of wd40. Should've started there to begin with, rest of the steps were super easy.

  6. May 22, 2024 at 5:57 PM
    #6
    TacoHank12

    TacoHank12 [OP] Member

    Joined:
    Mar 21, 2024
    Member:
    #446312
    Messages:
    20
    Gender:
    Male
    First Name:
    Hank
    San Antonio
    Vehicle:
    2005 TRD OR
    Bilstein 5100s front and back with OME 885s. Supreme suspensions UCAs. Icon RXT leafs with dobinson greasable bolts. Ditch lights, bumper lights. Android touch screen radio, LED lights, voltmeter. Swiss camper shell, bumper guard.
    I ended up doing it that way, literally took it all apart and started fresh, but yeah I was sore after doing all that!

    Bishop84[QUOTED] likes this.
