BGR's build thread......

Discussion in '2nd Gen. Builds (2005-2015)' started by brutalguyracing, Jul 14, 2012.

  1. Jul 14, 2012 at 8:53 PM
    #1
    brutalguyracing

    brutalguyracing [OP] BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,005
    Gender:
    Male
    F.U> GUYZ
    broken mods
    under construction........ or philly fans, or any canuck fan

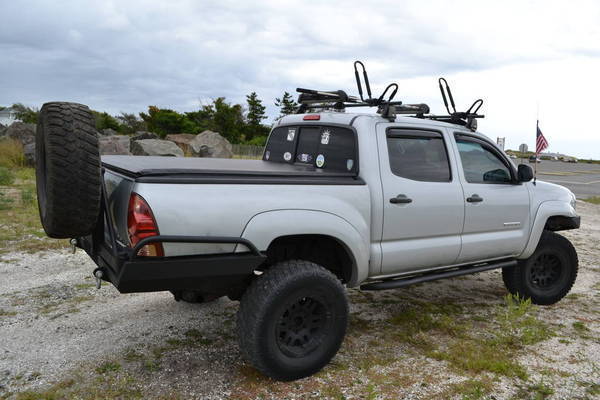

    my truck is an 09 off road dcsb
    [​IMG]
    i started off leasing this pig.....
    1st mod was allpro ifs skid "which im still running" bought it used
    next was a low pro qt tonneau cover.
    then i got a set of n fabs and quickly discovered they would not fit in with my lifestyle.
    i then ordered http://4xinnovations.com/ sliders....."sweet truck on their website by the way"
    then i went with 5100's on stock springs @ 2.5" setting with 1/4" tps... for taco lean
    next cam 2" toyotech aal.

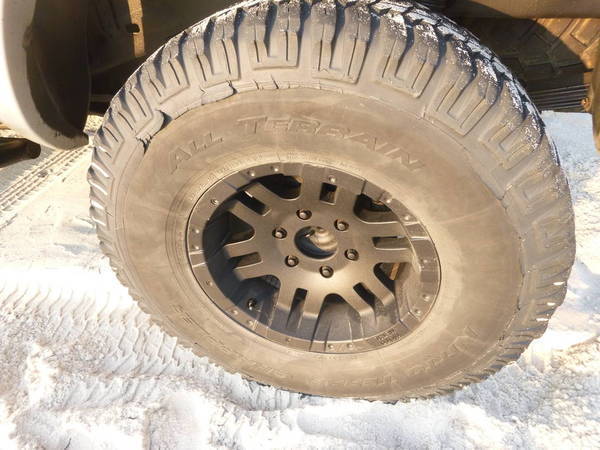

    and some 285/75/16's with some moto metal 951 wheels.
    then came lr uca's.....
    next up was some ddm hid headlights 35/55 and some fogs....."3 years and still going strong"
    next came a front ATO http://www.armortechoffroad.com/ hidden hitch...."this was the first ever"
    and a xrc 8 winch with a cardle mounted in the bed of my truck....with cables to use front or rear.....
    added a uniden cb with a lil will magnet mounted ant.
    added a single dinn radio / dvd player....
    a set of yakima racks / snowboard and yak racks......
    then came the transmission skid made by ato http://www.armortechoffroad.com/
    then i went to 885's on 5100's with 3/4" tps then now i am running adjustable 5100's like these http://www.toyteclifts.com/index.ph...tegory_id=115&option=com_virtuemart&Itemid=72

    next came allpro expo leaf pack with 3* axle shims and a u bolt flip kit......."love my leafpacks"
    also now removed the lil will ant. and did a wilson 1000 roof mount setup with a midland 75-822 cb "love it"

    ok here is what i made and installed this weekend..EXCEPT DREW

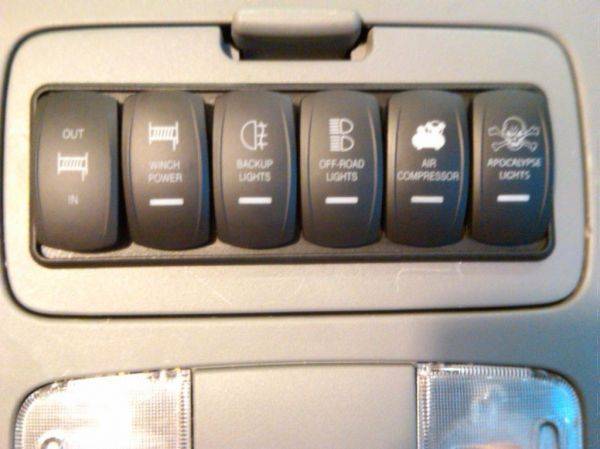

    this is the finished product
    all switches i got from http://www.otrattw.com/ "great guys and super fast shipping"
    i got 5 spst switches with 2 lights one to light switch up and one to show when power is on.....
    and 1 momentary on / off / on switch "for winch in and out
    "note there was no need to remove headliner in any way"
    i just removed the (2) a pillar bolts "under the grab handles" and the lower foot area plastic...then i used a coat hangar and ran it from there to over head.....
    over head is removed by the one screw in sunglass holder area and pull down by the front widsheild
    then there is 2 wiring clips to remove and whole overhead comes right out...."makes easy dremiling"
    i used male felmale spade connectors from wiring in hood to overhead unit "makes easy for removal and installation of said unit if ever needed.......
    i left the wires about 2 feet longer then needed for the overhead and just tucked them up in the headliner.....
    there is alot more room up there then you think.....
    this is the same way i ran my cb ant...
    [​IMG]

    i started out like this
    [​IMG]

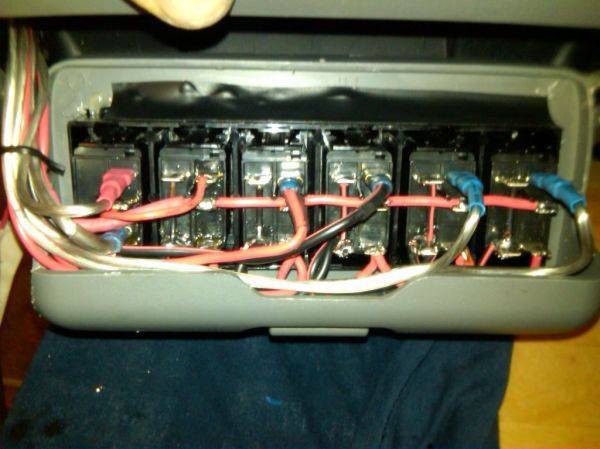

    then i found they sold a 6 gang switch bank so i ordered that....
    let me tell you it is like trying to fit 5lbs in a 1 lb bag up there

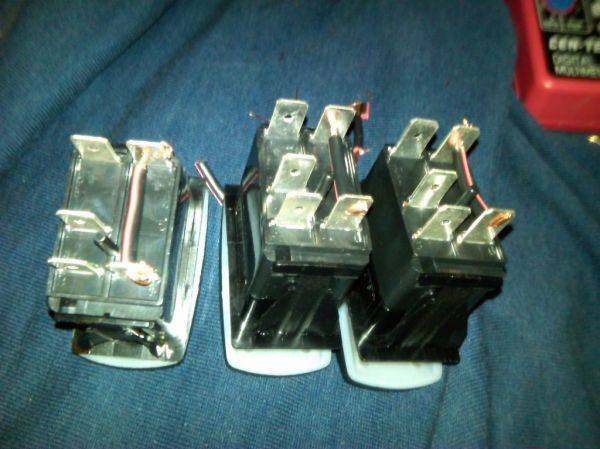

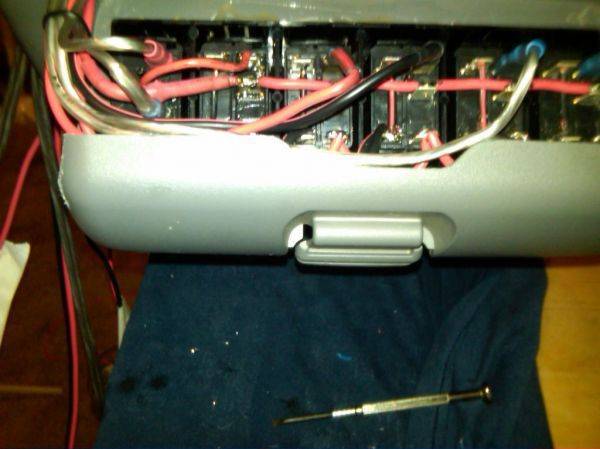

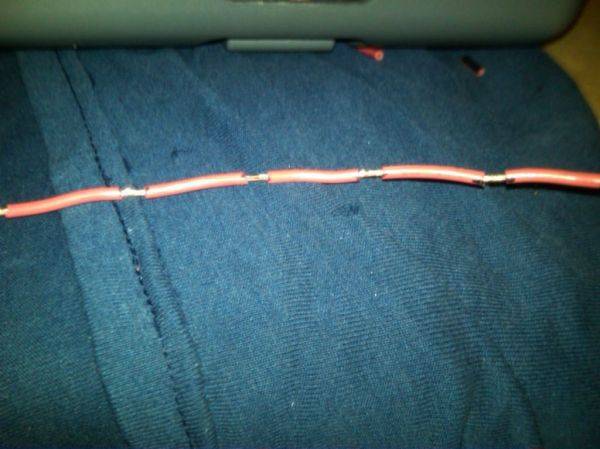

    i started by tying all ground togther....i soldered as to save some room.....
    each switch has 2 grounds.....
    [​IMG]

    i then daisy chained all the grounds togther...as well as all acc. wires and power wires....
    something like this....
    [​IMG]

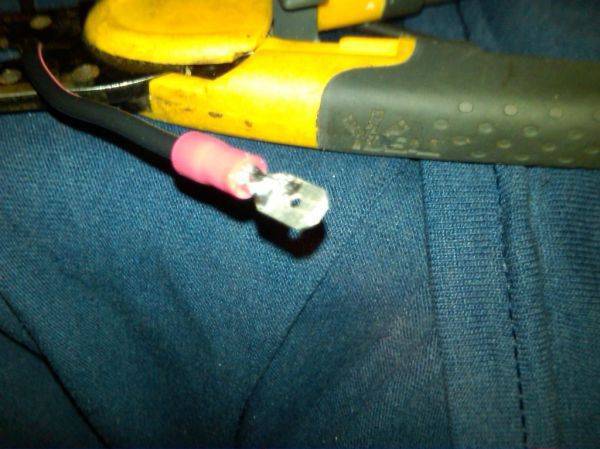

    only terminals i use crimp on connectors was on the output of said switches.....

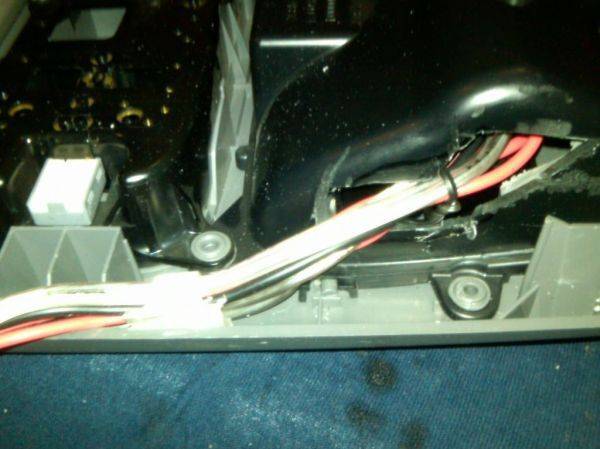

    as can be seen in this pic its tight in there...
    [​IMG]
    [​IMG]
    anytime i used a crimp on connector i also soldered it as well....
    all ends were heat shrinked up real nice.....
    [​IMG]
    i cut the side of said sunglass holder out to pass the wires through
    [​IMG]

    shazam
    [​IMG]

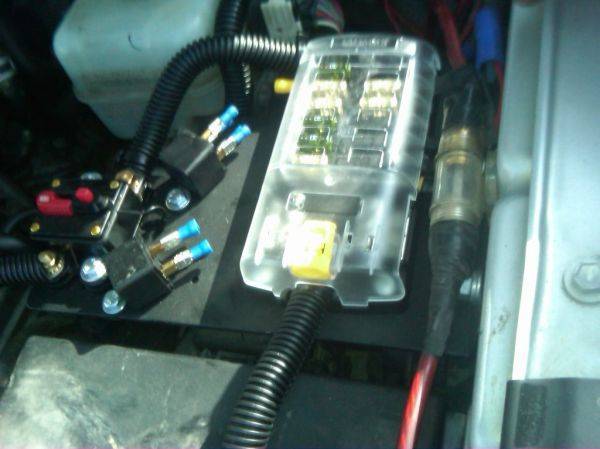

    i also added a blue sea aux. fuse panel...and a circuit breaker....
    [​IMG]

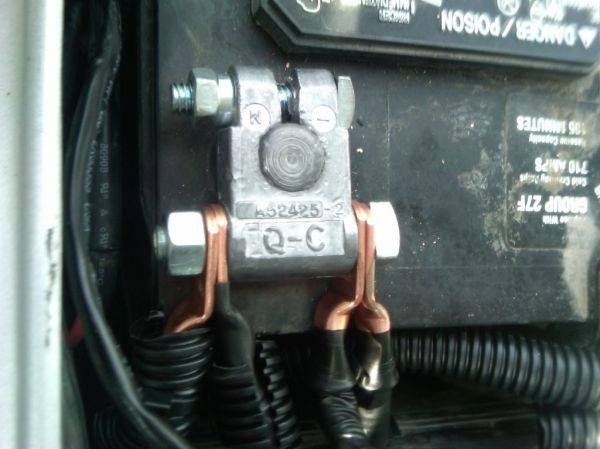

    added new mil spec battery terminals.......
    [​IMG]
    ends i use were 2 gauge battery connectors....got mine from a welding shop....
    and (1) 1/0 gauge connector for the neg from battery

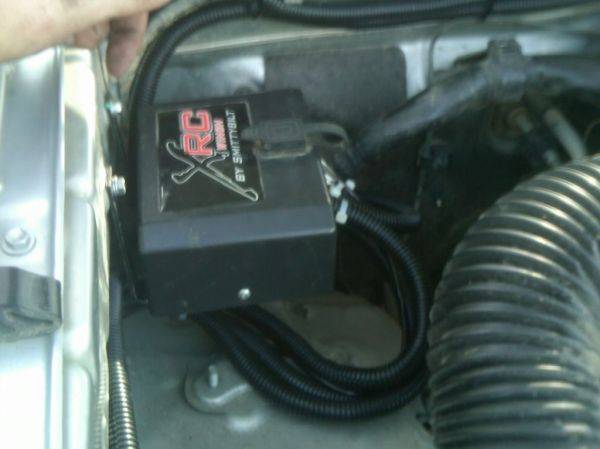

    also moved my winch soleniod to under the hood.....and made it so i can use the stock hand held or the switches in the cab....
    [​IMG]
    ran all wiring to front and back with quick connects.."as my winch is on a cradle and stored in back of truck"
    still nedd to wire up all lighting and redo all my hids....

    just repacked my xrc8 with some mobil1 syn. grease
    a bit messy of a job but worth it

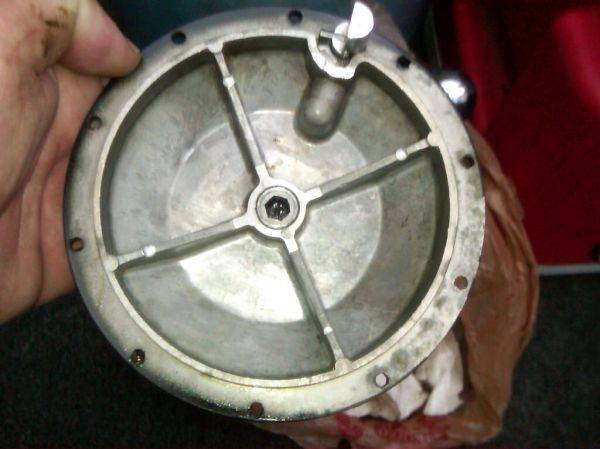

    remove all small allen head bolts remove cover
    be careful not to damage gasket or use rtv sealent when installing
    [​IMG]

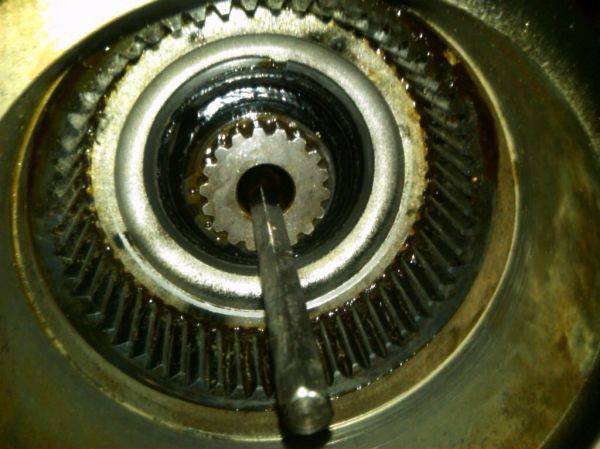

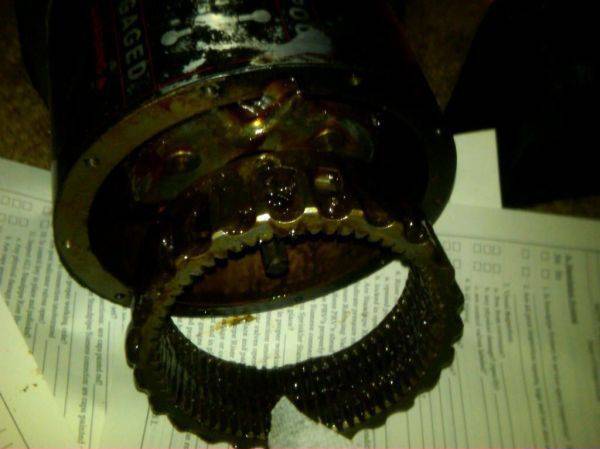

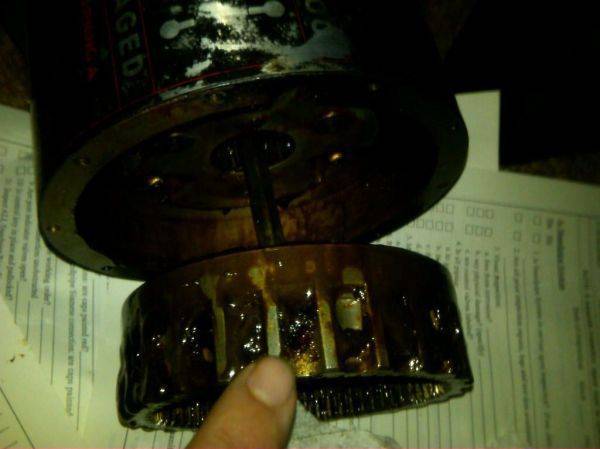

    remove clutch gear
    [​IMG]
    [​IMG]

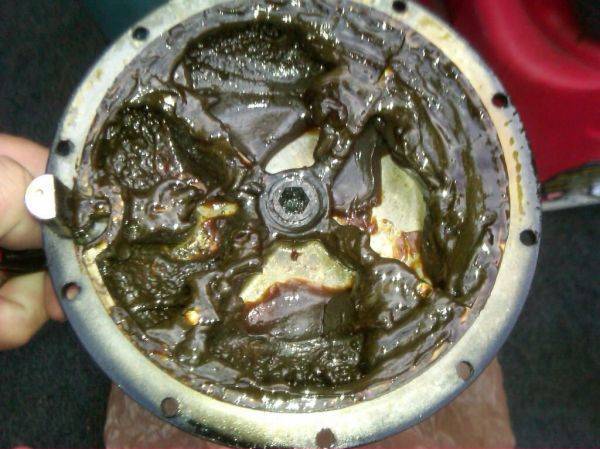

    its messy
    [​IMG]

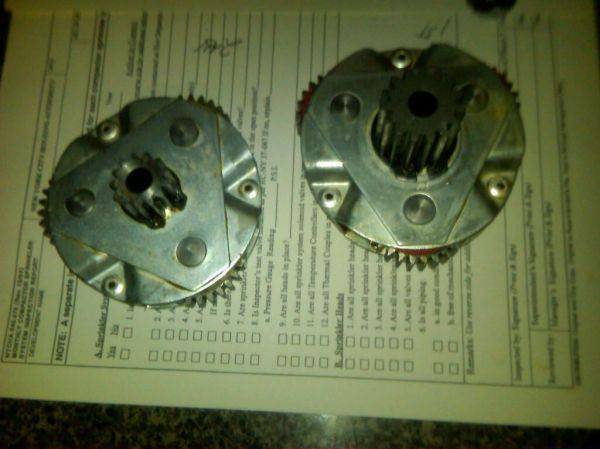

    next pull out the 3 planetary gears
    [​IMG]
    clean everything...i used brake cleaner, paint thinner, old tooth brush LOts of paper towels more brake cleaner
    [​IMG]

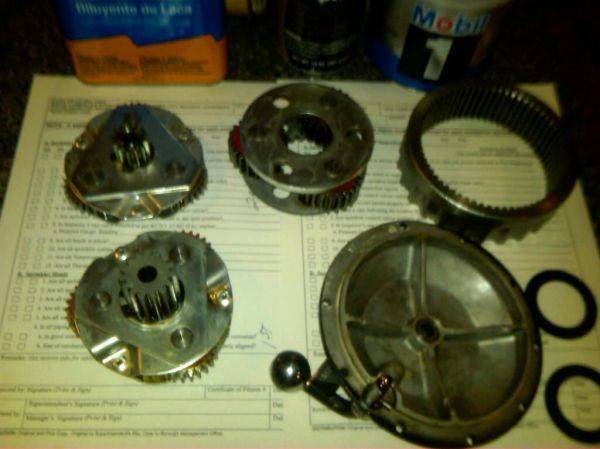

    all clean
    [​IMG]
    [​IMG]

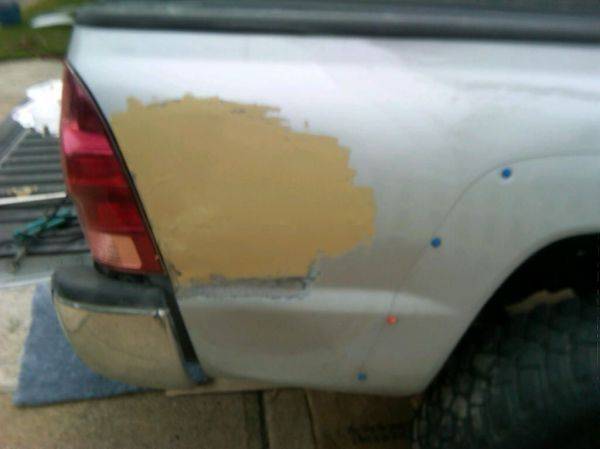

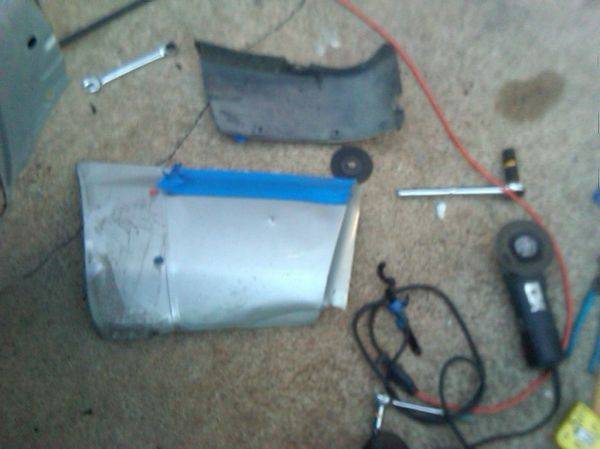

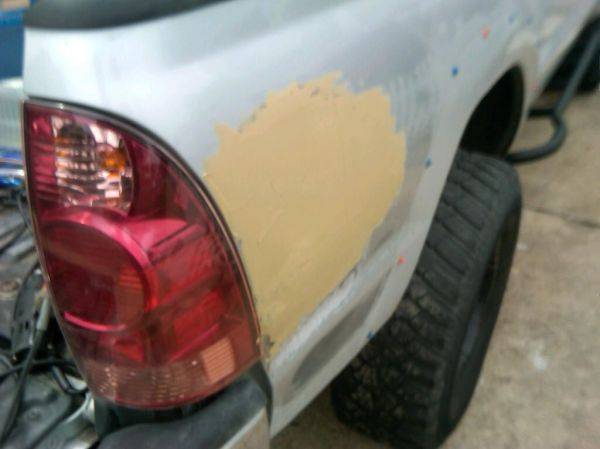

    a lil home body butchering going on...
    [​IMG]
    [​IMG]
    [​IMG]
    found out i no has attention span that long or patience flor that matter
    fucks given at this point 0
    [​IMG]

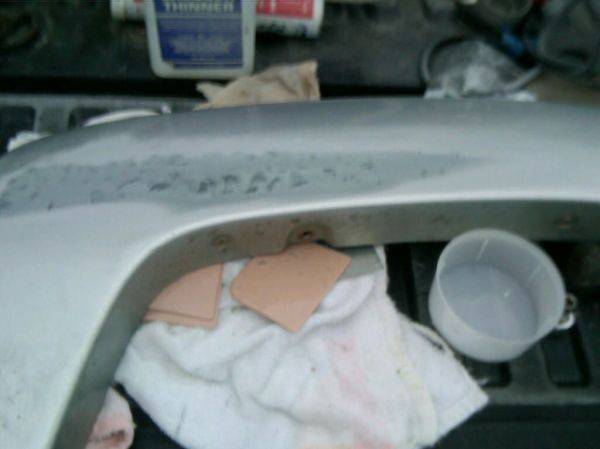

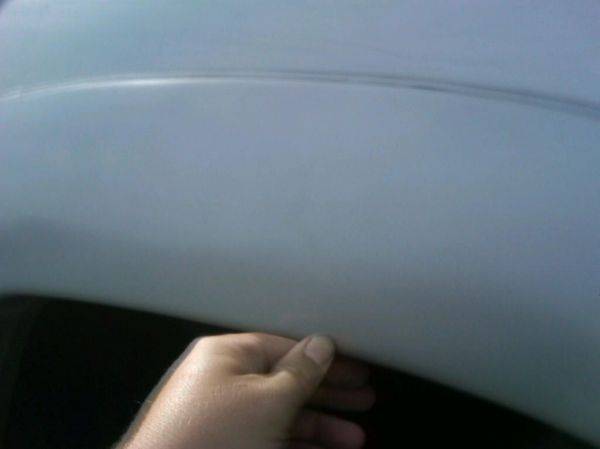

    pretty dam close in color on the flairs....didnt even use the good clear coat i have on them and went with rustoleum x2 gloss ultra cover......
    [​IMG]
    on fender not so much... much darker....
    mind you this is with no buff or anything done after spraying clear coat.....
    id say flare is a 95% match and fender is 55%.....hmmm
    think im going to take off top rail and just spray whole quarter and be done....
    keep watching....i ran out of color matched paint...

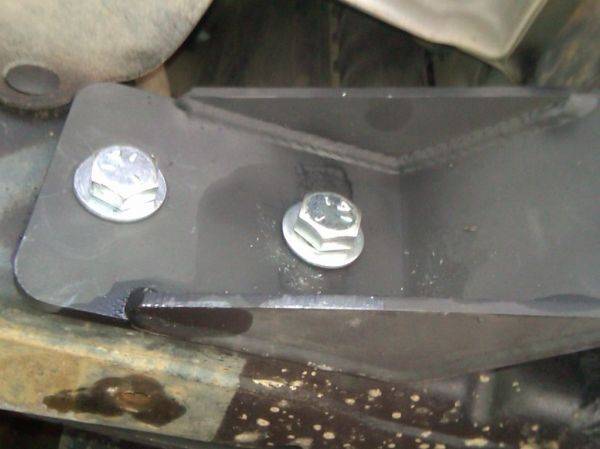

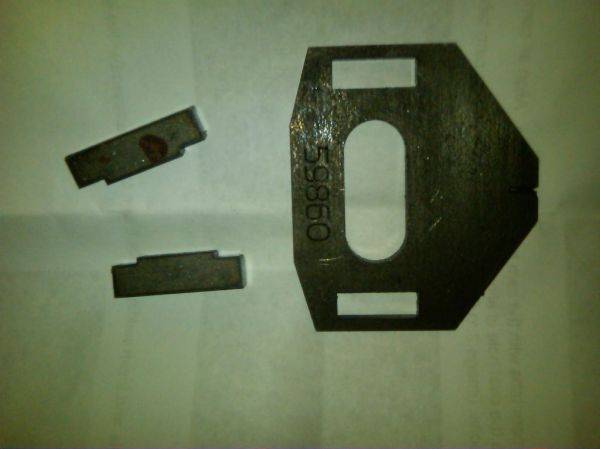

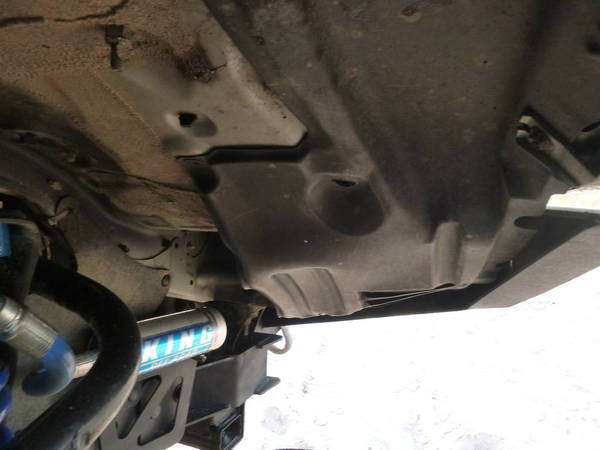

    skid plate mod vvvv
    [​IMG]

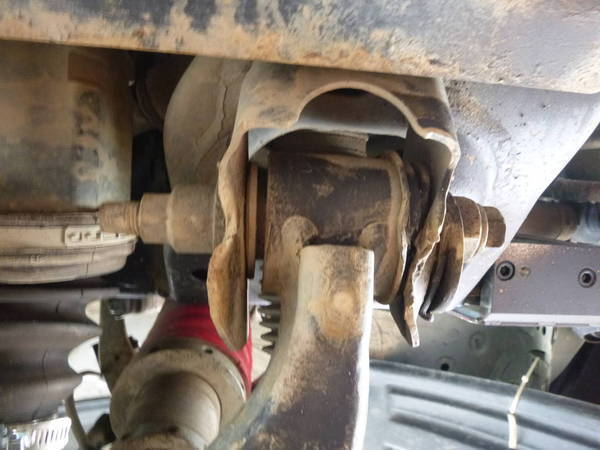

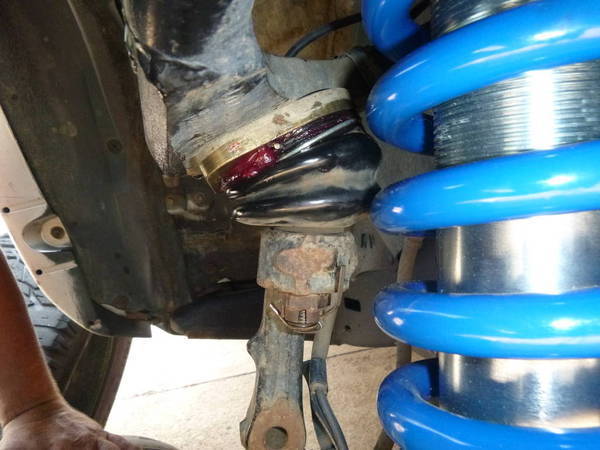

    LCA mods
    [​IMG]
    mind you this is after i fixed them...
    [​IMG]
    time for some tc cam gussetts and a welder.......help welders of nor east....mayday

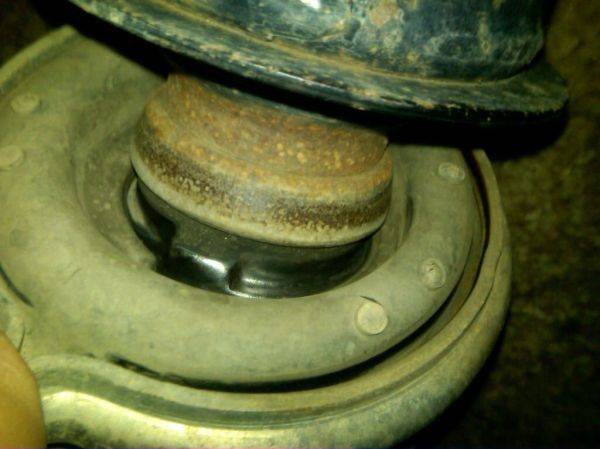

    my carrier bearing mod @ 80k
    [​IMG]

    [​IMG]
    here we go again...less then 30k on them....
    http://youtu.be/VhnrOFs7dqk
    :popcorn:

    and hmmmm
    [​IMG]

    [​IMG]
    [​IMG]

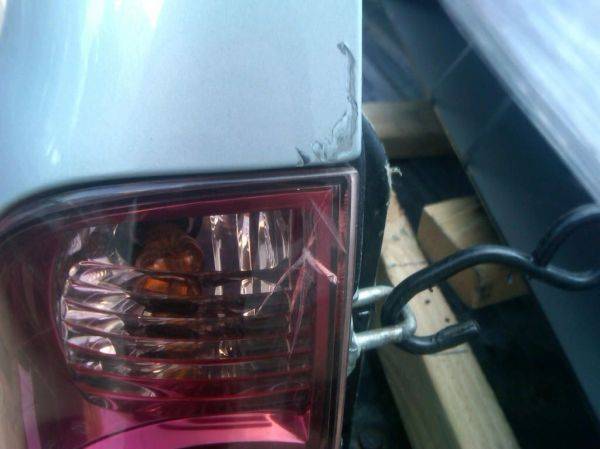

    and a lil collateral damage in the process:eek:
    but thats ok its called character:D
    [​IMG]

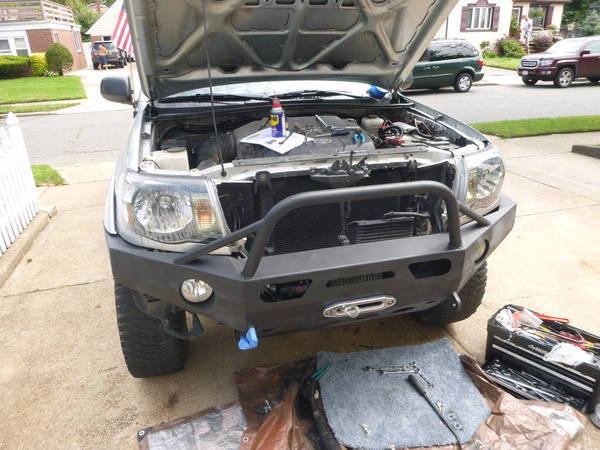

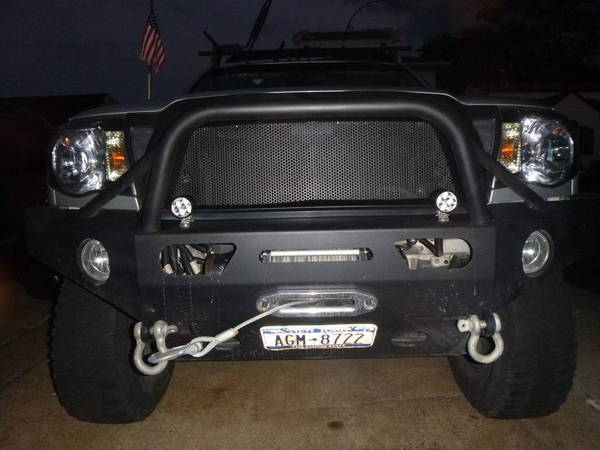

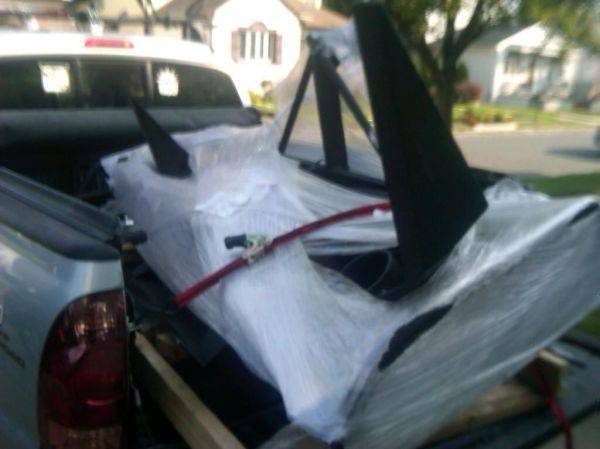

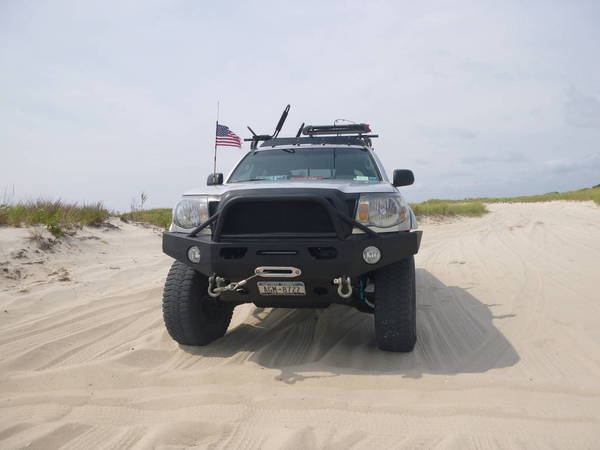

    ok so i installed my front bumper and winch today....took about 5 hours all by myself....
    finished wiring the winch and it works GREAT....omg what a dream to free spool now after the grease change.....highly recomend it....
    i was able to free spool it with such ease omg.....

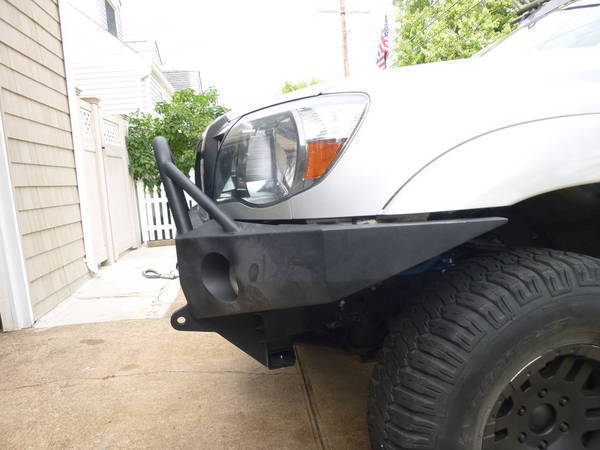

    here are a few pics these are billy's "BRUTEFORCE BUMPERS"
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

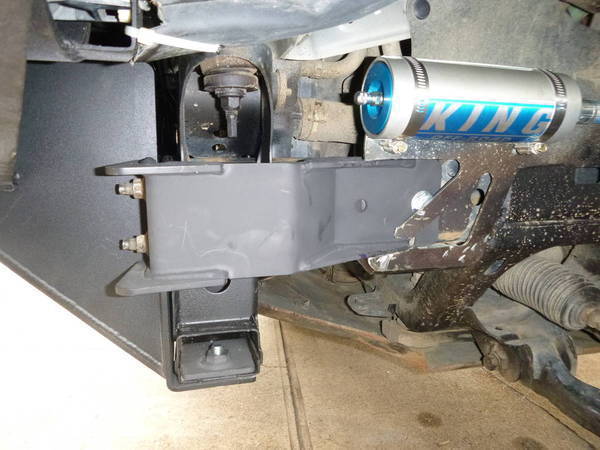

    home made butcher of kings remote resi mounts
    [​IMG]
    [​IMG]
    [​IMG]
    i still have use of the hand held remote for using outside the truck
    [​IMG]
    [​IMG]
    [​IMG]
    :D

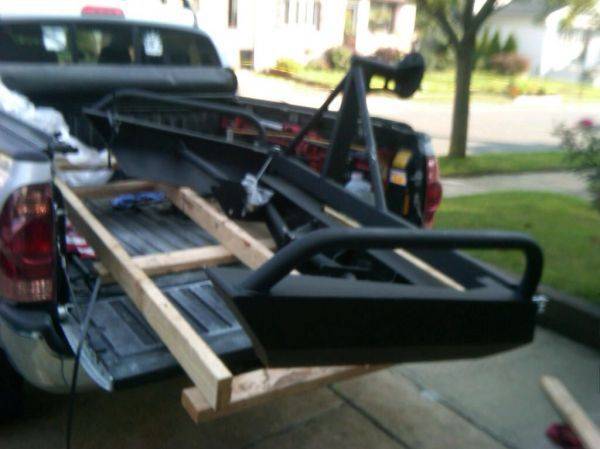

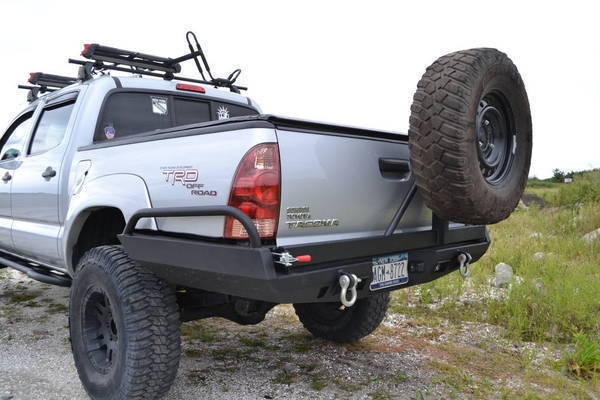

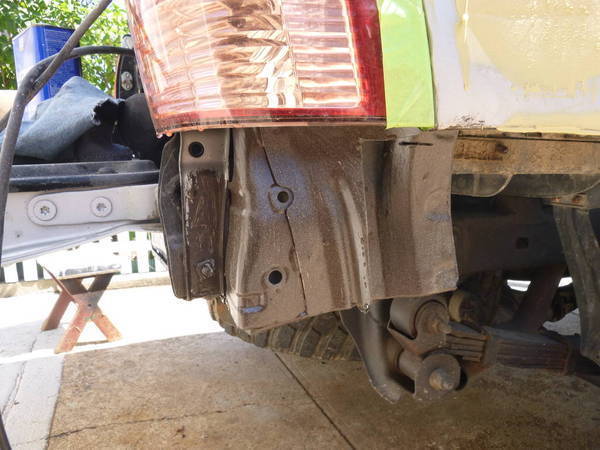

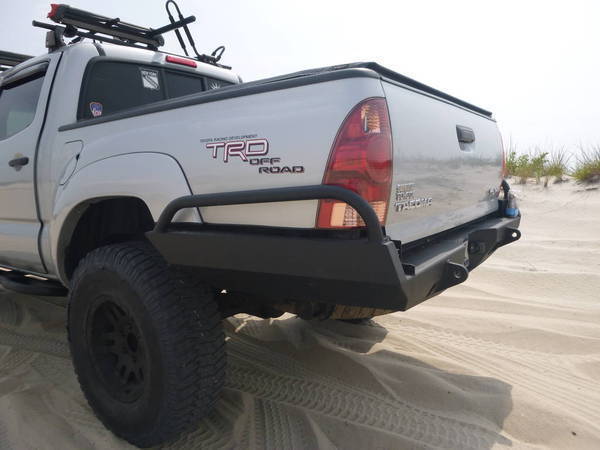

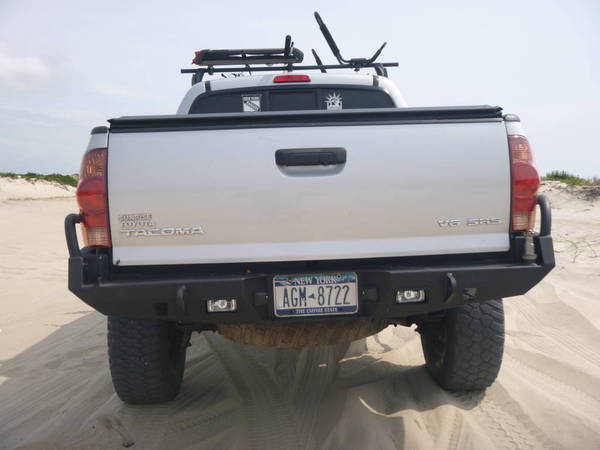

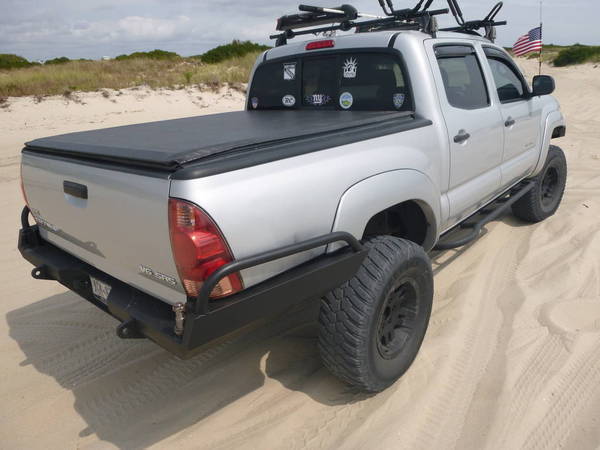

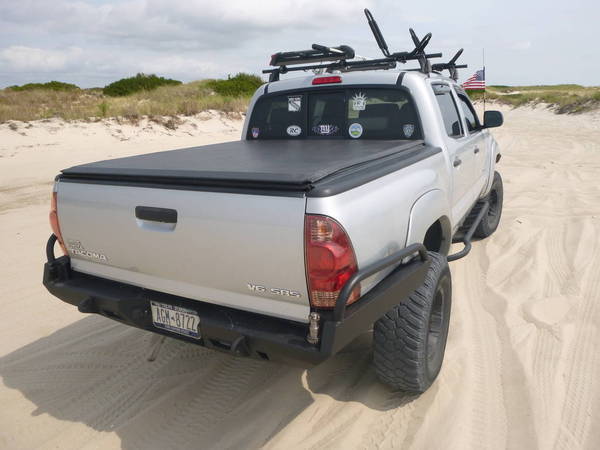

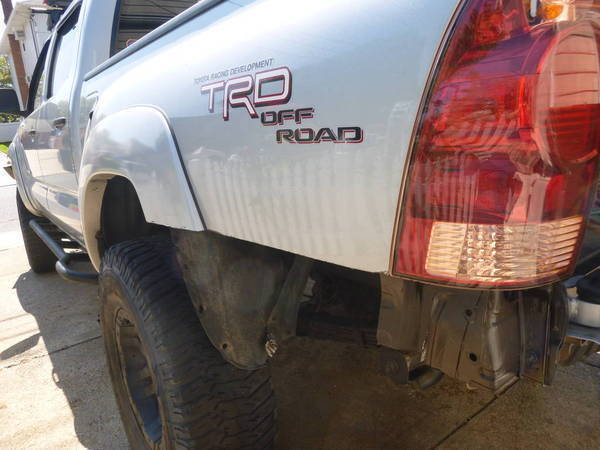

    a few updated pics of rear bumper install
    [​IMG]
    [​IMG]
    cut like a lazer ...dam im good.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

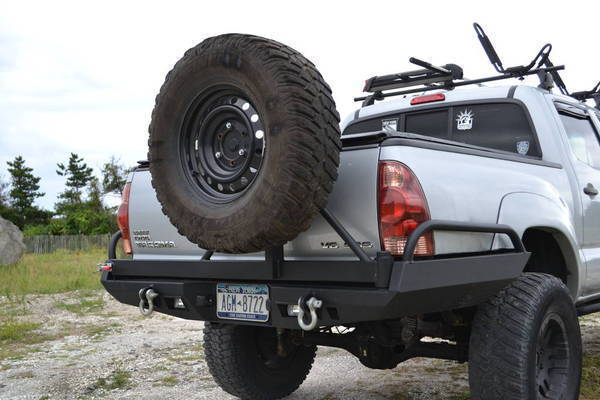

    and done.

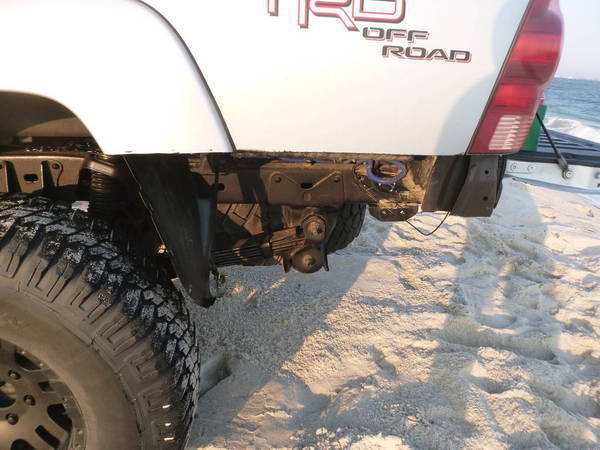

    still need to wire reverse lights, add quarter panel supports "i just bought the material", install front aux. lighting"trying to find a spot i like" and then thats about it
    in near future
    [​IMG]

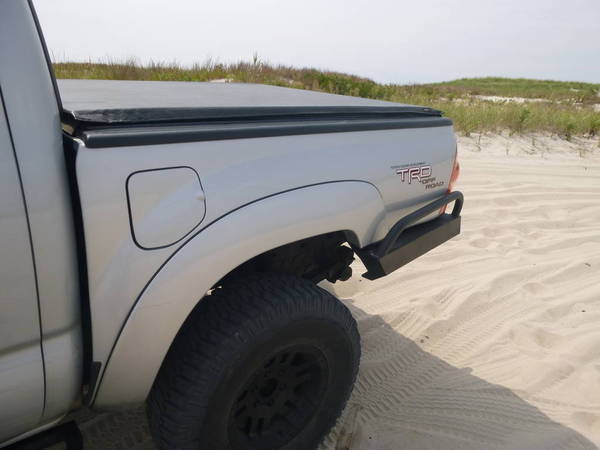

    bedsides cut and ready
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    this is how i tucked the front splash guards into the fender area
    [​IMG]
    [​IMG]
    and my wheels painted with the bedliner seam to be holding up just fine.....wooot
    [​IMG]
    this is what i am going to use for the moulding arund the rear fender cuts
    [​IMG]
    added the flip up / down license palte holder and wired in a new reverse camera...
    very happy with the way it turned out.....i didn't even have to cut any wires......

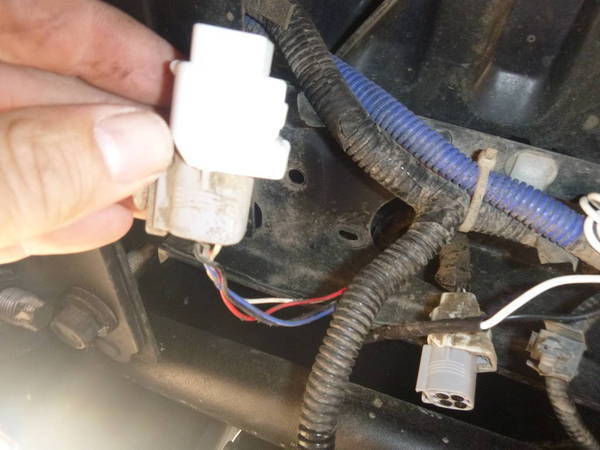

    first i unplugged the factory connection "under bumer" and used the blank's that toyo supplies you when u get your truck.....
    i used the one blank to protect / cover the exposed connections and for the side i was hooking into i used some plumbers putty wrapped in celophane and then plasti dipded over it.....it came out perfect....i can go back to the staock camera in under 5 mins with no wiring needed......
    here are some pics of it
    this is the connection....."factory camera" and them are your 4 wires....
    i only used 2 just for the video...as factory camera uses 6 volts and new camera uses 12 volts
    i ran power and ground from the tail light...
    [​IMG]

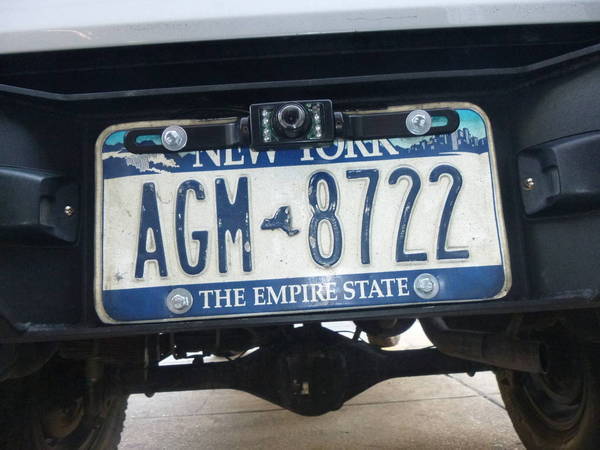

    here it is mounted up....."only downside is i can now only open my flip plate 1/2 the way.....but not a big deal at the moment as i never use it anyway.....can be easily fixed by making it a flip down plate "which i will do in the future"
    [​IMG]

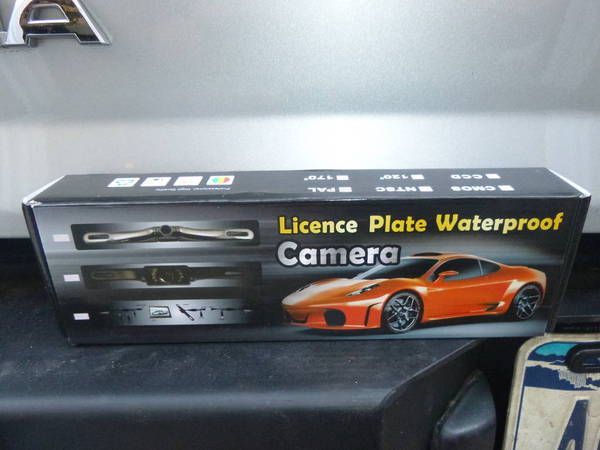

    this is the camera i used got it for under $15 on ebay.....it has the lines on it.....
    not as good as the stock camera but well worth the money.....
    [​IMG]

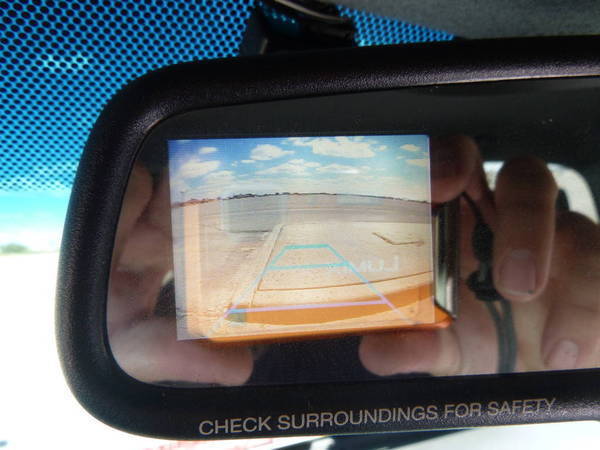

    this is how she now looks when in reverse.....
    [​IMG]
    overall i am lovin it....
    i got these color codes from another thread on here....
    1- CY- (WHITE) CAMERA VIDEO NEGATIVE
    2- CY- (RED) CAMERA VIDEO POSITIVE
    3- CGND (BLUE) CAMERA GROUND "SHIELD"
    4- CB+ (BLACK) CAMERA POWER


    HOPE THIS HELPS
    thank this guy this is where i got my info from....
    rep to you sir
    http://www.tacomaworld.com/forum/2nd-gen-builds/2nd-gen-builds/2nd-gen-builds/4-c...ra-pinout.html

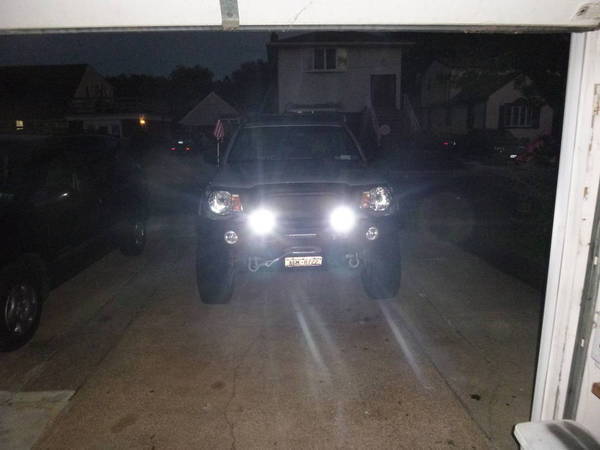

    also got around to installing my new led lights.....
    [​IMG]
    [​IMG]

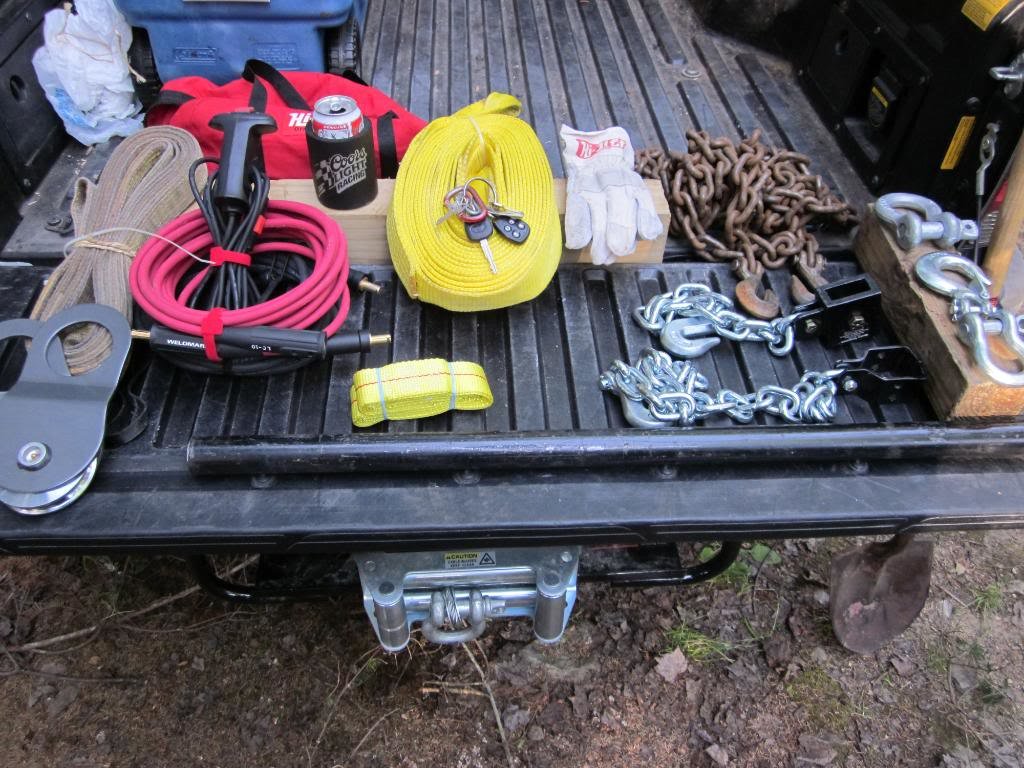

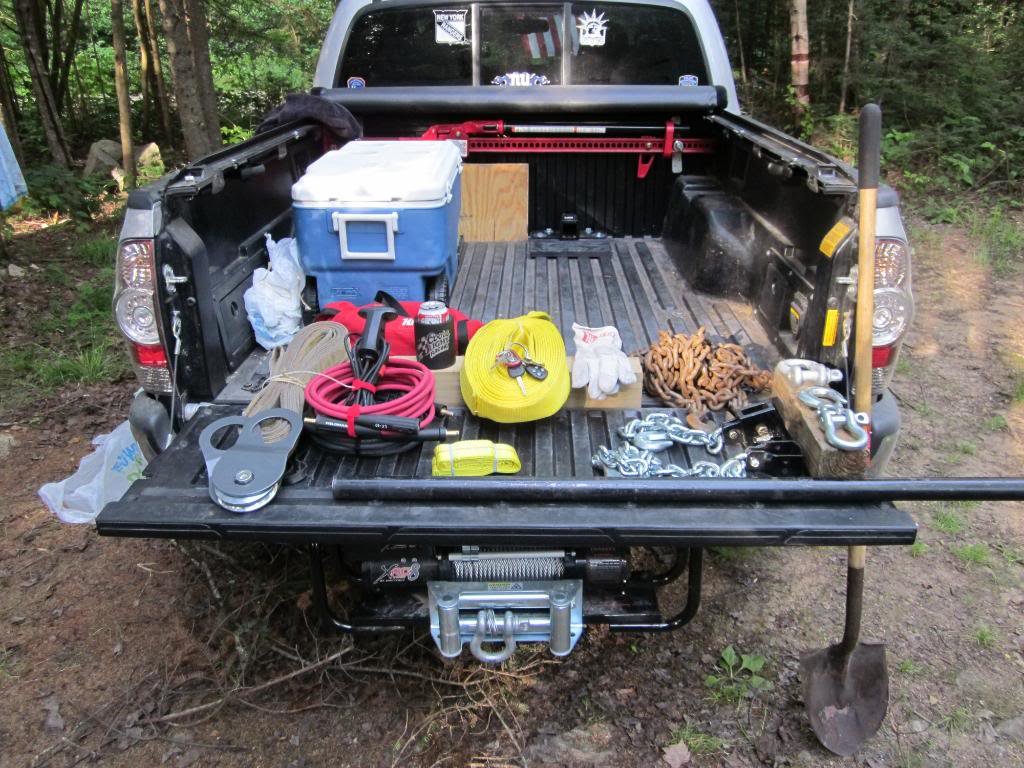

    this is my recovery gear
    [​IMG]

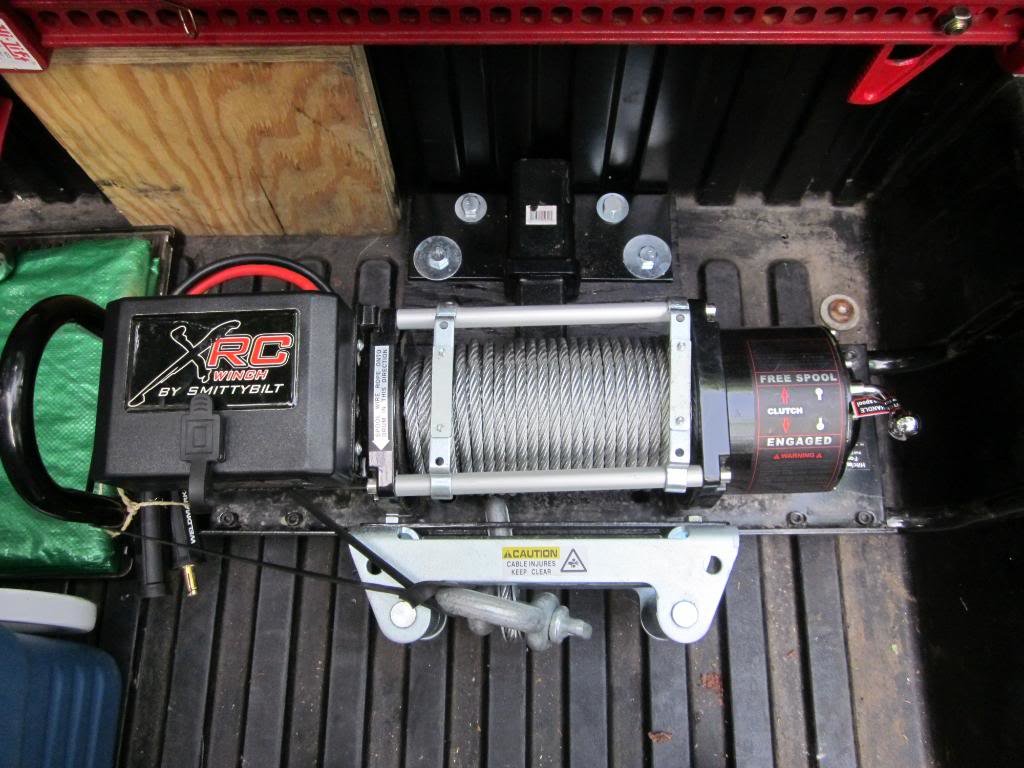

    this is where i used to store my winch for the last few years.....
    worked great
    [​IMG]
    this is how we collect fire wood in vt
    [​IMG]

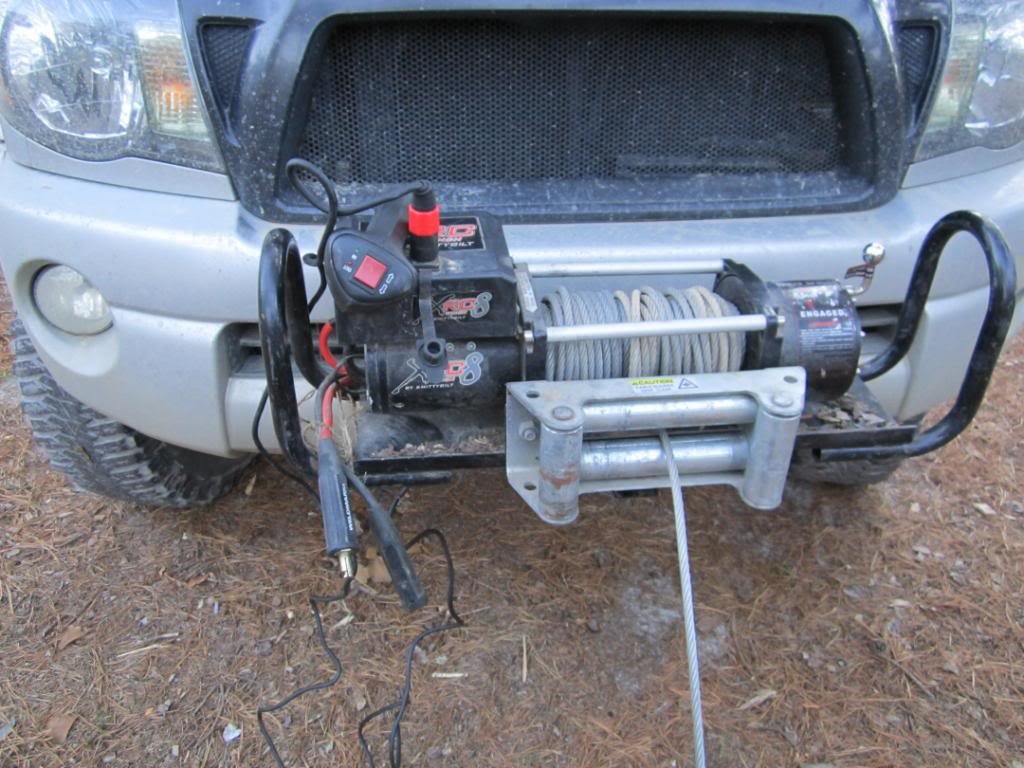

    this is the winch mounted in my ato front receiver
    [​IMG]
    here it is mounted in the rear hitch...i use lc 40 quick disconnects used in welding applications
    [​IMG]
    hanging out with my friend
    [​IMG]

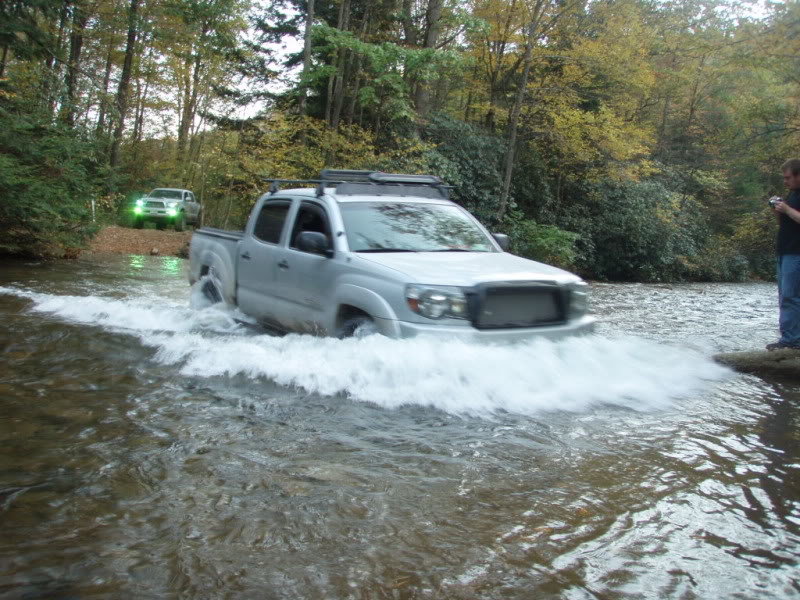

    some water crossing
    [​IMG]
    [​IMG]
    [​IMG]

    [​IMG]
    http://youtu.be/2rCIiOkJ2z8
    update 6-7-13

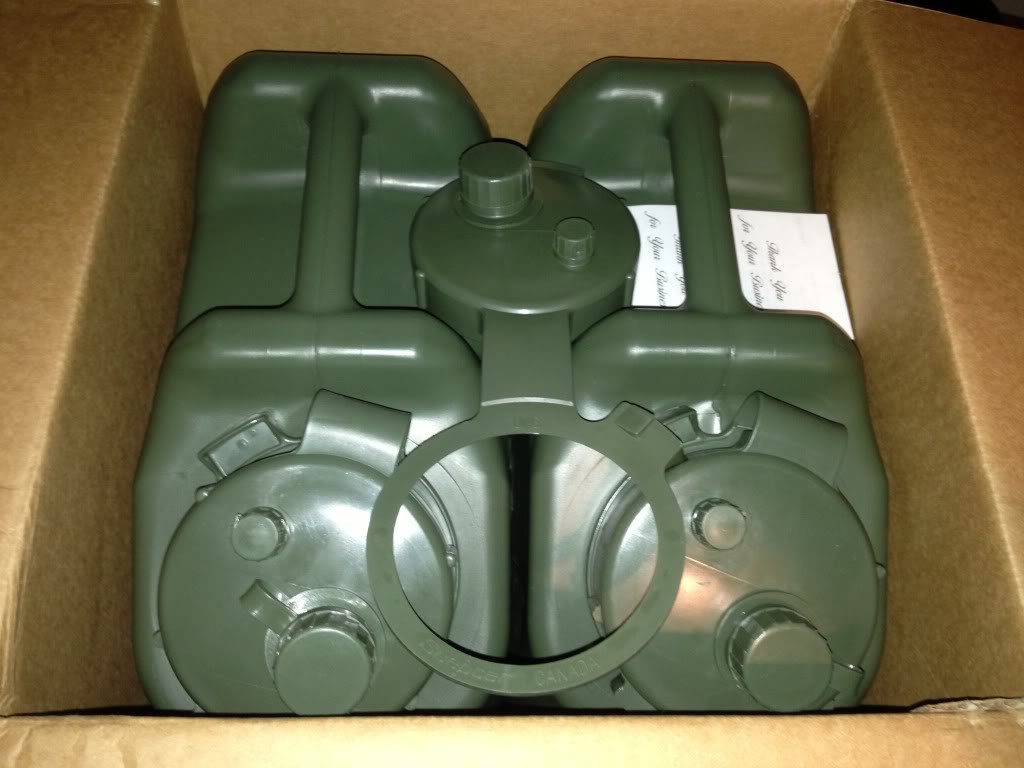

    just ordered 2-20L sceptor water cans
    and a mount for rear of swing out..."in route"
    i made the cans pressurized......so i can use as a wash down at beach, camping, ect....."NOT MY IDEA CREDIT GOES TO" ---MRGRIMM---
    HIS BUILD http://www.tacomaworld.com/forum/2nd-gen-builds/104272-mrgrimms-mall-crawler.html
    http://www.youtube.com/watch?v=POrNzl0wqXI
    here is mine i made
    [​IMG]

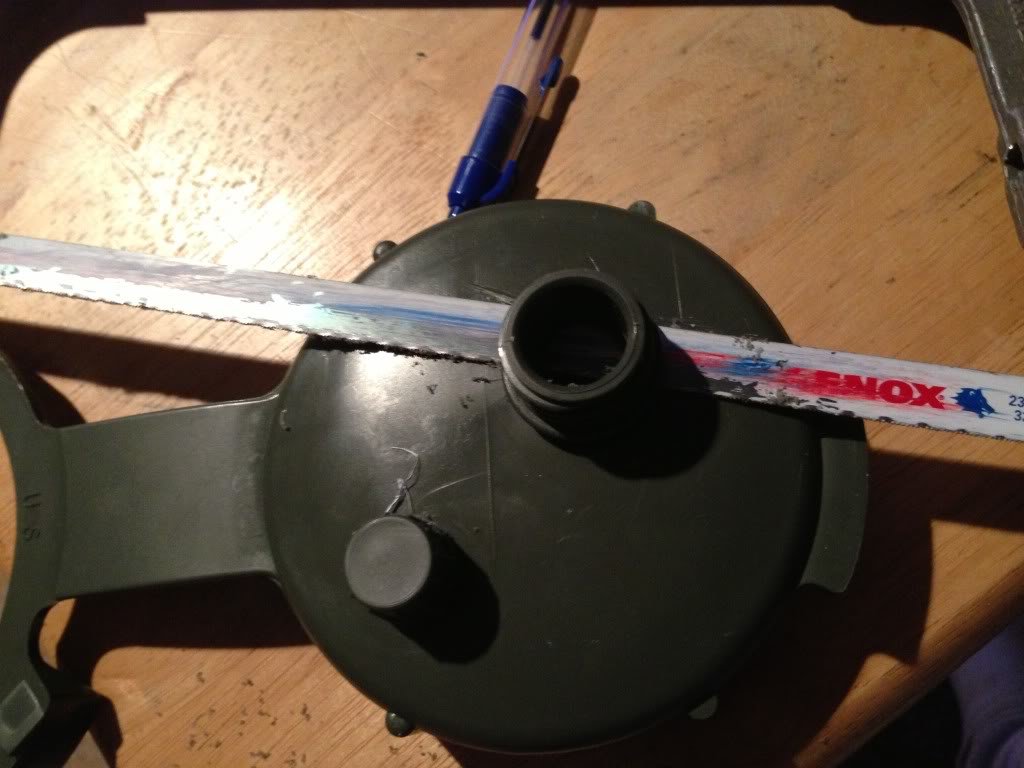

    i cut this off flush
    [​IMG]

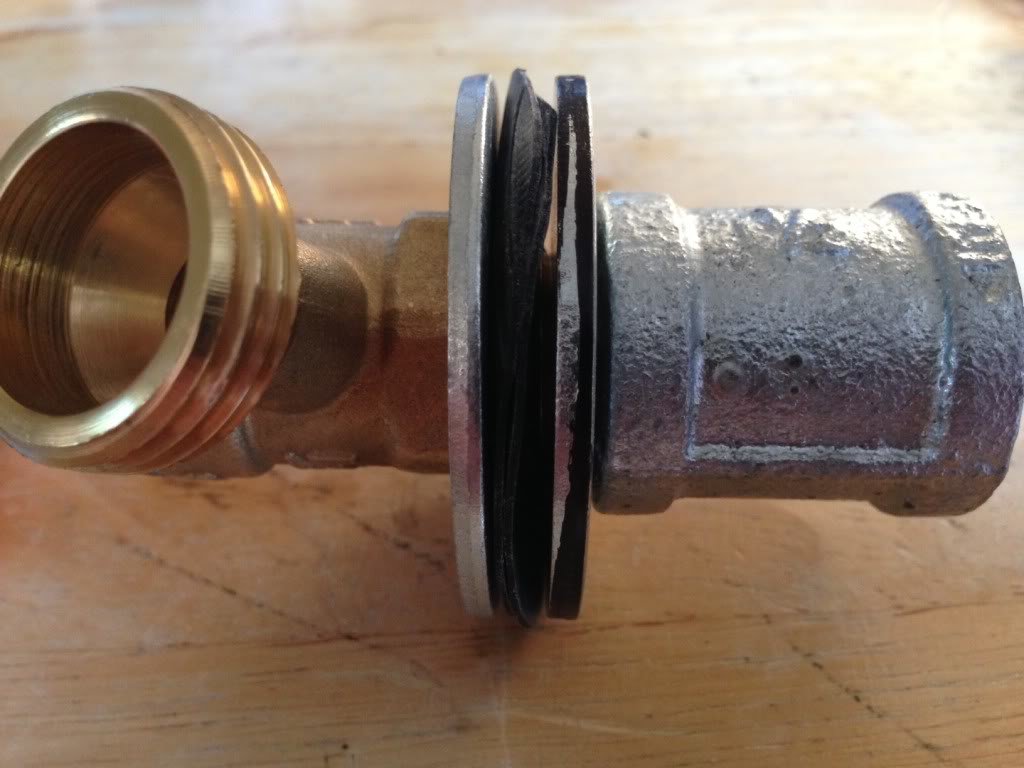

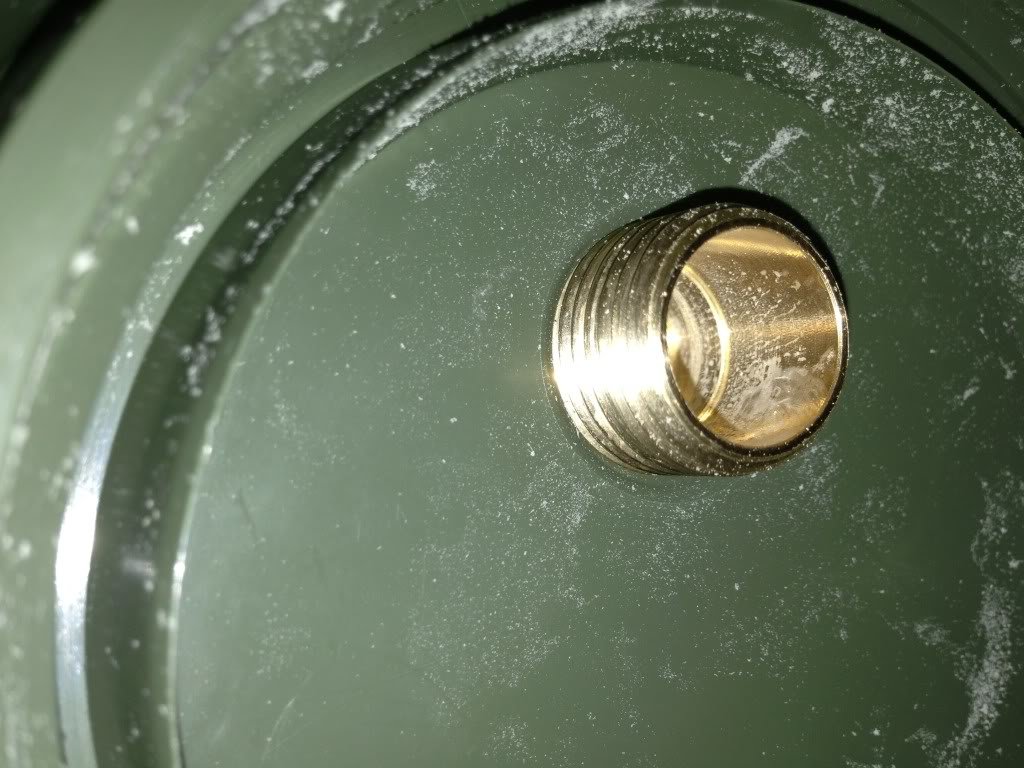

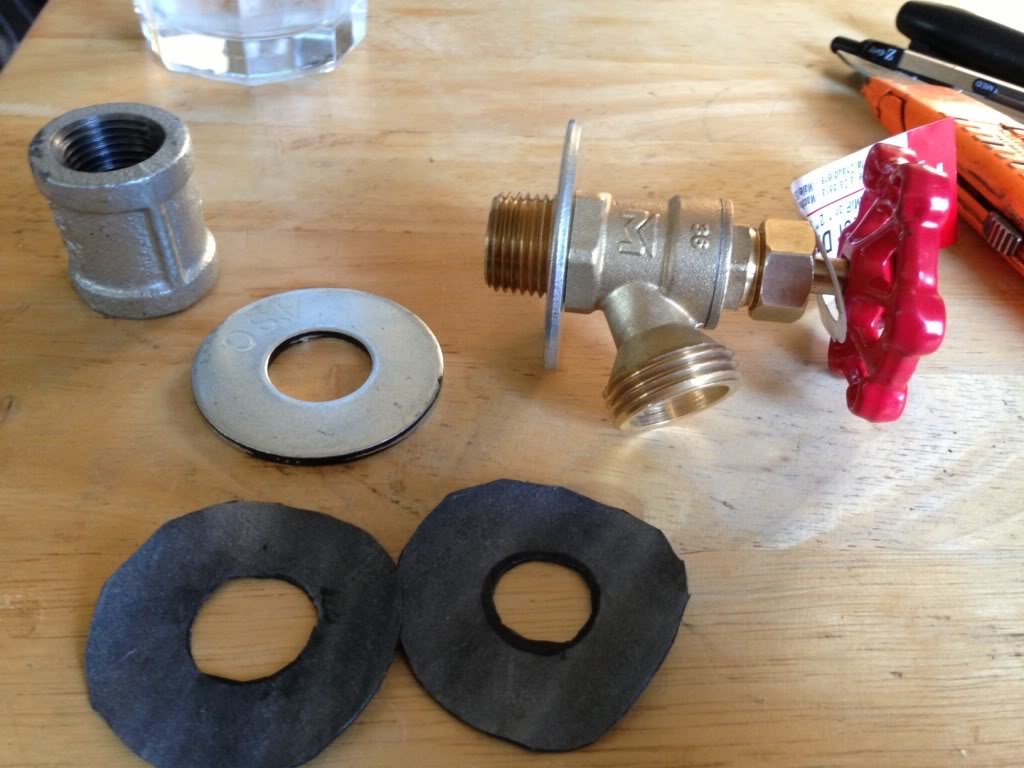

    then used a 1/2" boiler drain...it almost scrtews in perfect.....i used some plastic epoxy and a rubber inner tube as washers along with 2 3/4id" fender washers and a 1/2" gal coupling.....a 1/2" male x 1/2 barbed abs fitting and a aproximate 18" length of 1/2" abs pipe.........
    [​IMG]
    [​IMG]
    [​IMG]

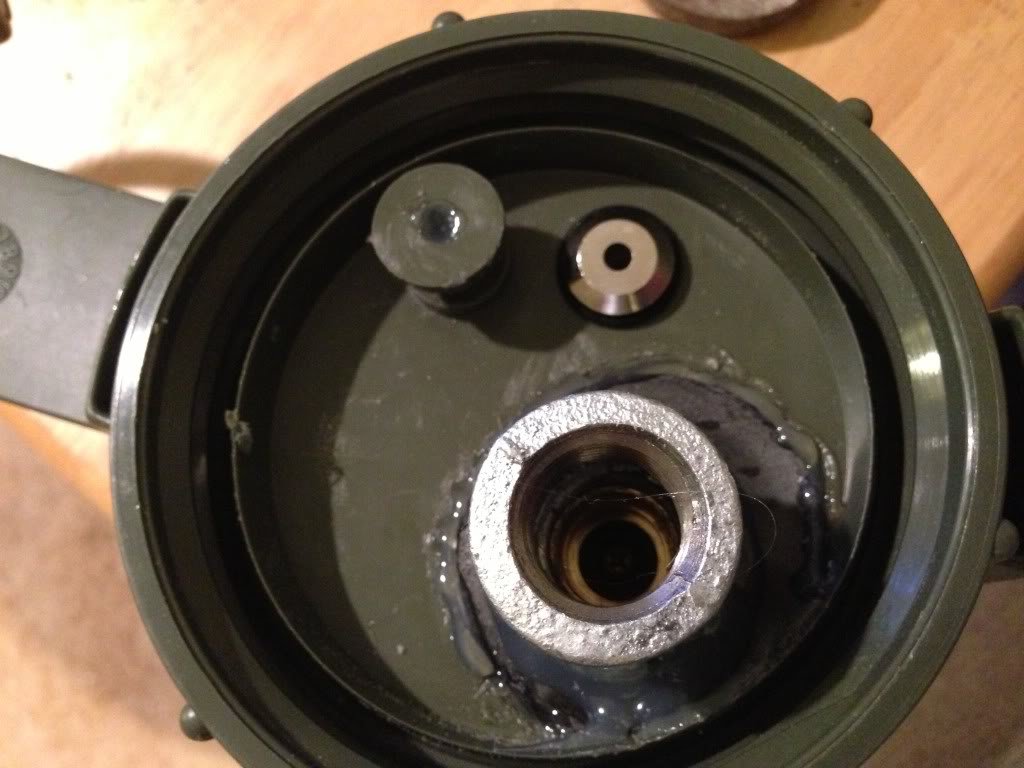

    here it is after installing 1/2" boiler drain.....
    [​IMG]
    now its fully installed
    [​IMG]

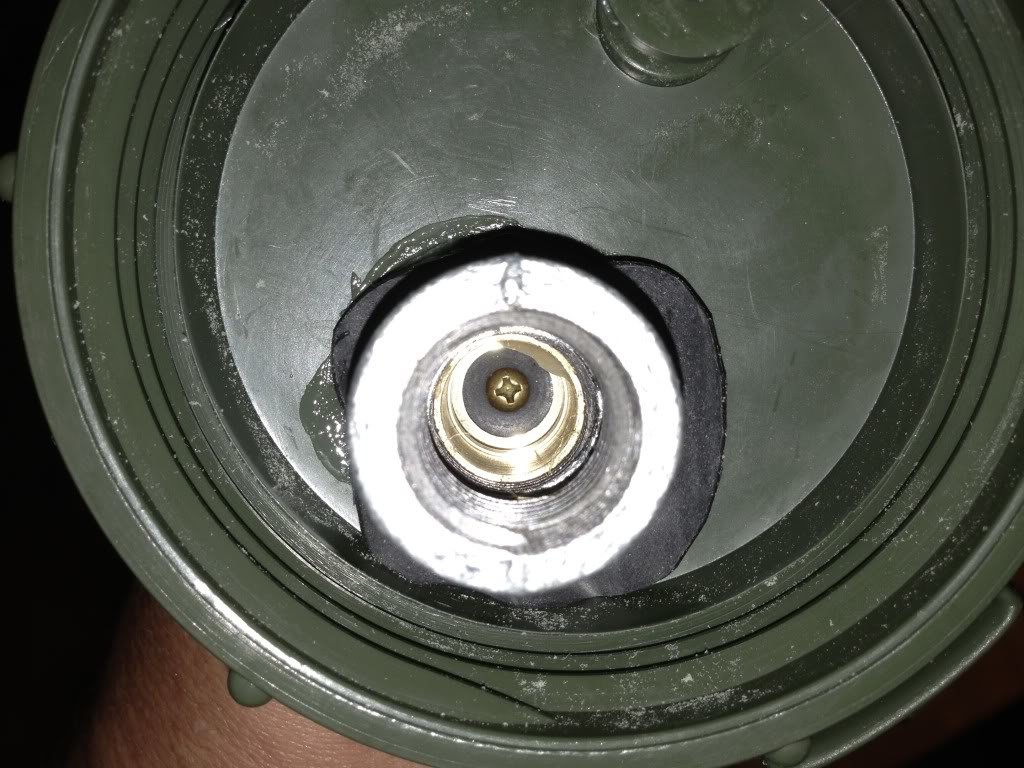

    then i drilled in the threaded schraider valve "gift from firestone" free wooot
    used a 5/8" bit worked perfect
    [​IMG]

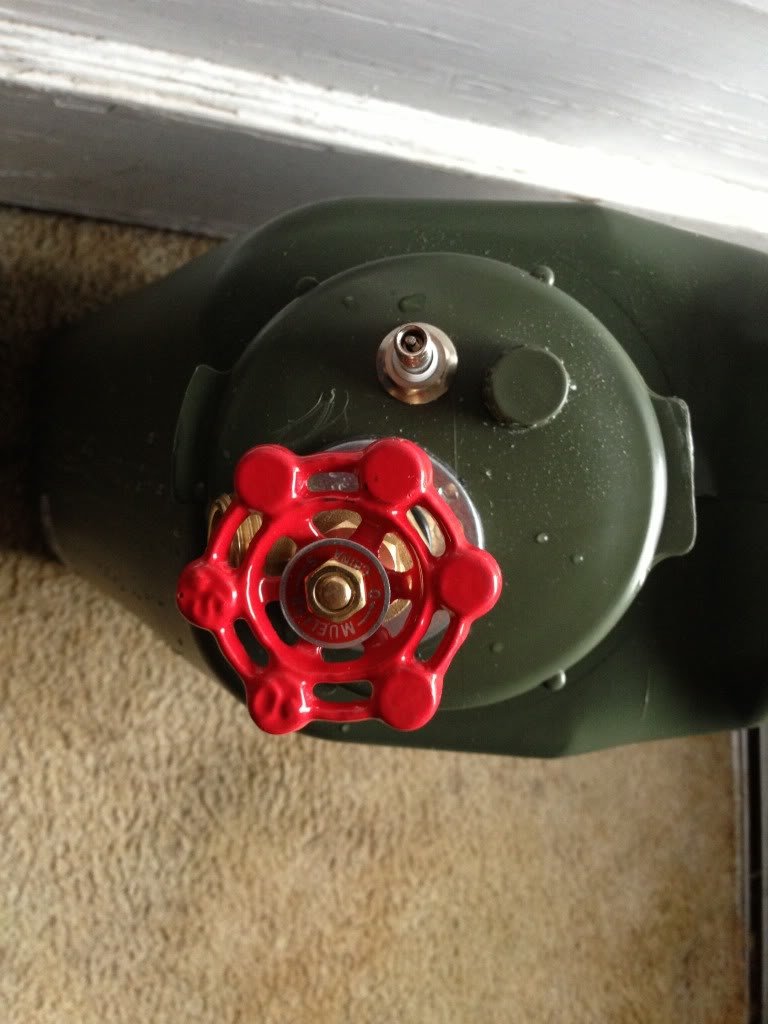

    and here it is installed and ready to go
    [​IMG]

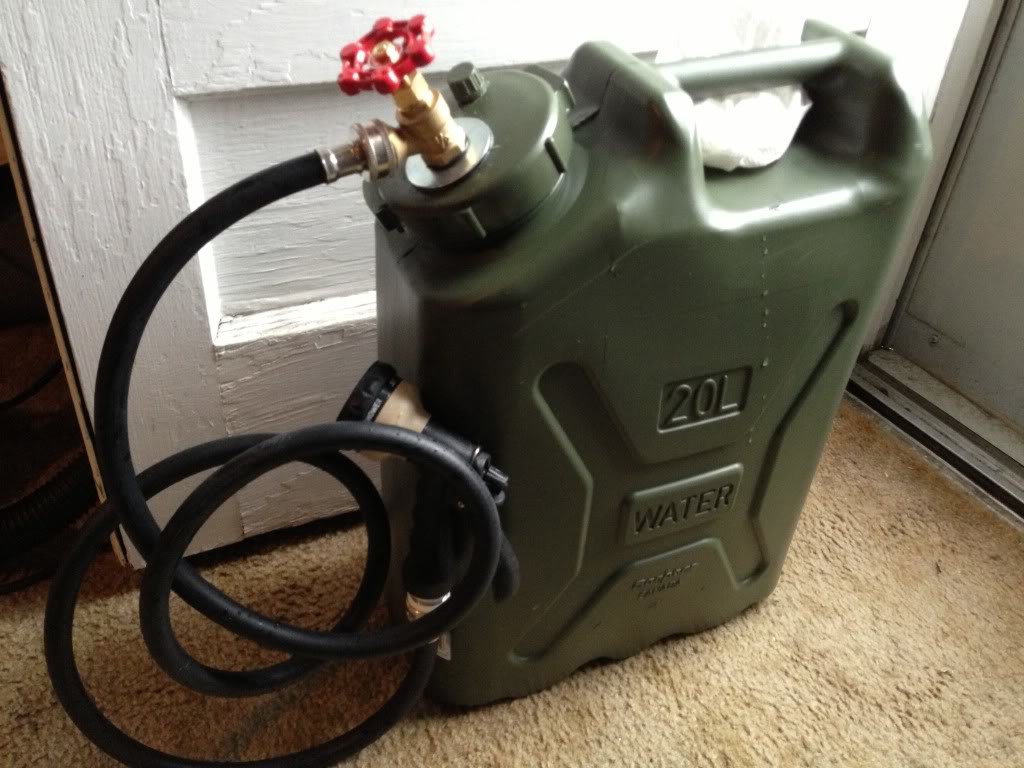

    and done
    [​IMG]
    [​IMG]
    here it is with id say about 5psi.....will get more accurate pressure readings and such....also this pos nozzle from walmart leaks like a bitch
    i will be trying kitchen sink sprayers and hand help shower in the near future.....keep checking for updates
    http://youtu.be/Ga3vYAFbyPQ
    stay tuned
    so work is still in progress........
    just dropping these here
    vvvvvvvvvvvvvvvvvvvvv
    FRONT DIFF.-----OIL SEAL DRIVER SIDE - TOYO# 90311-47013, --NATIONAL # 710596
    FRONT DIFF.-----OIL SEAL PASS. SIDE - TOYO # 90311-47012, -- NATIONAL # 710595, -- BECK ARNLEY # 0523749
    DUST SHIELD GASKET BETWEEN HUB + BEARING, --NATIONAL # 710477
    DUST SHEILD GASKET BETWEEN SPINDLE AND OUTER CV 710573
    REAR BRAKE LINE 3/16" X 20" -JAP 20 -- 4.7 MM X 50.8 CM -- STANDARD FLARE
    more info here
    90341-24014 Front Differential Drain Plug
    90341-18057 Rear Differential Drain Plug
    90341-18066 Rear Differential Fill Plug
    12157-10010 Front Diff Fill Plug Gasket / Rear Fill Gasket / Rear Drain Gasket
    90430-24003 Front Diff Drain Plug Gasket
    90430-18008 Transfer Case Gasket
    90341-12012 Oil Drain Plug
    90430-12031 Oil Drain Plug Gasket
    90341-10006 Transmission Drain Plug
    35178-30010 Transmission Drain Plug Gasket

    Last edited: Jun 13, 2013
  2. Jul 14, 2012 at 8:56 PM
    #2
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,235
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    Best build thread on TW.

  3. Jul 14, 2012 at 8:58 PM
    #3
    HomerTaco

    HomerTaco That "grill guy" Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    27,620
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    07' DCSB cut to pieces...
    Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad / Safari Snorkel / Illuminated 4x4 switch / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust Dump / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift
    no shit!
    yup.


    This space reserved for future ridicule & bashing.

  4. Jul 14, 2012 at 10:22 PM
    #4
    OZ-T

    OZ-T Did you get your precious photos ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    24,781
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    worse than mine

    unsubbed

  5. Jul 16, 2012 at 8:16 AM
    #5
    CQB 1911

    CQB 1911 Well-Known Member

    Joined:
    Sep 9, 2011
    Member:
    #63202
    Messages:
    312
    Gender:
    Male
    First Name:
    Jesse
    AZ.
    Vehicle:
    2010 TRD OR AC
  6. Jul 16, 2012 at 8:28 AM
    #6
    chrisman8995

    chrisman8995 Well-Known Member

    Joined:
    Jul 14, 2009
    Member:
    #19657
    Messages:
    110
    Gender:
    Male
    Newnan, GA
    Vehicle:
    05 PreRunner Double Cab
    love the switch placement. one of the best setups ive seen

  7. Jul 16, 2012 at 8:38 AM
    #7
    brutalguyracing

    brutalguyracing [OP] BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,005
    Gender:
    Male
    F.U> GUYZ
    broken mods
    thanks im by no means the first....lots of other have as well.....
    forget who all to give thanks for the ideas too...
    but thank you......
    took alot longer and still not done with running all the wiring for the soleniods 1/0 gauge and 2 gauge for the battery and the new terminals....
    still need to finsh the relay bank and install the lights i just got from the gb...
    and new reverse lights.... but all the wiring is already run for them,.....
    looks badass at night

    dropping this here
    http://www.toyotanation.com/forum/2...tory-rear-view-camera-aftermarket-stereo.html

    so i installed my oba system today or at least part of it
    viair 450c 100% duty cycle and tank....
    had to relocated my winch solenoid as it was in the spot i wanted the compressor
    i tacked a nut to side of fender this way i had 3 mounting locations for compressor and also has a bracket under it......
    i also mounted and wired the pressure switch / relay......
    here are some pics
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    i still have to mount the tank.....
    got it almost done but ran out of washers / energy and light......
    still waiting or air lines and fittings to arrive next week.....so no rush....

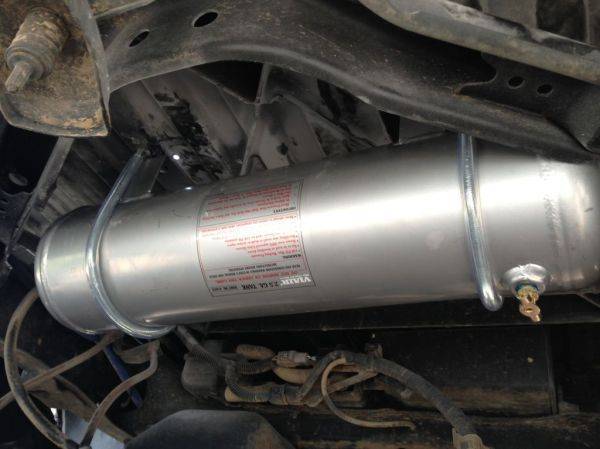

    update tank is mounted.....
    was a bitch to try and use the mounts on tank so i used some 5/16 threaded rod and used some poly tubing over the rod as not to scrtach tank
    so much easier this way..and i was able to keep the nuts and washers on the low ridge of truck bed this way...
    [​IMG]
    still waiting on freaking tubing i ordered about 10 days ago...errrrrrr

    Last edited: Jul 1, 2013
  8. Jul 16, 2012 at 8:41 AM
    #8
    CQB 1911

    CQB 1911 Well-Known Member

    Joined:
    Sep 9, 2011
    Member:
    #63202
    Messages:
    312
    Gender:
    Male
    First Name:
    Jesse
    AZ.
    Vehicle:
    2010 TRD OR AC
  9. Jul 16, 2012 at 8:49 AM
    #9
    brutalguyracing

    brutalguyracing [OP] BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,005
    Gender:
    Male
    F.U> GUYZ
    broken mods
  10. Jul 16, 2012 at 9:26 AM
    #10
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    10,732
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Vehicle:
    The "Big Nig"
    Lifted, Locked, Armored. Ready To Wheel.
    So all you've done to this truck is add switches? What do the switches do? What are apocolipse lights? What's an air compressor? What's solder? Is a ground dirt? How do you solder dirt? What's a spst switch? Why is the company called Otrattw? What's a mil spec battery terminal? Why do you need one? Do you need two? Does the military use them? What's a bgr? Is it a big gay retard? Why do you like the rangers? Is it because they are big gay retards? Why dont you know how to spell Canadian? Why do you talk the way you do? Is long island really an island? Can you drive to it? Is it long? Where is the old York? Do they like York peppermint patties in new york? Do they like them in old York? How come you dont have any relays? Why don't you want sunglasses in the sunglasses holder? Can you still fit sunglasses in there with the switches? Can you add an aux sunglasses holder? What size tires can you fit with a blue sea fuse box? Why do they call it a fuse box when it's not in a box? Why do you want to be able to put your winch on the rear of your truck when we know you can't drive in reverse? Are you going to winch yourself backwards into a tree and rip your mirror off? Why do you have a shitty built winch? When is yours going to break? Do you like moving boulders with it? What did you do with your broke ass rear bumper?























    :popcorn:

  11. Jul 16, 2012 at 9:31 AM
    #11
    wrmathis

    wrmathis Dark Lord of the Sith

    Joined:
    Sep 10, 2008
    Member:
    #9126
    Messages:
    6,865
    Gender:
    Male
    First Name:
    Ryan Mathis
    Lives: Fountain, Colorado/Home: Leesburg, GA
    Vehicle:
    2006 Tacoma TRD OR 4x4
    parts and stuff
    :laughing: asshole

  12. Jul 16, 2012 at 9:40 AM
    #12
    TacticalBacon13

    TacticalBacon13 Sorry for party rockin'

    Joined:
    Mar 24, 2008
    Member:
    #5480
    Messages:
    16,175
    Gender:
    Male
    First Name:
    Dunk
    Beech Creek
    Vehicle:
    2014 tundra platinum
    baby seat and a muffler
  13. Jul 16, 2012 at 11:56 AM
    #13
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    21,087
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
    :rofl:




    So lets see some pics of them strait body panels :D

  14. Jul 16, 2012 at 12:12 PM
    #14
    eborgie

    eborgie Mean Big Brother

    Joined:
    Oct 18, 2007
    Member:
    #3118
    Messages:
    3,078
    Gender:
    Male
    First Name:
    Erik
    Norton, MA
    Vehicle:
    2014 Tundra CrewMax
    I want some light em up switches. Then I will be cool.

  15. Jul 16, 2012 at 12:29 PM
    #15
    XXXX

    XXXX Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    21,087
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
    dat them darn new terminles needz some grease yo

  16. Jul 16, 2012 at 12:38 PM
    #16
    CoTacoTRD

    CoTacoTRD He who walk with a Cane

    Joined:
    Feb 7, 2011
    Member:
    #50695
    Messages:
    9,348
    Gender:
    Male
    First Name:
    Gramps
    Colorado! Where else?
    Vehicle:
    07 TRD DC 4x4
    A little of this and a little of that.
    Well you are a lot further along on a build page then me. Really like how those overhead switches turned out. Great job. Look forward to seeing what else you have done. :D

  17. Jul 16, 2012 at 12:49 PM
    #17
    eborgie

    eborgie Mean Big Brother

    Joined:
    Oct 18, 2007
    Member:
    #3118
    Messages:
    3,078
    Gender:
    Male
    First Name:
    Erik
    Norton, MA
    Vehicle:
    2014 Tundra CrewMax
    you gotta pay the price to look that cool

  18. Jul 16, 2012 at 12:56 PM
    #18
    brutalguyracing

    brutalguyracing [OP] BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,005
    Gender:
    Male
    F.U> GUYZ
    broken mods
    like this

    [​IMG]
    stay tuned big changes coming i a few days......

  19. Jul 16, 2012 at 12:59 PM
    #19
    duckcmdr

    duckcmdr If it flies it dies!!

    Joined:
    Nov 3, 2008
    Member:
    #10471
    Messages:
    3,856
    Gender:
    Male
    First Name:
    Joe
    New Jersey
    Vehicle:
    06 DCLB 4x4
    ARB Winch Bumper, Cabelas trial gear 2 mats, Wade vent shades, rear TSB, Toytec TSB AAL ,5100's set to 0,886 coils w/top plate 285/75/16 Treadwright at on Raceline Raptors, Toytec Diff drop, Bud Built Skids,Total Chaos LCA Skids,Devil horns,LED Dome Light,Scan Gauge, Rear Diff Breather, Revenge Fab Sliders. XRC 8 winch, Safari Snorkel, KC Daylighters 100 watt, Redline hood Struts & ez-down tailgate, G-stop extended SS brake lines,Homeroshi front grill and snorkle grill, relentless fab hc rear bumper
    :popcorn:


    This will get intresting.

  20. Jul 16, 2012 at 1:05 PM
    #20
    NC15TRD

    NC15TRD Your girlfriend likes my member

    Joined:
    Sep 14, 2010
    Member:
    #43212
    Messages:
    5,905
    Gender:
    Male
    First Name:
    Nick
    PA
    Vehicle:
    15 DCSB TRD Sport 6-Speed
    KINGS | LR | OME Dakars | Bilstein | Wheeler's Superbumps | OCTaco brake lines | UWS | Level 8 MK6 | Cooper Discoverer ST Maxx | PrInSu
    I almost cried because I laughed so hard at this! +1

To Top
