Bicycle alarm install w/pics

Discussion in 'Audio & Video' started by Raylo, Jul 26, 2009.

  1. Jul 26, 2009 at 2:14 PM
    #1
    Raylo

    Raylo [OP] Well-Known Member

    Joined:
    Nov 19, 2008
    Member:
    #10878
    Messages:
    503
    Gender:
    Male
    MD, USA
    Vehicle:
    2009 4x4 Access Cab, TRD Sport
    When I installed my security/rs system a couple months ago I ran the second negative trigger wire, typically used for trunks, into the drivers door sill for future use for my bicycle alarm. I finally got around to completing this. It uses a tilt switch connected to a cable that runs into the bed via the center drainage hole. Then I can run a bungee cord or thin cord or wire from a bike, from the bike locking cable, or from anything else I want to protect to this new alarm cable where it comes out of the drainage hole. Any tugging on this sets off the alarm. The tilt switch also functions as a full veicle tilt switch for towing, jacking, etc. Not perfect security for leaving a bike for long periods in sketchy isolated areas since the lock cable goes to d-dings held on with bolts, but it expands the situations where I feel comfortable leaving my bike unattended.

    Here are some pics.

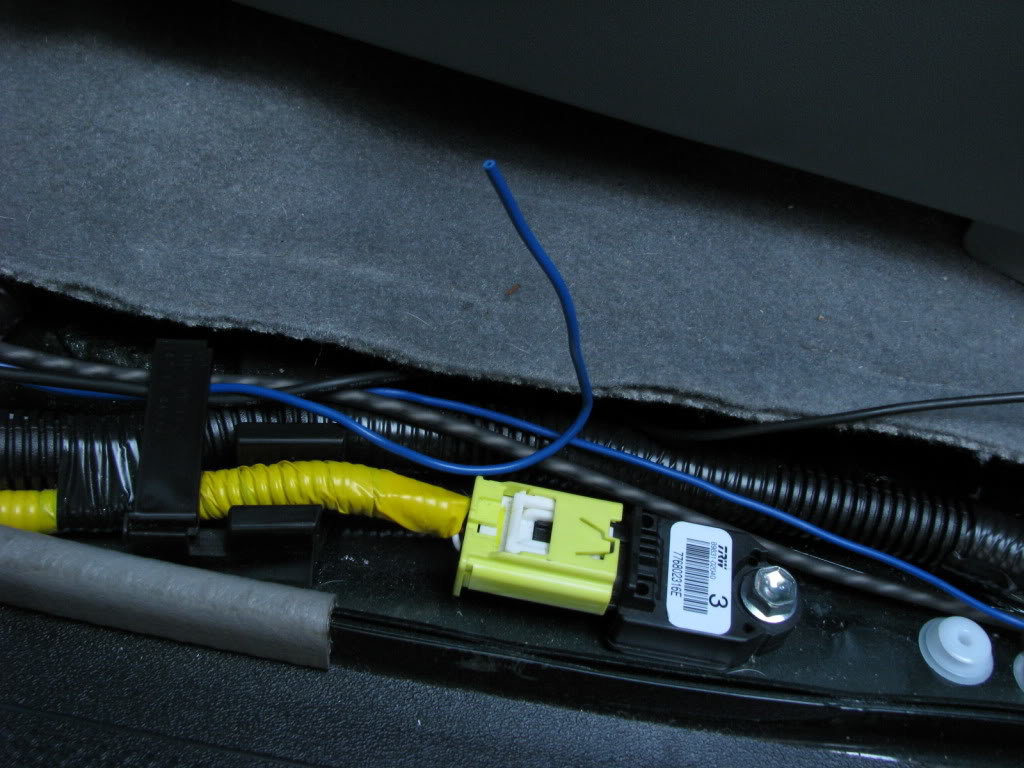

    First, the blue second trigger wire. I extended this wire and ran it through a rubber body plug under the seat. IMG_0432_d33f617791b79423491989b2e6ad67b3fd745e53.jpg

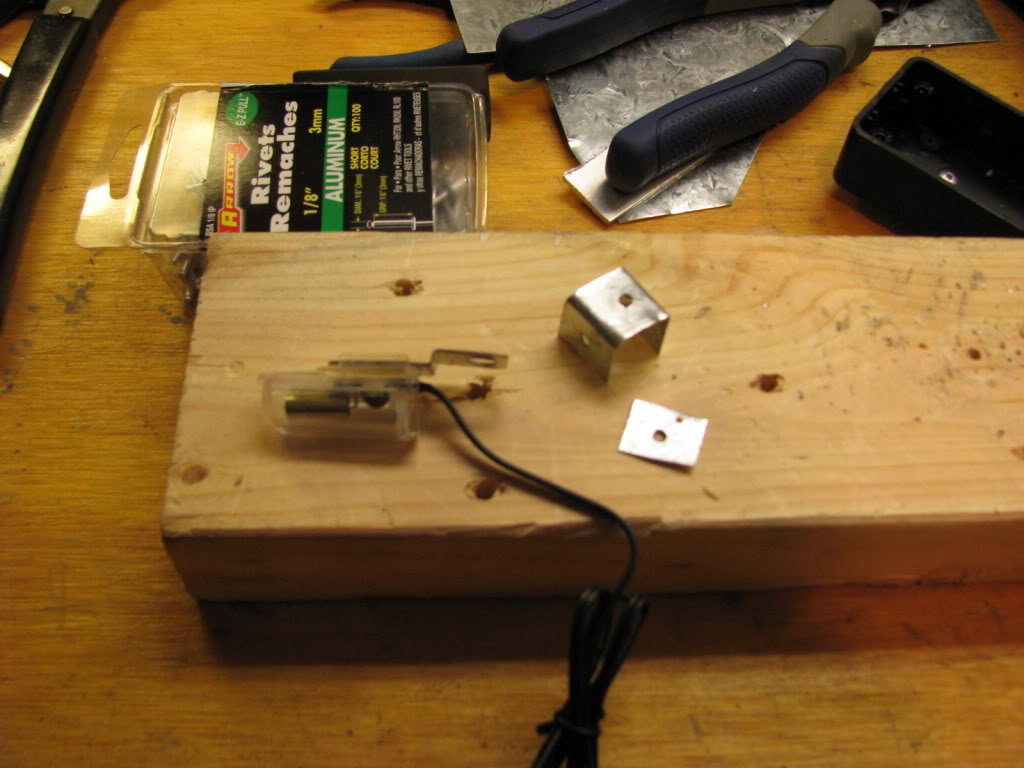

    DEI tilt switch.

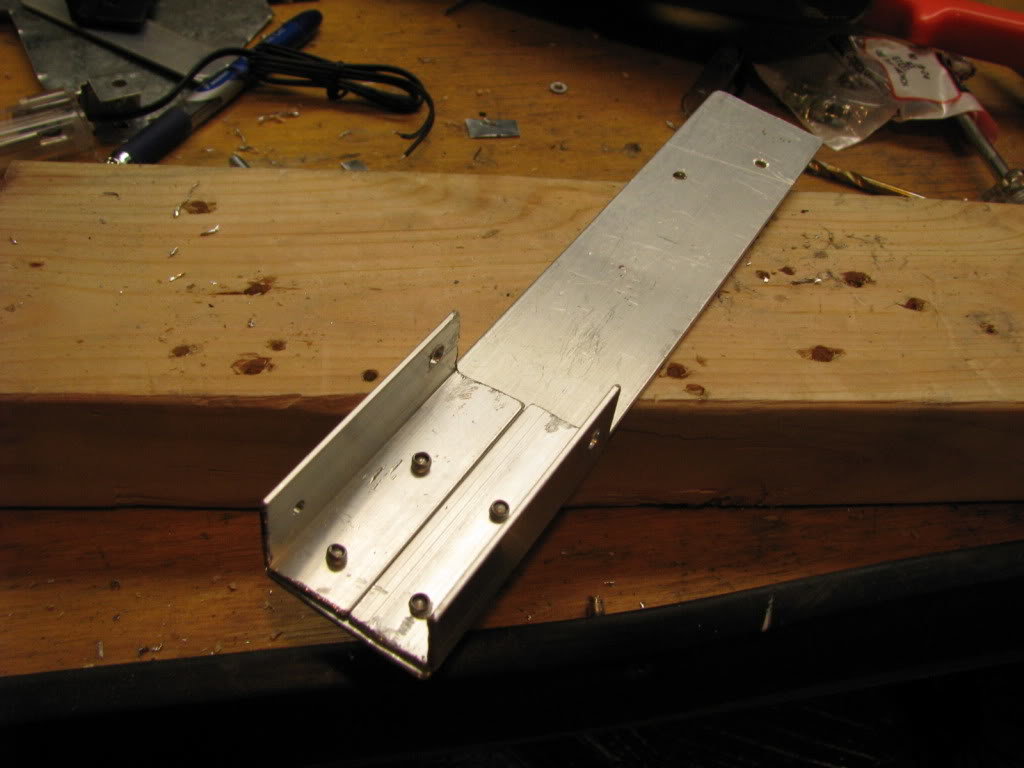

    Fabbing brackets.

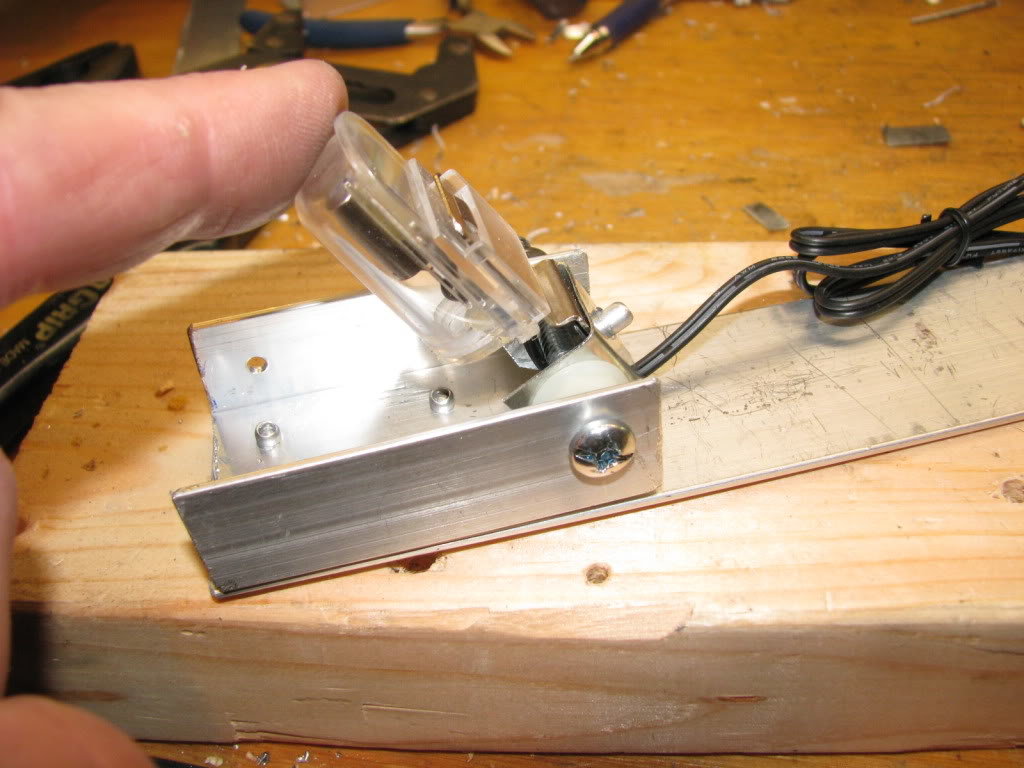

    How it moves.

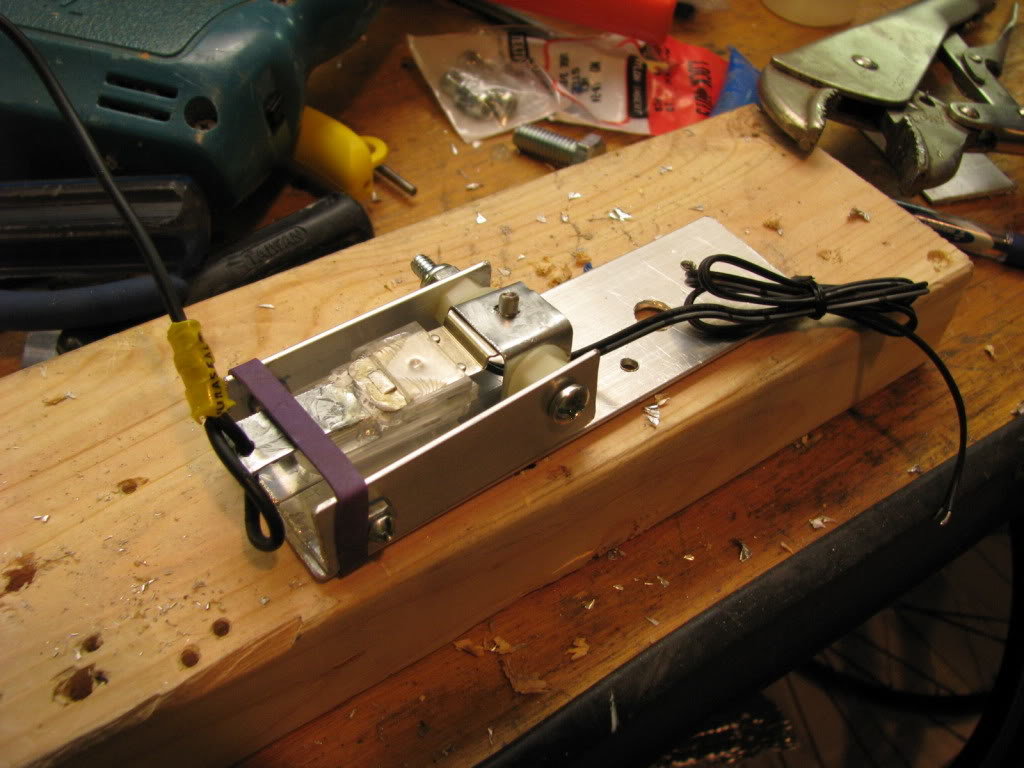

    Completed device. Rubber band is for helping gravity return the switch home after it is tripped. I ended up not using the single black wire to connect to the actuating cable. I just attached the actuating cable directly to the tilt switch... shown in a later picture.

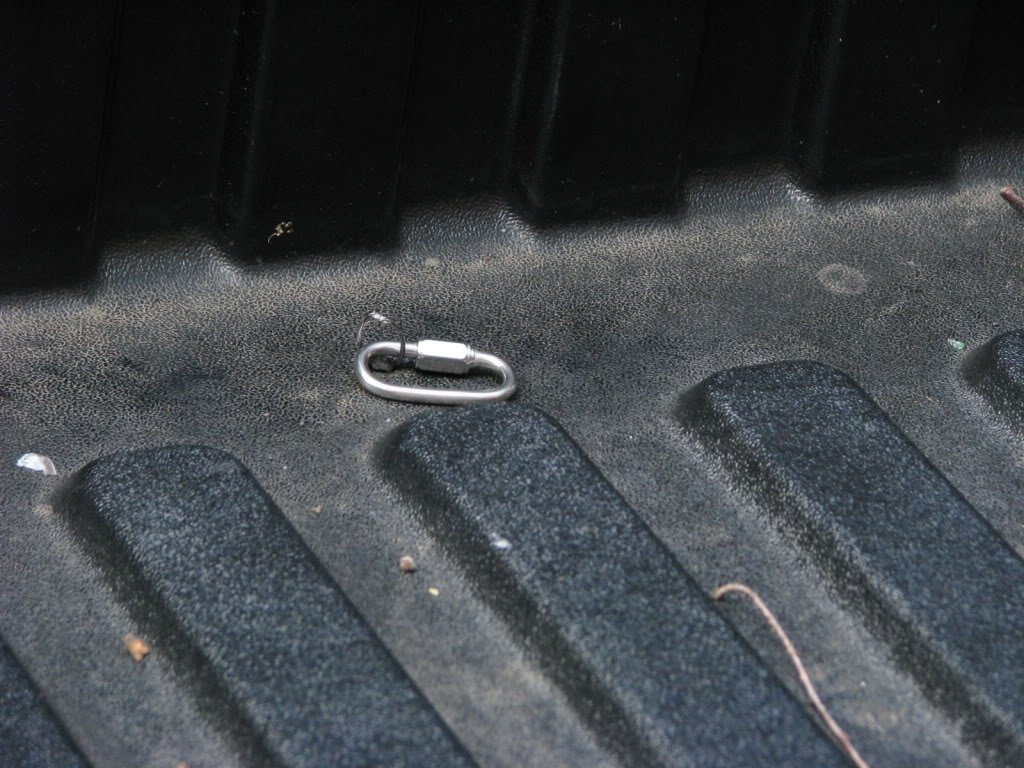

    Cable ending in bed.

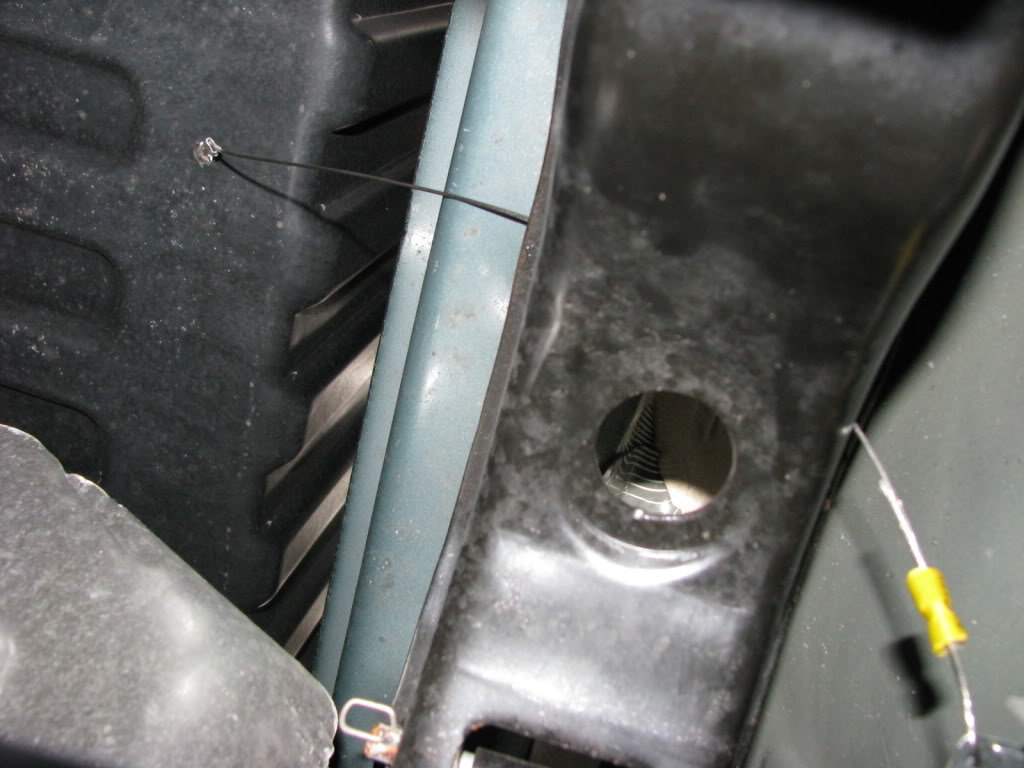

    Cable from underneath.

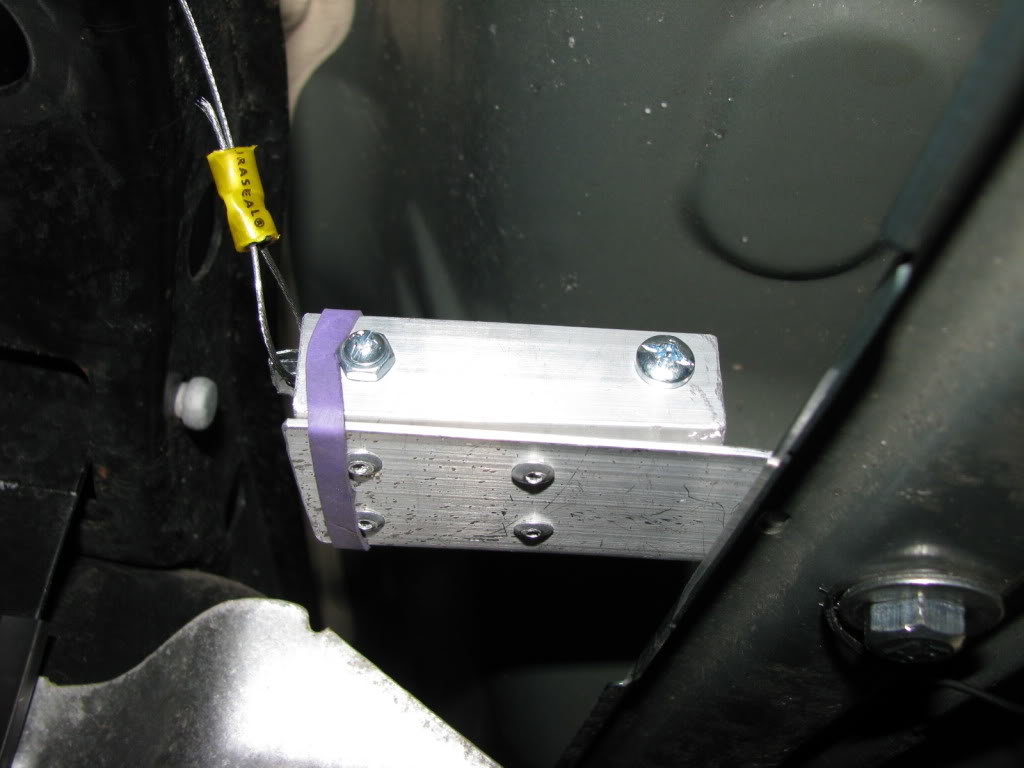

    Final install on body crossmember.
