Bicycle Trailer Build

Discussion in 'Garage / Workshop' started by YumaTRD, Jul 27, 2011.

  1. Jul 27, 2011 at 7:52 PM
    #1
    YumaTRD

    YumaTRD [OP] 22R...Legends never die

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    3,065
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    Solid Axle Yota
    Locked, Flat bed, 22R 5 speed, BFG KO's
    I've been wanting to build something unique and useful all summer before I head back to college but couldn't think of anything. Last Thursday my father won a Bud Light Lime bicycle from a giveaway he entered. He gave it to me since I will make good use of it during the semester. I knew that I had found my canvas to work on. With all the possibilities, I decided to build a trailer.

    The Bike
    [​IMG]

    I found the frame of a dismantled Miller Bluestar generator welder laying around in the back of the shop I work at. It seemed like a good size to be the base for the trailer. It had a battery mount that could be useful too. So I went into designing how it would all come together.

    [​IMG]

    I first needed wheels to know the final height of the trailer, so I bought a 5/8th rod and a set of wheels to weld on. It started to take shape.

    [​IMG]

    [​IMG]

    Now came the tough part of designing a hitch that would keep the trailer fairly level, be secure with the trailer loaded, didn't bind when turning, cost effective and that was easily and quickly removable. I searched google and found an air coupler idea that I based my hitch off of. It would be able to pivot, remove quickly, hold strong and be fairly compact while in storage.

    [​IMG]

    [​IMG]

    [​IMG]

    The bike hitch took me a while to create since I wanted it to be bolt on and also sturdy to hold/pull the weight of the trailer. Approximately 100+ pounds.
    This is what i came up with.

    [​IMG]

    The trailer needed plating so i added a floor and some walls. Just enough to hold stuff since this trailer will get heavy fast, especially while carrying the battery too.

    [​IMG]

    After that, it was off to paint. I decided to go with the color sketch of the bike.

    [​IMG]

    [​IMG]

    A couple finishing touches....

    [​IMG]

    the finished product
    [​IMG]

    The test drive was good. I already bought an 12v to 120v inverter so I can power some speakers with the battery. Now I just need to build some legs and handles so I could use it as a wheelbarrow too.

  2. Jul 29, 2011 at 5:28 PM
    #2
    YumaTRD

    YumaTRD [OP] 22R...Legends never die

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    3,065
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    Solid Axle Yota
    Locked, Flat bed, 22R 5 speed, BFG KO's
    [​IMG]

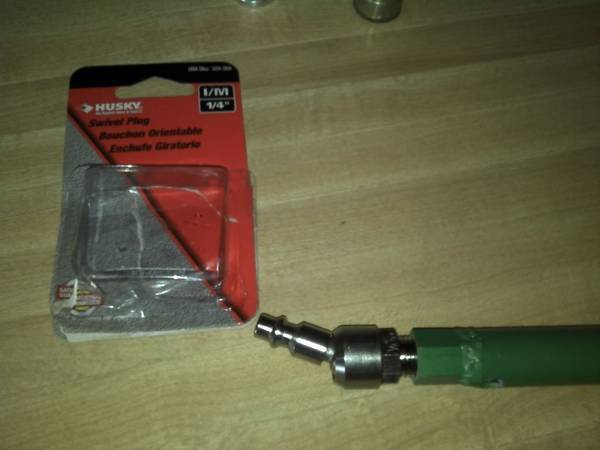

    added a swivel to the hitch rod to eliminate some of the binding I've been having with uneven inclines.
