Bilstein 5100 / Eibach Gallery

Discussion in '1st Gen. Tacomas (1995-2004)' started by tcBob, Sep 6, 2011.

  1. Sep 28, 2013 at 5:20 PM
    #1941
    Mainmoe02

    Mainmoe02 Well-Known Member

    Joined:
    Apr 28, 2013
    Member:
    #103047
    Messages:
    2,056
    Gender:
    Male
    First Name:
    Moe
    Austin, Texas
    Vehicle:
    01 Gold tacoma SR5 TRD
    3" lift EIBACH coils w/ 5100's front, OME/ Dakar leaf springs w/ toytec adjustable shackles at 1.5" and 5125's out back. 33x10.5x15 KM2's Relentless DIY steel bumper.
    To avoid confusion (like I had) the lowest setting is the bottom setting when the nut/ threads are at the top. Also make sure the coil seat is on correctly, it should cover the "C" clip completely. After researching and going through the install my self, I've seen people mix up the top setting for the lowest, and an upside down coil seat will gain you extra preload that could ruin your setup. If you have it installed make sure you know how it should be so you can check their work. Have fun with the new lift!

    Dcsleeper408 likes this.
  2. Sep 30, 2013 at 10:52 AM
    #1942
    Dietter700

    Dietter700 Well-Known Member

    Joined:
    Sep 13, 2013
    Member:
    #112407
    Messages:
    52
    Gender:
    Male
    First Name:
    Troy
    Montgomery County PA
    Vehicle:
    Taco TRD off road
    Are you running your shocks upside down?

  3. Sep 30, 2013 at 10:58 AM
    #1943
    SeattleCoug

    SeattleCoug Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    3,709
    Gender:
    Male
    First Name:
    Mark
    San Clemente, CA
    Vehicle:
    2015 TRD Off-Road
    ....it sure looks like he is :confused:

    You're gonna want it switched around :eek:

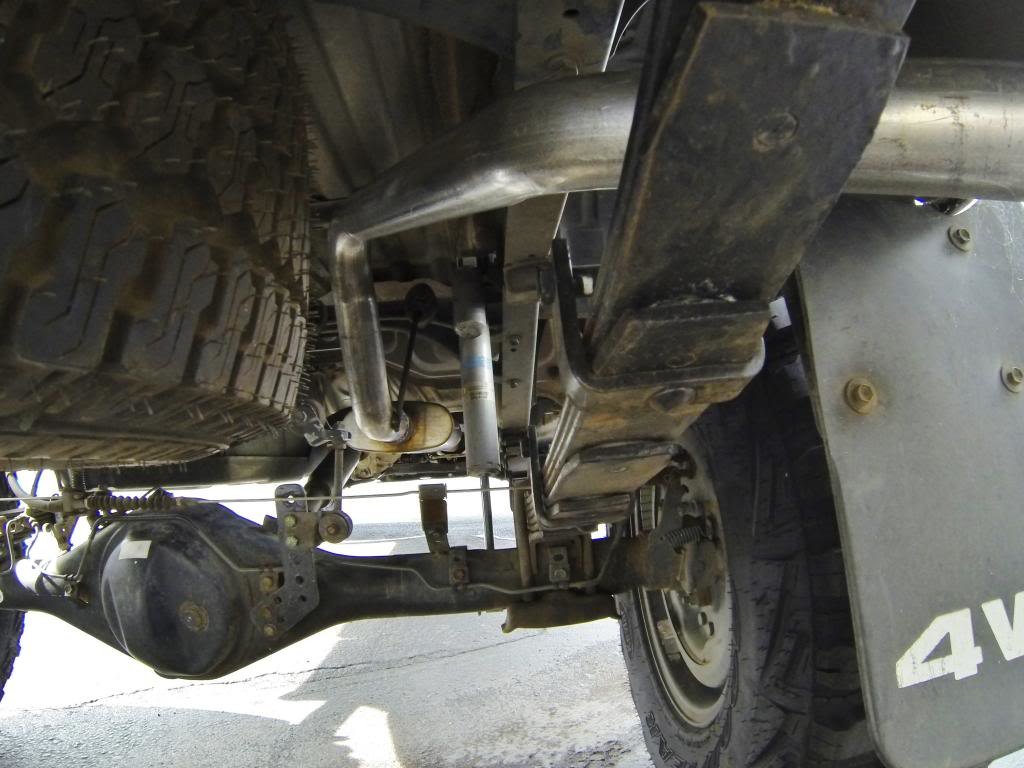

    Like so:

    [​IMG]

  4. Sep 30, 2013 at 11:36 AM
    #1944
    Gear Head

    Gear Head Well-Known Member

    Joined:
    Oct 27, 2012
    Member:
    #89921
    Messages:
    4,630
    Gender:
    Male
    First Name:
    Jacob
    Winston Salem, NC
    Vehicle:
    96 Tacoma
    fj60 front, fj80 rear, full hydro, 5.29's, welded, twin sticked 2.28/4.70 duals, 39.5's, inboarded 63's
    I don't think there is technically a right side up but I run mine shaft down so that mud, dirt, and water don't sit on the seal where the shaft goes in the shock body and cause damage. I also took my boots off so mud and dirt don't get trapped in there. I only took it offroad one time before I ditched the boots and there was quite a bit in them already.

    [​IMG]

  5. Sep 30, 2013 at 11:39 AM
    #1945
    Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,778
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    I run mine with the body up and out of the way too


    I kinda have to because of the piggyback resi, but still

    it's kinda a preferential thing, but usually the shock body is on top
    [​IMG]

    Last edited: Sep 30, 2013
  6. Sep 30, 2013 at 12:26 PM
    #1946
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    62,480
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    there isn't really a right or wrong..

    that said, i recommend bodys up and shafts down. Water can poo on the top of the bodys and wear out the seals faster. Plus if you hit anything..id rather it not be body and blow the shock.

  7. Sep 30, 2013 at 12:36 PM
    #1947
    Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,778
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    I'd rather water not poo on my shocks

    that would make me sad

  8. Sep 30, 2013 at 12:40 PM
    #1948
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    62,480
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    yea plus like you i have the resi that needs to be up.

    for those running the body down..ask yourself this..all the top brand shocks(fox, king, icon, ect) that have resi's..all mount body up..must be a good reason..

  9. Sep 30, 2013 at 12:47 PM
    #1949
    stikle

    stikle Well-Known Member

    Joined:
    Apr 26, 2013
    Member:
    #102916
    Messages:
    1,118
    Gender:
    Male
    First Name:
    Seth
    Milwaukie, Orygun
    Vehicle:
    1997 LX Xtracab 4x4 V6 3.4L
    Eh, see my Build Thread sig link. Too many mods to list.
    Interesting...pretty sure the paperwork that came from Wheeler's with mine said that the boot goes down...and that's how my tech put them on.

  10. Sep 30, 2013 at 1:15 PM
    #1950
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    62,480
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    Thats how they should be..IMO too.

  11. Sep 30, 2013 at 1:50 PM
    #1951
    Dietter700

    Dietter700 Well-Known Member

    Joined:
    Sep 13, 2013
    Member:
    #112407
    Messages:
    52
    Gender:
    Male
    First Name:
    Troy
    Montgomery County PA
    Vehicle:
    Taco TRD off road
    I think I'm gonna flip mine .hmmm ( currently boot up )

  12. Sep 30, 2013 at 8:37 PM
    #1952
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    14,971
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 Auto Trans With Lots of Mods King Extended Travel COs Camburg Uniball UCAs Alcan Custom 8-Leaf Rear Spring Packs Fox 2.0 Resi Rear Shocks FrankenFab Rear Shock Relocate All-Pro U-bolt Flip w/Timbren bumps Toytec 1" Extended Shackle 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor 15x8 D Window Steelies 33" BFG KM2s Limited Edition Relentless Front Bumper Smittybilt X2O 10K Winch Rugged Ridge 3" LED Pods w/Amber covers Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Magnaflow 18" Muffler Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    These Bilsteins are nitrogen charged. This means they can be run shock body up or down. Old style shocks, the "emulsion type" like Rancho 5000s, have to be run with the shock body down due to their design.

    Given that choice,I would rather have the hardened shaft down and the shock body up out of the way. The shock body is much more vulnerable to damage.

  13. Sep 30, 2013 at 8:53 PM
    #1953
    SeattleCoug

    SeattleCoug Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    3,709
    Gender:
    Male
    First Name:
    Mark
    San Clemente, CA
    Vehicle:
    2015 TRD Off-Road
    Soooo how I have it then :eek:

  14. Sep 30, 2013 at 9:00 PM
    #1954
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    14,971
    Gender:
    Male
    First Name:
    Mike
    Roaming the PNW
    Vehicle:
    The RedHead
    2002 XtraCab TRD 4x4 Auto Trans With Lots of Mods King Extended Travel COs Camburg Uniball UCAs Alcan Custom 8-Leaf Rear Spring Packs Fox 2.0 Resi Rear Shocks FrankenFab Rear Shock Relocate All-Pro U-bolt Flip w/Timbren bumps Toytec 1" Extended Shackle 4.88 Nitro Gears ARB Front Locker ARB Twin Compressor 15x8 D Window Steelies 33" BFG KM2s Limited Edition Relentless Front Bumper Smittybilt X2O 10K Winch Rugged Ridge 3" LED Pods w/Amber covers Mini D2S Projectors XB35 Ballasts + 4500K Bulbs Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Dual Northstar 24F AGM batteries BlueSea 7622 ML-ACR Battery controller Peak DBI Dual Battery Voltage Monitor Magnaflow 18" Muffler Braided Steel Brake Lines AFE Pro Dry S air filter ScanGauge II OBDII Scanner Kenwood TM-71A Dual Band Ham Radio Larson 70CM/2M Antenna Uniden 520xl CB radio 3' Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1" Diff Drop Carrier Bearing Drop
    Yeah, but its a pretty easy swap if you think its worth it. If it was mine, I would flip them and remove the boots.

  15. Sep 30, 2013 at 9:00 PM
    #1955
    Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,778
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    at least the rears are supah ez to do

  16. Sep 30, 2013 at 9:02 PM
    #1956
    Mr. Biscuits

    Mr. Biscuits gentleman, scholar, part-time delinquent

    Joined:
    May 6, 2012
    Member:
    #78316
    Messages:
    1,584
    Gender:
    Male
    First Name:
    Brennen J
    Bakersfield
    Vehicle:
    2000 PreRunner TRD V6
    -Bilstein 5100/ Eibach 3" lift -Custom 2" lift rear leaf pack -Crystal clear headlight housings -updated (01-04) rear tail lights -custom front tube bumper -custom rear tube bumper -Deckplate mod -Aero Turbine 2525 exhaust -Kenwood Headunit -Pioneer Speakers -black door handles -Debadged, rebadged black -Ultraguage
    I think he's saying that it's okay to mount then like yours, but that the recommended way is boot down, body up (that's the way we like to....mount our shocks) :D

  17. Sep 30, 2013 at 9:03 PM
    #1957
    SeattleCoug

    SeattleCoug Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    3,709
    Gender:
    Male
    First Name:
    Mark
    San Clemente, CA
    Vehicle:
    2015 TRD Off-Road
    I looked at how my Dad has his set up, boot side up. So that's what I did. I figured it would be better to have those up, or higher away from the ground. Still recommend removing the boot? Maybe just remove the zip ties and put newer (tighter) ones on there?

  18. Sep 30, 2013 at 9:04 PM
    #1958
    SeattleCoug

    SeattleCoug Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    3,709
    Gender:
    Male
    First Name:
    Mark
    San Clemente, CA
    Vehicle:
    2015 TRD Off-Road
    Ah gotcha. Hmm well maybe after hunting this weekend I'll gather some energy and flip em. Like Kona said, the rears are supa ez to do

  19. Sep 30, 2013 at 9:13 PM
    #1959
    Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,778
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    just that dirt/water can get trapped in the boot...so instead of them protecting the shaft they can end up doing damage.

    but if you clean and check them regularly, they should be fine.

    usually the wiper seals are enough to keep the shafts happy

  20. Sep 30, 2013 at 9:20 PM
    #1960
    SeattleCoug

    SeattleCoug Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    3,709
    Gender:
    Male
    First Name:
    Mark
    San Clemente, CA
    Vehicle:
    2015 TRD Off-Road
    Ah dirt/water would be no bueno when it comes to the shock compressing/expanding. I'll just give Downsouth a ring tomorrow and see what they would usually recommend
