BLACKnBLUE's Rear Bumper Build

Discussion in '2nd Gen. Builds' started by BLACKnBLUE, Apr 9, 2011.

  1. Apr 9, 2011 at 6:12 PM
    #1
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    INTRODUCTION

    While there are several things that I have already done to my 2007 Indigo Ink, Double-Cab, Short-Bed Taco, this is the first "big" project I have undertaken.

    So far, I've installed spacers (3" front and 1 3/4" rear), blacked out the wheels (which were stock), blacked out the headlights, installed an aftermarket roof rack, and installed an ARB front bumper.

    Sometime ago I backed into another car. And since have been waiting for the "right" time to fix the damage (mainly on the rear left corner--bumper and quarter panel). I had looked at several of the aftermarket bumpers that are available, and didn't really find any one that had all the characteristics that I wanted in a rear bumper. So when my buddy since high school suggested that we build our own, I was all for it!

    What will follow is an image and description (in chronological order) accounting of our progress thus far (we're still working on it...). Feel free to ask for clarification or additional photos.

    Enjoy!

  2. Apr 9, 2011 at 6:18 PM
    #2
    BulletToothTony

    BulletToothTony Gold Member

    Joined:
    Feb 20, 2008
    Member:
    #4833
    Messages:
    11,384
    First Name:
    You can call me Susan if it makes you happy.
  3. Apr 9, 2011 at 6:23 PM
    #3
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ

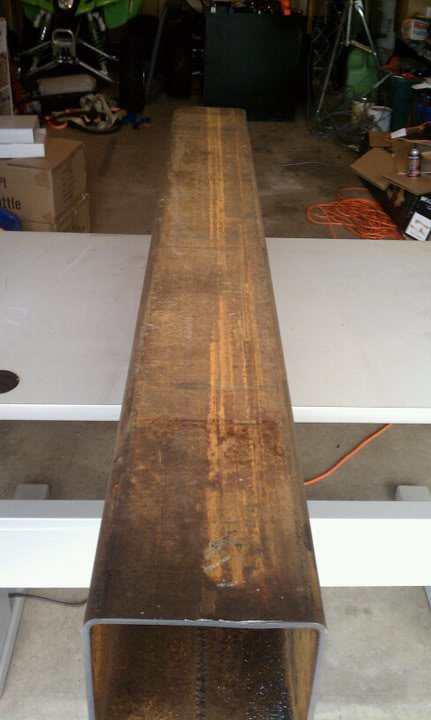

    Through some well-placed connections, we were able to obtain a healthy amount of (mostly) 1/4" steel. We also obtain a piece of 8"x5' 3/8" steel. Most of this was in the form of one long piece of steel square tubing (with beveled edges). Here, it's getting trimmed down to approximately the length we needed.

    [​IMG]

    Below, you can see that this metal had been exposed to the elements for a little while... nothing that some cleaning won't fix! :D

    [​IMG]

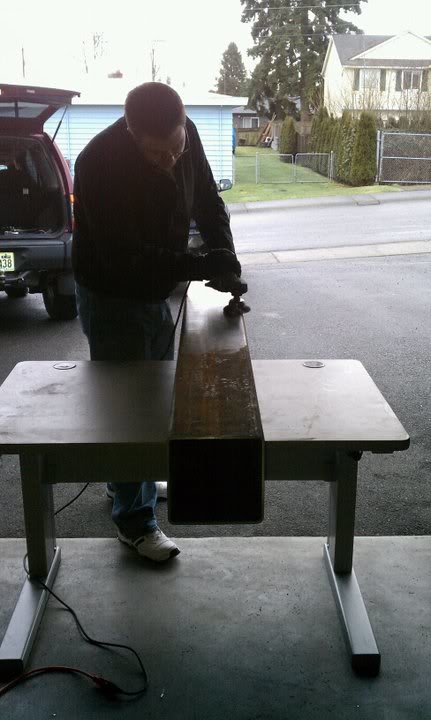

    Lots of cleaning...

    [​IMG]

  4. Apr 9, 2011 at 6:32 PM
    #4
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ

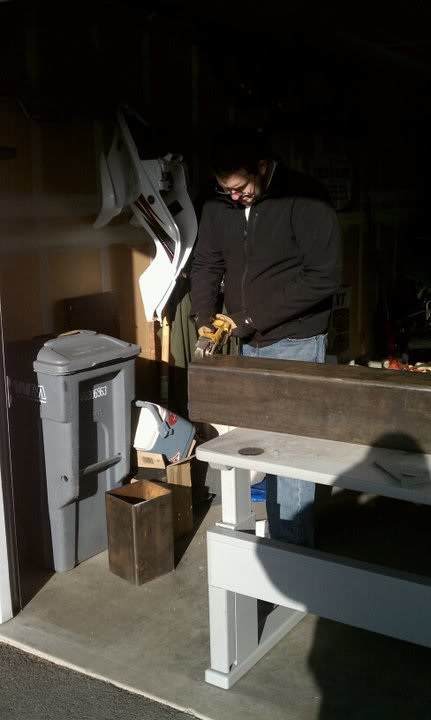

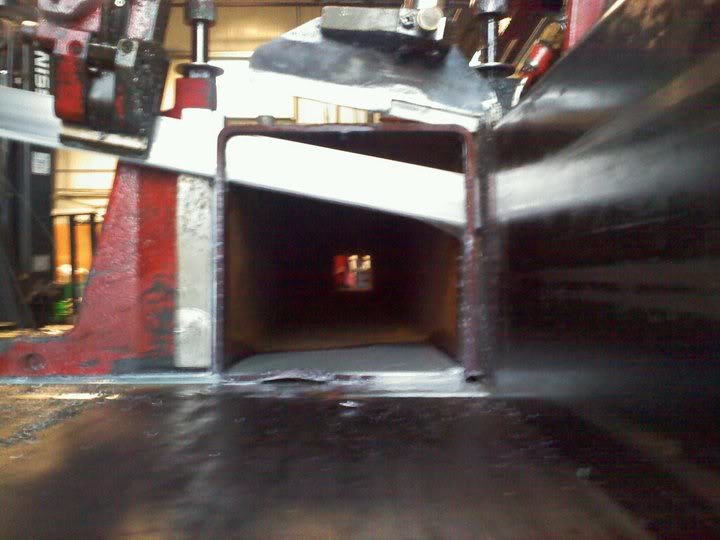

    Once we knew the exact length of the main piece (which is essentially the distance of the tailgate), we could cut the steel tubing to length.

    [​IMG]

    And to prevent me from cutting my hand (again), we decided to polish the cut edges...

    [​IMG]

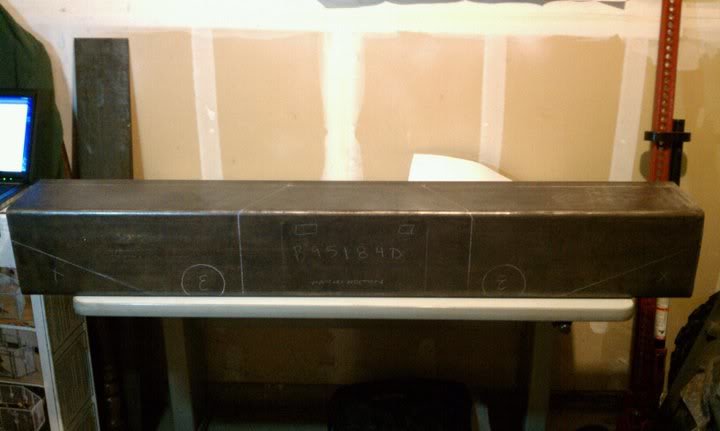

    Having the tubing made it really easy to draw on our initial bumper shape, seen below.

    [​IMG]

    Later, I decided to drop the exhaust cut-outs for a future hidden exhaust system. This increased our ability to angle in the sides of the bumper. In hindsight, I'm really glad I made this decision.

  5. Apr 9, 2011 at 6:37 PM
    #5
    kmok

    kmok Plastidipped ma Hootus!

    Joined:
    Jul 18, 2008
    Member:
    #8007
    Messages:
    2,361
    Gender:
    Male
    First Name:
    Kyle
    Columbus, Ohio
    Vehicle:
    4x4 Tacoma, SR5, TRD Offroad, 5 speed, V6
    Toytec Coilovers, Old Man Emu Leaf Pack, 5100s, Light Bar with Hella 700ffs, Chopped Exhaust, Herculined Rocker Panels, Trail Gear rear bumper, tinted windows
    That is a massive piece of steel lol. Can't wait to see what you guys turn it into.

  6. Apr 9, 2011 at 6:48 PM
    #6
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ

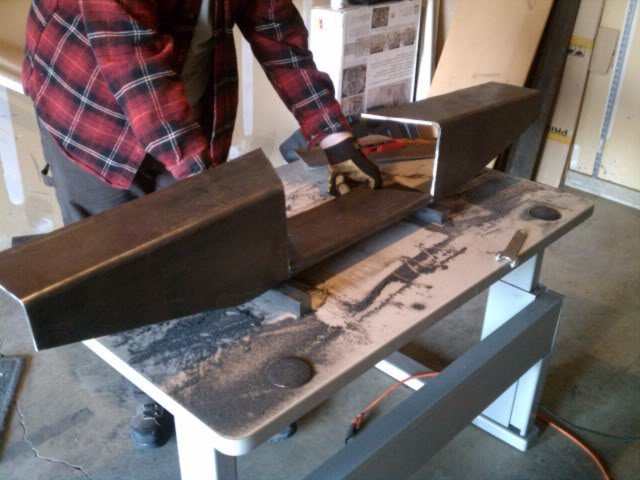

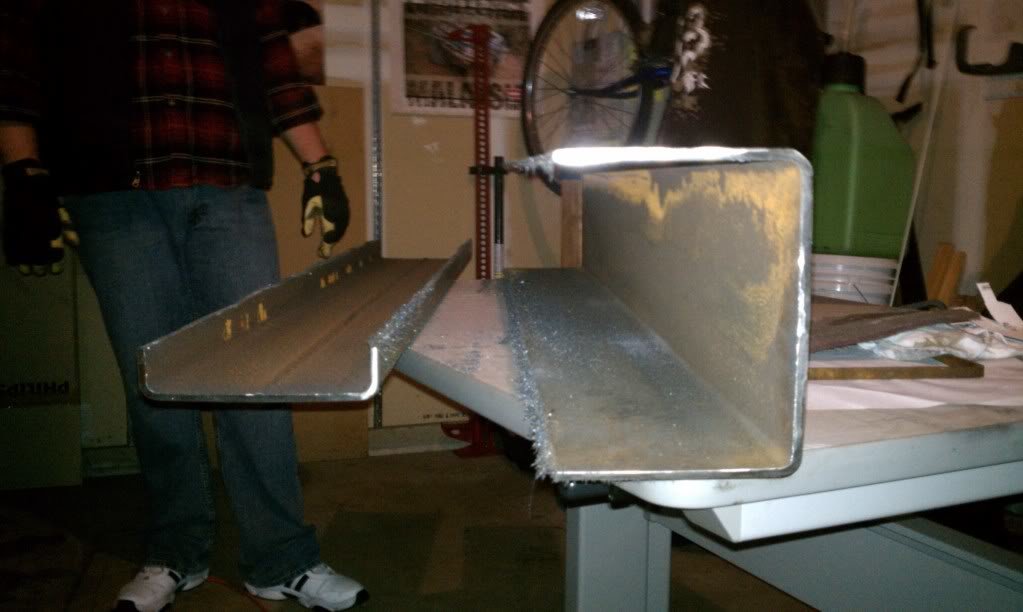

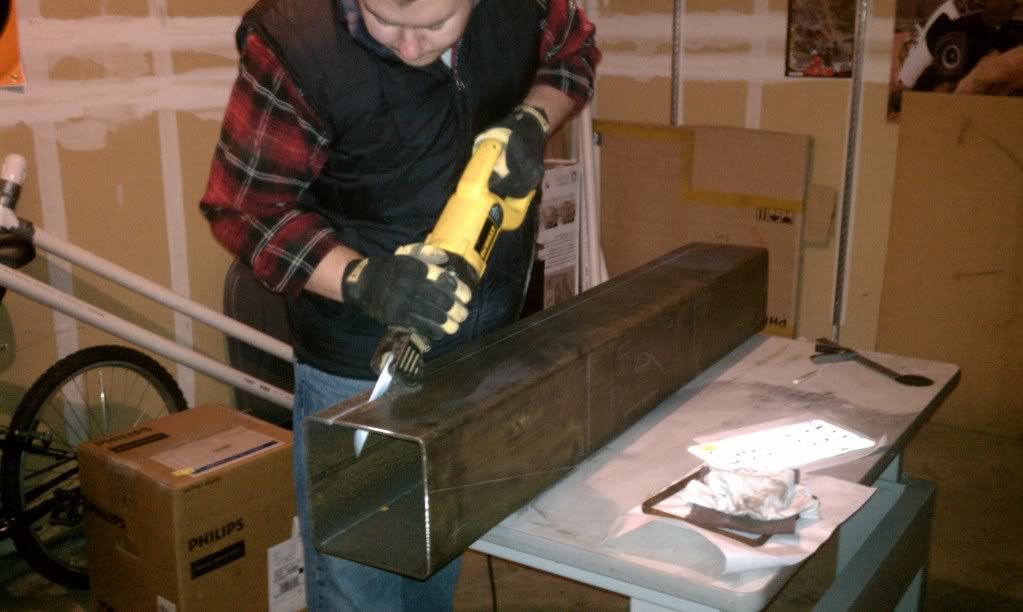

    To save on weight and to increase the amount of usable material, we opted to cut-off the back of the square tube/bumper. This material will be needed for the license plate cut-out or in-step (whatever you want to call it...) and for the side pieces. (We plan on wrapping the bumper around all the way to the wheel well)

    [​IMG]

    [​IMG]
    (Just slightly magnetic...)

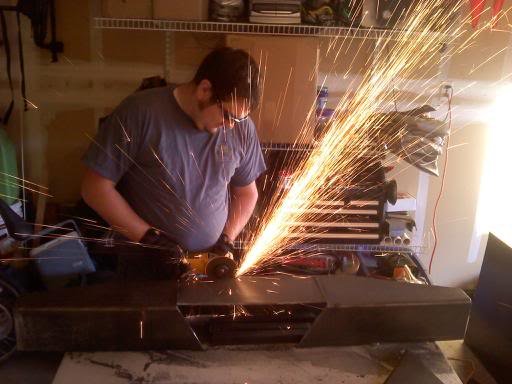

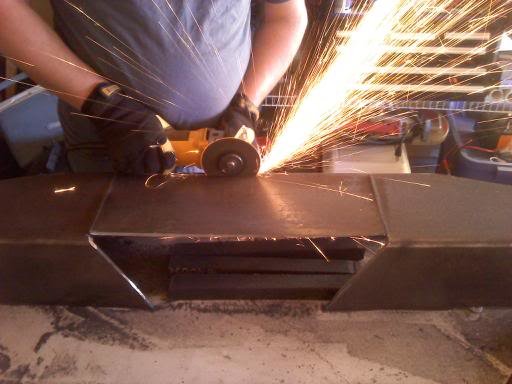

    Next step? Cut-out the bottom of the bumper for where it will be angling up and where the license plate will be going (Just bought new license plate lights from ebay today!)

    [​IMG]
    (^^I thought this was a pretty cool picture! :cool:)

    [​IMG]

    [​IMG]

    Needless to say, we've gone through several cutting-wheels. Since this time, I've used both a cutting torch and cutting-wheels. I think I prefer the cutting-wheels. They seems to be more precise and less messy.

  7. Apr 9, 2011 at 6:55 PM
    #7
    davestaco

    davestaco TW's number one gear whore

    Joined:
    Aug 23, 2010
    Member:
    #42134
    Messages:
    2,748
    Gender:
    Male
    First Name:
    David
    Schofield Barracks
    Vehicle:
    00' tacoma xtra cab trd v6 4x4
    nice. cant wait to see it finished

  8. Apr 9, 2011 at 6:57 PM
    #8
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    This was one of our brighter ideas (below). Since then, we've forgotten who initially came up with the idea, but in any case... We cut out the space for the license plate, and dropped the top piece straight down. The combination of the two beveled edges creates a nice curve. There will a picture of this later, but here, you can see me holding what was the "top" of the steel tube on the bottom of the cut-out space. It's gonna look sweet! :)


    [​IMG]

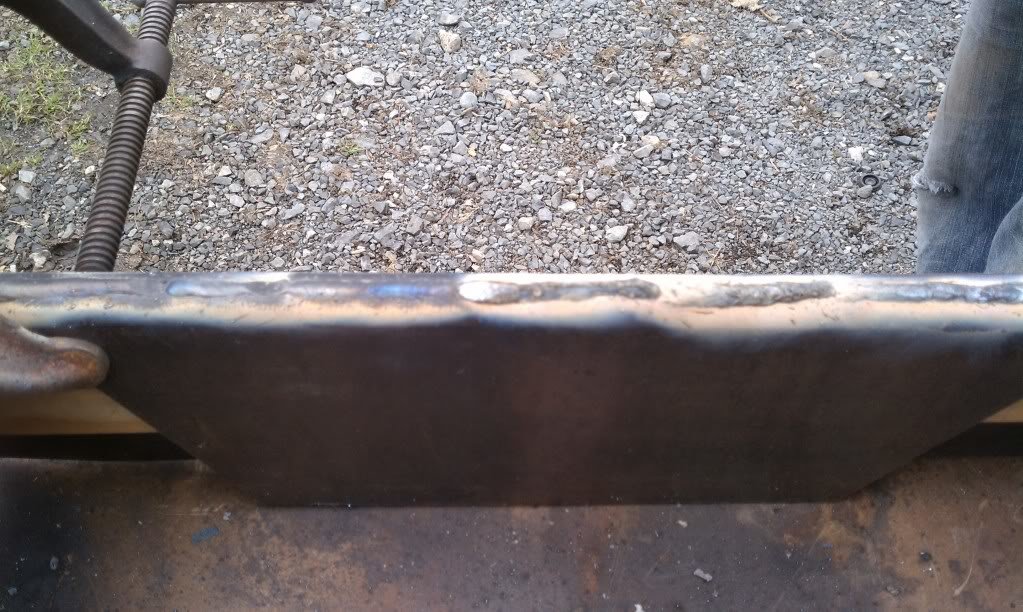

    You may be noticing at this point that the bumper is warped. This was something that I didn't consider or know about working with metal. Either the metal's natural "grain" or the heat generated from cutting (or both), caused the metal to warp, quite substantially. We'll be taking some measures to correct this later down the road...

  9. Apr 9, 2011 at 7:01 PM
    #9
    VooDoo

    VooDoo More Cowbell!

    Joined:
    Dec 5, 2009
    Member:
    #27044
    Messages:
    2,348
    Gender:
    Male
    First Name:
    Carter Ivey
    Baton Rouge, LA/ Starkville, MS
    Vehicle:
    '06 DC LB PreRunner
    pass me the popcorn!!

  10. Apr 9, 2011 at 7:38 PM
    #10
    DonnoD

    DonnoD Well-Known Member

    Joined:
    Jun 6, 2010
    Member:
    #38459
    Messages:
    962
    Gender:
    Male
    First Name:
    don
    las vegas
    Vehicle:
    07 dc 4x4 v6
    :thumbsup: nothing better than making your own bumper. good job man

  11. Apr 12, 2011 at 7:07 PM
    #11
    TacoGK

    TacoGK Making changes is always fun

    Joined:
    Aug 1, 2010
    Member:
    #41079
    Messages:
    217
    Gender:
    Male
    First Name:
    Jack
    Florida
    Vehicle:
    2010 DC trd offroad sr5 debadged
    20% tint JLAudio amp and 12" sub, custom fiberglass tool box, Color matched Satoshi Grille, Anytime Fog light mod, Anytime rearview camera, Leveling kit, Rear spring TSB, Moto Metal MO957 Black, 285/70/17 BFG AT KO, DTRL Stealth mod, Anytime locker mod, Constant power mod.
    Man i think this is going to be a great looking bumper. I have built a lot of bumpers in the last 20 yrs and have had this happen a few times. Dont worry about the bowing, you can get it to straighten back out. 1 way to minimize the bowing is before you cut out a big section like that is to weld a stiffiner brace across the area you are cutting out. once you weld your pieces back in you can take a torch and wash the weld off the stiffiner brace and grind to smooth everything back out. Keep posting the pics of the progress. BTW I may be getting some ideas here.....:).

  12. Apr 12, 2011 at 7:58 PM
    #12
    08FireRescueTaco

    08FireRescueTaco FF4RC5

    Joined:
    Sep 26, 2010
    Member:
    #43876
    Messages:
    409
    Gender:
    Male
    First Name:
    Hunter
    Roanoke
    Vehicle:
    08 Tacoma Manual 6spd
    6spd Shift Knob, K&N drop in, Fog light mod, rescue Lights. Aftermarket headlights 6000k hid. 3000k hid fog lights, 2011 grill, de baged tail gate blackened side decals.
    subscribed!! good job

  13. Apr 12, 2011 at 8:06 PM
    #13
    Max-4_Yota

    Max-4_Yota The Welfare Cadilac

    Joined:
    Dec 10, 2009
    Member:
    #27357
    Messages:
    4,274
    Gender:
    Male
    First Name:
    Michael
    South Carolina
    Vehicle:
    04 Tacoma 4x4, V6, 5spd
    Squattin'
  14. Apr 13, 2011 at 4:48 AM
    #14
    Chris(NJ)

    Chris(NJ) Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    2,797
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Debadged, GC Mesh Grill, Yellow Fogs, Color Matched Headlights w/ Retros, Diff Breather Mod; mickey thompson classic IIs, 5100s, toytec springs, Dakar Leaf pack, ss brake lines, Lots more...just check the build page.
    That looks awesome so far. Keep it up! Predrilling for any reverse lights?

  15. Apr 13, 2011 at 4:51 AM
    #15
    tacomarotto

    tacomarotto "Change is inevitable, but growth is optional."

    Joined:
    Jan 27, 2010
    Member:
    #30187
    Messages:
    3,670
    Gender:
    Male
    First Name:
    Jon
    New Orleans, LA
    Vehicle:
    FJ Cruiser 07'
    Bilstein 5100 (2.5") aFe short ram intake KC light bar PIAA halogen Lights Hella Lights on top Yakima Load Warrior
  16. Apr 13, 2011 at 5:22 AM
    #16
    comiesutra

    comiesutra Well-Known Member

    Joined:
    Jul 8, 2009
    Member:
    #19421
    Messages:
    750
    Gender:
    Male
    First Name:
    Matt
    Greenwood, IN
    Vehicle:
    '10 4X4 Silver AC SR5 Manual
    MonsterKnobs.com shift knob, Sony MEX-BT3900u
  17. Apr 13, 2011 at 3:10 PM
    #17
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    Eventually, that's the plan. Probably located in each corner so they actually shine where the side mirrors look... go figure. But anyway, yeah. But I haven't figured out exactly what lights to use yet. I just want to be able to mount them flush, so it looks manufactured that way--know what I mean?

    I've been looking at trailer lights and those rock-crawling LEDs that are super bright... :)

  18. Apr 13, 2011 at 3:36 PM
    #18
    BLACKnBLUE

    BLACKnBLUE [OP] Well-Known Member

    Joined:
    Sep 9, 2010
    Member:
    #42972
    Messages:
    204
    Gender:
    Male
    First Name:
    Iain
    Ellensburg, WA (Kittitas County)
    Vehicle:
    07 TRD SR5 with ARB Front Bumper
    ARB front winch bar, 3" lift, blacked out badges, blacked out headlights, Custom Steel Rear Bumper Mod, and Leer 100XQ
    A little clarification may be in order. For those of you following along, much more progress has been made thus far, but I am adding additional photos and corresponding info in small packets/groups. Currently, the entire back section in done minus lighting/mounts/fixtures. What remains to be done are the side pieces.

    The below picture shows attaching that "license plate bottom" piece that I was trying to describe. I'll let the pictures show what I can't describe with words... :D

    [​IMG]

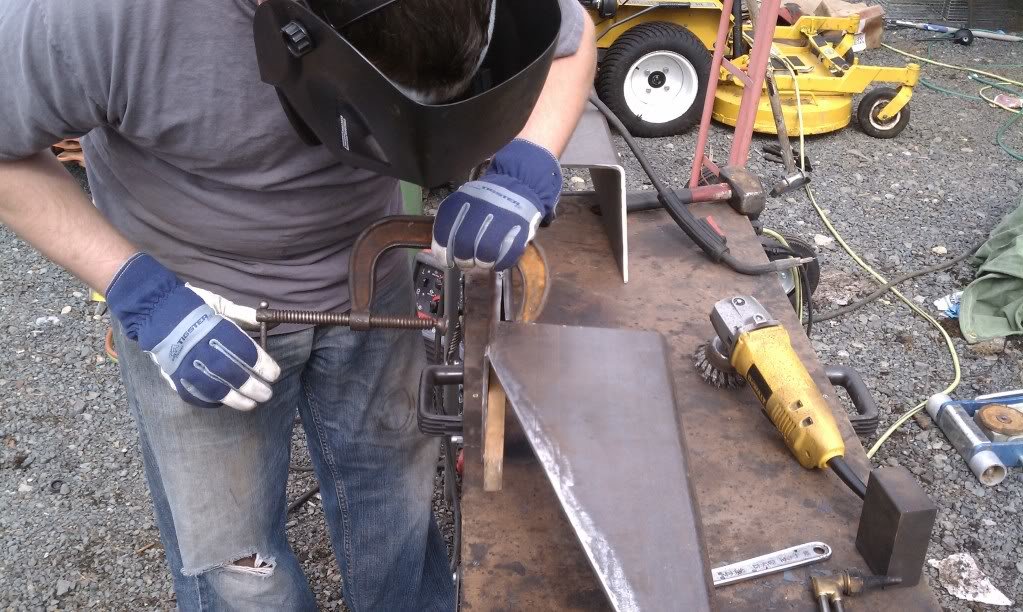

    ^ Here, you can see Chris using a C-Clamp bring that 'bottom piece' into alignment for tacking.
    [​IMG]

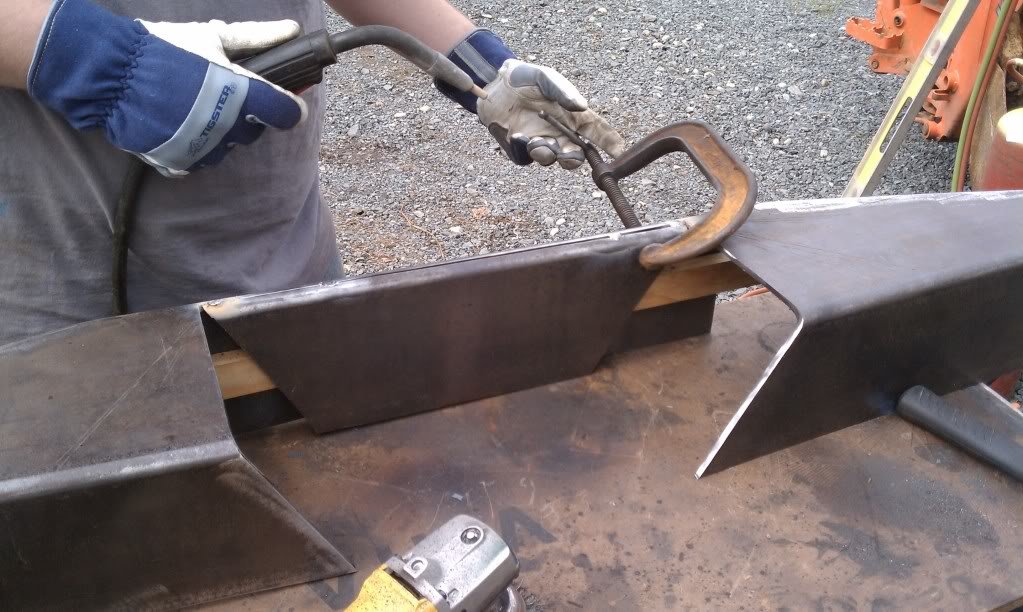

    ^Tacking the other side...
    [​IMG]

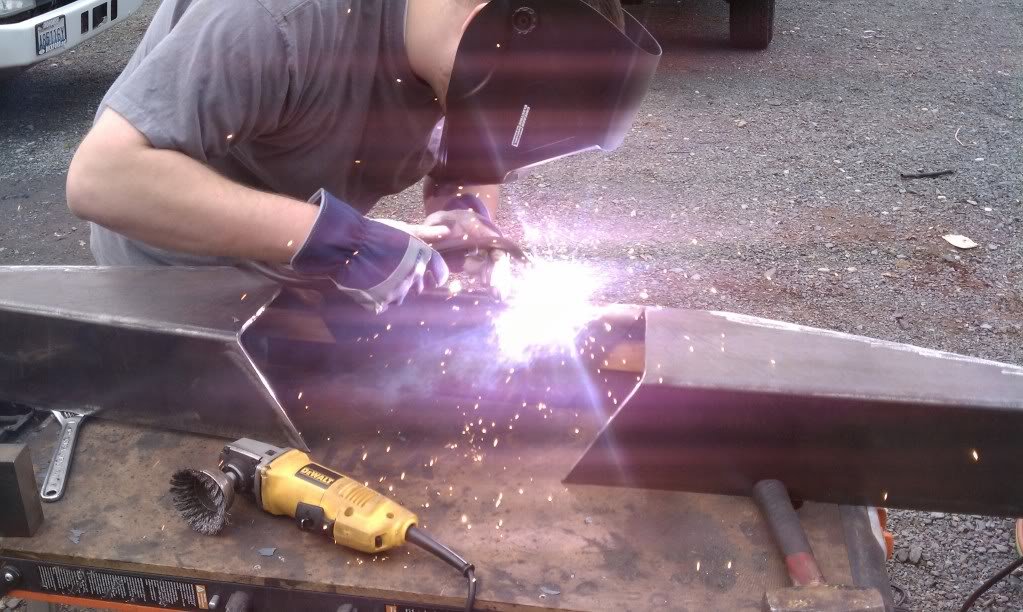

    ^And finally... welding it on.
    [​IMG]
    ^Now welded in place!
    [​IMG]

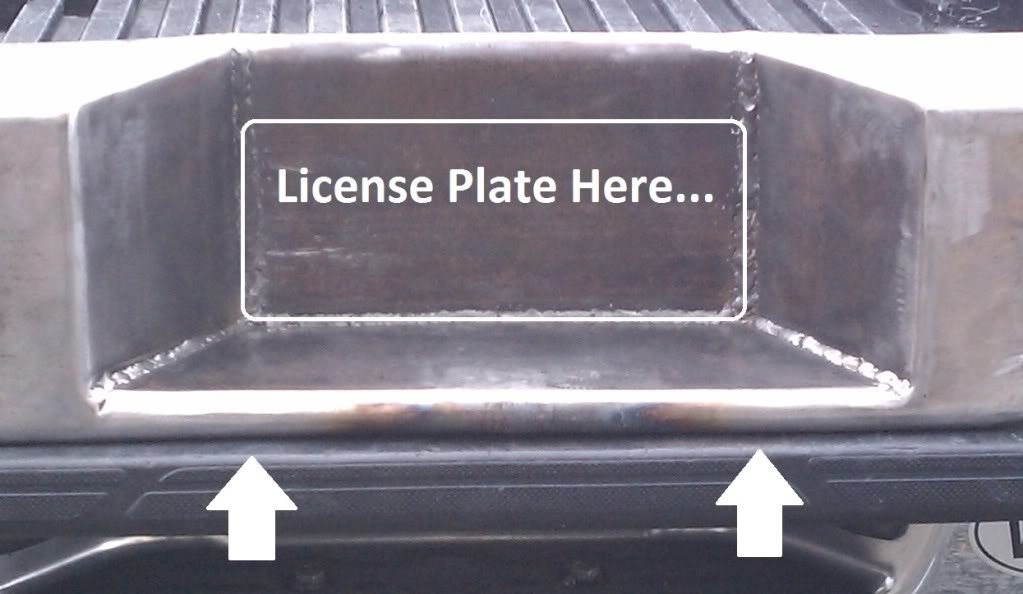

    ^Here you can see the attached lower section. This picture also shows the side pieces attached and after some grinding has been done to clean up the lines.

  19. Apr 13, 2011 at 5:02 PM
    #19
    TacoGK

    TacoGK Making changes is always fun

    Joined:
    Aug 1, 2010
    Member:
    #41079
    Messages:
    217
    Gender:
    Male
    First Name:
    Jack
    Florida
    Vehicle:
    2010 DC trd offroad sr5 debadged
    20% tint JLAudio amp and 12" sub, custom fiberglass tool box, Color matched Satoshi Grille, Anytime Fog light mod, Anytime rearview camera, Leveling kit, Rear spring TSB, Moto Metal MO957 Black, 285/70/17 BFG AT KO, DTRL Stealth mod, Anytime locker mod, Constant power mod.
    Coming along nicely......cant wait to see a finished product on the truck :)

  20. Apr 16, 2011 at 8:15 AM
    #20
    beckleyota

    beckleyota Well-Known Member

    Joined:
    Nov 26, 2009
    Member:
    #26546
    Messages:
    159
    Gender:
    Male
    wv
    Vehicle:
    o7 taco
    vent visors,tint,kenwood headunit, trex eyelids,kenwood componants,5100's,1 aal,cabellas seatcovers,painted stereo suround
    nice build
