Blinkers only working when Headlights are ON + Hyperflashing. 2008 Tacoma

Installed some replacement headlights after my originals were past repair. The new ones added DRL and LED lighting, and required additional wiring. I decided to clean up my wiring job since it was a bit messy, however after reinstalling the lights, the blinkers only work when parking lights or low beam but are blinking as if the bulb is dead.

I even tried bypassing the DRL setup and just direct connecting them factory harass to the new lights.

Right now:

• Low and high beams work


• Parking lights work


• DRL show amber instead of white


• Blinkers only work when lows/high are on


• Emergency flashers flash normal speed (but only when Parking/low are on)


• Blinkers don't blink when locking/unlocking except when lights are on.


• Blinker hyper flashing


All fuses look good in the engine bay and under the dash. My Shifter lights even work now (they were out for a while). Inside lights work, and dim when low's are activated. Tail lights still work fine.

Right now it's "derivable" but again I have to have my parking or lows on, and my blinkers blink like a the bulbs are dead.

Where should I be looking?

2008 Toyota Tacoma, 100281 Miles, V6, 4x4, Automatic, Access cab



What brand and model of headlights?



AlphaRex 05-11 Toyota Tacoma PRO-Series Halogen Projector Headlights Black

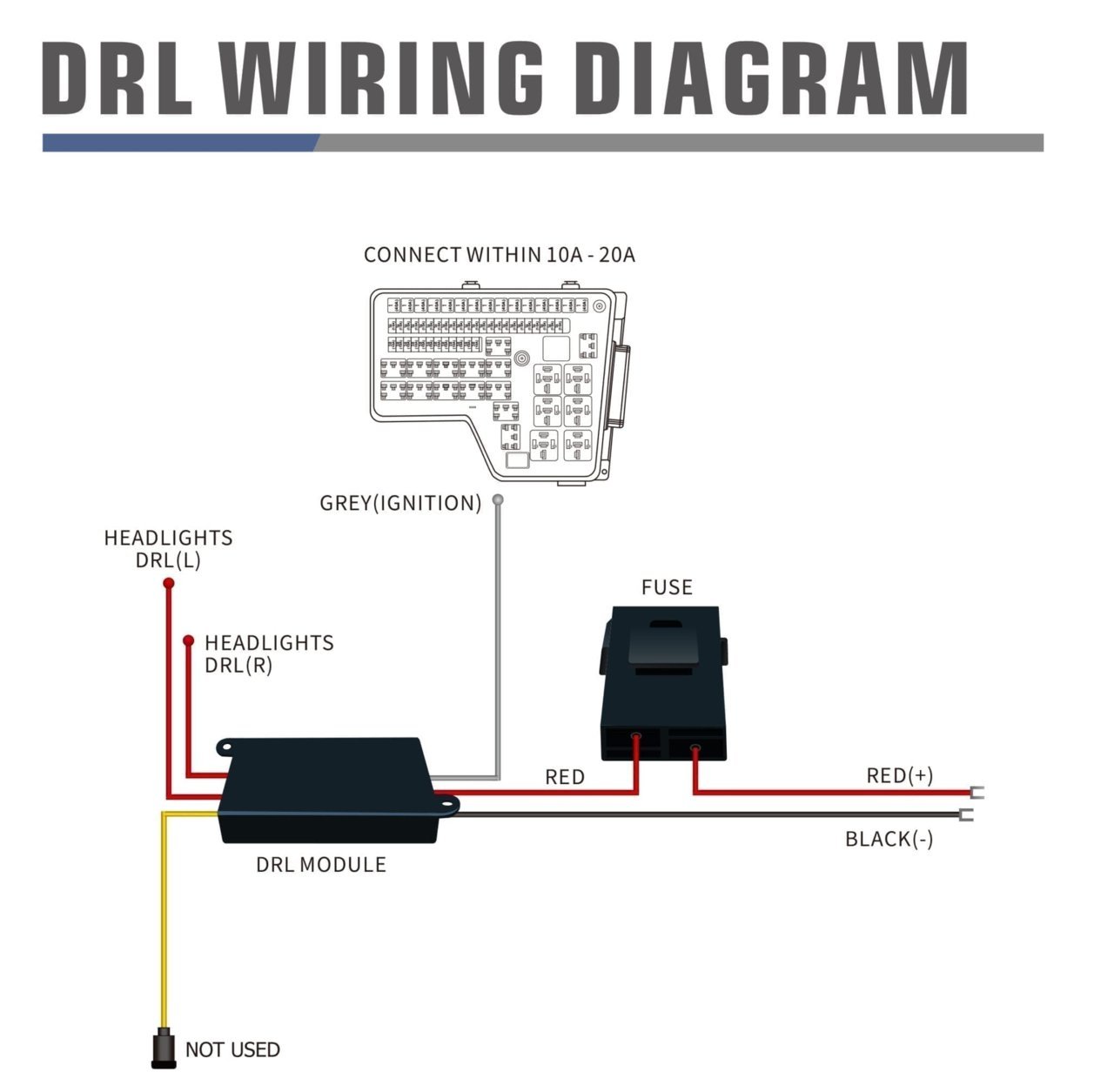

I may have discovered the issue - it looks like the DRL's get their power from a 12v that passes through the DRL module pictured below.

It's a fuse tap, power and ground that go to a 15w fuse. From there it goes to the module, which then leads to the power for the DRL.

I confirmed that there is power going before the module, but no power after the module. I assume that something shorted inside the box.

I'm getting a new box and will update.



Good luck! Hopefully that will fix your problem. AlphaRex is not noted for their quality.
