Blue Sea 5026 fuse block Phase 1 mounting

Discussion in 'Product Reviews' started by longbow, Feb 14, 2009.

  1. Feb 14, 2009 at 1:23 PM
    #1
    longbow

    longbow [OP] I see you now..................

    Joined:
    Jun 26, 2008
    Member:
    #7586
    Messages:
    4,048
    Gender:
    Male
    First Name:
    Bill
    Indiana
    Vehicle:
    05 Tacoma Silver Mica TRD 4 Door
    Toy-tec Coil over lift, Eibach 700 lb springs, Sway bar relocate, Total Chaos UCA's, Moto metal wheels, BFG mudterrians, HID, custom 3 piece grill, Highlift jack w/custom mount, Highlift jack cover, bed matt, de-badged 100%, storage box lock mod, using defrost w/o AC mod, short antenna mod, horn re-locate, Tire Gate flat spare tire mount, engine cover painted, bed light (1) mod, wreck bar carrier, Blue Sea 5026 fuse block, center console outlet, flash light mod, Blue Sea inline fuse, Shrockworks sliders, All-Pro front bumper, Piaa 510 driving lights, Warn shackles front, Kennesaw rear bumper, "Tag Boltz" plate lights, Warn shackles rear, Warn M8000 winch, devil horns, BHLM, weathech liners front and rear.....T.W. sticker of course. Custom Sock bed decal for Michele

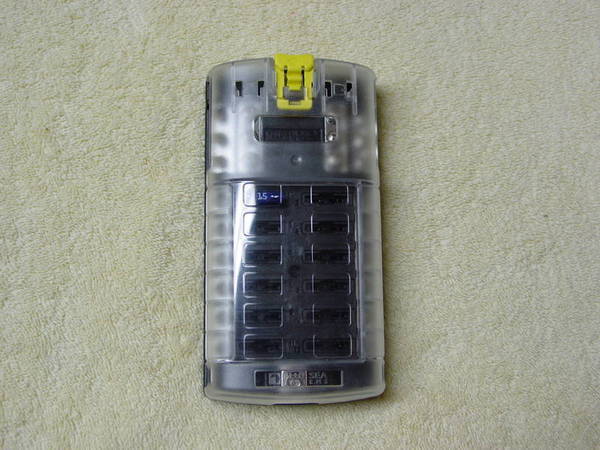

    Here is the fuse block I went with. It is a Blue Sea 5026, since I have a number of items to wire to it, felt this was the best way to go.
    [​IMG]
    [​IMG]
    Next was finding a location to mount it, I wanted it close to the battery and close to the firewall. I went with the same location I used for the horn relocate. Two holes already and two bolts.
    [​IMG]

  2. Feb 14, 2009 at 1:29 PM
    #2
    longbow

    longbow [OP] I see you now..................

    Joined:
    Jun 26, 2008
    Member:
    #7586
    Messages:
    4,048
    Gender:
    Male
    First Name:
    Bill
    Indiana
    Vehicle:
    05 Tacoma Silver Mica TRD 4 Door
    Toy-tec Coil over lift, Eibach 700 lb springs, Sway bar relocate, Total Chaos UCA's, Moto metal wheels, BFG mudterrians, HID, custom 3 piece grill, Highlift jack w/custom mount, Highlift jack cover, bed matt, de-badged 100%, storage box lock mod, using defrost w/o AC mod, short antenna mod, horn re-locate, Tire Gate flat spare tire mount, engine cover painted, bed light (1) mod, wreck bar carrier, Blue Sea 5026 fuse block, center console outlet, flash light mod, Blue Sea inline fuse, Shrockworks sliders, All-Pro front bumper, Piaa 510 driving lights, Warn shackles front, Kennesaw rear bumper, "Tag Boltz" plate lights, Warn shackles rear, Warn M8000 winch, devil horns, BHLM, weathech liners front and rear.....T.W. sticker of course. Custom Sock bed decal for Michele
    I picked up some sheet alum, placed the fuse block on it and drew the outline. I added 1/8" on the sides and a inch and half on the end (bend part).
    I then traced the block holes and drilled out. I then check the bolt holes on the truck, marked and drilled them out. I oplong the one mount hole.
    [​IMG]

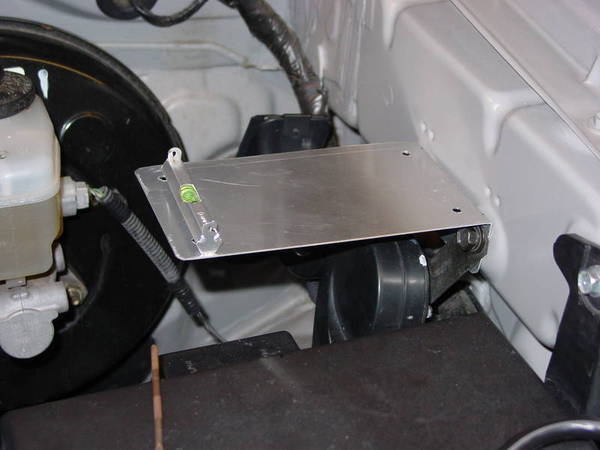

    I did a test fit and check for level in the bend. If you go this route be prepared to install and remove the bolts alot. I went for the best fit possible, plus I want to make sure it looked good.
    [​IMG]

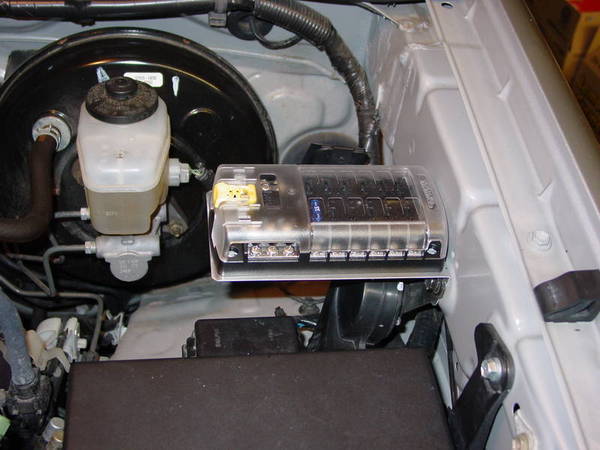

    Here is a test fit with the block installed.
    [​IMG]

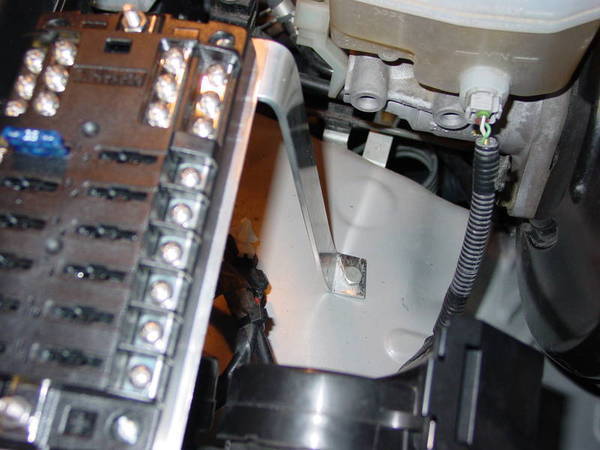

    I went ahead and decide to give it some extra support. I used 1" alum stock and bent to fit. It made the who assembly rock solid, plus added a guide area to run wires up. Had to drill one hole in the fender well, no biggie, and an easy fix.
    [​IMG]

  3. Feb 14, 2009 at 1:35 PM
    #3
    longbow

    longbow [OP] I see you now..................

    Joined:
    Jun 26, 2008
    Member:
    #7586
    Messages:
    4,048
    Gender:
    Male
    First Name:
    Bill
    Indiana
    Vehicle:
    05 Tacoma Silver Mica TRD 4 Door
    Toy-tec Coil over lift, Eibach 700 lb springs, Sway bar relocate, Total Chaos UCA's, Moto metal wheels, BFG mudterrians, HID, custom 3 piece grill, Highlift jack w/custom mount, Highlift jack cover, bed matt, de-badged 100%, storage box lock mod, using defrost w/o AC mod, short antenna mod, horn re-locate, Tire Gate flat spare tire mount, engine cover painted, bed light (1) mod, wreck bar carrier, Blue Sea 5026 fuse block, center console outlet, flash light mod, Blue Sea inline fuse, Shrockworks sliders, All-Pro front bumper, Piaa 510 driving lights, Warn shackles front, Kennesaw rear bumper, "Tag Boltz" plate lights, Warn shackles rear, Warn M8000 winch, devil horns, BHLM, weathech liners front and rear.....T.W. sticker of course. Custom Sock bed decal for Michele

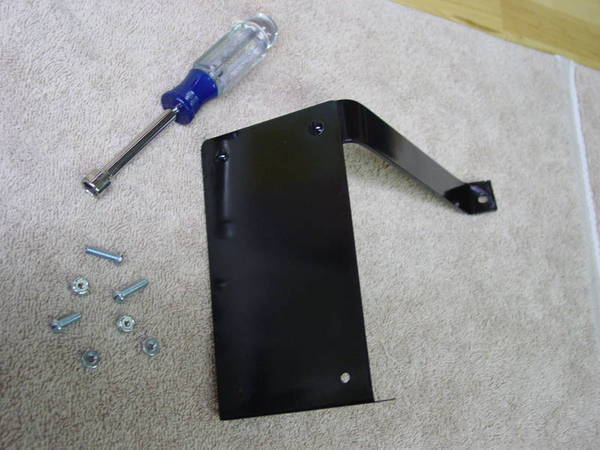

    After everything was tightend up, I removed everything, roughed up the alum, filed the edges smooth. Painted with a coat of primer and two coats of gloss black.
    [​IMG]
    Installed on bracket with out cover on.
    [​IMG]

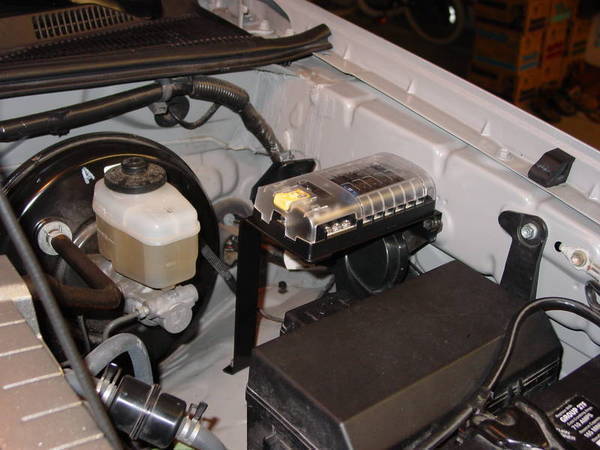

    Now the fun part, putting everything back on. The bolt thru the fender had to have the wife help on this one. After nut was tight, I sprayed undercoating on it, can't tell it is even their.
    [​IMG]

  4. Feb 14, 2009 at 1:39 PM
    #4
    longbow

    longbow [OP] I see you now..................

    Joined:
    Jun 26, 2008
    Member:
    #7586
    Messages:
    4,048
    Gender:
    Male
    First Name:
    Bill
    Indiana
    Vehicle:
    05 Tacoma Silver Mica TRD 4 Door
    Toy-tec Coil over lift, Eibach 700 lb springs, Sway bar relocate, Total Chaos UCA's, Moto metal wheels, BFG mudterrians, HID, custom 3 piece grill, Highlift jack w/custom mount, Highlift jack cover, bed matt, de-badged 100%, storage box lock mod, using defrost w/o AC mod, short antenna mod, horn re-locate, Tire Gate flat spare tire mount, engine cover painted, bed light (1) mod, wreck bar carrier, Blue Sea 5026 fuse block, center console outlet, flash light mod, Blue Sea inline fuse, Shrockworks sliders, All-Pro front bumper, Piaa 510 driving lights, Warn shackles front, Kennesaw rear bumper, "Tag Boltz" plate lights, Warn shackles rear, Warn M8000 winch, devil horns, BHLM, weathech liners front and rear.....T.W. sticker of course. Custom Sock bed decal for Michele

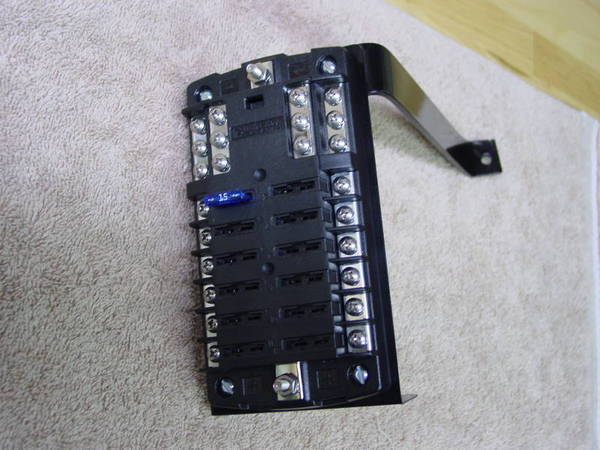

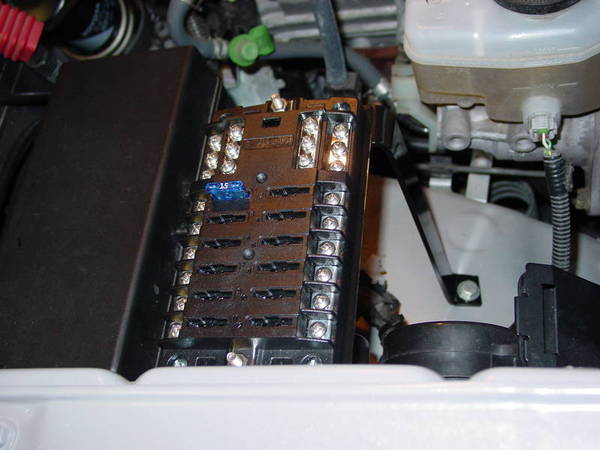

    Here is the finished fuse block less wires. Took me most of the day to do, but well worth it.
    [​IMG]
    [​IMG]

  5. Feb 14, 2009 at 6:44 PM
    #5
    silver07taco

    silver07taco Well-Known Member

    Joined:
    Apr 27, 2008
    Member:
    #6241
    Messages:
    4,557
    Gender:
    Male
    First Name:
    COIL
    Maryland
    Vehicle:
    13 Tundra RCSB 5.7 4x4,07 Tacoma AC 4.0 4x4
    2013 Tundra RCSB 5.7 4x4, 2007 Tacoma AC 4.0 4x4
    Awsome work, Thats how I am goin to mount mine:D, Thanks

  6. Feb 14, 2009 at 6:47 PM
    #6
    Delmarva

    Delmarva Mayor of TW

    Joined:
    Oct 22, 2008
    Member:
    #10148
    Messages:
    35,607
    Gender:
    Male
    First Name:
    Mike
    Tucson, AZ
    Vehicle:
    09 TRD OR S/C 4x4
    TRD S/C, Full OME Suspension, LR UCAs, Relentless Front Bumper, Derpwerx Fab HC Rear Bumper, 285/75/16 Revos, XD Hoss Wheels, Safari Snorkel, Infiniti FX-R HID Retrofit, Airbags in rear, Optima Yellow top, Besttop, All-Pro Skid, All-Pro HD Sliders
    Great job LB -- can't wait to see how ya wired it... :D

  7. Feb 25, 2009 at 6:49 AM
    #7
    longbow

    longbow [OP] I see you now..................

    Joined:
    Jun 26, 2008
    Member:
    #7586
    Messages:
    4,048
    Gender:
    Male
    First Name:
    Bill
    Indiana
    Vehicle:
    05 Tacoma Silver Mica TRD 4 Door
    Toy-tec Coil over lift, Eibach 700 lb springs, Sway bar relocate, Total Chaos UCA's, Moto metal wheels, BFG mudterrians, HID, custom 3 piece grill, Highlift jack w/custom mount, Highlift jack cover, bed matt, de-badged 100%, storage box lock mod, using defrost w/o AC mod, short antenna mod, horn re-locate, Tire Gate flat spare tire mount, engine cover painted, bed light (1) mod, wreck bar carrier, Blue Sea 5026 fuse block, center console outlet, flash light mod, Blue Sea inline fuse, Shrockworks sliders, All-Pro front bumper, Piaa 510 driving lights, Warn shackles front, Kennesaw rear bumper, "Tag Boltz" plate lights, Warn shackles rear, Warn M8000 winch, devil horns, BHLM, weathech liners front and rear.....T.W. sticker of course. Custom Sock bed decal for Michele
    I decided with this set up I needed to run an inline fuse. I looked all over the place here to find one over 40 amp's. I got in touch with silverback and he pointed me in the right direction.
    The fuse block itself will take up to 125 amp, overkill in my book also. So I wanted to run a 60 amp. I went with a Blue Sea inline fuse block with a 60 amp maxi fuse.
    Now I needed a place to mount it, it's not small. But I wanted to keep it close to keep the wire running down. Again silverback helped me out with a location.

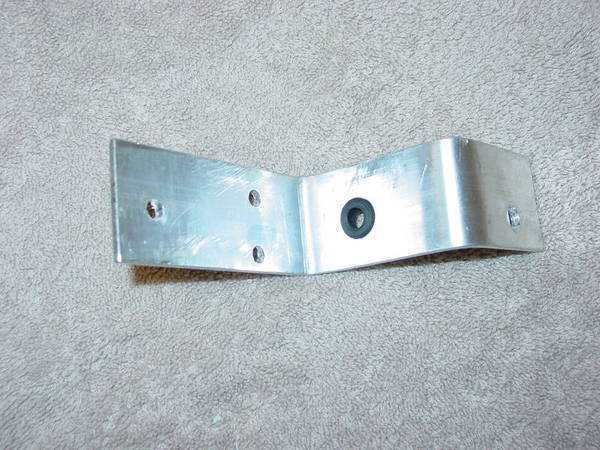

    Now I needed to fab the bracket, with all the hole drilled I also added a grommet, so no wire to metal contact.
    [​IMG]

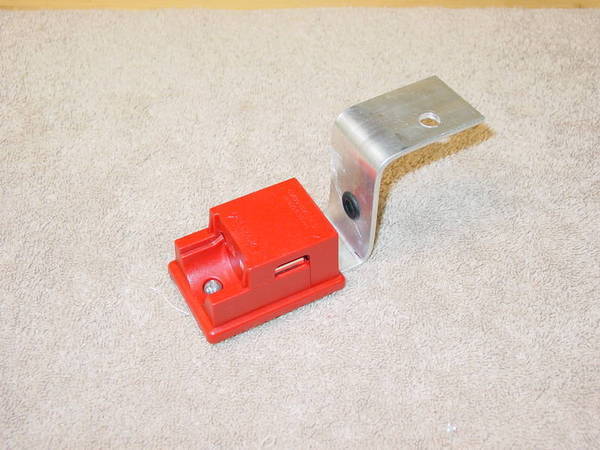

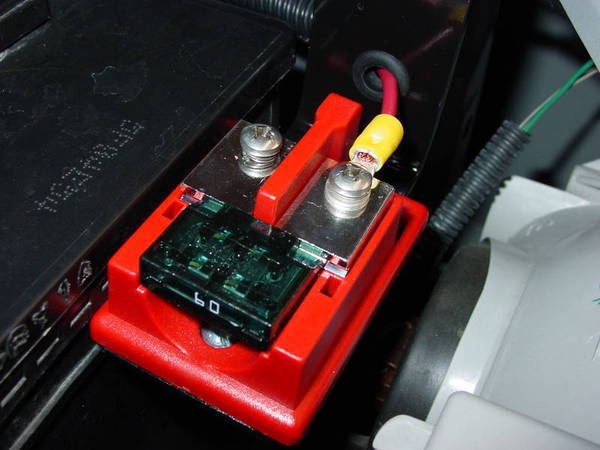

    Here is the inline fuse (covered) and mounted on the bracket.
    [​IMG]
    Here is the location I mounted the inline fuse. All hardware is S.S. the the bracket is alum. stock. The wires will be completely hidded, there is nothing that looks worse than wires running free. My goal was it to look "as purchased new" but then I can wear a grin on my face.
    [​IMG]

  8. Feb 25, 2009 at 6:55 AM
    #8
    longbow

    longbow [OP] I see you now..................

    Joined:
    Jun 26, 2008
    Member:
    #7586
    Messages:
    4,048
    Gender:
    Male
    First Name:
    Bill
    Indiana
    Vehicle:
    05 Tacoma Silver Mica TRD 4 Door
    Toy-tec Coil over lift, Eibach 700 lb springs, Sway bar relocate, Total Chaos UCA's, Moto metal wheels, BFG mudterrians, HID, custom 3 piece grill, Highlift jack w/custom mount, Highlift jack cover, bed matt, de-badged 100%, storage box lock mod, using defrost w/o AC mod, short antenna mod, horn re-locate, Tire Gate flat spare tire mount, engine cover painted, bed light (1) mod, wreck bar carrier, Blue Sea 5026 fuse block, center console outlet, flash light mod, Blue Sea inline fuse, Shrockworks sliders, All-Pro front bumper, Piaa 510 driving lights, Warn shackles front, Kennesaw rear bumper, "Tag Boltz" plate lights, Warn shackles rear, Warn M8000 winch, devil horns, BHLM, weathech liners front and rear.....T.W. sticker of course. Custom Sock bed decal for Michele
    Now comes the fun part, running wire. I went with 10 gauge and added eye loops on the end to match the fuse block and in-line fuse.
    I am not going to show all wires, way to many, but you will get the idea. beside with the new bumper coming, my wire routing has change a little.

    [​IMG]

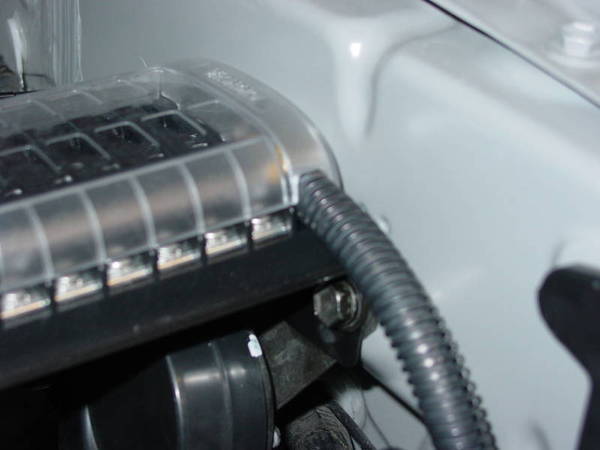

    here you see the open in-line fuse, with 60 amp fuse and one wire run, the other open area will go to the battery. The wires are covered for that factory look.
    [​IMG]
    This is all that you will see when you open the hood, I will update other wire running when it's complete.
    [​IMG]

  9. Feb 25, 2009 at 7:04 AM
    #9
    Ghost96Romeo

    Ghost96Romeo What is the Search Tab for????

    Joined:
    Oct 24, 2008
    Member:
    #10228
    Messages:
    1,963
    Gender:
    Male
    Kyle, TX
    Vehicle:
    06 TRD Off-Road D-Cab
    3" Pro-Comp Suspension Lift AAL Rear w/TSB, All-Pro Plate Bumper, Lightforce 240 Blitz lights, Lund Genesis Roll-top Bed cover, K&N Filters, Spidertrax Wheel spacers, Built-by-Me Rock Sliders, Jeep Tow-Hook, Black Leather seats, 48"Hi-Lift Jack mounted in the bed, Blacked out TRD Rims, BHLM, FLM..... and Awesomeness
    Sweet LB, What is this for?

  10. Feb 25, 2009 at 7:06 AM
    #10
    LonghornTaco

    LonghornTaco Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
  11. Feb 25, 2009 at 7:10 AM
    #11
    longbow

    longbow [OP] I see you now..................

    Joined:
    Jun 26, 2008
    Member:
    #7586
    Messages:
    4,048
    Gender:
    Male
    First Name:
    Bill
    Indiana
    Vehicle:
    05 Tacoma Silver Mica TRD 4 Door
    Toy-tec Coil over lift, Eibach 700 lb springs, Sway bar relocate, Total Chaos UCA's, Moto metal wheels, BFG mudterrians, HID, custom 3 piece grill, Highlift jack w/custom mount, Highlift jack cover, bed matt, de-badged 100%, storage box lock mod, using defrost w/o AC mod, short antenna mod, horn re-locate, Tire Gate flat spare tire mount, engine cover painted, bed light (1) mod, wreck bar carrier, Blue Sea 5026 fuse block, center console outlet, flash light mod, Blue Sea inline fuse, Shrockworks sliders, All-Pro front bumper, Piaa 510 driving lights, Warn shackles front, Kennesaw rear bumper, "Tag Boltz" plate lights, Warn shackles rear, Warn M8000 winch, devil horns, BHLM, weathech liners front and rear.....T.W. sticker of course. Custom Sock bed decal for Michele
    Just in case something gets screwed up.......:D
    This is just you standard inline fuse, but beefed up. Wire will run from my battery to this (inline fuse) and then to the new fuse block.
    Just being on the safe side.......

  12. Feb 25, 2009 at 7:15 AM
    #12
    Ghost96Romeo

    Ghost96Romeo What is the Search Tab for????

    Joined:
    Oct 24, 2008
    Member:
    #10228
    Messages:
    1,963
    Gender:
    Male
    Kyle, TX
    Vehicle:
    06 TRD Off-Road D-Cab
    3" Pro-Comp Suspension Lift AAL Rear w/TSB, All-Pro Plate Bumper, Lightforce 240 Blitz lights, Lund Genesis Roll-top Bed cover, K&N Filters, Spidertrax Wheel spacers, Built-by-Me Rock Sliders, Jeep Tow-Hook, Black Leather seats, 48"Hi-Lift Jack mounted in the bed, Blacked out TRD Rims, BHLM, FLM..... and Awesomeness
  13. Sep 24, 2012 at 4:28 PM
    #13
    EricGagne

    EricGagne Well-Known Member

    Joined:
    Aug 10, 2010
    Member:
    #41516
    Messages:
    125
    Gender:
    Male
    First Name:
    Eric
    Montreal
    Vehicle:
    2010 TRD Off Road
    Literider Tonneau Cover, RAM Mount Laptop Support. Uniden CB RTT and awning with self-designed custom rack Dual battery system - National Luna solenoid and monitor, Columbia Overland dual battery tray, 2 Odyssey PC1200 12 circuits Fuse block with 80A macro fuse block "breaker" OME suspension Replaced passenger area with a flat platform for my ARB fridge and camping clothes. Tiregate HG series
    Nice job Longbow. I'm going to borrow your idea as a starting point to design a bracket for my BluSea fuse block.

    I want mine to hold the fuse block and my dual battery solenoid but I think all I need to do is add a side panel because the solenoid has to be mounted vertically.
