Blue Sea aux fuse block install

Discussion in '2nd Gen. Tacomas' started by tooblutacoma06, Jan 14, 2010.

  1. Jan 14, 2010 at 7:48 PM
    #1
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    290
    Gender:
    Male
    First Name:
    Kellon
    Houston
    I hate messy wires. This is a great way to clean up all your wires and make your accessory wiring much safer and easier to get to incase of problems.

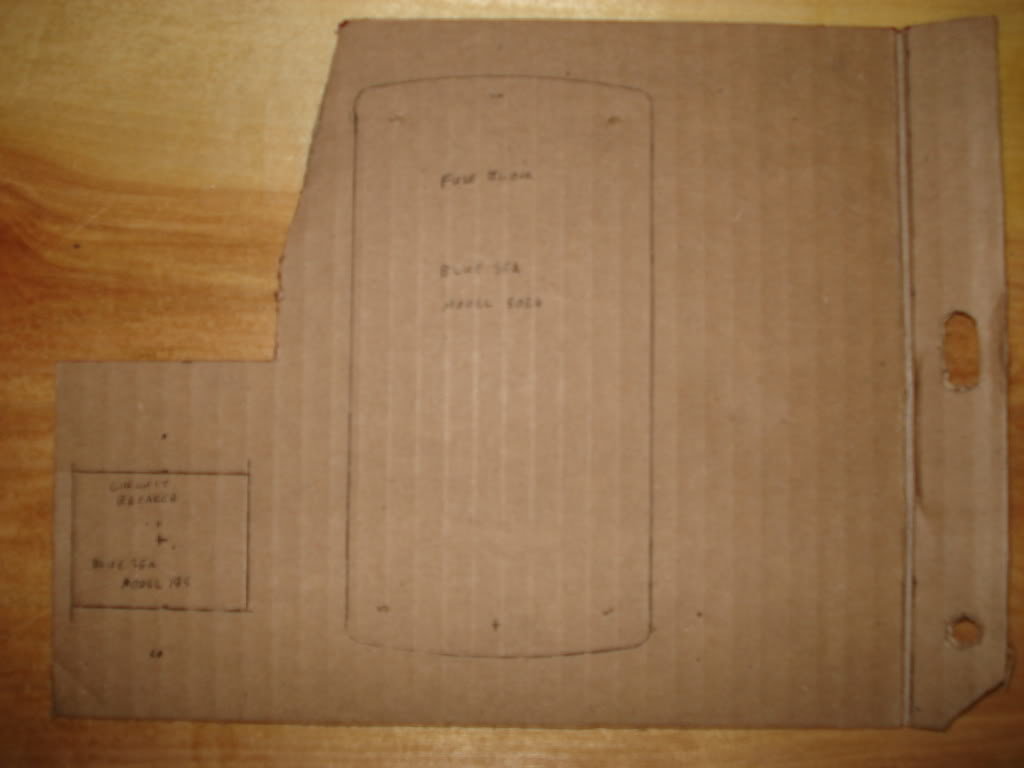

    I started with a cardboard template for the mounting plate:[​IMG]

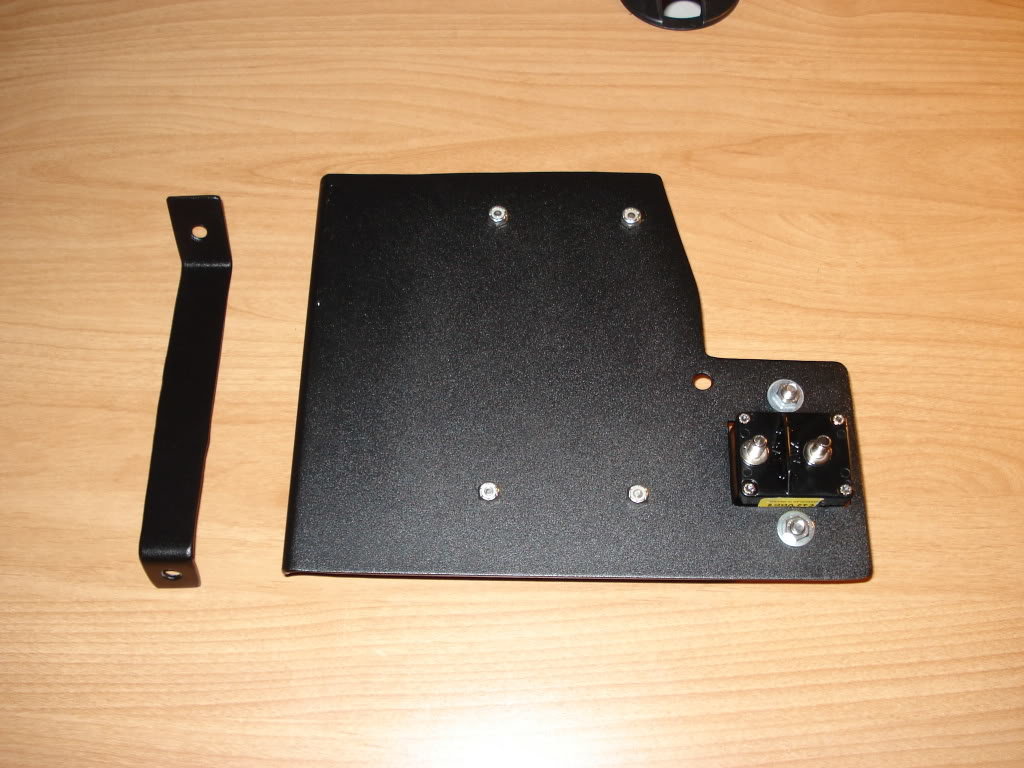

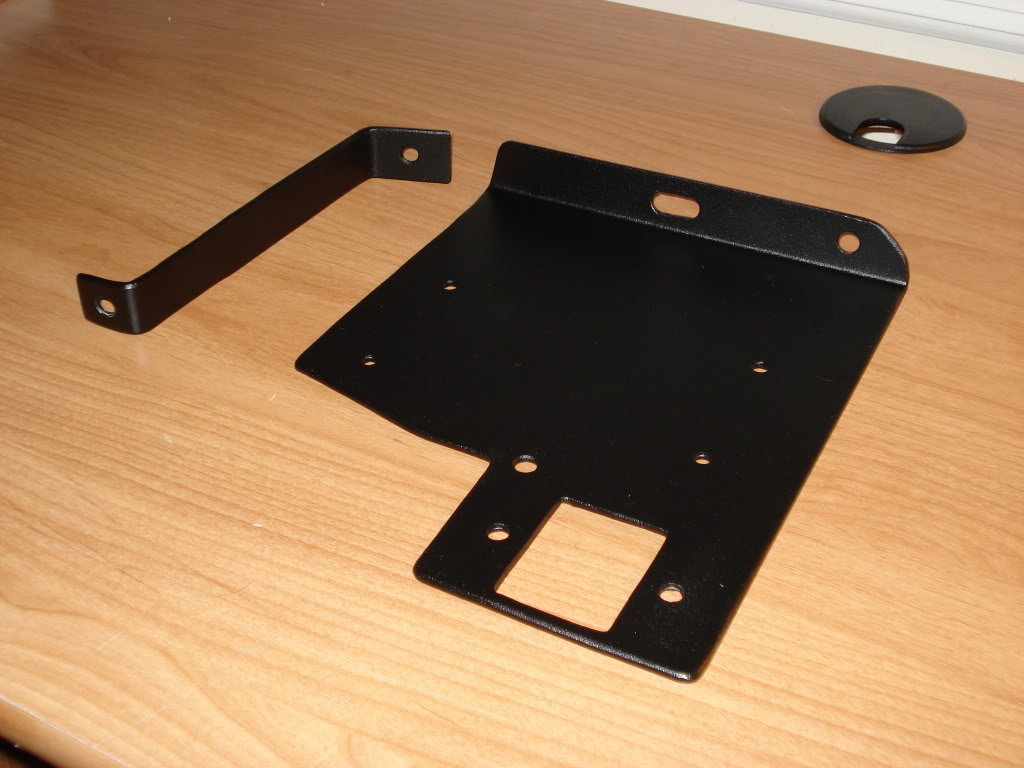

    From there, I went to my local metal supply shop and picked up a 12"x12" section of 3/16" aluminum (I forget which alloy it was. Make sure it's workable though). I had the shop put a 90deg bend in it. I then cut it to the dimensions of the template and had it powdercoated:
    [​IMG]

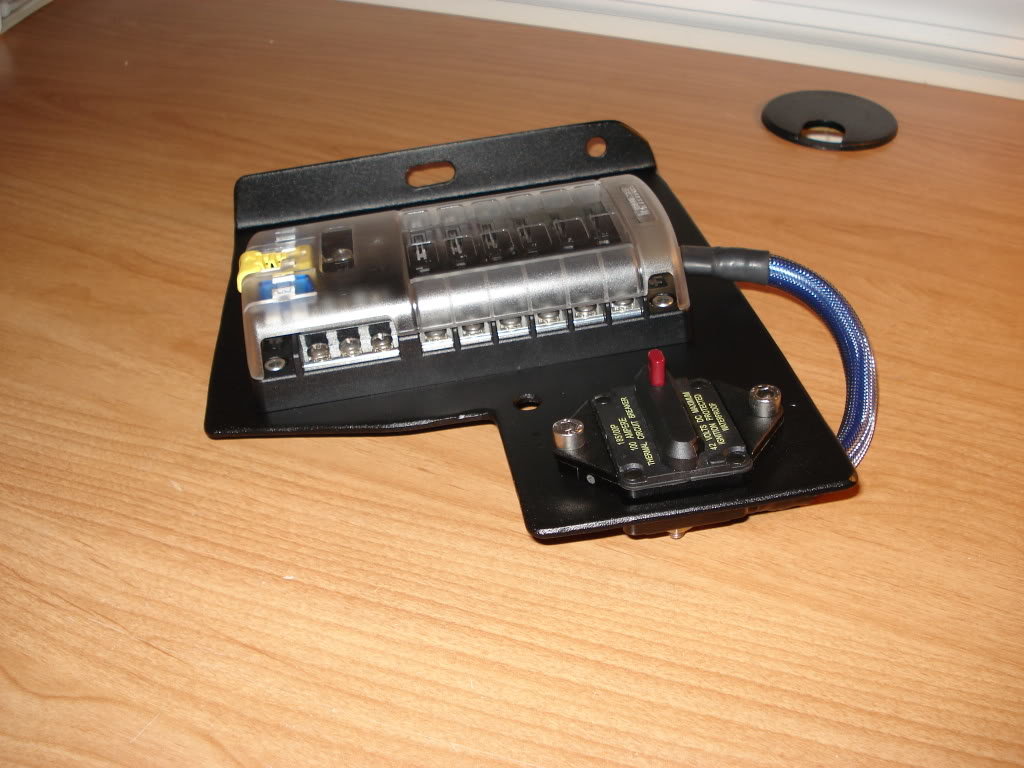

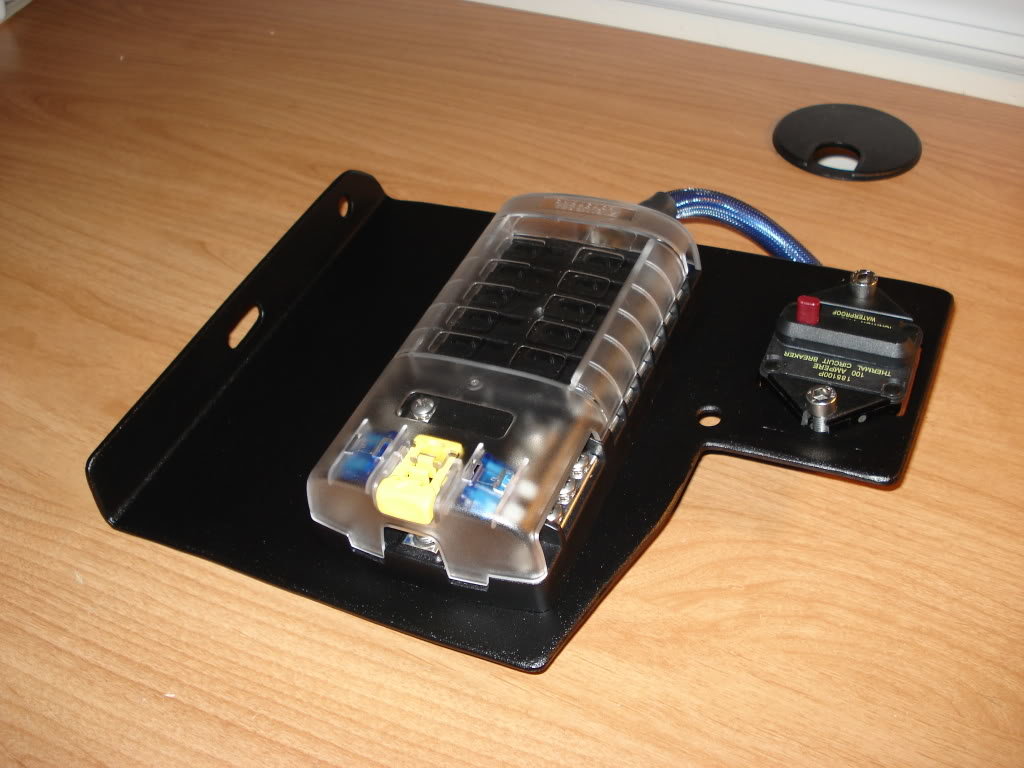

    Equipment installed on the mounting plate: Blue Sea Systems 12 circuit fuse box and a Blue Sea Systems 100A panel mount breaker.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

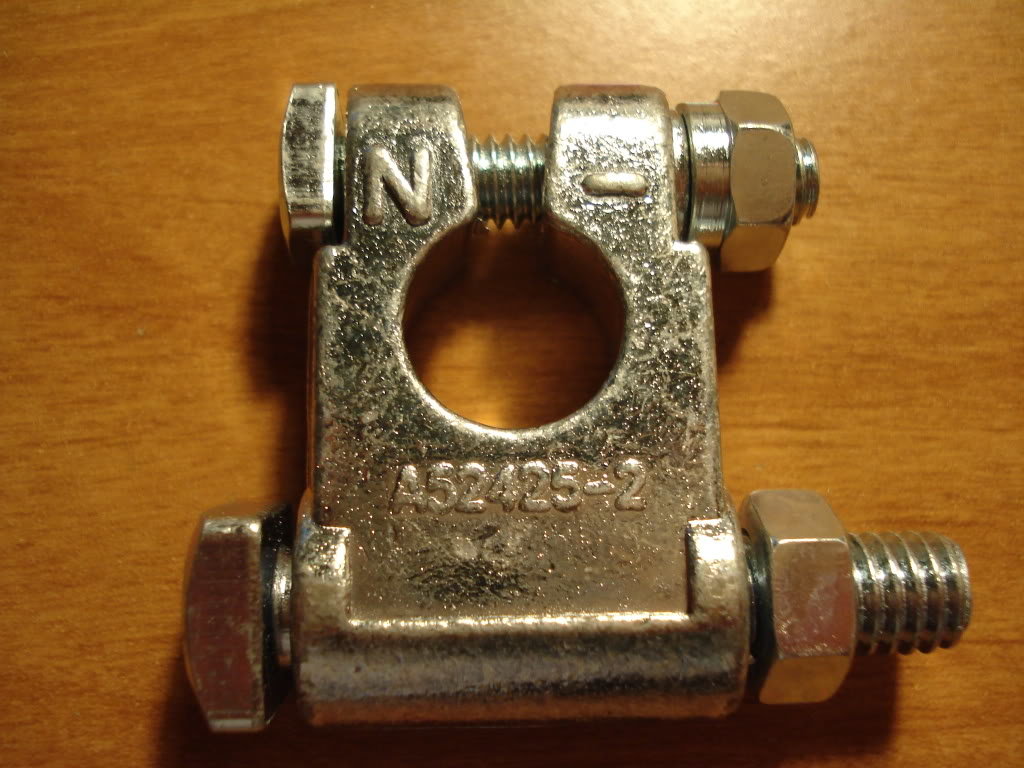

    I wanted to get nice solid battery terminals as well. I opted for military spec terminals. They are extra beefy and won't corrode on me.

    [​IMG]

    [​IMG]

    [​IMG]

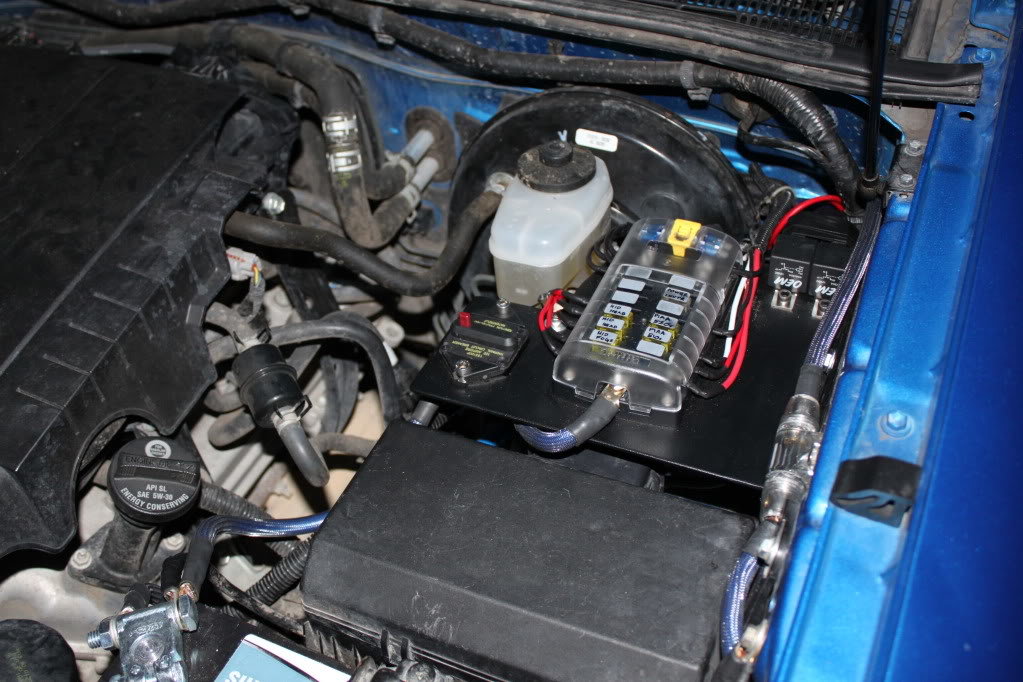

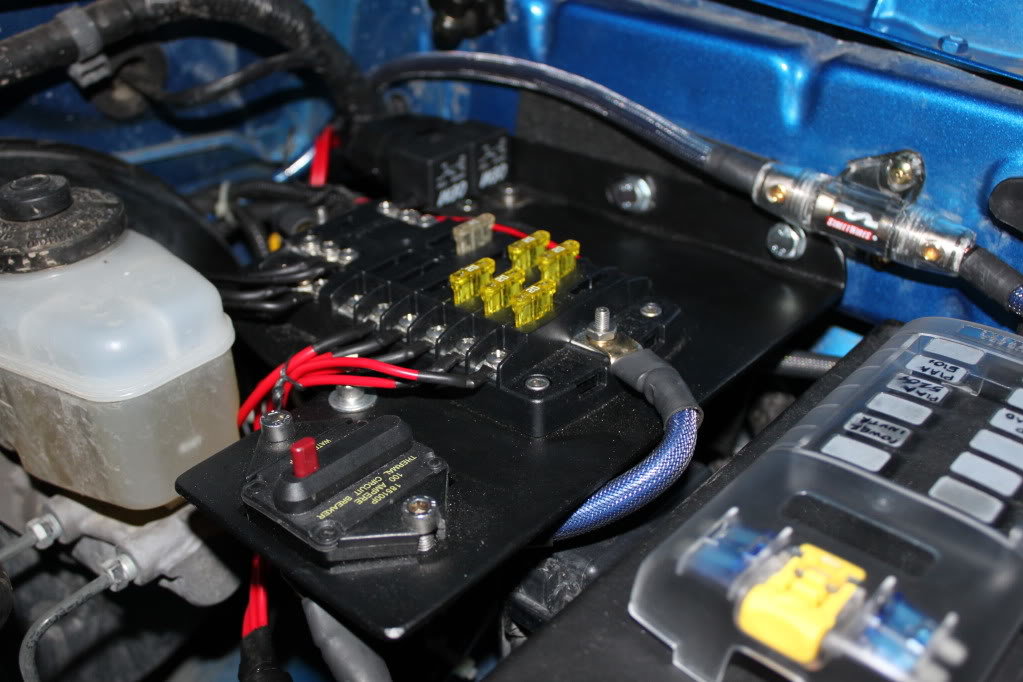

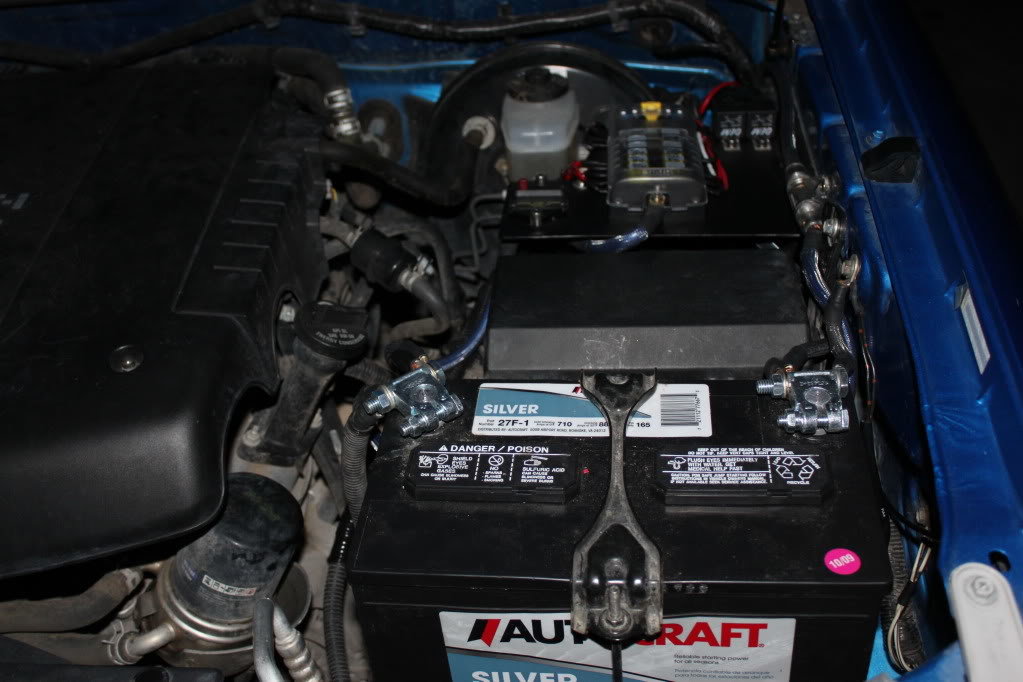

    Here is the panel mounted. As you can see in the photo, I also added relays to the panel for current and future accessories. I have relay sockets that will allow for easy removal of the panel if need be. I have room for atleast 3 relays on the panel.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    I wish I would have taken before pictures. I feel a whole lot better about my wires now. Everything is nice and clean and easy to get to. I highly suggest one of these fuse blocks for auxiliary circuits. Let me know what you think!

    RogueTRD likes this.
  2. Jan 14, 2010 at 7:53 PM
    #2
    HondaGM

    HondaGM Roll Tide

    Joined:
    Oct 28, 2009
    Member:
    #25056
    Messages:
    5,805
    Gender:
    Male
    First Name:
    James
    South-Pole
    Vehicle:
    09 DC 4x4 Blown Honda VTEC V8
    trd exhaust,step bars,vent visors,bed lights,tailgate mod
    that is the way i like it there, good job.this could be a sticky.

  3. Jan 14, 2010 at 8:03 PM
    #3
    topgun155

    topgun155 Well-Known Member

    Joined:
    Dec 18, 2008
    Member:
    #11728
    Messages:
    2,781
    Gender:
    Male
    First Name:
    Zack
    Richmond, TX or College Station, TX
    Vehicle:
    08 Prerunner V6 Black
    Viper Alarm, In Pro Car Wear L.E.D. Tail Lights, Fog Lights, ScanGuageII, AvidOffroad Light Bar, Ammo Box Mod, Tailgate Theft Prevention Mod, Satoshi Grill, Hella 500ff behind the grill, blendmount, Cruise Control Mod, Fog Light Mod, 5100's @1.75, Toytec TSB AAL 1.5".
    Nice work.

  4. Jan 14, 2010 at 9:52 PM
    #4
    krans

    krans Well-Known Member

    Joined:
    Feb 28, 2009
    Member:
    #14173
    Messages:
    418
    Gender:
    Male
    First Name:
    Kenny
    Huntington beach/ West min duh
    Vehicle:
    09 Sport mall crawler
    Icon extended travel with resi front and rear,Camburg UCA, All pro standard leaf pack, Fogs anytime, General grabbers AT2,Custom stainless steel brake lines,bed box, Bestop soft top,50' light bar, amber rigid pods,CBI ditch mounts with LED pods,TRD intake,Anti dark hoodlights/rock light/LED whip,FX-R retros and Gibson catback..more mods to come
    Nice work! Very organized.

  5. Jan 15, 2010 at 5:31 AM
    #5
    911-3.2

    911-3.2 Well-Known Member

    Joined:
    Dec 18, 2008
    Member:
    #11724
    Messages:
    45
    Gender:
    Male
    CT
    Vehicle:
    Sold - 2010 Access Cab 4x4 I4 SR5
    Curt Receiver Hitch, Access Literider Tonneau
    Looks nice. I have that same one in my boat. Blue Seas makes some nice stuff!

  6. Jan 15, 2010 at 5:46 AM
    #6
    RCBS

    RCBS "Cause I'm mighty proud of that ragged old flag."

    Joined:
    Apr 9, 2008
    Member:
    #5845
    Messages:
    2,495
    Gender:
    Male
    Appalachia
    Vehicle:
    06 Main Runner OR
    X2 makes mine look like a hack job! lol

  7. Jan 15, 2010 at 8:24 AM
    #7
    griffin407c

    griffin407c Well-Known Member

    Joined:
    Oct 18, 2009
    Member:
    #24489
    Messages:
    584
    Gender:
    Male
    First Name:
    Ryan
    Upstate NY
    Vehicle:
    '12 DCLB MGM 4x4 Sport w/Entune
    3" Revtek Lift
    i have a similar set up. that mount is nice. wanna make one for me??!!??..... nudge nudge, wink wink :)

  8. Jan 15, 2010 at 8:33 AM
    #8
    Ronin

    Ronin iTaco

    Joined:
    Jun 11, 2009
    Member:
    #18300
    Messages:
    144
    Gender:
    Male
    First Name:
    Al
    Rockwall, Texas
    Vehicle:
    2008 Tacoma Sport 4x4
    low range leveling kit
    Very nice. Very professional.

    -Al

  9. Jan 15, 2010 at 8:30 PM
    #9
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    290
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Thanks guys! Everything works really well with this setup. I'm still not done cleaning up all the wires and tidying everything up. I'm using sockets for easy disconnects from the relays. With my next wiring project (roof lights) I'll almost have the block filled! That's kinda crazy.

    If you guys want a bracket like mine made, PM me and we can discuss a price and details.

  10. Jan 15, 2010 at 8:54 PM
    #10
    fletch aka

    fletch aka www.BeLikeBrit.org

    Joined:
    Jan 4, 2009
    Member:
    #12223
    Messages:
    7,154
    Gender:
    Male
    First Name:
    Gary
    Left Coast
    Vehicle:
    09 Magnetic Gray TRD OffRoad
    TRD cat back exhaust, TRD Cold Air Intake, differential breather mod' Hellwig rear sway bar, 16x8 TRD Ivan Stewart's, Michelin LTX A/T2, DTRL Stealth Mode Mod, custom "Texas Edition" shift knob, Sock's "Classic" bedside decals, MetalMiller custom grill emblem, 20% front tinted windows, tinted taillights, Viper alarm, ScanGauge II, Flyzeye Designs V2W Tacoma Interior LED lighting, de-mud flapped, de-badged, extra D-rings under bed bolts, WeatherTech ED floor mats, G4 Elite Fold a Cover ,Toyota bed mat, tailgate theft deterrent device and absolutely no plasti-dip!
    Nice job in the install. I like your wiring, I like that your not using the cheese-ball pre insulated stereo shop connectors that you have no idea if you got a good crimp or not. Use a quality connector and shrink wrap the end. This would make a great sticky.

  11. Jan 18, 2010 at 9:14 PM
    #11
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    290
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Skimping on connectors can cause troubles that's for sure! It's worth it to take a few extra seconds to make sure the crimp is secure and seal it up with heat-shrink. Thanks!

  12. Jan 18, 2010 at 9:40 PM
    #12
    skistoy

    skistoy Make mine a Double!

    Joined:
    Jul 6, 2009
    Member:
    #19356
    Messages:
    2,009
    Gender:
    Male
    First Name:
    Mike
    Western New York
    Vehicle:
    09 4X4 SR5 BSP Double Taco
    Rear Spring TSB,Billy 5100@.85,Bull bar,Nerfbar,Painted Grill,Painted Rims,Bed D-rings,Compustar Starter,Goodyear Duratrac's,Transmission TSB,Brake Overide
    great job!

  13. Jan 18, 2010 at 9:42 PM
    #13
    eschmunk

    eschmunk Well-Known Member

    Joined:
    Apr 30, 2009
    Member:
    #16620
    Messages:
    209
    Gender:
    Male
    Stuttgart, Germany
    Vehicle:
    09 Prerunner TRD Off-Road
    GrillCrafter Upper and Lower, Lamin-X Fog Light Covers, Di-Noc Carbon Valence Cover, WeatherTech Digital Fit Liners, Rubbermaid "ActionPacker" containers for bed storage.
    Definitely want to do something like this. I might try it out once I do my OBA/Trainhorn setup. Would be good for driving lights as well. Good job.

  14. Jan 18, 2010 at 10:34 PM
    #14
    AlexForbesR6

    AlexForbesR6 My R6 Eats Me

    Joined:
    Aug 20, 2009
    Member:
    #21488
    Messages:
    625
    Gender:
    Male
    First Name:
    Alex
    Houston, TX
    Vehicle:
    07 4x4 6-Spd
    very clean install

  15. Jan 23, 2010 at 6:02 PM
    #15
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    290
    Gender:
    Male
    First Name:
    Kellon
    Houston
  16. Jan 23, 2010 at 6:20 PM
    #16
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,903
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    forgive my ignorance, but what is the point/purpose of the breaker? i have one of these and have been meaning to install it, but might add that breaker if it makes sense to me. is it absolutely necessary?

    could you please expand on that and where you got it, thanks!

  17. Jan 23, 2010 at 9:24 PM
    #17
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    290
    Gender:
    Male
    First Name:
    Kellon
    Houston
    The circuit breaker takes the place of a fuse. Instead of having to replace a fuse incase it blows, you just flip the switch. Same as a house. To me, it's a more robust and a cleaner option. Also, if I'm out on the road or off the road and don't happen to have fuses with me, I can just flip the switch and have everything working again. A little more spendy but worth it.

    I'm thinking I ordered mine from boatersworld.com but you can just search blue sea 12v circuit breaker and you'll have tons of results.

  18. Apr 7, 2010 at 9:15 AM
    #18
    Tim A

    Tim A Well-Known Member

    Joined:
    Dec 26, 2009
    Member:
    #28169
    Messages:
    448
    Gender:
    Male
    Montana
    Vehicle:
    2011 TRD Offroad 6 spd Double Cab
    Nice work OP. I'm thinking about doing "add-a-circuits" but this looks like a much better way to add accessories.

    I have a couple questions. The answers will probably be simple to you...I'm a 12V noob!

    - I see that you have a large fuse mounted near the battery. Since you said you don't have a fuse between the battery and the aux fuse box, I'm assuming that fuse I'm seeing is for a stereo HU inside the cab? Why did you opt not to run whatever that is off of the new aux fuse panel?

    -Do you have multiple grounds coming off the battery? If so, what is the purpose of multiple grounds?

    -Do you have a wiring diagram that you could share? Hate to be a copy-cat but I like the way you did went about installing the aux panel.

    Thanks in advance:thumbsup:

  19. Apr 12, 2010 at 5:26 PM
    #19
    tooblutacoma06

    tooblutacoma06 [OP] Member

    Joined:
    Apr 26, 2007
    Member:
    #1426
    Messages:
    290
    Gender:
    Male
    First Name:
    Kellon
    Houston
    Hey Tim! Thanks for the compliments. It took a while of planning and sourcing parts to get it all done.

    1) You are correct. The fuse in the clear plastic holder is the fuse for my stereo system. The reason it is not in the Blue Sea box is because its amperage exceeds the max amperage limit for the box (I think it's 40A per circuit). And also, I opted to install a circuit breaker between the auxiliary fuse block and the battery instead of a fuse. I would highly, highly recommend installing either a circuit breaker or a fuse large enough to cover your circuits in front of the fuse box. The circuit breaker is great because you can reset it if it blows instead of buying more fuses. It's 100A rated.

    2) The grounds from the battery were rewired with 4 AWG wire. I have the original grounds and one that goes to the fuse block so that I could ground the circuits to the fuse block instead of random places on the truck. It's just cleaner and more accessible this way.

    3) Unfortunately I don't have a wiring diagram drawn up. If you follow the pictures though, it's pretty easy. I didn't do anything spectacular or different than OEM. Just added the necessary power and ground wires for the fuse block. The wiring for the individual circuits depends ofcourse on the add-on. If you have anymore questions just let me know.

    I hope I could help a little bit anyways. Good luck!

  20. Apr 12, 2010 at 8:17 PM
    #20
    ilovetacos

    ilovetacos Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,323
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    I am getting ready to tackle this feat...I already have the fuse block and circuit breaker. I am working on the steel plate. Thanks for ideas and write up!
